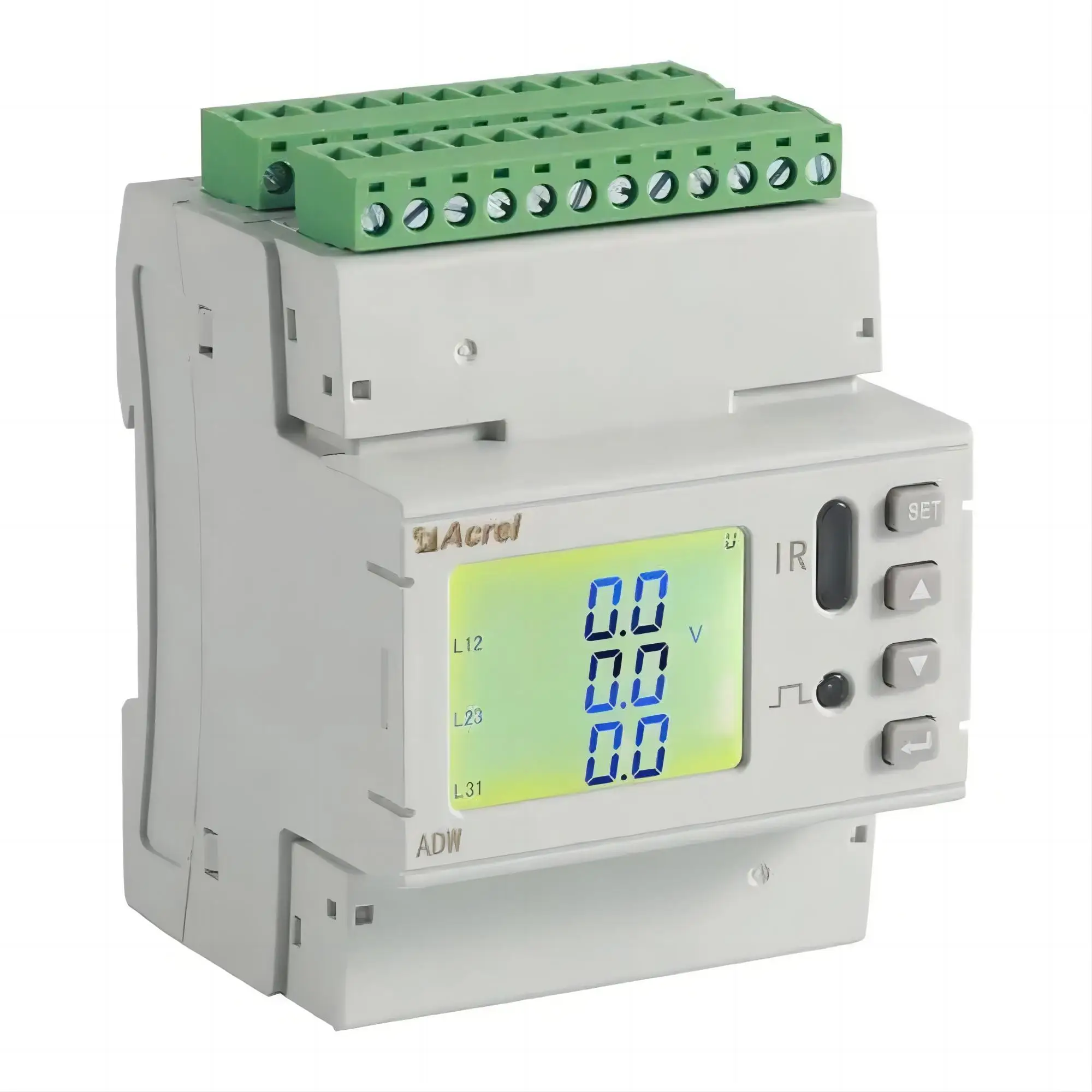

ADW210 3 Phase AC Multi Circuit Power Meter Din rail RS485 Modbus Rtu for Electric Iot System
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600935529448):
Product Overview
Description
Products Description

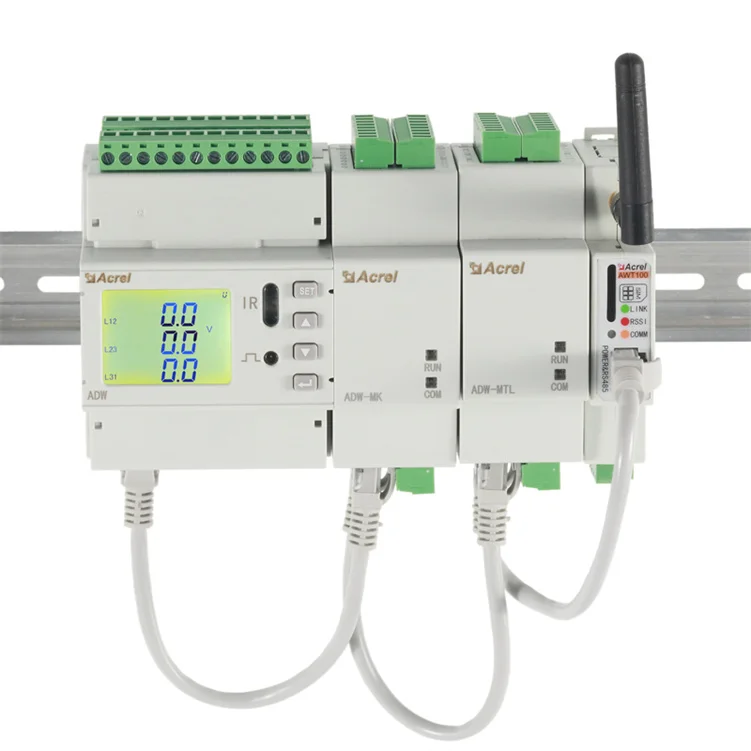

ADW210 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit.

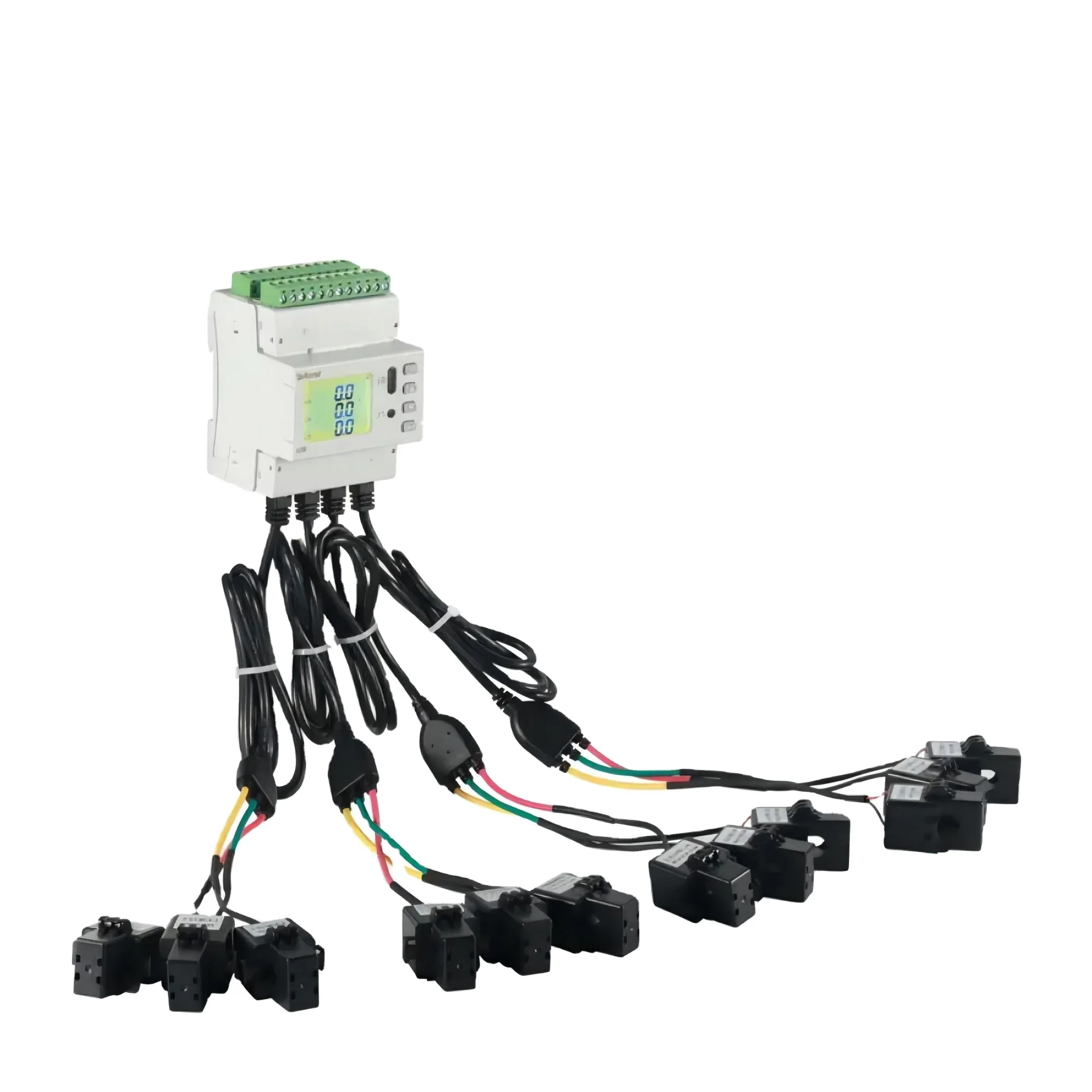

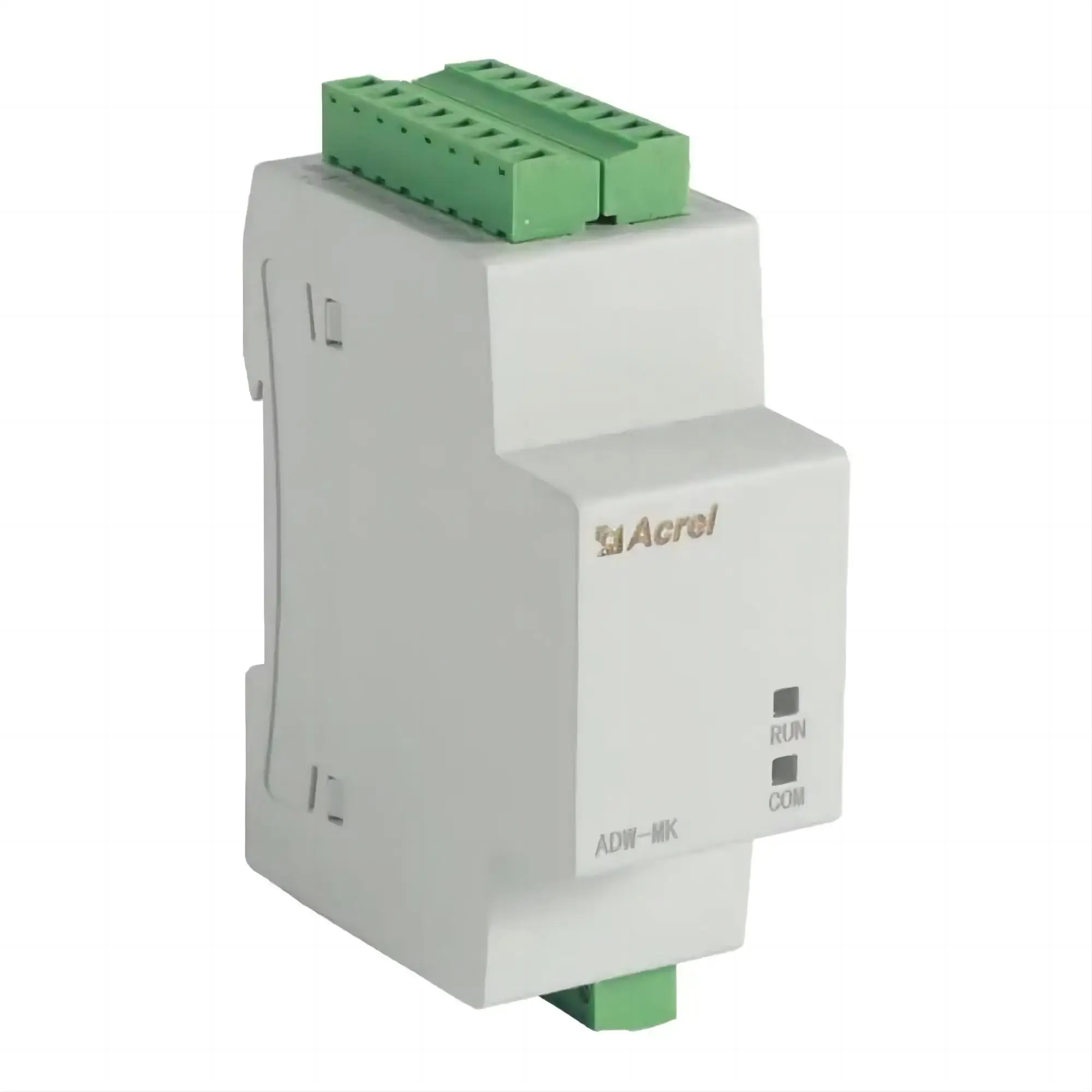

Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current

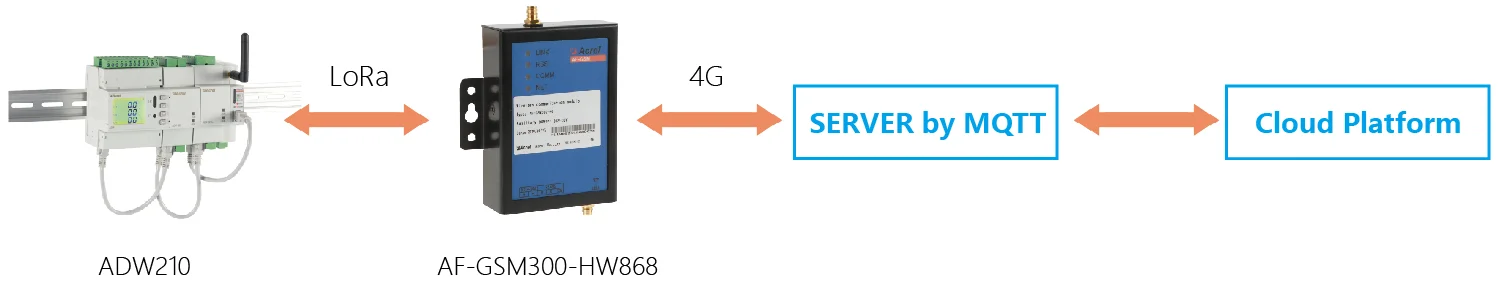

transformer, easy to install on site, and realize remote wireless communication through wireless communication module.
Colleagues can select the current input of the maximum four circuits. ADW2XX series products are connected by split core current
transformer, easy to install on site, and realize remote wireless communication through wireless communication module.

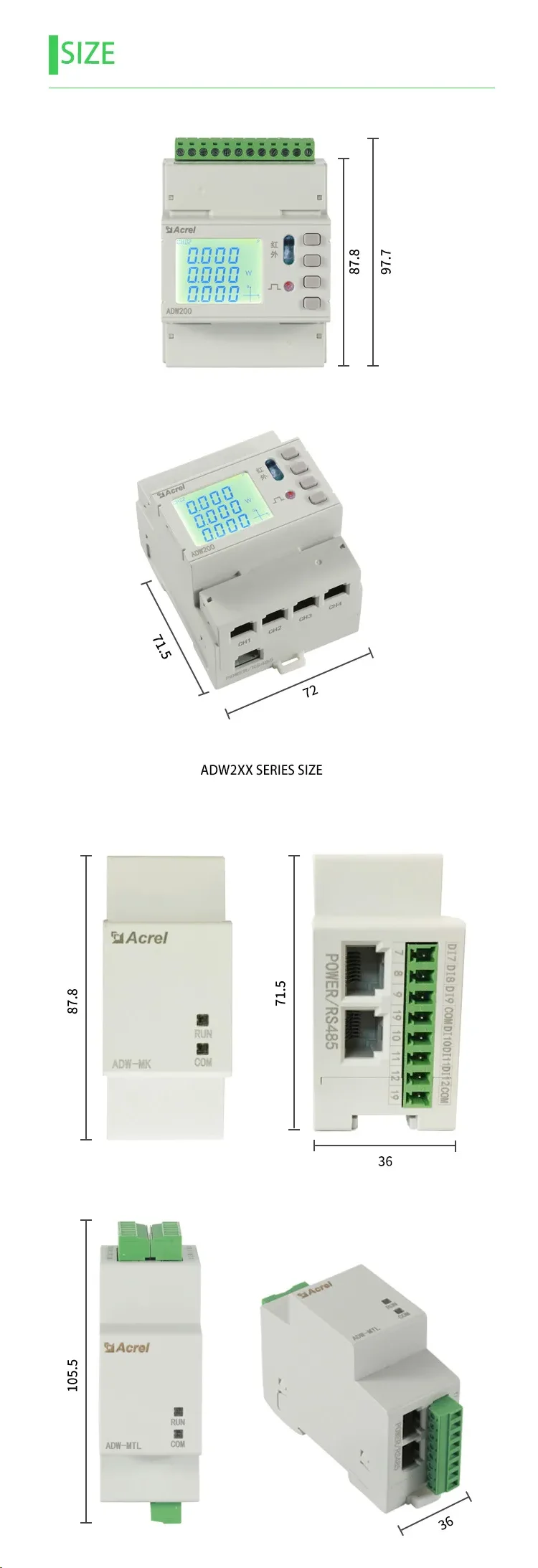

Technical parameters
Auxiliary power | AC/DC 85～265V; Consumption≤10VA; | ||
Input | Frequency | 45～65Hz; | |
Voltage | AC 3×220V/380V; Overload: 1.2 times of rated value (continuous); | ||
2 times of rated value / 1s; Power consumption: ≤ 0.5VA; | |||
Current | AC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA; | ||
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s; | |||
Measurement accuracy | Frequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%; | ||
Active electric energy level 1, reactive electric energy level 2; | |||
Features | Pulse output | Output mode: optocoupler pulse with open collector; | |
Communication | RS485、Modbus-RTU; Baud rate 1200～38400; | ||
Switching Input | Dry contact input、Built in power supply; | ||
Switching Output | Output mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A; | ||

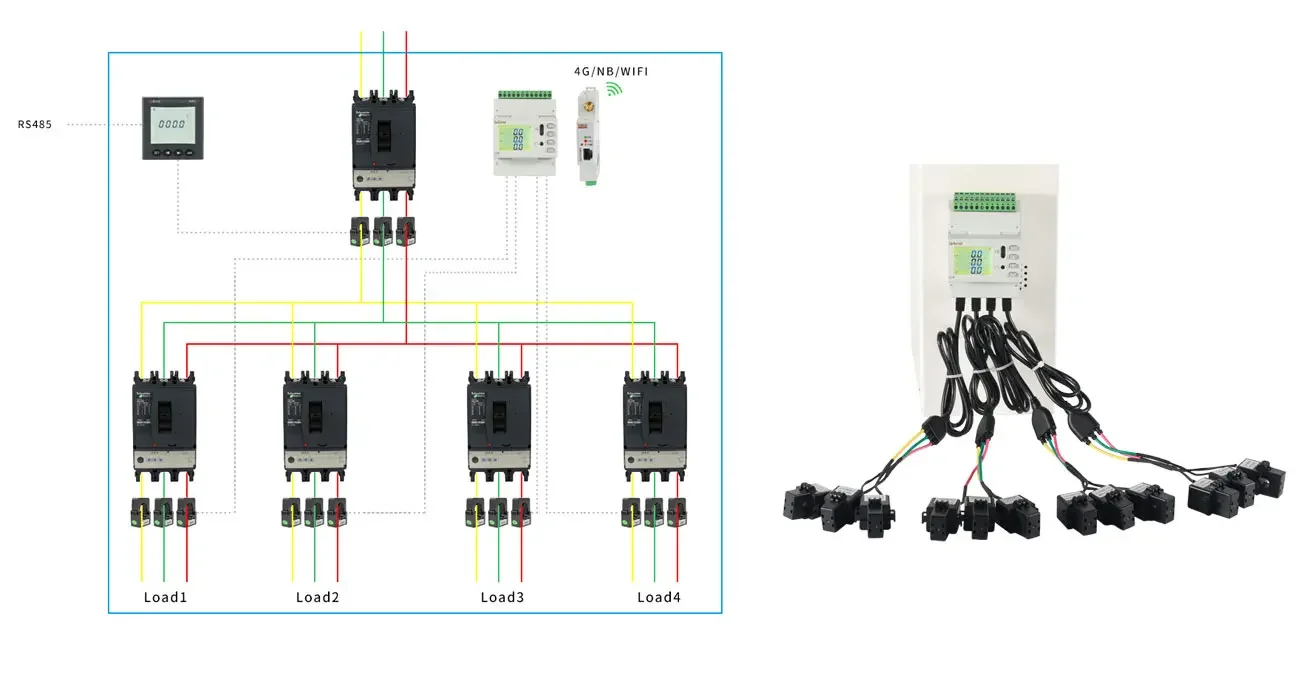

Wiring

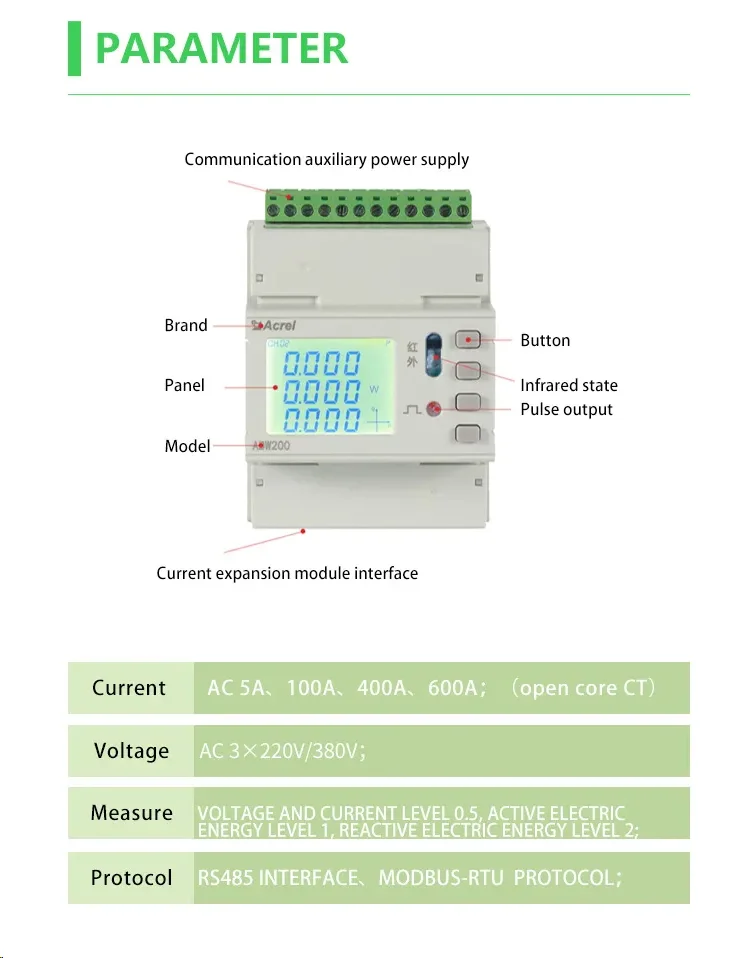

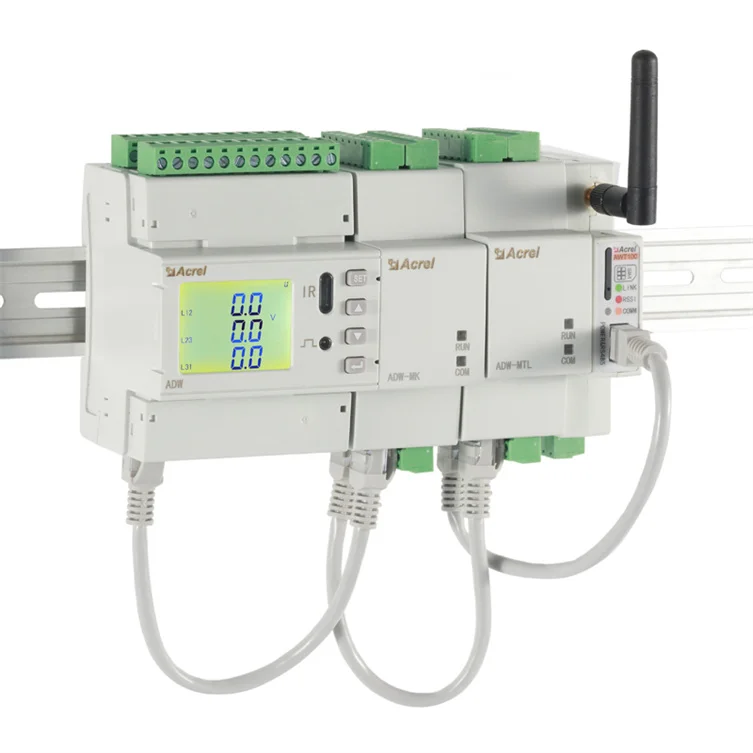

① U / Pulse / DO / DI / Communication / Auxiliary Power Supply
② Brand
③ Panel
④ Model Number

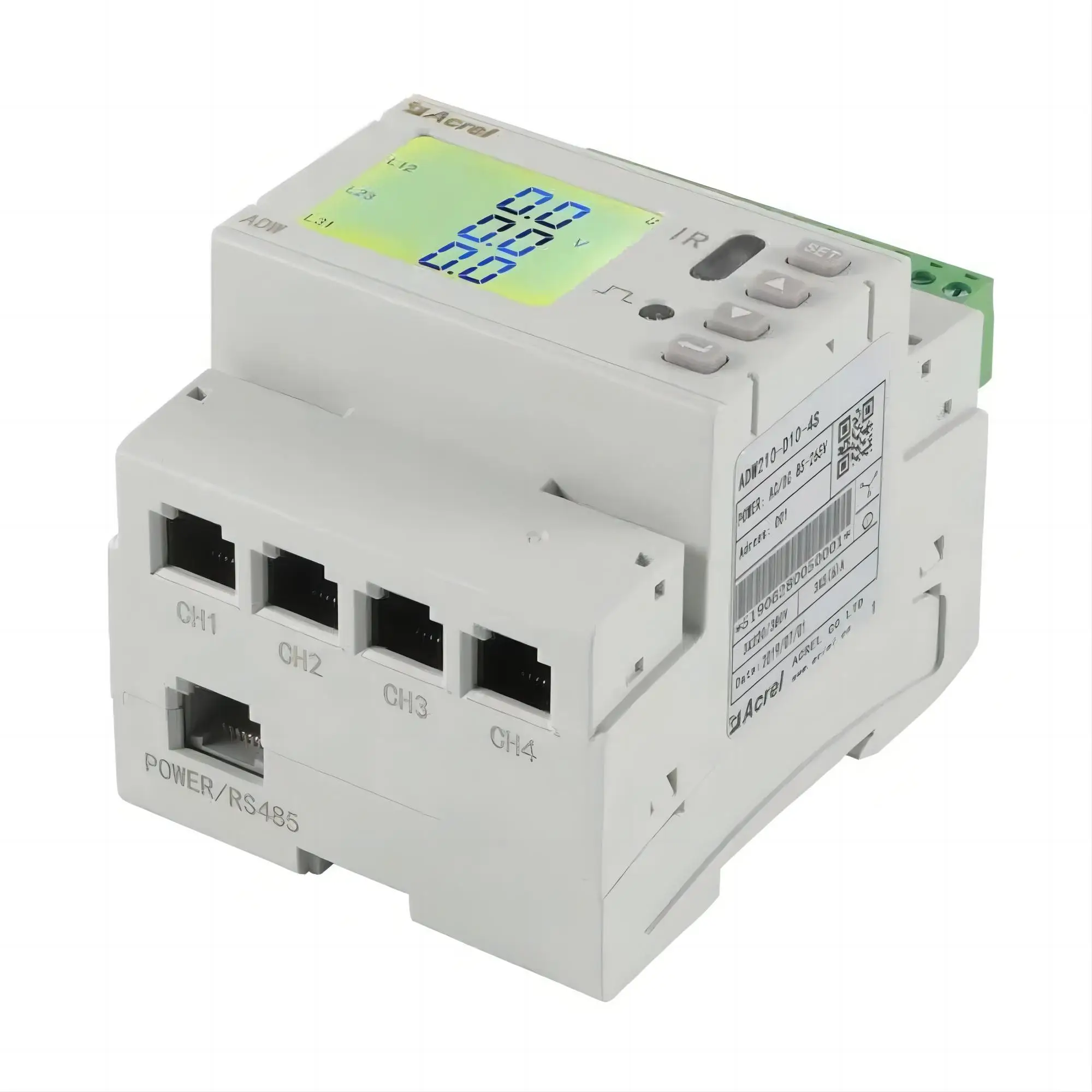

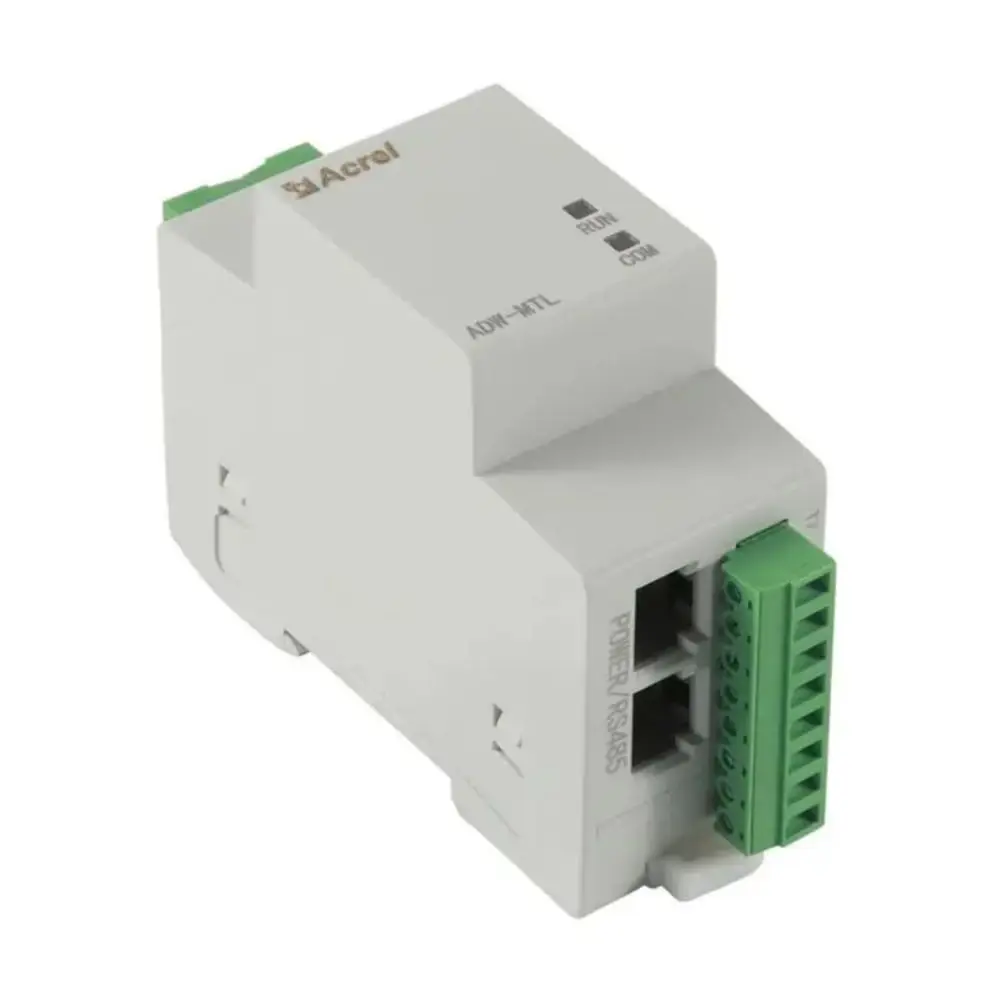

⑤ CH1, CH2, CH3, CH4 for current / extension module interface
⑥ Button
⑦ Infrared Status
⑧ Pulse Output Light
② Brand
③ Panel
④ Model Number
⑤ CH1, CH2, CH3, CH4 for current / extension module interface
⑥ Button
⑦ Infrared Status
⑧ Pulse Output Light
