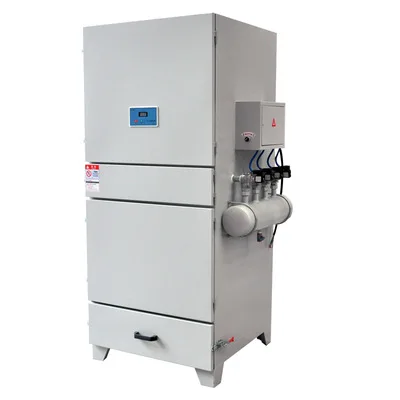

Low Noise High Efficiency Mini Dust Collector Carbon Steel Dust Collector
- Category: >>>
- Supplier: Wuxi York Intelligent Technology Co. Ltd.
Share on (1600935540804):
Product Overview
Description
Product Overview
High-Performance Industrial Pulse Jet Cleaning Dust Extraction System for Foundry and Casting
The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment, which is suitable for purifying
fine and dry non fiber dust.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After
filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust
particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air
will come out from the upper part of cleaner.
fine and dry non fiber dust.
The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After
filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust
particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air
will come out from the upper part of cleaner.
Product Paramenters
YORK Carbon Steel Cartridge Filter Dust Collector | ||||||||||||||
Model | Air volume m³/h | Power kw | Filter Qty. pc | Air Inlet mm | Air Outlet mm | Pressure pa | Dimension mm | |||||||
YKM-800 | 800 | 0.75 | 1 | Φ100 | 100*300 | 1210 | 500*500*1450 | |||||||
YKM-1600 | 1600 | 1.5 | 1 | Φ150 | 150*350 | 1360 | 550*550*1450 | |||||||
YKM-2200 | 2200 | 2.2 | 2 | Φ200 | 200*400 | 1470 | 650*650*1700 | |||||||
YKM-2700 | 2700 | 3.0 | 4 | Φ250 | 300*300 | 1578 | 800*800*2000 | |||||||
YKM-4000 | 4000 | 4.0 | 4 | Φ250 | 300*300 | 1650 | 800*800*2000 | |||||||
YKM-6000 | 6000 | 5.5 | 4 | Φ300 | 350*350 | 2014 | 950*950*2100 | |||||||
YKM-8000 | 8000 | 7.5 | 6 | Φ400 | 400*400 | 2554 | 1000*1200*2100 | |||||||
YKM-10000 | 10000 | 11.0 | 9 | Φ500 | 400*400 | 3100 | 1200*1200*2300 | |||||||
YKM-15000 | 15000 | 15.0 | 9 | Φ500 | 400*400 | 3200 | 1200*1200*2300 | |||||||
Dust collection method:Dust arms or pipe connection | ||||||||||||||
Fixing method:With fixed feet/movable universal wheels (optional) | ||||||||||||||
Details Images
Plastic sprayed surface
Smooth wear-resistant dust-free

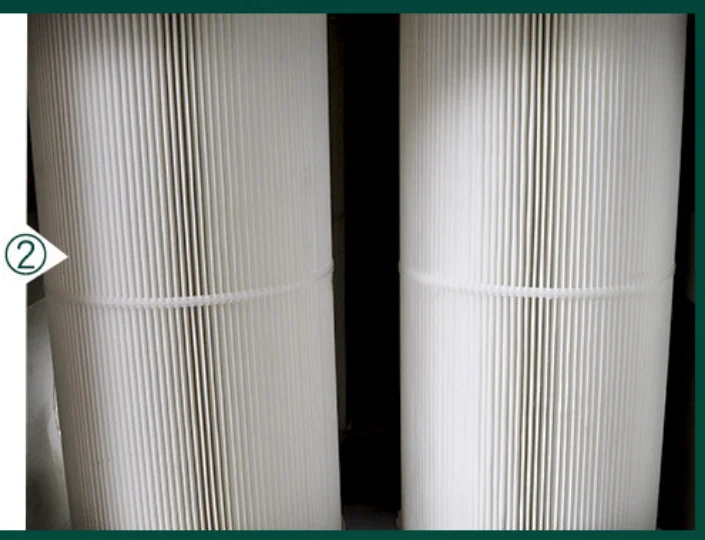

Filter with fiber fabric
High efficiency filtration

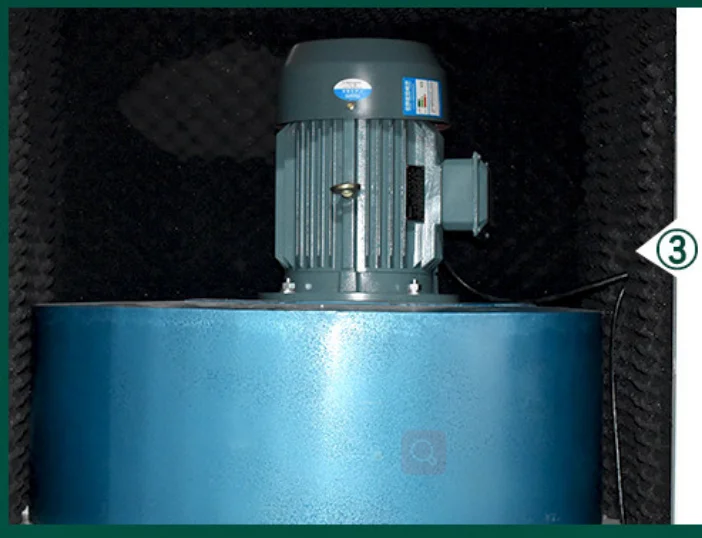

Low noise High efficiency Strong dust removal
Simple operation

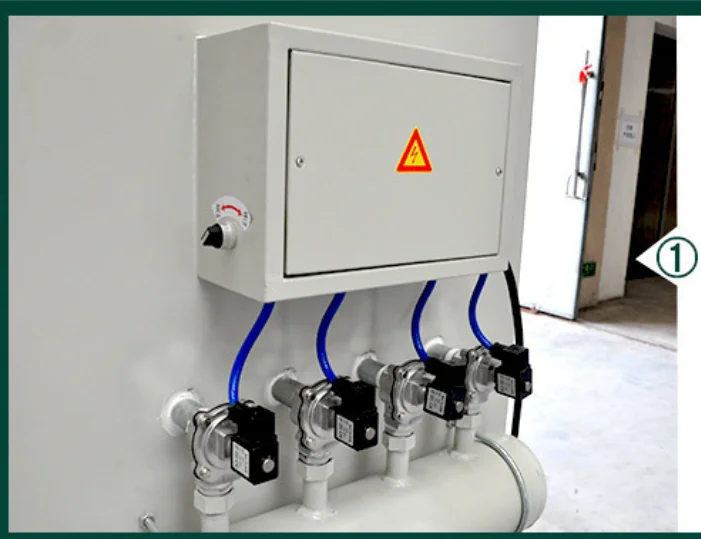

Reliable quality Overheating protection

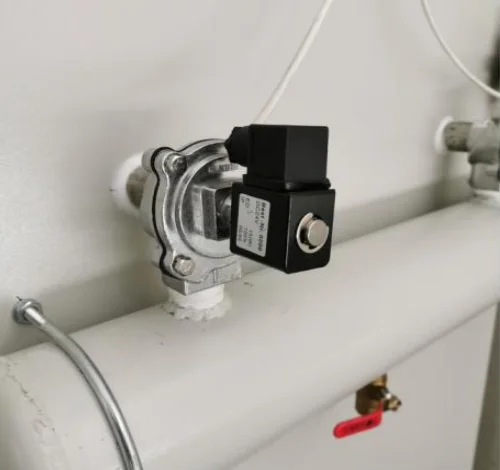

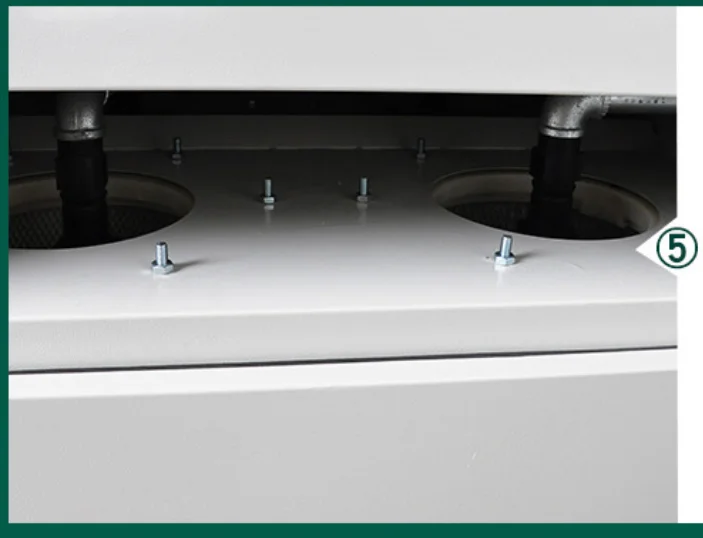

Fixed with bracket
Avoid pipe damage caused by high backblowing force

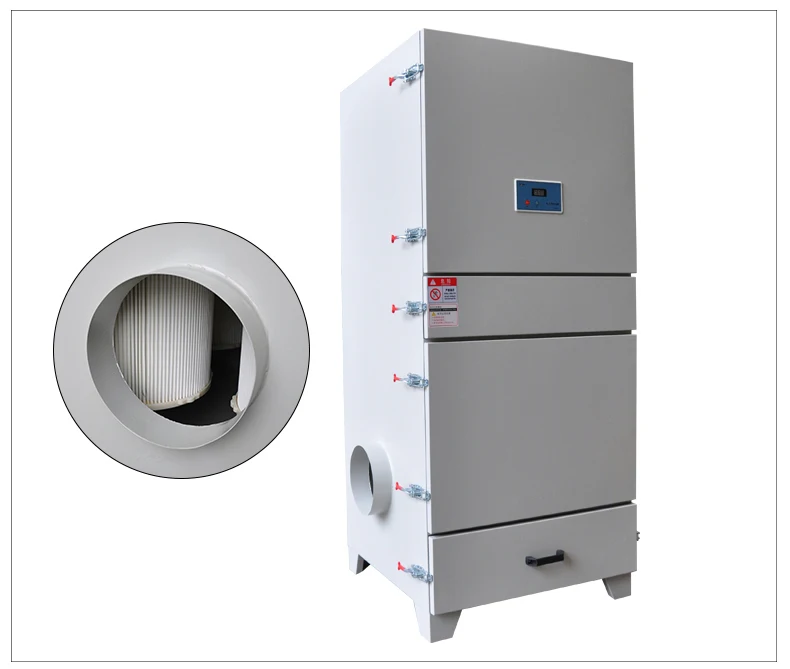

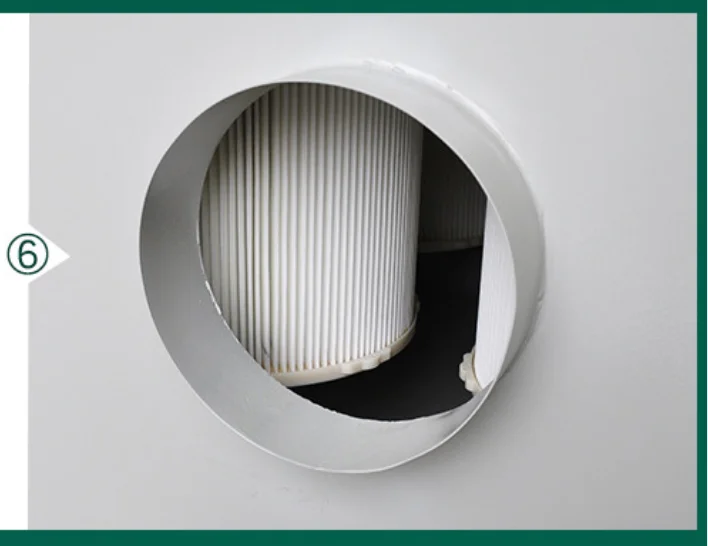

Dusty gas passes through the air inlet
Suction into the equipment for filtration
