Product Overview
Description
Product Description
Tings Water Filling Machine:
Water products are multifaceted, which could be natural spring water, purified water, carbonated water, flavored water... What process can be used to prevent the forming of bromate in side it? How to deploy mechanical filling valves to keep water clean and contaminant free? How to achieve the maximum benefit with speed, accuracy and light weight bottles? Tings machine, the expert in liquid filling machine, will always provide you with the best solution for your products.

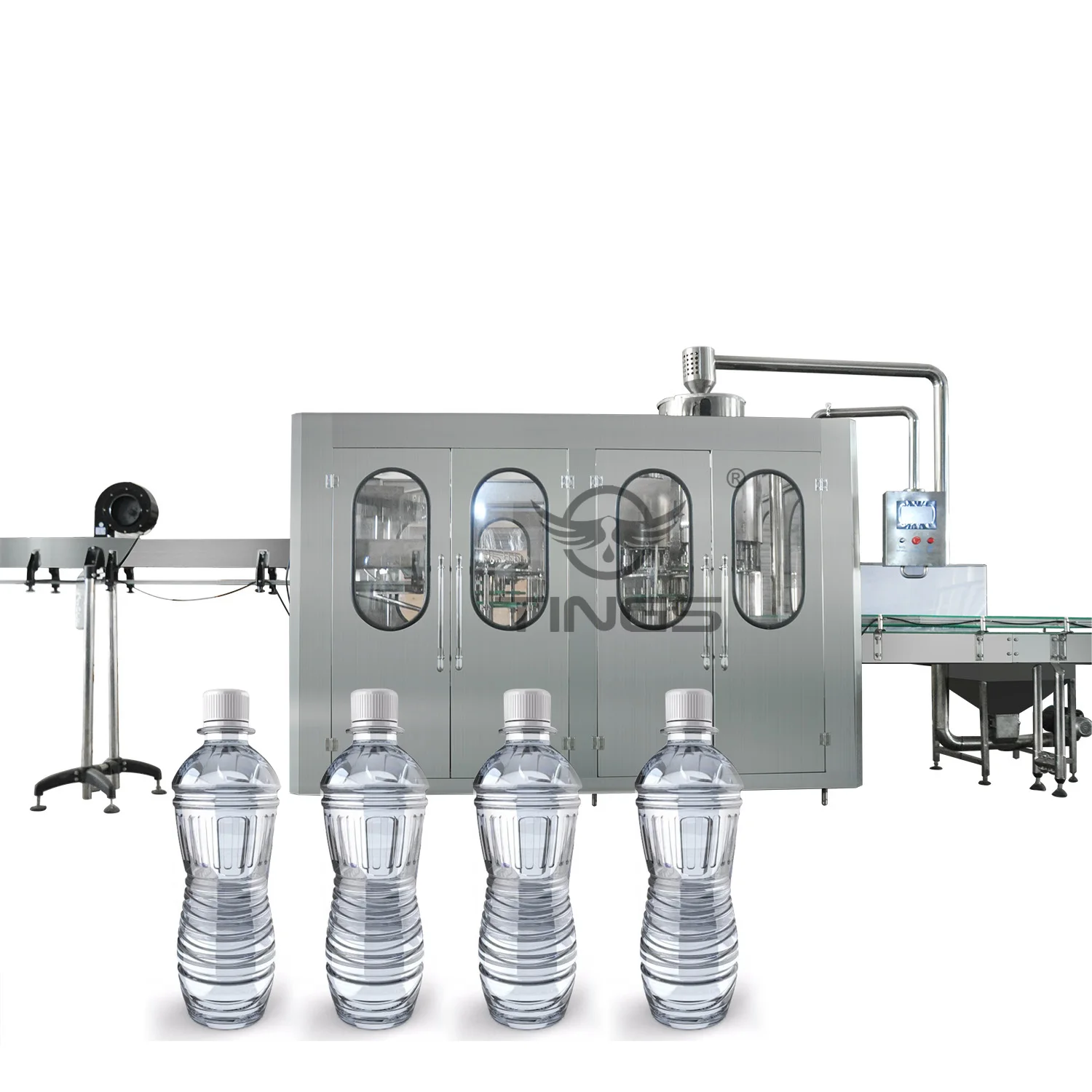

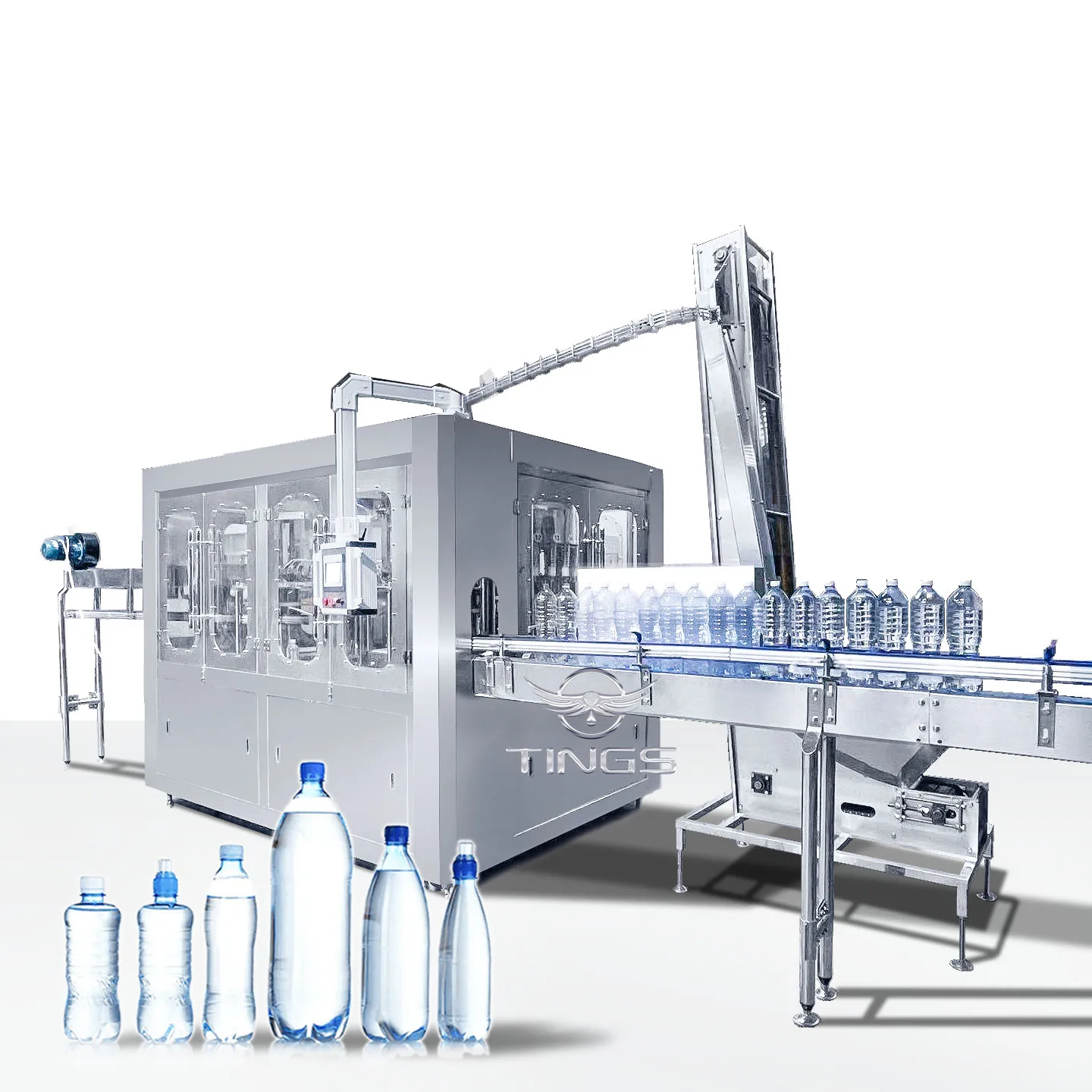

Application: This machine is a washing-filling-capping integrated machine, which is mainly used for Non-carbonated drink, such as mineral water, pure water and so on. It is designed for shortening the contact time between drink material and outside, so as to improve the sanitation condition of the water product and increase the economy benefit.
Features: It is designed with hanging type bottle conveying structure which makes the conveying of the bottles more convenient, faster and easier. Its main machine is equipped with advanced PLC control and key electric elements with international famous brand.
Features: It is designed with hanging type bottle conveying structure which makes the conveying of the bottles more convenient, faster and easier. Its main machine is equipped with advanced PLC control and key electric elements with international famous brand.
Model No. | TSGX24-24-8 |
Machine Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Capacity | 10000 to 12000BPH |
Washing Nozzle | 24 pcs |
Filling Nozzle | 24 pcs |
Capping Nozzle | 8 pcs |
Certificates | CE / SGS / ISO 9001 |
Advantage:
1. Safe contact between water and machine:
We use national standard stainless steel 304/316, Nickel content ≥8%.
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
Machine Details

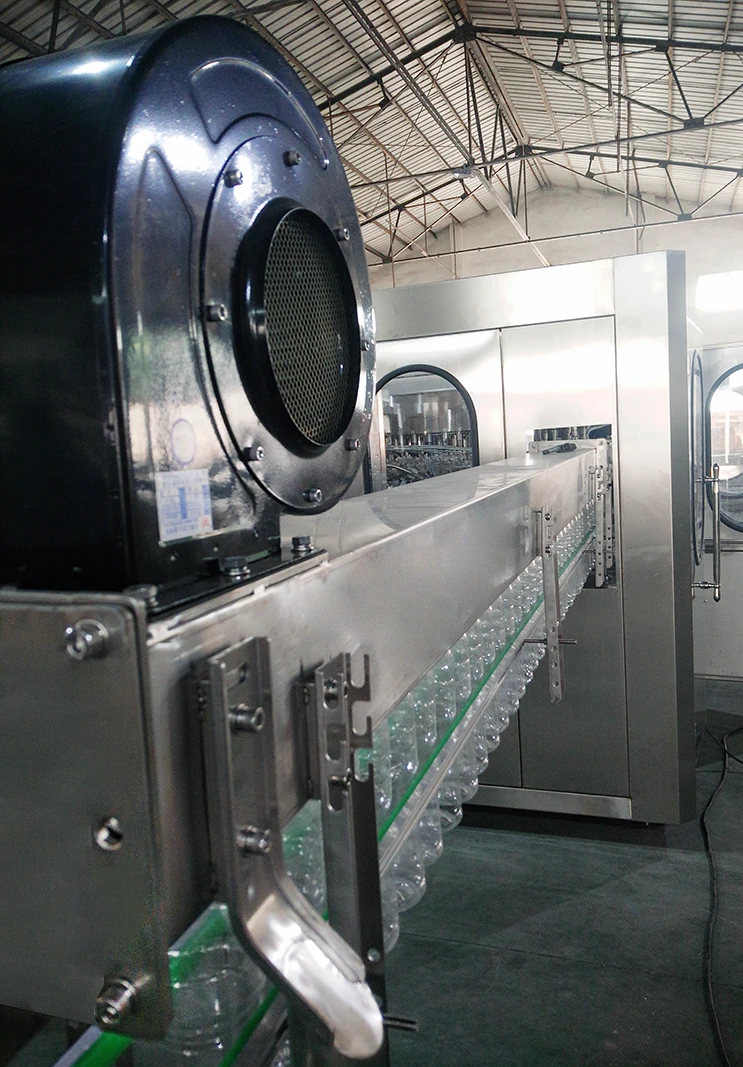

Air Conveyor
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- Made of stainless steel 304/316.
- High quality carbon steel welded rack and frame
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- Made of stainless steel 304/316.
- High quality carbon steel welded rack and frame

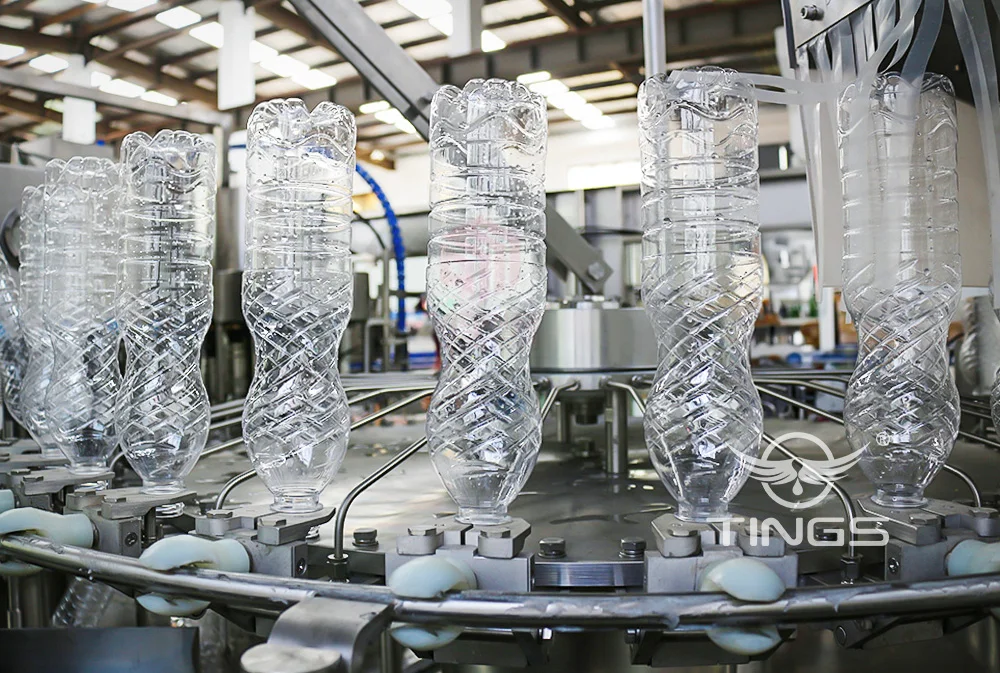

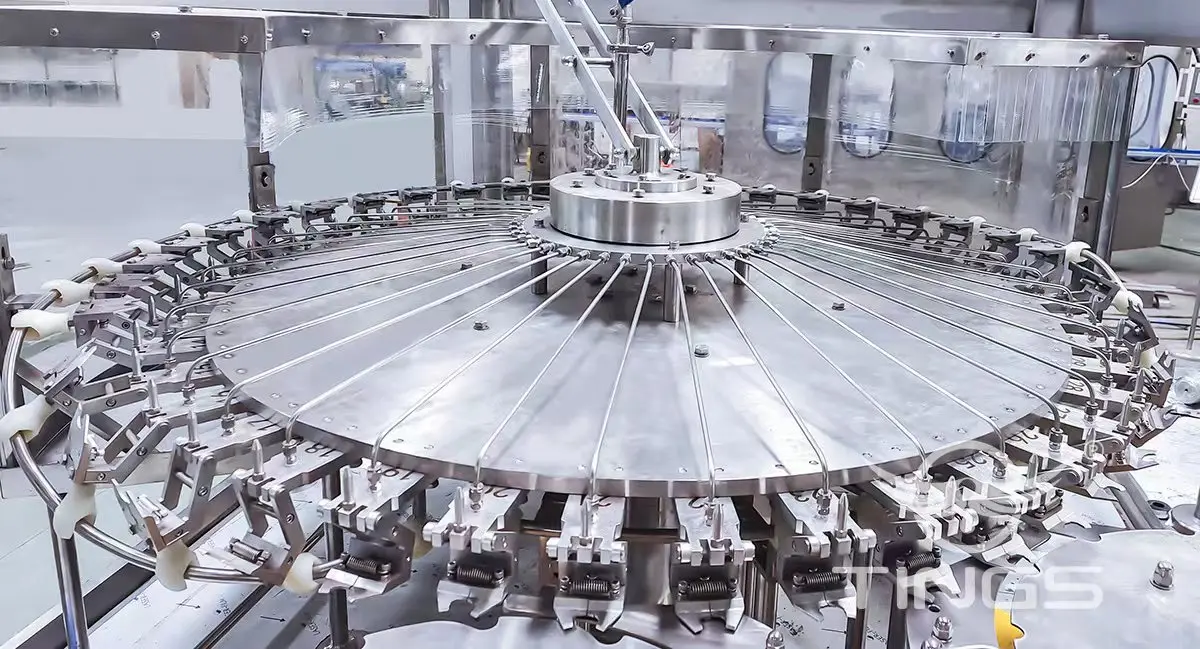

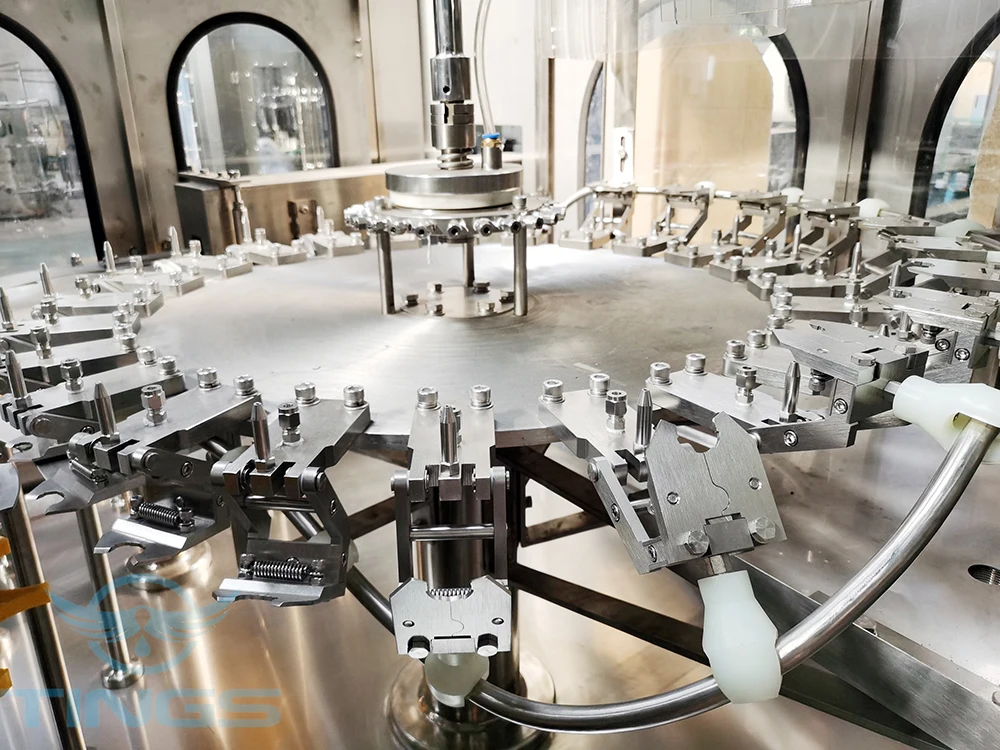

Bottle Washing
- The washing table connect to the air conveyor directly, which make the working environment much cleaner.
- All 304/316 stainless steel nozzle, water inject design, high injecting accuracy, save water.
- 304/316 Stainless steel plier, high washing accuracy ensure no bottle falling during washing process.
- 304/316 stainless steel washing pump, durable and clean
- All 304/316 stainless steel nozzle, water inject design, high injecting accuracy, save water.
- 304/316 Stainless steel plier, high washing accuracy ensure no bottle falling during washing process.
- 304/316 stainless steel washing pump, durable and clean

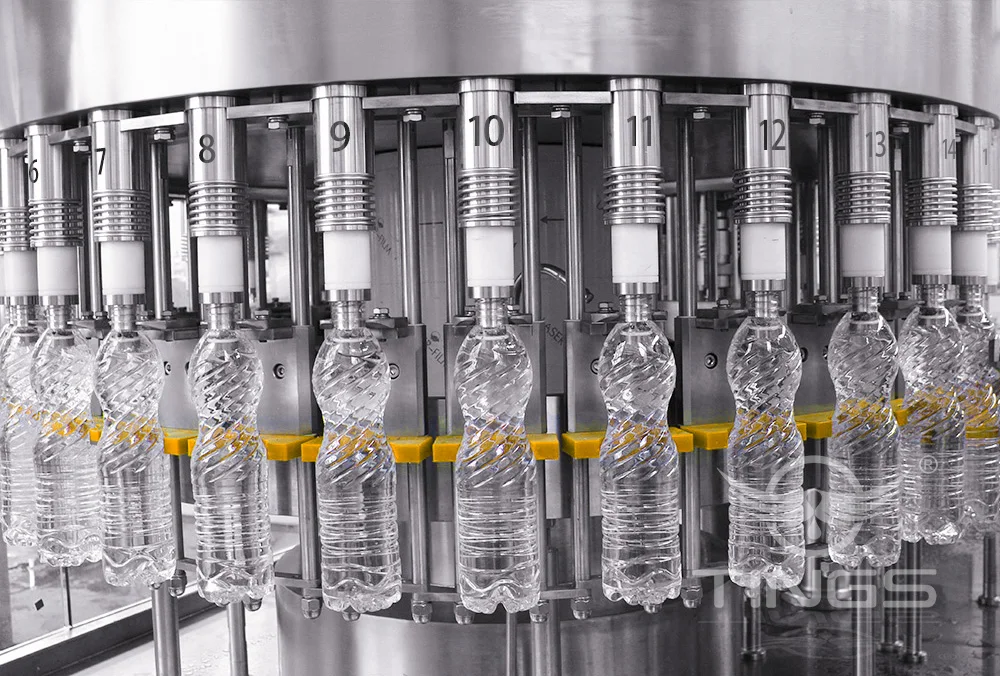

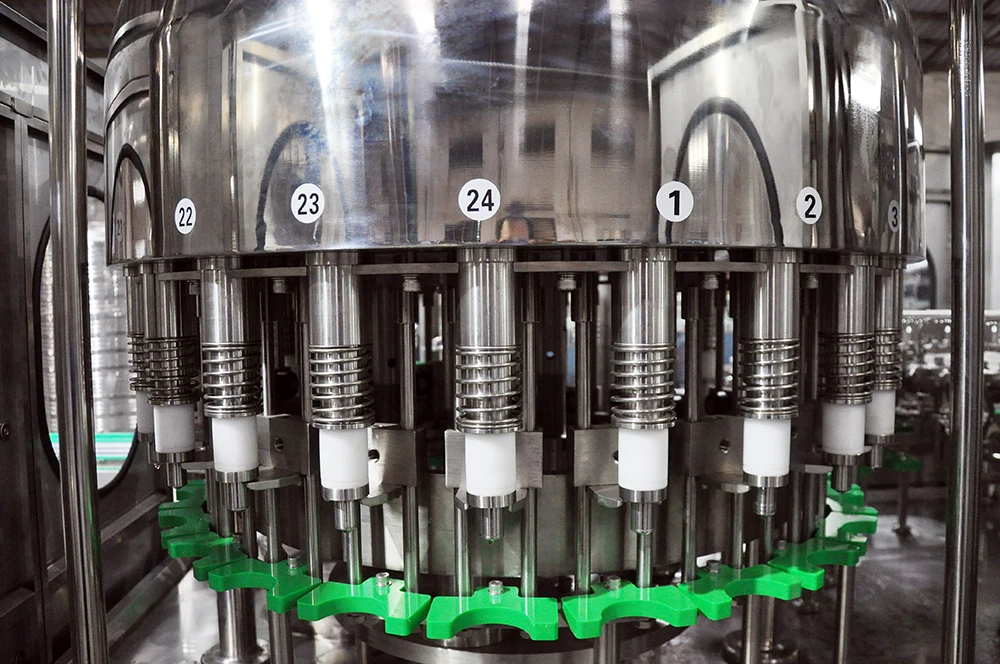

Bottle Filling
- 304/316 Stainless steel high accuracy filling nozzle
- Filling volume adjustable, all bottles with same liquid volume after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no welding spot, easy to clean
- 304/316 stainless steel filling pump
- High accuracy inject nozzle, save water
- Filling volume adjustable, all bottles with same liquid volume after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no welding spot, easy to clean
- 304/316 stainless steel filling pump
- High accuracy inject nozzle, save water

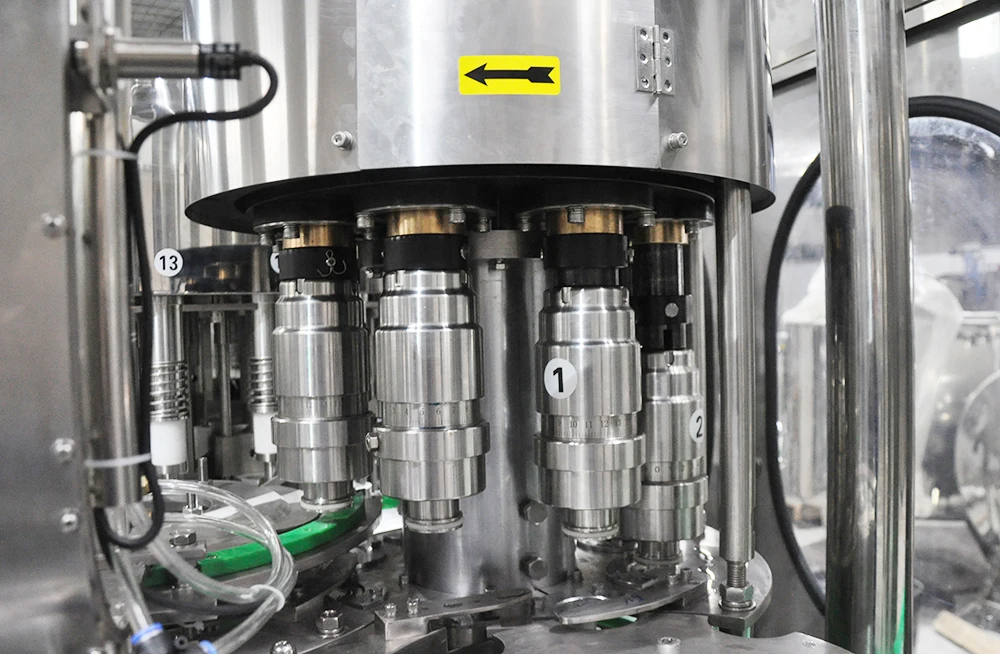

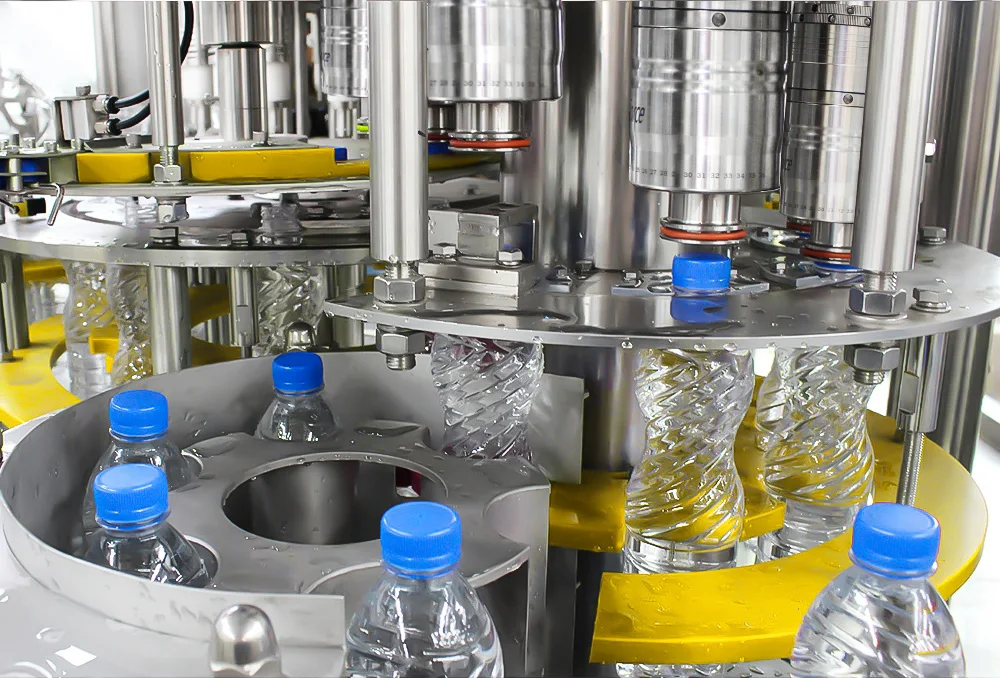

Bottle Capping
- Electromagnetic capping heads, minimize the bottle falling during capping process
- All 304/316 stainless steel construction
- High capping accuracy, no cap missing
- Automatic stop when there are insufficient bottles
- Stable and reliable capping process, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- High capping accuracy, no cap missing
- Automatic stop when there are insufficient bottles
- Stable and reliable capping process, Defective rate ≤0.2%
