kitchen smoke and gas disposal machinery Commercial Hybrid Exhaust Range hood
- Category: >>>
- Supplier: Ningbo Kehang Environmental Technology Co. Ltd.
Share on (1600935550674):
Product Overview
Description
Product Description

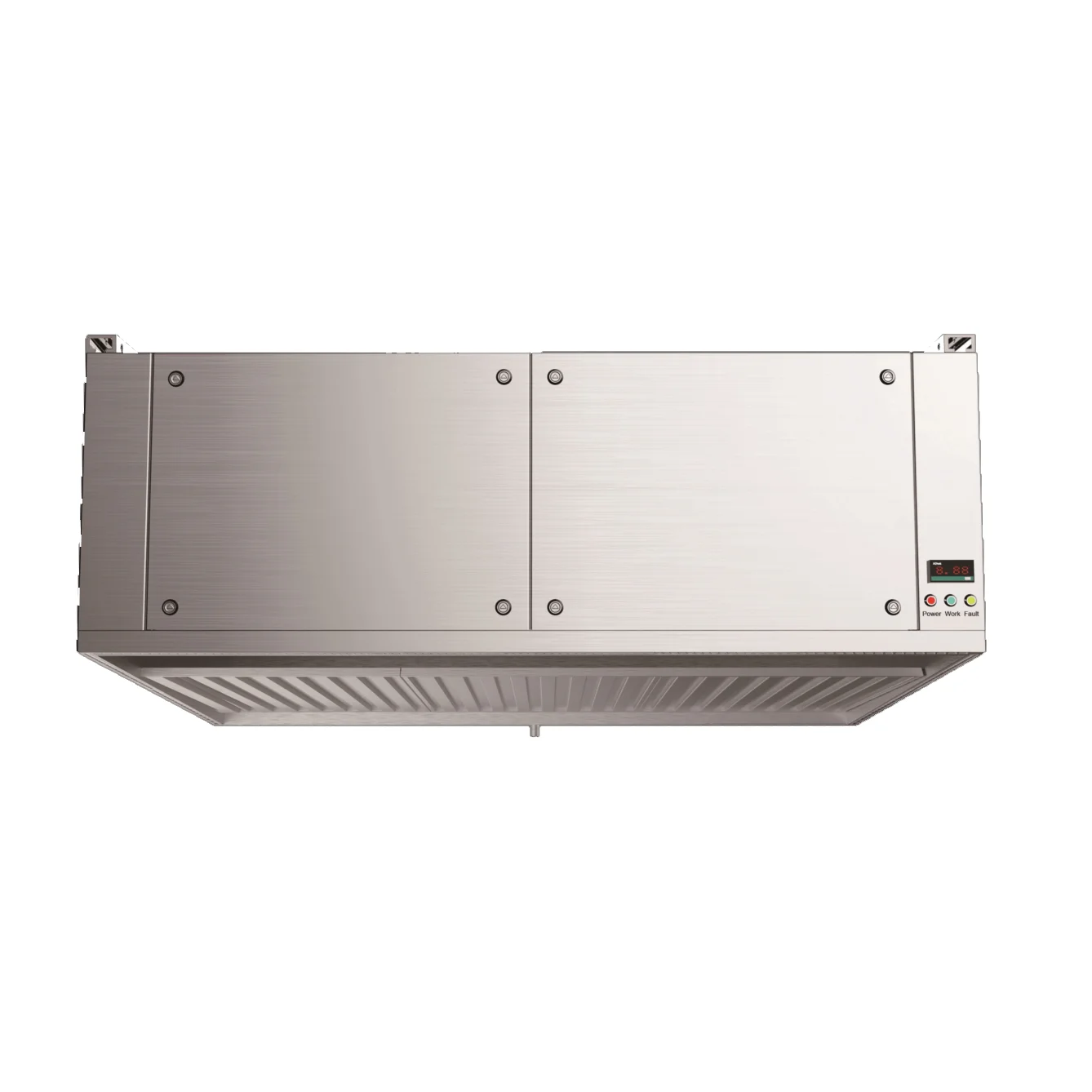

Hybrid Kitchen Exhaust Hood
-CH4000
-OEM Kitchen soluction for Frying,grilling,barbecue
the Hybrid Kitchen Exhaust Hood is an all-in-one kitchen exhaust hood system designed to eliminate oil, grease and smoke vapoursfrom the cooking process all in one compact package.
the Hybrid Kitchen Exhaust Hood ultilises Ozone Clean System technology whereby plasma discharge provides a cost effective and safe way to eliminate foul odour and contaminants from the cooking process. Electrostatic precipitation technology is also incorporated into the hood to eliminate fume and mist with an efficiency of up to 95%, resulting in substantially reduced grease built up inside exhaust ducts. This stainless steel cabinet hood is great for kitchens looking for a space saving solution where there is no room for additional air pollution measures with a conventional hood.
Feathures
Eliminate oil, grease and smoke vapours from the cooking process
all in one compact package
Eliminate foul odour and contaminants from the cooking process
Eliminate fume and mist with an efficiency of up to 95%
Specifications
Product Size : (L*W*H)2000 x 1200 x600mm
Cabinet Construction:Stainless Steel
Pre-filter Construction: Stainless Steel,washable
Operating Voltage: Single Phase 220-240V, 50Hz
Power: 900W
Draft: 4000CMH, 6000CMH
Static Pressure: 250 Pascal
Efficiency:95%
Controls: Lights for Fault, normal or cleaning requirement
Weight:250kg
Item KHDD-24
-OEM soluction for Mongolian barbecue restaurant
-Rand hood，Commercial range hood,Exhaust hood
Feature : Disinfection
All-in-one Hybrid Hood in the kitchen Brings Down Overall Costs Basically,this is an electrostatic air filter in the shape of an exhaust hood,which effectively removes the need for extra spending in a conventional exhaust hood and its installation.Minimun height for installation:1.86-2m.
Maxumun Filtration Performance and Fire Safety
Ecohero hybrid hood eliminates up to 95% grease and smoke particles and allows street level discharge for the exhaust
ductwork.Fire safety of the entire exhaust ductwork is greatly improved due to the absence of grease buildup from the very beginning of the ventilation system.
Filter Cleaning's Made and Costs are Reduced
The filter is designed easy to take out for cleaning
Allows Complaint-free Operations in Densely Populated Locations
In addition to the compact size with increased performance,its decent effect on odour removal further makes it tailor-made for commercial kitchens operating in dense urban locations
Product Name: Ceiling hood type fume purifier modules Product size:2598*750.8*775.6mm
Material: 304 stainless steel
Inside: 2set of purifier modules with Electril field&Aluminum alloy filter&Activated carbon filter&Pre-filter Electric field
size:600*296*463X2
Flange size:385*300
Power: AC 220V/50Hz, Max watts 0.4KW,Standby power<10W
Purification efficiency:>95% Handling air volume:4000 m³/ h
Wind resistance:＜180 Pa
Oil Tubing interface:M50
NW:195kgs/PCS
GW:280kgs/wooden case
Packing size:2800X970X990mm/wooden case
Sample day 45days
Remark: Supply to order other size
95% Maximum Filtration Efficiency Hybrid Hood
All-in-one Hybrid Hood in the kitchen Brings Down Overall Costs Basically,this is an electrostatic air filter in the shape of an exhaust hood,which effectively removes the need for extra spending in a conventional exhaust hood and its installation.Minimun height for installation:1.86-2m.
Maxumun Filtration Performance and Fire Safety
Ecohero hybrid hood eliminates up to 95% grease and smoke particles and allows street level discharge for the exhaust
ductwork.Fire safety of the entire exhaust ductwork is greatly improved due to the absence of grease buildup from the very beginning of the ventilation system.
Filter Cleaning's Made and Costs are Reduced
The filter is designed easy to take out for cleaning
Allows Complaint-free Operations in Densely Populated Locations
In addition to the compact size with increased performance,its decent effect on odour removal further makes it tailor-made for commercial kitchens operating in dense urban locations
Specifications
Product Name: Ceiling hood type fume purifier modules Product size:2598*750.8*775.6mm
Material: 304 stainless steel
Inside: 2set of purifier modules with Electril field&Aluminum alloy filter&Activated carbon filter&Pre-filter Electric field
size:600*296*463X2
Flange size:385*300
Power: AC 220V/50Hz, Max watts 0.4KW,Standby power<10W
Purification efficiency:>95% Handling air volume:4000 m³/ h
Wind resistance:＜180 Pa
Oil Tubing interface:M50
NW:195kgs/PCS
GW:280kgs/wooden case
Packing size:2800X970X990mm/wooden case
Sample day 45days
Remark: Supply to order other size
Detailed Images
ON/OFF
electric field
Activated Carbon Air Filter（Optional）
Aluminum filter（Optional）
pre-filter
power cable
