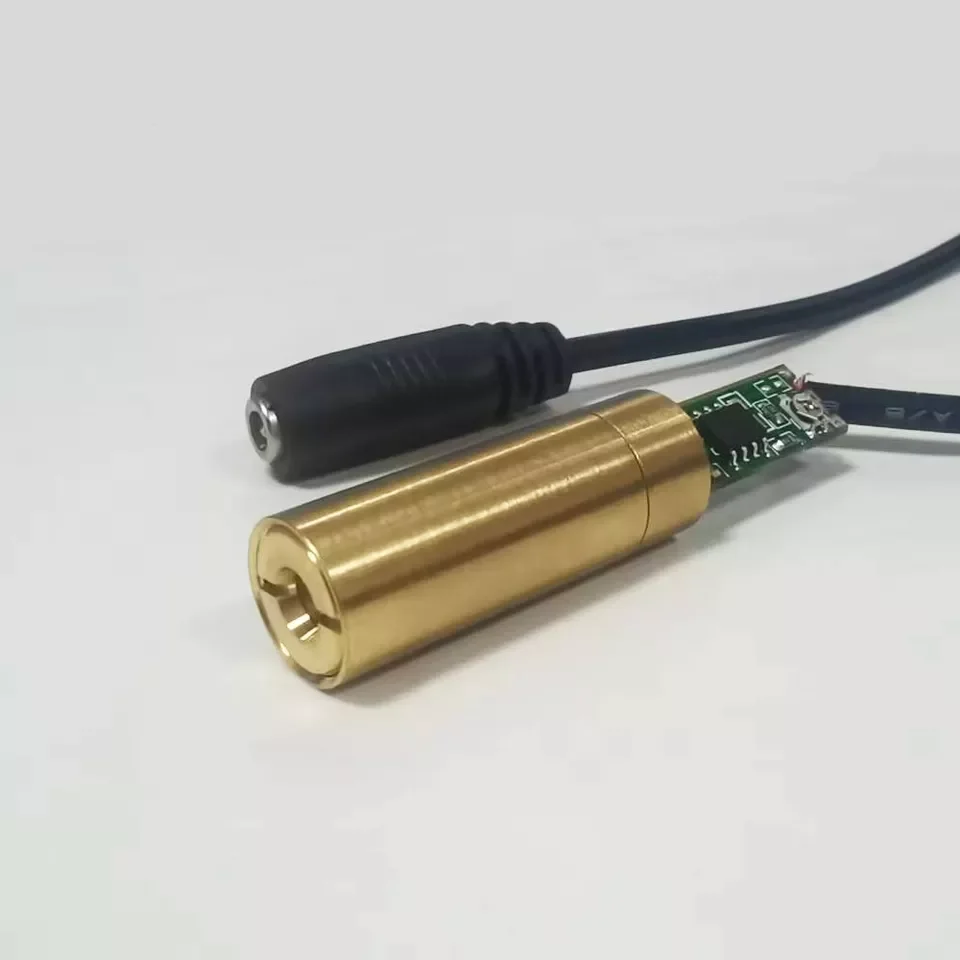

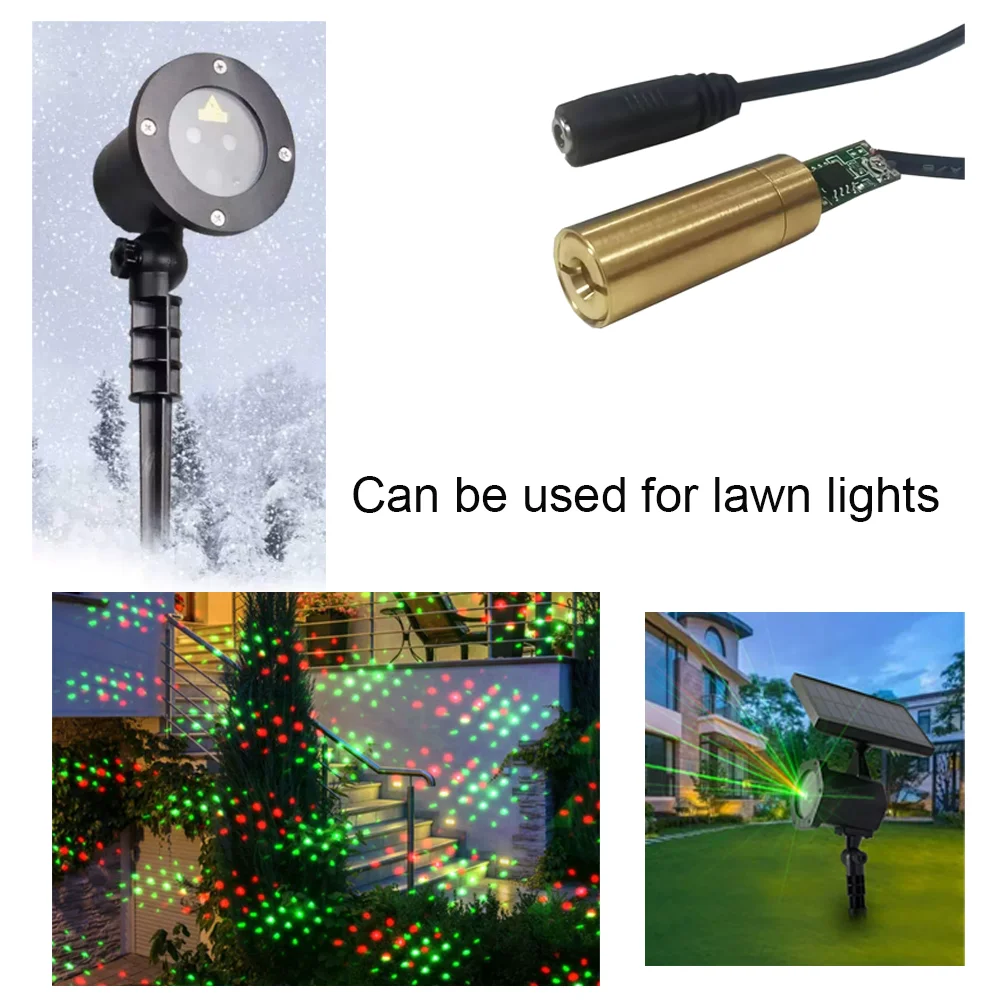

green laser module DC3V 532NM 5MW 100MW point line green stage light/lawn light/laser effect light Christmas tree laser light
- Category: >>>
- Supplier: ZHUHAI EMC ELECTRONIC TECHNOLOGY CO. LTD
Share on (1600935578307):
Product Overview
Description
technical parameter
| Product parameters | currently allocated | Settable scheme | |
| 1 | model: | EPC53250P12 | According to customization requirements |

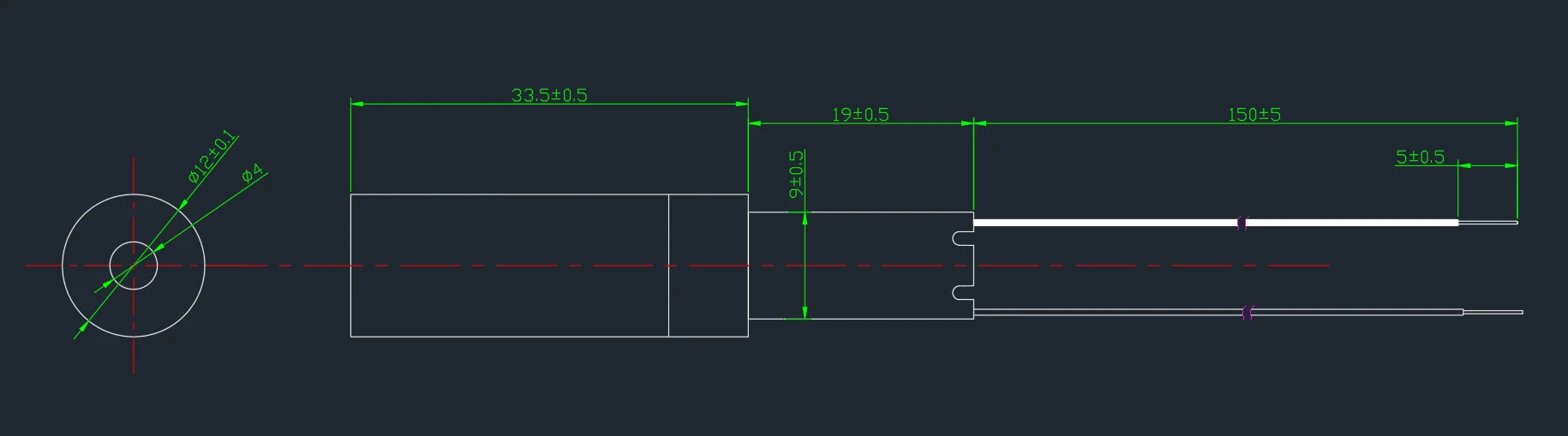

| 2 | Overall dimensions: | §12x53mm | According to customization requirements |
| 3 | texture of material: | Copper | Copper, aluminum, steel, PC.ABS, etc |
| 4 | surface treatment: | nothing | According to customization requirements |
| 5 | service life: | >6000H | According to customization requirements |
| 6 | Output wavelength: | 532nm | 400nm-980nm optional |
| 7 | output power: | 10mw | 0.5mw-500mw optional, consult customer service |
| 8 | Light spot size at 10m: | 8x12mm | According to customization requirements |

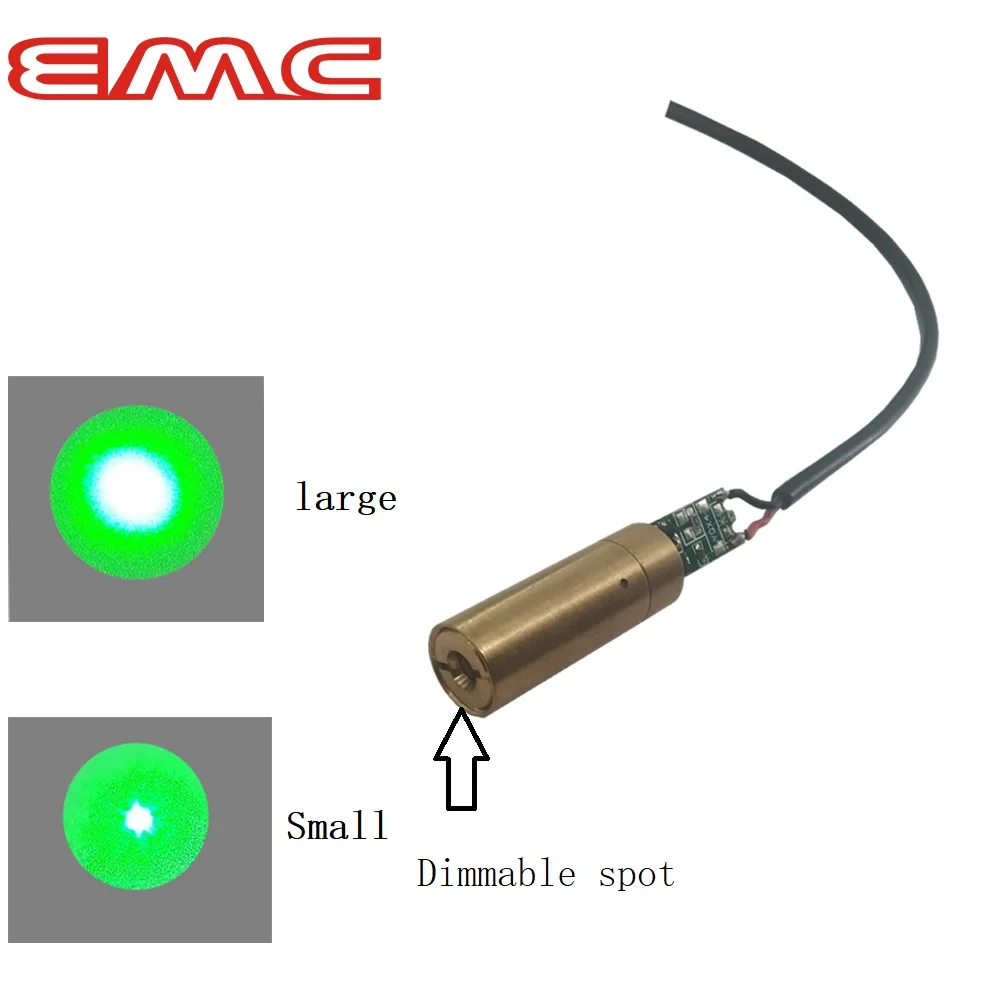

| 9 | Adjustable light spot: | Not available | According to customization requirements |

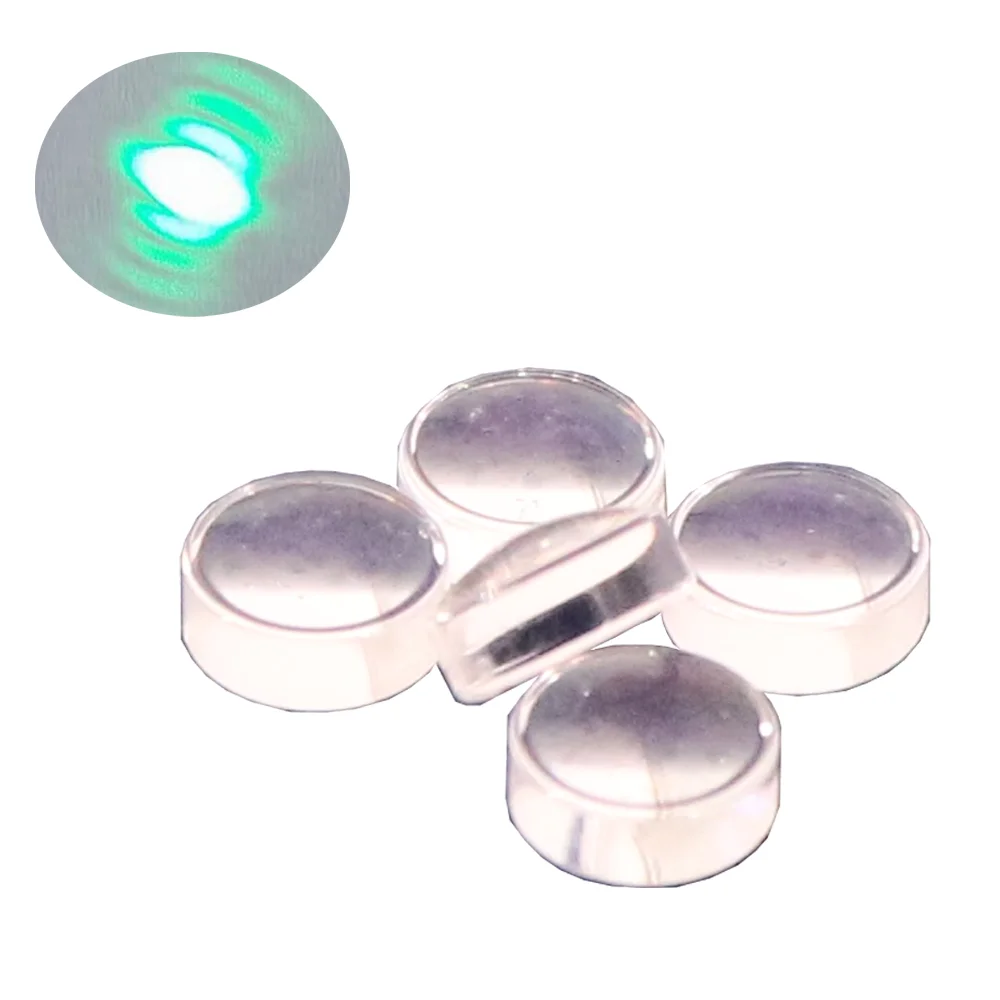

| 10 | Optical lens: | Glass | Acrylic and glass optional |
| 11 | Spot mode: | Dots | Dots, lines, crosshairs and other patterns |
| 12 | drive circuit: | APC constant power circuit | ACC.APC.TTL can be customized |
| 13 | working voltage: | 12V | 3V-24V customizable |
| 14 | Maximum operating current: | 160ma | Current is proportional to light power |
| 15 | FM mode: | Continuous work | According to customization requirements |

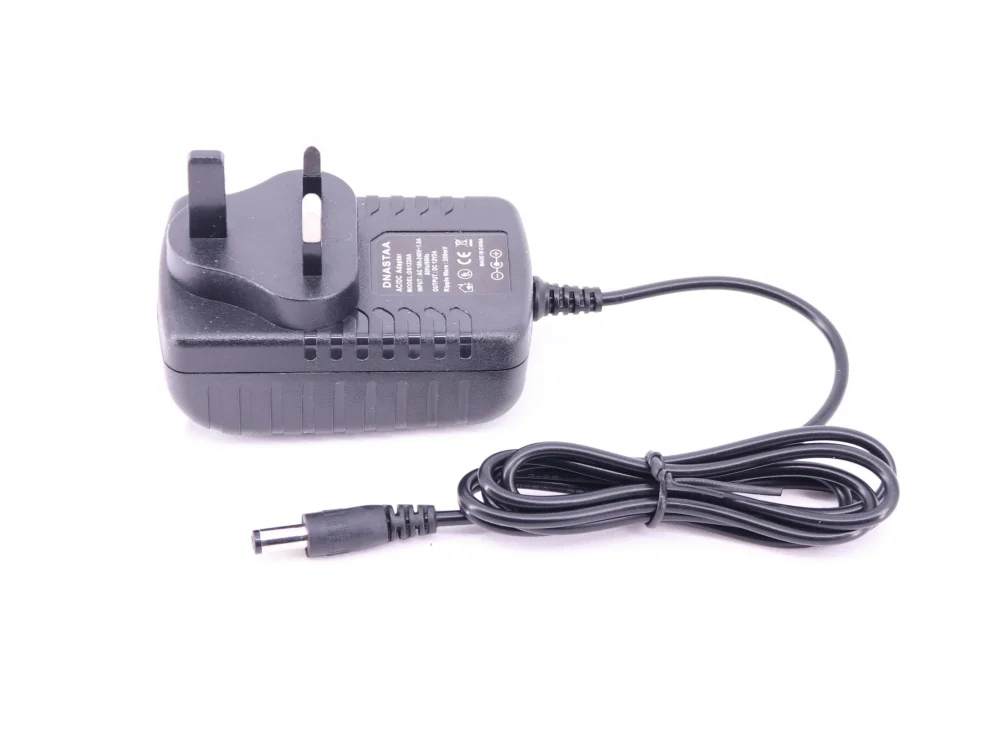

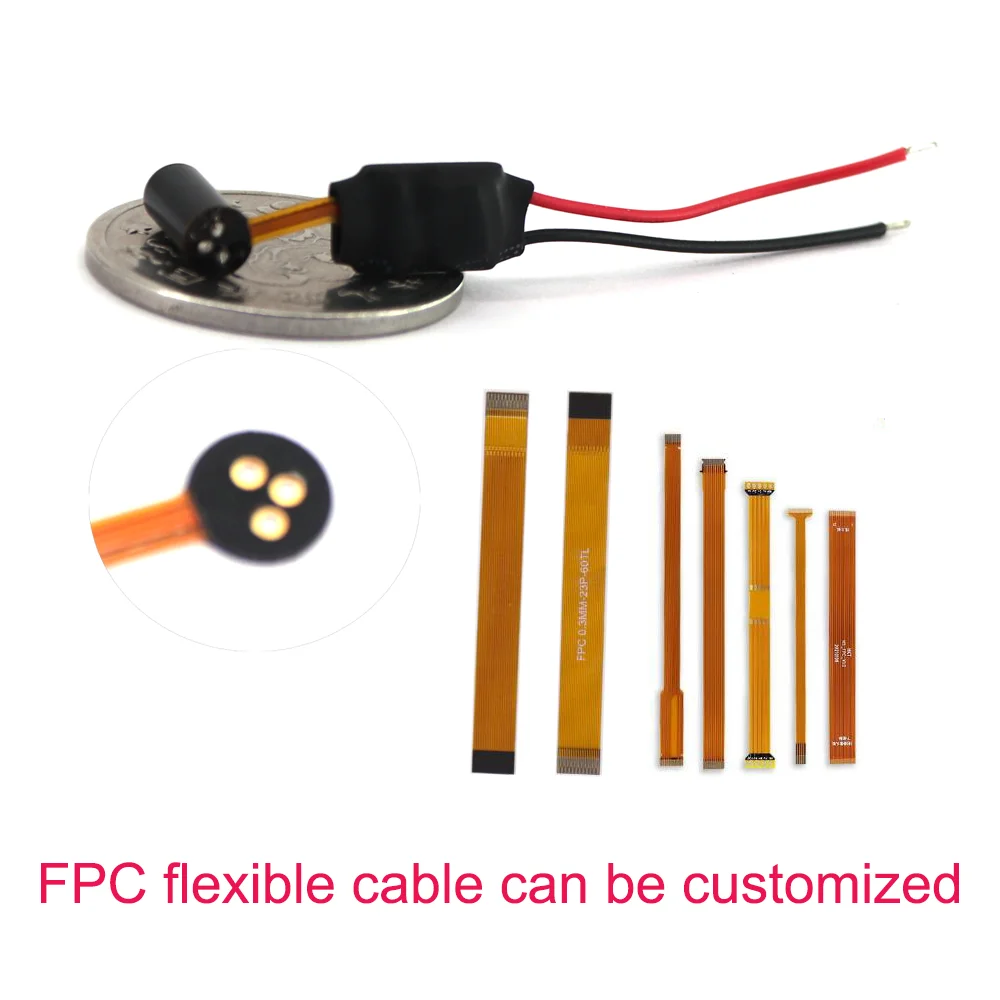

| 16 | wireway: | DC 5.5x2.1 Connector | Different wires and terminal wires can be customized |
| 17 | working temperature: | -10℃-+50℃ | Depending on laser diode |
| 18 | Storage temperature: | -30℃-+80℃ | Depending on laser diode |
Note: All customized products will incur certain expenses. Please consult customer service for details
General cursor

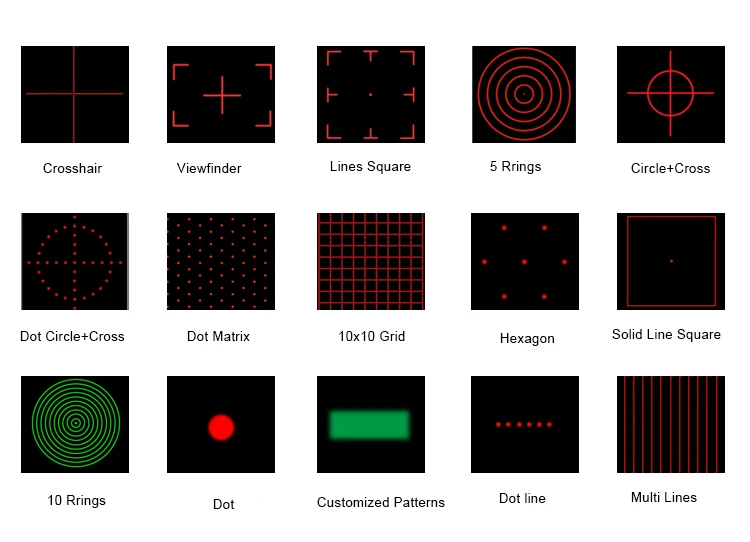

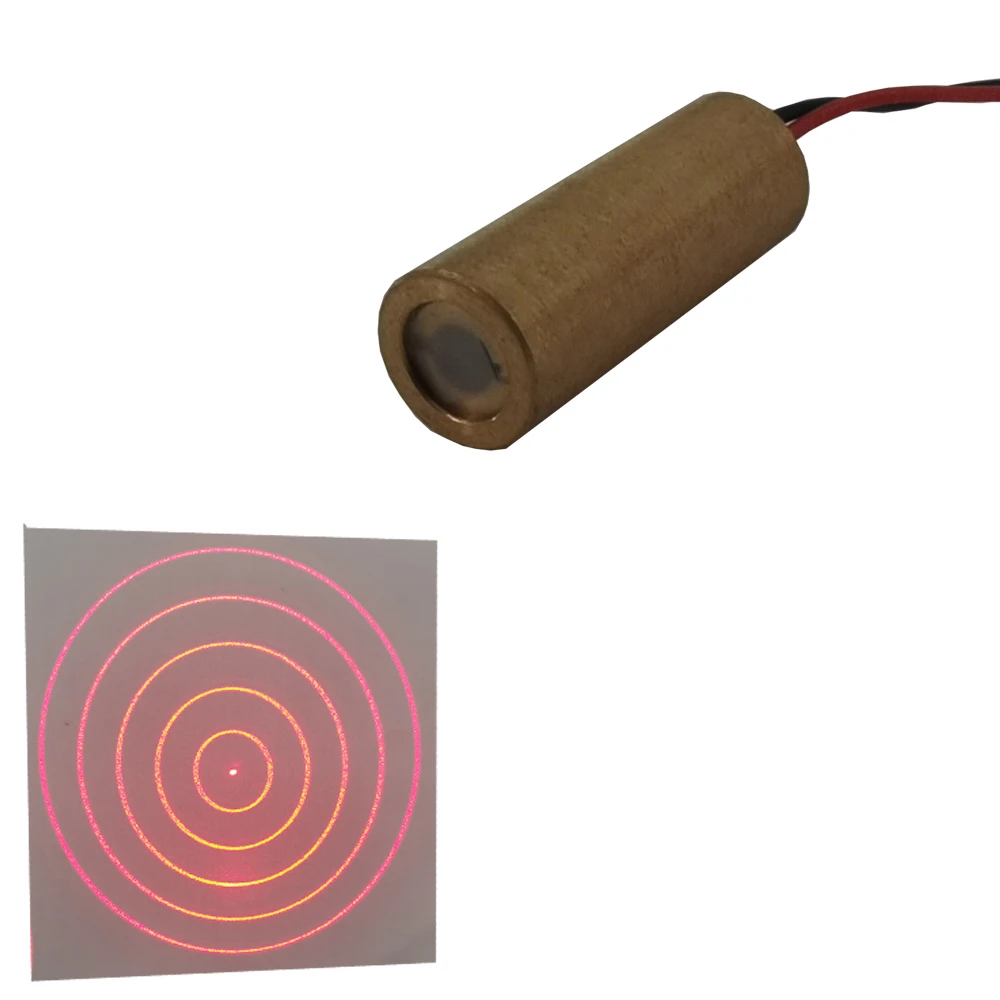

Series optional cursor
Product Description
Note: All customized products will incur certain expenses. Please consult customer service for details
