Product Overview
Description
Products Description

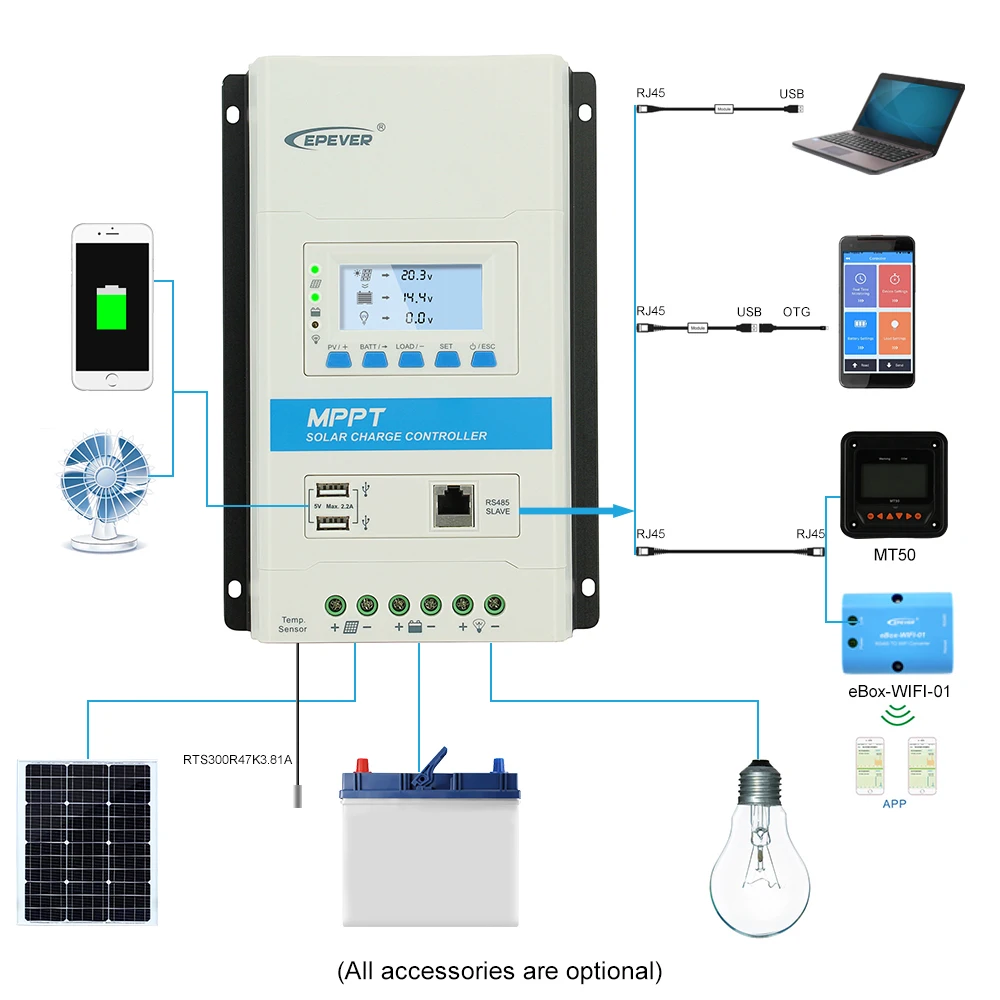

TRIRON series adopt modular design based on MPPT solar charge controller.The controller is composed of MPPT solar charge controller and different display modules (LED, LCD) , interface modules (Relay,USB and RS485). The controller can recognize and load the modules driver automatically. Customers can choose the modules according to different application. It can be widely used in communication station system, household system and monitoring system,etc.

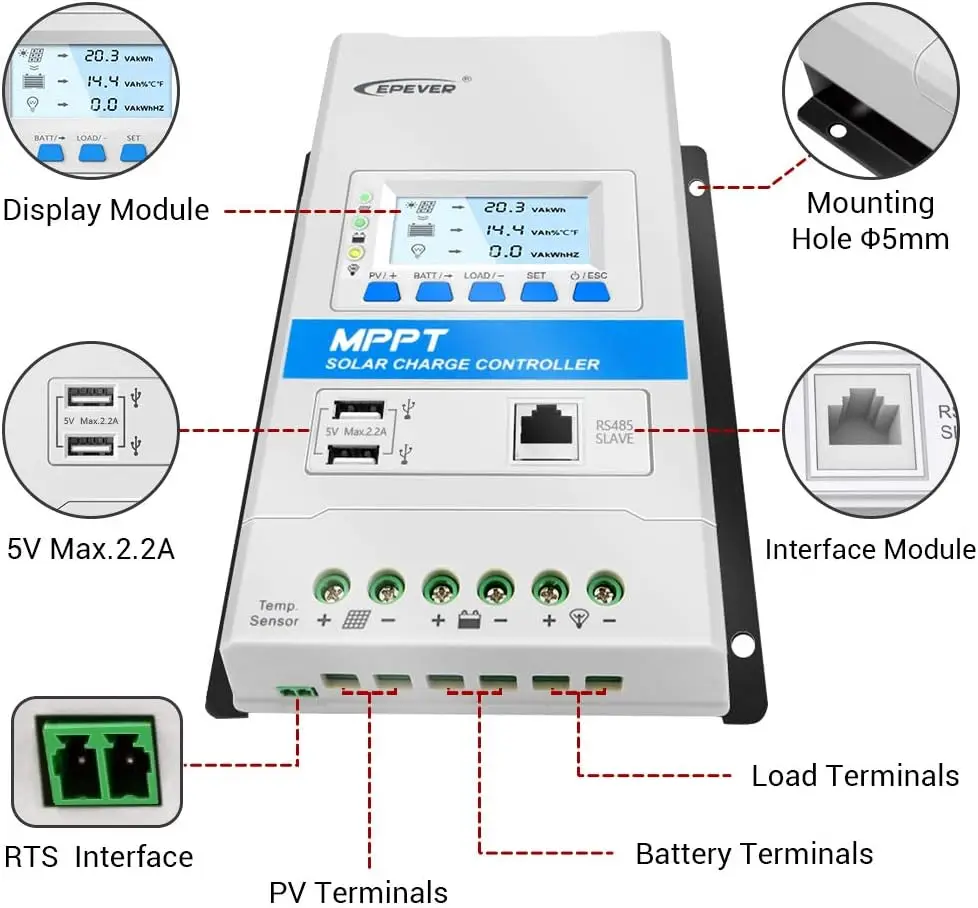

Details Images
Our Advantages
1. MPPT tracking efficiency above 99.5%2. Maximum charge conversion efficiency as high as 98%
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function
Model | TRIRON1206N | |||||||
System nominal voltage | 12/24VDC/Auto | |||||||
Rated charge current | 10A | |||||||
Rated discharge current | 10A | |||||||
Battery voltage range | 8～32V | |||||||
Max. PV open circuit voltage | 46V, 60V | |||||||
MPP voltage range | (Battery voltage +2V)～36V | |||||||
Rated charge power | 130W/12V, 260W/24V | |||||||
Self-consumption | ≤14mA(12V), ≤15mA(24V) | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Discharge circuit voltage drop | ≤0.18V | |||||||
Enclosure | IP30 | |||||||
RS485 interface | 5VDC/200mA | |||||||
USB interface | 5VDC/2.2A(Total) | |||||||
Relay interface | 30VDC/1A | |||||||
Grounding | Common negative | |||||||
Backlight time | Default: 60S, Range: 0~999S (0S: the backlight is ON all the time) | |||||||
Working environment temperature | -25℃~+55℃(LCD), -30℃~+55℃(No LCD) | |||||||
Storage temperature range | -20℃~+70℃ | |||||||
Relative humidity | ≤95%, N.C | |||||||
Dimension | 135×180.8×47.3mm | |||||||
Weight | 0.56kg | |||||||
1. When a lithium battery is used, the system can't be identified automatically | ||||||||
2. At minimum operating enviroment temperature | ||||||||
3. At 25℃ environment temperature | ||||||||
4. When a lithium battery is used, the temperature compensate coefficient will be 0, and can't be changed. | ||||||||
