Product Overview
Description
Product Information
The function of linear guide rail movement is to support and guide moving parts, and to perform reciprocating linear motion in a given direction. It is mainly used in mechanical structures with relatively high precision requirements. There is no intermediate medium between the moving element and the fixed element of the linear guide rail. , and use a rolling steel ball.
Model | Mounting bolt for rail（mm） | Basic dynamic load rating C（kN） | Basic static load rating C(kN) | Weight | ||
Block(kg) | Rail kg/m | |||||
HGH15CA | M4*16 | 11.38 | 16.97 | 0.18 | 1.45 | |
HGH20CA | M5*16 | 17.75 | 27.76 | 0.30 | 2.21 | |
HGH20HA | 21.18 | 35.90 | 0.39 | |||
HGH25CA | M6*20 | 26.48 | 36.49 | 0.51 | 3.21 | |
HGH25HA | 32.75 | 49.44 | 0.69 | |||
HGH30CA | M8*25 | 38.74 | 52.19 | 0.88 | 4.47 | |
HGH30HA | 47.27 | 69.16 | 1.16 | |||
HGH35CA | 49.52 | 69.16 | 1.45 | 6.30 | ||
HGH35HA | 60.21 | 91.63 | 1.92 | |||
HGH45CA | M12*35 | 77.57 | 102.71 | 2.73 | 10.41 | |
HGH45HA | 74.54 | 136.46 | 3.61 | |||
HGH55CA | M14*45 | 114.44 | 148.33 | 4.17 | 15.08 | |
HGH55HA | 139.35 | 196.20 | 5.49 | |||
HGH65CA | M16*50 | 163.63 | 215.33 | 7.00 | 21.18 | |
HGH65HA | 208.36 | 303.13 | 9.82 | |||

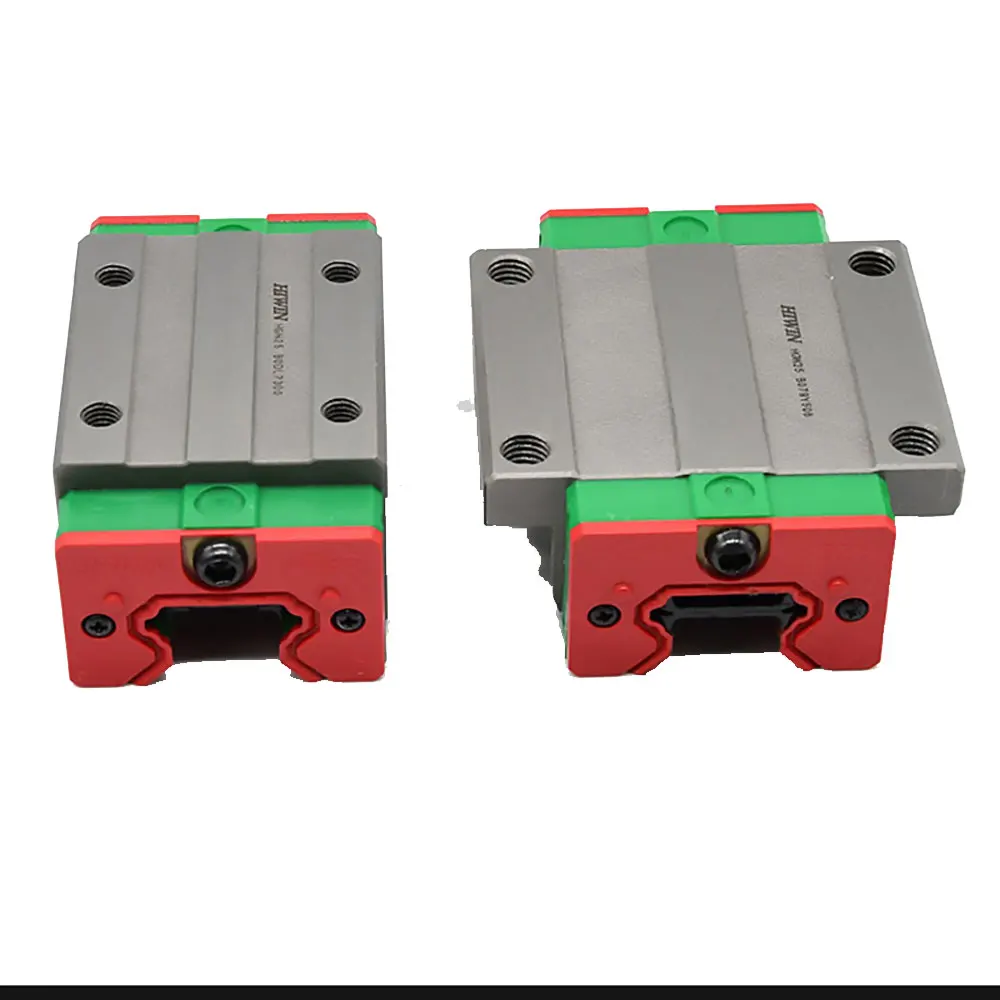

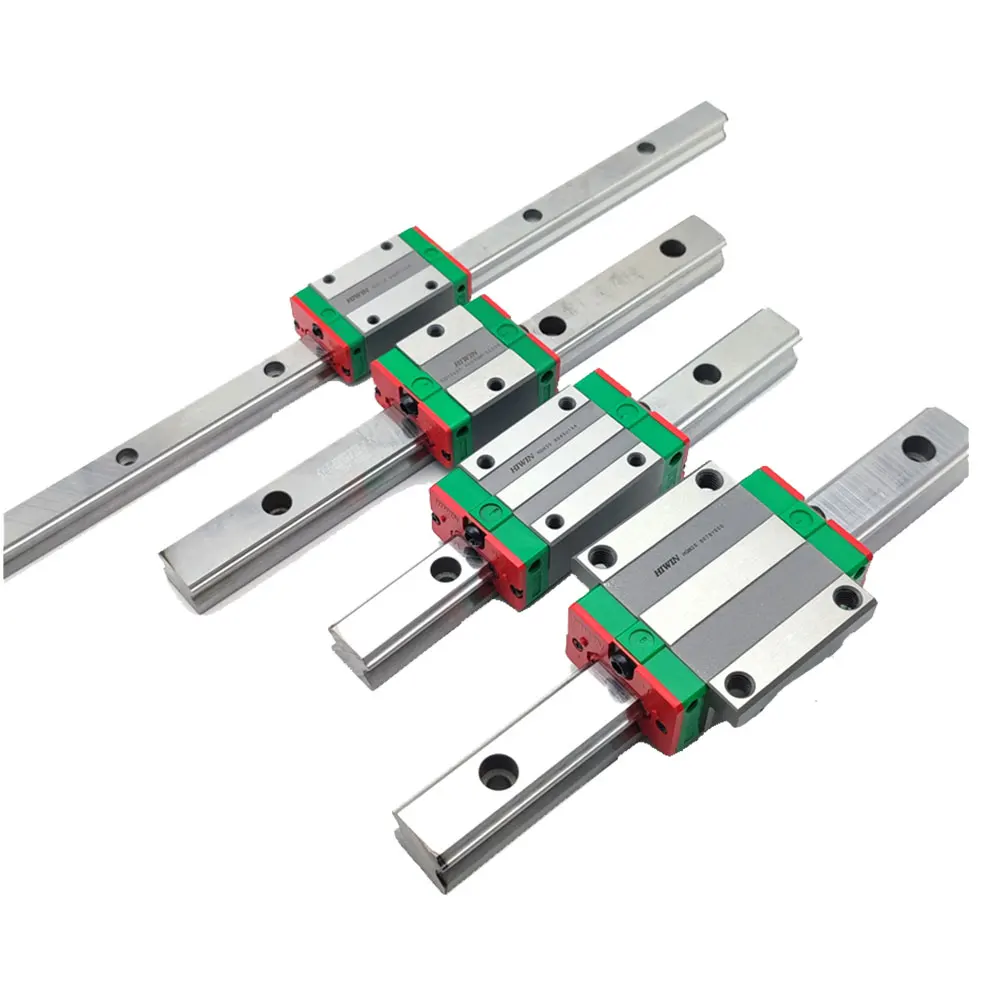

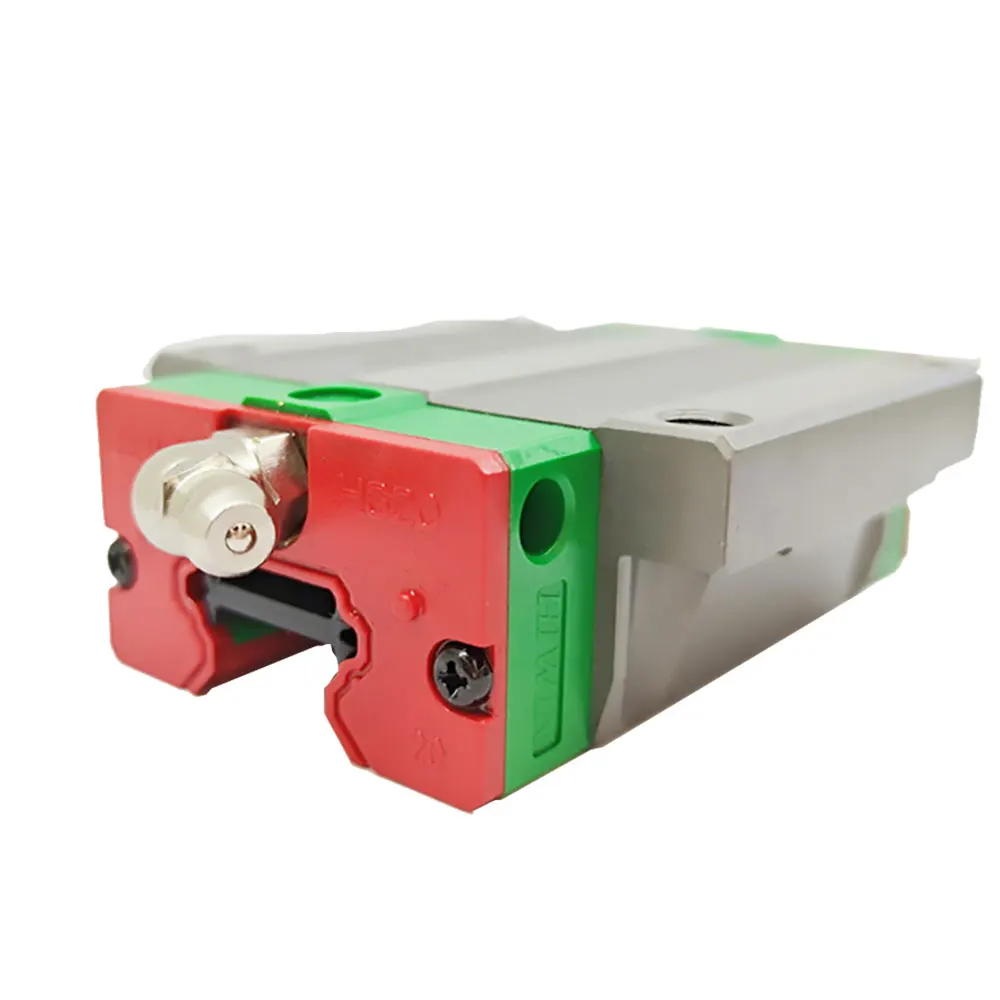

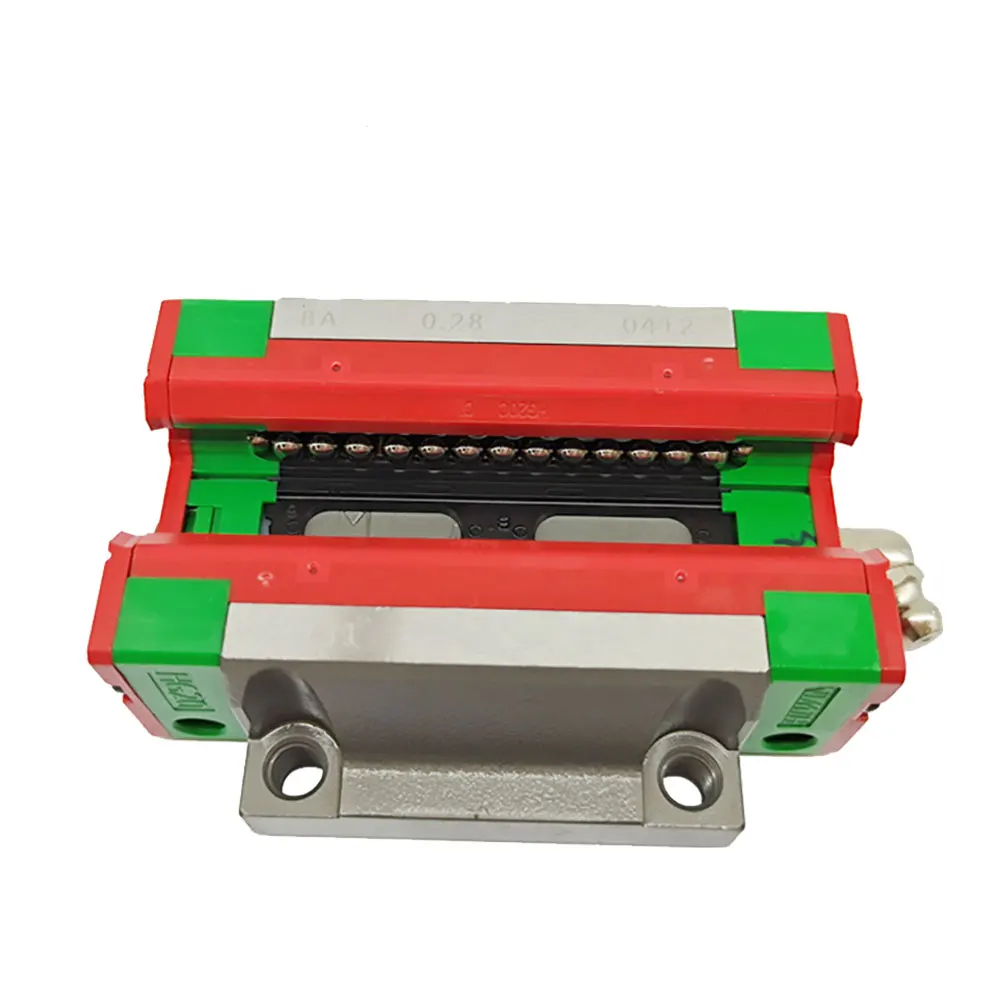

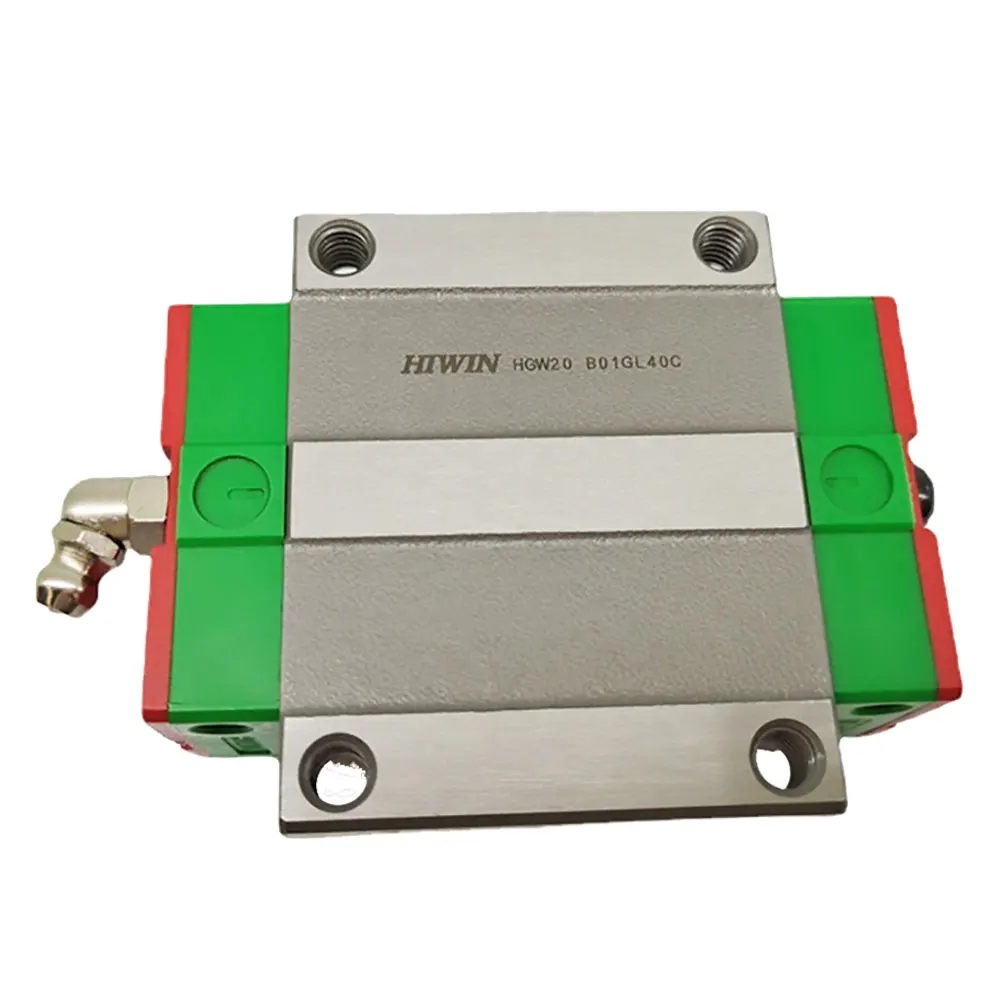

Product Show
The length of the guide rail can be customized according to your needs
Product Feature
1.Self-aligning, high-precision smooth and stable movement.
2.2. High rigidity, can withstand loads in four directions.
3. Strong interchangeability, simple assembly and durable.
4. Small friction, low heat generation and high-speed operation.
2.2. High rigidity, can withstand loads in four directions.
3. Strong interchangeability, simple assembly and durable.
4. Small friction, low heat generation and high-speed operation.
The end distance is the default end distance,
if you have special requirements, please contact us
Product Application
1、Printing Shops
2、Construction works
3、Manufacturing Plant
4、Advertising Company
5、Machinery Repair Shops
6、Food & Beverage Factory
2、Construction works
3、Manufacturing Plant
4、Advertising Company
5、Machinery Repair Shops
6、Food & Beverage Factory
Why Choose Us
1.Covers an area of 5000 square meters, with 120 CNC processing equipment and a team of over 100 people.
2. Easy to assemble and interchangeable for product.
3. Non standard products Three days for sampling and seven days for shipping.
4. Small batch and small order customization.
5. 24-hour online service to quickly solve problems.
2. Easy to assemble and interchangeable for product.
3. Non standard products Three days for sampling and seven days for shipping.
4. Small batch and small order customization.
5. 24-hour online service to quickly solve problems.
Packing And Delivery
Company Profile
Dongguan Hongbiao Transmission Technology Co., Ltd. was established in 2013 and is located in Dongguan City, Dongguan Province,China, covering an area of an area large,enjoying convenient transportation and beautiful environment. We specialize in producing a series of high-precision linear transmission products, including linear guide module,translation stage,linear guides, ball screws, shaft coupling and so on.
The company can design for you with the solutions for different experimental environment, different sites and different experimental conditions according to different working station needs in production facilities and production line in industries of optical instrument, production machinery and detection device, the process required accuracy and reliability under efficient and stable output.
Over the years,many of them have obtained national patents and met multiple international testing and certification standards.All of our products have reached international advanced standards, which are extensively used formanufacturing area , industrial , science.medical ,research and more. At present,our products are mainly exported to USA, Korean, German,Spain,France ,Italy Russia, Brazil and other countries and have cooperation with other customers.We always adhere to high-quality products, sufficient supply, fast transactions, and efficient services.
Hongbiao Transmission Technology Co., Ltd. adheres to the business principle of matual benefits,we have had a reliable reputation among our customers because of our professional service,quality products and competitive prices. We sincerely hope that we can work together for a better future.We warmly welcome customers from at home and abroad to cooperate with us for common success.Welcome to contact us!
The company can design for you with the solutions for different experimental environment, different sites and different experimental conditions according to different working station needs in production facilities and production line in industries of optical instrument, production machinery and detection device, the process required accuracy and reliability under efficient and stable output.
Over the years,many of them have obtained national patents and met multiple international testing and certification standards.All of our products have reached international advanced standards, which are extensively used formanufacturing area , industrial , science.medical ,research and more. At present,our products are mainly exported to USA, Korean, German,Spain,France ,Italy Russia, Brazil and other countries and have cooperation with other customers.We always adhere to high-quality products, sufficient supply, fast transactions, and efficient services.
Hongbiao Transmission Technology Co., Ltd. adheres to the business principle of matual benefits,we have had a reliable reputation among our customers because of our professional service,quality products and competitive prices. We sincerely hope that we can work together for a better future.We warmly welcome customers from at home and abroad to cooperate with us for common success.Welcome to contact us!
FAQ
Q:What kind of services do we have?
A:a. Help customers to choose the correct model
b. Professional sales team, make your purchase smooth.
Q：How do we support payment?
A:Sample order: We require 100% T/T in advance. sample express need request pay by clients
Bulk order: 30% T/T in advance, balance by T/T against copy of B/L.
T/T, Trade Assurance, Western Union is acceptable.
Q：How long is the delivery date?
A：Sample: 5-10 business days after the payment confirmed.
Bulk order:10-20 workdays after deposit received.
Q：How long is the warranty period?
A：Hongbiao provides a year quality guarantee for the products from your purchase date, except for the artificial damage
A:a. Help customers to choose the correct model
b. Professional sales team, make your purchase smooth.
Q：How do we support payment?
A:Sample order: We require 100% T/T in advance. sample express need request pay by clients
Bulk order: 30% T/T in advance, balance by T/T against copy of B/L.
T/T, Trade Assurance, Western Union is acceptable.
Q：How long is the delivery date?
A：Sample: 5-10 business days after the payment confirmed.
Bulk order:10-20 workdays after deposit received.
Q：How long is the warranty period?
A：Hongbiao provides a year quality guarantee for the products from your purchase date, except for the artificial damage
