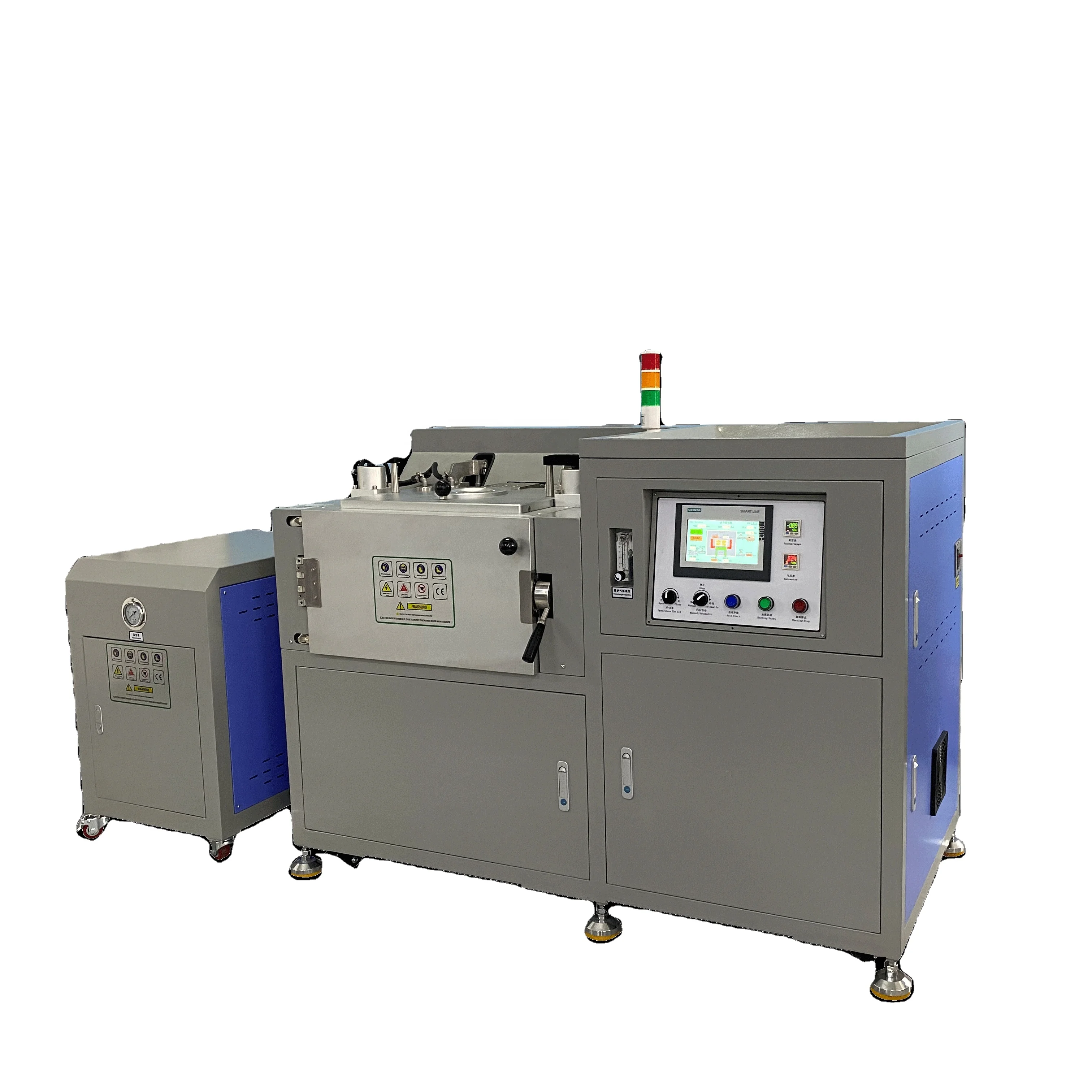

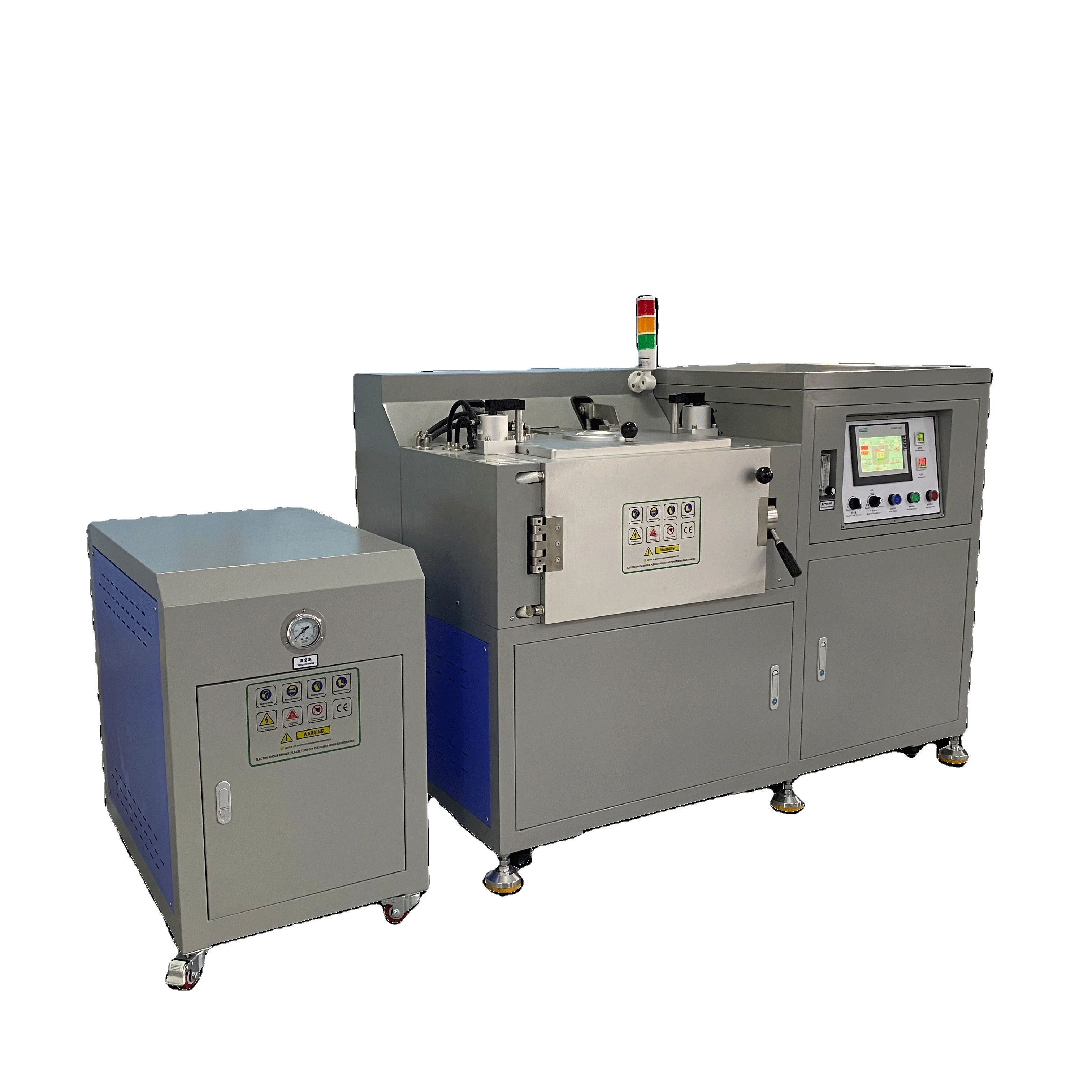

1kg 2kg 4kg Gold Silver Bullion Vacuum Casting Machine For Laboratory And Factory
- Category: >>>
- Supplier: Wenzhou Shuangming Electrical Technology Co. Ltd.
Share on (1600935694959):
Product Overview
Description
Products Description

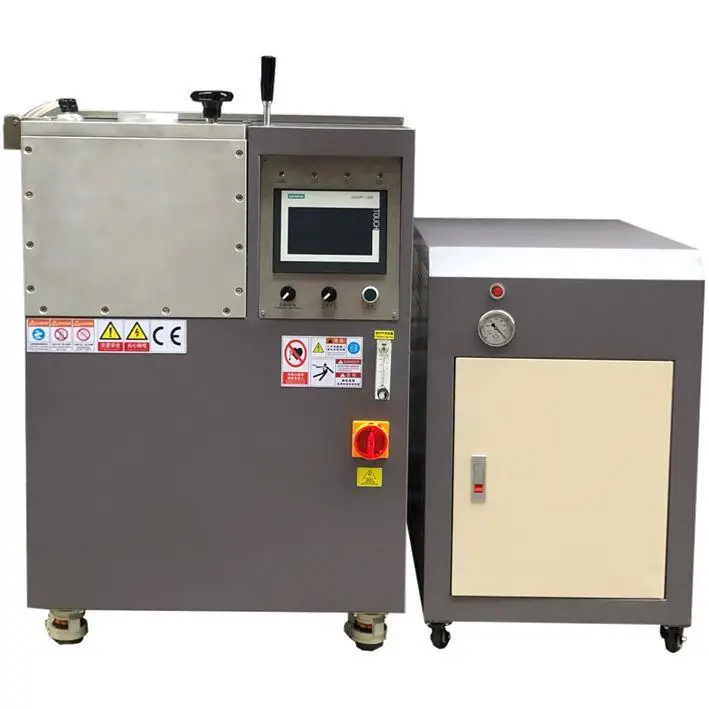

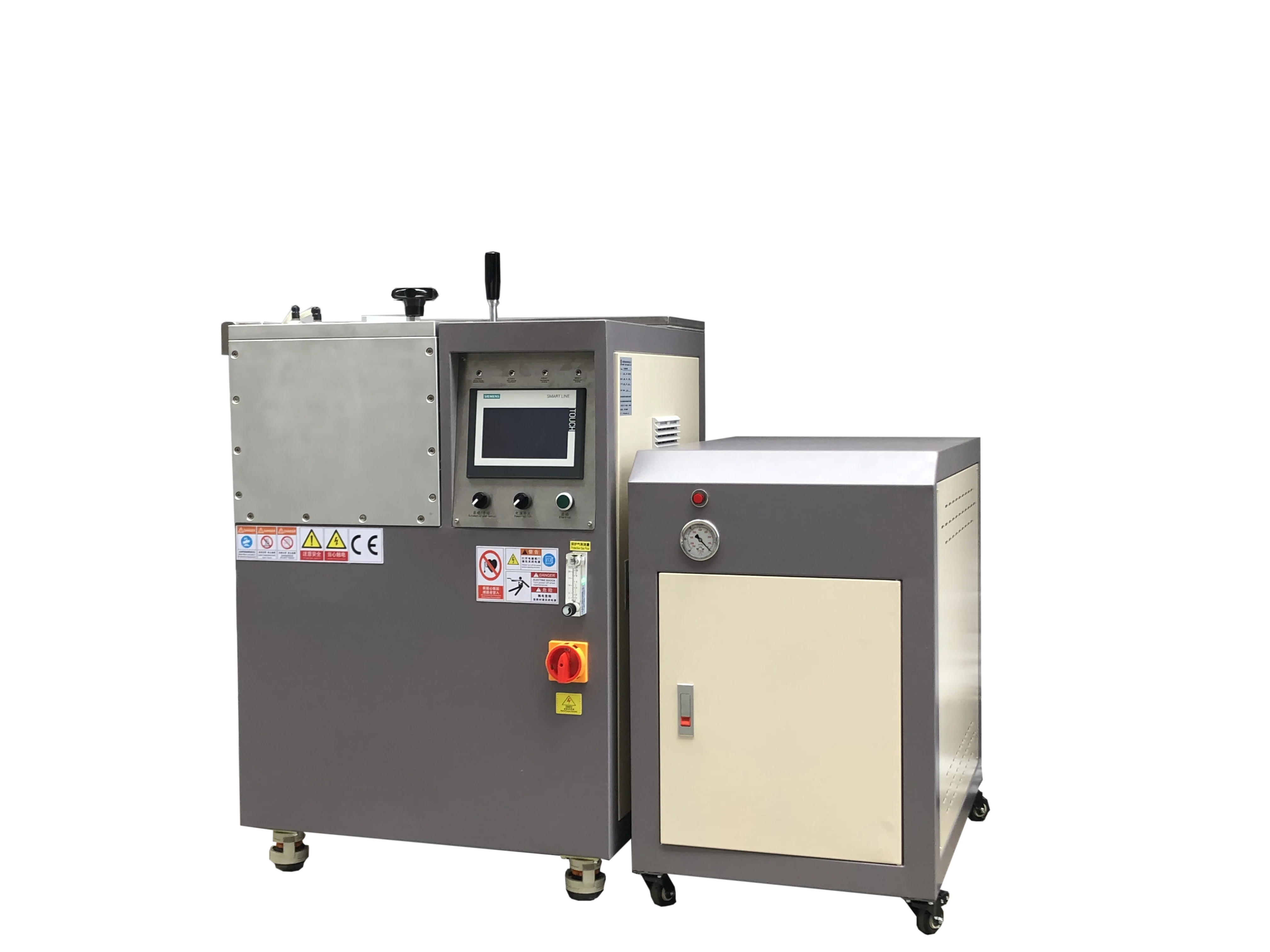

1kg 2kg 4kg Gold Silver Bullion Vacuum Casting Machine For Laboratory And Factory

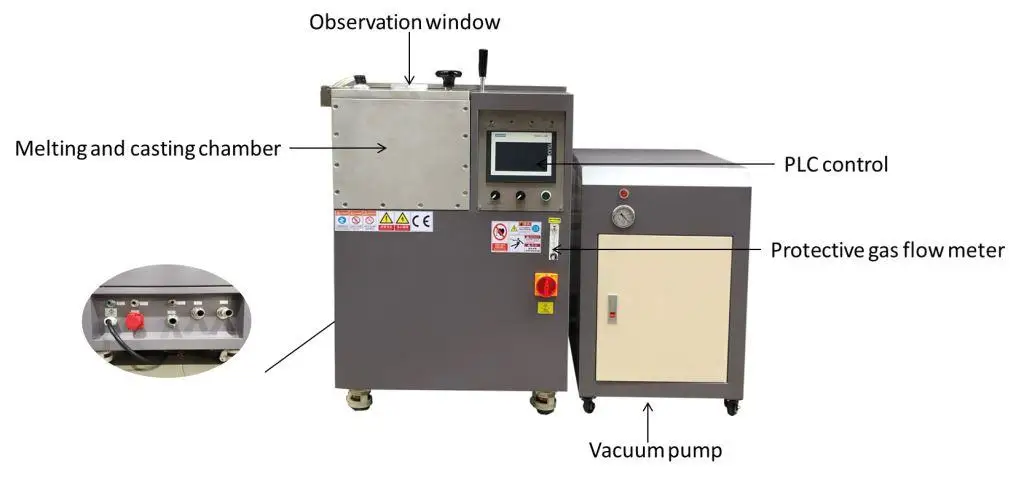

The CDOCAST Vacuum Bold Bar Making machine is specially designed for casting high quality gold and silver bars and ingots. This gold bar Making machine can melt up to 4 x 1 kg of gold and silver ingots per batch. Or max 1pcs 15kg bullion on batch. And other customized sizes bullion can also be cast in our furnace. The entire melting process is carried out under vacuum and with argon as a protective gas. As a result, the melted ingots have a shiny surface with no water ripples.The entire vacuum melting & casting process minimizes the loss of precious metals and maximizes the prevention of metal oxidation.
The CDOCAST Vacuum Gold Bar Making Machine can cast up to 15Kg of gold bars .We can also customize the machine to make gold ingots of different size according to customer needs. 15kg gold bars casting need the power supply of 75kw, the bigger bar cast, the more power required. Due to the enclosed vacuum melting condition, our vacuum gold bar casting machine has almost no precious metal loss which Greatly reduce the loss of customers.
Product Paramenters
Model number | CDO-F1 | CDO-F2 | CDO-F4 | CDO-F5 |
Power source | Three phase 380V±10%, 50/60Hz | Three phase 380V±10%, 50/60Hz | Three phase 380V±10%,50/60Hz | Three phase 380V±10%,50/60Hz |
Power | 25 kw | 35 kw | 45kw | 70-90kw |
Control system | PLC/Manual | PLC/Manual | PLC/Manual | PLC/Manual |
Applicable metal | Gold,silver,Copper and others | Gold,silver,Copper and others | Gold,silver,Copper and others | Gold,silver,Copper and others |
Casting time | About 6 min | About 7 min | About 8-12 min | About 15-20 min |
Cooling time | About 7 min | About 7-10 min | About 8-15 min | About 15-30 min |
The Max capacity | 1 pcs of 1kg bar or customized | 2 pcs of 1kg bar or customized | 4 pcs of 1kg bar or customized | 15-30kg bar or customized |
Dimension | 1400*700*1200 mm | 1400*700*1200 mm | 1540*770*1300 mm | 1820*980*1640mm |
Weight | 150 kg | 210 kg | 300kg | 350kg |
Protective gas | Nitrogen or argon | Nitrogen or argon | Nitrogen or argon | Nitrogen or argon |
Heating technology | Induction heating | Induction heating | Induction heating | Induction heating |
Casting mode | Auto and manual mode switch | Auto and manual mode switch | Auto and manual mode switch | Auto and manual mode switch |
Application
Features

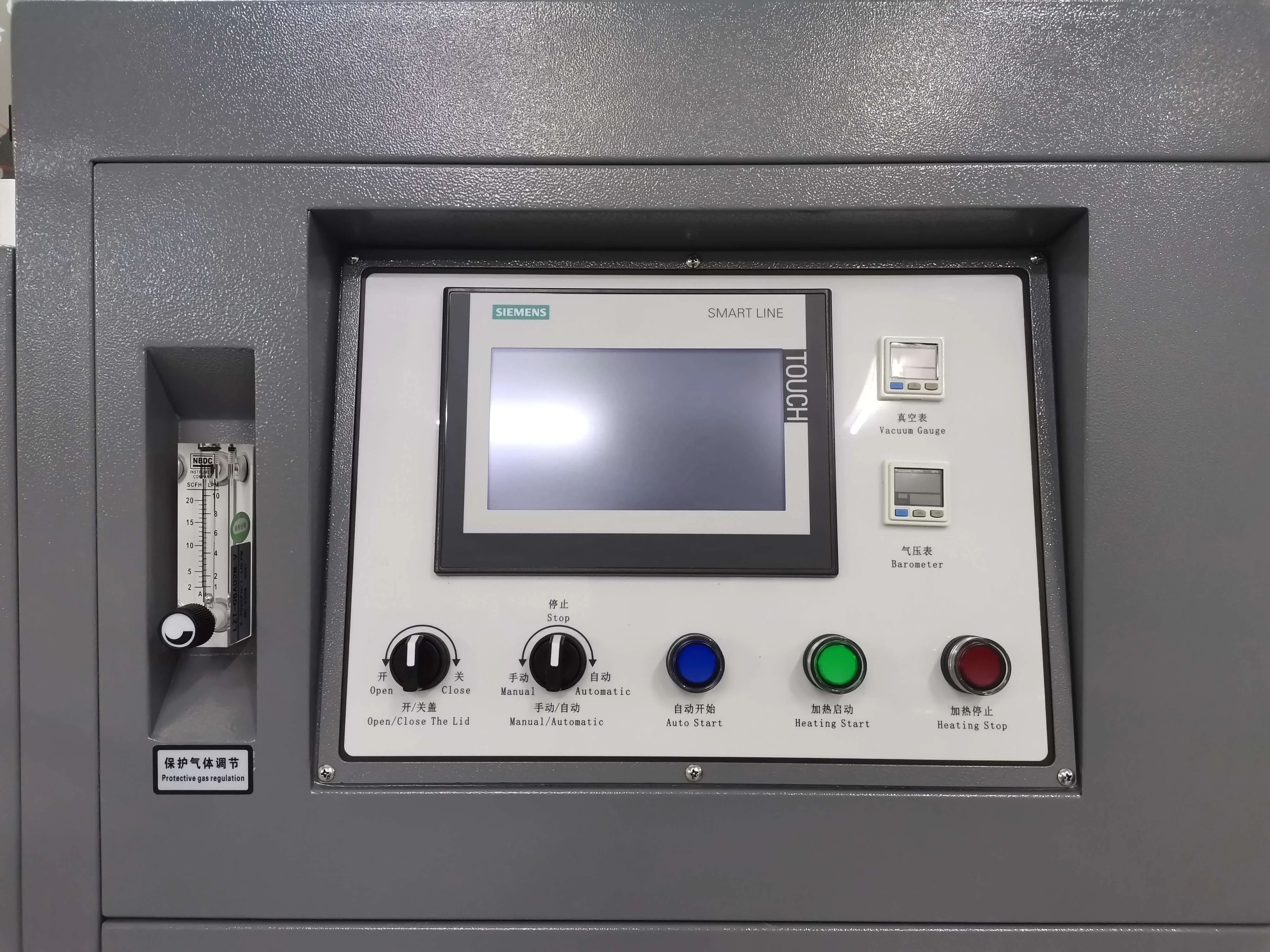

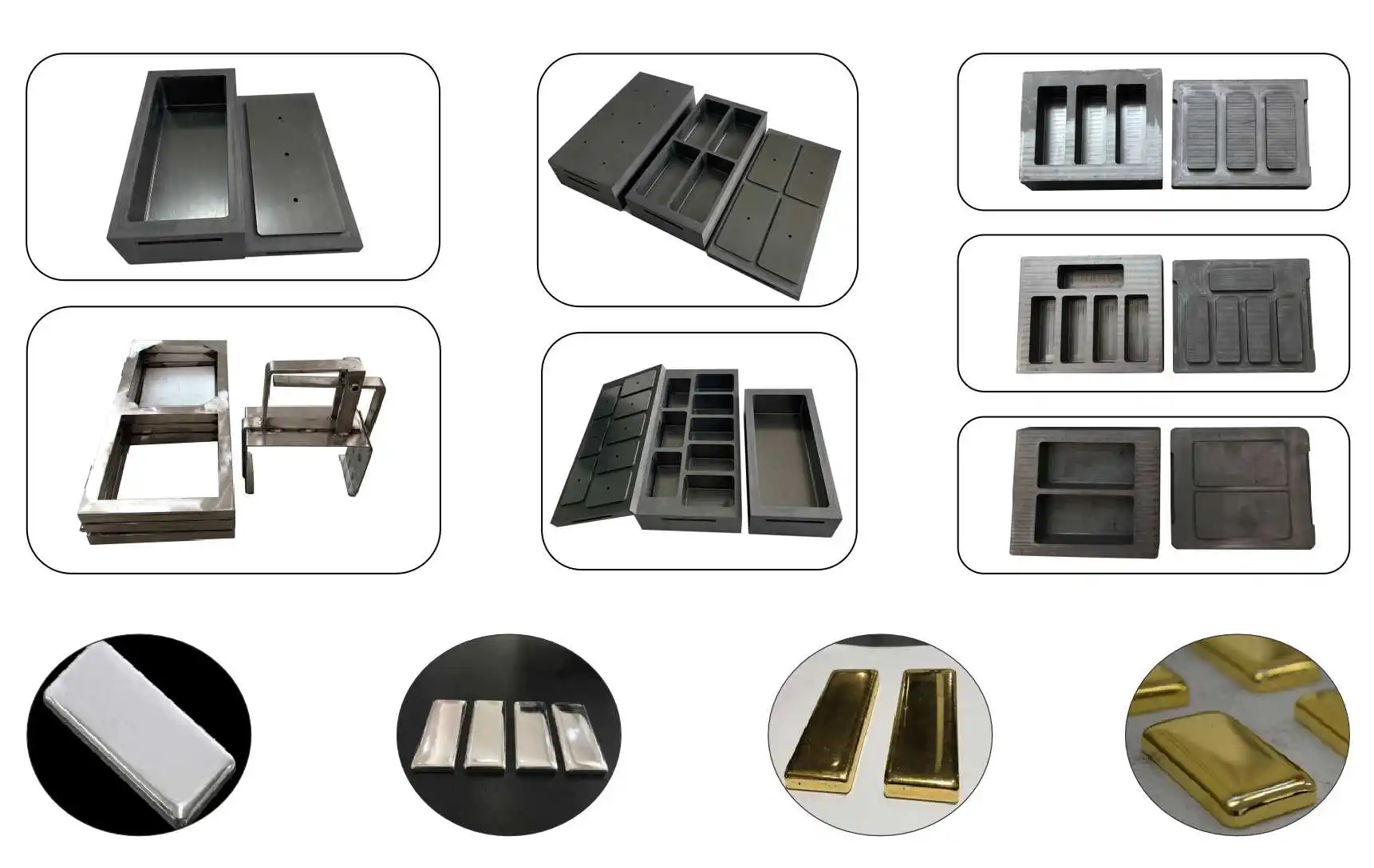

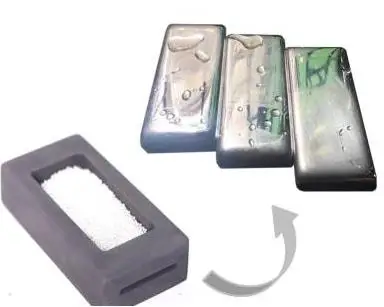

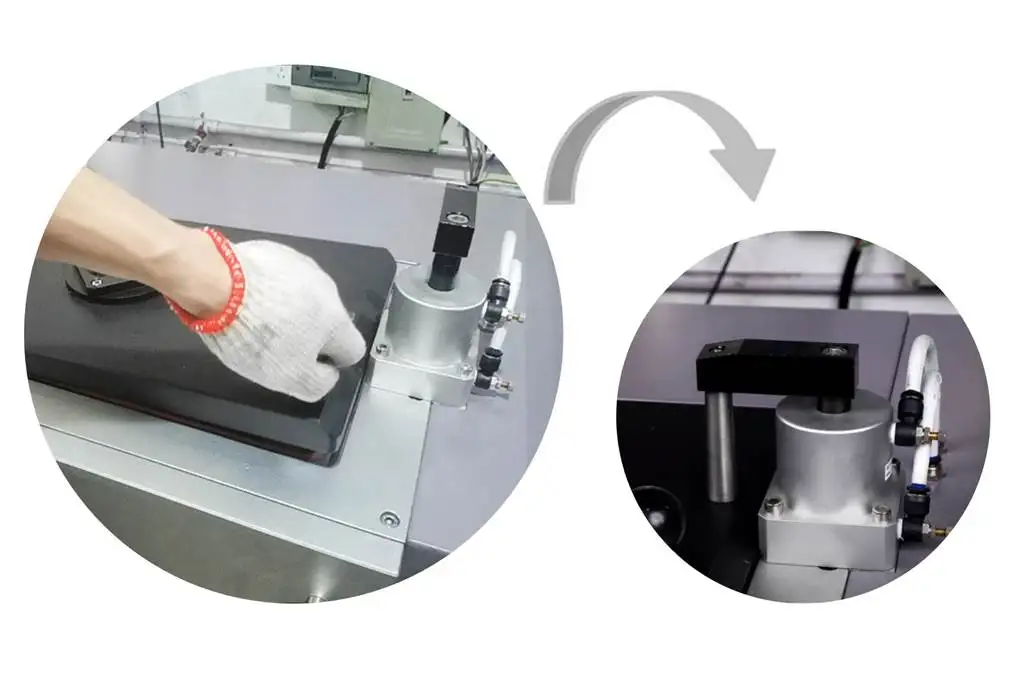

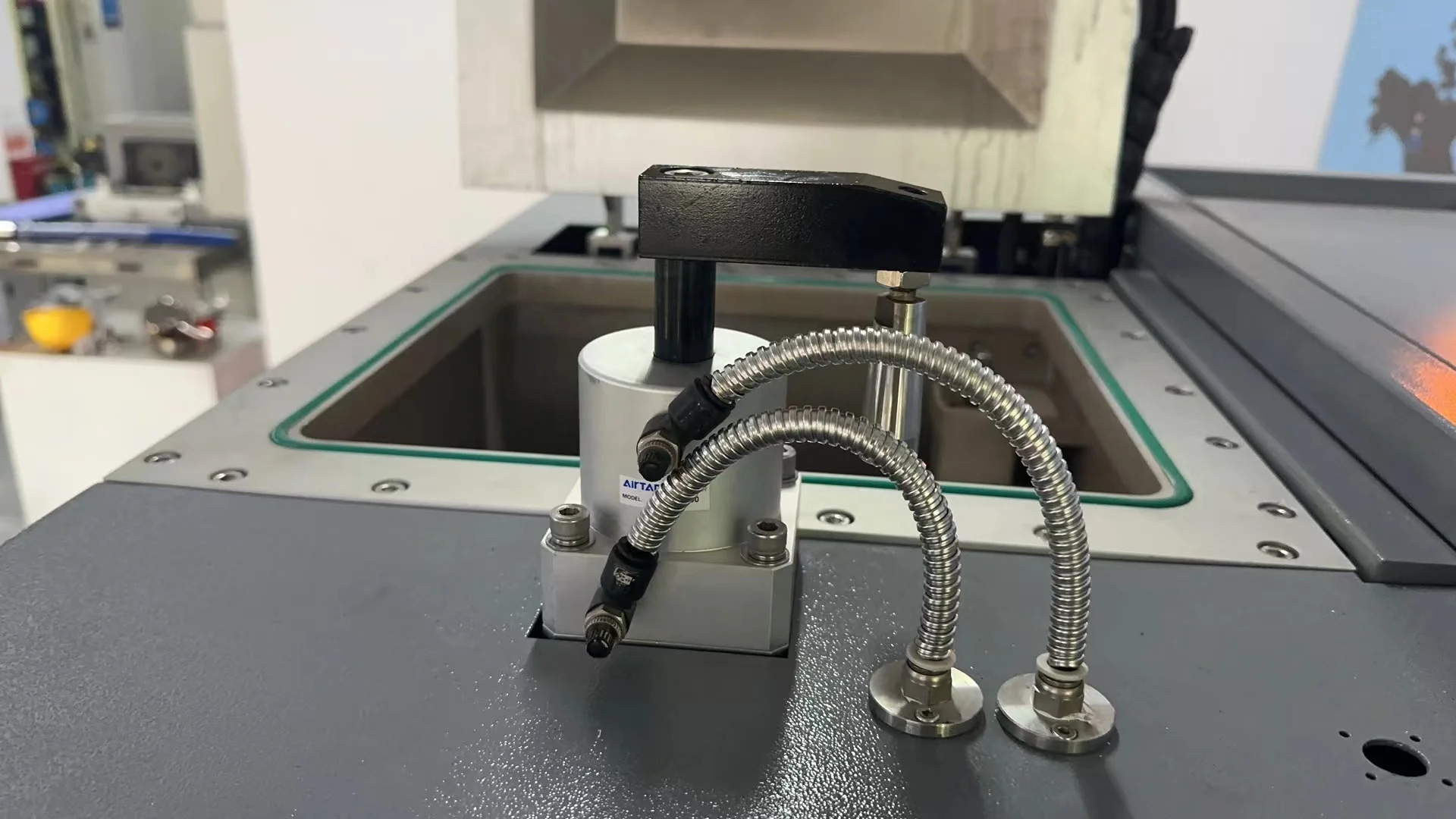

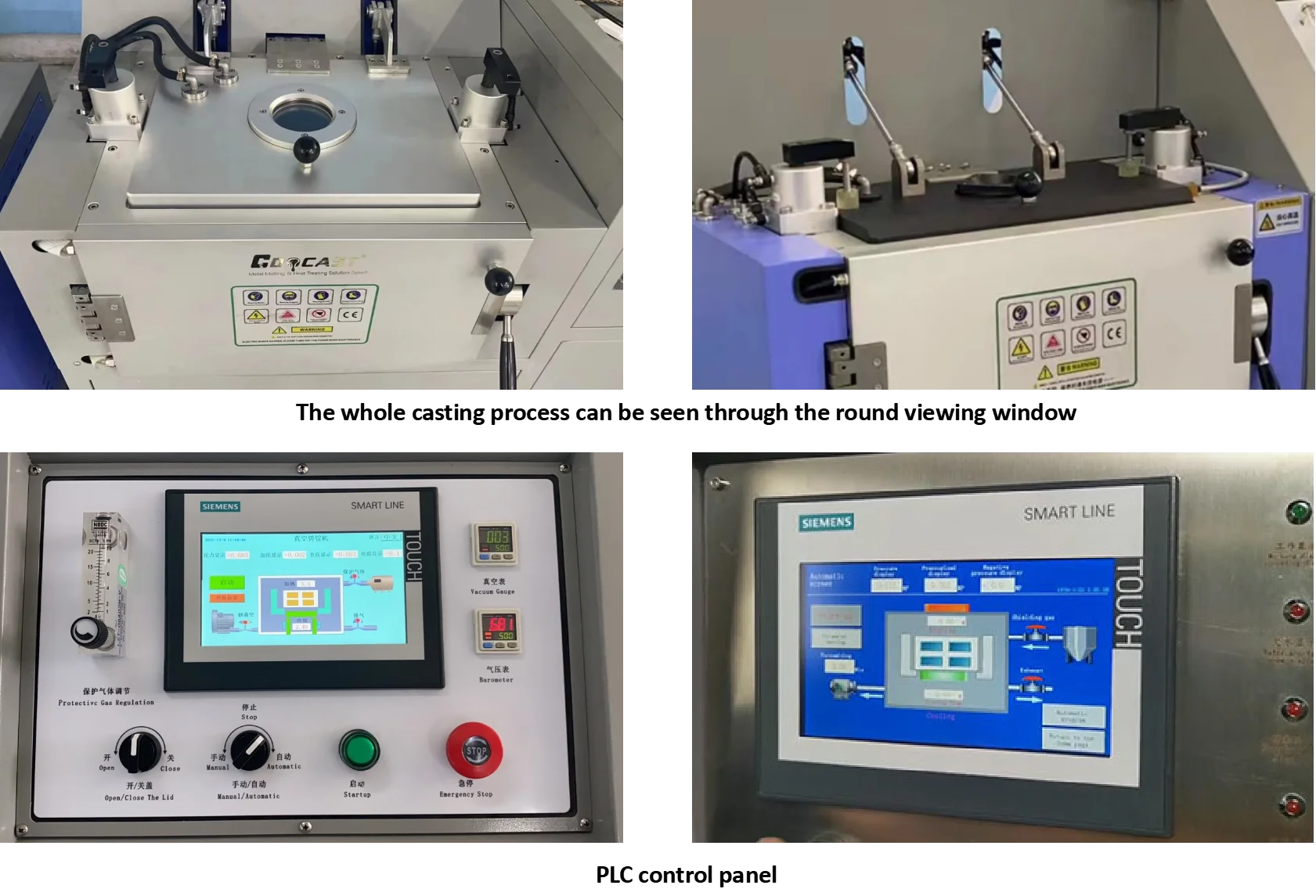

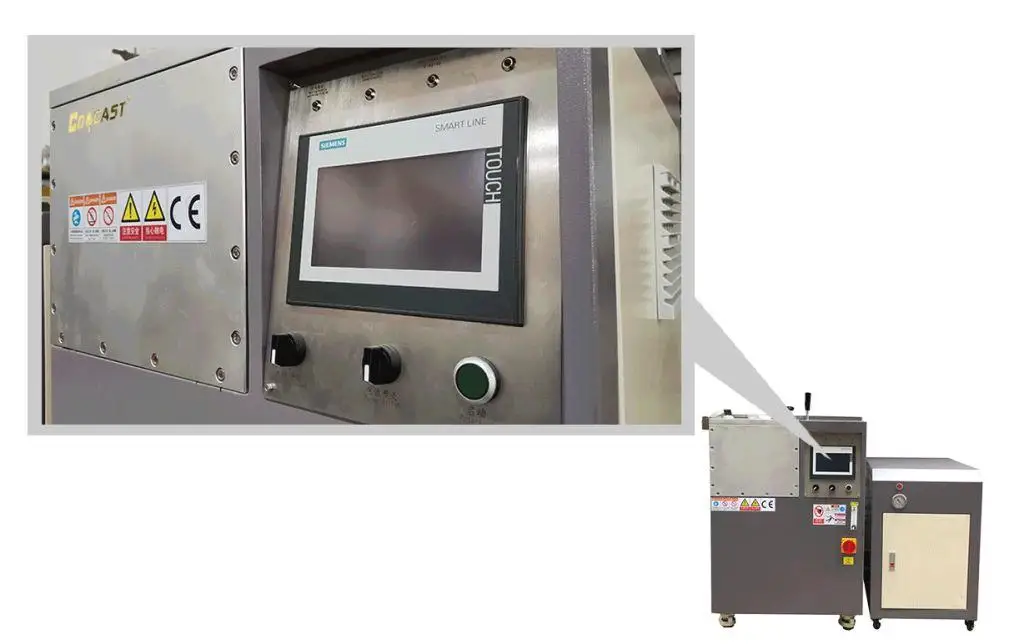

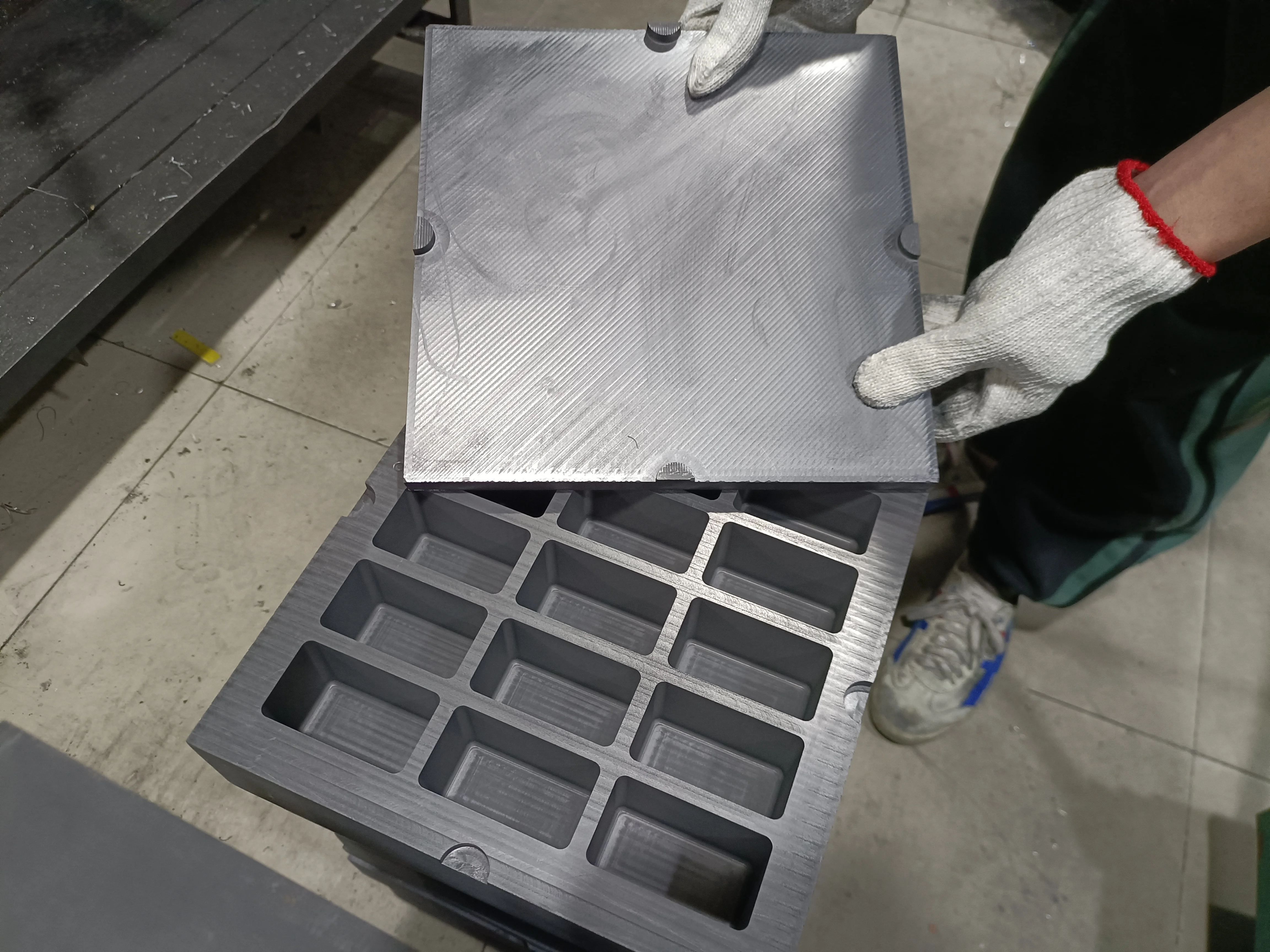

1: Our Vacuum gold bar casting machine comes with the plc touch screen system control, the operator only has to filled in the graphite mould with the pre-weighted raw material, like gold powder, gold grain, close the door of the melting chamber as well as press the START switch to release the automatic cycle, the casting will started automaticly, after finished the casting cycle, you can abtain the gold or silver bar which is ready for the market.2: The induction coil of the vacuum gold bar making machine is custom designed to be either square or rectangular in shape, with a water cooling plate in the middle of the coil. After melting, the cooling plate will be jacked up by a cylinder to rapidly cool the graphite mould, allowing the graphite cover and graphite mould to reach the same temperature, resulting in a bright and flat surface.
3: The entire casting process consists of melting and cooling process, with melting times ranging from 6 to 12 minutes, depending on the size of the bars The cooling time is usually recommended to be 8 minutes or more, as this will maximise the lifetime of the graphite mould.
4: 24-hour continuous operation, thus satisfying customers with high production output requirements.
5: There is no need for engineers to install and debug onsite. Each gold bar casting machine comes with installation and debugging video. Under the video guidance, you can simply complete the installation and start to run our furnace,what is more,each vacuum gold bar making machine produced by CDOCAST will be strictly tested before leaving the factory to ensure stable quality.
Related Products
Please Click here to see more products!
Packaging & Shipping
Our services
I. Commissioned from the furnace after delivery, into the warranty period, the warranty period of two years.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II. In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III. After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
I. Commissioned from the furnace after delivery, into the warranty period, the warranty period of two years.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II. In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III. After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.

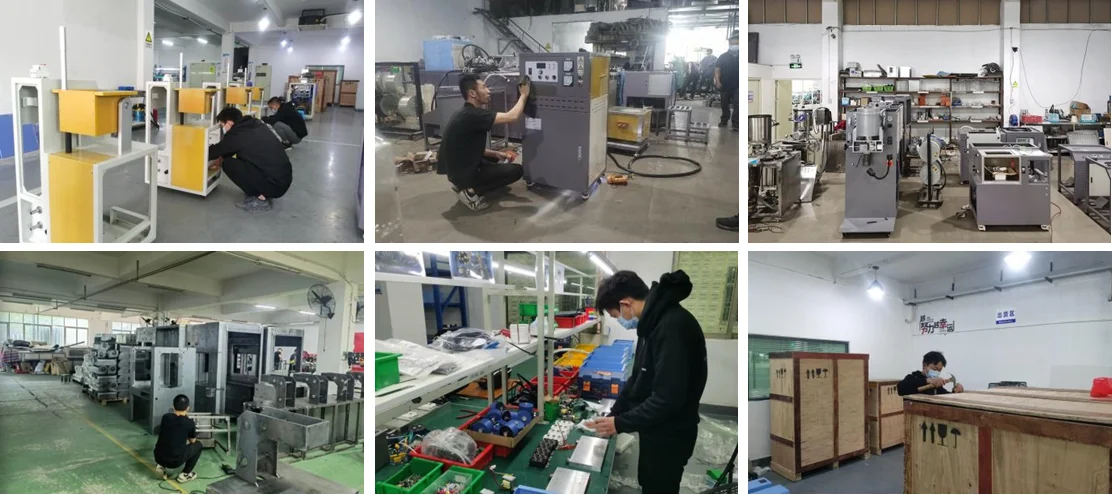

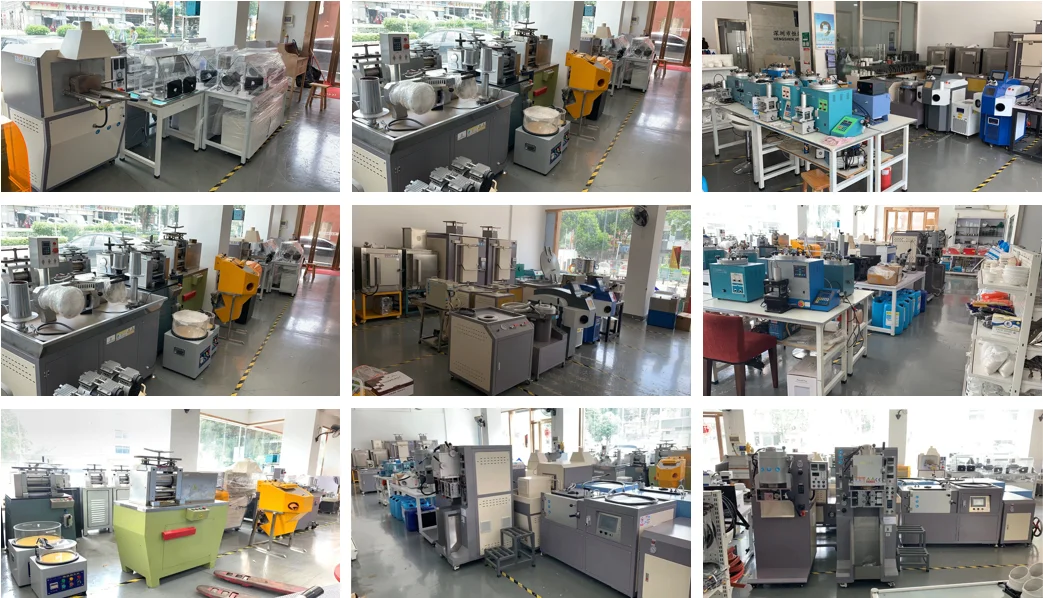

Factory Photo
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. What is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
