Product Overview
Description

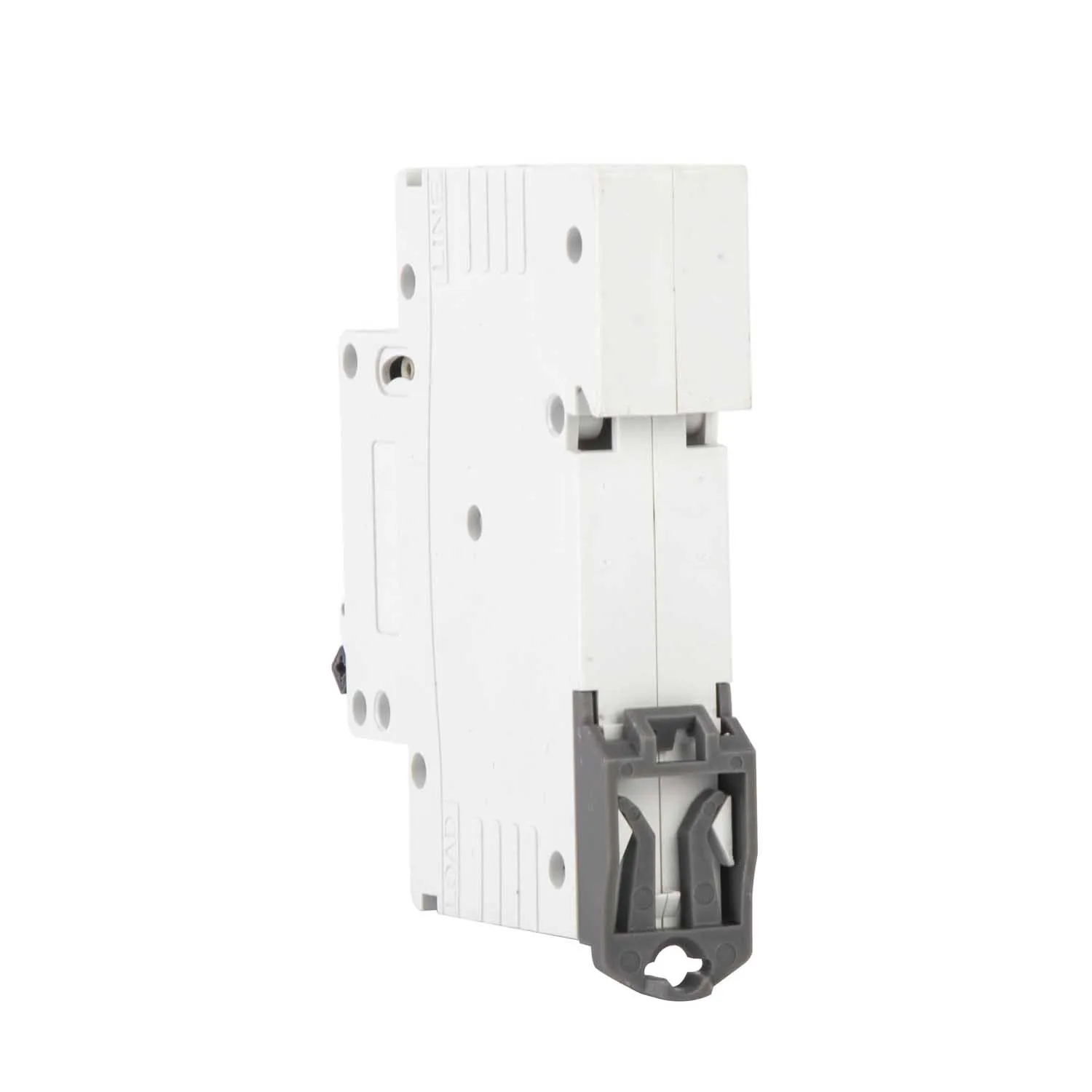

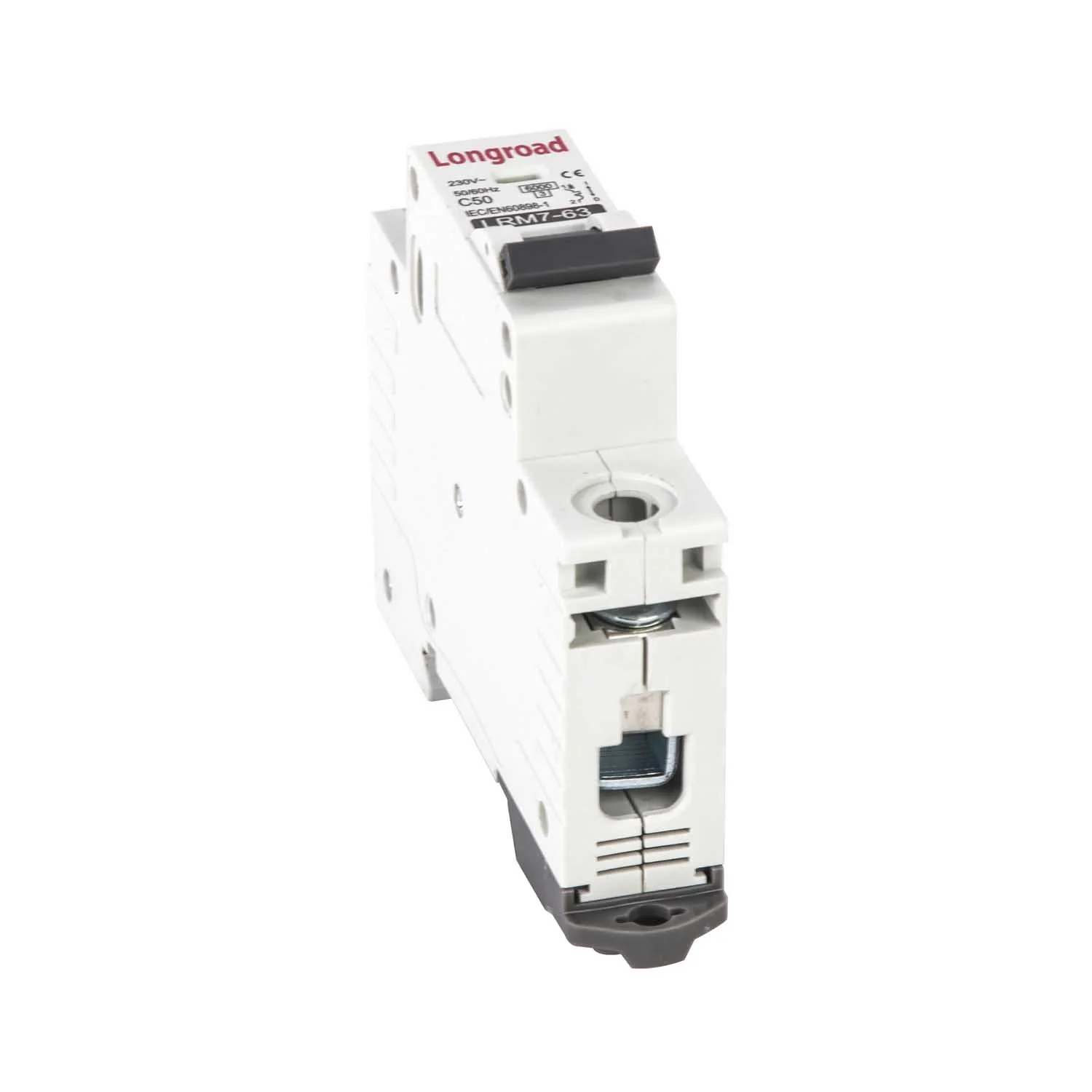

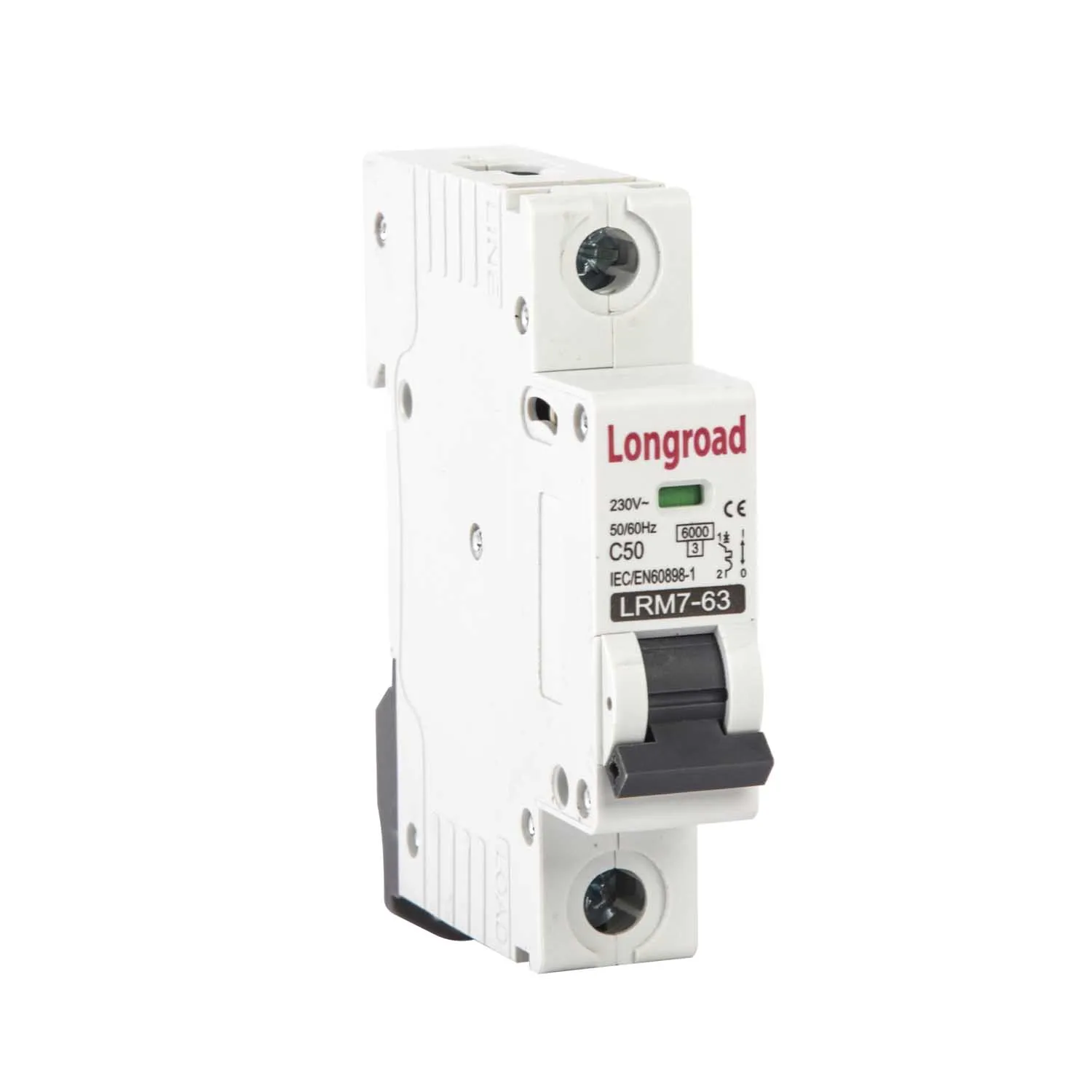

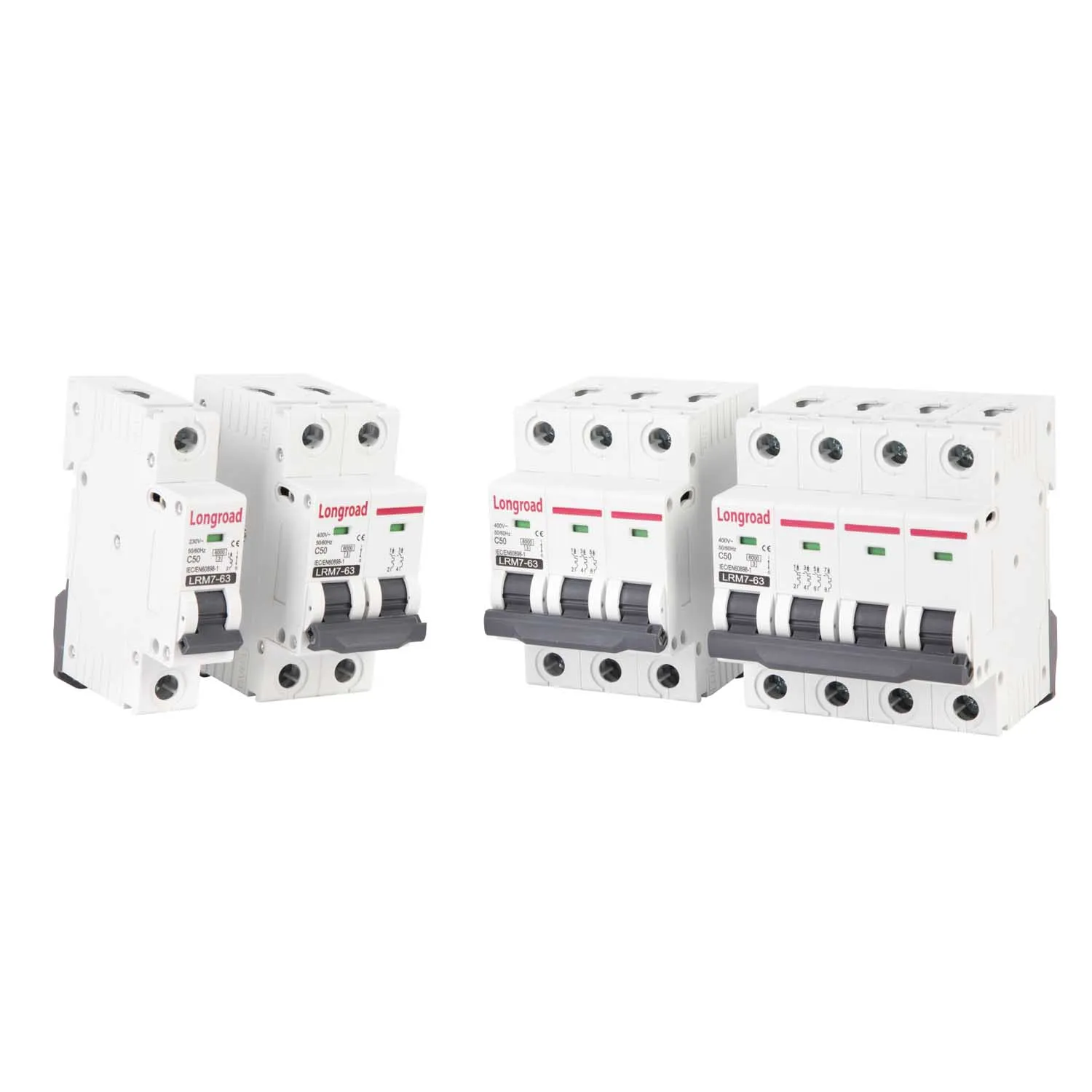

Model LRM7-63 Miniature Circuit Breaker with 6000A breaking capacity
1. General
1.1 Product Application And Function
The MCB has protection of circuits against short-circuit , overload as well as has function of circuit ON/OFF and isolation.
The MCB are used in families as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
the earthing systems (TNS, TNC),
short-circuit current at the circuit-breaker installation point , which must always be less than the breaking capacity of this device, Network normal voltage.
Tripping curves:
B curve (3-5In) protection for people and big length cables in TN and IT
systems
C curve (5-10In) protection for resistive and inductive loads with low inrush
current.
D curve(10-14In) protection for circuits which supply loads with high inrush
current at the circuit closing (LV/LV transformers, breakdown lamps)
The MCB has protection of circuits against short-circuit , overload as well as has function of circuit ON/OFF and isolation.
The MCB are used in families as well as in commercial and industry electrical distribution systems.
1.2 Selection
Technical data of the network at the point considered:
the earthing systems (TNS, TNC),
short-circuit current at the circuit-breaker installation point , which must always be less than the breaking capacity of this device, Network normal voltage.
Tripping curves:
B curve (3-5In) protection for people and big length cables in TN and IT
systems
C curve (5-10In) protection for resistive and inductive loads with low inrush
current.
D curve(10-14In) protection for circuits which supply loads with high inrush
current at the circuit closing (LV/LV transformers, breakdown lamps)
2. Technical data
2.1 curves
2.2Technical parameter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Major function
ON/OFF Circuit, Overload protection, short circuit protection, positive isolation
Compliant standards
IEC60898-1

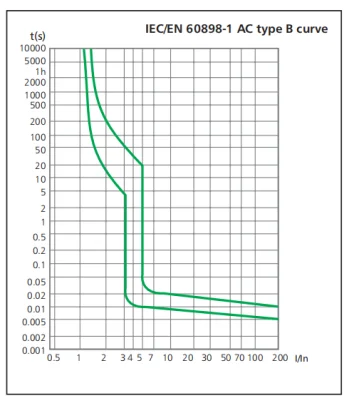

Characteristic Curve
I/In B curve

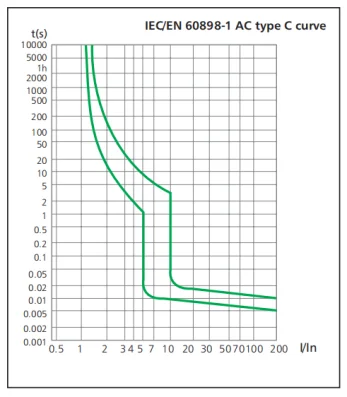

I/In C curve

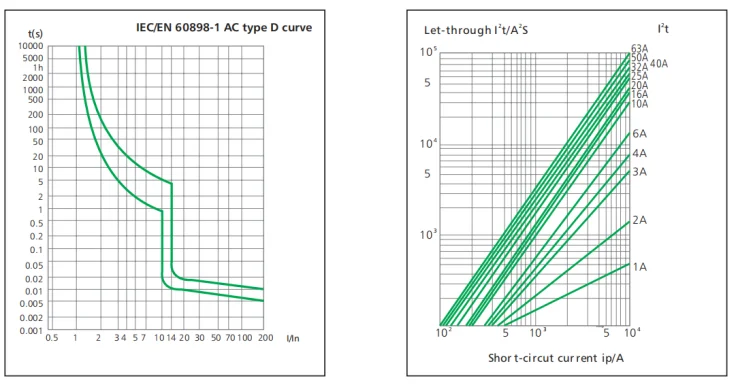

I/In D curve

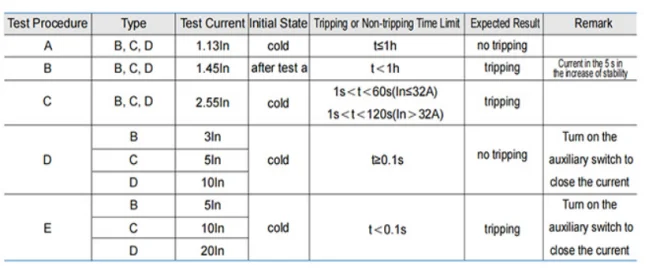

Overload Current Protection Characteristics

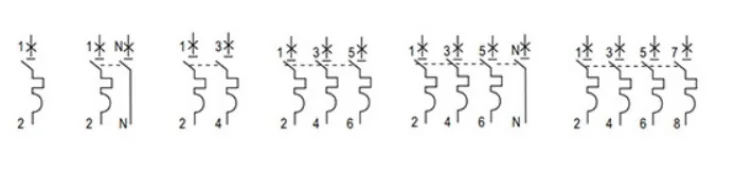

Wiring Diagram

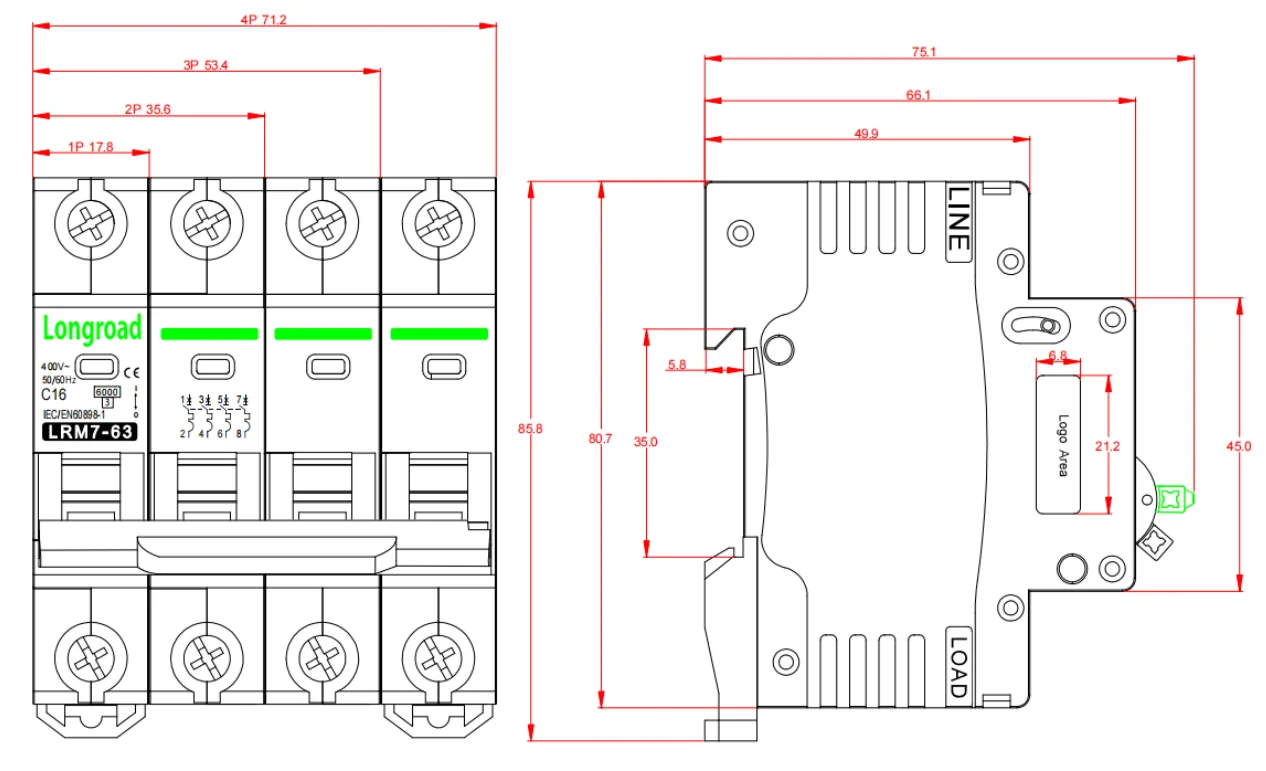

Overall & Installation Dimensions(mm)

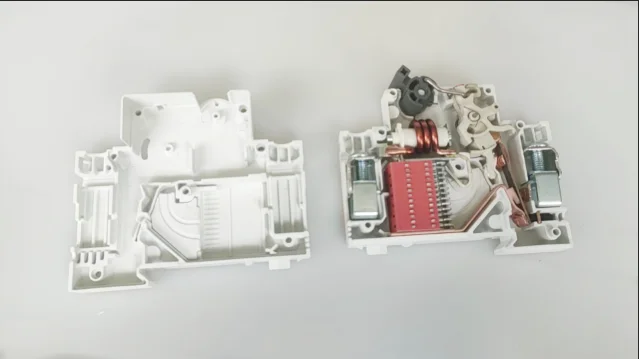

SKD parts
This is the SKD parts for this product. If you need to purchase parts and assemble them yourself to avoid customs duties, we can also provide them. Please contact me.
FAQ
When can I receive your quotation and detail information after send the enquiry? | All your enquiry will be replied within 8 hours. |
Can I get samples before place an order ? | Of course! We also believe that sample order is the best way to prove the quality.And in our company we offer free sample service! Please send the enquiry to us and get the free sample! |
Can you print our own logo? | Yes,Our company are available for OEM. |
How long is the quality guarantee? | 2-5 years warranty,our products are 100% inspection. |
How long is the delivery time? | It usually takes about 3-5 working days for sample order,and 10-20 days for official order. |
