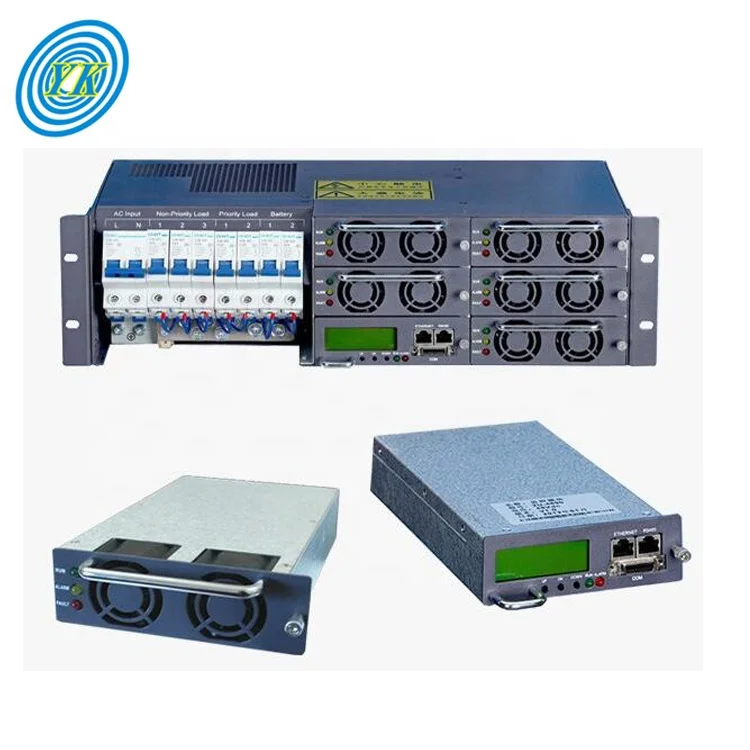

YUCOO manufacturer new embedded power system 3U 150A 48V DC power supply for telecom
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600935709702):
Product Overview
Description
Product Specifications
item | value |
Brand | YUCOO |
Place of Origin | China/Guangdong |
Model | YK-GPE48150 |
Type | Telecom recitifer |
AC input voltage range | 90VAC-285VAC |
DC input voltage range | 100DC-400VDC |
Input frequency range | 45Hz-66Hz |
effectiveness | ≥92% |
Rated output voltage | 48VDC |
Rated output voltage range | 43VDC-58VDC |
Output rated current | 0A-150A |
Regulation accuracy | ≤±0.6 |
Peak to peak | ≤200mV |
Dimensions | ≤5% |
Weight | 482.6mm×255mm×128.9mm |
Products Details

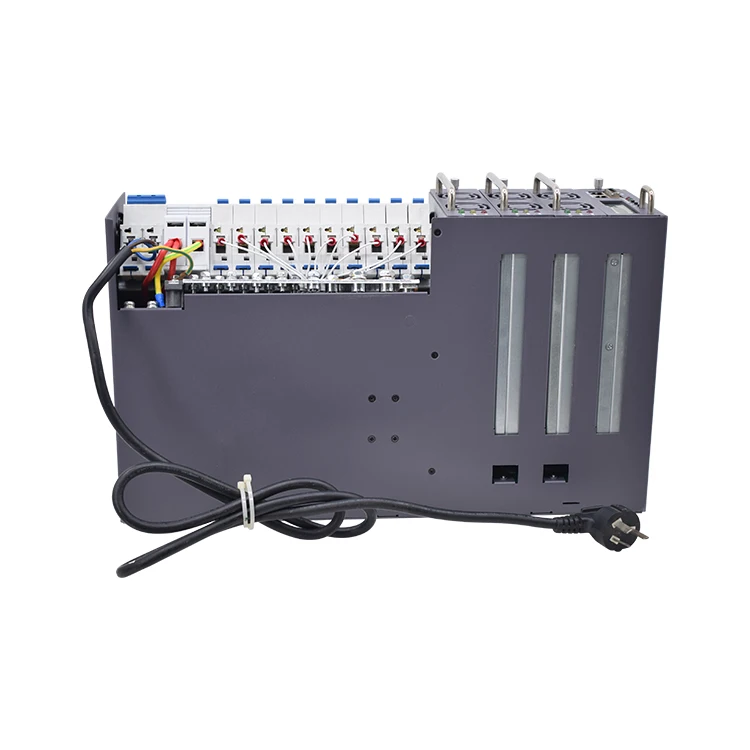

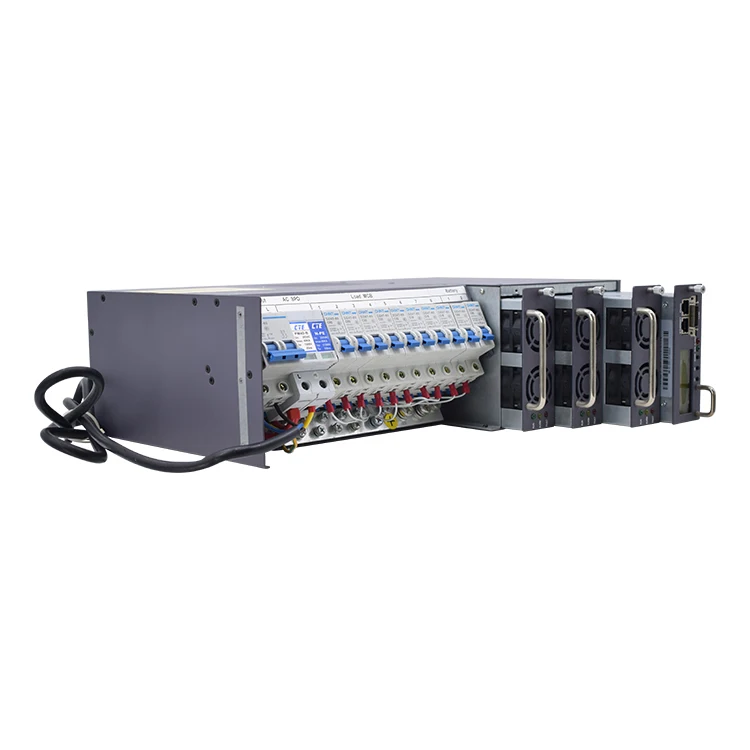

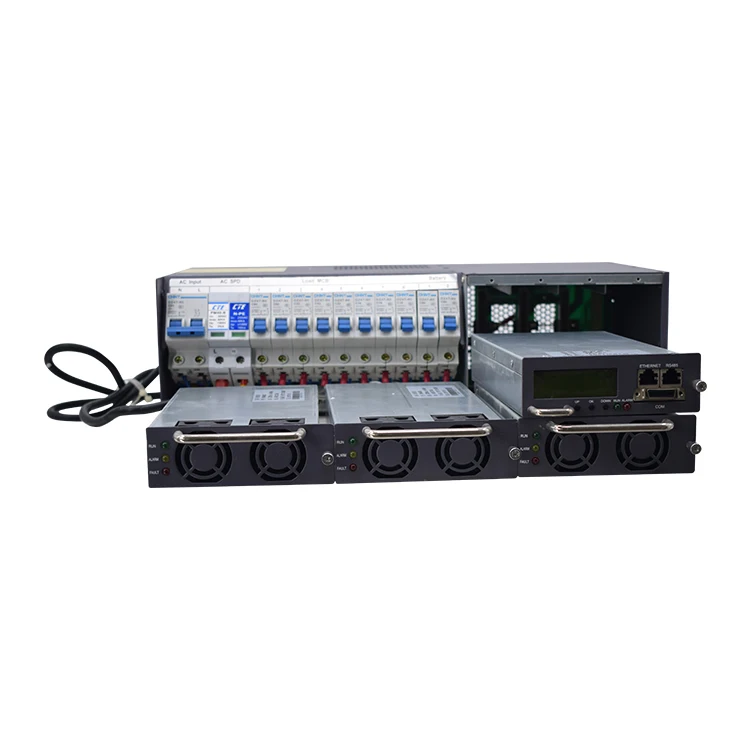

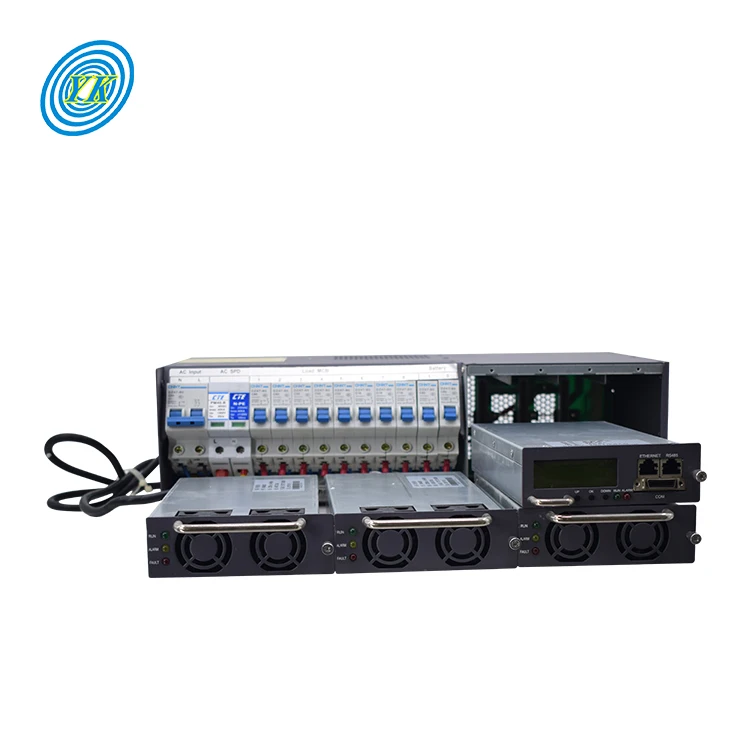

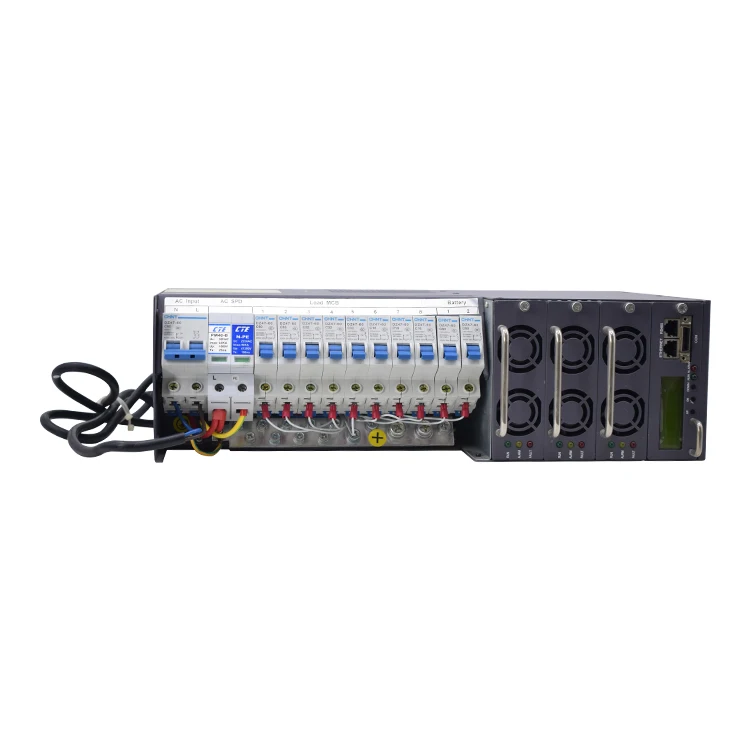

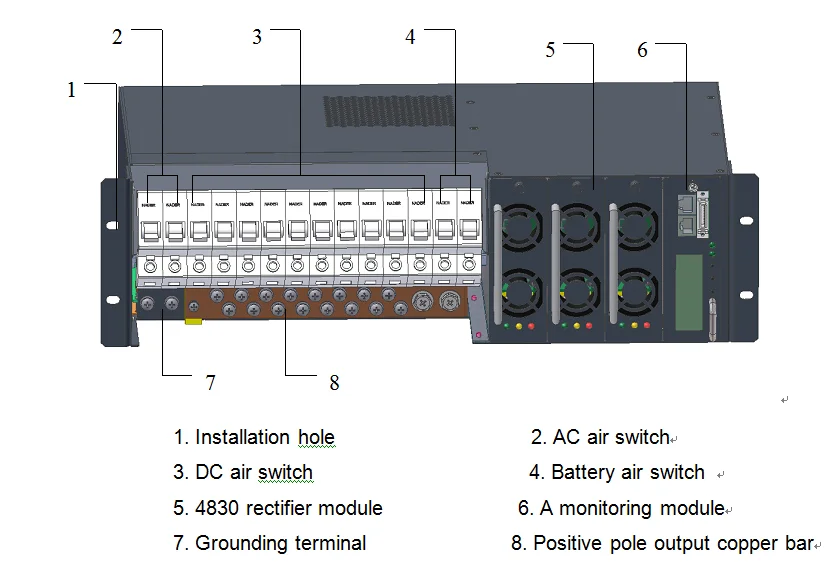

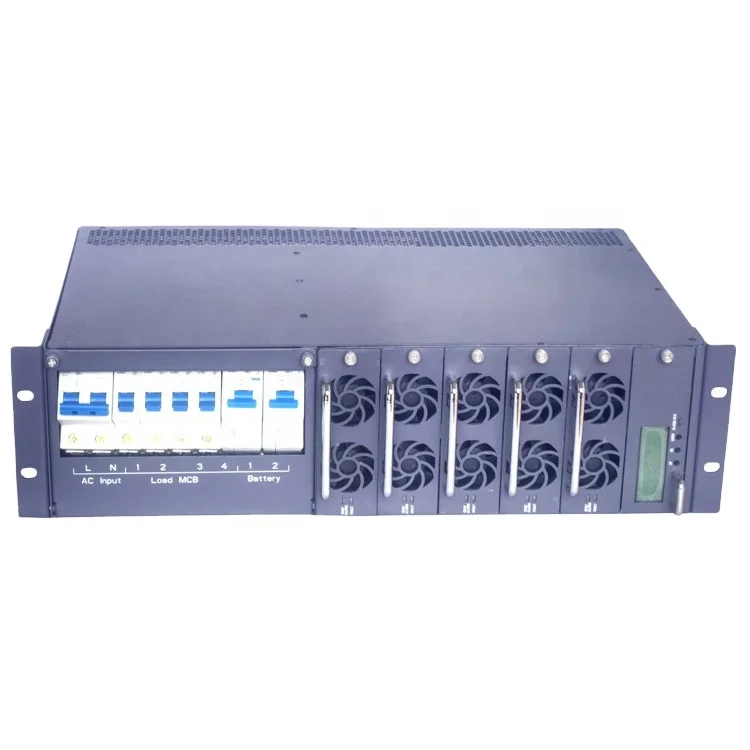

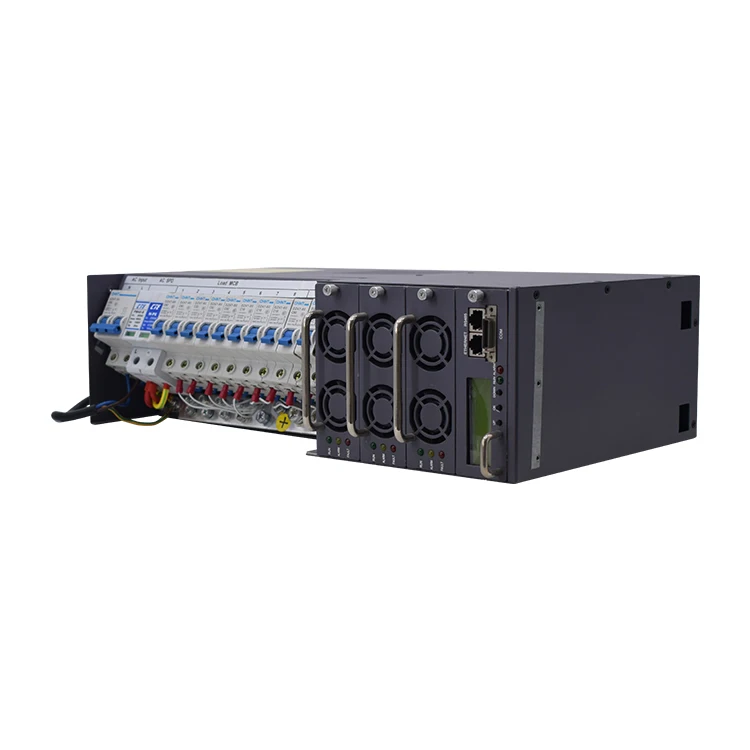

YK-GPE48150 3U Design System
Information
1. Small size, height 3U, 3*30A rectifier module

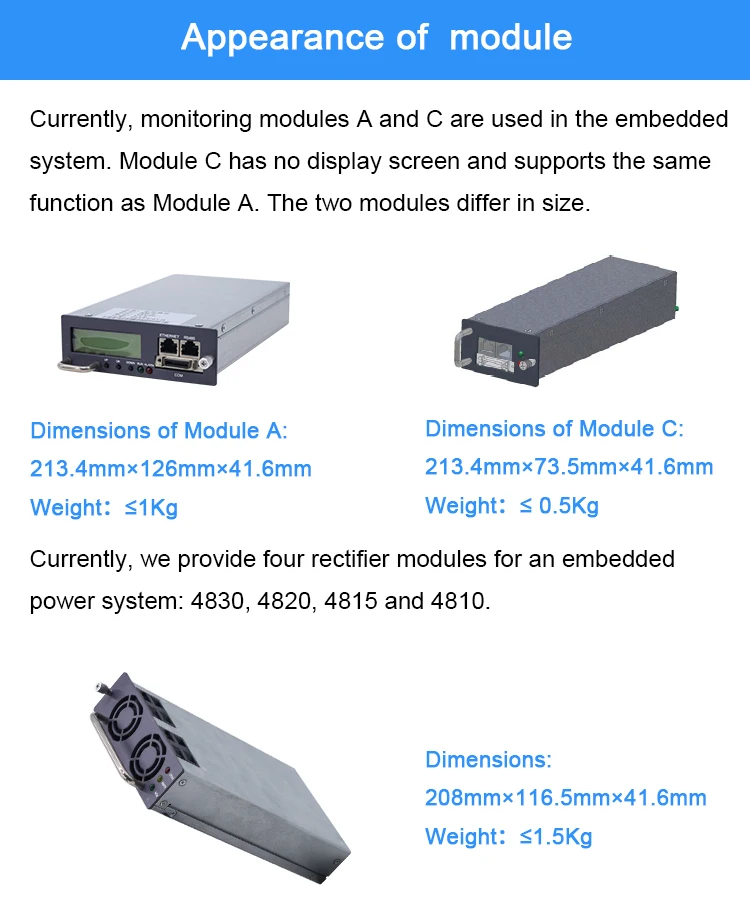

2. Configurable module: 10A, 15A, 20A, 30A for option
3. The standard 19-inch installation
4. Improve monitoring and management and battery management
5. Provide RS485 communication interface
6. 1 channel load output, 1 channel battery input
7. Battery anti-reverse function
8. Under electrical function

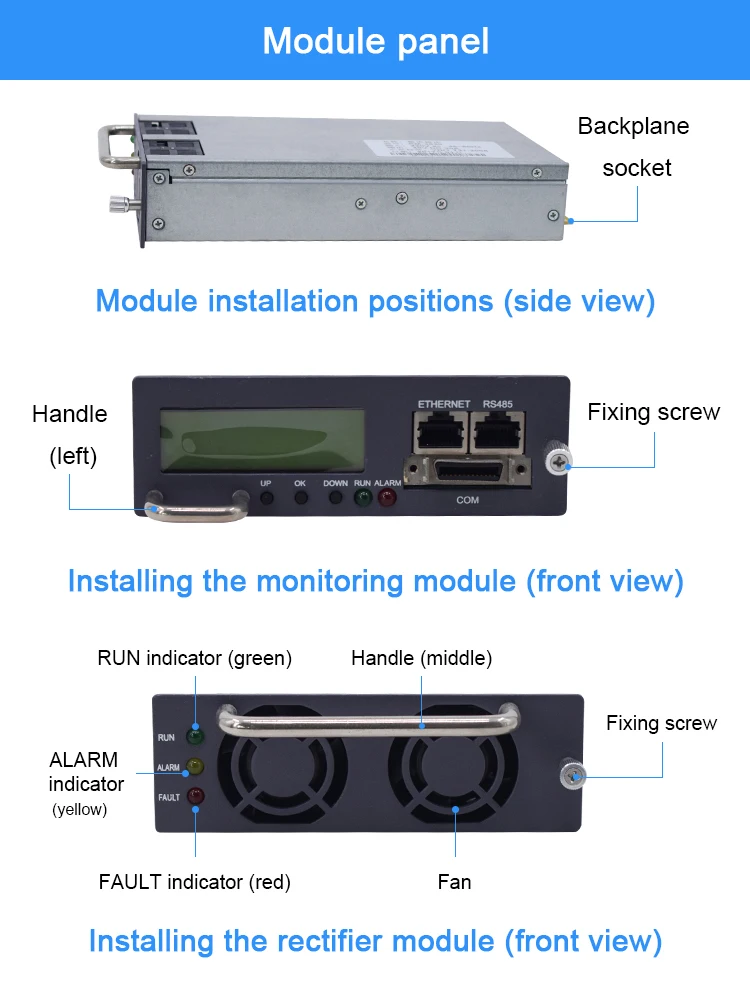

9. Support hot-swappable
10. The energy-saving sleep function
11. The independent design of lightning protection unit (optional)
12. The power supply can be installed in any 19-inch rack independently
1. Small size, height 3U, 3*30A rectifier module
2. Configurable module: 10A, 15A, 20A, 30A for option
3. The standard 19-inch installation
4. Improve monitoring and management and battery management
5. Provide RS485 communication interface
6. 1 channel load output, 1 channel battery input
7. Battery anti-reverse function
8. Under electrical function
9. Support hot-swappable
10. The energy-saving sleep function
11. The independent design of lightning protection unit (optional)
12. The power supply can be installed in any 19-inch rack independently
Application
* Small scale program controlled exchanges
* Access network
* Transmission equipment
* Mobile communication
* Satellite communication ground station
* Microwave communication
* Small scale program controlled exchanges
* Access network
* Transmission equipment
* Mobile communication
* Satellite communication ground station
* Microwave communication
