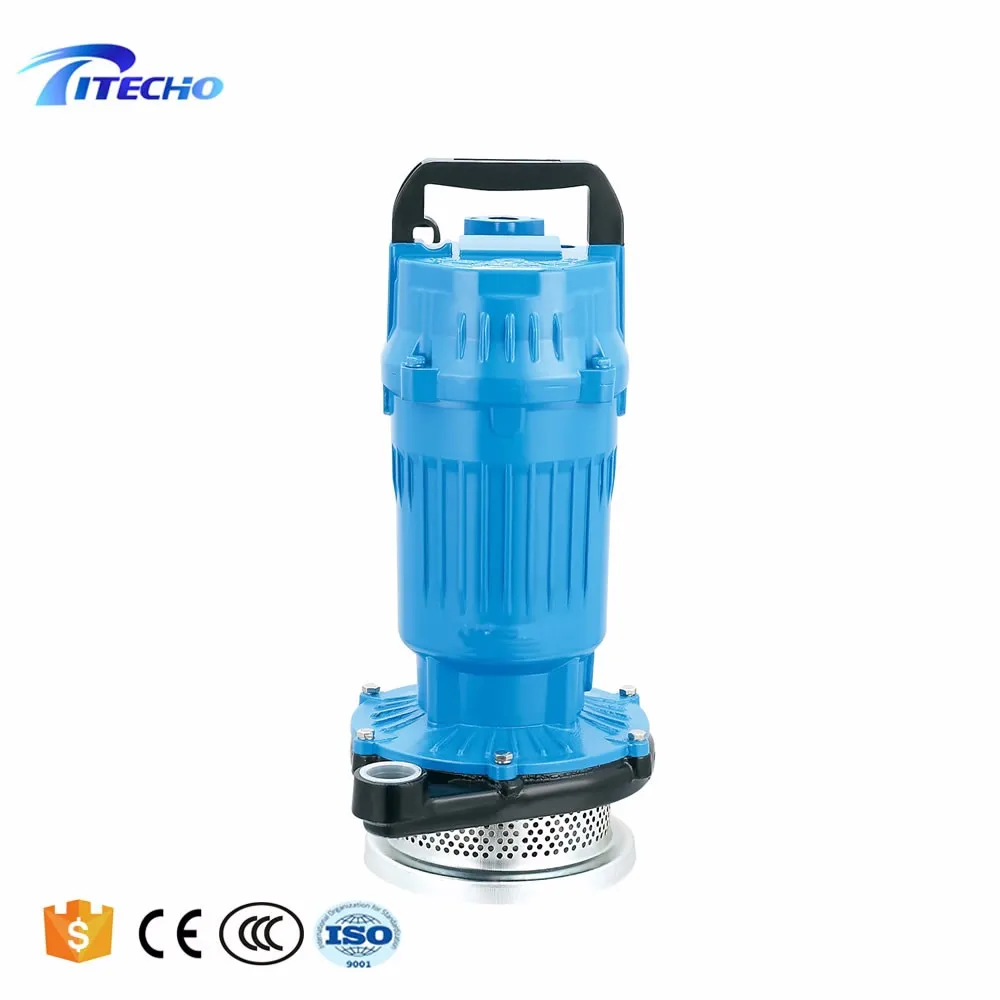

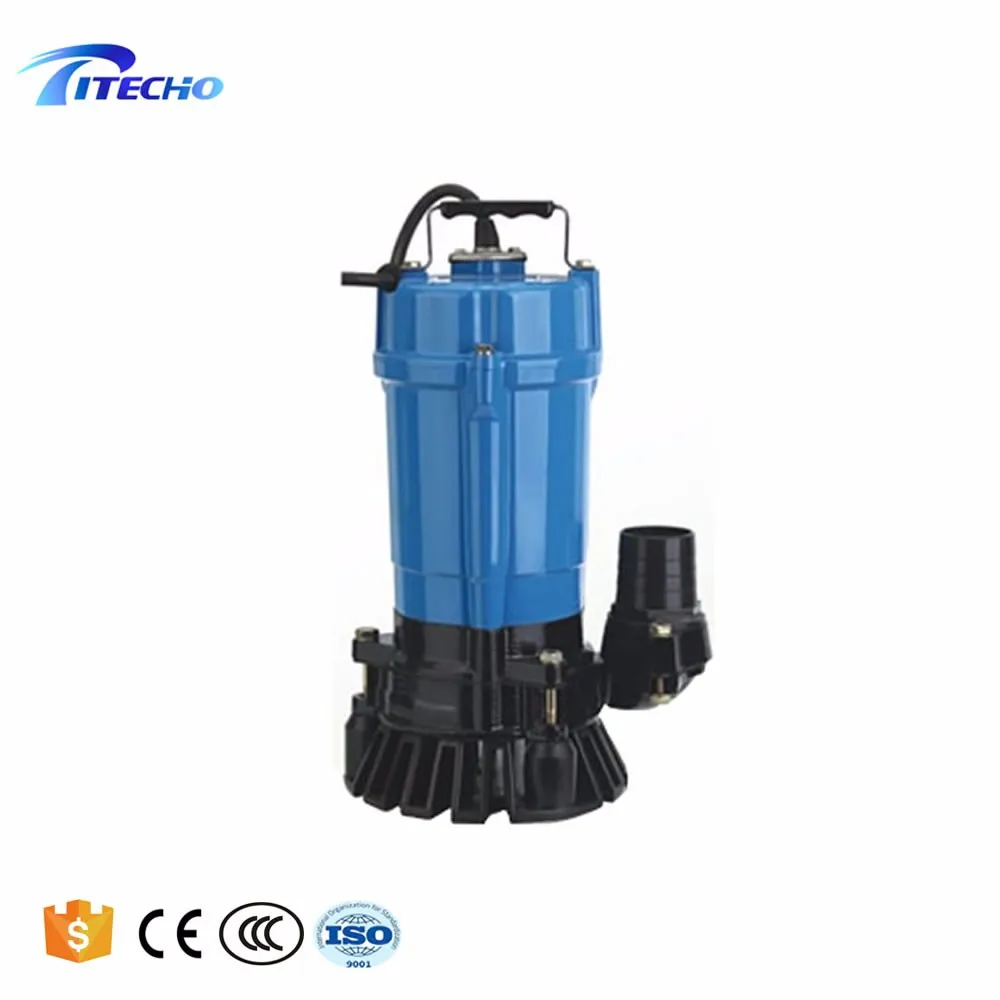

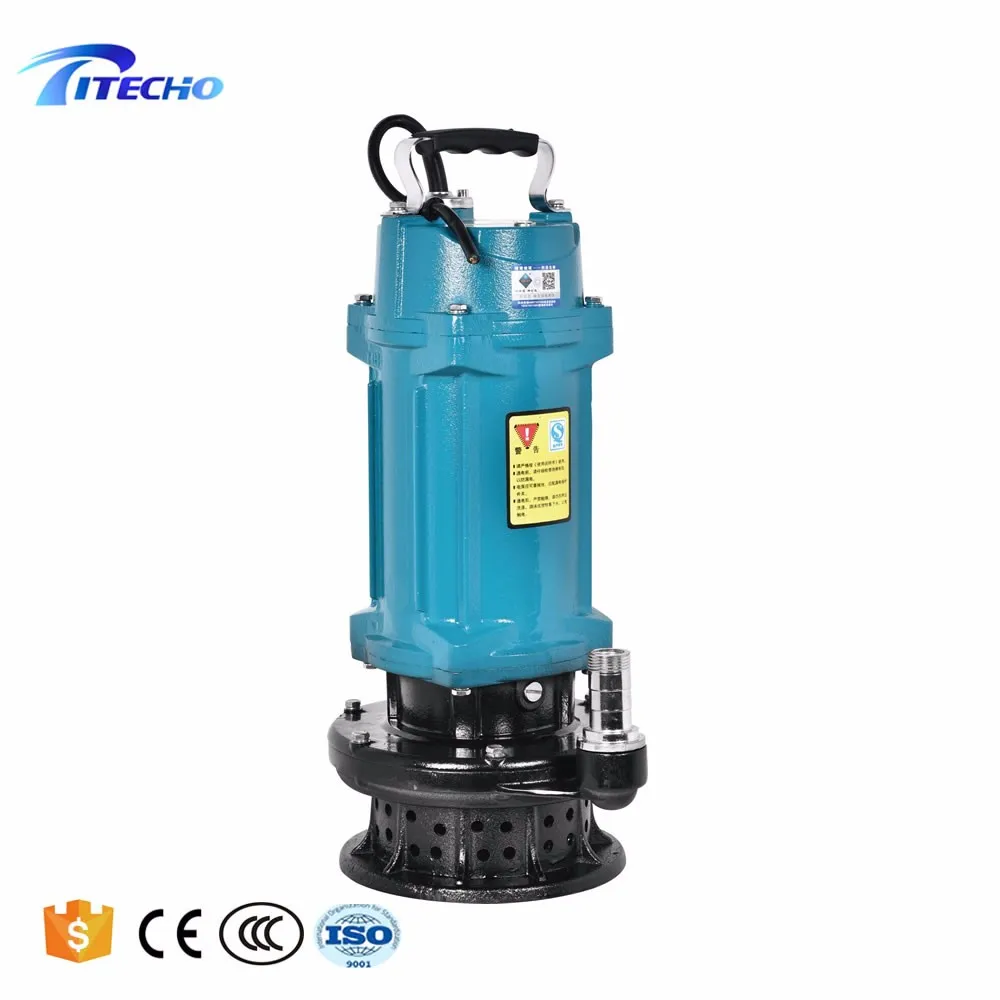

TITECHO QDX Series Submersible Water Pump High Pressure Ac Motor Pump 0.75kw Power Single Phase Structure Iron Material
- Category: >>>
- Supplier: Techo Electrical & Mechanical (taizhou) Co. Ltd.
Share on (1600935721229):
Product Overview
Description
Product Description
TITECHO QDX Series DC High Pressure Pump Submersible Water Pump
The QDX pumps are fitted with an open or closed impeller ,which is mounted on the end of the drive shaft and enclosed by a large circular chamber and a baseplate is directly in contact with the fluid to be pumped.
The rotation impeller transmits kinetic energy to the fluid which is centrifuged in the ring chamber ,where part of the kinetic energy id tranformed into pressure energy, the particular design of the impeller optimizes hydraulic efficiency ,while allowing the pump to the handle muddy fluids containing solids in suspension and short fibres without danger of clogging.
The rotation impeller transmits kinetic energy to the fluid which is centrifuged in the ring chamber ,where part of the kinetic energy id tranformed into pressure energy, the particular design of the impeller optimizes hydraulic efficiency ,while allowing the pump to the handle muddy fluids containing solids in suspension and short fibres without danger of clogging.

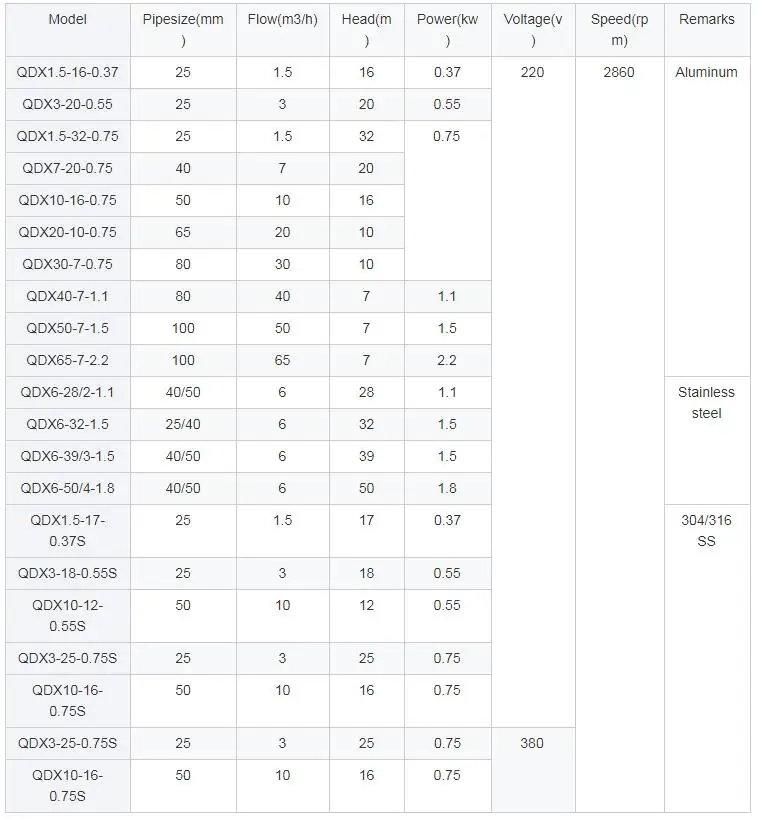

Model | QDX1.5-16-0.37 | |
Vol.Freq. | 220V&50Hz ( or order) | |
Power | 0.37KW | |
Motor | Single phase motor | |
Flow | 1.5 m³/h | |
Head | 16M | |
Speed | 2860 RPM | |
Outlet size | 25 mm | |
Products Show
Packing & Delivery
Application
Company Information
Our Certifications
Customer Photos
FAQ
