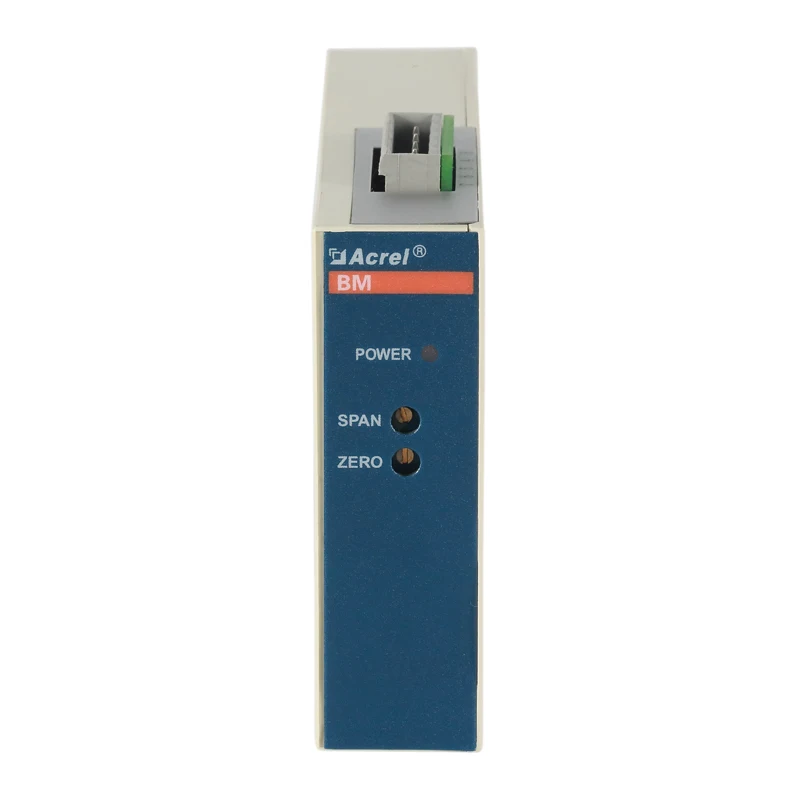

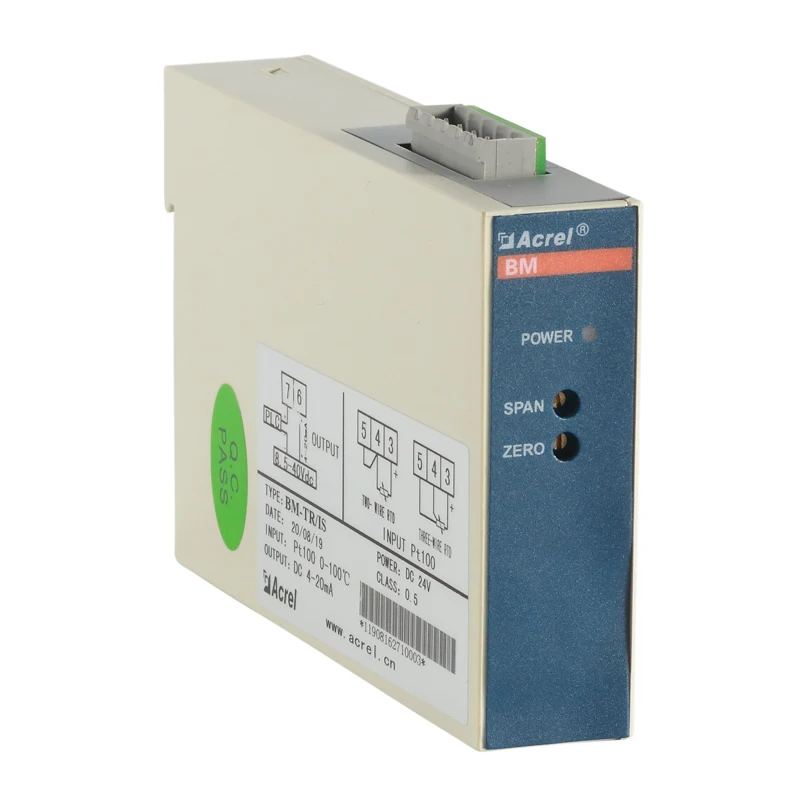

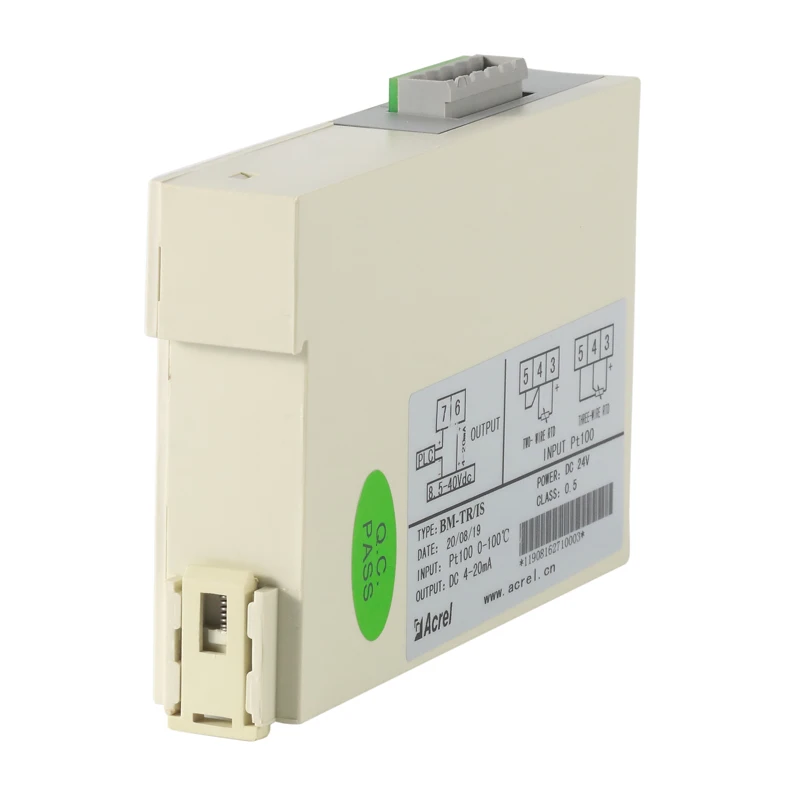

Acrel BM-R/IS Potentiometer isolator powered by output input 0-100/1K/5K output 4-20mA TS35 rail mounting
Acrel BM-R/IS Potentiometer isolator powered by output input 0-100/1K/5K output 4-20mA TS35 rail mounting
Acrel BM-R/IS Potentiometer isolator powered by output input 0-100/1K/5K output 4-20mA TS35 rail mounting
Acrel BM-R/IS Potentiometer isolator powered by output input 0-100/1K/5K output 4-20mA TS35 rail mounting

Acrel BM R/IS Potentiometer isolator powered by output input 0 100/1K/5K output 4 20mA TS35 rail mounting

Share on (1600935722684):


Price:

Quantity:


Product Overview

Description



Product Introduction

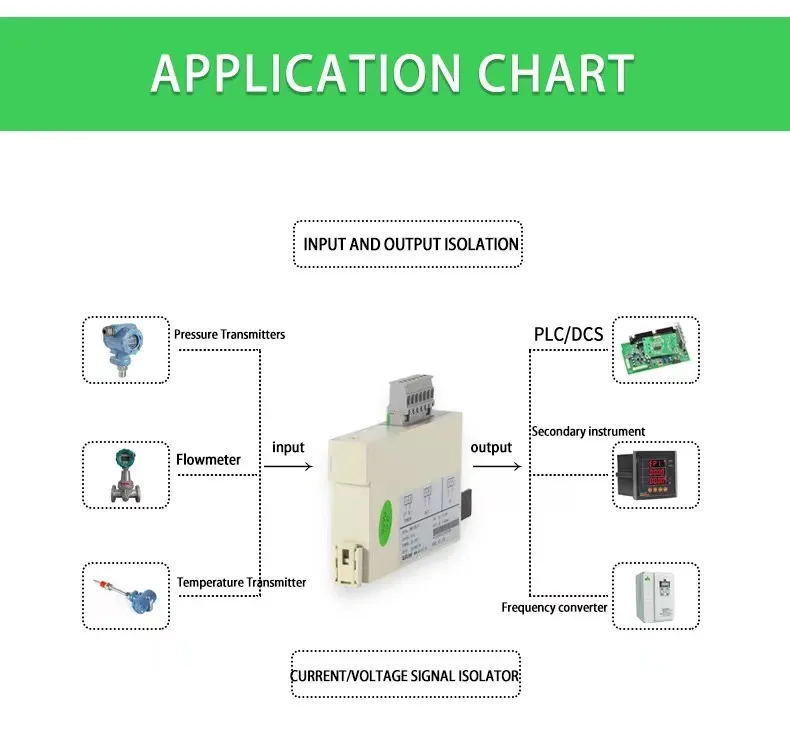

Analog signal transducer BM series can measure electrical parameters (e.g. current and voltage) and non-electrical parameters (e.g. temperature and resistance) rapidly and accurately and isolate and convert measured values to standard analogue output signal. It can be not only connected directly with pointer gauges and digital display meters but also integrated with automatic control instruments (e.g. PLC), various A/D converters and computer systems.




Model Feature
Model Feature
BM-DIS/I
BM-Al/IS BM-AV/IS
BM-TR/IS BM-TR/I
BM-R/IS BM-VR/IS
BM-DI/IS BM-DV/IS
BM-DI/I BM-DI/V BM-DV/I BM-DV/VI
BM-DI/II BM-DV/II BM-DI/VI BM-DV/VI
Precision
Precision
0.5% 0.2%
Input
Input
DC4~20mA
AC.0~1A 0-5A AC 0~500V
PT100
Resistance 0-10kΩ Potertiometer 0~10kΩ
 DC 4~20mA or 0~20mA, r DC. 0~5V or 0~10V
output
Type
 DC 4~20mA
DC 4~20mA or 0~20mA,0~5V or 0~10V
Load
≤500Ω(Current input): 21000Ω(Voltage input)
Power
DC 24V(range DC 18V~32V)
Temp draft
≤200ppm/C(Precision 0.5%);≤100ppm/C(Precision 0.2%)
Response time
＜400ms
Impedance
≥100MΩ
Isolateion
Power supply / input / output 2kV/1min,50Hz
Temp
Working.-10C~55C Stock:-25C~70C
Humd
≤93%RH
Alti
≤2500m
Fixing
TS35 DIN rail
