Product Overview
Description
Product show

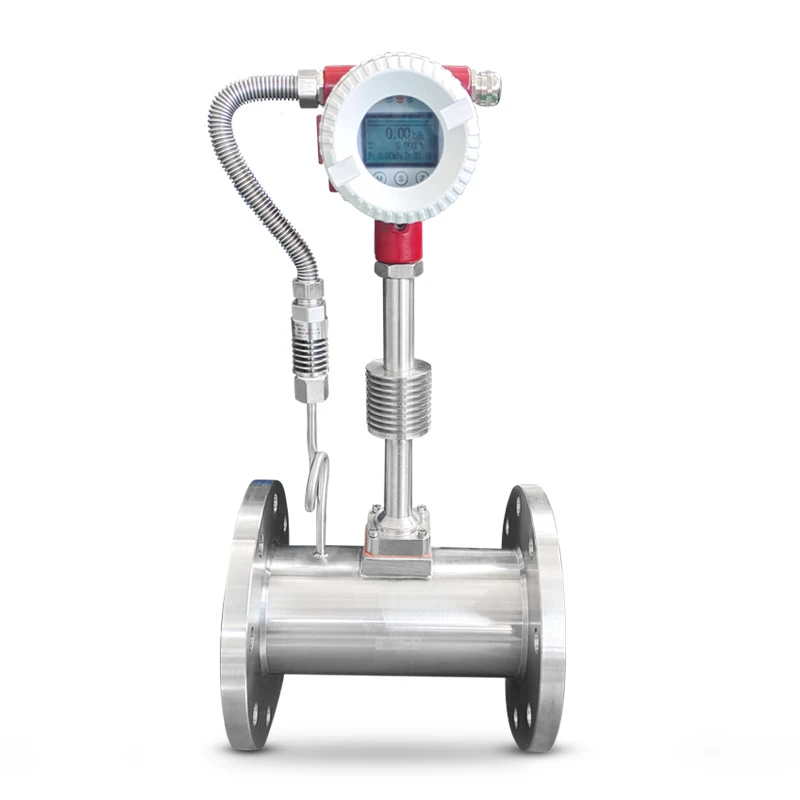

RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
Product Details
steam lpg precession vortex flowmeters flow meter:
RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
1.steam lpg precession vortex flowmeters flow meter has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability
1.steam lpg precession vortex flowmeters flow meter has a wide measuring range, high precision, small pressure loss, high reliability and long-term stability
RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
2, Structure is simple, easy to install and maintain, no moving parts, no mechanical wear.
2, Structure is simple, easy to install and maintain, no moving parts, no mechanical wear.
RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
3.Unique design of the amplification board, gas or liquid can be used.
3.Unique design of the amplification board, gas or liquid can be used.
RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
4.Can be long-distance transmission of flow signals, and computer networking, centralized management; It
4.Can be long-distance transmission of flow signals, and computer networking, centralized management; It
has a variety of data transmission methods, including 4-20ma output, frequency output, RS485 output.
RS485 heated pulse output heated new steam lpg precession vortex flowmeters flow meter
Product parameter
Name | steam lpg precession vortex flowmeters flow meter |
Measured Medium | Liquid;Gas;steam;oxygen;biogas; air;overheat steam |
Medium Temp. | -40~+250℃;-40~+350℃ （high temperature probe） |
Nominal Pressure | 1.6MPa; 2.5MPa; 4.0MPa; 6.4MPa (Other pressure can be customized) |
Accuracy | ±1.0%, ±1.5% |
Specifications | DN15~DN300mm (flange); DN200-3000mm (insertion type) |
Sensor Material | Carbon steel, SS304, SS316L |
Protection grade | IP65, IP68 |
Ex-proof class | Exd IICT6 Gb |
Power Supply | 12-24V/DC or 3.6V battery powered |
Signal Output | Pulse, 4-20mA, Hart, RS485 |
