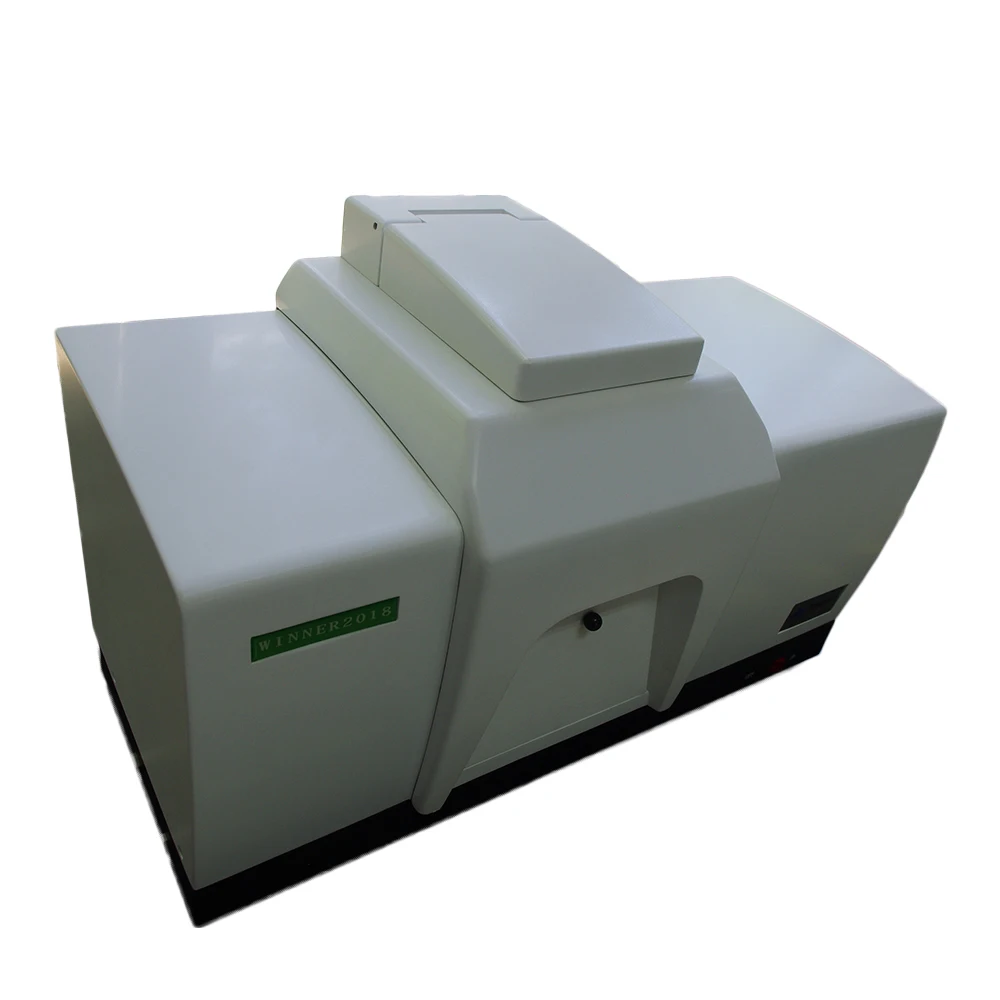

Winner 2018 Wet laser particle size analyzer that can completely solve the problem of large particle precipitation
- Category: >>>
- Supplier: Jinan Winner Particle Instrument Stock Co. Ltd.
Share on (1600935765525):
Product Overview
Description

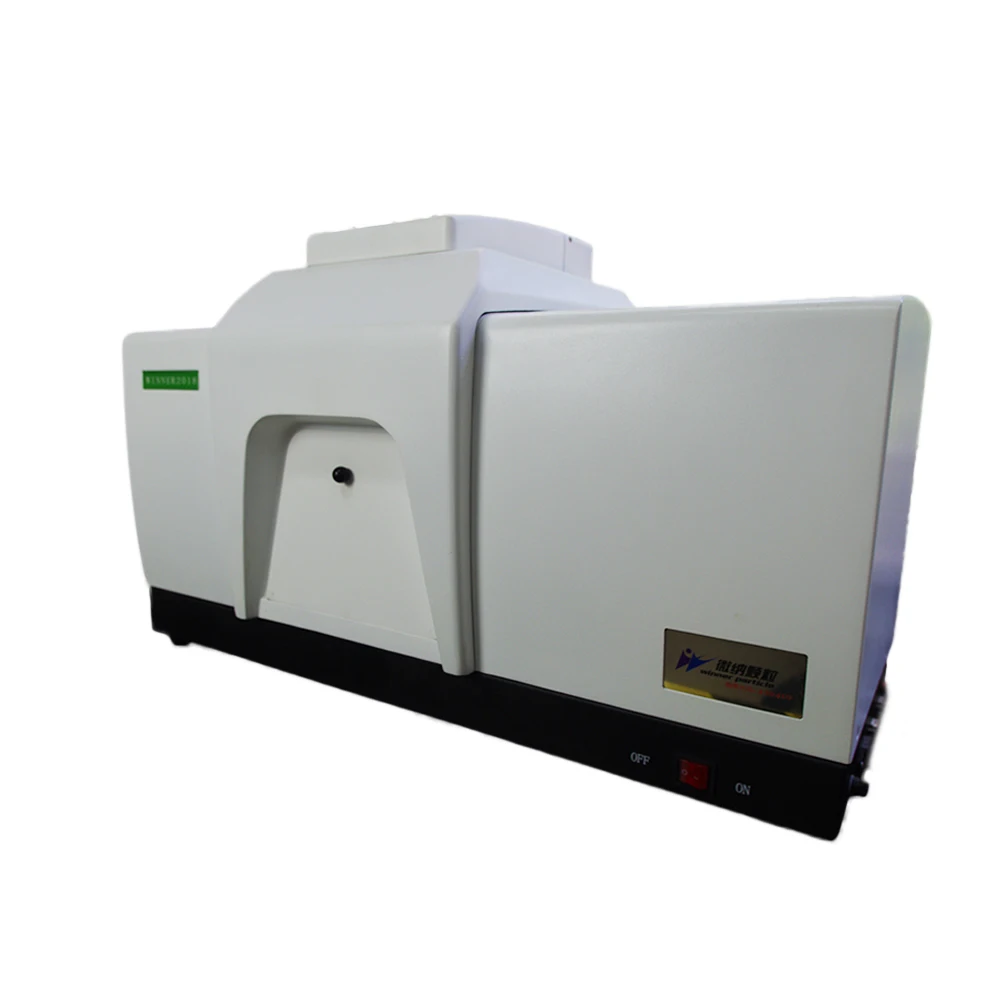

Winner 2018 Wet laser particle size analyzer that can completely solve the problem of large particle precipitation
Product Description
Winner2018 Automatic laser particle size analyzer, perform auto test, auto alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion, auto cleaning etc., really realize one-key operation. It adopt full built-in sampling system, effectively prevents large particles sedimentation problems in the circulation pipeline, ensure good accuracy. It uses comprehensive Laser diffraction particle size measurement principle with highly sensitive ring-shaped photoelectric detector improving the test accuracy greatly, Original designed unconstrained free fitting software technology, a true reflection of the particle size distribution, to ensure truth and accuracy of the test results, its measuring range is 0.1 micron to 450 micron, more suitable for Testing of materials with narrow particle size distribution.
Main Features
1,Unique optical path patent technology, highly improve test resolution.
A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument, and ring shaped of multi-element silicon photo-diode ensure gathering all the light signals of particles, highly improve the resolution.
2,Built-in dispersion units:
We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long, The sample will be sufficiently dispersed.
3,Unconstrained free fitting analysis techniques:
The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of real particle size distribution, this is particularly important for researchers.
4,Micro sample chamber (optional):
The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.
5,Modern measurement control:(Intelligent SOP Operation)
Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.
6,User-friendly Operation:
manual mode and the automatic mode, freely choose, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.
7,Fully automatic light path alignment:
A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment, precision is up to 0.1um, This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.
8,Quick measurements:
set “ automatic” mode, all operation procedures are performed automatically,automatic water supply, automatic ultrasonic sample, stirring, circulation,background testing, sample testing,analysis , draining and cleaning, which significantly reduces the time for measurements, the full process only take 2 minutes.
9,Data analysis:
Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not necessary and the output is more standard.
10,Sample cell automatic ultrasonic cleaning function
Secondary dispersion of easily agglomerated samples ensures the accuracy of test results, and reduces the cleaning times of sample cell to ensure that the sample cell remain clean always.
Specification
Model Name | Winner2018 | ||
Standard | ISO13320:2016, GB/T19077.1-2016, Q/0100JWN001-2013 | ||
Principle | Laser diffraction principle | ||
Analysis | MIE scattering theory | ||
Measuring Range | 0.1μm-450μm | ||
Channels Number | 40 PCS | ||
Accuracy error | <0.5% ( CRM D50 ) | ||
Repeatability error | <0.5% ( CRM D50 ) | ||
Light source | High performance Semiconductor Laser (λ= 635nm, P>2MW) Lifetime>25000hour | ||
Dispersion Method | Ultrasonic | Frequency:40KHz Power:60W, Time: ≥1S | |
Stir | Revolutions Speed: 0-3000RPM (Adjustable) | ||
Circulate | Rated Flow:8L/min Rated Power:10W | ||
Sample Pool | Volume:350mL | ||
Micro- Sample Pool | Volume: 10mL ( Available) | ||
Operation Mode | Full automatic and manual control, freely choose | ||
Output parameter | D10,D50,D90,D100,S/V referent parameters | ||
Optical alignment system | Full automatic | ||
Test Speed | <2mins for each time， classical test speed <15S/time | ||
Volume | L780mm×W365mm×H495mm | ||
Net Weight | 40Kg | ||

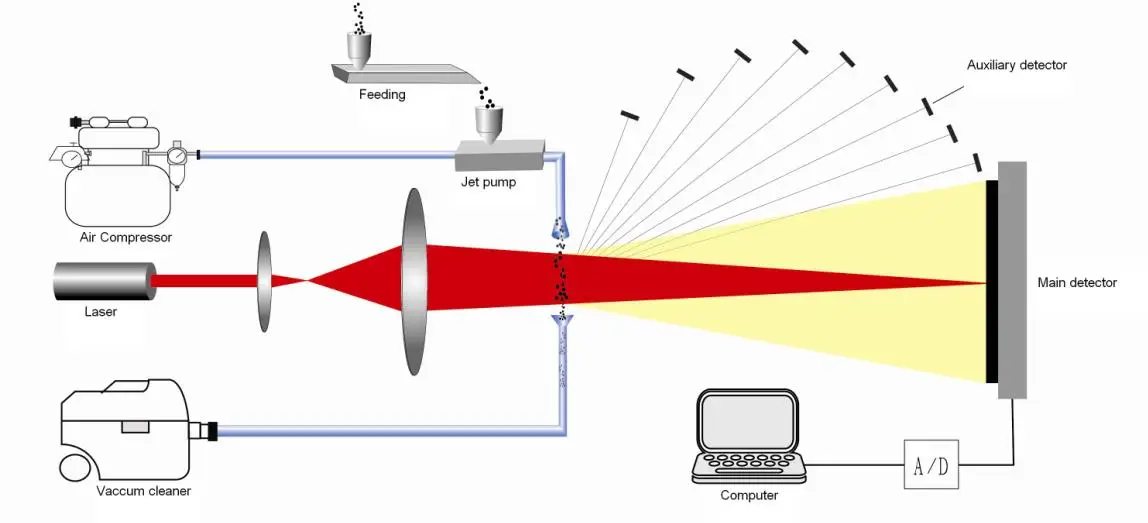

Principle

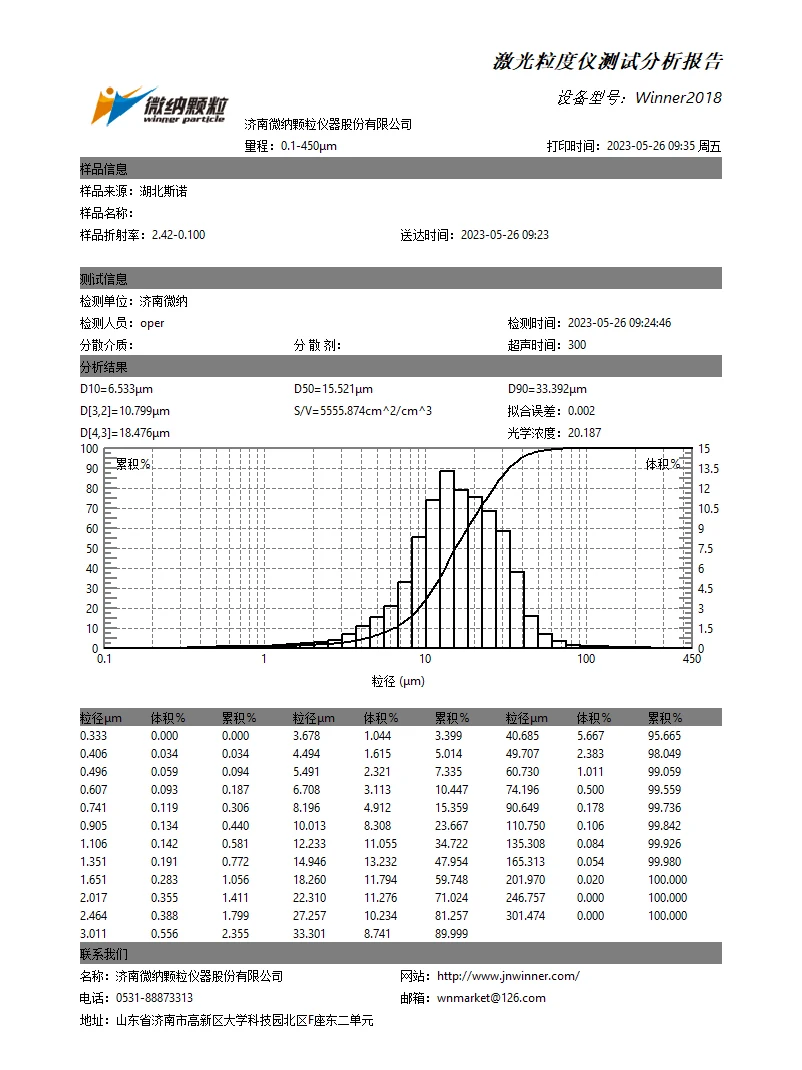

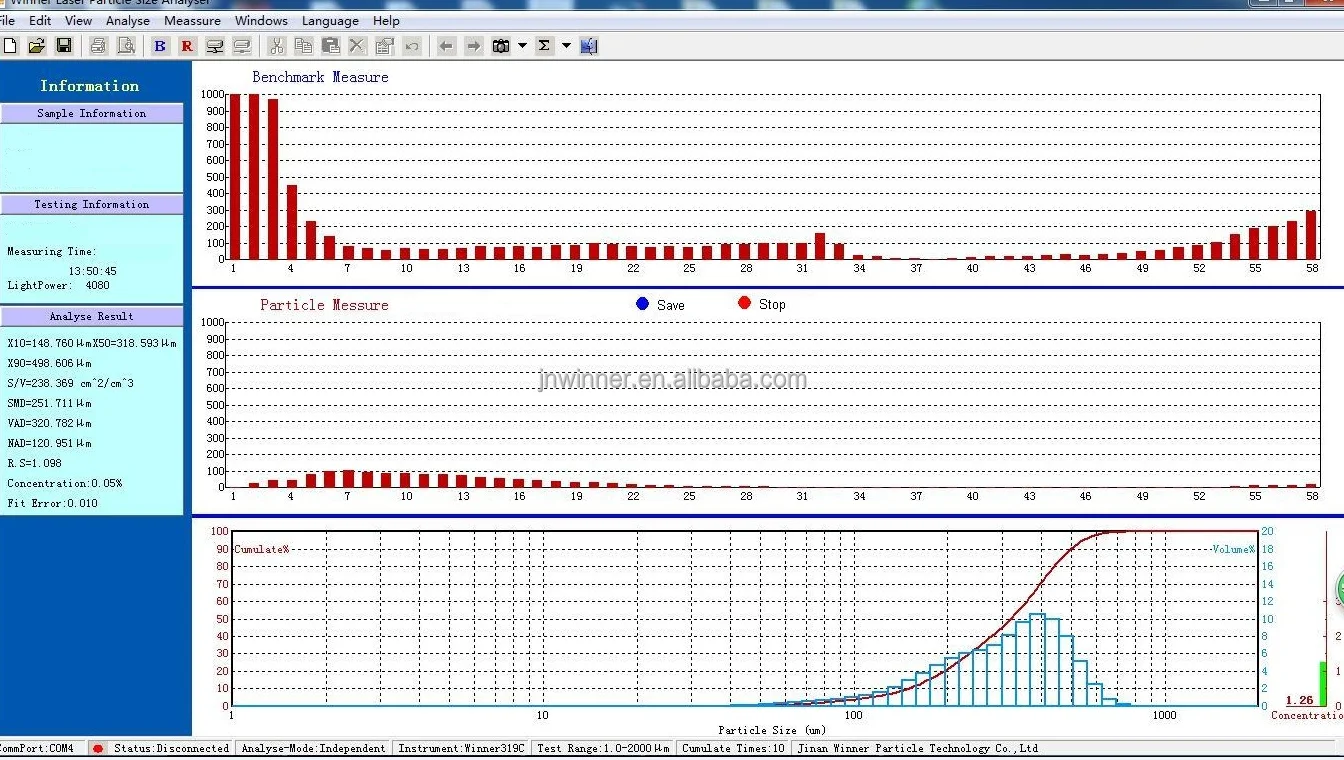

Test Operation Interface:
Application

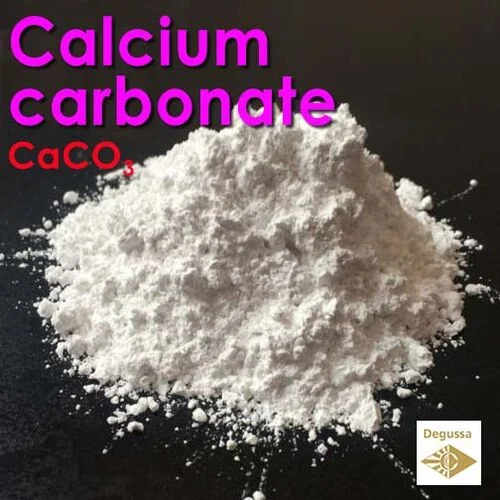

Winner2018 is widely used in metallurgy (metal oxides: alumina, aluminum hydroxide, zinc oxide, iron oxide, manganese oxide, lead oxide, etc.), non-minerals (calcium carbonate, talc, kaolin, diatomite, graphite powder, mica powder, nepheline powder, pyrophyllite, etc.), chemical industry (pigment: aluminum silver paste, filler, dye, paint, resin, plastic powder, synthetic rubber, photosensitive material, toner, carbon, ink, explosive, molecular sieve, ink, electronic material , flame retardants, fluorescent powders, foaming agents, silica, microsilica, papermaking: calcium carbonate, kaolin, etc.), pesticides (seed coating agents, powders, suspending agents, pesticides, herbicides, etc.), abrasives ( Testing and inspection of powdered materials in industries such as silicon carbide, silicon nitride, emery, white corundum, brown corundum,micropowder, etc.), energy (coal water slurry, power plant desulfurization), environment (water quality, dust) and other industries.
Company Profile
Jinan Winner Particle Instrument Co., Ltd. have have been specialized in particle size analyzer for more than 30 years, since we undertake National Science Project-particle size analyzer development in 1985.
We are the 1st manufacturer to produce Nano-particle size analyzer in China.
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!
We are the 1st manufacturer to produce Nano-particle size analyzer in China.
Our particle size analyzer will enable you understand materials well, and save your time and cost. Reliable data enables scientists, researchers and engineers to evolve formulations and processes with confidence. Our products guide research and product development, manage and control manufacturing quality, and optimize output.
By now, We have Laser Particle size analyzer, Image particle size analyzer, Spray particle size analyzer, particles counter and Nano-particles size analyzer and so on.
We are dedicated to offer you the best particle size analysis solution.
Your satisfaction is our eternal target!

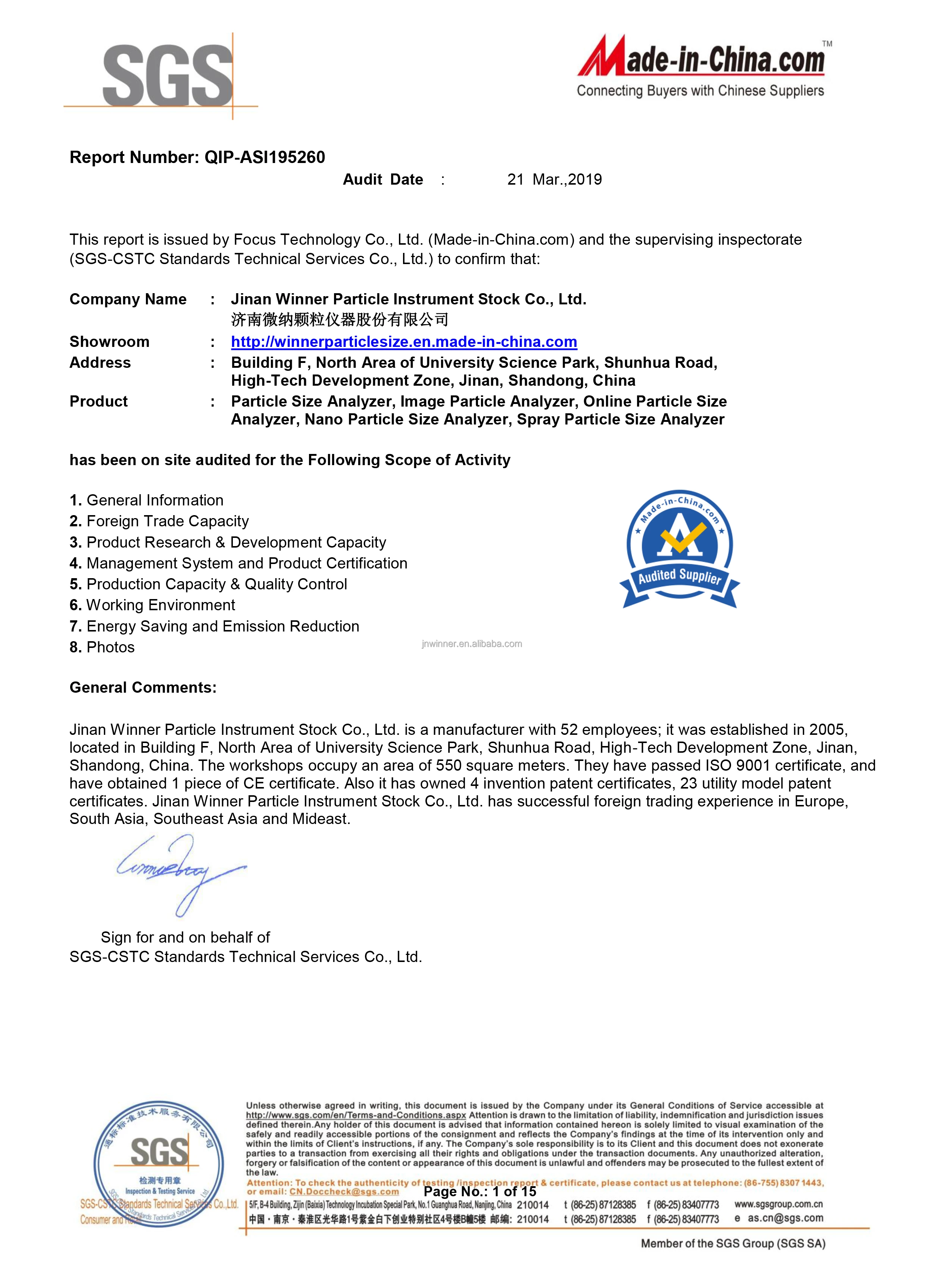

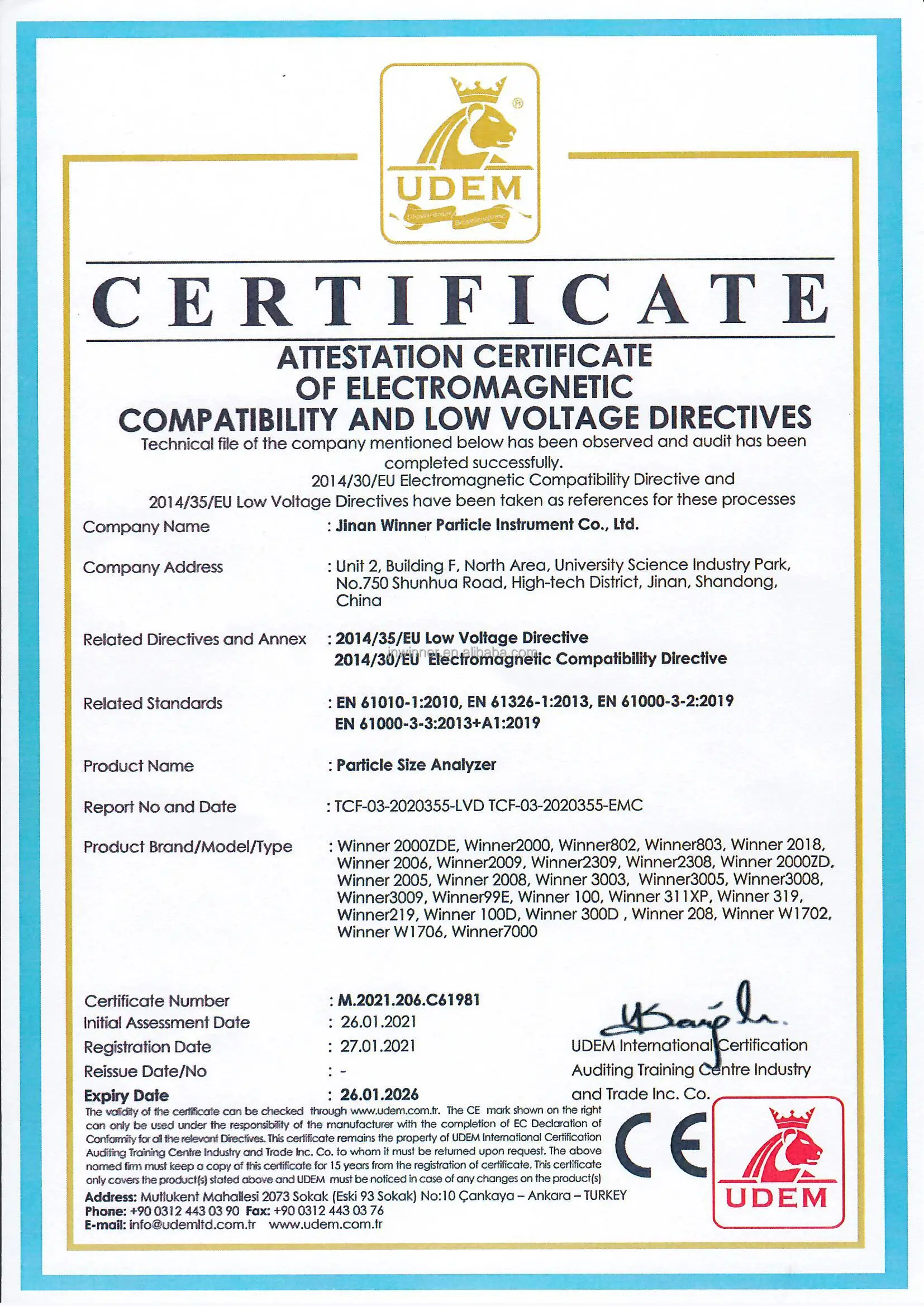

Certifications
Exhibition
Our Customers
Our Team
Our goal is to provide super quality and competitive price laser particle size analyzer for clients all over the world!
We created more than 10 first particle size analysis technology in China!
We created more than 10 first particle size analysis technology in China!
Our Partners
Recommend Products
Quality Assurance
2. Strict control from purchasing materials, process inspection to final particle size distribution test.
3. QC department to execute quality control regulations.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
4.Only qualified components will be assembled and total laser particle size analyzer must be inspected completely before sale.
5.Laser particle size analyzer will be processed preventing -shake test before delivery.
After Sale Service
1.Operation demo video CD will be offered.
1.Operation demo video CD will be offered.
2. Offer free-training service.
3. The quality assurance date is 1 year since finishing payment, Technology support will be provided for life. And after that, we will collect the cost if provide repair accessories.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
Packing & Delivery
Winner particle testing equipment is Wooden box package.
We would ship machine by DHL, FeDex, China express, by sea and by air.
FAQ
Purchase laser particle size analyzer need know points:
(1) What are the commonly used media?
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2)What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant.
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will condense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
(1) What are the commonly used media?
The most commonly used liquid medium for wet particle size testing is water, followed by absolute ethanol; the commonly used medium for dry particle size testing is compressed air, followed by nitrogen.
(2)What are the commonly used dispersants?
Dispersants are substances that significantly reduce the surface tension of the medium, thereby improving the wetting or charging state of the particle surface. Commonly used particle size dispersants are sodium hexametaphosphate and sodium pyrophosphate. For some special samples, it is better to use a special dispersant.
(3)What is the basic method of particle dispersion?
Particle agglomeration refers to aggregated particles formed by the aggregation of multiple individual particles under the action of certain factors. Aggregated particles are characterized by low internal binding force and instability, and will disperse under the action of external factors, but will condense together once the conditions are right. The main reason for "agglomeration" is the charge carried by the particles, water content, van der Waals force, etc. The finer the particles, the more opportunities there are for 'agglomeration' due to their greater surface energy.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
