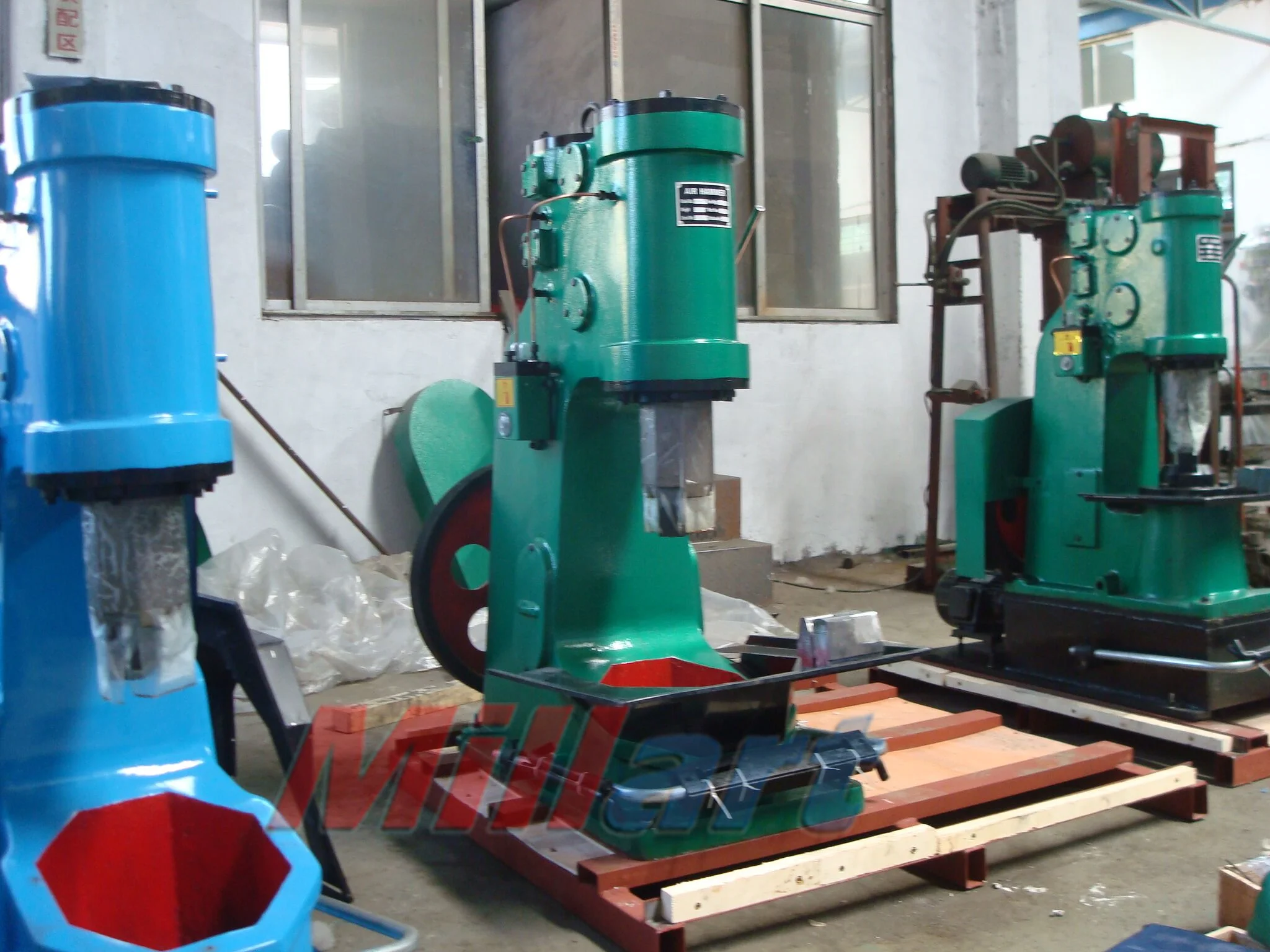

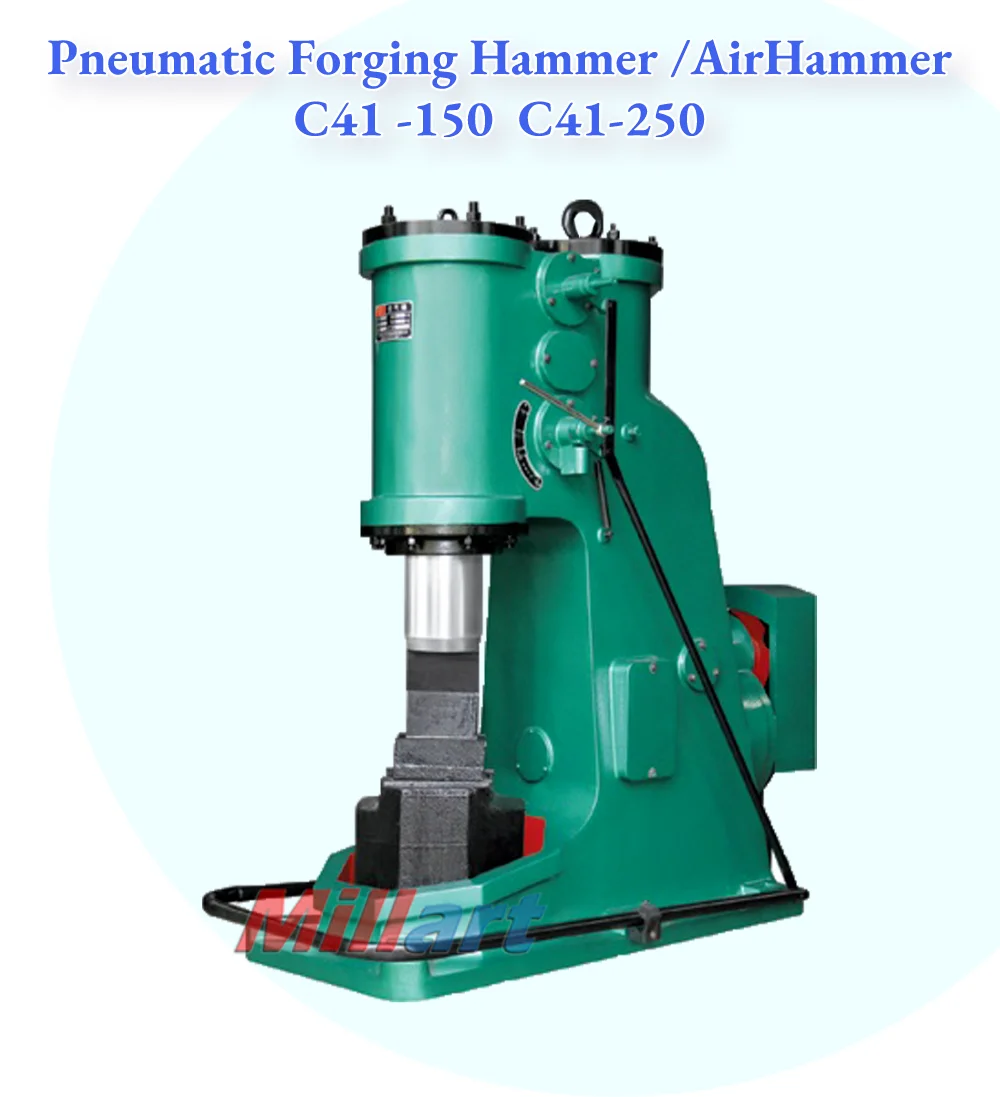

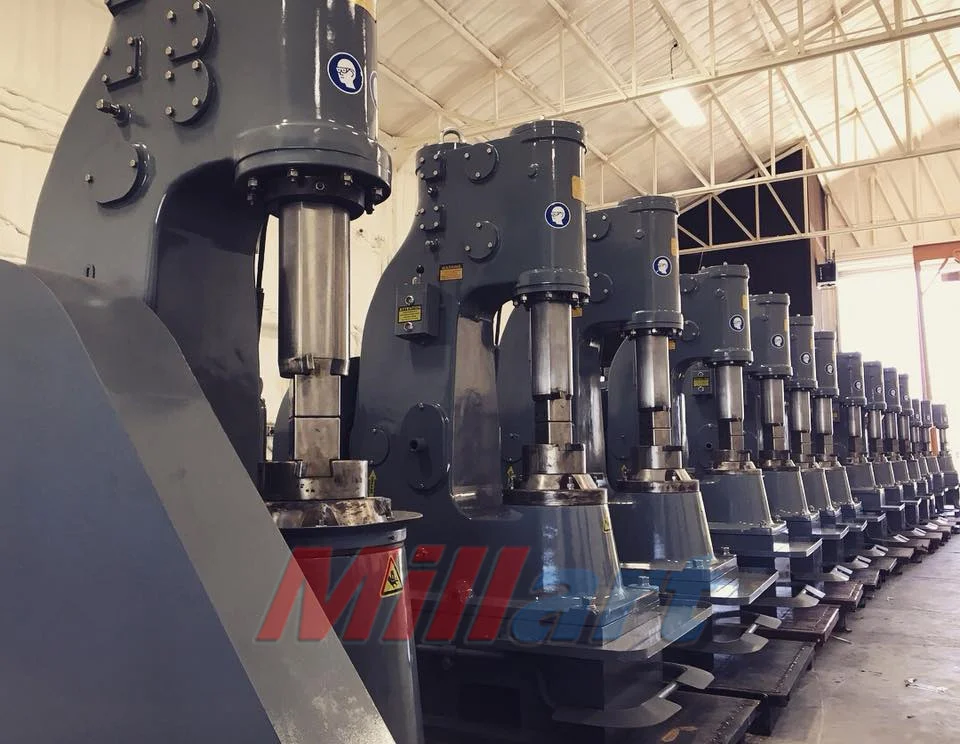

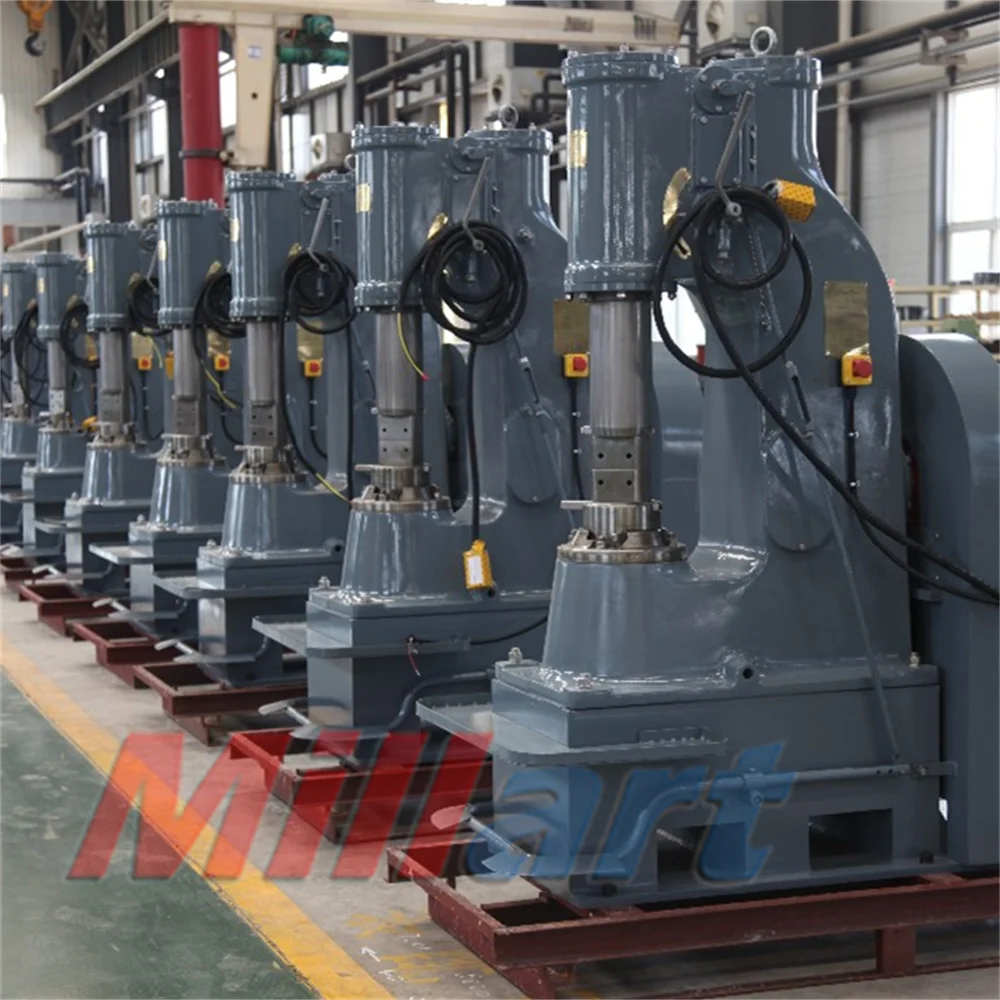

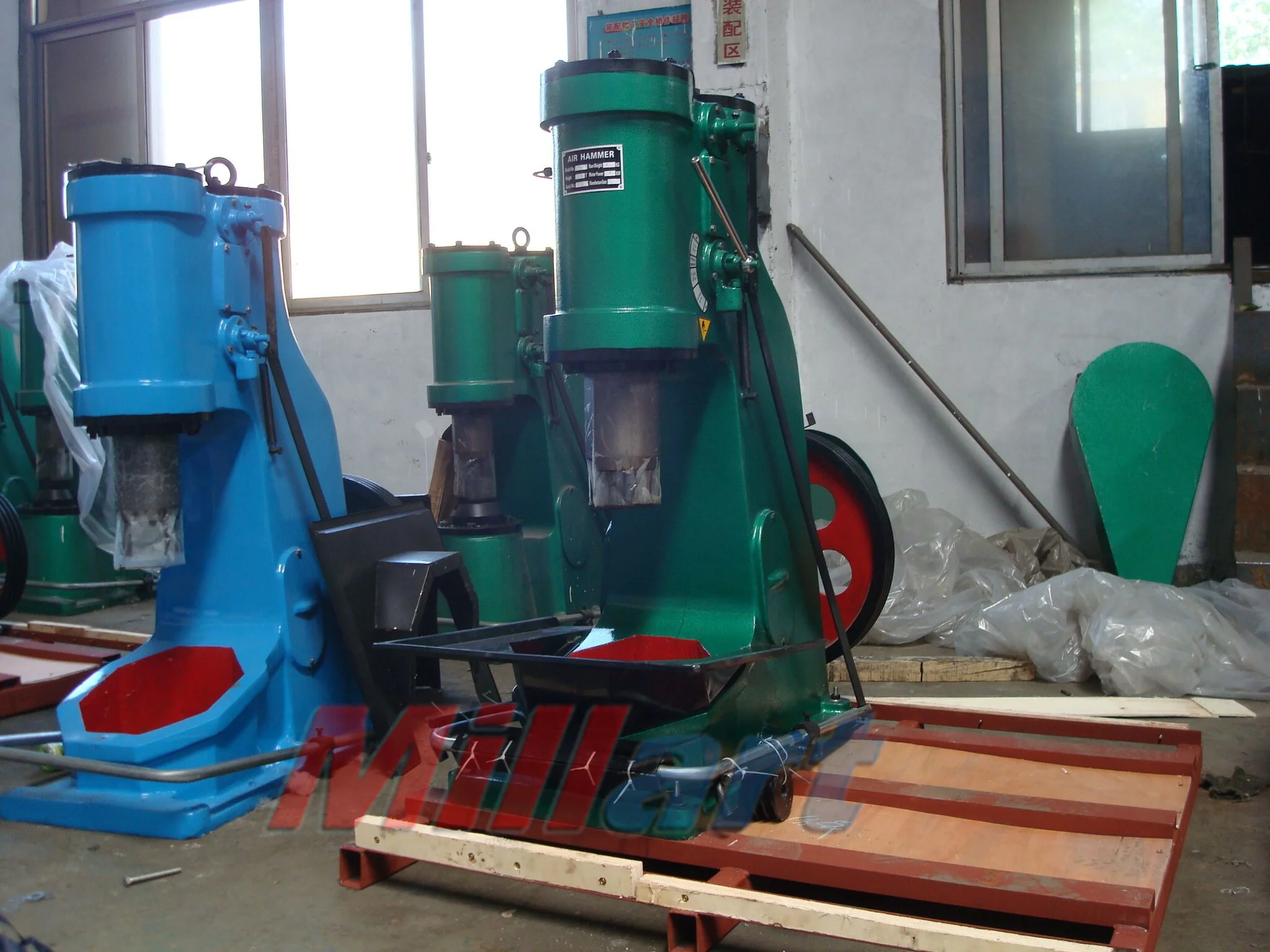

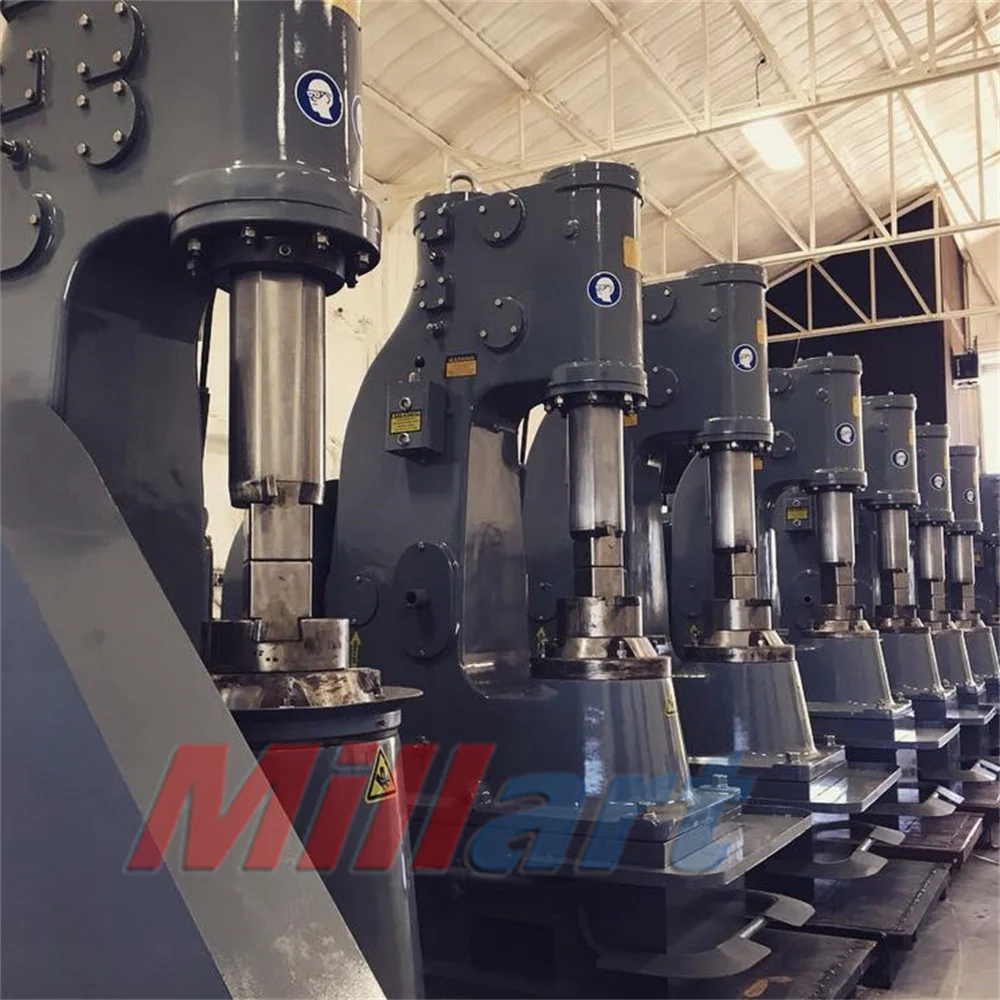

Heavy Duty Air Hammer C41 250 C41 150 Pneumatic Forging Hammer
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600935770020):
Product Overview
Description
Product Details
Features：
1. Widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting.
2. Also used for forging in bolster dies
3. High quality, competitive price, easy to operate
Specifications
Model | C41-150KG | C41-250KG |
Beat weight(kg) | 150 | 250 |
Max hit energy (kj) | 2.2 | 5.6 |
Height of working(mm) | 370 | 450 |
Beat times/minute | 180 | 150 |
Length of rectangular(mm) | 130x130 | 220x100 |
Length of circular(mm) | 145 | 240 |
Power (kW) | 15 | 22 |
Speed of motor (rpm) | 1440 | 1440 |
Weight of anvil block(kg) | 1800 | 2950 |
Packing Size(cm) | 208x124x235 | 290x145x257 |
N.W./G.W.(kg) | 5060/5300 | 8200/8500 |

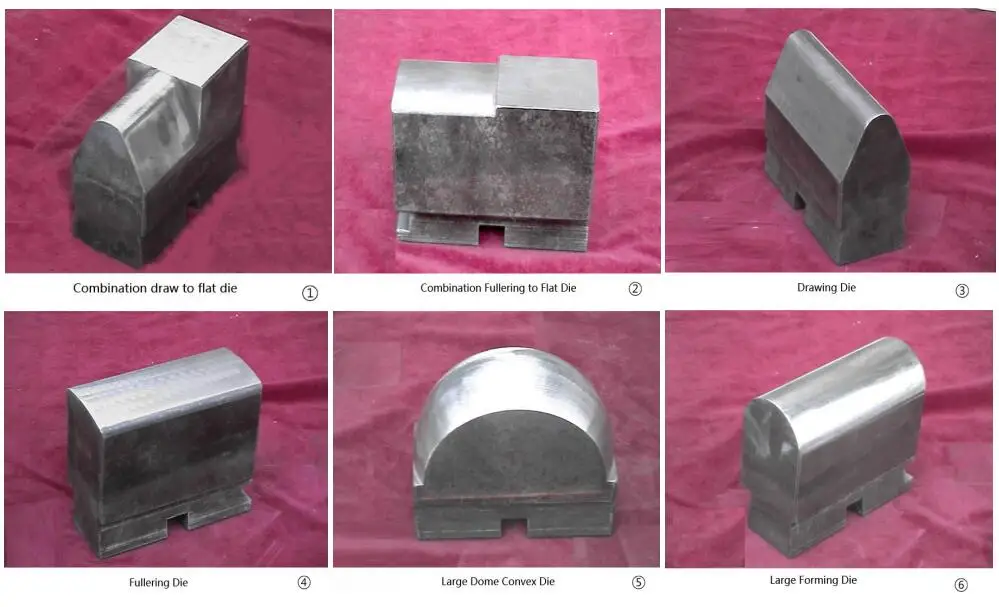

Optional Accessories
