GTCODESTAR GT 9900A High Speed Scanning Barcode Qr code Reader Vending Machine 1D 2D Barcode Scanner Module
- Category: >>>
- Supplier: Foshan Xincode Electronics Technology Co. Ltd.
Share on (1600935775048):
Product Overview
Description
Brand
HOT SELLING
Desktop 2D Image Barcode Scanner
Technical Parameters
| GT-9900ATechnical Parameter | |||||||
| Model | GT-9900A | ||||||
| Item | Omnidirectional 2d barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+PMMA | ||||||
| Power Supply | DC 5V 2A | ||||||
| Power Consumption | 1.71W(working);0.87W(standby);2.45W(maxium) | ||||||
| Weight | 480.0g±5g(without cable) | ||||||

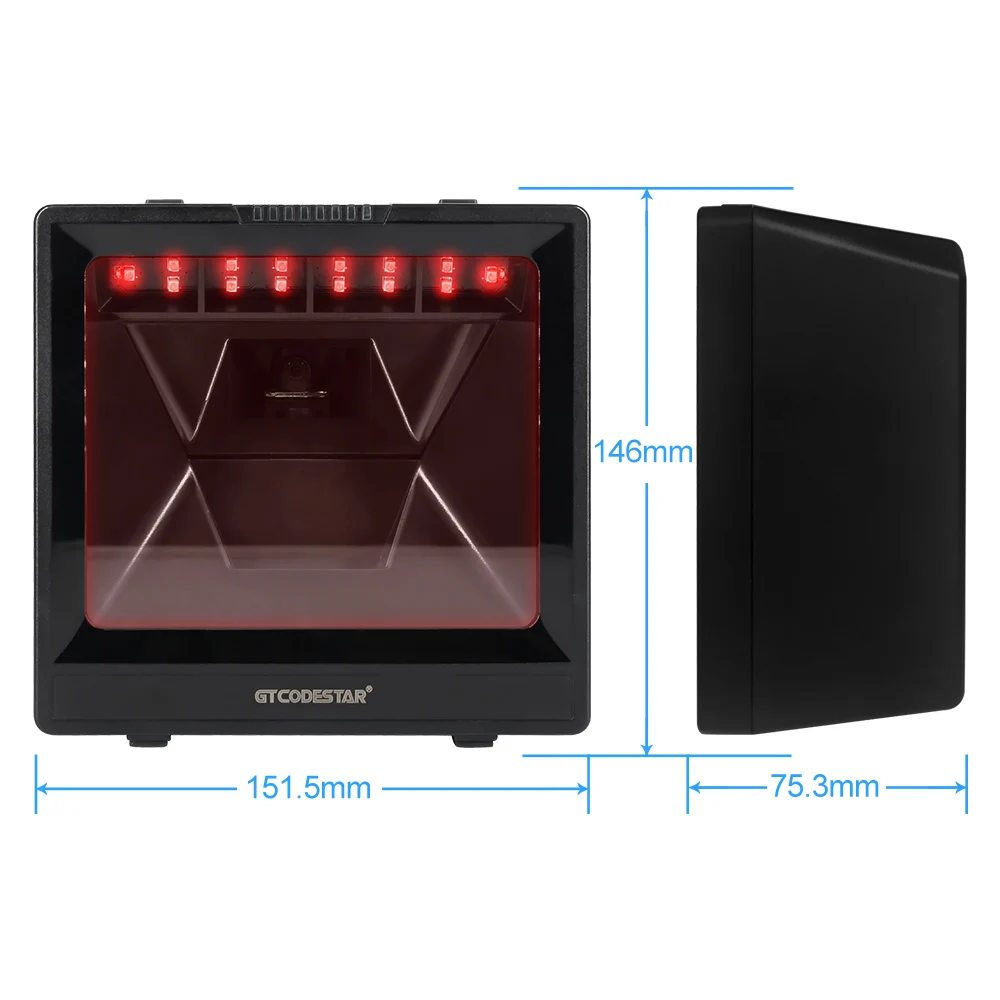

| Size | L*W*H:151.5 * 147.9 * 75.8(mm) | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||
| Interface | USB;(RS232 can be customized ) | ||||||
| System Supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language Supported | English,German,French,Finnish,Italian,Russian,Norwegian,Spanish,Arabic,Czech,Polish, Portuguese,Turkey,Greek,Swedish,Irish(support multiple languages) | ||||||
| Sensor | Global sensors 1280 * 1024 | ||||||
| Light source | RED LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | 3.82m/sec | ||||||
| Resolution | Code39 4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||
| Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
| Image code | Support | ||||||
| Invoice Function | Support | ||||||
| Button | Switch sound frequency and convert 1D and 2D | ||||||
| Print Constrast | ≥30% | ||||||

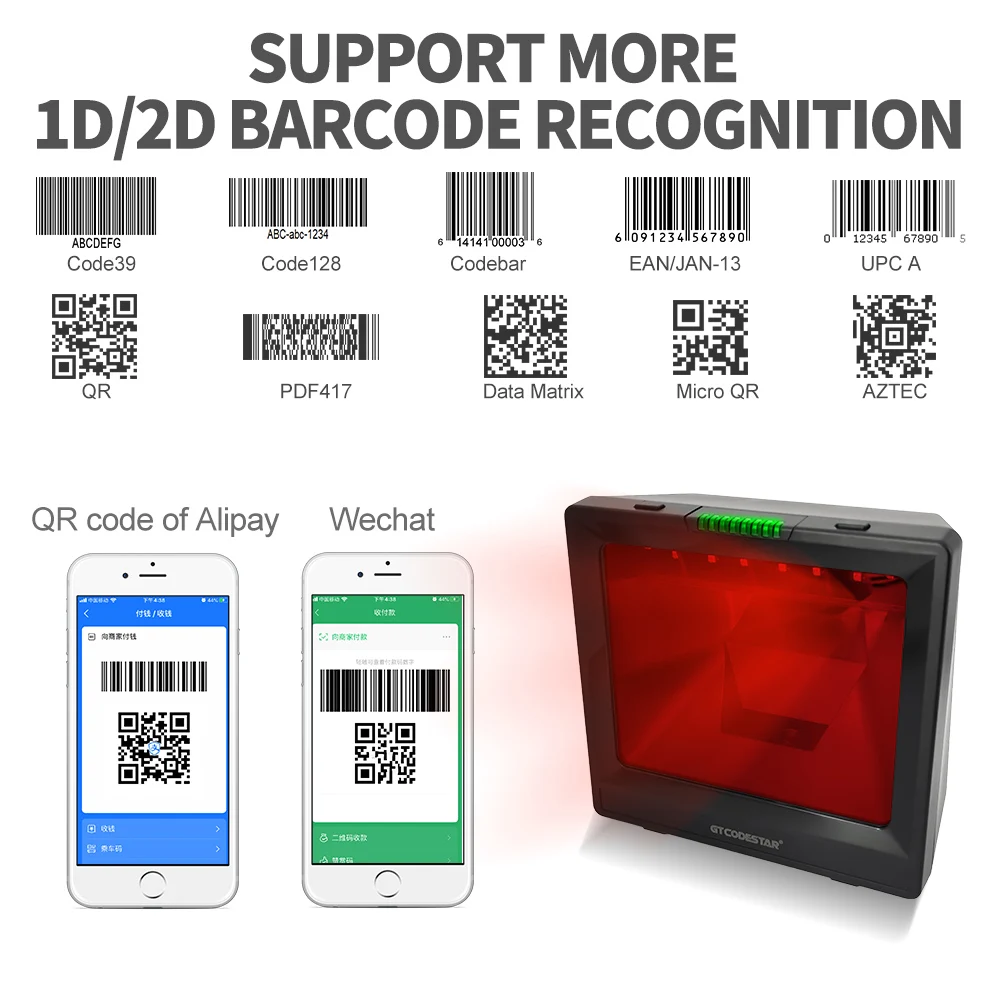

| Decoding Capability | 1D | Interleaved 2 of 5 Standard 2 of 5 Matri 2 of 5 Code39-Regular Code39-Full ASCII Code32 Code93-Regular Code93-Full ASCII Code128 EAN/GSL/UCC-128 Codabar MSI EAN/JAN-13 UPC-A EAN/JAN-8 Code11 UPC-E0/E1 | |||||
| 2D | MICRO QR Data Matrix QR AZTEC PDF417 | ||||||
| Scanning Angle | Roll360°,Pitch45°,Yew45° | ||||||
| Scanning Depth | 5mil code39: 1 cm -- 14 cm 13mil UPC-A : 2 cm -- 34 cm 20mil code39 : 1 cm -- 35 cm 6.7mil PDF417 : 1 cm -- 9 cm 10mil Data Matrix : 1 cm -- 10 cm 15mil Data Matrix : 1 cm -- 20 cm Payment 1D : 0 cm -- 50 cm Payment 2D : 0 cm -- 50 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No condensationc) | ||||||
| Storage Humidity | 20% to 85%(No condensation) | ||||||
| ESD Protection | 15KV | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
Company Information
FAQ
1. How about the quality? Professional QC team and testing machine(Engine age testing,wire bending machine, switch life testing,shock resistance testing).All the products pass CE,FCC,ROHS, etc. |
2. Why so competitive? With almost 10 years experience,we owned a large domestic market in China. We are the best seller in China.So large quantity will reduce our raw material cost directly. What's more,we have mature technology to save cost. |
3. How to control the performance stable? We take the flow line production in the whole processing. Every product will test 4 times at least before it delivery. |
4. Is OEM or ODM available? Yes.We are the factory directly.We can make it as your requirement. 5. Why customer choose us? ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service. 6. How about the factory? We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields. |
Packing Details
| Carton Size (CM) | G.W.(KG) | PCS/CTN | Box Size(CM) | Item No. |
| 49X31.5X46CM | 9.6~13.8 | 40 | 14X11.4X8.3 | GT-799/GT-770/GT-725 |
| 50x26.5x45CM | 8.8~12.6 | 20 | 21X12.5X9.2 | X-1200/X-1901B/X-6301C/X-1901C/x-6301B/GT-9208 |
| 54.5X30X59CM | 12.55 | 30 | 17.5X14X11.3 | GT-790 |
| 60x45x38.5CM | 14.2~17.5 | 50 | 18X11.5X8.5 | M-3100/X-530/X-760B/X-9700/X-9701/X-9201/GT-1900/X-600/X-660/X-620 |
| 60x45x38.5CM | 14.2~19.4 | 100 | 15X9X5 | X-9700M/X-7200/GT-780 |
