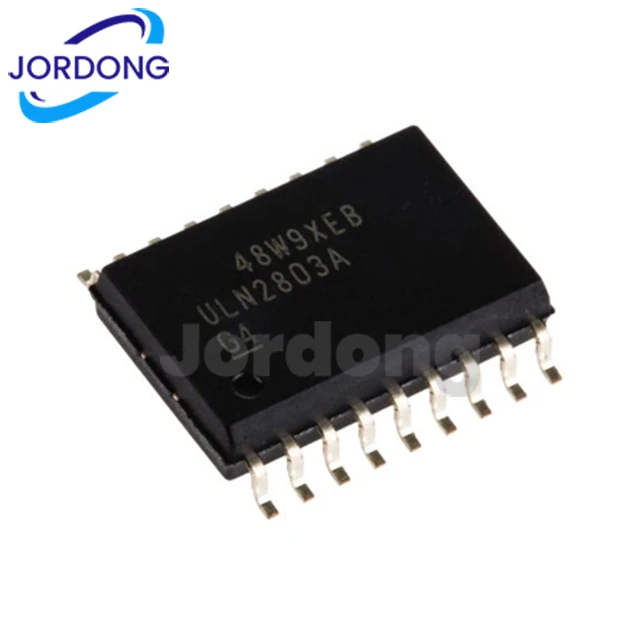

JORDONG ULN2803A SOIC 18 relay driver Stepper motor control Darlington Transistors ULN2803ADW
- Category: >>>
- Supplier: Shenzhen Zhendongxin Electronic Technology Co. Ltd.
Share on (1600935780105):
Product Overview
Description
Product Paramenters
JORDONG ULN2803A SOIC-18 relay driver Stepper motor control Darlington Transistors ULN2803ADW
Product Category | Darlington Transistors |
Configuration | Octal |
Transistor Polarity | NPN |
Maximum collector-emitter voltage VCEO | 50 V |
Maximum DC collector current | 500 mA |
Mounting style | SMD/SMT |
Package / Case | SOIC-18 |
Minimum operating temperature | - 40 C |
Maximum operating temperature | + 85 C |
Series | ULN2803A |
Package | Tube |
Height | 2.35 mm |
Length | 11.62 mm |
Humidity Sensitivity | Yes |
Operating Temperature Range | - 40 C to + 85 C |
Product Type | Darlington Transistors |
Sub Category | Transistors |
Width | 7.52 mm |
Unit Weight | 210 mg |
Product Description: ULN2803ADW is a popular integrated circuit (IC) chip widely used for high-voltage and high-current driver applications. It provides a convenient solution for driving larger loads such as relays, motors, and stepper motors. With its versatile features and robust design, ULN2803ADW offers reliable performance in various electronic control systems.
Key Features:
High-Voltage and High-Current Capability: ULN2803ADW is designed to handle high-voltage and high-current loads, making it suitable for driving a wide range of devices and components.
Multiple Output Channels: This IC chip offers eight output channels, allowing for simultaneous control of multiple loads.
Darlington Transistor Array: ULN2803ADW incorporates Darlington transistor arrays, which provide high current gain and low saturation voltage, ensuring efficient load driving.
Common Cathode Configuration: The IC chip utilizes a common cathode configuration, simplifying the circuit design and enabling easy integration into various applications.
Protection Diodes: Each output channel of ULN2803ADW is equipped with a built-in protection diode, which helps to suppress voltage spikes and protect the chip and connected components.
Thermal Shutdown Protection: The IC chip features thermal shutdown protection, which prevents overheating and ensures safe operation under high load conditions.
Wide Operating Voltage Range: ULN2803ADW operates within a wide voltage range, allowing for compatibility with different power supply systems.
Key Features:
High-Voltage and High-Current Capability: ULN2803ADW is designed to handle high-voltage and high-current loads, making it suitable for driving a wide range of devices and components.
Multiple Output Channels: This IC chip offers eight output channels, allowing for simultaneous control of multiple loads.
Darlington Transistor Array: ULN2803ADW incorporates Darlington transistor arrays, which provide high current gain and low saturation voltage, ensuring efficient load driving.
Common Cathode Configuration: The IC chip utilizes a common cathode configuration, simplifying the circuit design and enabling easy integration into various applications.
Protection Diodes: Each output channel of ULN2803ADW is equipped with a built-in protection diode, which helps to suppress voltage spikes and protect the chip and connected components.
Thermal Shutdown Protection: The IC chip features thermal shutdown protection, which prevents overheating and ensures safe operation under high load conditions.
Wide Operating Voltage Range: ULN2803ADW operates within a wide voltage range, allowing for compatibility with different power supply systems.
