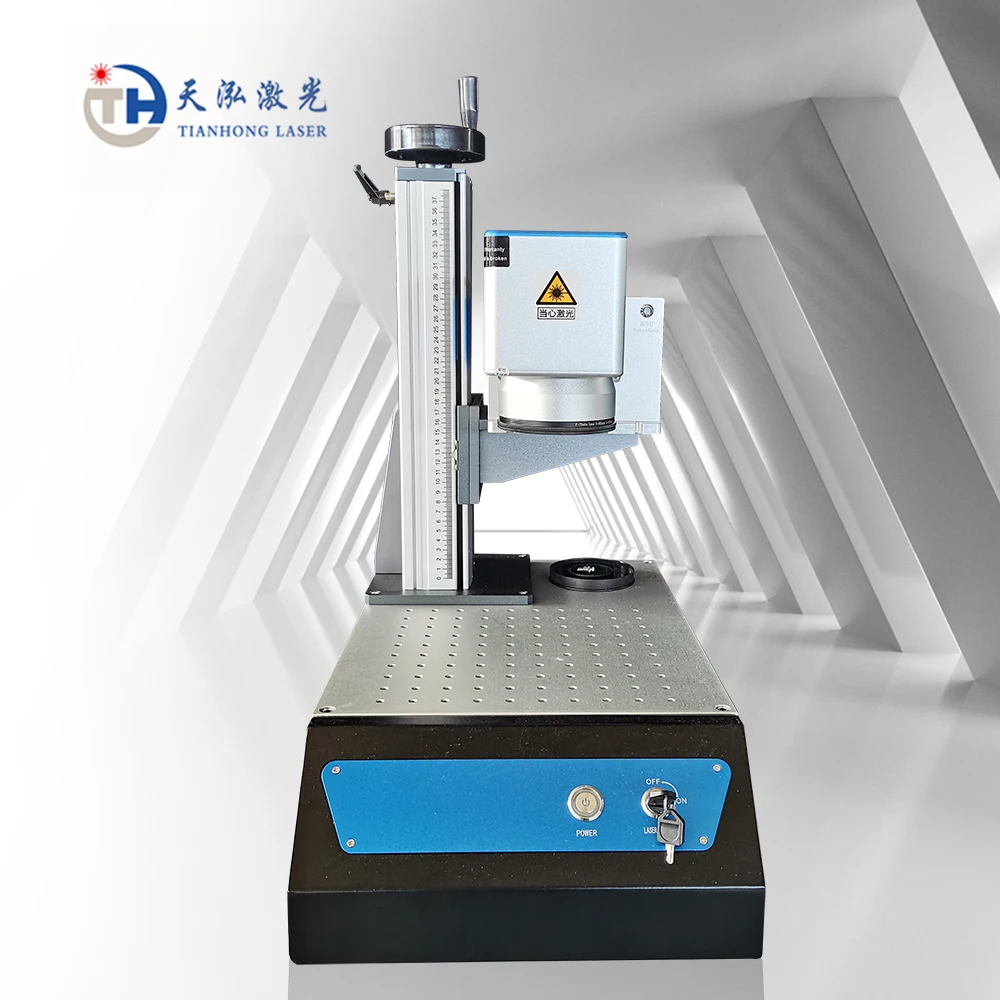

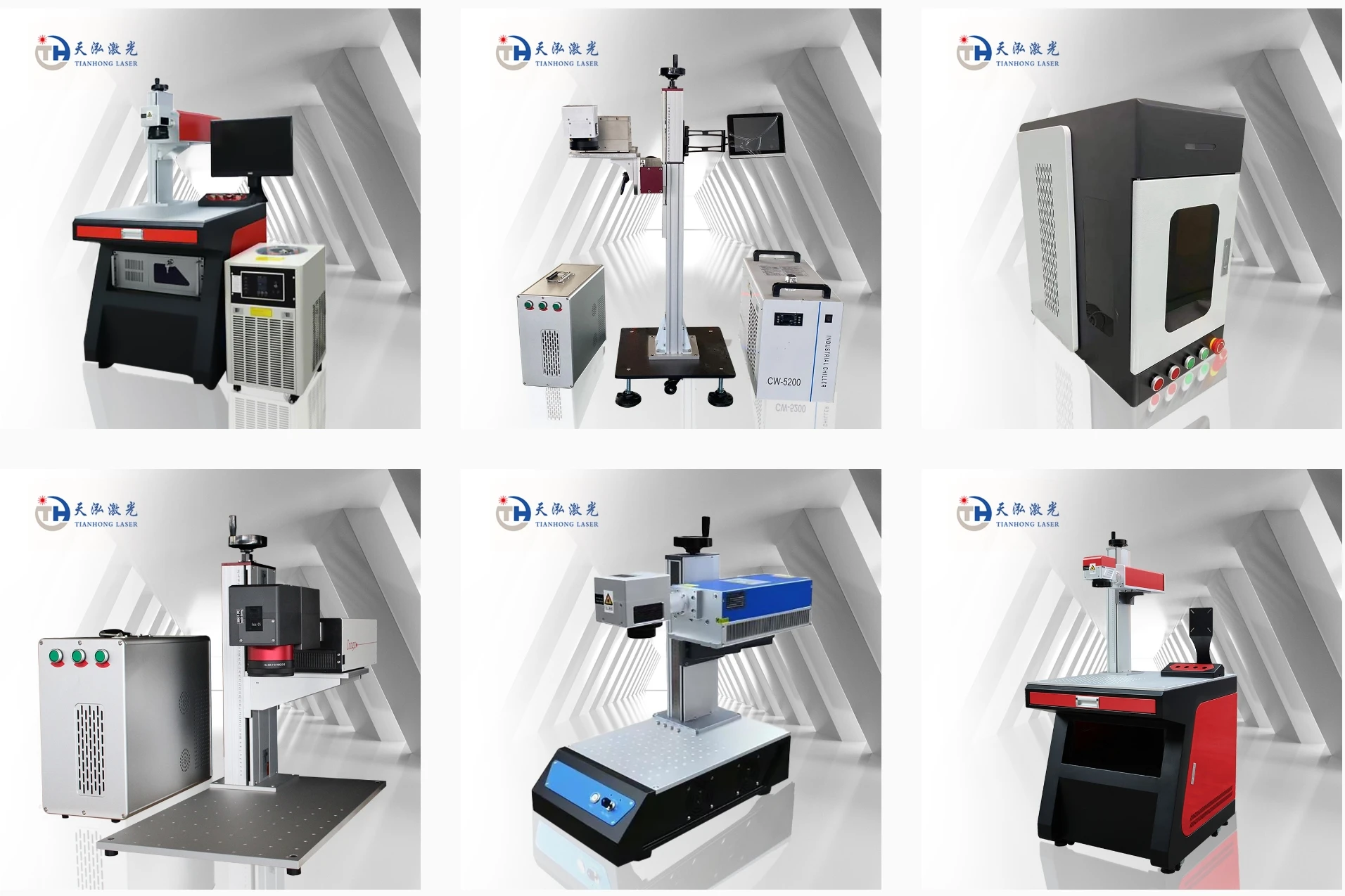

Affordable 355nm Wavelength Portable UV Laser Water cooled Marking Machine Vin Label Sticker Laser Marking Machine
- Category: >>>
- Supplier: Jinan Tianhong Mechanical Equipment Co. Ltd.
Share on (1600935781232):
Product Overview
Description
Product Description
How do UV Laser Marking machine system work?
Desktop/Portable/Flying uv laser marking machine have a much shorter wavelength than fiber laser type. Using “cold processing”, this process does not produce thermal deformation (heat damage) on the inner layers and nearby areas of the target area.
A UV laser’s wavelength is one-third of standard wavelength lasers, therefore often referred to as third-harmonic generation (THG) lasers. This wavelength is achieved by passing a standard wavelength laser at 1064 nm through a non-linear crystal, reducing it to 532 nm, this is then passed through another crystal, reducing its wavelength further, down to the working 355 nm.
In summary, UV lasers work a little differently to their CO2 or Fibre based siblings as they do not damage the materials surrounding surface, using a far lower power form of marking. This makes them the best of the bunch when it comes to “marking”, suitable for anything from fruit, to glass, diamond, silicone, plastic and precious metals. You really can mark almost anything with a UV laser!
A UV laser’s wavelength is one-third of standard wavelength lasers, therefore often referred to as third-harmonic generation (THG) lasers. This wavelength is achieved by passing a standard wavelength laser at 1064 nm through a non-linear crystal, reducing it to 532 nm, this is then passed through another crystal, reducing its wavelength further, down to the working 355 nm.
In summary, UV lasers work a little differently to their CO2 or Fibre based siblings as they do not damage the materials surrounding surface, using a far lower power form of marking. This makes them the best of the bunch when it comes to “marking”, suitable for anything from fruit, to glass, diamond, silicone, plastic and precious metals. You really can mark almost anything with a UV laser!
Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials
Metals(including rare metals), engineering plastic, electroplating materials, coating materials, plastics, rubber, epoxy, resin, ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
Technical Parameters
Model No. | TH-U-3W/5W |
Laser type/wave length | 355nm |
Laser Generator power | 3W/5W UV Laser Generator |
Beam quality㎡ | <1.1 |
Marking speed | 400 characters per second |
Working area | 110×110mm or 150×150mm ( adjustable ) |
Machine power | 600W |
Power supply | 380V/50-60Hz or 220V/50-60Hz |
Minimum character | 0.1mm |
Repeated accuracy | ±0.001mm |
Minimum line width | 0.015mm |
Life of the laser machine | ﹥100,000 hours |
Cooling system | Water Cooling |
Control interface | Standard USB |

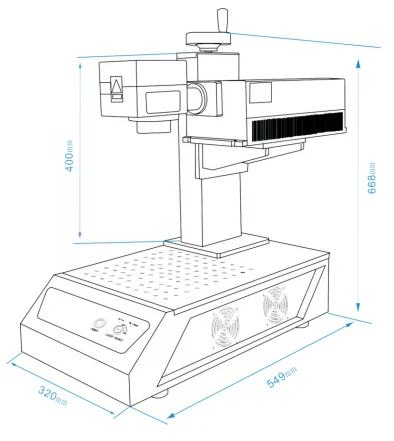

Overall dimensions & Weight | 560*330*680mm & 40kgs |

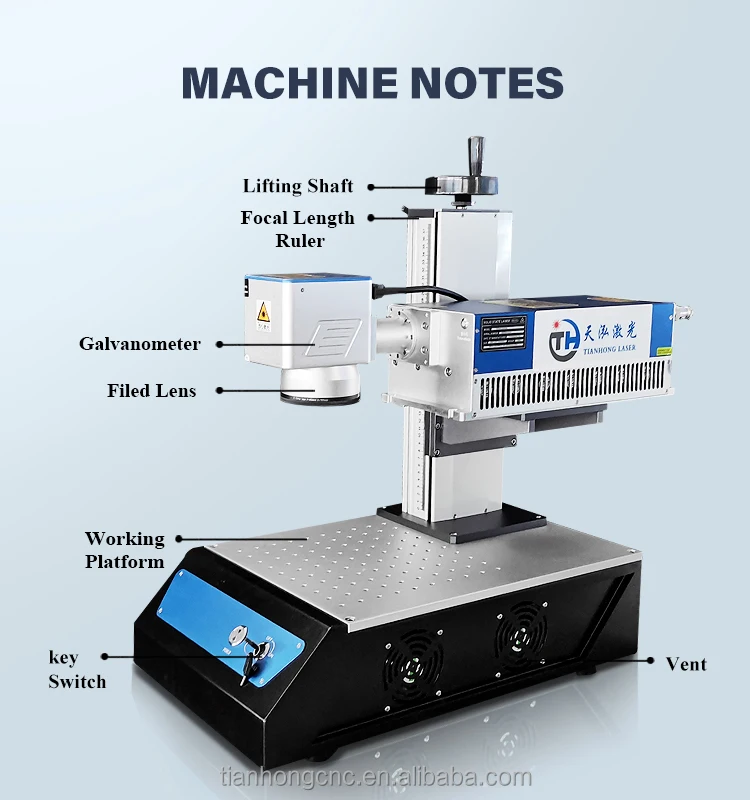

Detailed Images
High Speed Galvanometer
Rotary attachment for cylinder
High Precision Field Lens
High Quality UV Laser Source
Laser safety glasses
User-Friendly Focus Ruler

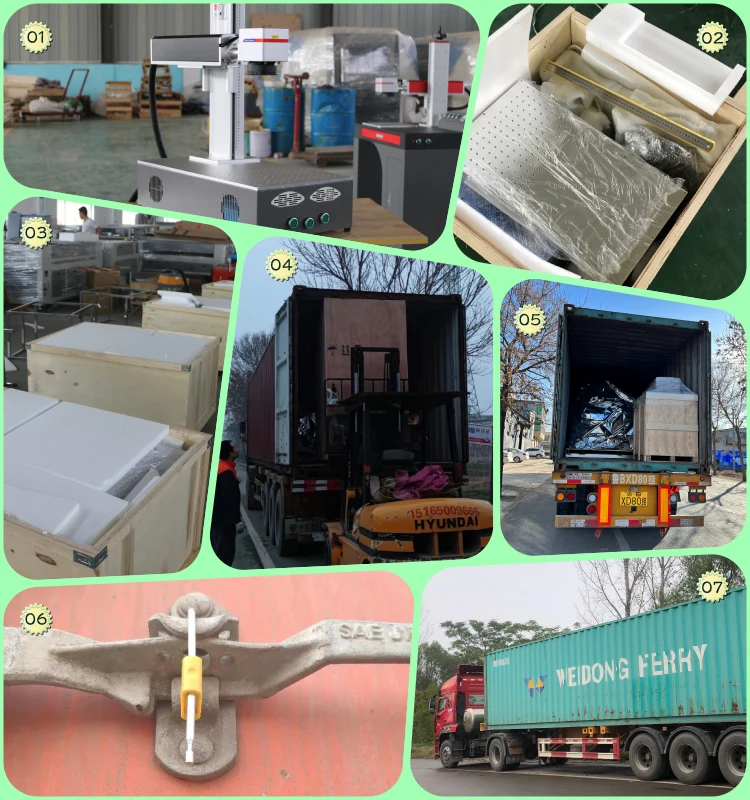

Packing&Shipping
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

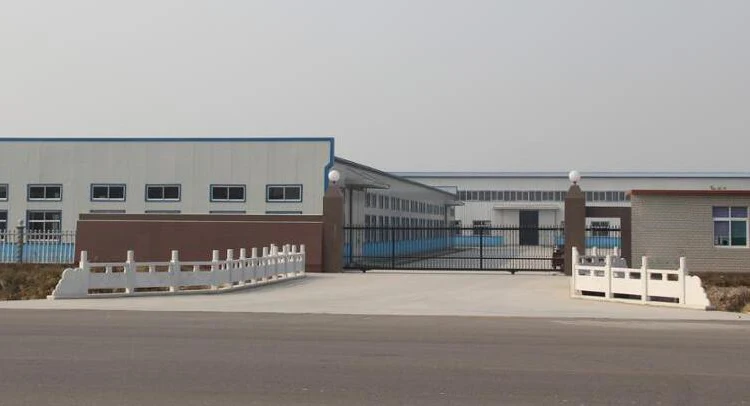

Company Introduction
1, JINAN TIANHONG Mechanical Equipment Co., Ltd. Located in the beautiful "spring city " Jinan, is a professional CNC Machine company with manufacturing,R&D and marking.
2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking, Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality, Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a MACHINE to me,thanks?
Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. T/T in advance
b. L/C is acceptiable
c.West Union for Samller Amount
d.Alibaba Contract
6)Delivery terms
Gnerally it will be be delivery within 5 working days after get the payment.
