Germany woodworking 300C Planing And Thicknesser Tenoning Machinery 3 In 1 Combination 300C Hot Sale For European
- Category: >>>
- Supplier: Qingdao Joway Machinery Co. Ltd.
Share on (1600935794321):
Product Overview
Description
Product Description

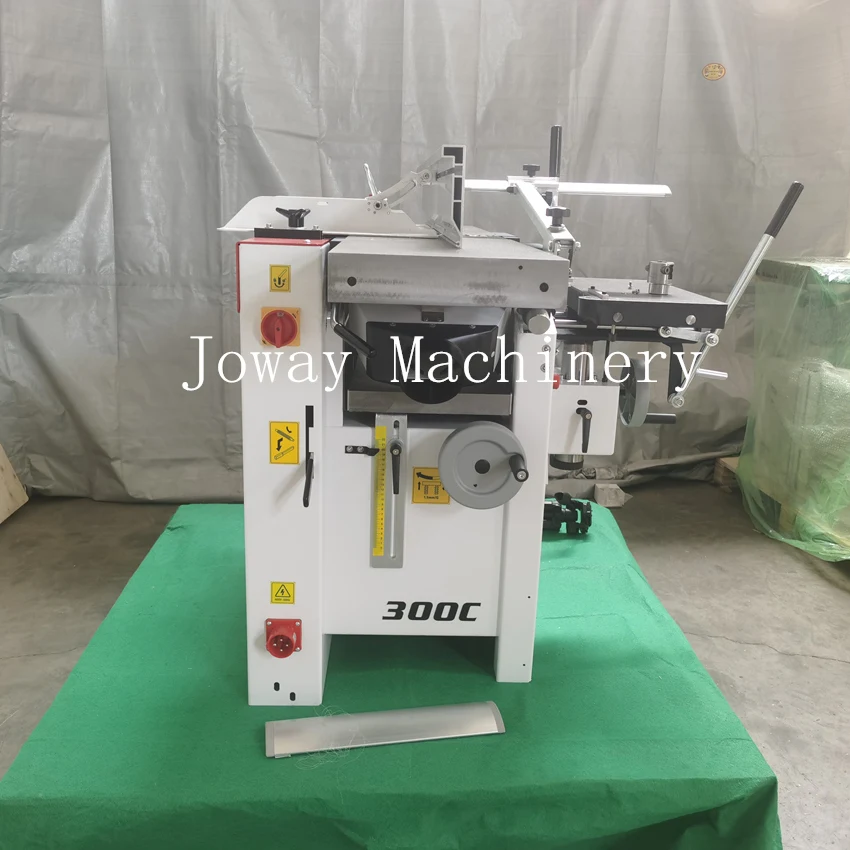

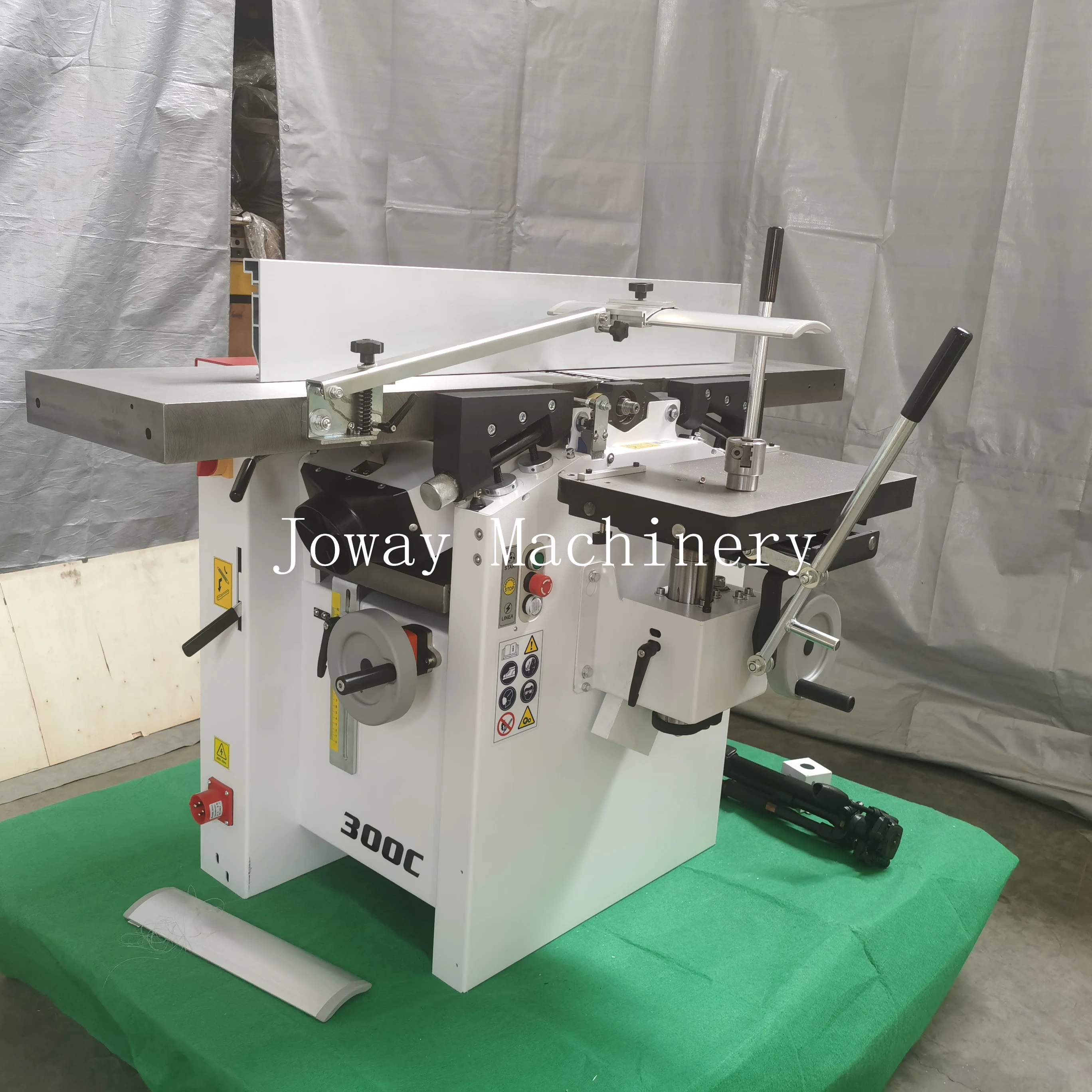

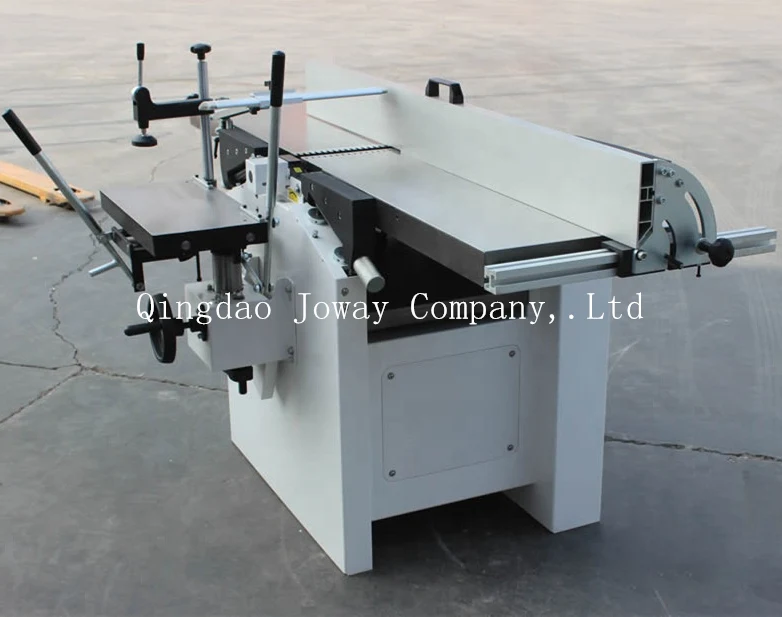

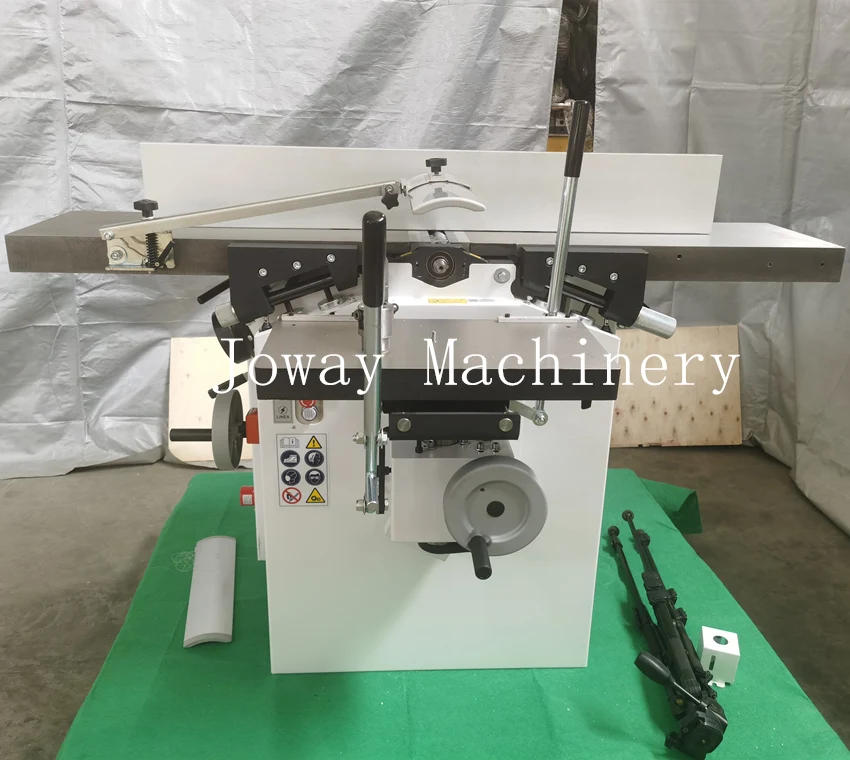

The 300C Combined Machine
The 300C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply
sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply
sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
Details Images
Specification

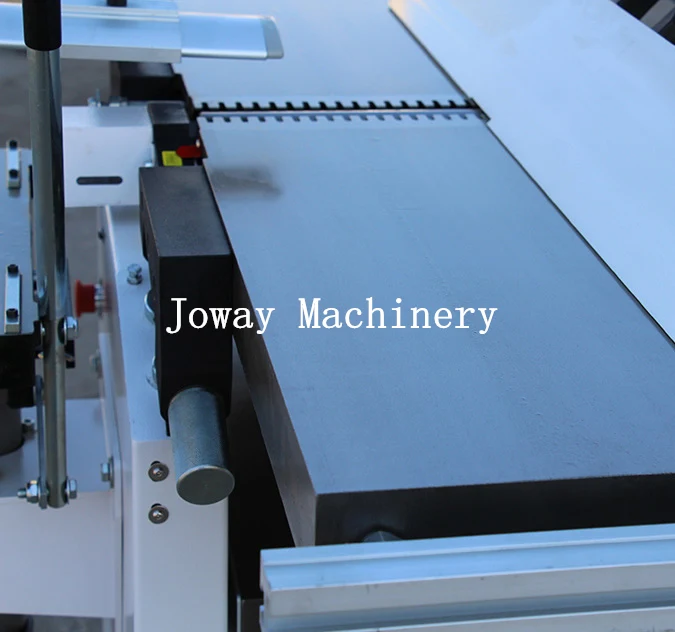

Planer | Unit | 300C |
Working tables | mm | 300*1500 |
Cutterblock diameter | mm | 70 |
Cutterblock rotation speed | r.p.m. | 5700 |
N.of knives | n。 | 3 |
knives dimensions | mm | 300*20*3 |
Max table adjustement | mm | 4 |
Thicknesser | Unit | 300C |
Working table | mm | 300*660 |
Feed speed | m/1' | 7 |
Max.working height | mm | 220 |
Min.working height | mm | 4 |
Cutterblock rotation speed | r.p.m. | 5700 |
Max.cutting depth | mm | 4 |

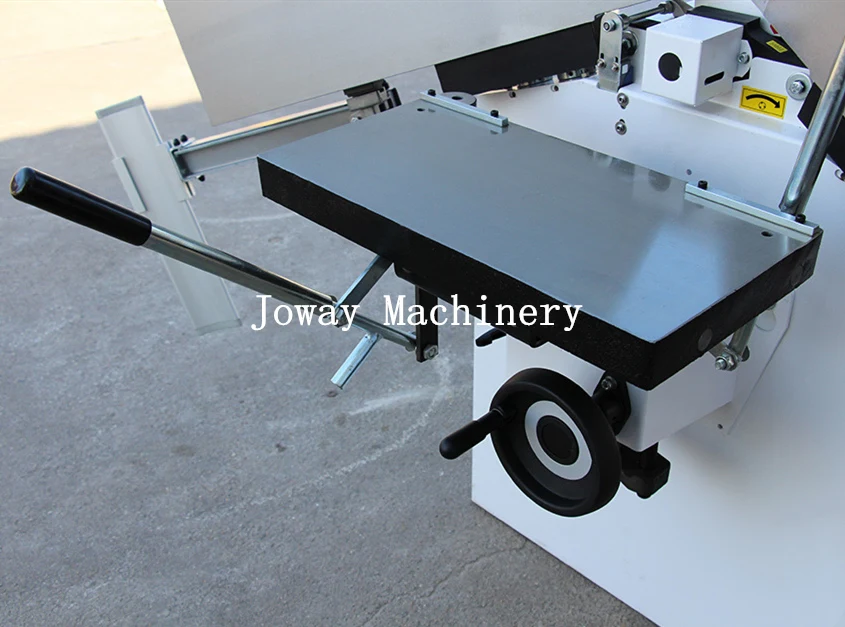

Mortiser | Unit | 300C |
Working table | mm | 250*500 |
Longitudinal stroke | mm | 205 |
Trasversal stroke | mm | 95 |
Vertical stroke | mm | 90 |
Churck | mm | 16 |
Churck rotation speed | r.p.m. | 5700 |
Standard accessories | Unit | 300C |
Service wrenches | * | |
Mortiser chuck | * | |
Guards on mortiseur chuck | * | |
3 pcs.planing knives | * | |
Planer guide | ||
Bridge safety hood on planer | * | |
3-phase motor power | HP-KW | 3.0-2.2 |
Weight | kg | 290 |
Optional accessories | Unit | 300C |
Single-phase motor | HP-KW | 3.0-2.2 |
Increasing 3-phase motor | HP-KW | 4.0-3.0 |
Wescott(Diameter) | mm | 16 |
Packing & Delivery

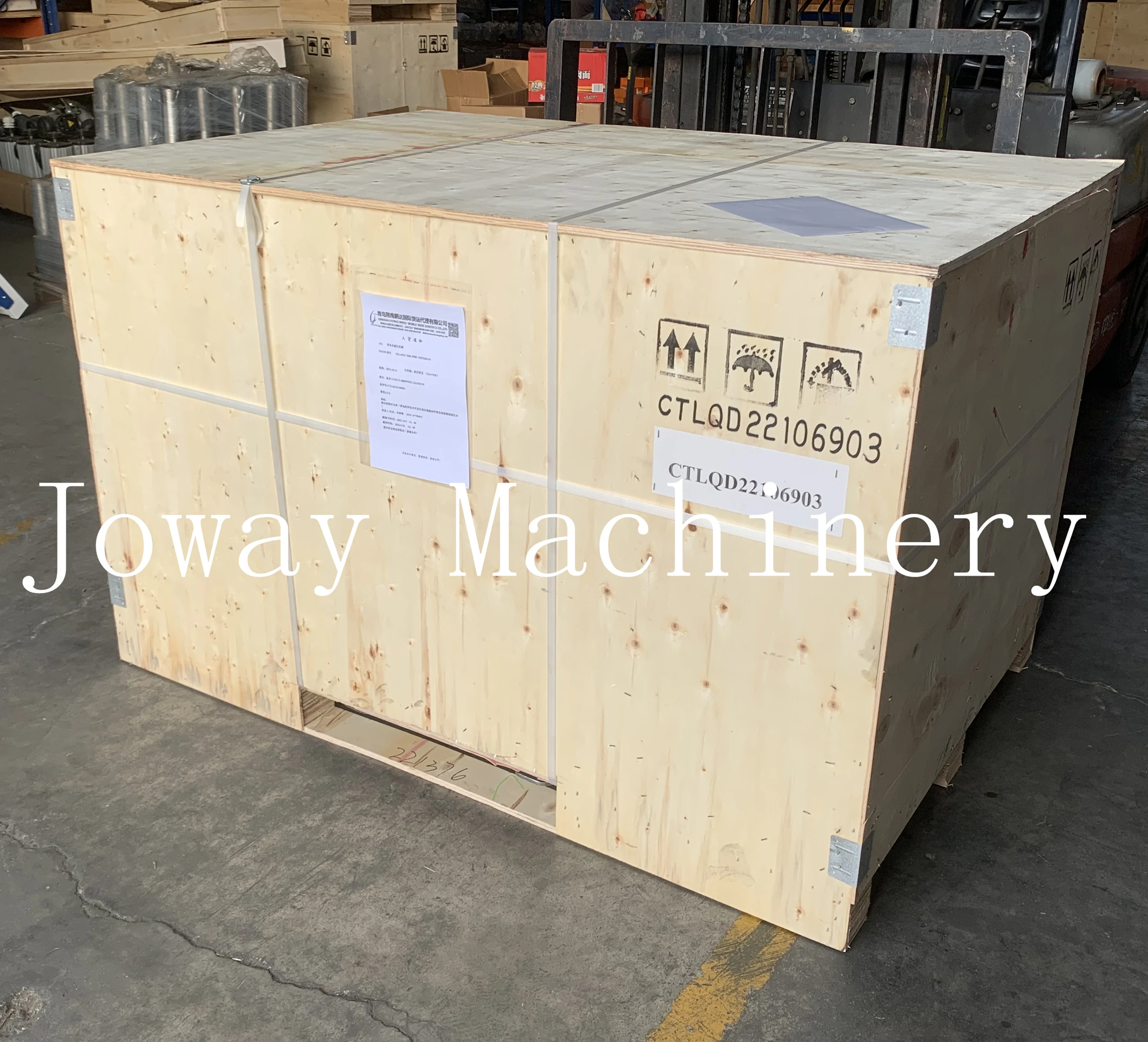

The cutting plate saw machine and spare parts will be packed in strong anti-moisture bag and plywood box before shipping.
Recommend Products
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer . We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao.
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours.
A: We are a manufacturer . We are dedicated to woodworking machinery manufacturing.
Q2: Where is the nearest airport and port from your factory?
A: The nearest port is Qingdao.
Q3: How can I get an accurate price?
Kindly send us the picture of furniture you want to produceand and the working size.
Or detailed machine functions you need, electricity voltage, Hz.
Q4: How is your after sales service?
Our sales are online for 24-hours.
We can also supply overseas install service.
Also we have more than 10 countries warehouse and department.
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q5: How long is the delivery time?
Generally 7 ~ 15 days.
Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
