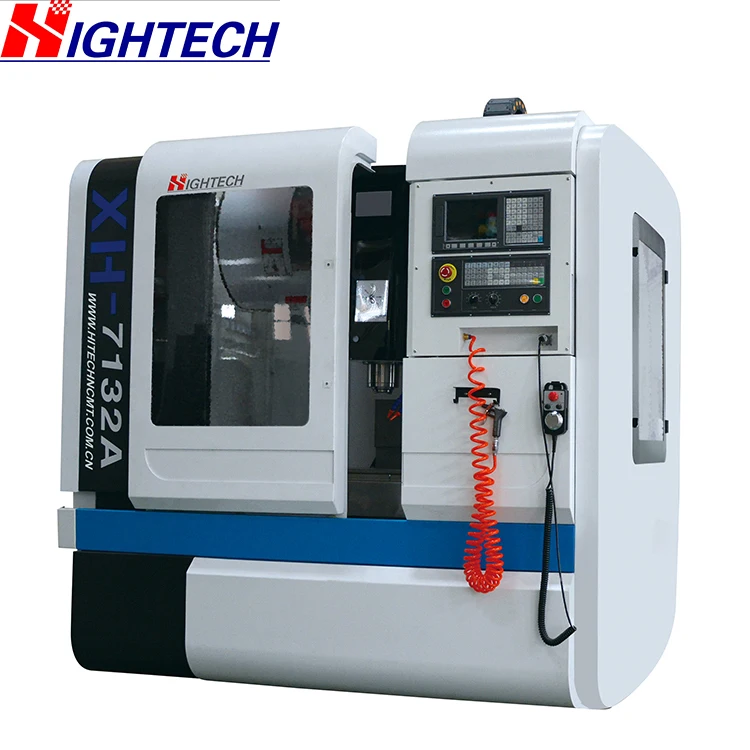

8000RPM Spindle Speed CNC Machine Center vertical machining center XH7132A
- Category: >>>
- Supplier: Taizhou Hitech Nc Machine Tool Co. Ltd.
Share on (1600935811341):
Product Overview
Description
Products Description

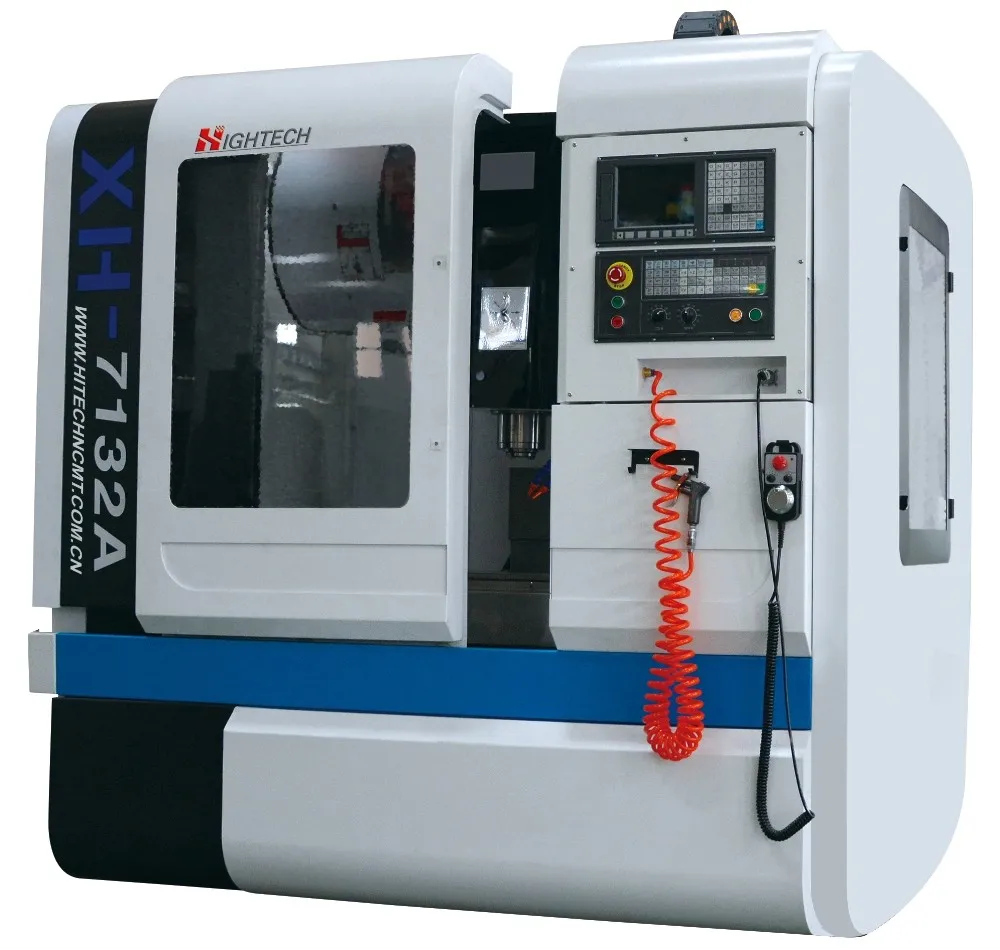

CNC Vertical Machining Center
Main Parameters | Units | XH714 | XK714 | XH7132A | XK7132A | XH7125 | XK715 |
Work table size | mm | 900*400 | 900*400 | 920*320 | 920*320 | 600*250 | 600*250 |
T slot quantity,width and distance | / | 3-18-110 | 3-18-110 | 3-14-85 | 3-14-85 | 3-14-75 | 3-14-75 |
Max.loading capacity of work table | kg | 400 | 400 | 400 | 400 | 400 | 400 |
Work table travel(X/Y/Z) | mm | 650*400*500 | 650*400*500 | 620*350*500 | 620*350*500 | 422*240*400 | 422*240*400 |
Distance between main spindle surface and work table | mm | 120~620 | 120-620 | 100-600 | 100-600 | 60-460 | 60-460 |
Distance between spindle center and vertical column rail | mm | 420 | 420 | 395 | 395 | 325 | 325 |
Main spindle speed | r.p.m | 40-6000 | 40-6000 | 60-6000 | 60-6000 | 60-6000 | 60-6000 |
Taper of spindle bore | / | BT40 | BT40 | BT40 | BT40 | BT30 | BT30 |
Motor power of main spindle | KW | 5.5 | 5.5 | 5.5 | 5.5 | 3.7 | 3.7 |
Fast moving speed(X,Y,Z) | mm/min | 2.5-10000 | 2.5-10000 | 18000 | 18000 | 6000 | 6000 |
Feed speed(X,Y,Z) | mm/min | 30/30/24 | 30/30/24 | 2.5-3000 | 2.5-3000 | 2.5-3000 | 2.5-3000 |
Tool magazine capacity | / | 16 | 16 | 10 | |||
Max.tool weight | kg | 8 | 8 | 5 | |||
Positioning accuracy | mm | ±0.015 | ±0.015 | ±0.015 | ±0.02 | ±0.015 | ±0.02 |
Repeated positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 | ±0.01 | ±0.075 | ±0.01 |
Weight | kg | 3250 | 3150 | 2750 | 2650 | 1530 | 1450 |
CNC system | / | GSK218 | GSK218 | GSK218 | GSK218 | GSK218 | GSK218 |
Main Features
1)The rails of X,Y,Z axis are ultra-wide rails,which guarantees the rigidity of the machine when processing.
2)Taiwan HIWIN screw.
3)High speed,high precision main spindle.
4)Cooling system adopts large capacity,high-lift pump.
5)There`s a shelter for the whole machine
6)Rotary worktable
2)Taiwan HIWIN screw.
3)High speed,high precision main spindle.
4)Cooling system adopts large capacity,high-lift pump.
5)There`s a shelter for the whole machine
6)Rotary worktable

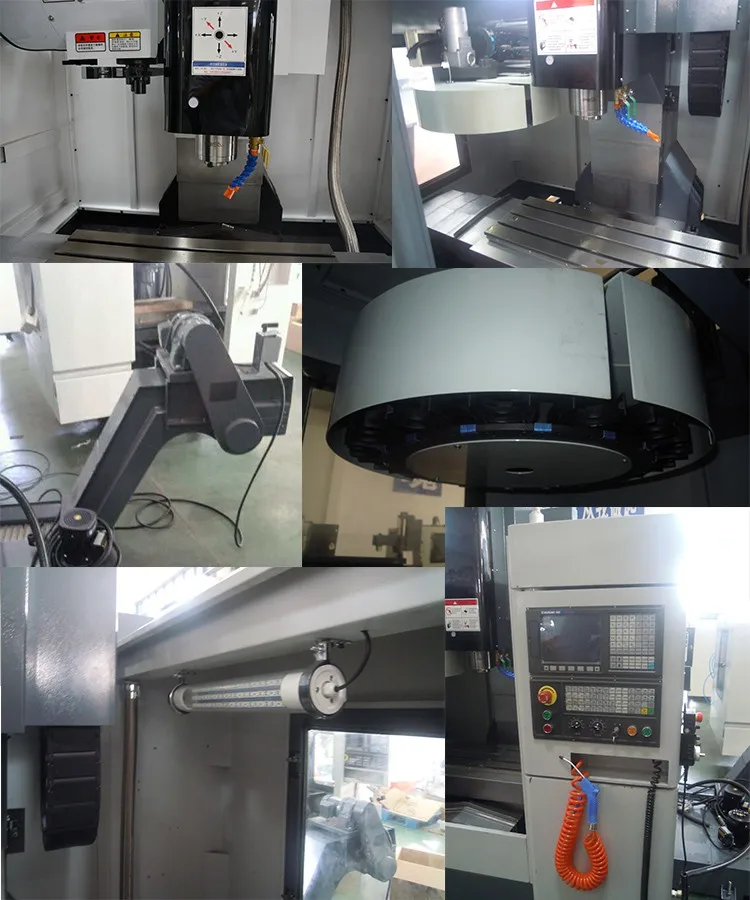

Details Images
Worktable
Spindle
Ball Screw
Disc Type Tool Magazine
GSK CNC System
Linear guide

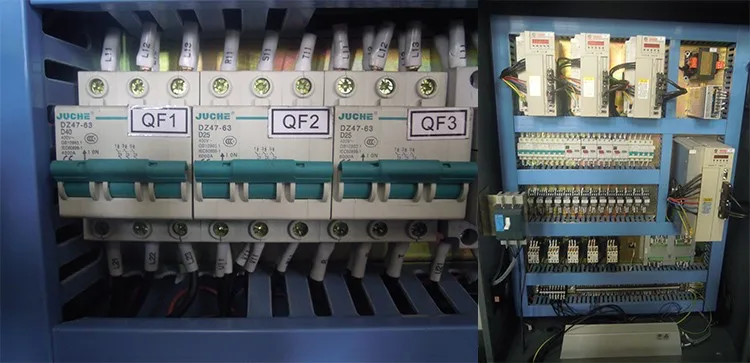

XH7132A CNC Vertical Machining Center Electrical Part
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.

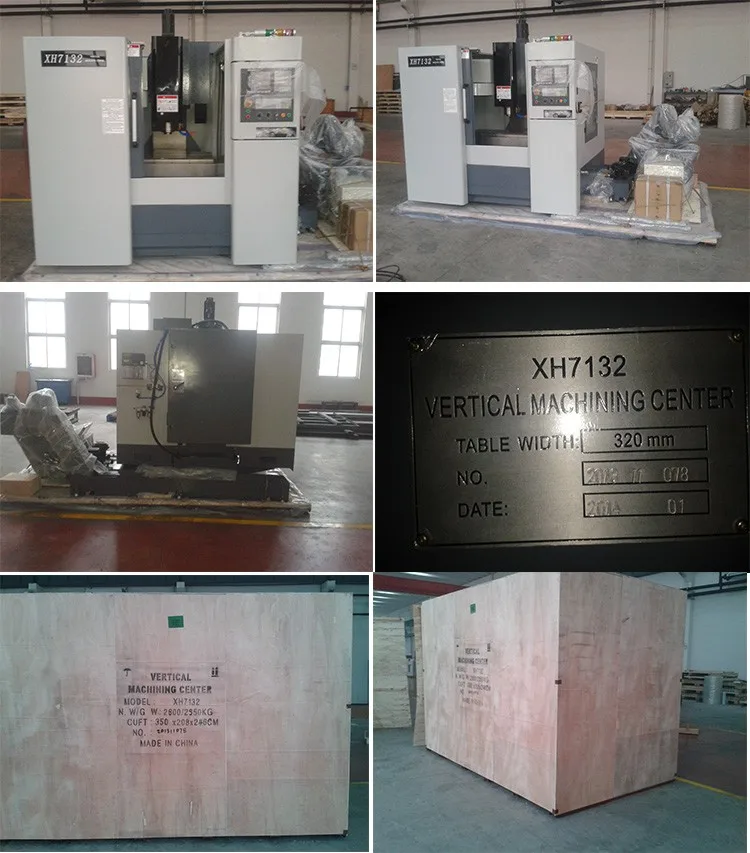

Package
Packaging | ||
Size | 2050(L)*1870(W)*2170(H) | |
Weight | 3.0T | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

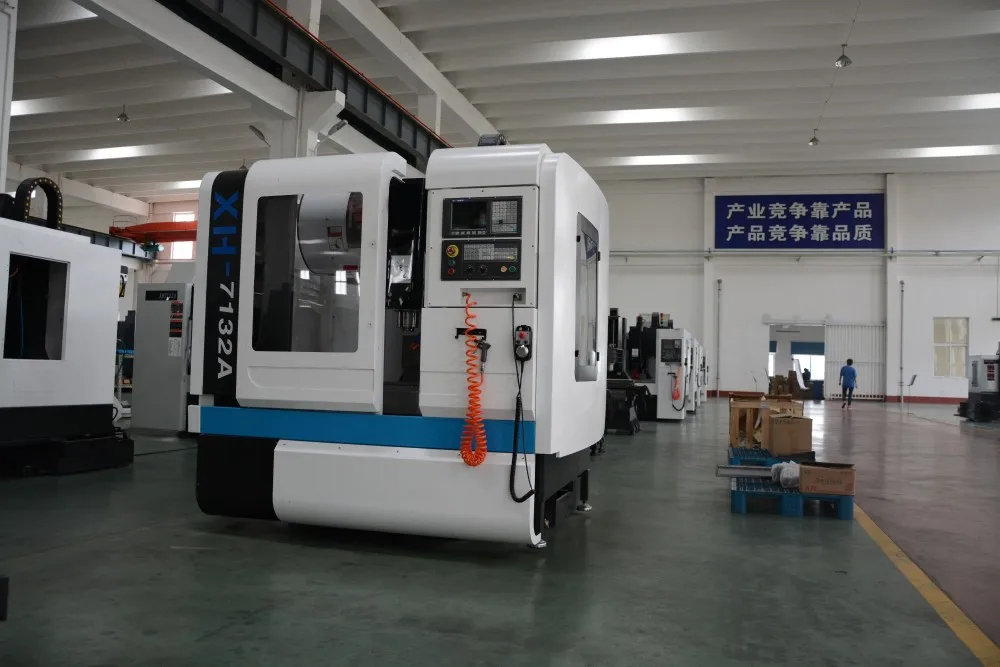

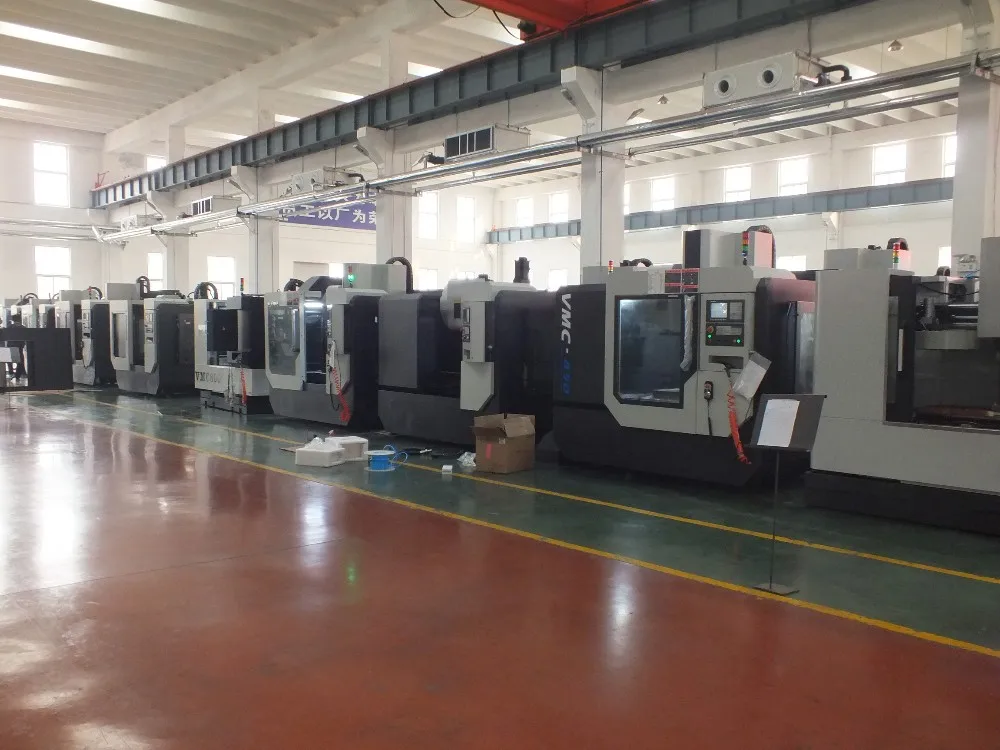

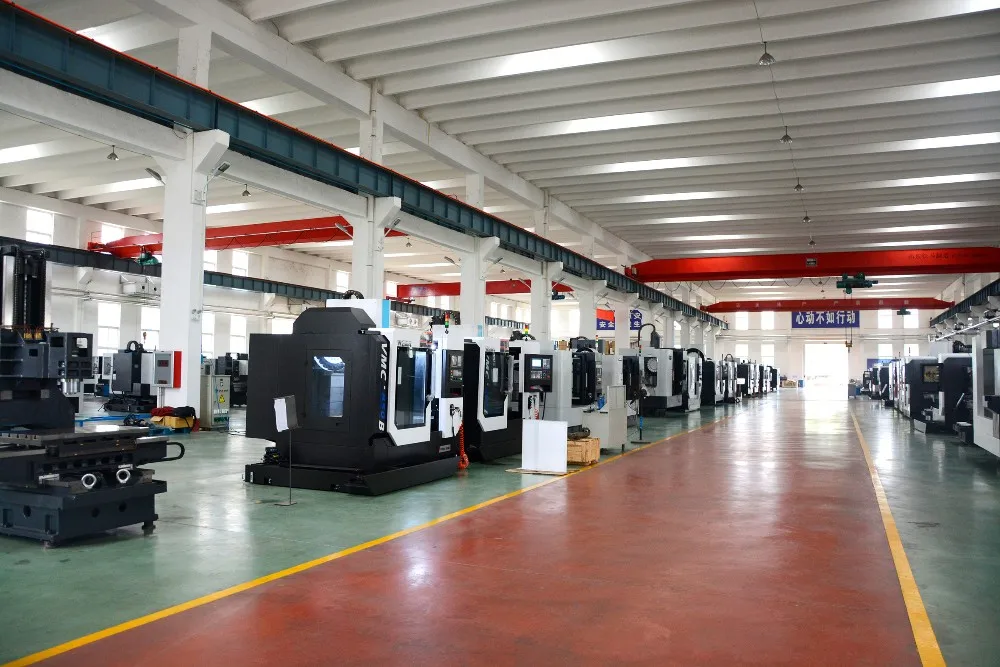

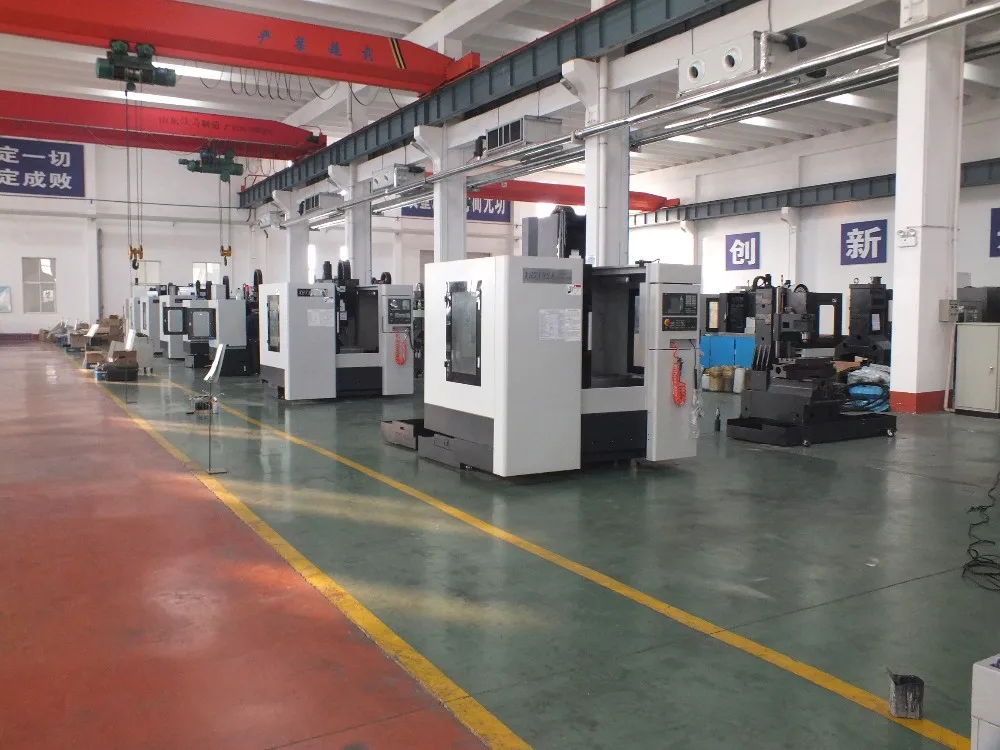

Workshop
FAQ
Q:Are you manufacturer?
A: Yes, we are manufacturers of cnc vertical machining center VMC,welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can aslo help you on financing,please contact us for details!
Q:What information will you need to make the proposal?
A: Worktable size,travel,and axes numbers and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the cnc vertical machining center has arrived at the importer` s
port.
Our company will send engineers to install the machine and responsible for training the worker of customer until they can
operating the machine skillfully.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation
manual.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cnc vertical machining center VMC are exported to Russia,India,UAE,South
Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
A: Yes, we are manufacturers of cnc vertical machining center VMC,welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can aslo help you on financing,please contact us for details!
Q:What information will you need to make the proposal?
A: Worktable size,travel,and axes numbers and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the cnc vertical machining center has arrived at the importer` s
port.
Our company will send engineers to install the machine and responsible for training the worker of customer until they can
operating the machine skillfully.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send
engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation
manual.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cnc vertical machining center VMC are exported to Russia,India,UAE,South
Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.
You can get higher quality product & better professional service from Hitech with same price.
