Product Overview

Description



Product Description

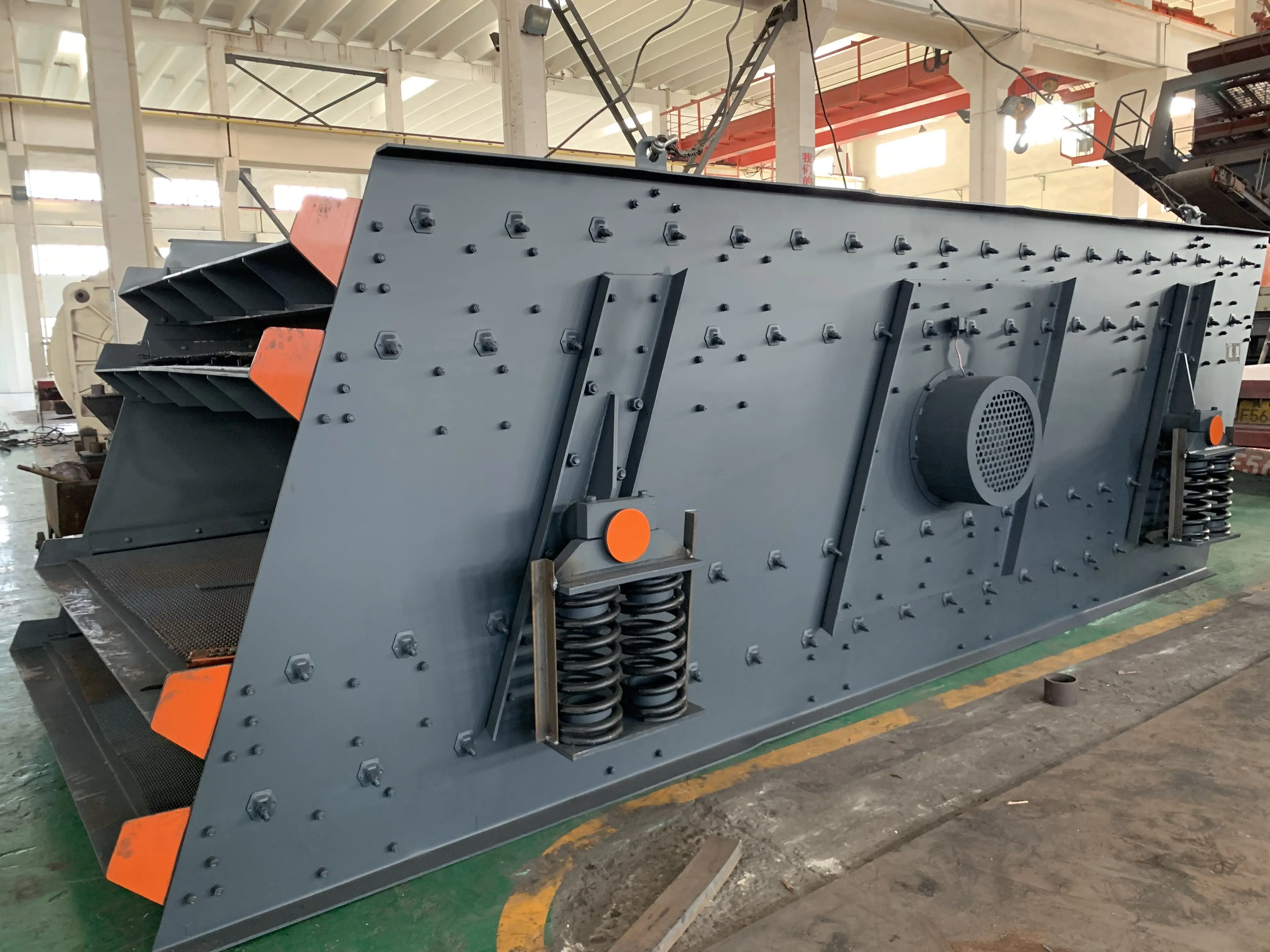

YK Series Vibrating Screen
It is a new type of high efficiency multi-layer vibrating screen, adopting cylinder type eccentric shaft vibration exciter and eccentric block to adjust the amplitude, it has long screening line and can screen out multi-size product.


Applications: it is widely applied to mining, building materials, transportation, energy and chemical industry




Working Principle

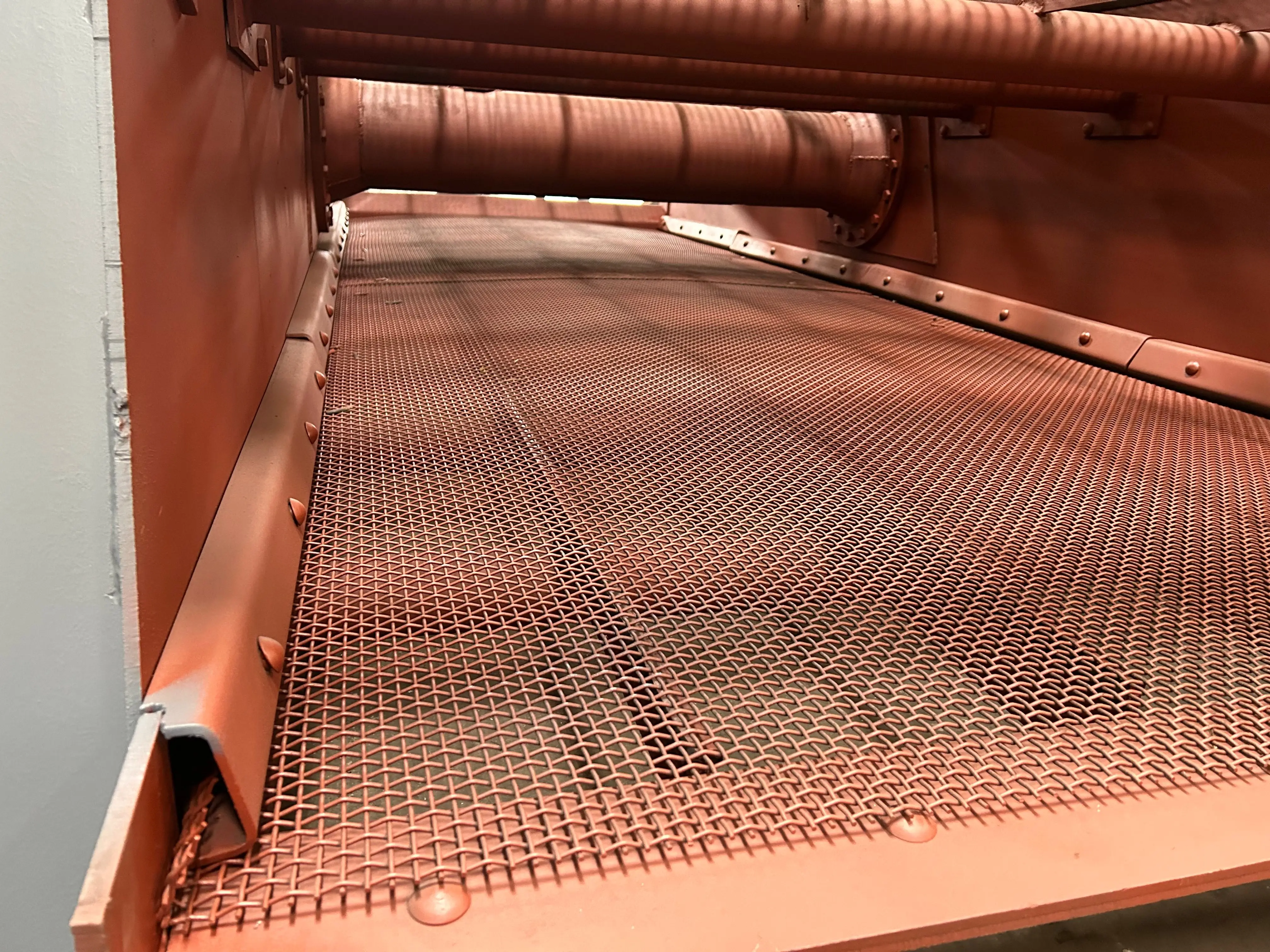

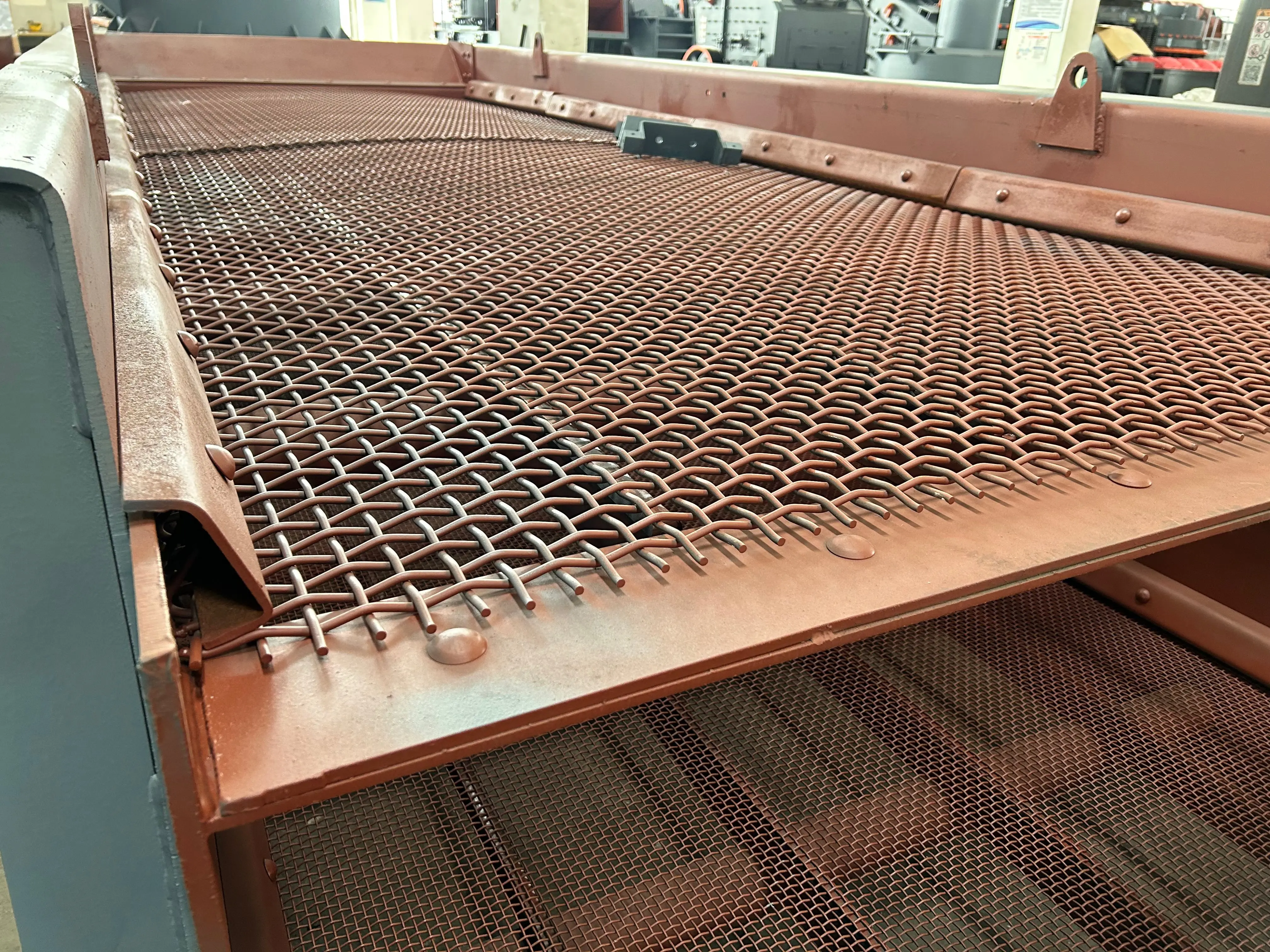

The circular vibrating screen adopts ordinary motor to drive the eccentric block and make the screen periodically along with the direction of vibration force. Materials do circular motion on the screen deck and finally are screened out. Circular vibrating screen consists of vibration source, screen body, screen mesh, shock absorbing device, chassis. The structure is reasonable, strong and durable.


Product Advantages
1.It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
2. Beam is connected to the main body with bolts, has the feature of high strength.
3.Side plate of the screen box is made of high strength and high impact resistance steel boiler plate.
4.It adopts small amplitude, high frequency and large obliquity structure, which enable the vibrating screen has the advantages of high screening efficiency, large processing capacity, long service life, low power consumption and low noise.


Specification


Application
Construction works , Energy & Mining
Product name
YK Series Vibrating Screen
Condition
New
Screen size (mm)
7000*2800
Layers
4
Screen mesh (mm)
3-80
Max feed size (mm)
200
Power (Kw)
2x30
Vibrating frequency (r/mln)
650-850
Installation
Engineer Guide
After-sales Service Provided
Engineers available to service machinery overseas
Spare parts supply
Lifelong Provide


Specifications - Technical Data


Model
Screen size (mm)
Layers
Screen mesh (mm)
Max feed size (mm)
Capacity (Vh)
Power (Kw)
Vibrating frequency (r/mln)
Double Amplitude (mm)
2YK1237
3700*1200
2
3-80
100
10-80
11
750-950
6-9
3YK1237
3700*1200
3
3-80
100
10-80
11
750-950
6-9
2YK1548
4800*1500
2
3-80
100
30-200
11
750-950
6-9
3YK1548
4800*1500
3
3-80
100
30-200
15
750-950
6-9
4YK1548
4800*1500
4
3-80
100
30-200
15
750-950
6-9
2YK1848
4800*1800
2
3-80
100
50-250
18.5
750-950
6-9
3YK1848
4800*1800
3
3-80
100
50-250
18.5
750-950
6-9
2YK1860
6000*1800
2
3-80
100
60-300
18.5
750-950
6-9
3YK1860
6000*1800
3
3-80
100
60-300
22
750-950
6-9
4YK1860
6000*1800
4
3-80
100
60-300
30
750-950
6-9
2YK2160
6000*2100
2
3-80
100
80-400
22
750-950
6-9
3YK2160
6000*2100
3
3-80
100
80-400
30
750-950
6-9
4YK2160
6000*2100
4
3-80
100
80-400
30
750-950
6-9
2YK2460
6000*2400
2
3-80
200
100-500
30
750-950
6-9
3YK2460
6000*2400
3
3-80
200
100-500
37
750-950
6-9
4YK2460
6000*2400
4
3-80
200
100-500
37
750-950
6-9
2YK2475
7500*2400
2
3-80
200
100-500
30
750-950
6-9
3YK2475
7500*2400
3
3-80
200
100-500
37
750-950
6-9
4YK2475
7500*2400
4
3-80
200
100-500
37
750-950
6-9
2YK2870
7000*2800
2
3-80
200
100-700
2×22
750-950
6-9
3YK2870
7000*2800
3
3-80
200
100-700
2x30
650-850
6-9
4YK2870
7000*2800
4
3-80
200
100-700
2x30
650-850
6-9
2YK3072
7200*3000
2
3-80
200
150-800
2x30
650-850
6-9
3YK3072
7200*3000
3
3-80
200
150-800
2x30
650-850
6-9
2YK3272
7200*3200
2
3-80
200
150-800
2x30
650-850
6-9
3YK3272
7200*3200
3
3-80
200
150-800
2x30
650-850
6-9
