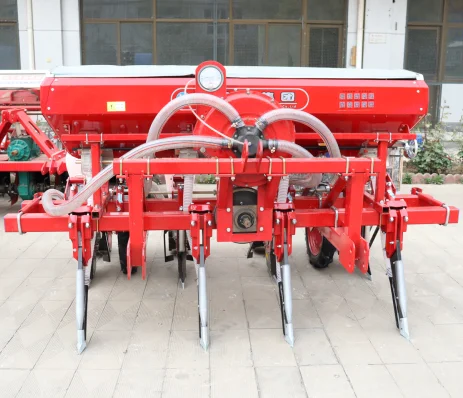

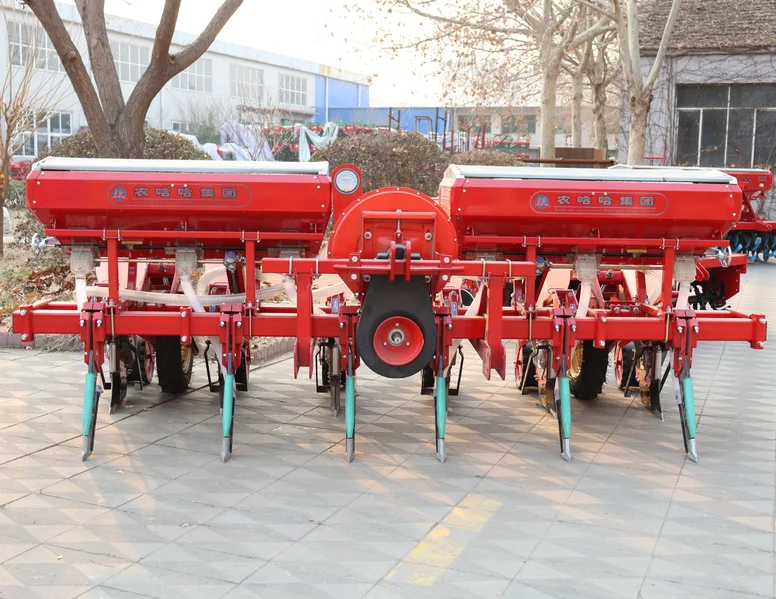

Agricultural corn seeder Pneumatic seeder Agricultural equipment seeder
- Category: >>>
- Supplier: Jining Tiande Engineering Machinery Co. Ltd.
Share on (1600935888288):
Product Overview
Description
Products Description

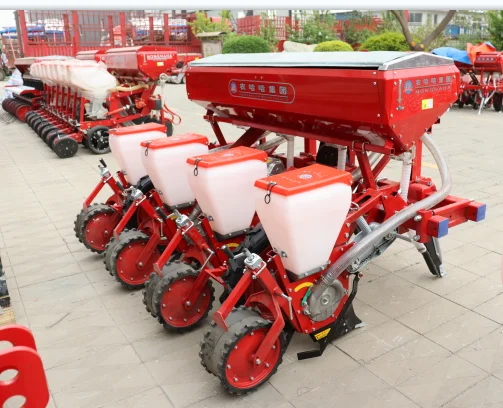

This machine is matched with a four-wheel tractor. It uses a three-point linkage to connect the main frame. The fan is driven by the rear output shaft of the tractor through a universal joint.

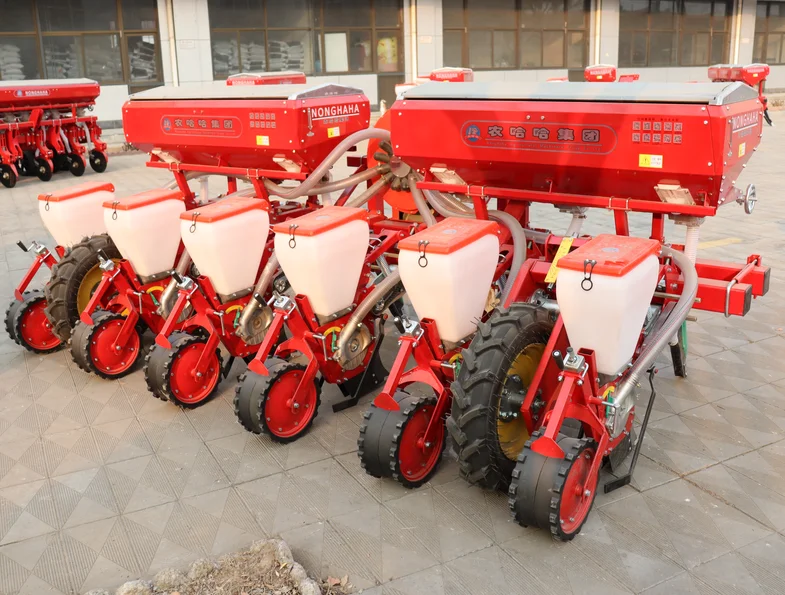

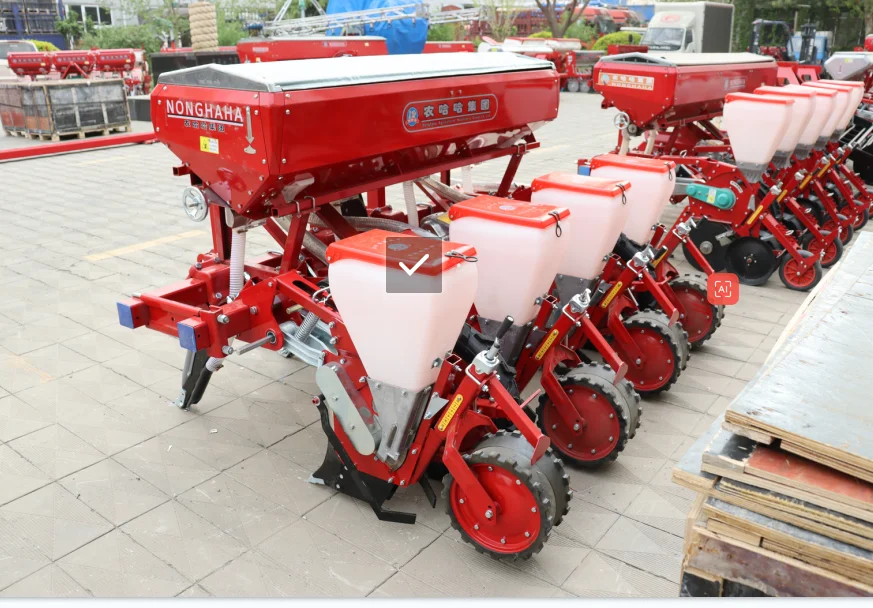

product Details
Product parameters
Name | / | no-tillage pneumatic fertilizer seeder | ||||
Model | / | 2BYQF-4 | 2BYQF-6 | 2BYQF-8 | ||
Structure style | / | pneumatic type, suspension type | ||||
Matched power | kW | 33.1～58.9 | 73.5～88.2 | 73.5～88.2 | ||
Overall dimension(L*W*H) | mm | 1750×2250×1250 | 1750×3450×1450 | 1750×4500×1450 | ||
Structure weight | kg | 530 | 820 | 1040 | ||
Working speed range | km/h | 2～5 | 2～5 | 3～6 | ||
Production rate/h. | hm2/h | 0.4～1.3 | 0.66～1.95 | 1.1～2.3 | ||
Row spacing | mm | 550~650 | 550~650 | 600 | ||
Working rows | row | 4 | 6 | 8 | ||
Working width | mm | 2200～2600 | 3300～3900 | 4800 | ||
Seed-metering device type | / | pneumatic type、metal material | ||||
Quantity of the seed-metering device | piece | 4 | 6 | 8 | ||
Driving mode of the seed-metering device | / | Ground-wheel | ||||
Fertilizer-metering device type | / | outer-groove wheel type、non-metal material | ||||
No.of the fertilizer-metering device | piece | 4 | 6 | 8 | ||
Driving mode of the fertilizer-metering device | / | Ground-wheel | ||||
Capacity of Seeds/fertilizer hopper | L | Seeds：9.3×4 Fertilizer：235 | Seeds：9.3×6 Fertilizer：195×2 | Seeds：9.3×8 Fertilizer：235×2 | ||
Adjusting mode of the seeds/fertilizer displacement | / | Gearbox / thread type | ||||
Transmission mechanism type | / | Chain wheel、chain | ||||
Opener type | / | Seeds：core ploughshare / fertilizer：core ploughshare | ||||
No. Of opener | piece | seed：4 / fertilizer：4 | seed：6 / fertilizer：6 | seed：8 / fertilizer：8 | ||
Depth adjusting range of the opener | mm | seed：30～50 / fertilizer：50～80 | ||||
Ground wheel type | / | Rubber wheel | ||||
Company Profile
Recommend Products

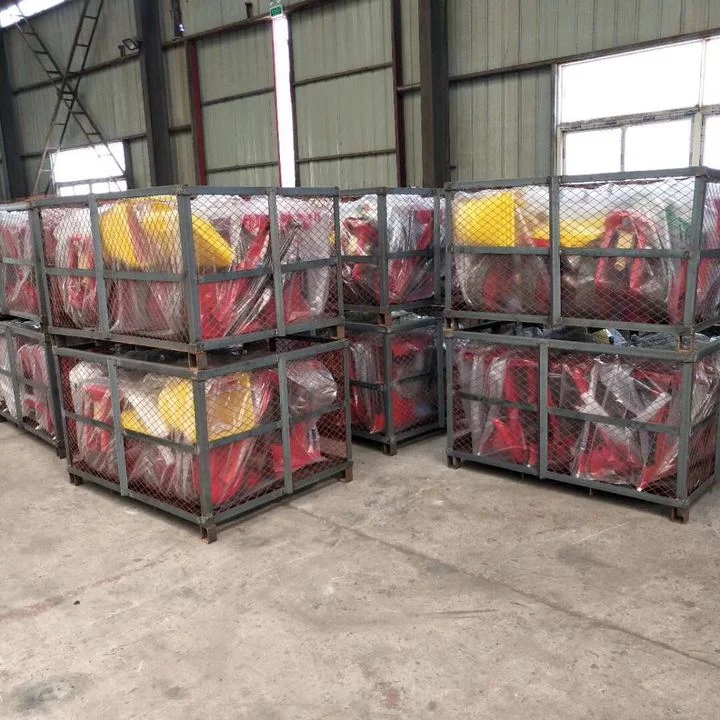

Product packaging
