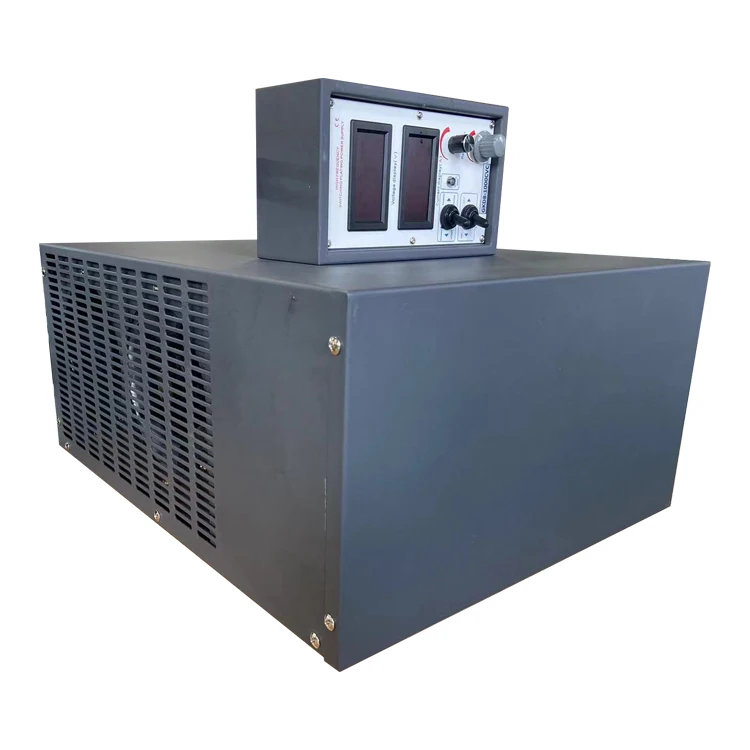

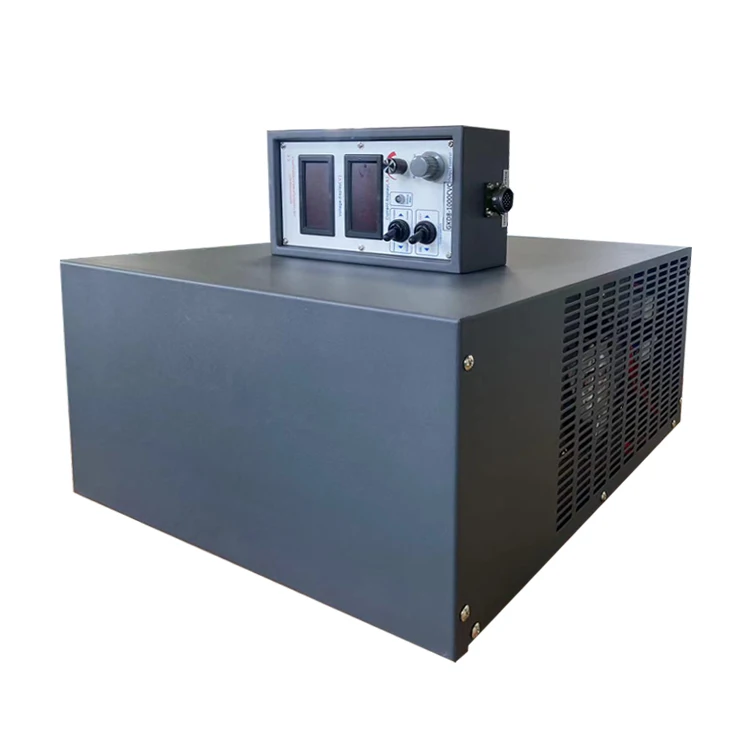

High Frequency Plating Rectifier 8V 1000A Electroplating Rectifier IGBT DC Rectifier
- Category: >>>
- Supplier: Chengdu Xingtongli Power Supply Equipment Co. Ltd.
Share on (1600935951203):
Product Overview
Description

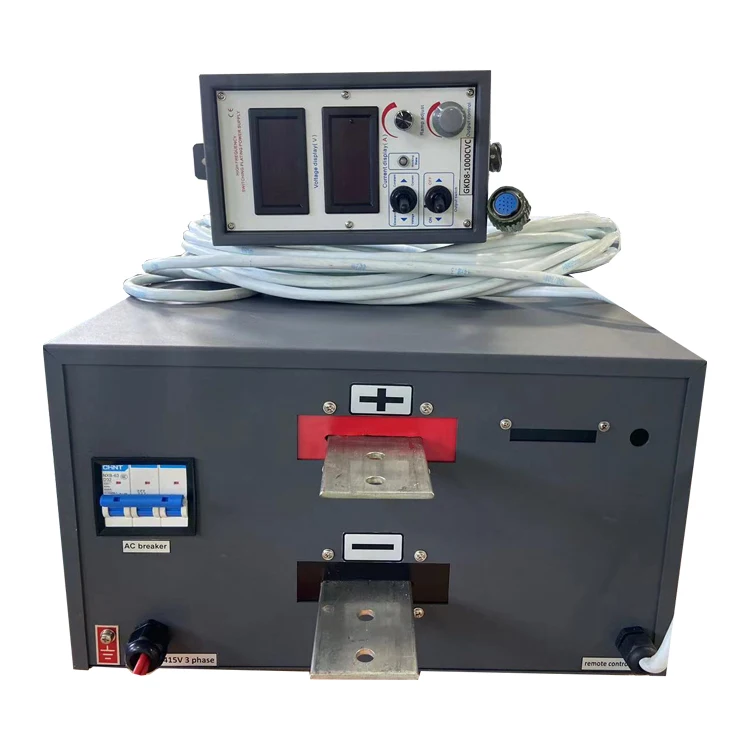

High Frequency Plating Rectifier 8V 1000A Electroplating Rectifier IGBT DC Rectifier
Product Description
high frequency dc electroplating rectifier widely used in
• Plating: Chrome, hard Chrome, Zinc, Nickel, Copper, Gold, Silver
• Electrolysis: Copper, Zinc, Tin, Lead • Aluminum foil, copper foil production
• Electrochemical machining • Anodizing: anodizing, hard anodizing
• Waste water treatment • Other DC Power Supply application field
• Recovery of Copper, Cobalt, Nickel, Cadmium, Zinc • and Bismuth from Electrolytic Copper Solution
GENRAL SEPCIFICATION electroplating rectifier 10v 500a
| AC Input | voltage | 415v 3 phase |
| frequency | 50/60hz | |
| phase | single phase : power <5kw three phase : power ≥5kw | |
| output | current | 0~1000a optional |
| voltage | 6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request | |
| frequency | 40khz | |
effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |
| control method | local panel control/remote control box/ PLC | |

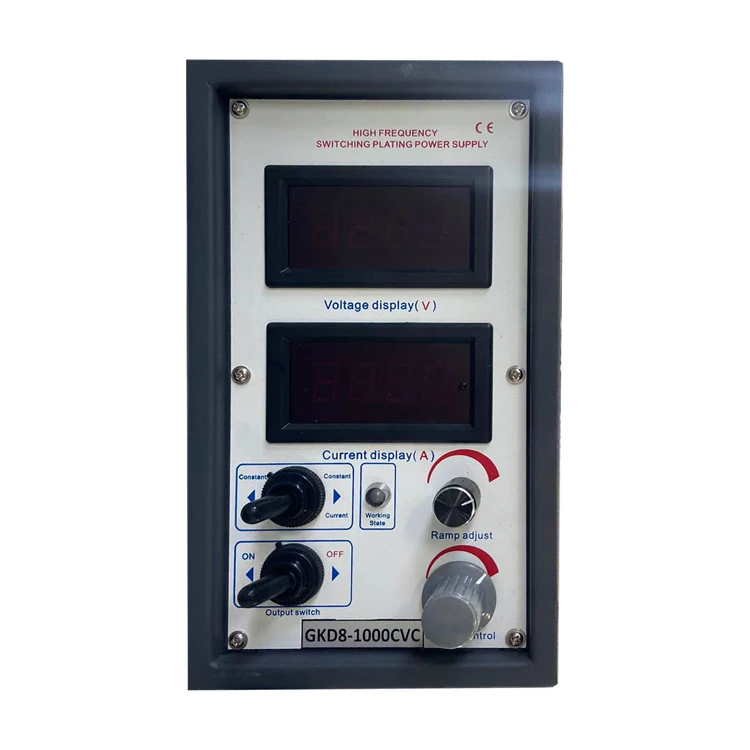

| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE high frequency electroplating rectifier 8v 1000a
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |

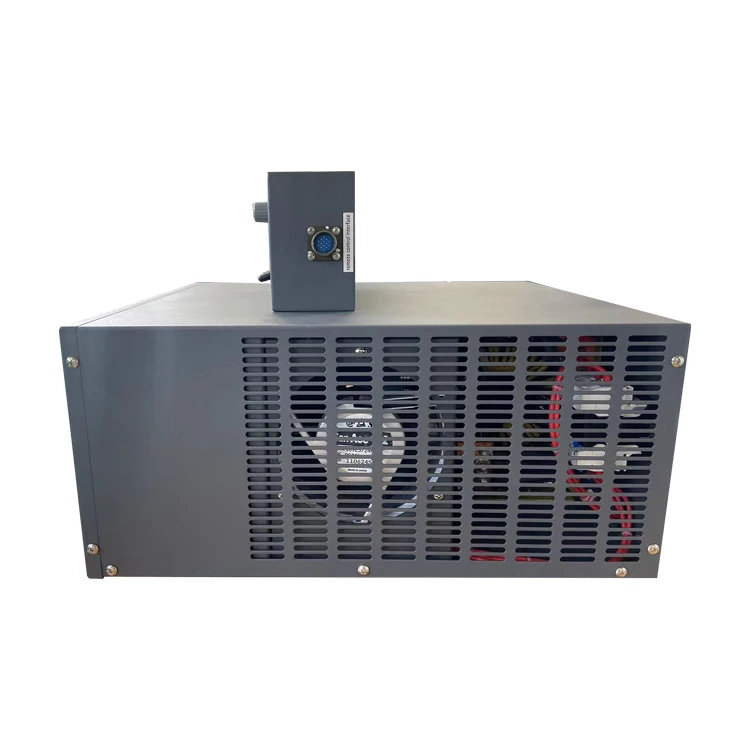

Cabinet: electroplating rectifier 8v 1000a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting | Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
Radiator: high frequency electroplating rectifier 8v 1000a radiator capacity expanded 1.5 times,make sure better cooling effect | switch control way: electroplating rectifier 8v 1000a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
Main transformer: high frequency electroplating rectifier 8v 1000a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability | Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
Board : high frequency electroplating rectifier 8v 1000a all control boards did anticorrosion treatment with imported three defense lacquer | IGBT: electroplating rectifier 8v 1000a IGBT capacity expanded 3 times,make the power supply more reliable |

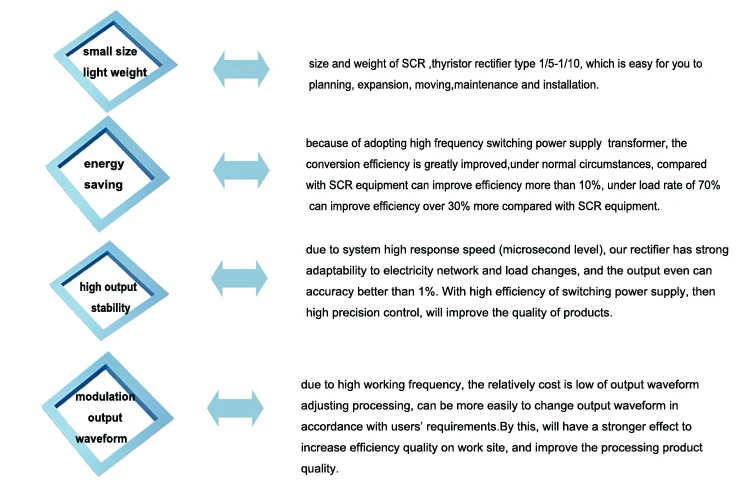

high frequency dc electroplating rectifier 8v 1000a common feature
Company Information
CHENGDU XINGTONGLI Power Supply Equipment Co., Ltd. was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched-mode power supply(rectifier). We are experienced in the field of power electronics, energy transforming technology and industry control system. The performance of switching power supply we designed is excellent. It is safe, green and reliable. With these advantages, high frequency electroplating rectifier 8v 1000a are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum industry and some other industries. Now we have already held a big market share of the power supply in metal surface finishing field. We are one of the main vendors of electroplating rectifier 8v 1000a in China.
Packaging & Shipping
Our factory has a strict standards for electroplating rectifier 8v 1000a package we adopt plywood case package with free-fumigation package featuring water-proof, anti collision, good fixation, which will be strong and durable during transportation . We can also pack high frequency electroplating rectifier 8v 1000a according to clients' special requirements.
Our Services
Complete pre & after service for high frequency dc rectifier electroplating 8v 1000a
Pre-Sales Service * Inquiry and consulting support within 12 hours. * Sample testing support. * View our Factory. | After-Sales Service * Training how to instal the machine, training how to use the electroplating rectifier 8v 1000a
* Engineers available to service machinery overseas. |
customer
Installation
| 1,Placing electroplating rectifier 8v 1000a and keep the body stability; ensure good ventilation. |
| 2,Checking high frequency electroplating rectifier 8v 1000a out cover if loosing. |
| 3,Connecting shell to ground to prevent static electricity. |
| 4,Conecting the AC input wire |

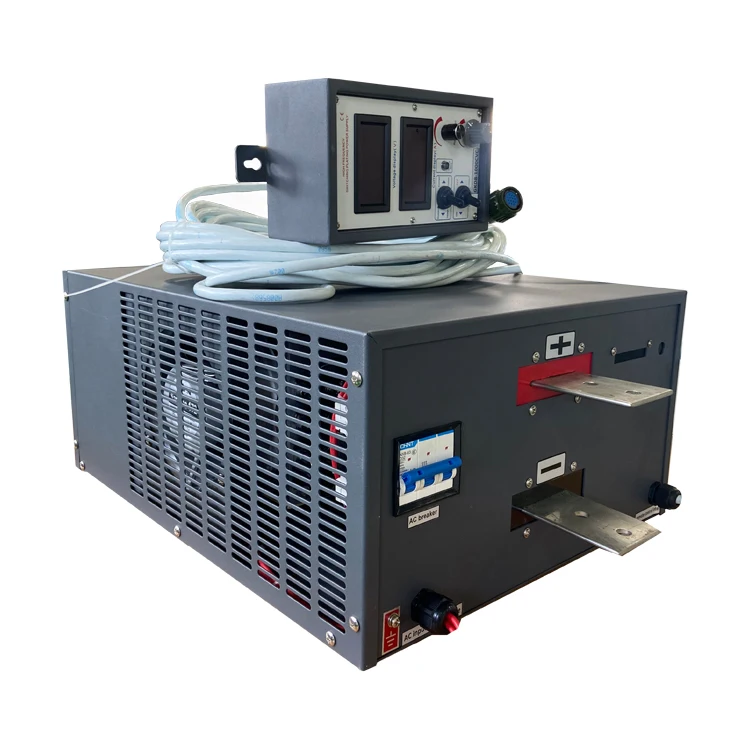

| 5,Connecting the DC output copper bars |
| 6,Connecting the remote control box,if local control ,skip this step |
| 7,Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10,Disconnect the air switch, turn off the power |
FAQ
high frequency electroplating rectifier 8v 1000a
1. Q: Are u factory or trading company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when will come to our company,then we will pick up at the Chengdu airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL and FeDex four transporting ways. If u order big rectifier and it’s not urgent, shipping is the best way. If u order small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex. If there is no transporting way you want to choose, pls tell me.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly pls resolve the problems according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, pls contact us immediatly. Our engineers are on standby.
