Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Bodor Classic K Series 3000w metal tube fiber laser cutting machine for round tube square laser cutting machine for pipe
- Category: >>>
- Supplier: Jinan Bodor CNC Machine Co. Ltd.
Share on (1600935954231):
Product Overview
Description

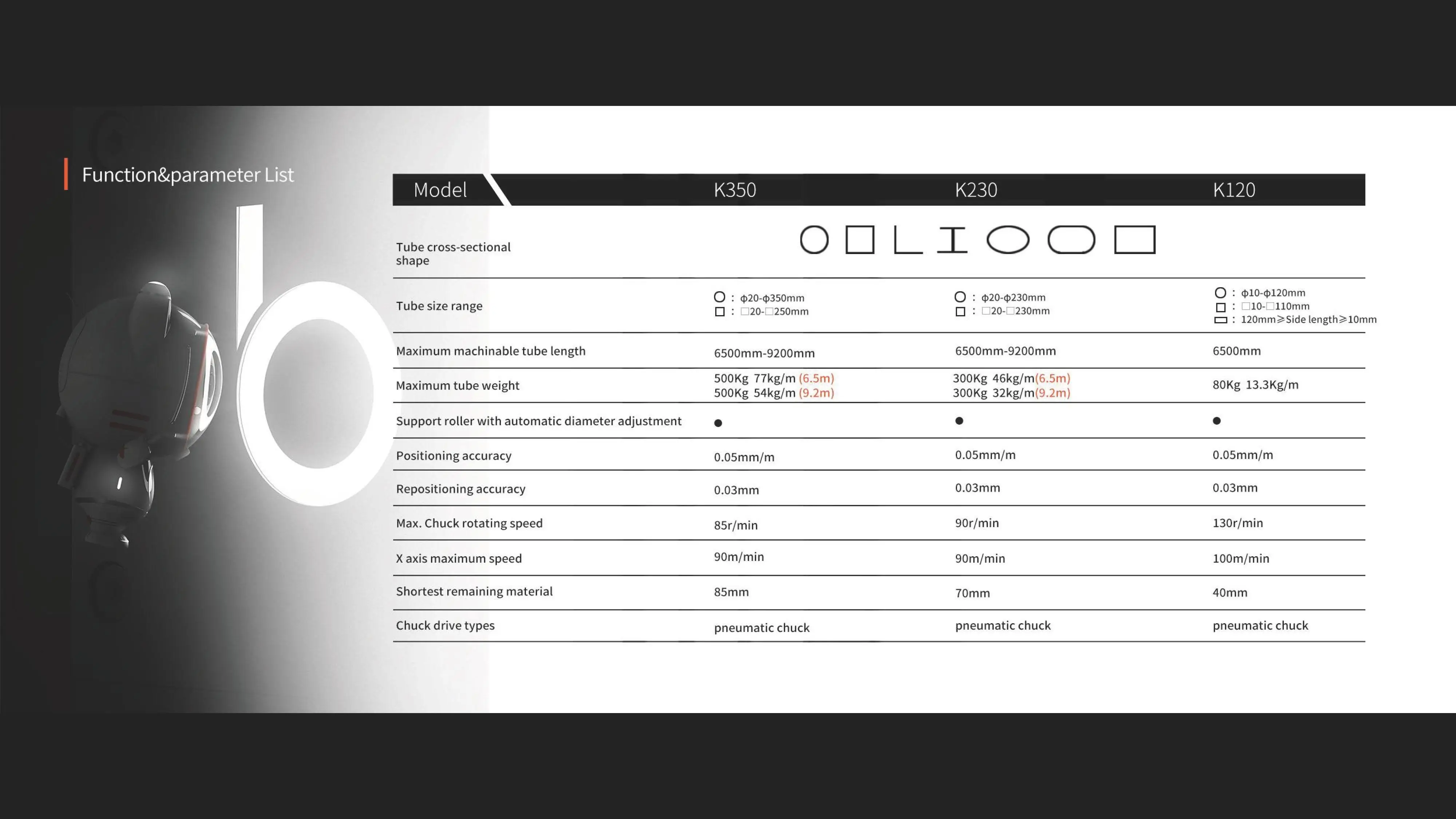

PRODUCT SPECIFICATIONS
Model | K120 | K230 | K350 | ||
Laser output power | 6000w/3000w/1500w | 6000w/3000w | |||
Round Tube | 6-120mm | 8-230mm | 20-350mm | ||
Square Tube | 6-110mm | 8-230mm | 20-350mm | ||
Rectangular tube | 6-110mm | 8-230mm | 20-350mm | ||
Positioning accuracy | 0.05mm/m | ||||
Repositioning accuracy | 0.03mm | ±0.03mm | |||
X axis maximum speed | 100m/min | 91m/min | 90m/min | ||
Y axis maximum speed | 60m/min | 1.5G | 60m/min | ||
Product Overview

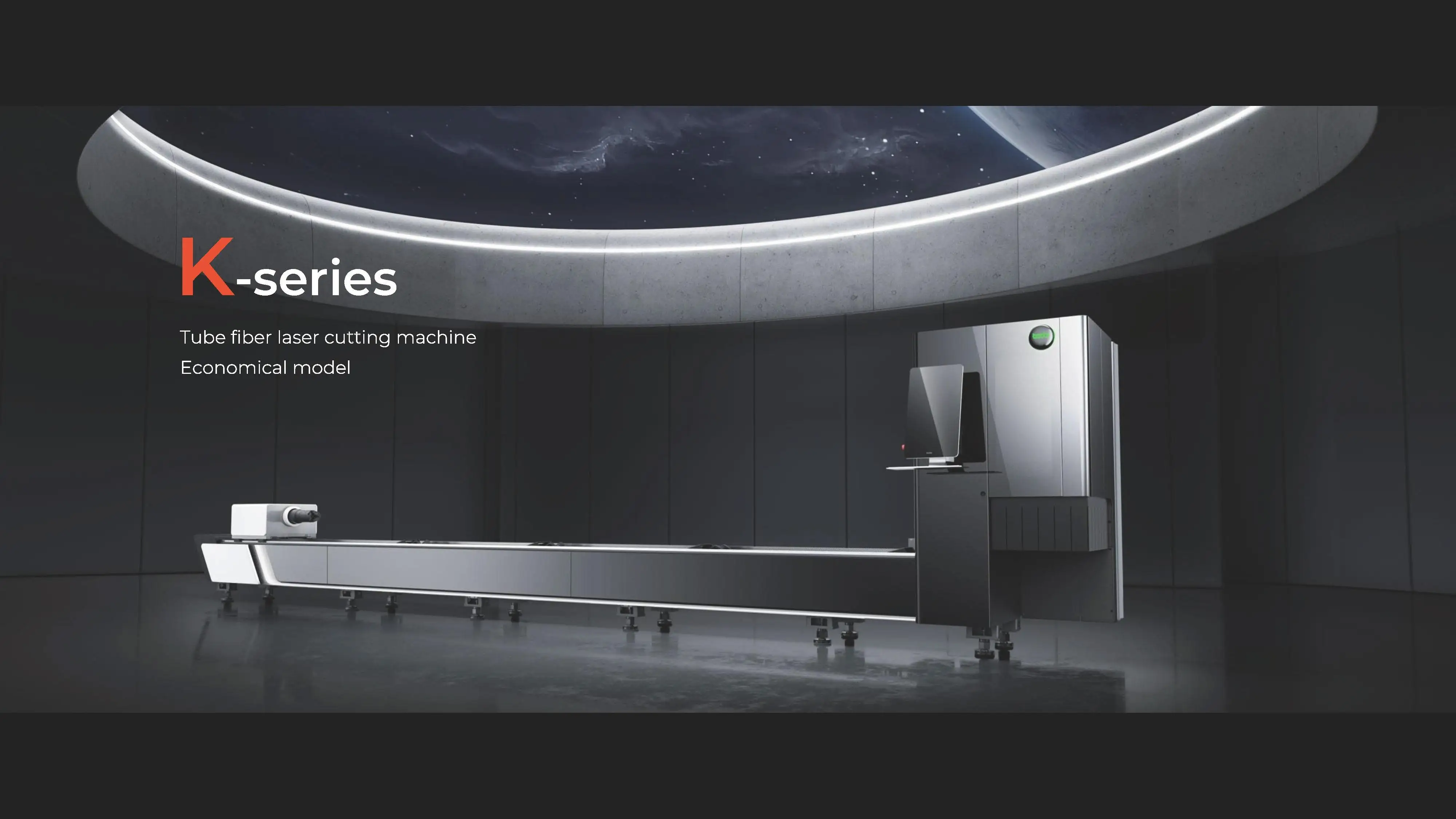

Entry-level fiber laser metal tube cutting machine
Lower laser cutting cost and easy operation

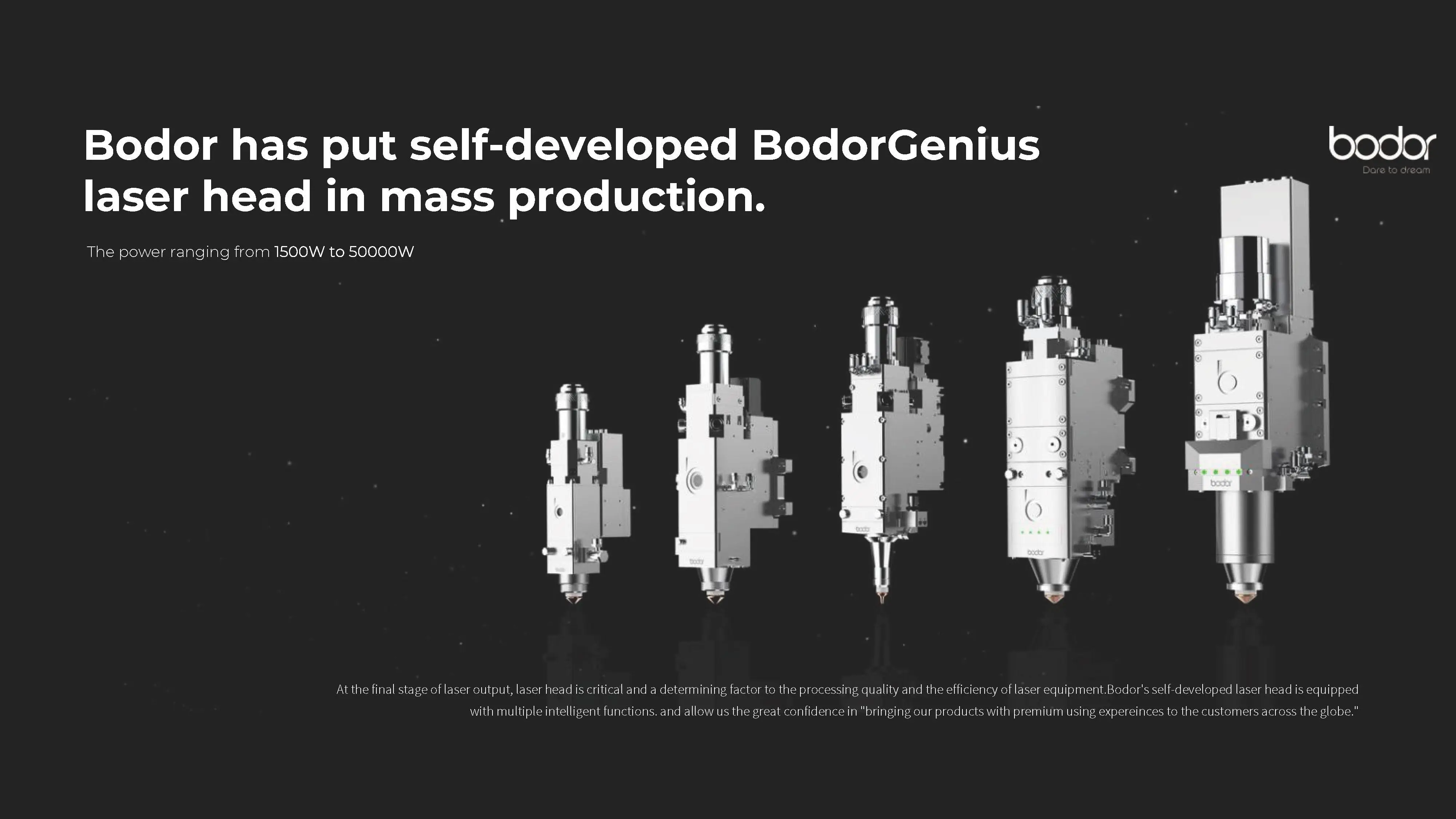

Specialized Laser Head BodorGenius T
The slender nozzle allows the laser tuber cutter to avoid interference and cut various types of tubes, including special-shaped tubes like H-Beam, P-Beam, I-beam, etc.

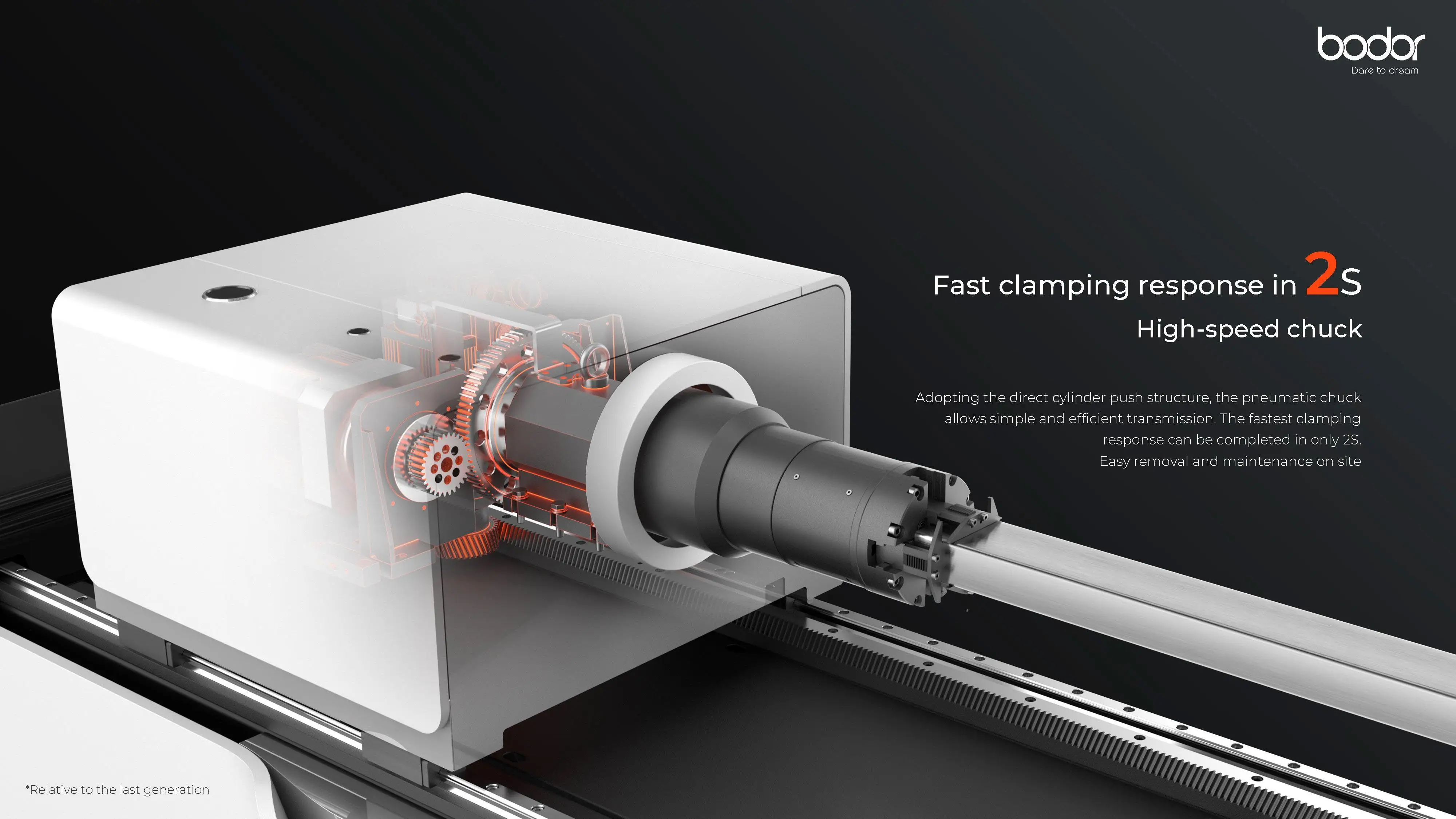

Penumatic Chuck
Cutting machine clamping becomes convenient, easy and fast, with 2 seconds at the soonest to clamp and high repeat precision
Active Anti-collision Function
Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.
Bodor Lightning
BodorGenius, combined with the lightning-quick piercing process, completes the whole piercing during it moves down on Z-axis.
Thanks to the technology, no reworking is necessary for medium and thick sheet piercing.
Thanks to the technology, no reworking is necessary for medium and thick sheet piercing.

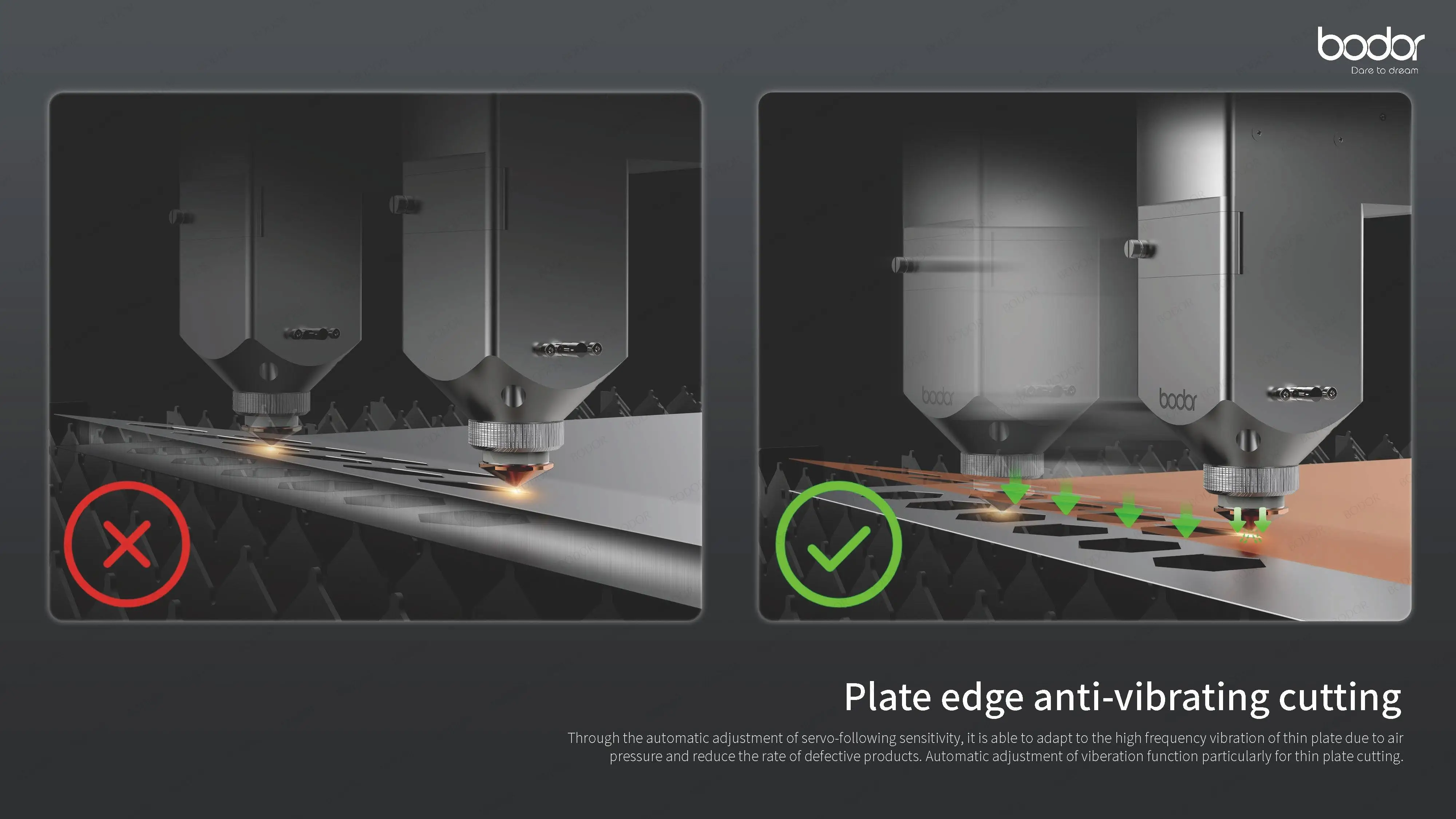

No Quiver when Cutting Thin Sheet
The cutting process works even at the edge of thin sheets, and ensures no chatter marks.
Title goes here.
BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

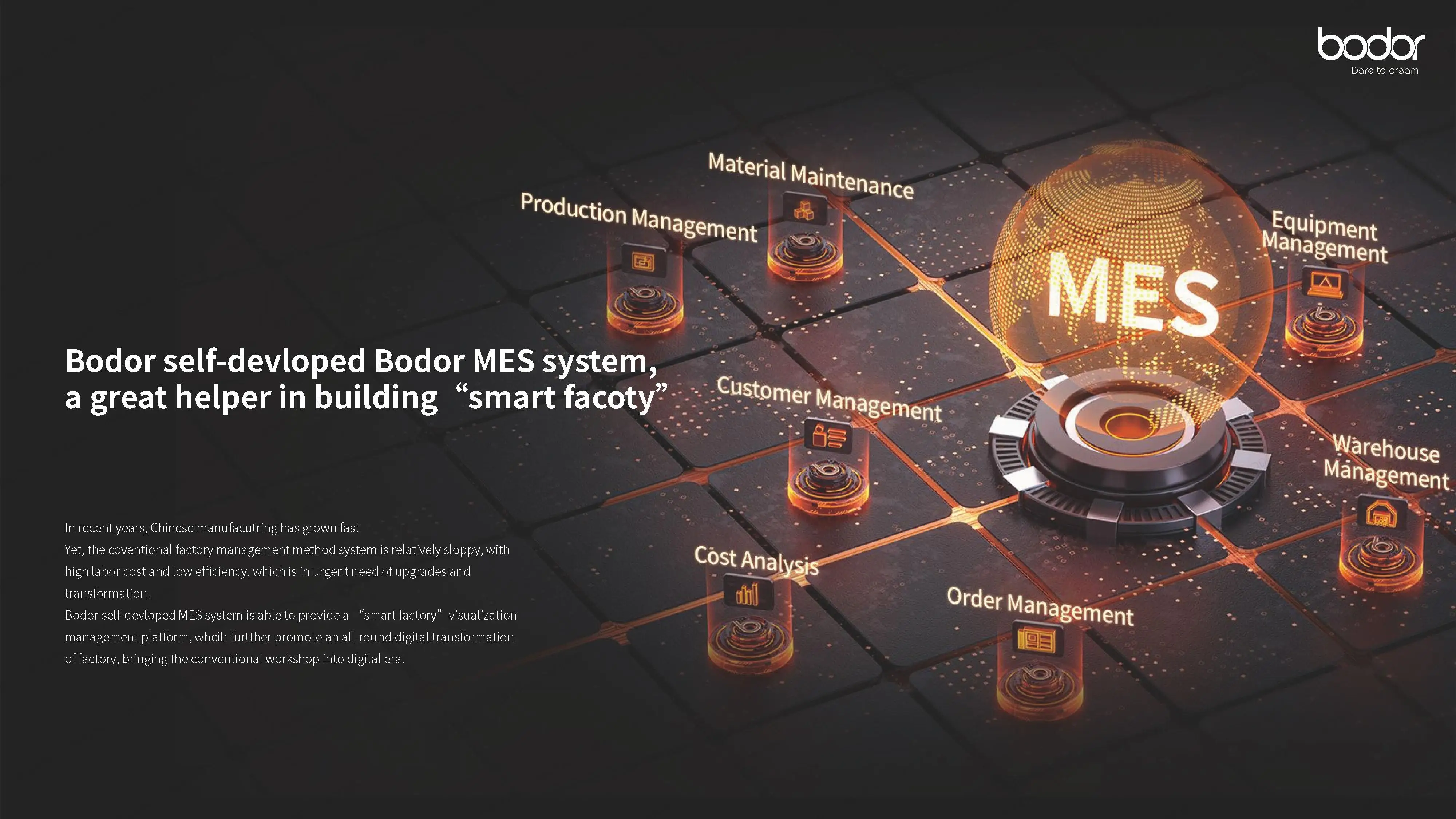

BodorMES
With BodorMES, information insolation of manufacturing is broken. You can manage orders, production, pricing, equipmet, and
analyze cost to achieve a transparent, visualized, and quantifiable production.
analyze cost to achieve a transparent, visualized, and quantifiable production.
PRODUCT CONFIGURATION

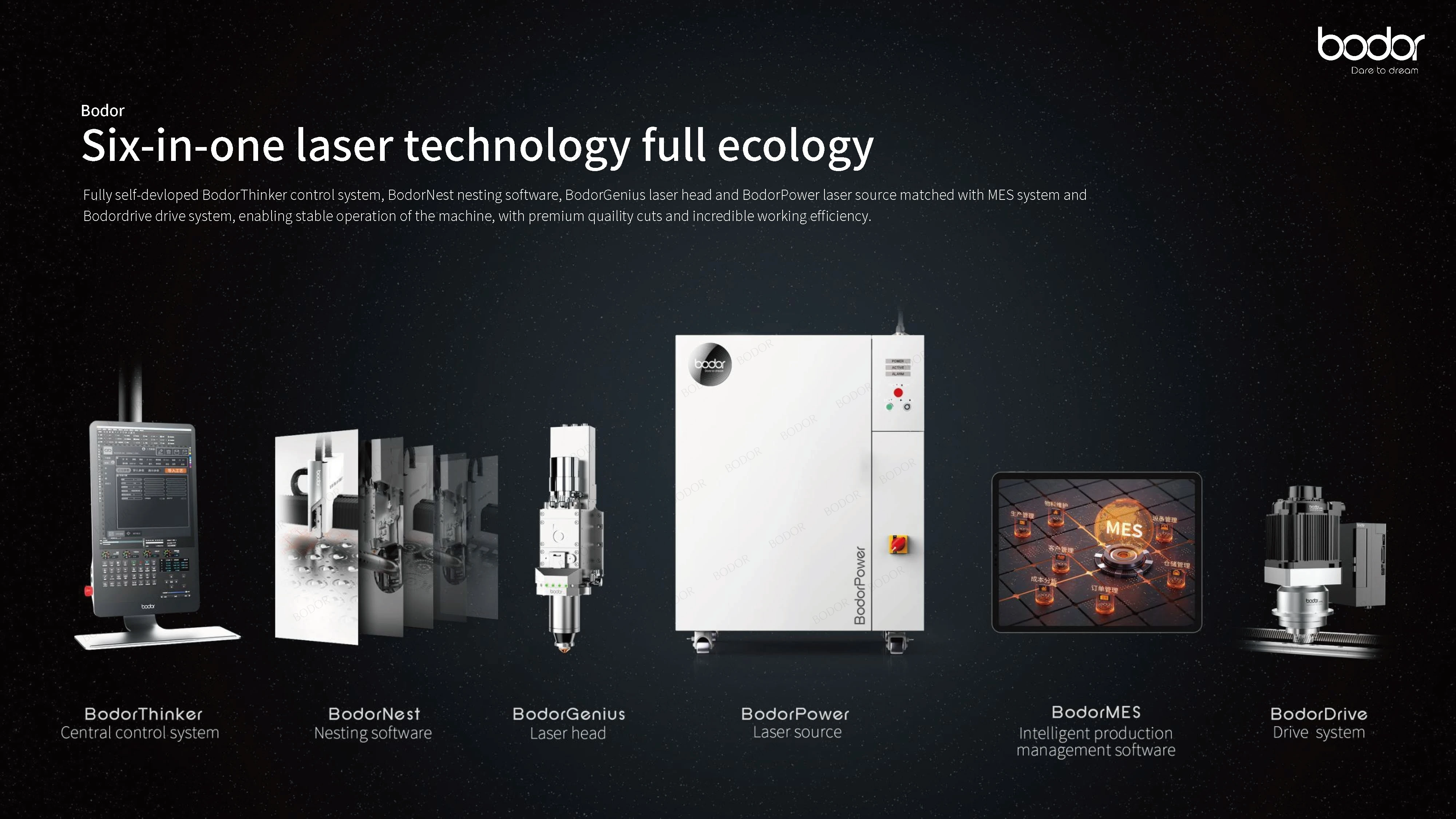

Six-in-one laser technology full ecology
Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.
BodorPower
BodorGenius
BodorThinker
BodorNest
Bodor MES

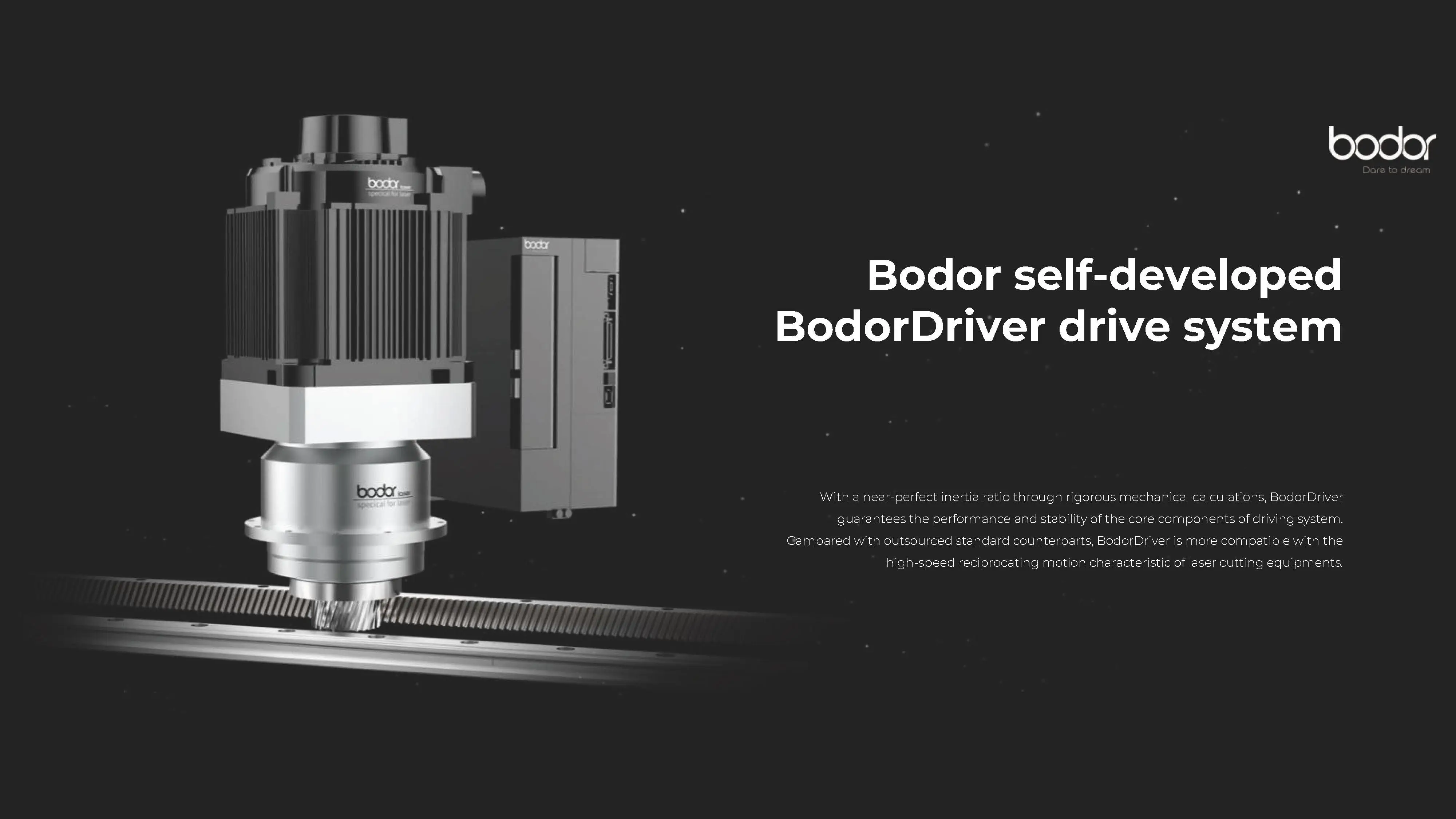

BodorDriver
SALES AND SERVICE NETWORK
Real success stories
Witness the real-world impact of our laser technologies to change human life.

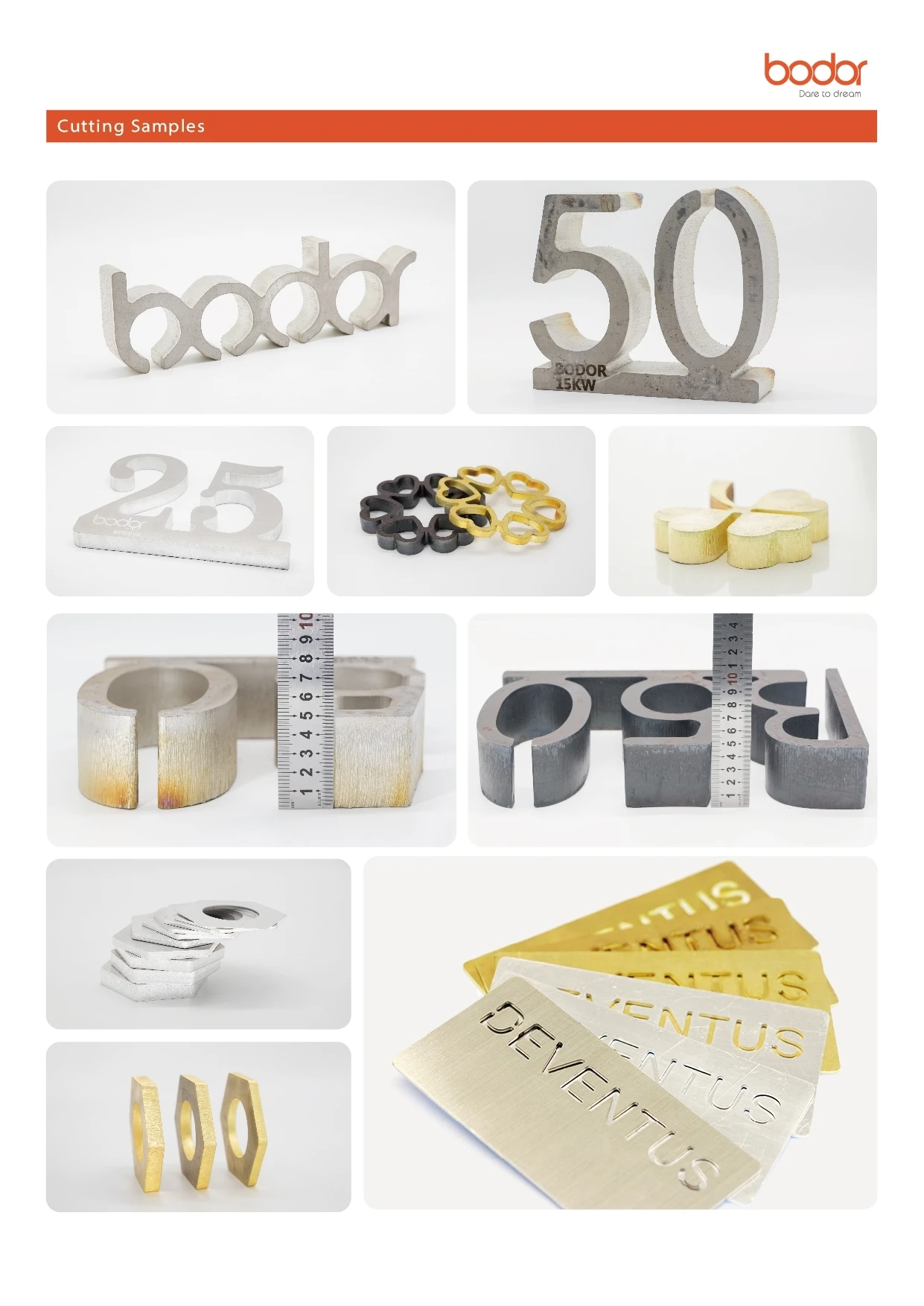

Cutting Samples
Applicable to cutting carbon steel, stainless steel, aluminum, copper, alloy metals, etc.
Company Introduction
International Brand, European Quality, Intelligent Manufacturing in China
Super Factory, International Quality
The white floor & the largest monomer laser cutting equipment production workshop in the world (30,000 square meters); Production
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
