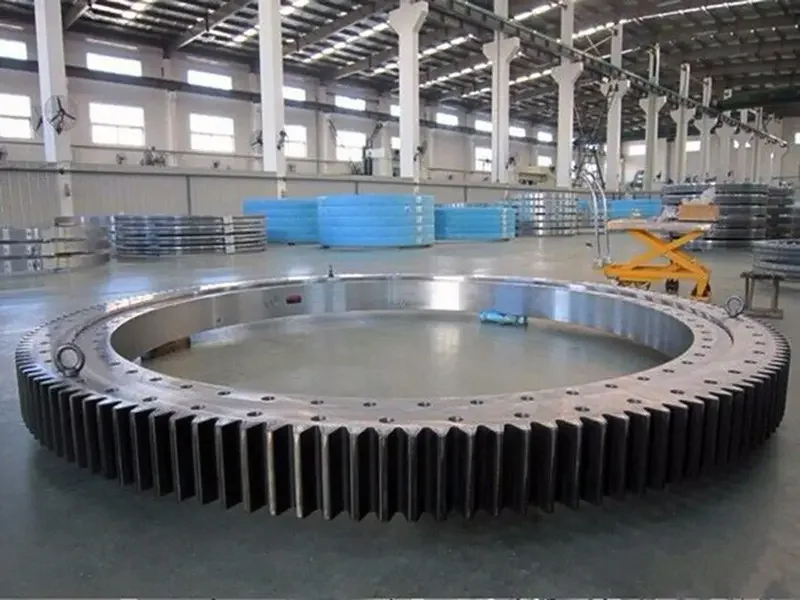

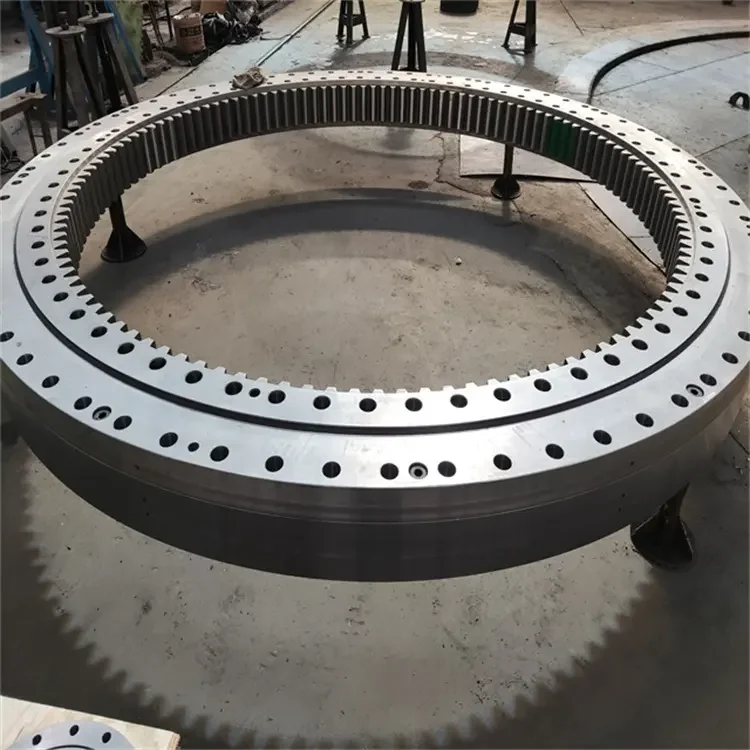

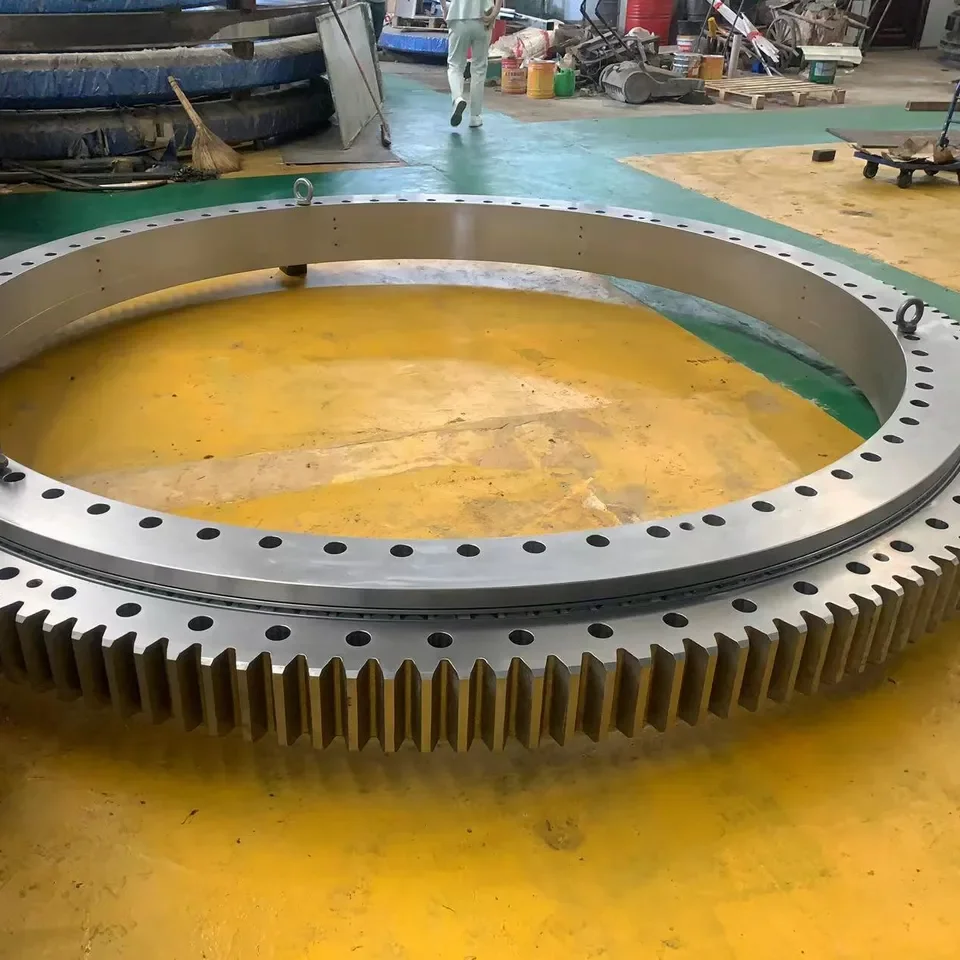

Crane crane bearing load capacity large slewing bearing
- Category: >>>
- Supplier: Luoyang Jiawei Bearing Manufacturing Co. Ltd.
Share on (1600935954291):
Product Overview
Description
Product Description

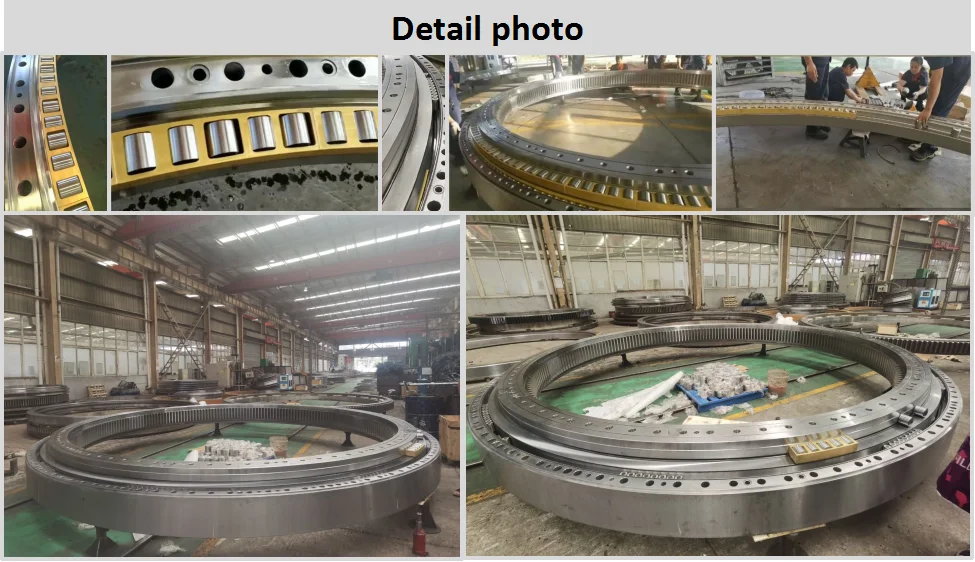

The three-row roller slewing bearing has three seat rings, and the upper track, lower track and radial track are separated, so that the load of each row of rollers can be determined, so it can bear various loads at the same time. Both axial and radial dimensions are large, and the structure is very strong, so it is especially suitable for many heavy-duty machines that require larger diameters, such as ladle turrets, stackers, bucket wheel machines, solar heliostat tracking systems, port cranes, wiring machines , Tower cranes, Offshore platforms, Ferris wheels, Palletizing robots, Rotary metallurgical furnaces, Can packaging machines, Wind blade transport vehicles, Shield machines, Pipe pushers, Excavators Bucket wheel excavators, Wheeled cranes, Shipbuilding cranes, Heavy truck cranes, etc.
Designations | Basic load ratings (Coa 10^4N) | Mass (kg) | External diameter (mm) | Bore diameter (mm) | High (mm) |
13.25.500 | 275 | 224 | 634 | 366 | 148 |
13.25.560 | 308 | 240 | 694 | 426 | 148 |
13.25.630 | 345 | 270 | 764 | 496 | 148 |
13.25.710 | 388 | 300 | 844 | 576 | 148 |
13.32.800 | 549 | 500 | 964 | 636 | 182 |
13.32.900 | 619 | 600 | 1064 | 736 | 182 |
13.32.1000 | 689 | 680 | 1164 | 836 | 182 |
13.32.1120 | 768 | 820 | 1284 | 956 | 182 |
13.40.1250 | 1110 | 1200 | 1445 | 1055 | 220 |
13.40.1400 | 1240 | 1300 | 1595 | 1205 | 220 |
13.40.1600 | 1420 | 1520 | 1795 | 1405 | 220 |
13.40.1800 | 1590 | 1750 | 1995 | 1605 | 220 |
13.45.2000 | 2050 | 2400 | 2221 | 1779 | 231 |
13.45.2240 | 2310 | 2700 | 2461 | 2019 | 231 |
13.45.2500 | 2580 | 3000 | 2721 | 2279 | 231 |
13.45.2800 | 2880 | 3400 | 3021 | 2578 | 231 |
13.50.3150 | 3590 | 5000 | 3432 | 2826 | 270 |
13.50.3550 | 4040 | 5600 | 3832 | 3268 | 270 |
13.50.4000 | 4560 | 6400 | 4282 | 3718 | 270 |
13.50.4500 | 5445 | 6942 | 4782 | 4218 | 270 |
13.50.5000 | 6050 | 7714 | 5282 | 4718 | 270 |
Gear Type | Internal Gear,External Gear And No Gear |
Outside Diamater | 100mm-10000mm |
Certificate | ISO9001:2008,ABS,DNV,BV |
Hardness | 55HRC-62HRC (slewing Bearing) |
