China A4 Size Semi auto PCB/PET/PC Screen Printing Machine With Camera Registration For Sale
- Category: >>>
- Supplier: Shenzhen Vility Automatic Machinery Co. Ltd.
Share on (1600935978108):
Product Overview
Description
Products Description

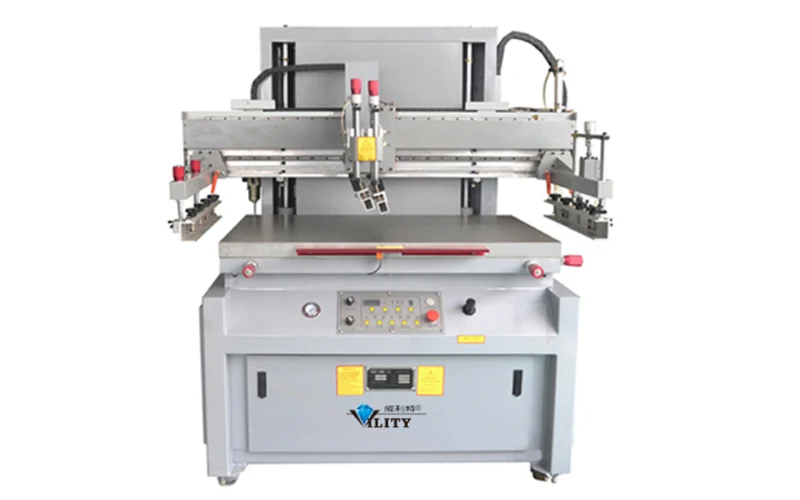

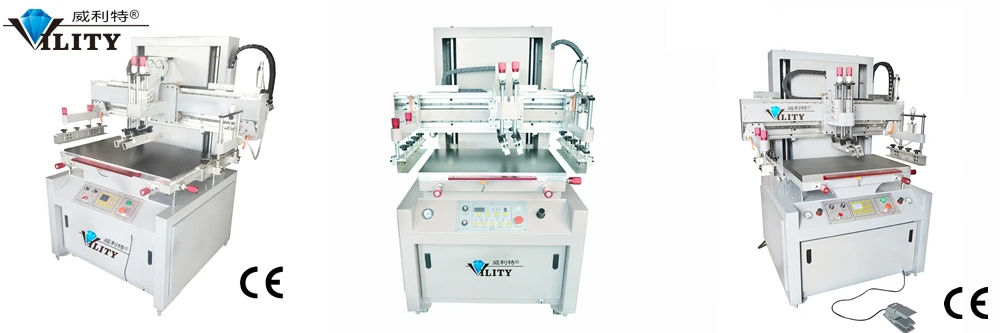

Semi-Automatic flat vacuum silk screen printing machine
This silk screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.
silk screen printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics,
membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.
silk screen printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics,
membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.

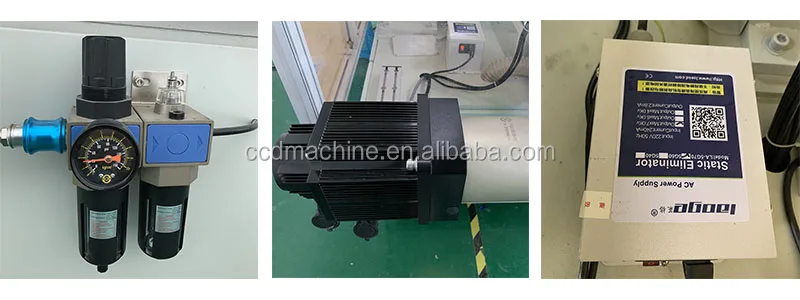

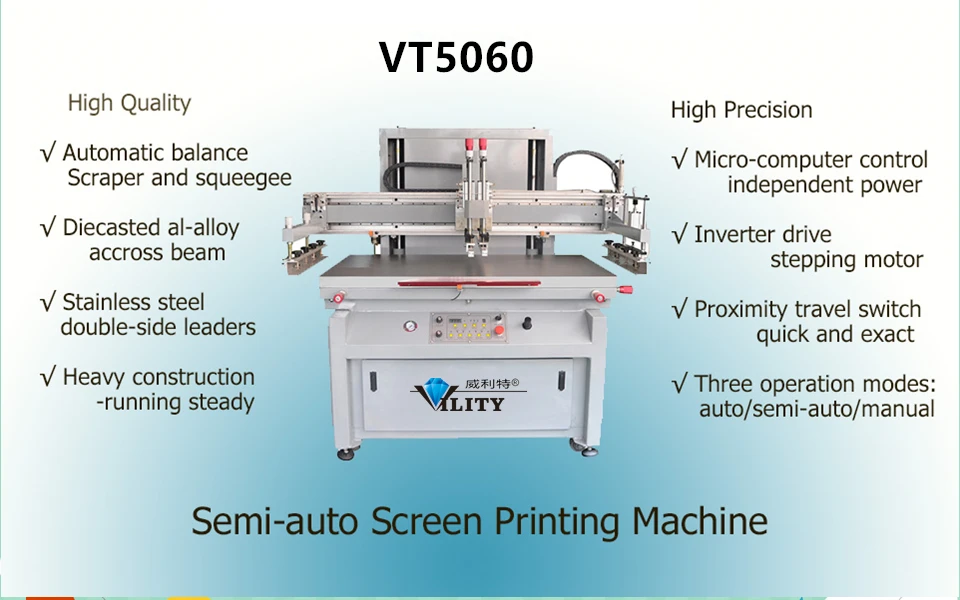

The characteristics
Sample picture after printing
Product Paramenters
Model | VT-4060 | VT-5070 | VT-6090 | VT-70140 |
Max Printing area(mm) | 400*600 | 500*700 | 600*900 | 700*1400 |
Printing table size(mm) | 500*700 | 600*800 | 700*1000 | 800*1500 |
Max frame(mm) | 650*930 | 700*1100 | 850*1300 | 900*1600 |
Printing precision(mm) | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
Printing thickness(mm) | 30 | 30 | 30 | 30 |
Printing pressure (kg/cm2) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Printing frequency (PCS/H) | 1150 | 1050 | 950 | 950 |
Equipment weight kg | 380 | 450 | 580 | 630 |
Overall dimensions(mm) | 1130*1050*1620 | 1280*1100*1620 | 1500*1160*1620 | 2060*1300*1900 |
The above parameters are for our standard Semi-Automatic flat vacuum silk screen printing machine. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.
If you need to customize some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.
If you need to customize some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.

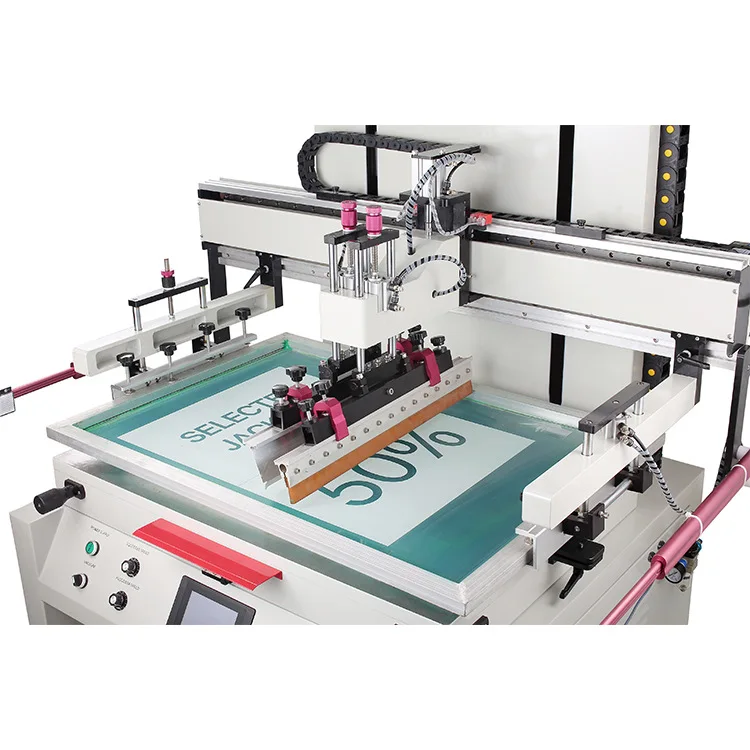

Product introduction
Adopt numerical control motor, printing and ink return speed, distance can be set by sections at will.
The brush adopts Panasonic servo motor and linear guide rail, which is fast, stable and precise;
The brush adopts Panasonic servo motor and linear guide rail, which is fast, stable and precise;
1,The silk screen printing machine platform is adjustable and movable, which make it convenient to take the material.2 vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components. 3,The silk screen printing machine adopts micro computer integrated system, printing and plate moving up &down are driven by independent Current Source.
4,silk screen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by
photoelectric eyes, with independent adjustment.
photoelectric eyes, with independent adjustment.
5,silk screen printing machine procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6,silk screen printing machine designed Independent printing head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7,Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
8,This highly durable press comes with a 5 year warranty
9,We also provide customized size
Company Profile
Our company is a representative of high-tech enterprises in Shenzhen, with perfect import and export qualifications, and more than 10 years of experience in the production and operation of automation equipment.
Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material.
Our main products are CCD automation alignment machines which included in: CCD guide hole punching machine, CCD screen printing machine, CCD die cutting machine, CCD Fitting machine, Automation CCD testing machine for screen printing, Hardware, plastics and other industries. Those machines suit for both flat material and roll to roll material.
.And all products have obtained the domestic and international quality product certification,such as CE,ISO, CCC.
If you have any other requirements for product certification, please let us know.We will cooperate with you in accordance with your requirements to ensure that the products can go through the customs smoothly in the later testing and certification.
Product packaging

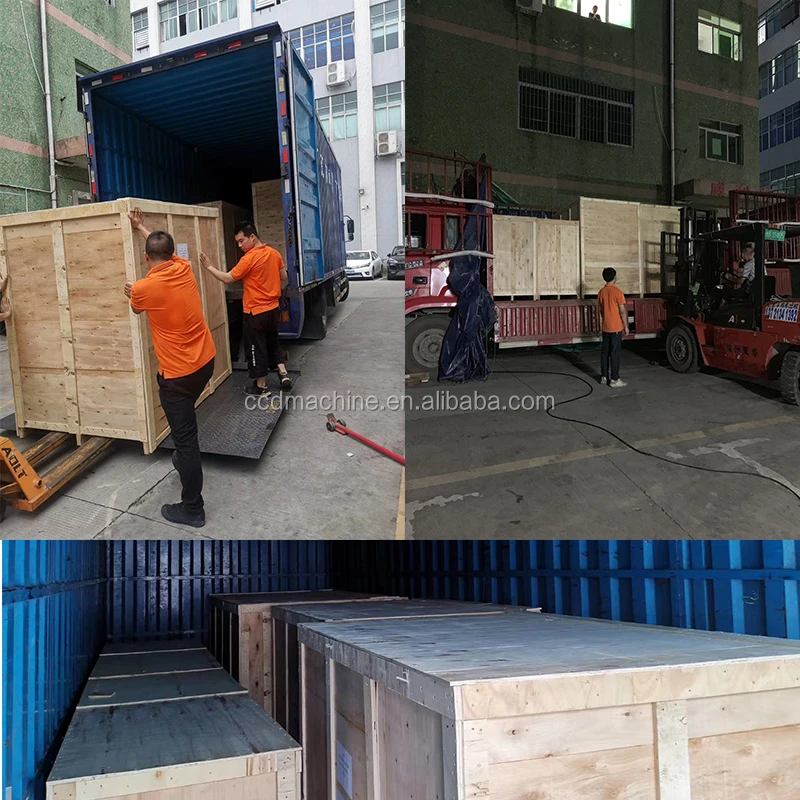

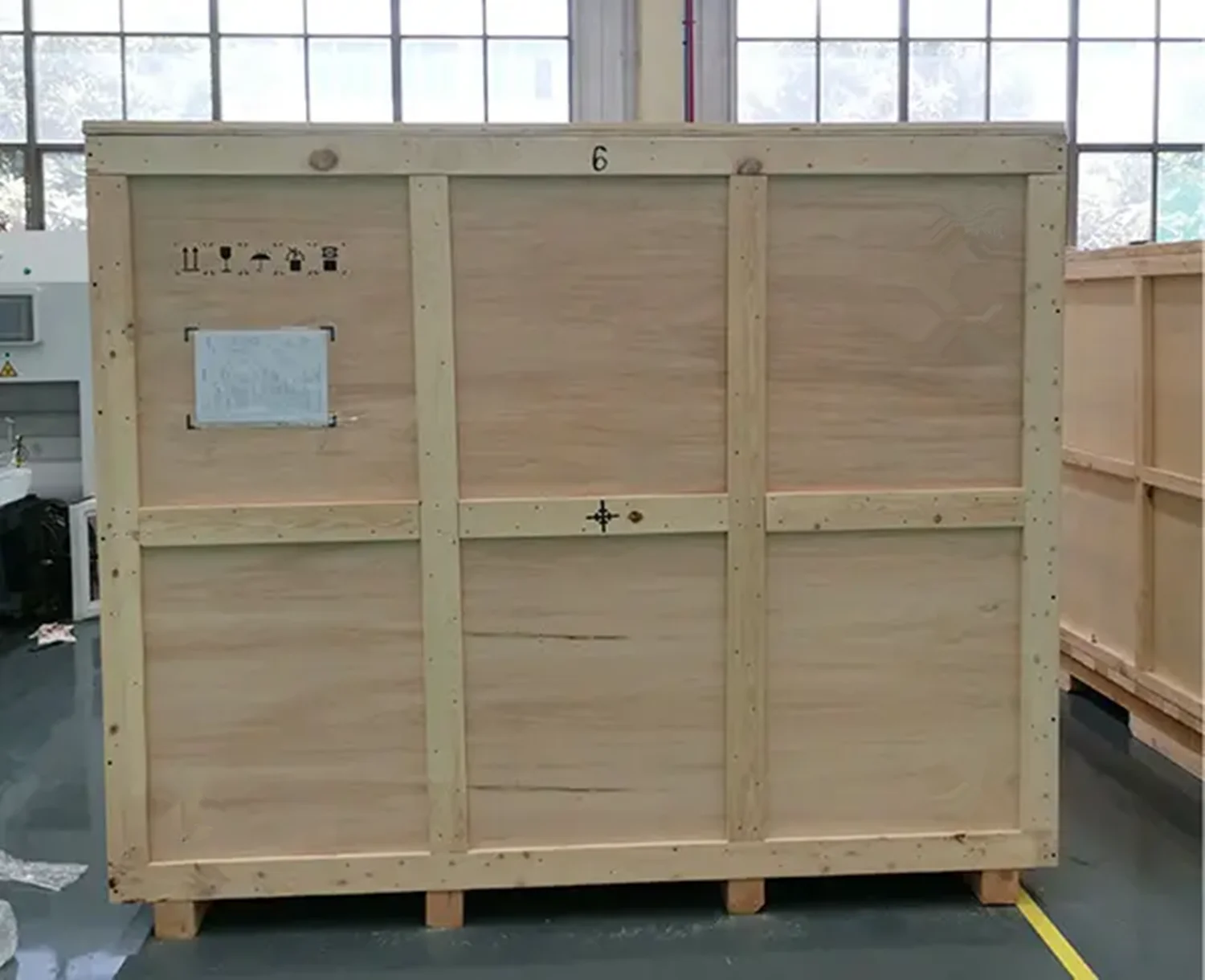

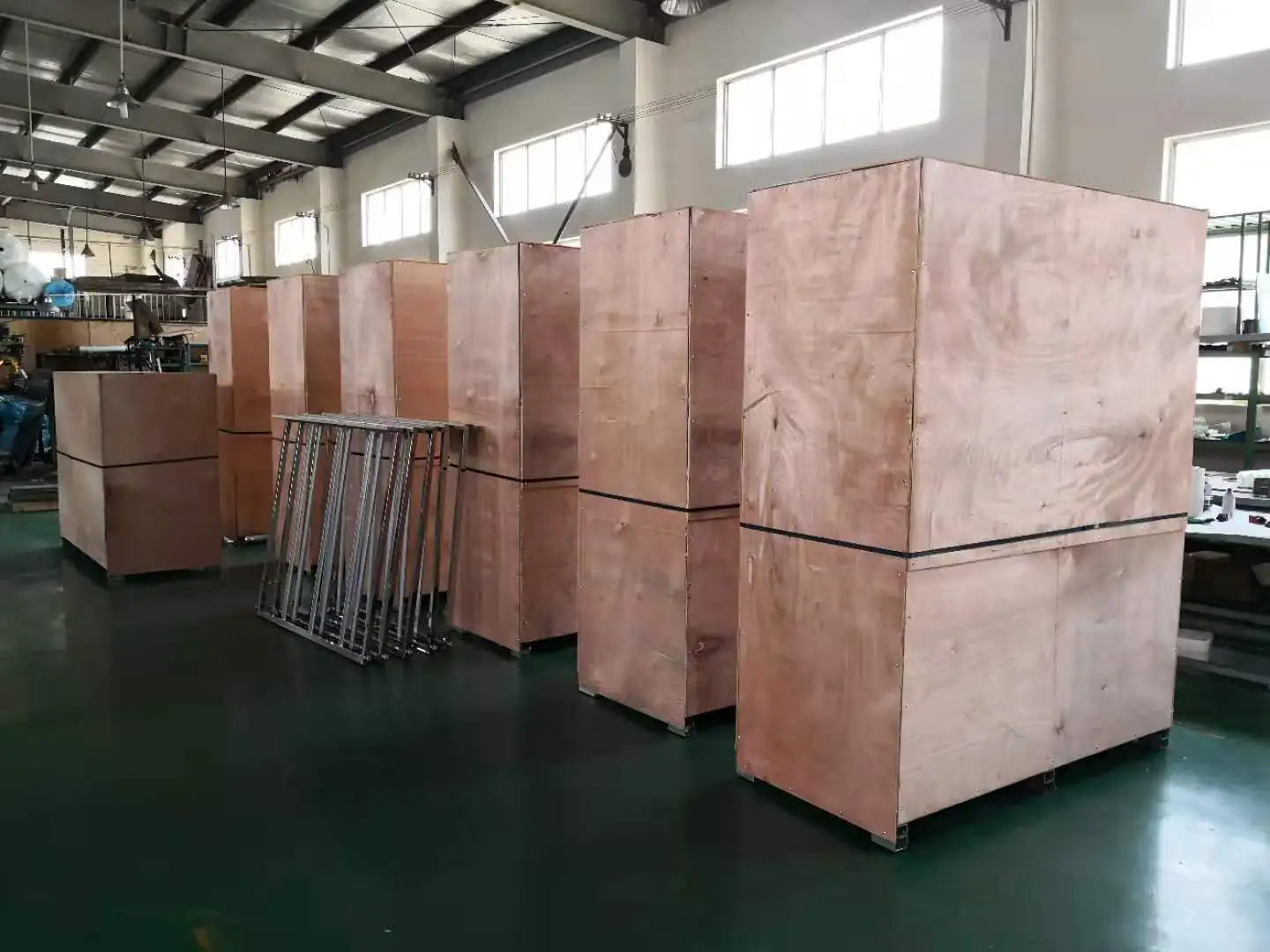

The Semi-Automatic flat vacuum silk screen printing machine will be packed in strict safety before transportation.As shown in the figure above.Try to ensure that no damage occurs in the course of transportation.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
DELIVERY TIME: 3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Due to the large size and heavy mass of the printing equipment, we generally use sea or road transport for transportation. You can choose to transport by sea route or by China-Europe Railway Express. As for the terms of trade, we usually adopt EXW,FOB or CIF.
The specific way can be confirmed in the process of communication and confirmation of the order.
DELIVERY TIME: 3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
