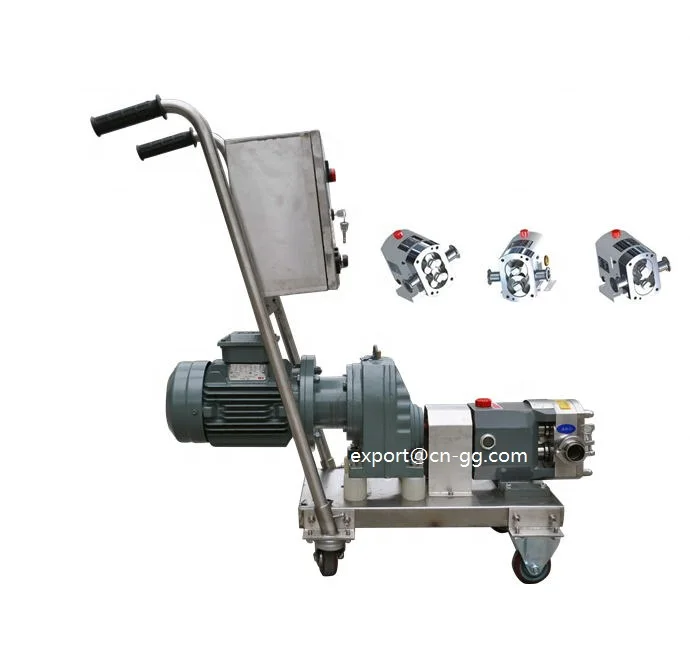

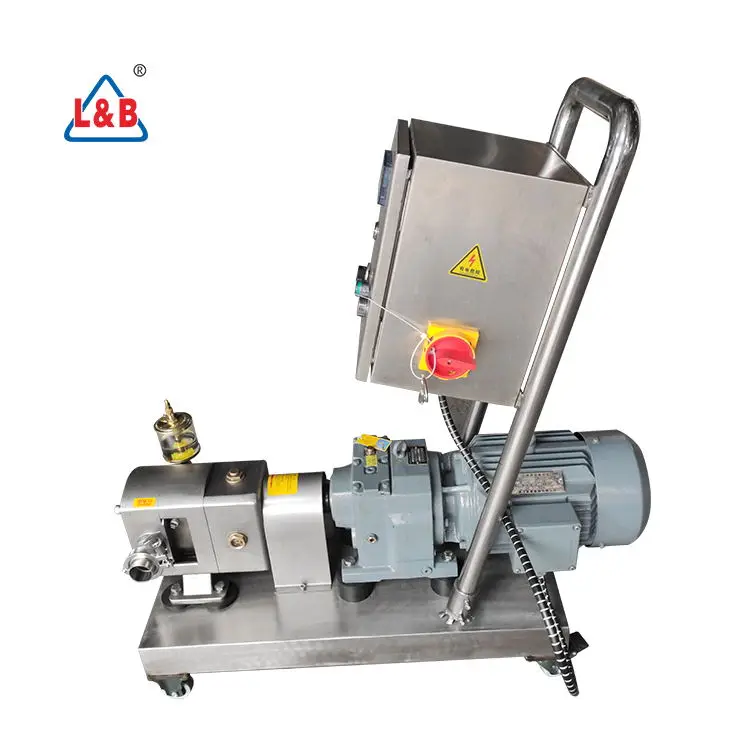

Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump
Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump

Sanitary stainless steel pump high viscosity yogurt Jam honey rotor lobe pump rotary pump

Share on (1600936205408):


Price:$1,862.00 - $1,868.00

Quantity:


Product Overview

Description



lobe pump
Brand: BLS
Material :304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um.
Connect:Tri Clamped,Flange
Rotary lobe pump is widely used to transfer various special material, stiff material, mixture with different specific gravity,
corrosive material and material with large particle, such as yogurt, cheese, fruit jam, shampoo, cosmetics, syrup, paint etc.

1. Driving System

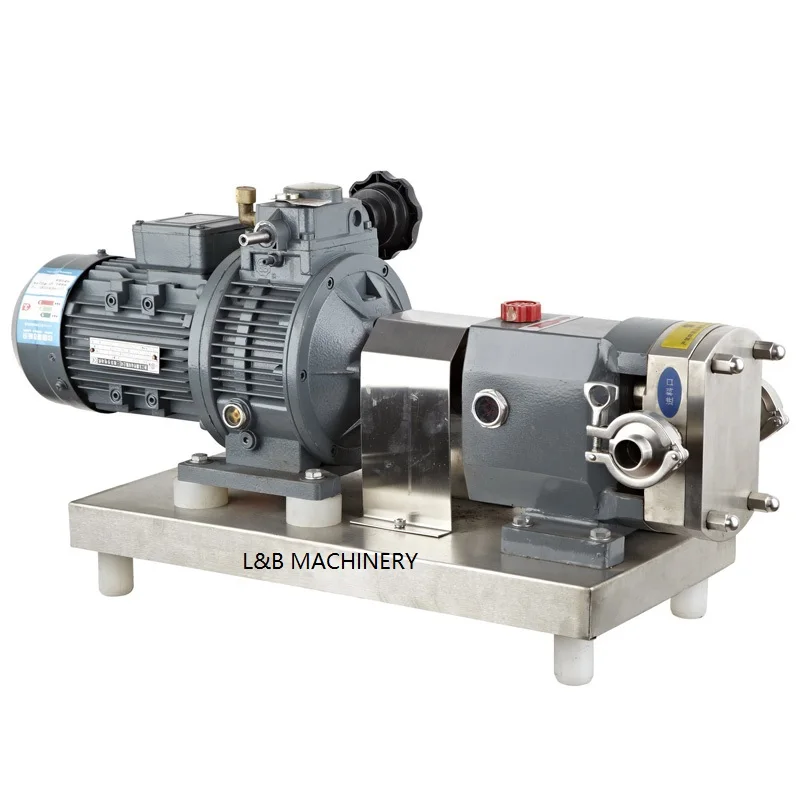

Stepless Speed Regulation Lobe Pump. The speed regulator changes the speed by manual adjustment, which is safe, reliable and
infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not
in shut-off state.

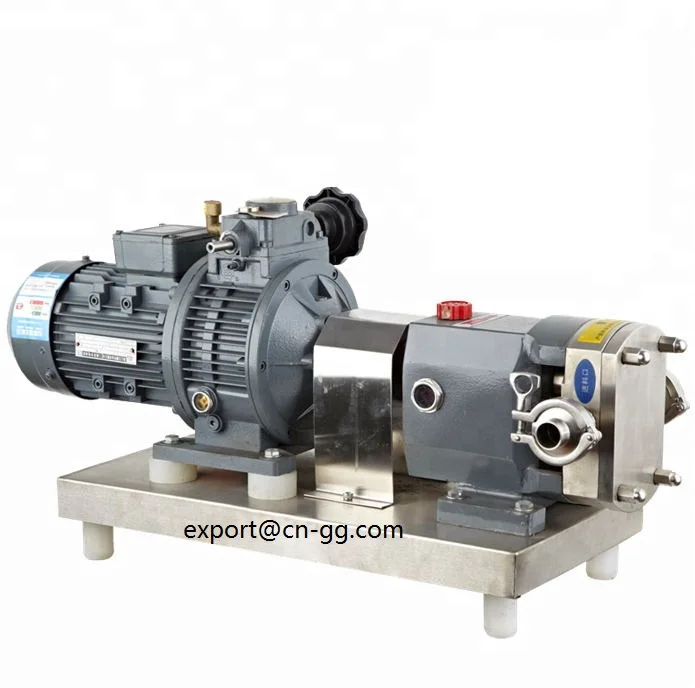

Fix Speed Output Reducer Lobe Pump: The driving is easy with constant rotary speed of the rotor,which also leads to
non-adjustablity of flow.

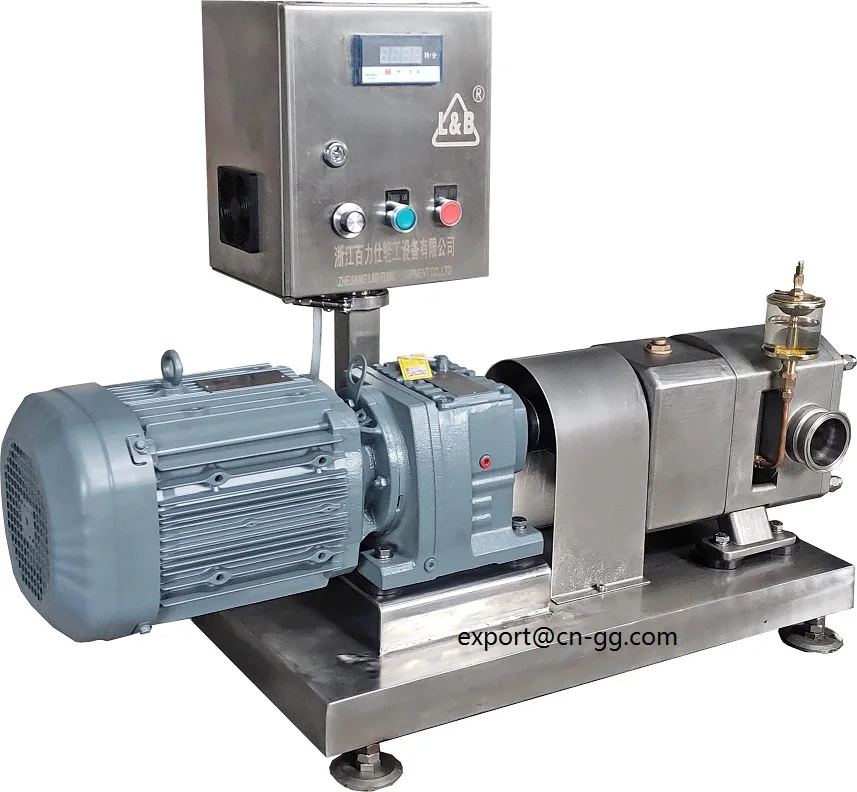

Variable Frequency Motor + Frequency Converter Lobe Pump: It realizes both automatic adjusting and infinitive adjustment of flow.
It is highly automatic and has large torque in low speed.

2. Connection type: clamp, flange, thread.
3. Contact material: SS304, SS316, 316L.

4. Seal: silicon rubber, fluorine rubber, EPDM, PTFE rubber, nitrile rubber etc.

5. Mechanical seal: single face with silicon carbide/ hard alloy faces standard.



Lobe Pump






Lobe Pump Data Sheet


Model
Liter Per 100 Round
Suggest Speed(rpm)
Flow(L/H)
Power(KW)
BLS-3
3L
200-500
300-800
0.55
BLS-6
6L
200-500
650-1600
0.75
BLS-8
8L
200-500
850-2160
1.5
BLS-12
12L
200-500
1300-3200
2.2
BLS-20
20L
200-500
2100-5400
3
BLS-30
30L
200-400
3200-6400
4
BLS-36
36L
200-400
3800-7600
4
BLS-52
52L
200-400
5600-11000
5.5
BLS-66
66L
200-400
7100-14000
7.5
BLS-78
78L
200-400
9000-18000
7.5
BLS-100
100L
200-400
11000-22000
11
BLS-135
135L
200-400
15000-30000
15
BLS-160
160L
200-400
17000-34000
18.5
BLS-200
200L
200-400
21600-43000
22

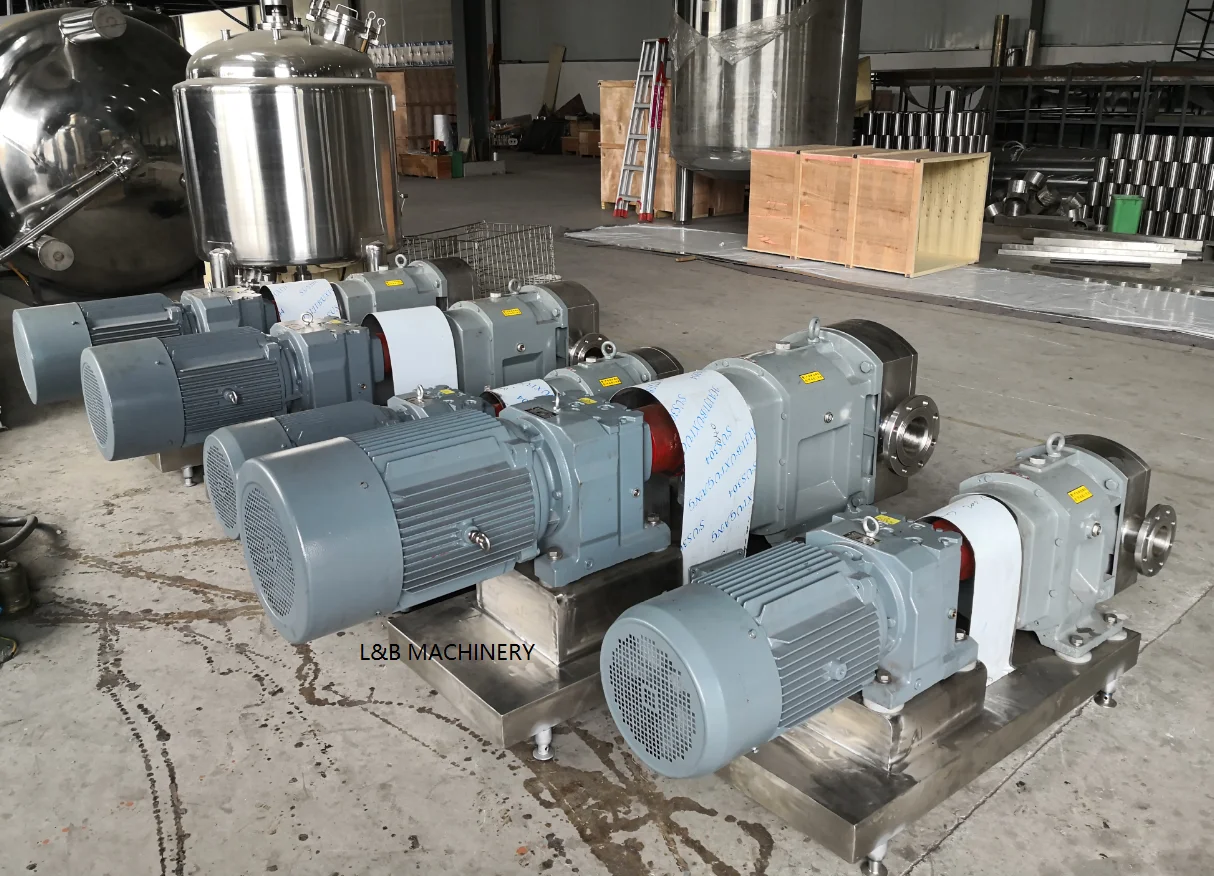

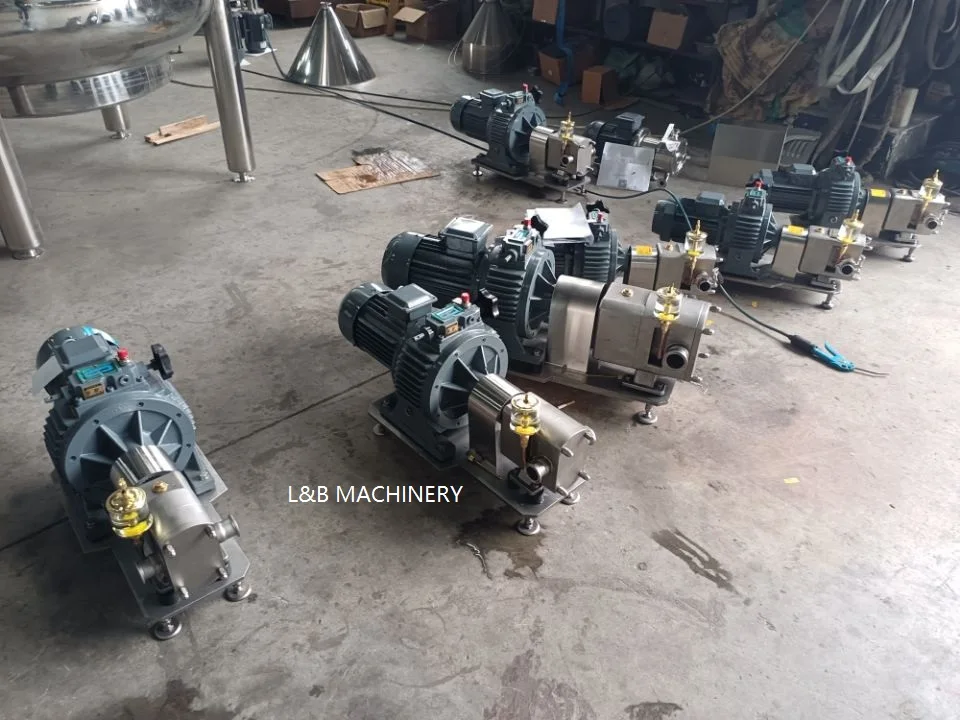

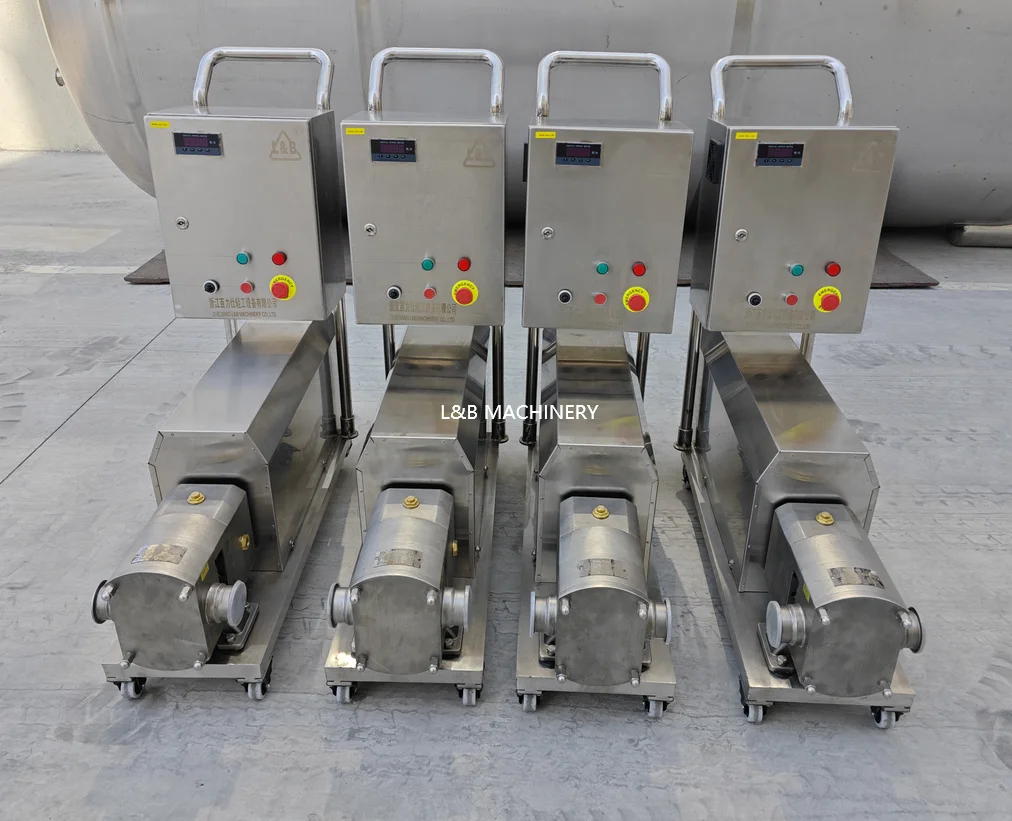

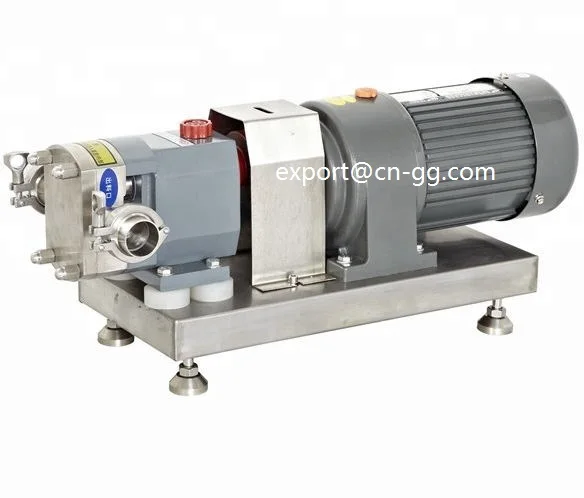

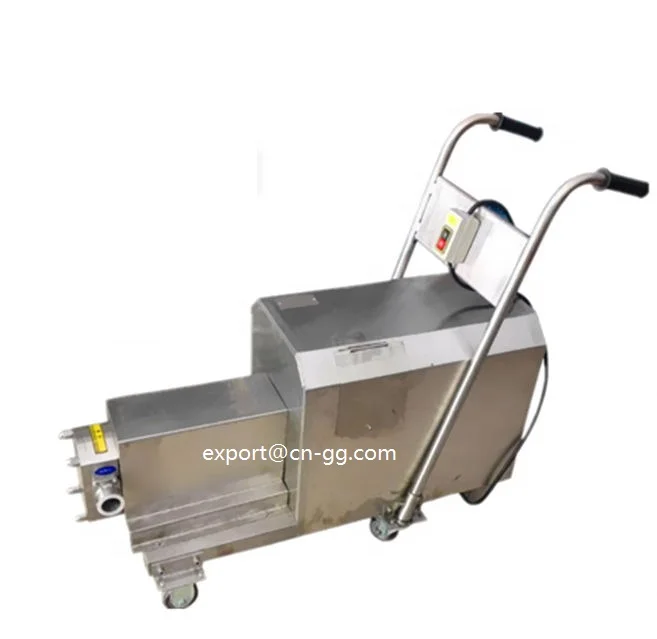

Photos of Lobe Pump





Contact Information





Company Information




RFQ
1.can you accept custom made ?yes ,we have professonal engineer and skillful workers for custom made product
2.what is your major products?
high shear mixer,sanitary transfer pump ,stainless steel tank ,colloid mill,jacketed kettle magnetic mixer,powder liquid mixer,dry
powder mixer,mixing tanks etc

3.how to shipment the goods ?
We will packing the goods by standard export package ,before shipment ,we will test it to make sure running well
4.what is your warranty ?
For no made problem,warranty 1 year and technology support all the life.
5.how is the payment term?
normally we do T/T payment 50% advance,the balance 50% before shipment
6.what is your contact information
email:export@cn-gg.com whatsapp:0086-18969753176
