LINGBA 3~208V/220V MIG MMA MAG TIG 15KG 4 IN 1 MIG WELDING WELDERS MACHINE 315F
- Category: >>>
- Supplier: Zhejiang Lingba Welding Equipment Co Ltd
Share on (1600936206757):
Product Overview
Description
| Model | MIG/MAG/MMA/TIG-315F |
| Type | 15kg IGBT |
| Voltage | Single phase: 220V |
| Rated Input Power Capacity(KVA) | 6kw |
| Input Frequency(Hz) | 50/60hz |
| Non-load Voltage(V) | 75V |
| Output current range(A) | 50-315A |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| MIG Flux Wire diameter(mm) | 0.8~1.0mm |
| MIG Solid wire diameter(mm) | 0.8~1.0mm |
| MMA Electrode | 1.6~5.0mm |
| Wire weight per Roll(kg) | 5kg or less5kg |
| Quick joint Size(mm) | 35-50mm |
| Input power cable(m) | 1.8m |
| N.W./G.W.(kg) | 10.5kg~12.5kg |

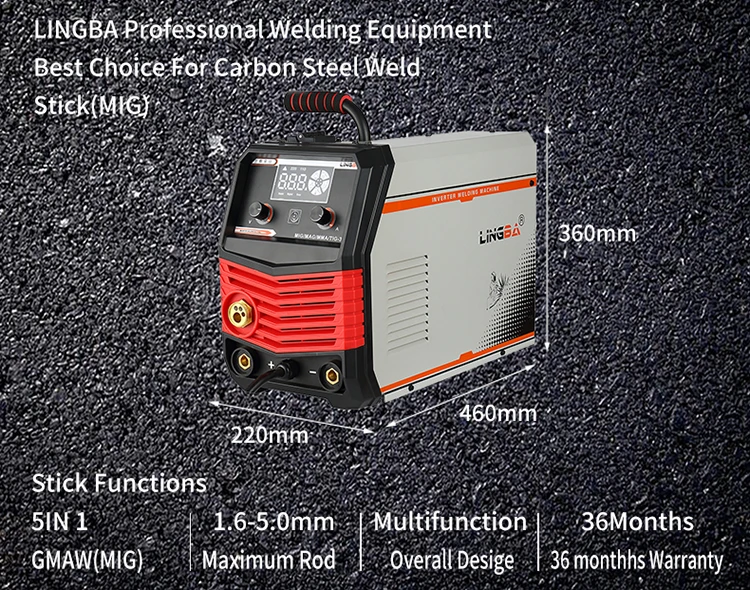

| Machine Size(LxWxH mm) | 460*220*360mm |

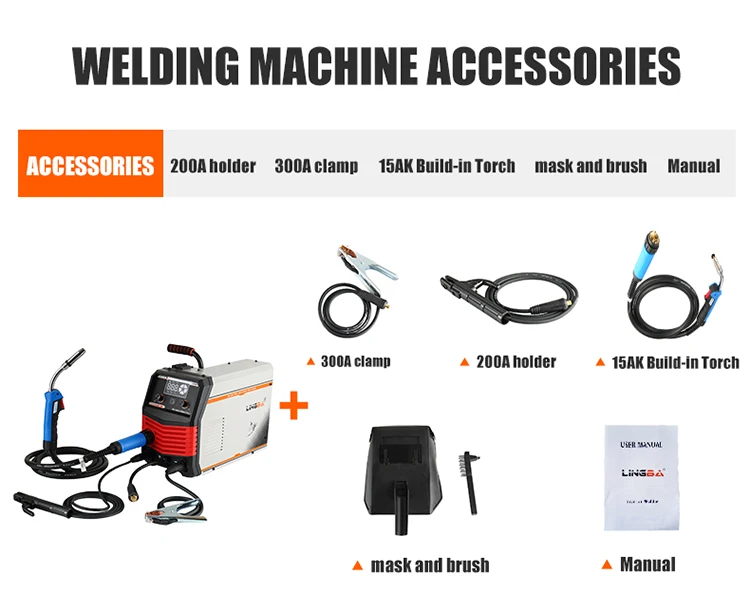

| Accessories | 1.8M 25mm2 200A holder |
| 1.2M 25mm2 300A clamp | |
| 3m 24AK Torch | |
| Brush, Mask, Manual | |
| GAS/GASLESS/MMA/MAG/LIFT-TIG | |
| Features | Gasless+Flux Wire |
| Gas+Solid Wire | |
| 5.0mm Electrode stopless work |
