Small hydro power river water turbine generators 200 kw
- Category: >>>
- Supplier: Hongya Power Generating Equipment To Utilities Limited
Share on (1600936280838):
Product Overview
Description
Small hydro power river water turbine generators 200 kw
Product Description
| Water Head | 40m - 300m |
| Power range | 50KW-20MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal |
| Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Lifespan | 50 years |
| Turbine Valve | Butterfly Valve, Gate Valve, Ball Valve |
| Generator Insulation | F/F |
| Water Turbine Efficiency | 92%-96% |
| Generator Efficiency | 90%-93% |
One of the impulse type, applicable water head 40-300m.
The center line of jet flow with gyration plane of runner is angled 22.5° . The runner is heavily pushed by water from pressure pipe that is switched to high speed jet flow through spray nozzle. The runner works by water flow entering one side of vane and coming out from its other side. It can reliably operate with simple structure, easy inspection and maintenance.
Other Product

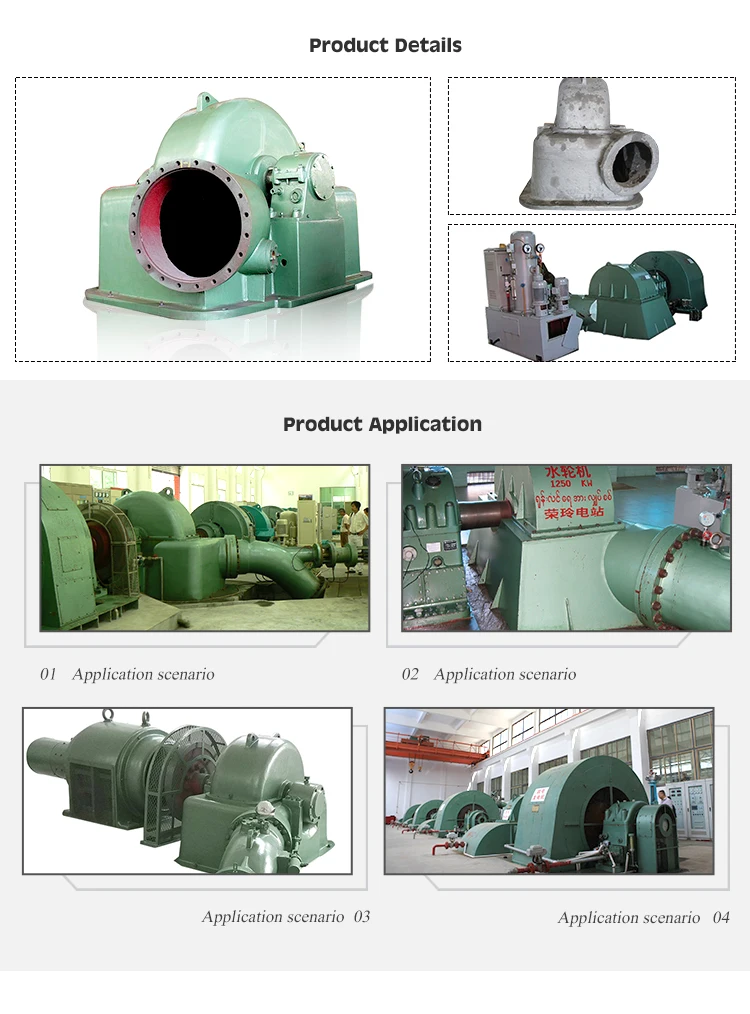

They are used at Middle and Small Hydropower Plant or Hydropower Spot.
The rated output from 50KW to 20MW is our advantage.
Below is our business about Hydropower Plant:
1:Exploration & Design of Hydropower Plant
2:Design & Manufacture of Turbine Generator Set
3:EPC of Electromechanical Equipment (water to wire system)
4:Pre-sale Service of Hydropower Plant
5:Training Service of Hydropower Plant
6:Operation & Technical Consultant of Hydropower Plant
7:Installation and Commission Guidance
8:Maintenance Service of Hydropower Plant
