CE European vintage classic car electric sightseeing car scenic area tour car 5 seats 8 seats
- Category: Bus >>>
- Supplier: Dezhou,Leibin,Vehicle,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Length x width x height | 3150×1520×1950mm | ||||||
Vehicle weight | 770kg | ||||||
Load | 600kg | ||||||
Maximum driving range | ≥100km | ||||||
Axis pitch | 2390mm | ||||||
Maximum forward speed | Maximum forward speed | ||||||
Climbing ability | 30% | ||||||
Motor | 48V 5KW high efficiency high speed AC motor | ||||||
Battery | 6*8V, 150ah large capacity deep cycle traction power battery | ||||||
Charger | automatic high frequency and high efficiency pulse charger, input voltage AC 110V/220V,50Hz; Output DC 48V / 25A | ||||||
Controller | CMOS continuously variable speed system, with automatic anti-slip function, downhill speed limit, personalized program design | ||||||
Accelerator | original inductive contactless transmission system | ||||||
Bottom disk | Frame type, high strength steel structure, hot spray zinc and top paint double anti-rust treatment | ||||||
Body coverings | High-quality steel plate stamping molding, automobile sheet metal standard process coating, with anti-impact function | ||||||
Rear axle | Motor directly connected integral rear axle with main reduction and differential | ||||||
Braking system | Dual circuit four-wheel hydraulic brake (front disc and rear drum) with mechanical parking (handbrake) | ||||||
Front suspension system | Multi-plate leaf springs and cylinder hydraulic shock absorbent non-independent suspension | ||||||
Rear suspension system | Multi-plate leaf springs and cylinder hydraulic shock absorbent non-independent suspension | ||||||
Steering system | Single stage rack and pinion steering system with steering automatic return function | ||||||
Lighting system | Headlights, front turn signals, rear combination lights, reverse buzzer, electric horn | ||||||
Seat system | Integrated seat system, ergonomic principle, comfortable to ride; High simulation leather seat | ||||||

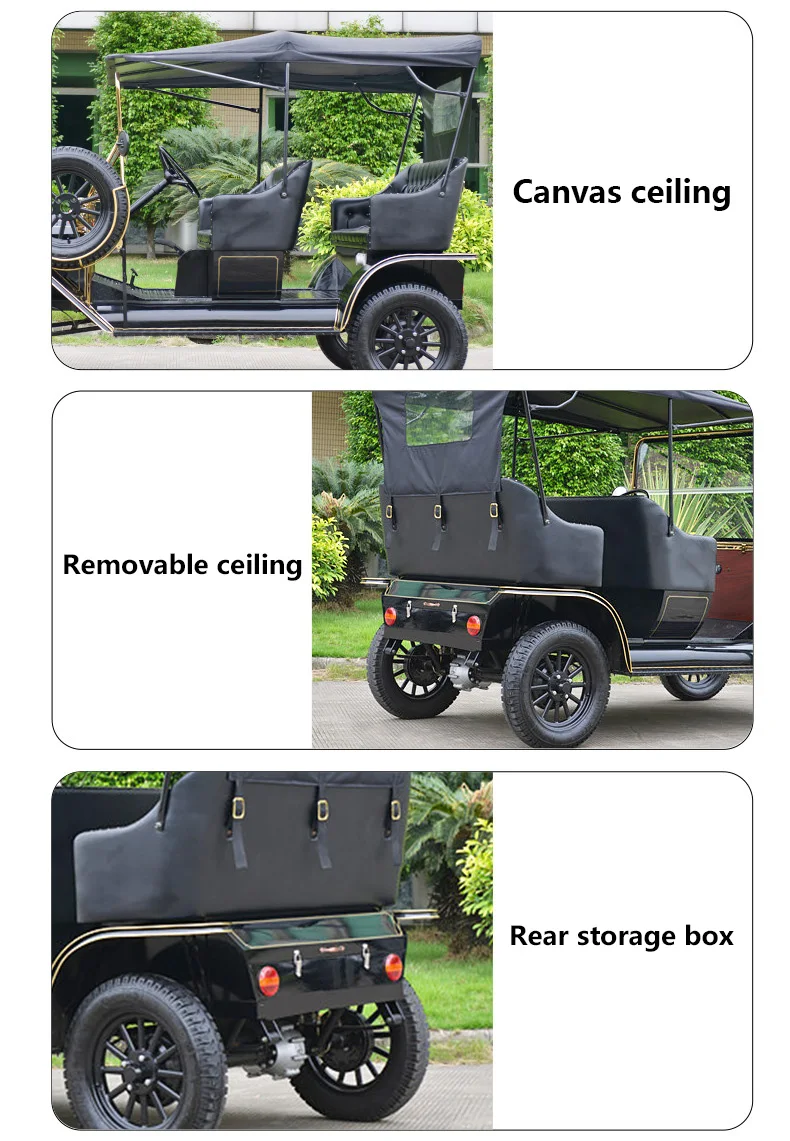

Top canopy | Black canvas, with light weight, waterproof, UV protection and other functions | ||||||

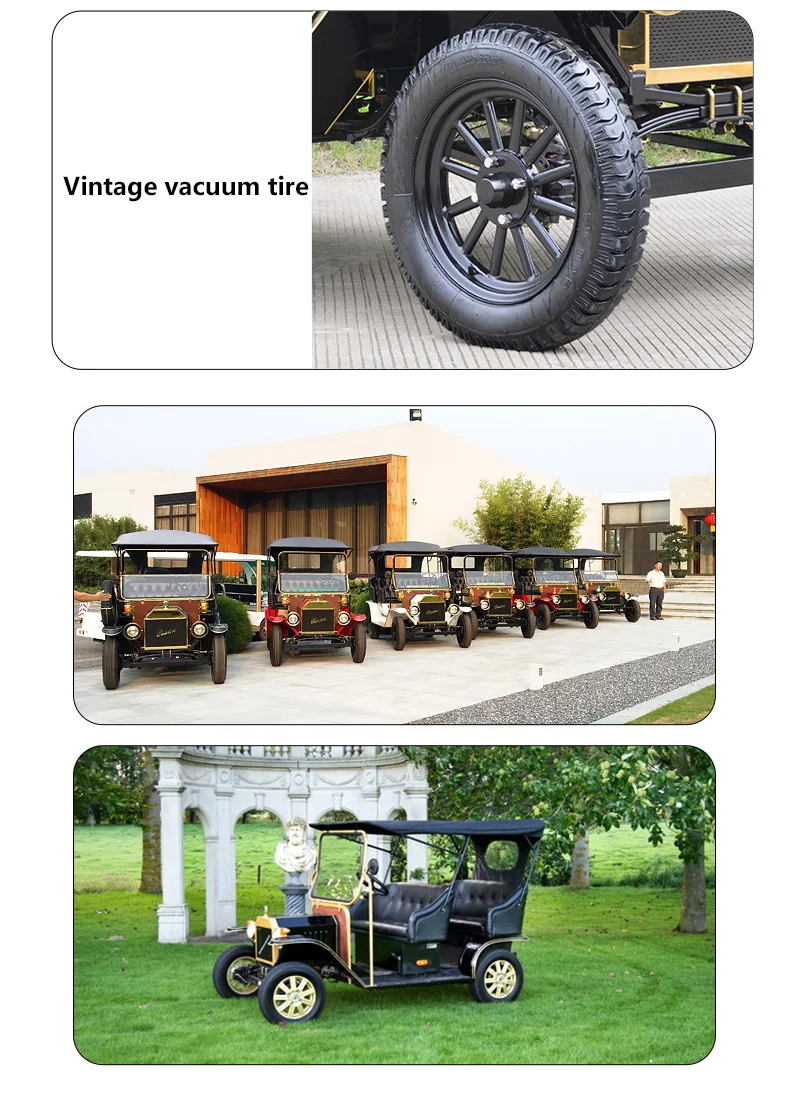

Wheel tire | Vacuum radial minicar tire, specification model: 6.00-13LT | ||||||

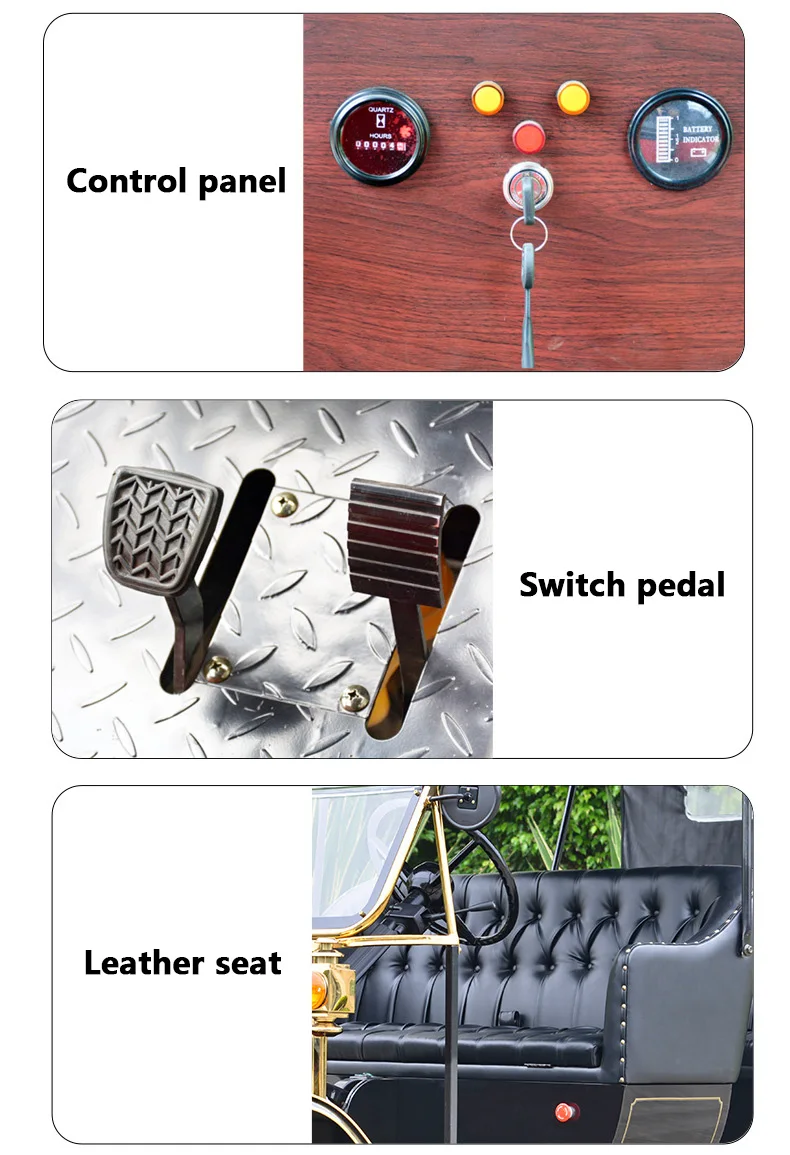

Instrument Panel | With ignition switch, electric meter, directional selector switch, steering indicator, brake indicator, hour meter, etc | ||||||
Front windshield | Collapsible high strength plexiglass | ||||||
Optional packing | Doors, rain curtains, ECU electronic power steering, FM radio, luxury leather seats | ||||||
