Product Overview
Description
Products Description

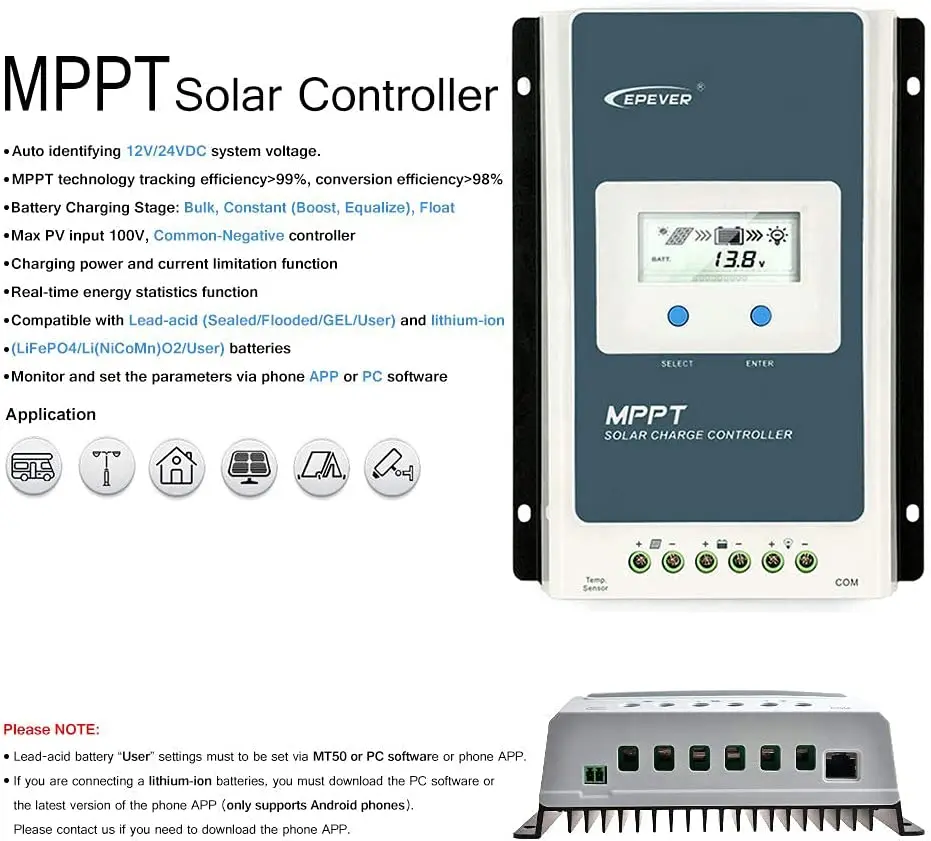

Tracer-AN(10A~40A) series charge controller adopts MPPT(Maximum Power Point Tracking)technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. The multi-functional LCD displays the system status vividly.

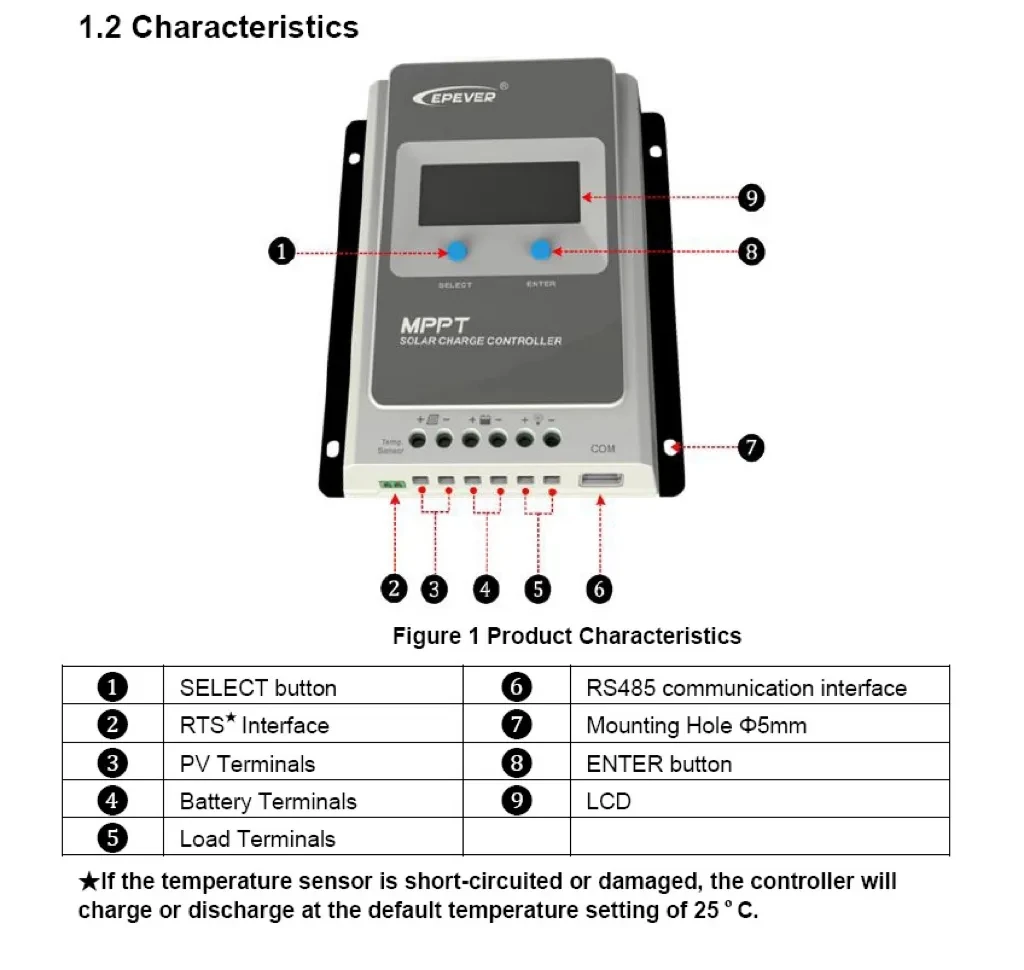

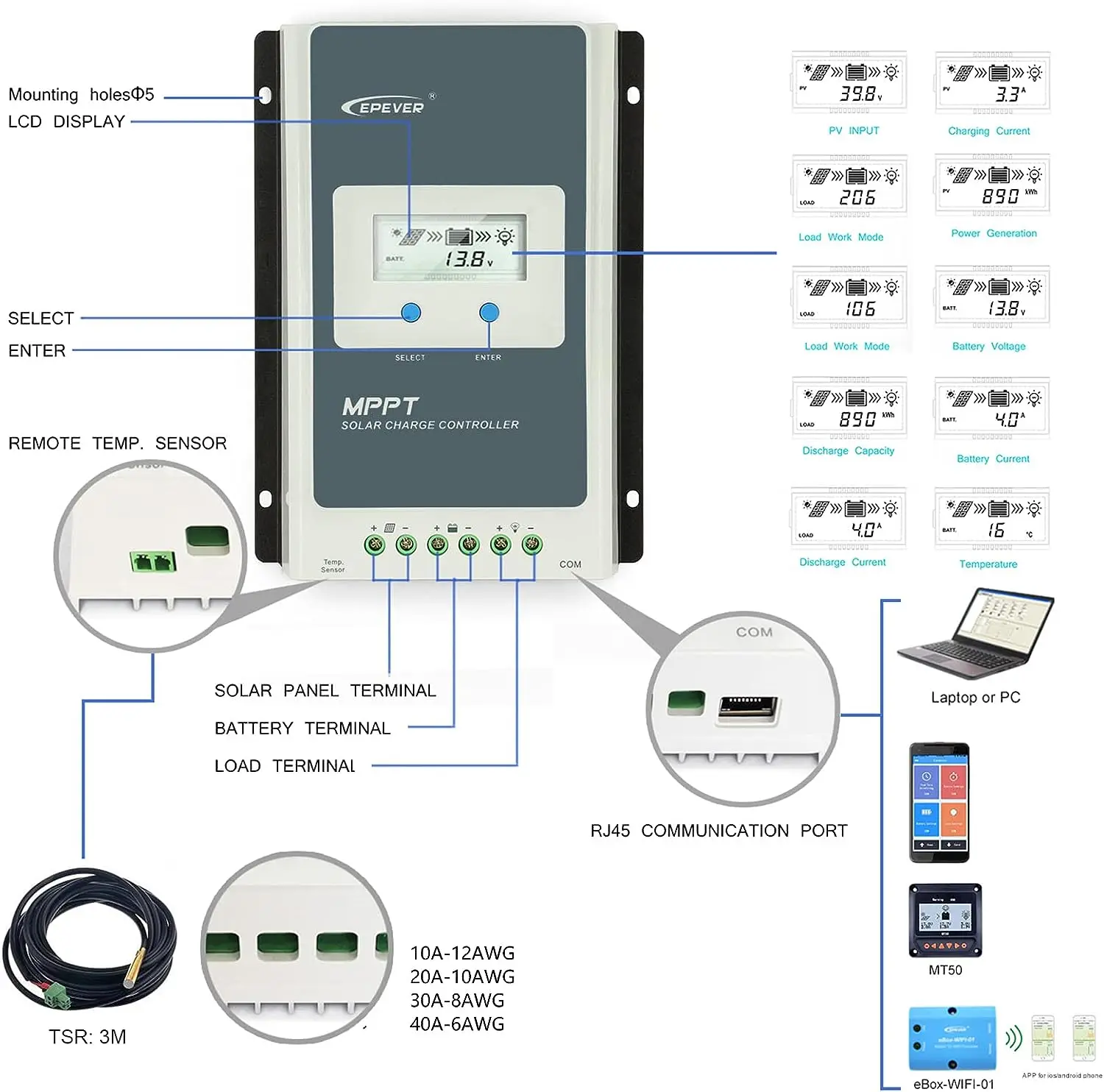

Details Images
Our Advantages
1. MPPT tracking efficiency above 99.5%2. Maximum charge conversion efficiency as high as 98%
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function
Specification
Model | Tracer2206AN | |||||||
Nominal system voltage | 12/24VDC/Auto | |||||||

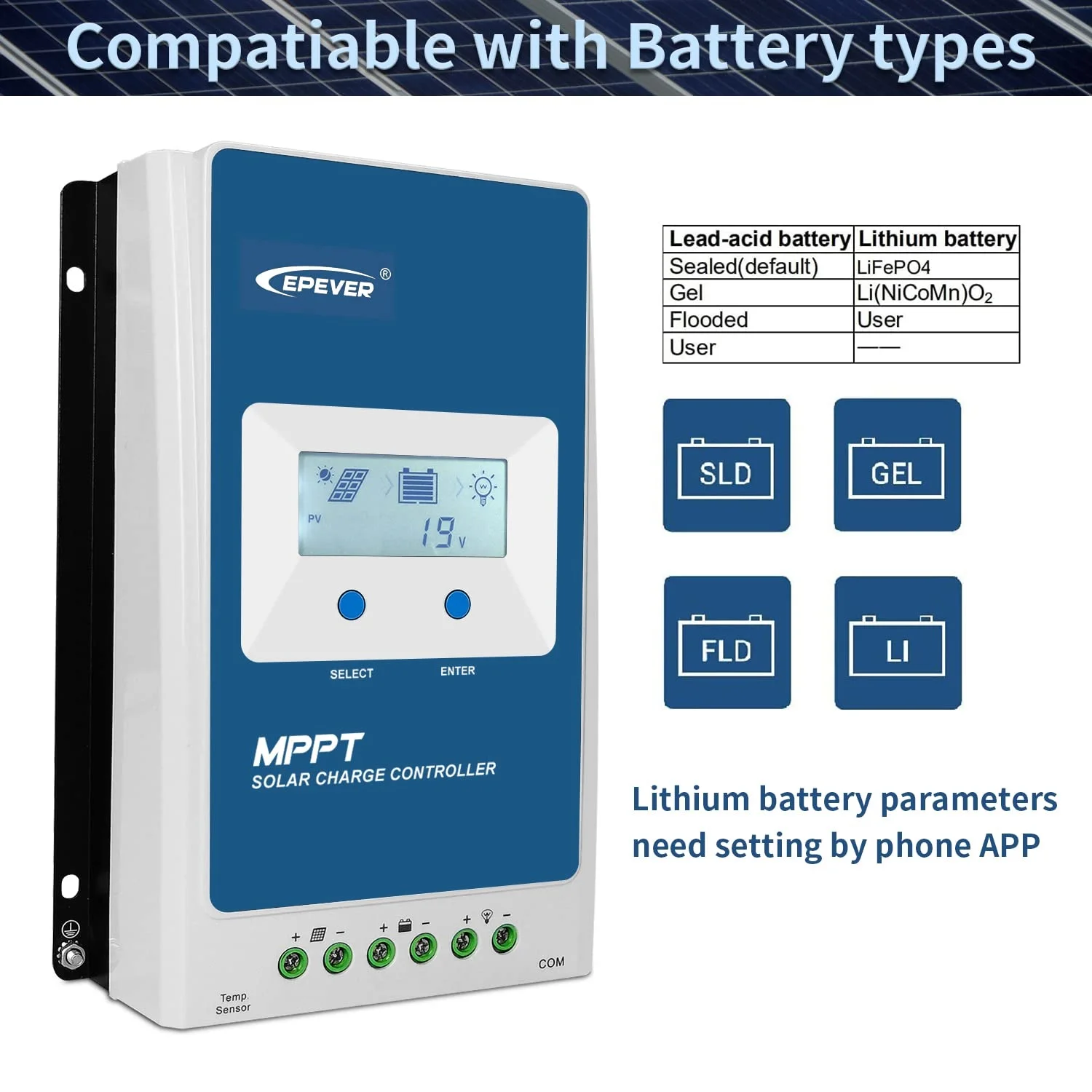

Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |||||||
Battery input voltage range | 8～32V | |||||||
Rated charge current | 20A | |||||||
Rated discharge current | 20A | |||||||
Rated charge power | 260W/12V, 520W/24V | |||||||
Max. conversion efficiency | ≤98.0% | |||||||
Tracking efficiency | ≥99.5% | |||||||
Max. PV open circuit voltage | 60V（At minimum operating environment temperature）， 46V（At 25℃ environment temperature） | |||||||
MPP voltage range | (Battery voltage +2V)～36V | |||||||
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |||||||
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |||||||
Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |||||||
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |||||||
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |||||||
Self-consumption | ≤12mA | |||||||
Temperature compensation( for lead-acid battery) | -3mV/℃/2V (Default) | |||||||
Relative humidity | ≤95%, N.C. | |||||||
Enclosure | IP30 | |||||||
Communication interface | RS485(RJ45) | |||||||
Grounding | Common negative | |||||||
Operating temperature range | -25℃～+45℃(100% input and output) | |||||||
Dimensions(LxWxH)(mm) | 220×154×52 | |||||||
Net weight | 0.94kg | |||||||
1. The controller can't automatically identify system voltage if lithium batteries were connected. | ||||||||
2. The voltage point is for a 12V system, please *2 in the 24V system. | ||||||||

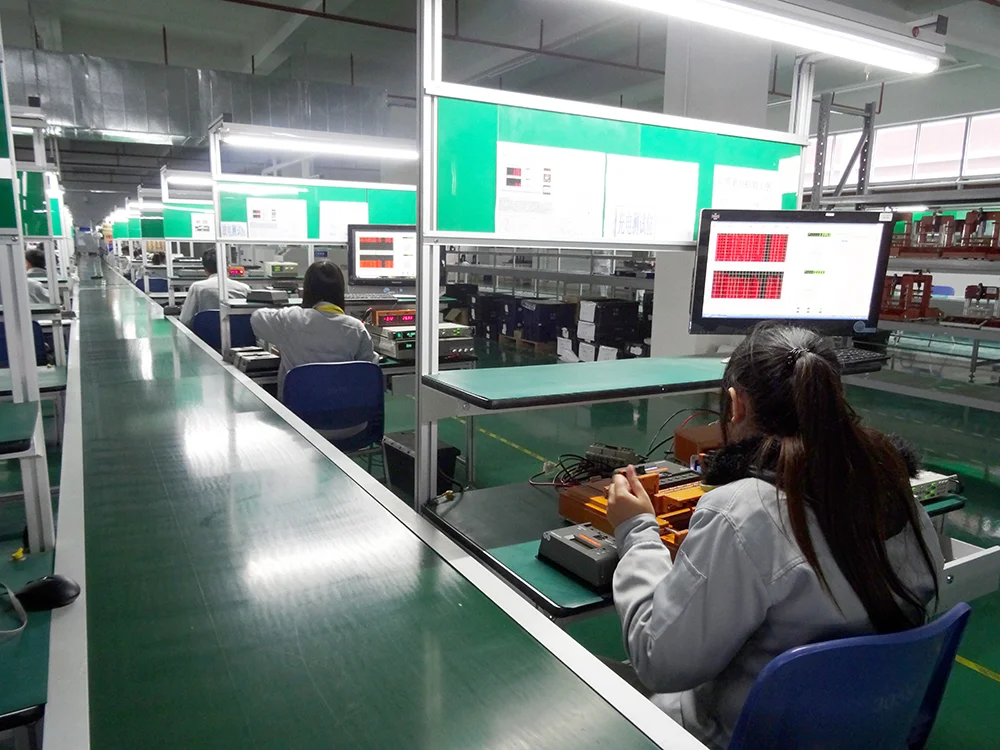

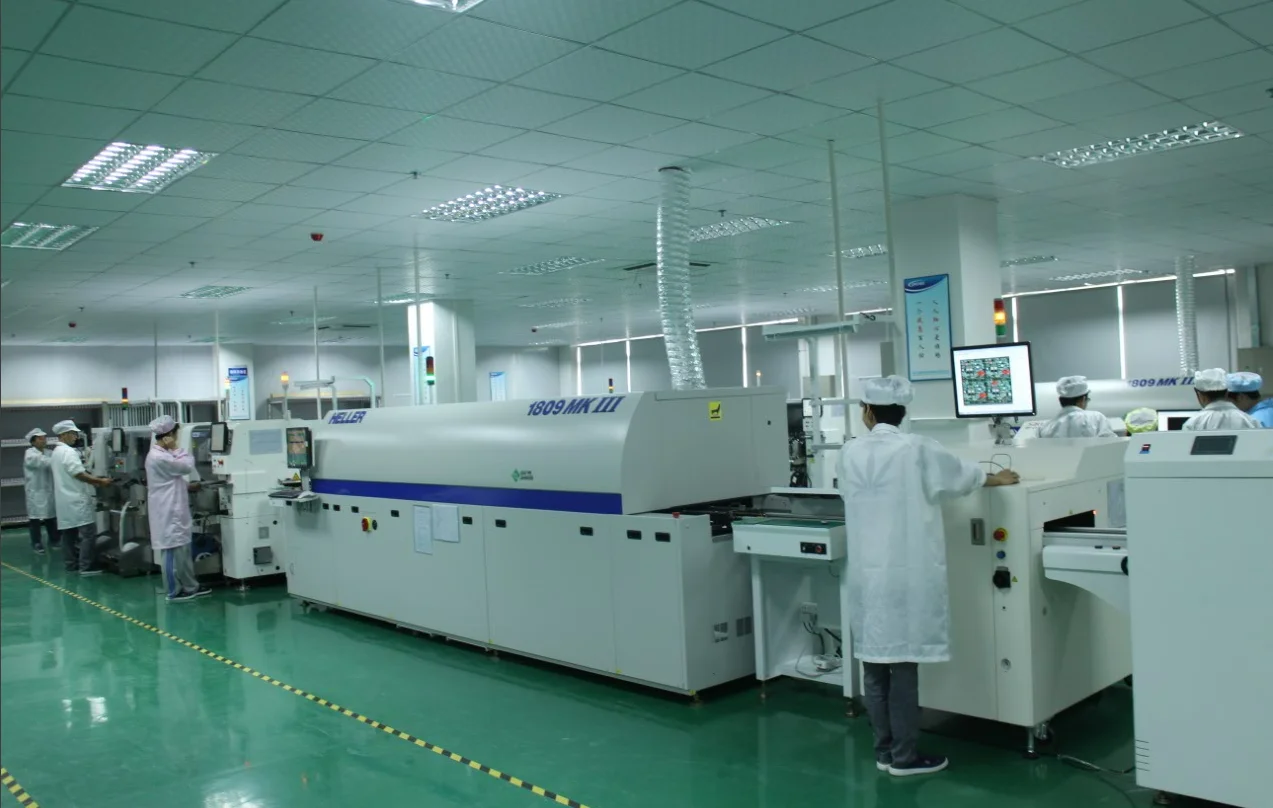

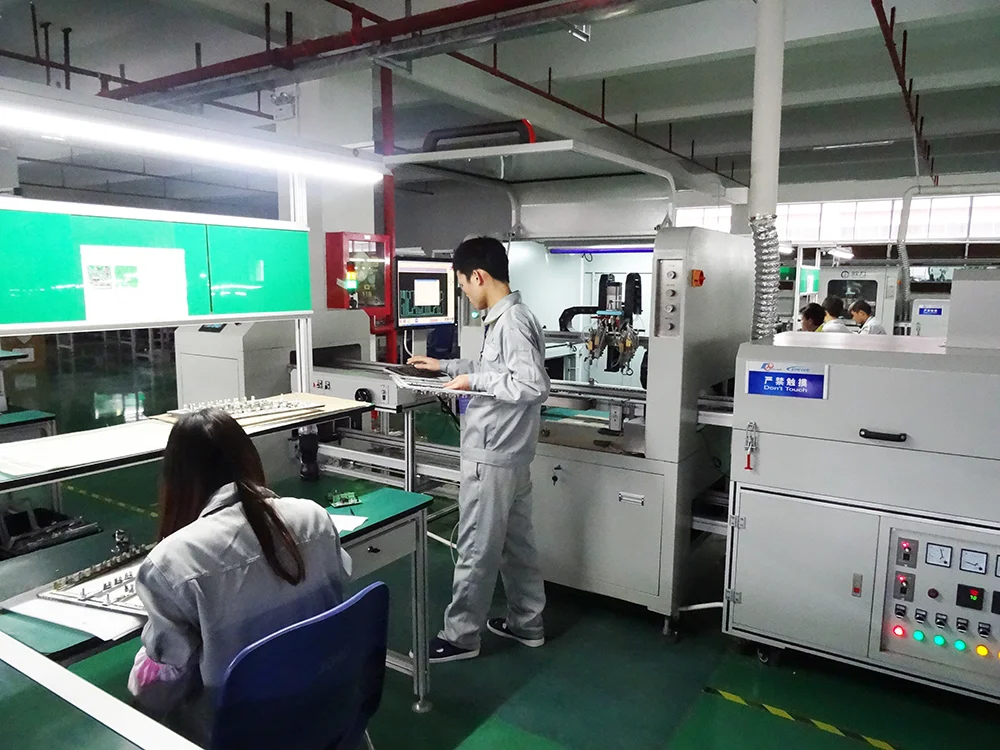

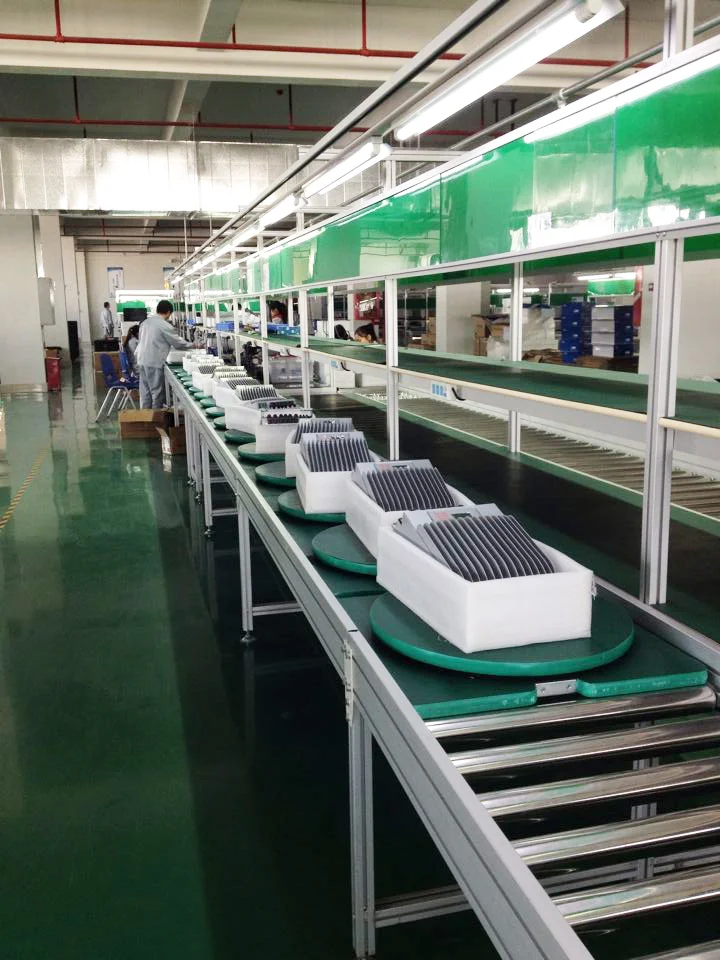

Company Profile

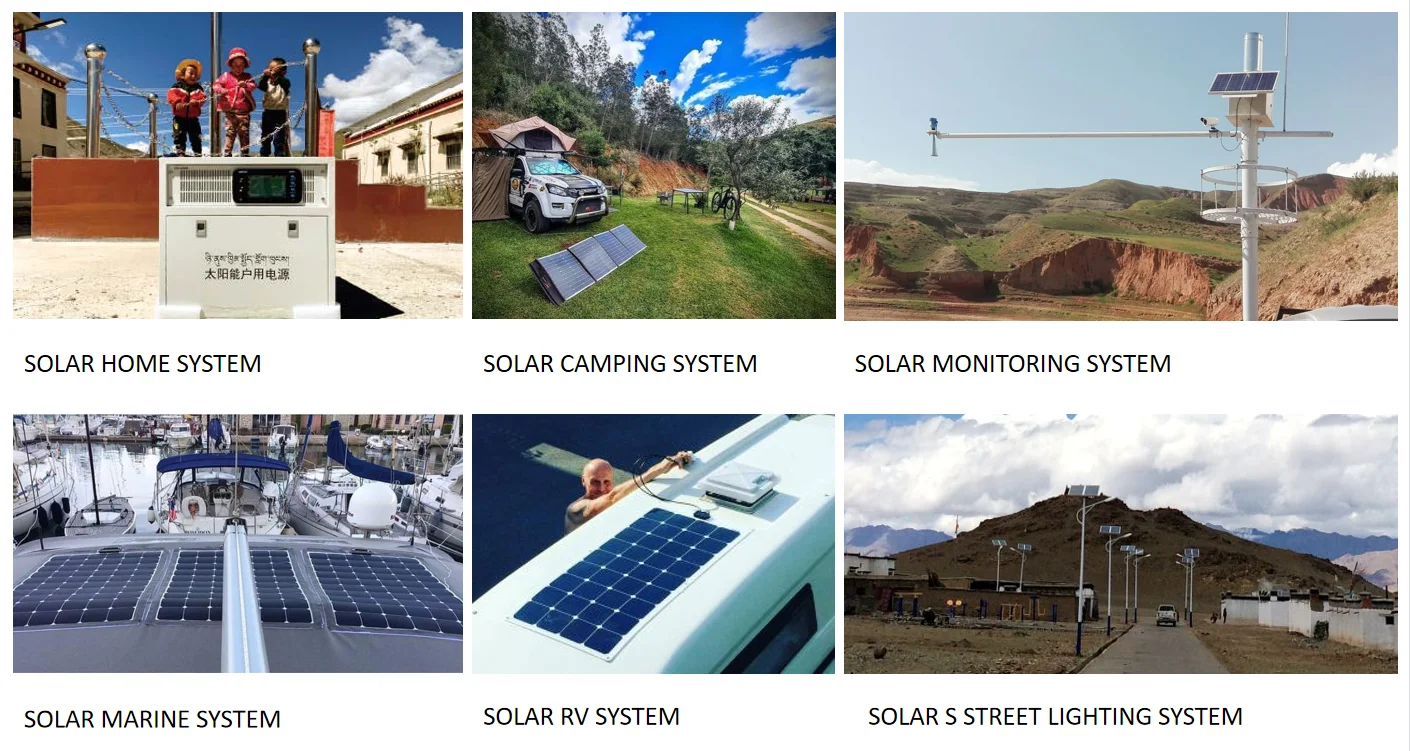

Application Scenarios
FAQ
Q1:Are you factory manufacturer or trade company?
A: Our manufacturer for solar and wind energy products over 10 years. OEM & ODM are available.
Q2: Can I get a sample before order in bulk? What is your MOQ?
A: Yes, we support sample order.
Q3: What is the lead time?
A: Generally 5-20 days(based on quantity),and most models have in stock.
Q4: Is it all right to make customer's Logo?
A: Sure,customer's logo can be embossed, debossed, sreen printed, etc.
Q5: Where is your loading port?
A: Shanghai Port, In China.
Q6: What are your payments terms?
A: T/T, PayPal, Western Union or by Alibaba Trade Assurance
