Hybrid Solar Air Conditioner DC Inverter AC Unit Split Type Cooling Aircondition 2 Ton 3Hp 24000Btu
- Category: >>>
- Supplier: Huafeng Solar Co. Ltd.
Share on (1600936565187):
Product Overview
Description
Solar Air Conditioner Description
Hybrid Solar Air Conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including DC Compressor, high-efficiency DC Fan Motors, DC Valves & Solenoids, etc.
The Air Conditioner System uses VRF (Variable Refrigerant Flow ) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change.

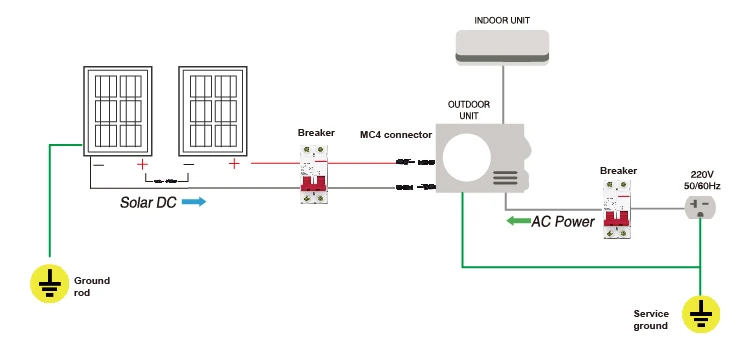

Hybrid Solar Air Conditioner uses Solar Direct Drive, so the A/C Unit can use AC DC power in the same time or independently. The solar energy will be used as the priority power instead of the grid energy to run the air conditioner. In the sunshine day, the Recreate Hybrid Solar Air Conditioner can be operated by 100% solar energy without AC power.

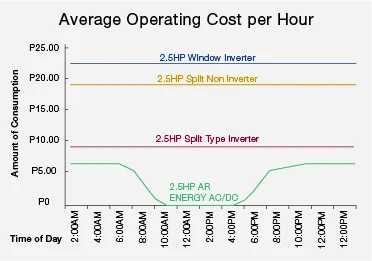

The whole system just contains an A/C Unit and a few PV panels ( NO BATTERY, NO INVERTER, NO CONTROLLER). Compare with the regular air conditioner, the investment increases 50%-80%, but the electricity bill will reduce 60-80% yearly.
Product Presentation
Solar Air Conditioner | |
R410A/R32 | |
Remote + Wifi Optional | |
Famous Brand Rotary Compressor | |
Hydrophilic Aluminum | |
NO | |
Type: | Split Wall Mounted Air Conditioners |
Size introduction and size picture
Capacity | 7000BTU | 9000BTU | 12000BTU | 18000BTU | 24000BTU | ||||
0.60TON | 0.75TON | 1TON | 1.5TON | 2TON | |||||
smart 1HP | 1HP | 1.5HP | 2HP | 3HP | |||||
Function | Cooling Only / Heat And Cool | ||||||||
Power saving | Inveter / No Inveter | ||||||||
Refrigerant | R32;R134a;R410a etc | ||||||||
Cooling Power | 2051W | 2600W | 3500W | 5200W | 7200W | ||||
Heating Power | 2051W | 2800W | 3700W | 6000W | 7900W | ||||
Noise(indoor) | ≤40 dB | ≤40 dB | ≤42 dB | ≤43 dB | ≤50 dB | ||||
Noise(Outdoor) | ≤50 dB | ≤50 dB | ≤52 dB | ≤54 dB | ≤58 dB | ||||
Air Circulation | 450m³/h | 450m³/h | 550m³/h | 650m³/h | 1050m³/h | ||||
Suitable Area | 8~12m² | 10~15m² | 12~25m² | 20~30m² | 30~48m² | ||||
EER (W/W) | 4.56 | 4.56 | 4.12 | 4 | 4.67 | ||||
EER (Btu/h/w) | 15.79 | 15.79 | 14.12 | 13.85 | 16 | ||||
SEER (Btu/h/w) | 25.3 | 25.3 | 26.6 | 25.8 | 26.4 | ||||
Work Temp | -15~60℃ | ||||||||
Power Input | 600W | 650W | 850W | 1300W | 1500W | ||||
Rated Current | 28/14A | 28/14A | 35/18A | 27A | 33A | ||||
Input Power | DC24/48V | DC24/48V | DC24/48V | DC 48V | DC 48V | ||||
Indoor Unit(mm) | 745*255*195 | 745*255*195 | 775*260*210 | 1070*385*265 | 1070*385*265 | ||||
Outdoor Unit(mm) | 645*245*495 | 645*245*495 | 790*260*540 | 850*290*580 | 850*290*580 | ||||
Solar panel:150W*4pcs | Solar panel:150W*4pcs | Solar panel:150W*6pcs | Solar panel:150W*8pcs | Solar panel:150W*12 pcs | |||||
Solar controller: 48V20A | Solar controller: 48V20A | Solar controller: 48V20A | Solar controller: 48V30A | Solarcontroller: 48V40A | |||||
Working Time: 12 hours/day 4 hours/night | Batteries:12V65Ah*4pcs | Batteries:12V65Ah*4pcs | Batteries:12V100Ah*4pcs | Batteries:12V150Ah*4pcs | Batteries:12V200Ah*4pcs | ||||
Solar panel:150W*6pcs | Solar panel:150W*6pcs | Solar panel:150W*10pcs | Solar panel:150W*12pcs | Solar panel:150W*20pcs | |||||
Solar controller:48V40A | Solar controller:48V40A | Solar controller: 48V40A | Solar controller: 48V60A | Solar controller: 48V80A | |||||
Working Time: 12 hours/day 6 hours/night | Batteries:12V100Ah*4pcs | Batteries:12V100Ah*4pcs | Batteries:12V150Ah*4pcs | Batteries:12V200Ah*4pcs | Batteries:12V150Ah*8pcs | ||||
Product Description

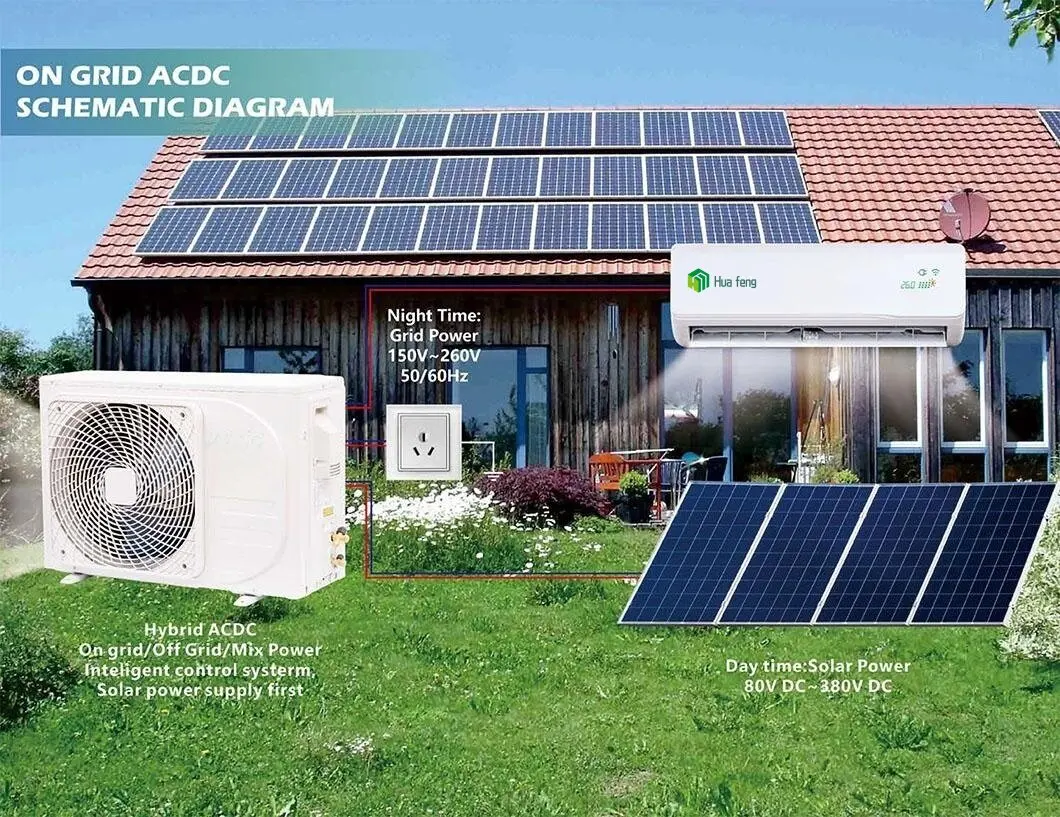

GRID POWER
SEER is over 22.
GRID AND SOLAR
power will take from the grid

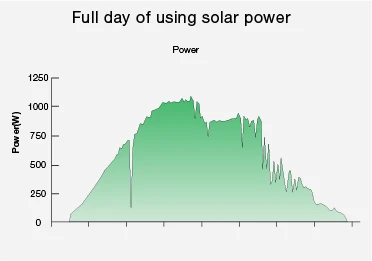

100% SOLAR
off. 100% energy saving

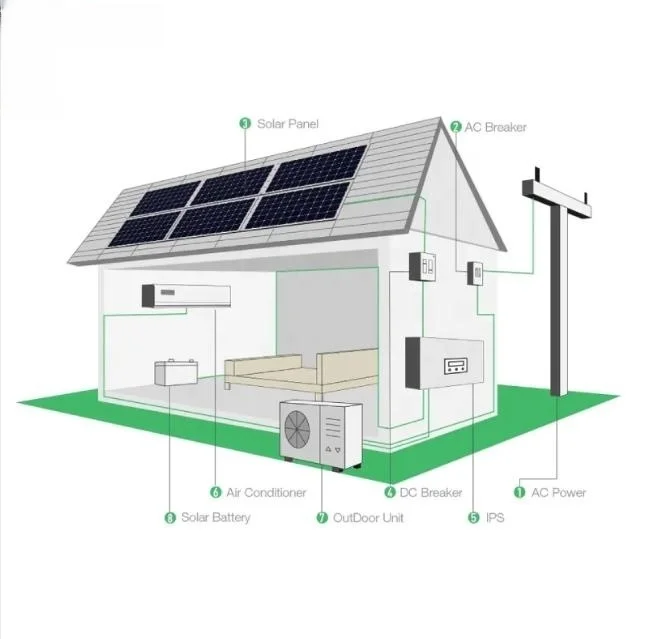

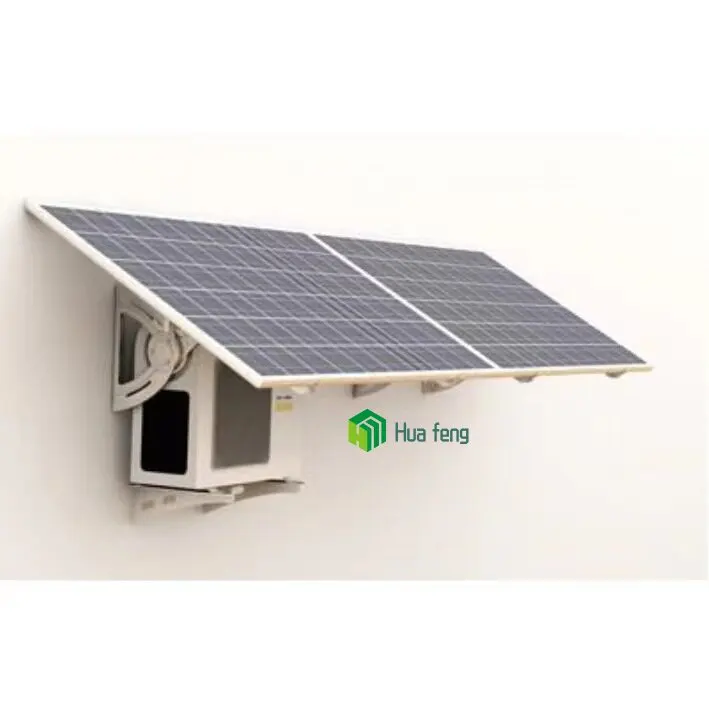

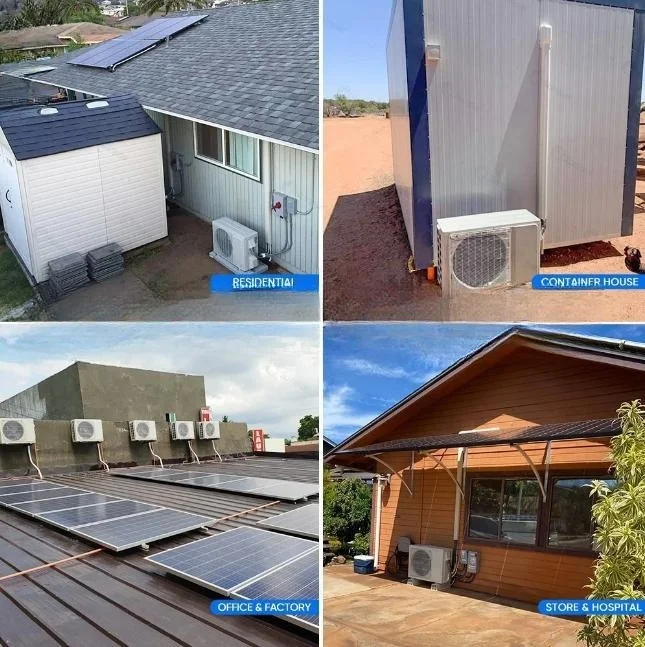

Project case

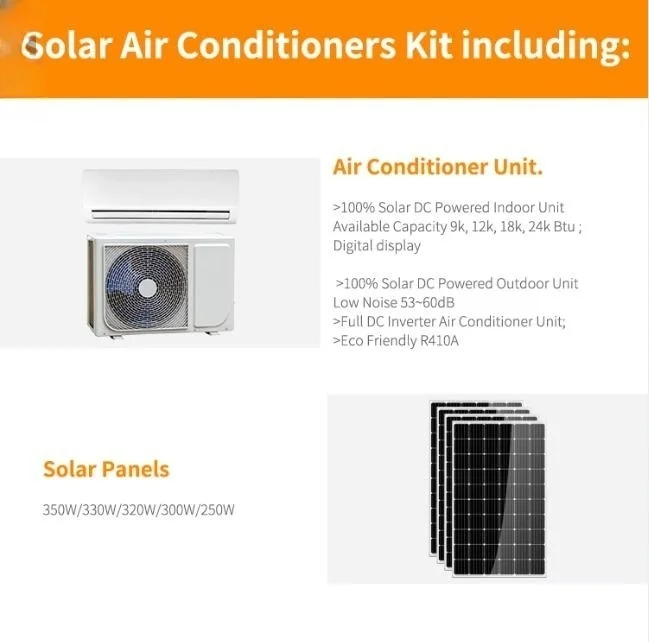

>ACDC Hybrid Indoor Unit Available Capacity 9k, 12k, 18k, 24k Btu ; Digital display

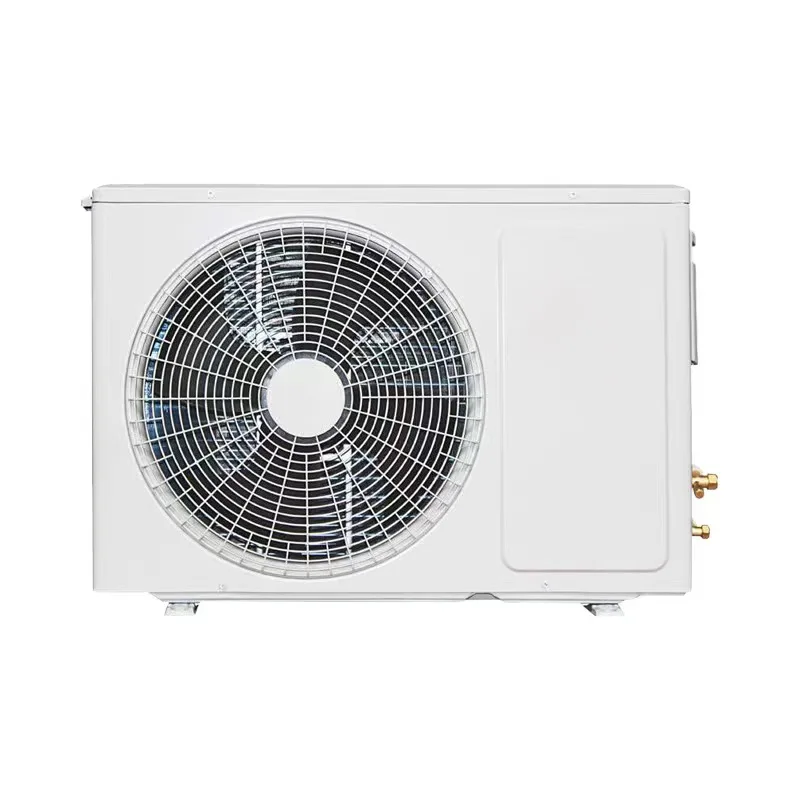

>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB

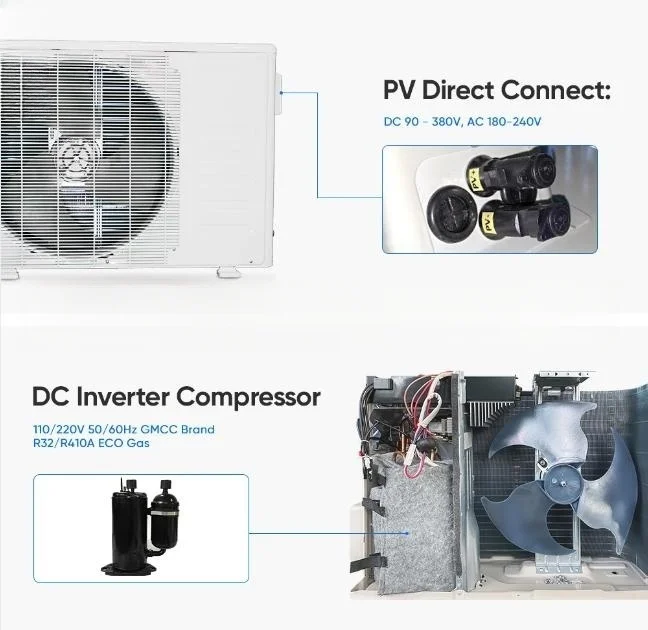

>Full DC Inverter A/C Unit;
>Eco Friendly R410A
>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A

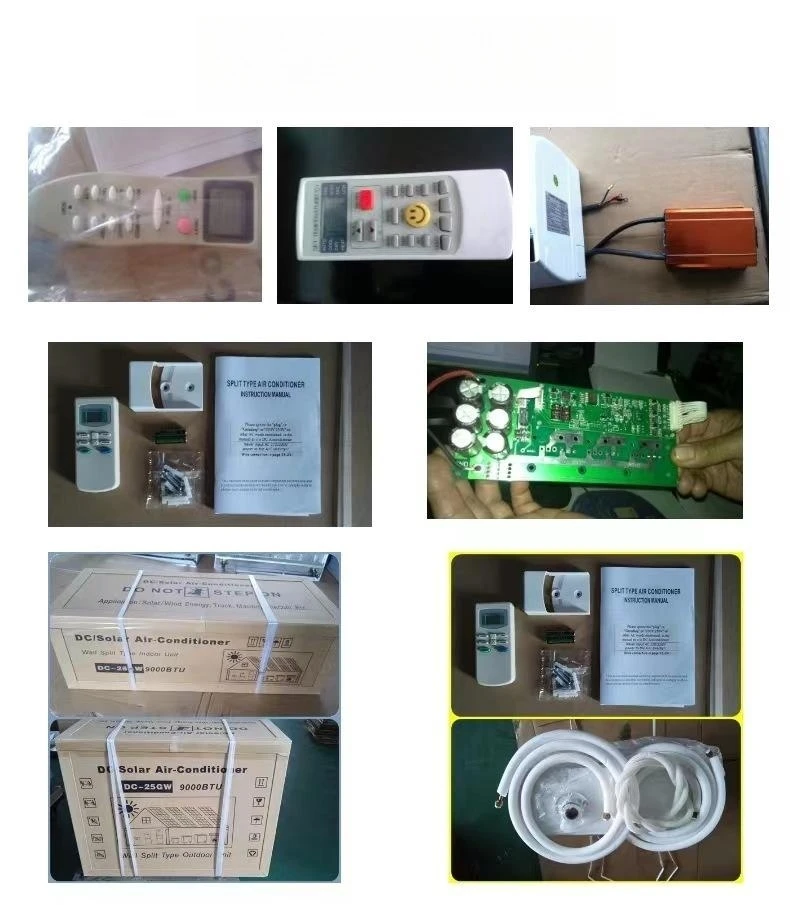

Detailed Images

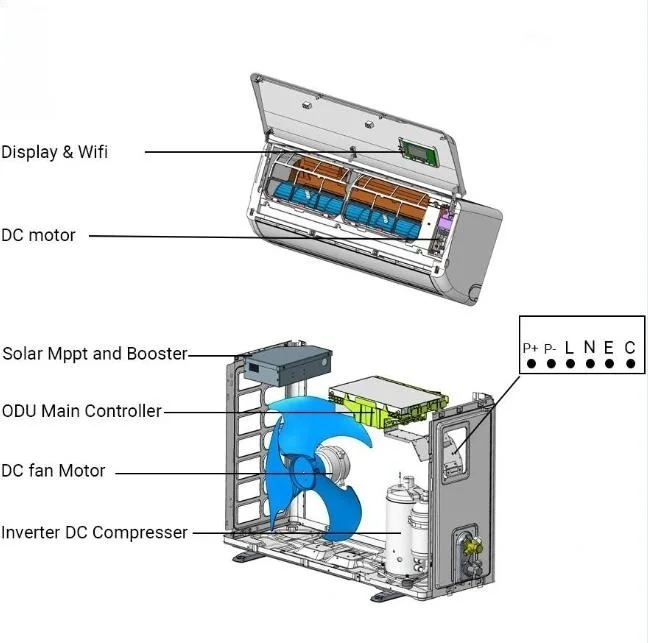

Product detail drawing
Company Introduction
The factory own the proficient skill and updated machine

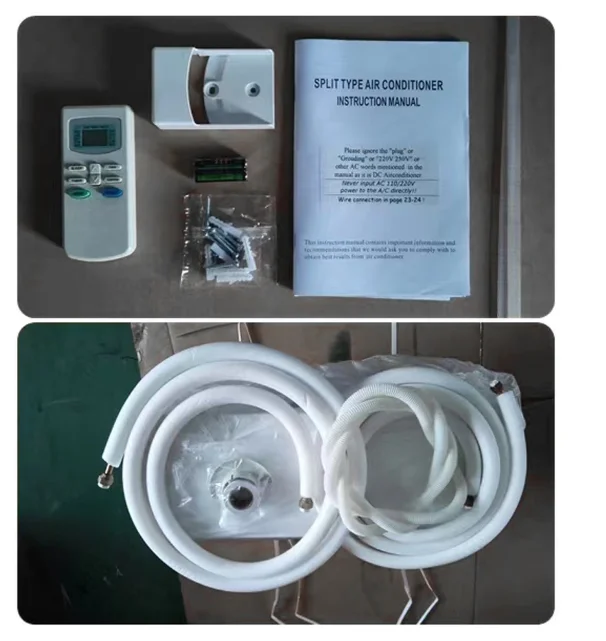

Packing&Shipping
