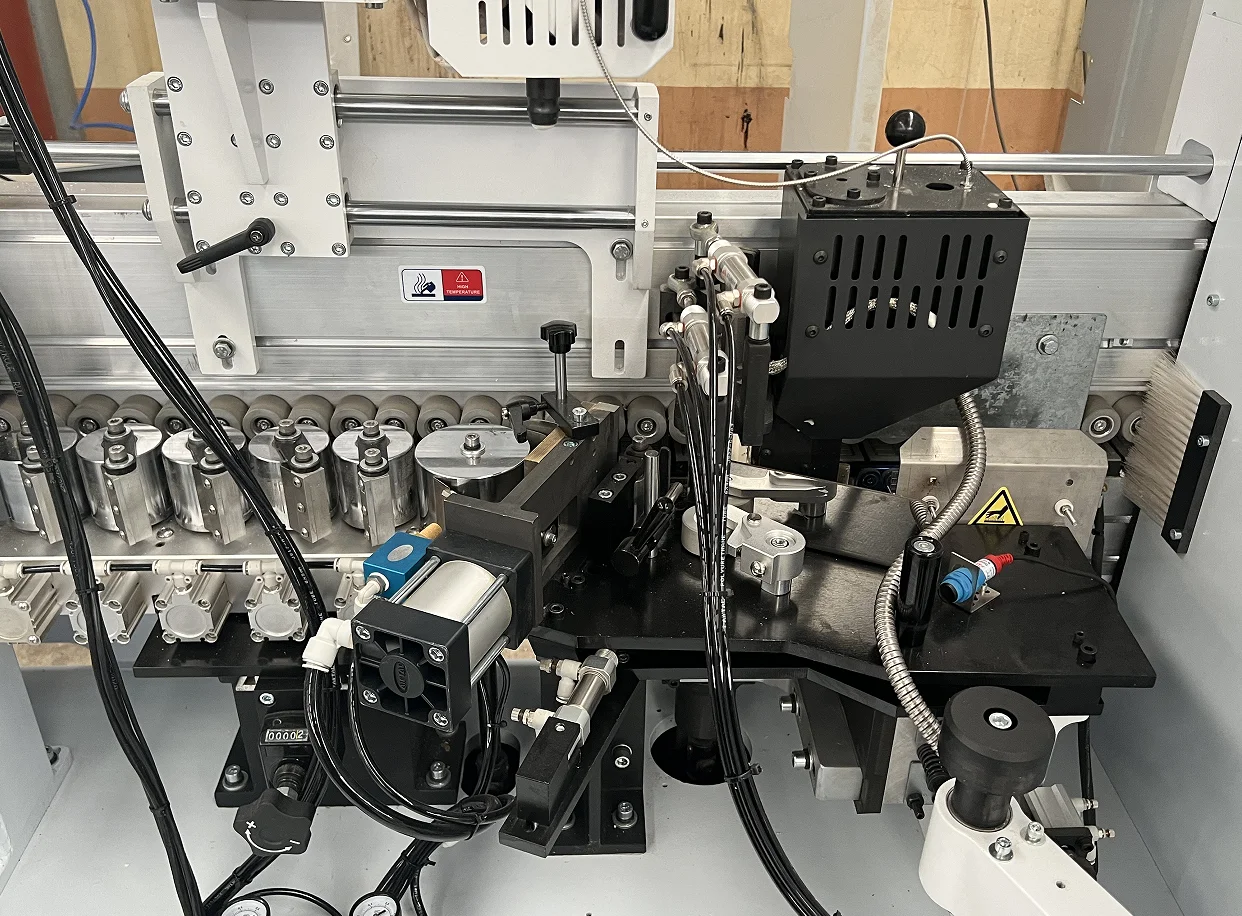

Full range edge banding machine edge bander with 2 PUR glue pot for cabinet and door board edge banding machine
- Category: >>>
- Supplier: Qingdao Xicheng Weiye Machinery Equipments Co. Ltd.
Share on (1600936581815):
Product Overview
Description
Product Overview
Brand new hot sales edge banding machine with PUR made in china
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 23KW |
2 | Panel width | min 5cm |
3 | Panel length | min 150mm |
4 | Feed speed | 12-20m/min |
5 | Overall size | 8700x1000x1600mm |
6 | Weight | 2800kg |
15 inch large computer screen
The human-computer interaction is simpler, the large screen has a large field of view, the interface is clearer, and it is easy to operate and use.
The human-computer interaction is simpler, the large screen has a large field of view, the interface is clearer, and it is easy to operate and use.

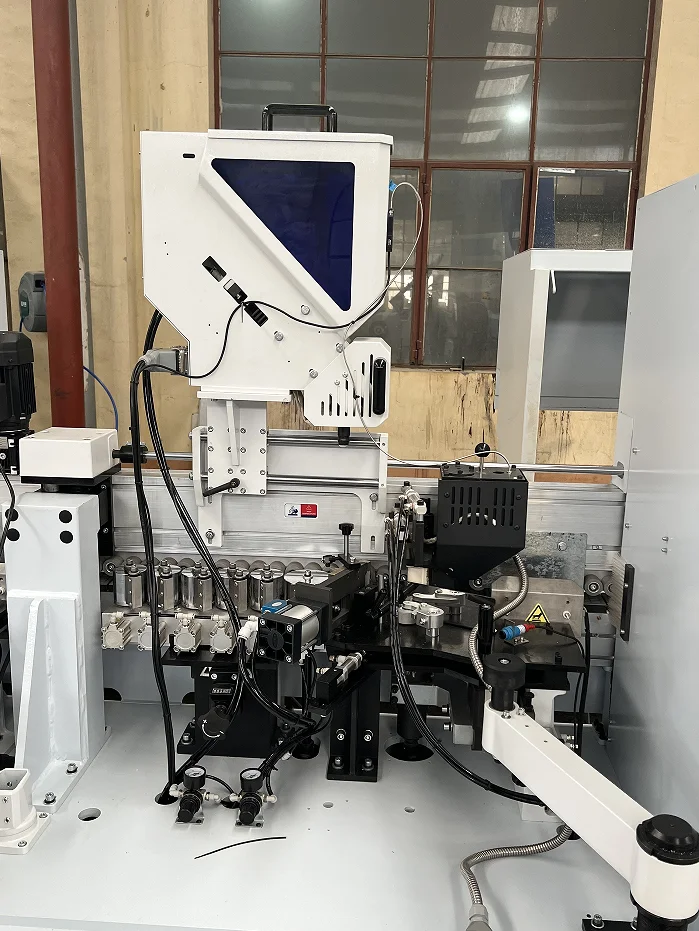

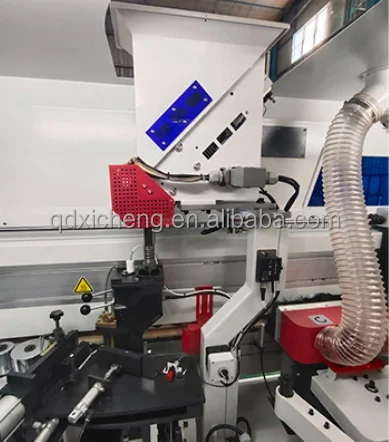

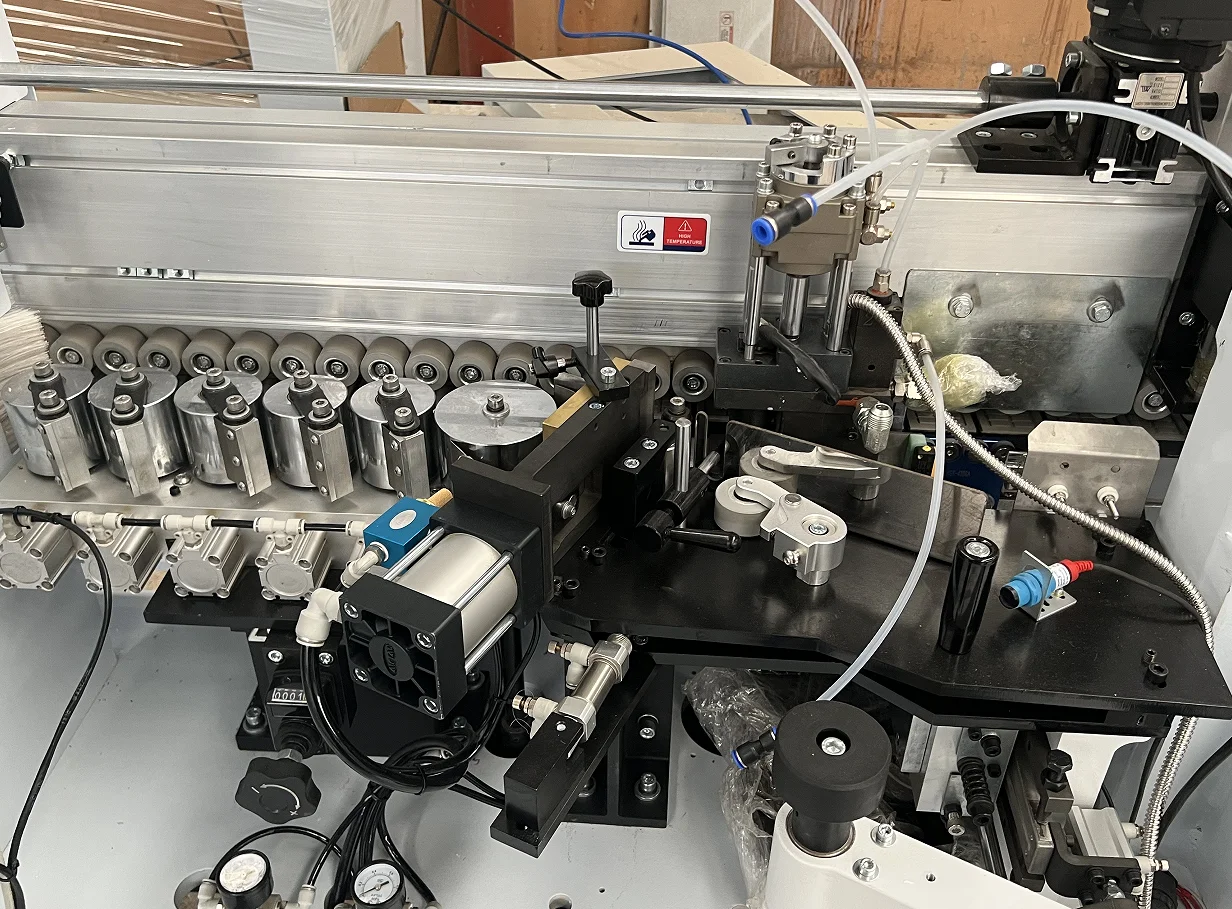

EVA/PUR
of different glue.
Large panel auxiliary wheel + narrow side support wheel
Pre milling
Trimming the edge of the panel after cutting Equipped with a 1.8KW high-power motor, it is composed of two milling tools at the front and rear.
Trimming the edge of the panel after cutting Equipped with a 1.8KW high-power motor, it is composed of two milling tools at the front and rear.
Spray Unit
Isolate the glue on the surface of the panel in up and bottom side
Isolate the glue on the surface of the panel in up and bottom side
Bake Light
Bake Light -preheating, avoid degumming. After the baking lamp preheats the edge of the board, the glue is applied to seal the edge more tightly
Bake Light -preheating, avoid degumming. After the baking lamp preheats the edge of the board, the glue is applied to seal the edge more tightly
Double Rails End Cutting Unit
0.37 kW (0.5 HP); 12000 rpm;
Two motors up & down moving by sliding rails
0.37 kW (0.5 HP); 12000 rpm;
Two motors up & down moving by sliding rails

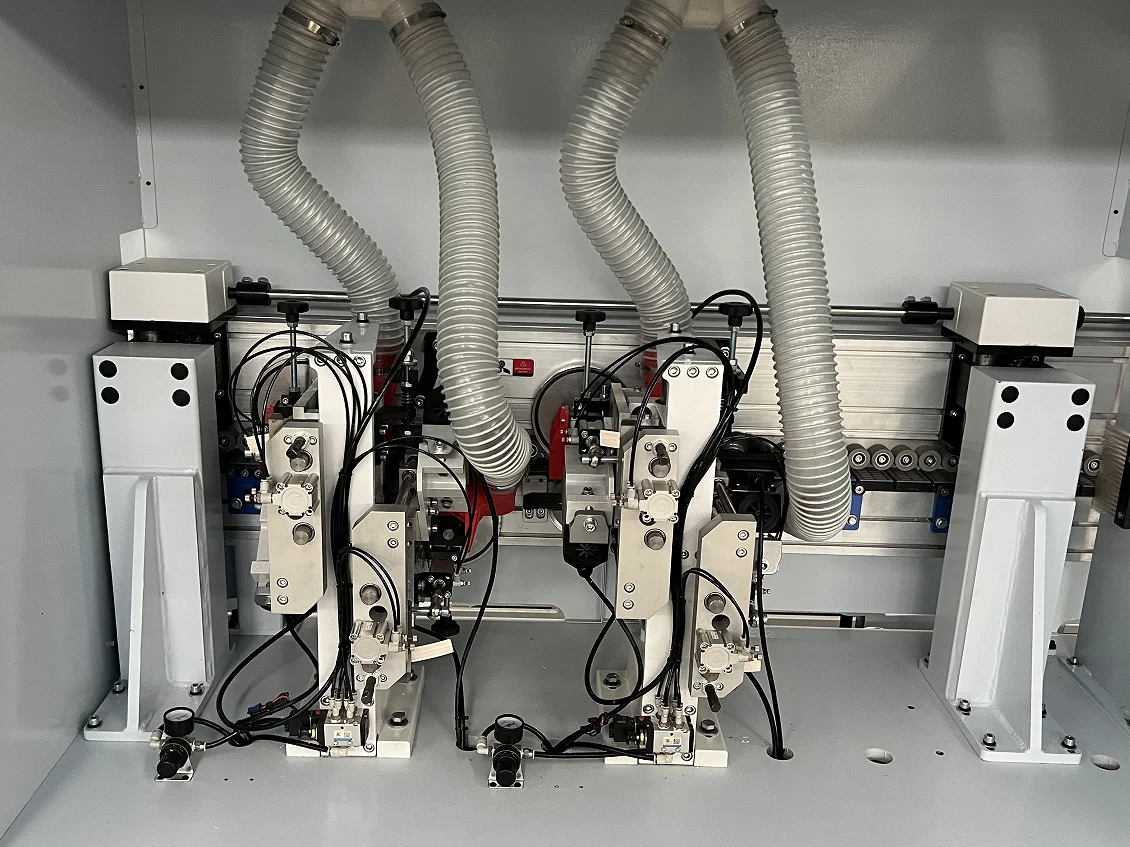

Double fine trimming
The edge is trimmed by the three fine trimming devices, which meets the automatic switching of two edge banding belts, saving time
and effort, and more effectively improving the edge banding effect
The edge is trimmed by the three fine trimming devices, which meets the automatic switching of two edge banding belts, saving time
and effort, and more effectively improving the edge banding effect

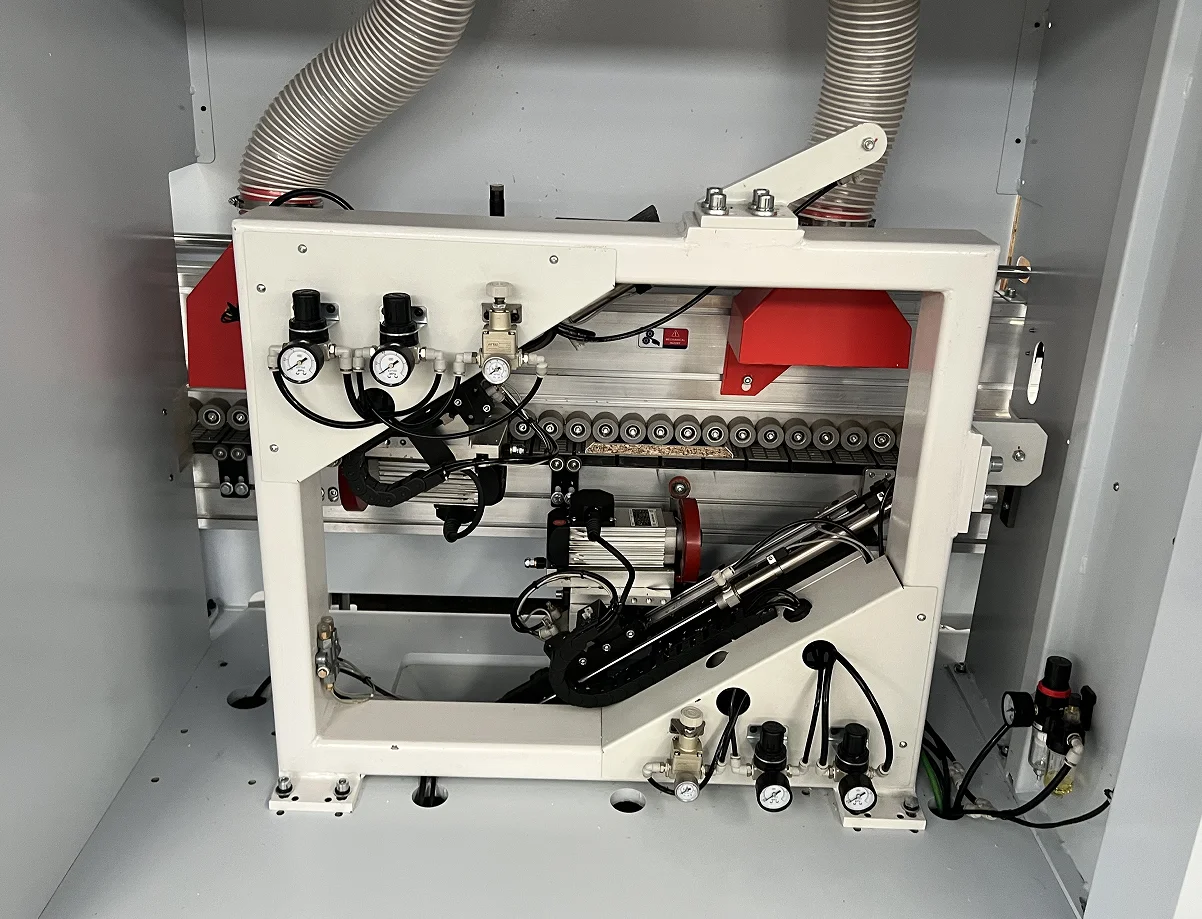

High-speed four-corner rounding
One corner corresponds to a group of devices, easy to adjust, good stability
The compact tracking profile meets the needs of tracking and trimming of long and narrow sides 45x300mm
One corner corresponds to a group of devices, easy to adjust, good stability
The compact tracking profile meets the needs of tracking and trimming of long and narrow sides 45x300mm
Double Scraping units, mechanical adjustment for R=2mm
Double Buffing unit
2 buffing units control by pneumatic Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any
colour irregularities.
2 buffing units control by pneumatic Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any
colour irregularities.
Flat Scraping
➢ Remove excess glue from the panel to ensure the quality of the edge banding.
➢ Remove excess glue from the panel to ensure the quality of the edge banding.
Electrical Equipment : Delta brand
➢ Independent Variable-frequency Drive control with motor brake function;
➢ Phase sequence protection device;
➢ Equipment and electrical appliances comply with relevant national standards.
➢ Independent Variable-frequency Drive control with motor brake function;
➢ Phase sequence protection device;
➢ Equipment and electrical appliances comply with relevant national standards.
Siemens electrics
1. Control system: DELTA
➢ PLC overall equipment control;
➢ 7" industrial touch screen display;
➢ All kinds of safety protection reminders.
➢ PLC overall equipment control;
➢ 7" industrial touch screen display;
➢ All kinds of safety protection reminders.
The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.
1.This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line.
2.Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw.
3.The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.
4.End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
5.Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even.
6.Scraping unit for a perfect finishing of the applied edge.
7.The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
8.Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.
2.Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw.
3.The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.
4.End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
5.Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even.
6.Scraping unit for a perfect finishing of the applied edge.
7.The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
8.Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
FAQ
1.Delivery :
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something
problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get
technical support and service all the time.
4. Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still
have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something
problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get
technical support and service all the time.
4. Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still
have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
