77GHZ Microwave Radar BSD Blind Area Monitoring Lane Change Auxiliary System for Mazda CX 5 2017 2021
- Category: >>>
- Supplier: Guangzhou Autolion Electronic Technology Co. Ltd.
Share on (1600936620086):
Product Overview
Description
Products Description
77GHZ Microwave Radar BSD Blind Area Monitoring Lane Change Auxiliary System for Mazda CX-5 2017-2021
What is the danger of Blind spot detection? A blind spot in a vehicle is an area around the vehicle that cannot be directly observed by the driver while at the controls, under existing circumstances. When the vehicle enters the lateral blind spot area, drivers can't see it in the rearview mirror. If change lanes at this time, accidents occur easily.
1. BSD helps you detect cars in hard-to-see areas, commonly known as "blind spots".
2. BSD systems monitor the blind spots on both sides of your car. When a car is detected, a yellow indicator will light up in the side mirror or on the window frame or on the dashboard, also provide a warning sound.
3. BSD Helps you to avoid crashes that occur in blind spot areas. They are most effective when your car is passing, being passed, or preparing to make a lane change.

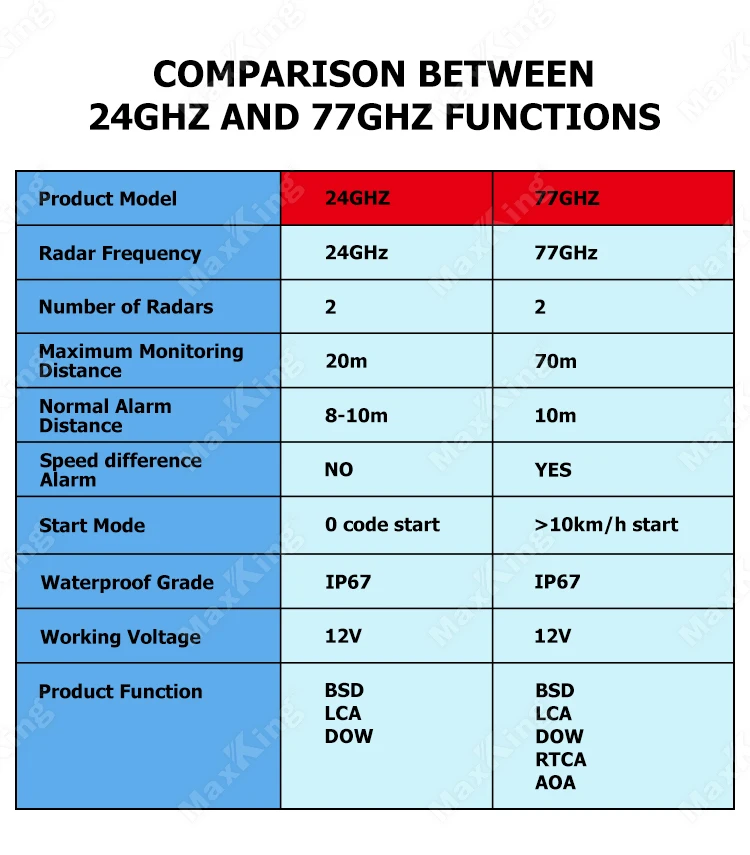

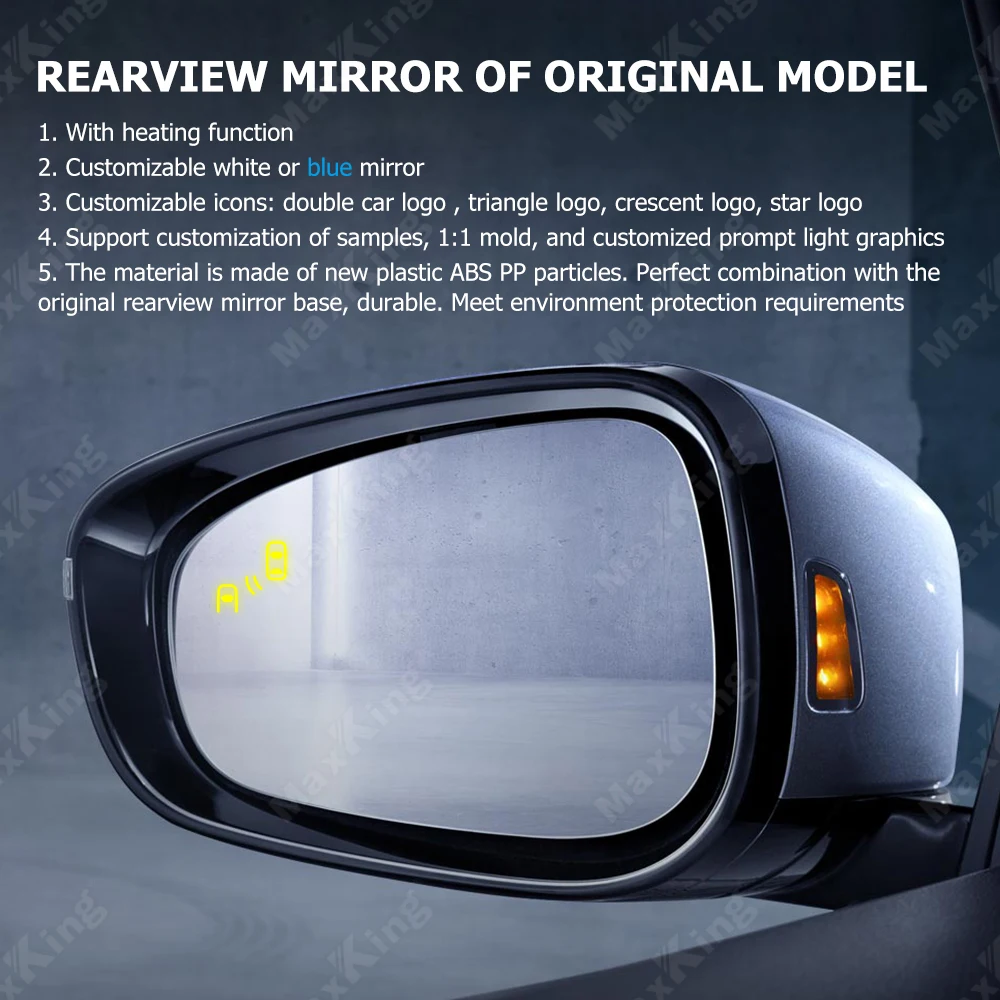

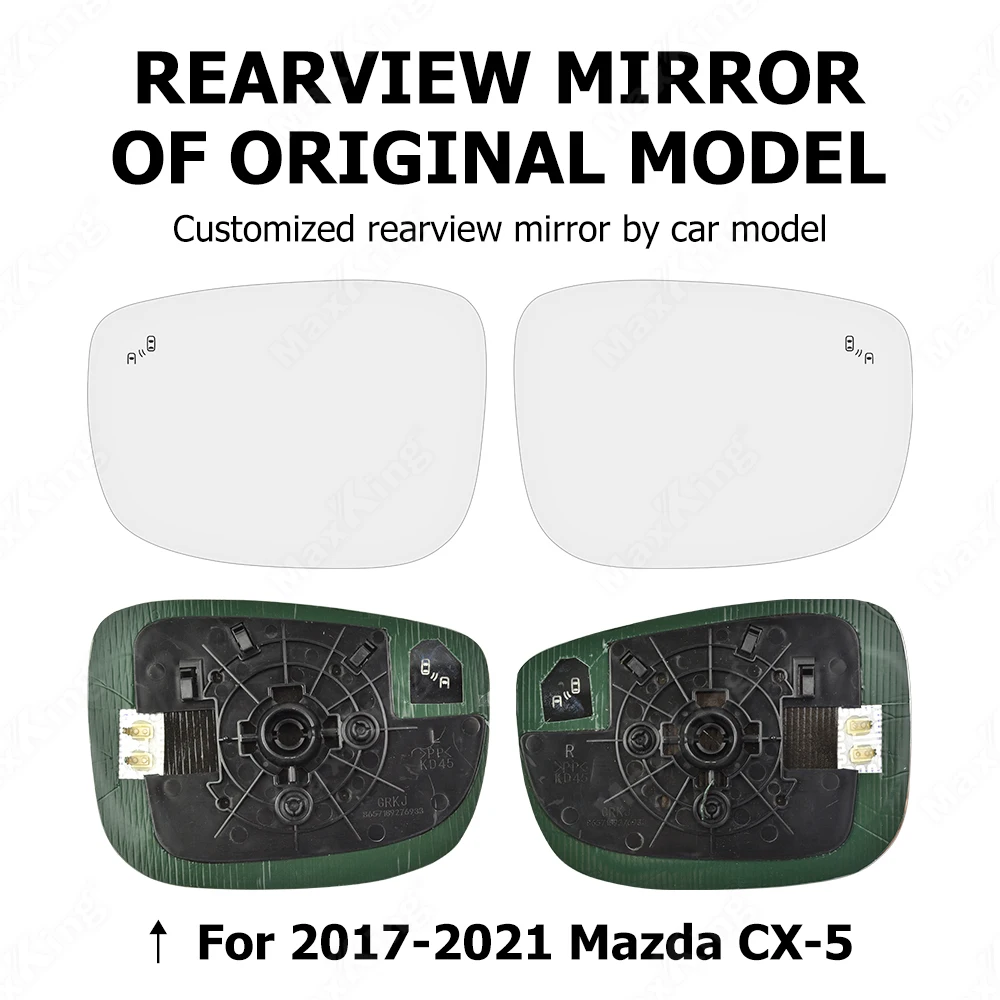

Original Model Rearview Mirror | Mazda CX-5 2017-2021 (Customized rearview mirror by car model) |
Radar Frequency | 77GHz |
Number of Radars | 2 |
Maximum Monitoring Distance | 70M |
Normal Alarm Distance | 10M |
Speed difference Alarm | YES |
Start Mode | >10km/h start |
Waterproof Grade | TP67 |
Working Voltage | 12V |

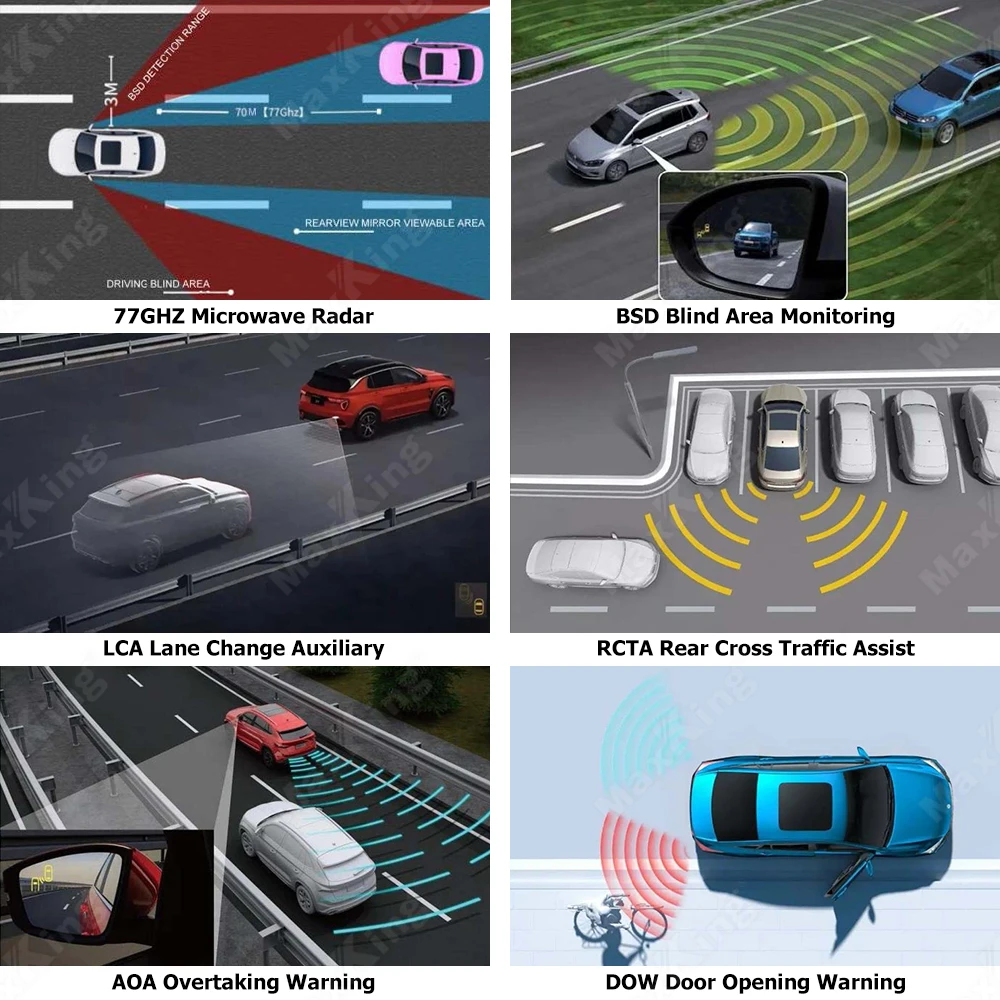

Function | 1. BSD: Blind Spot Monitoring 2. LCA: Lane Change Auxiliary Vehicle Approaching Warning 3. DOW: Door Opening Warning 4. RTCA: Rear Cross Traffic Assist 5. AOA: Overtaking Warning |
*There may be some differences on different spare parts. Please adhere to the actual product instead.
How it works?
*Standard System is activated automatically when you turn on ignition, LED indicator turns on if sensor detects another vehicle or motorcycle in adjacent lane coming closer. If you switch on turn signal on the same side when object is detected, LED indicator will flash, and you will also hear 3 beeps.
*BSD System is activated automatically when vehicle speed is more than 10Km/h (speed limit can be different as per factory setting), LED indicator turns on if sensor detects another vehicle or motorcycle in the next lane coming closer. If you switch on turn signal at the same side when object is detected, LED indicator will flash, and you will also hear 3 beeps. If you switch on emergency button (both sides turn signals turn on), system will not send warning signals. When vehicle speed is lower than 10Km/h, system will stop work.
*Standard System is activated automatically when you turn on ignition, LED indicator turns on if sensor detects another vehicle or motorcycle in adjacent lane coming closer. If you switch on turn signal on the same side when object is detected, LED indicator will flash, and you will also hear 3 beeps.
*BSD System is activated automatically when vehicle speed is more than 10Km/h (speed limit can be different as per factory setting), LED indicator turns on if sensor detects another vehicle or motorcycle in the next lane coming closer. If you switch on turn signal at the same side when object is detected, LED indicator will flash, and you will also hear 3 beeps. If you switch on emergency button (both sides turn signals turn on), system will not send warning signals. When vehicle speed is lower than 10Km/h, system will stop work.
