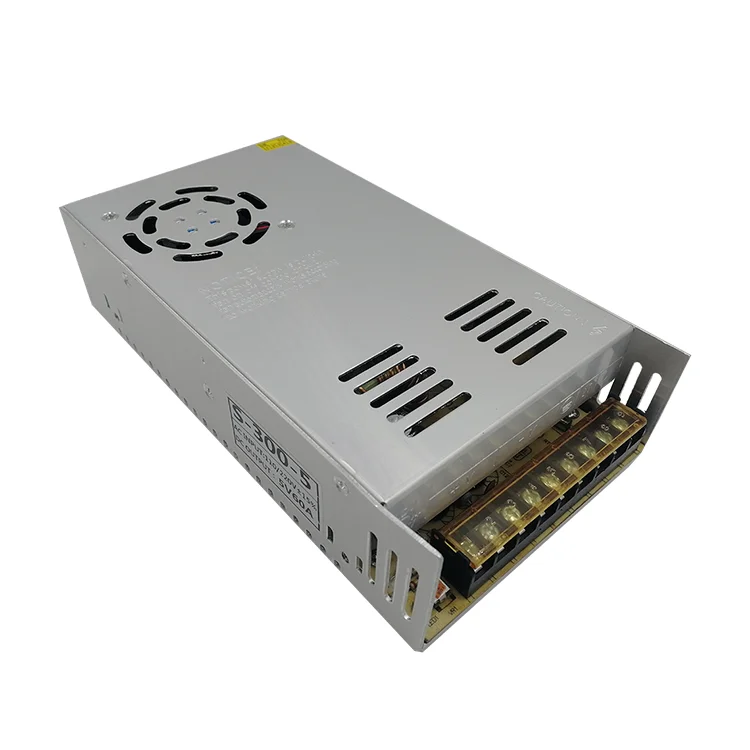

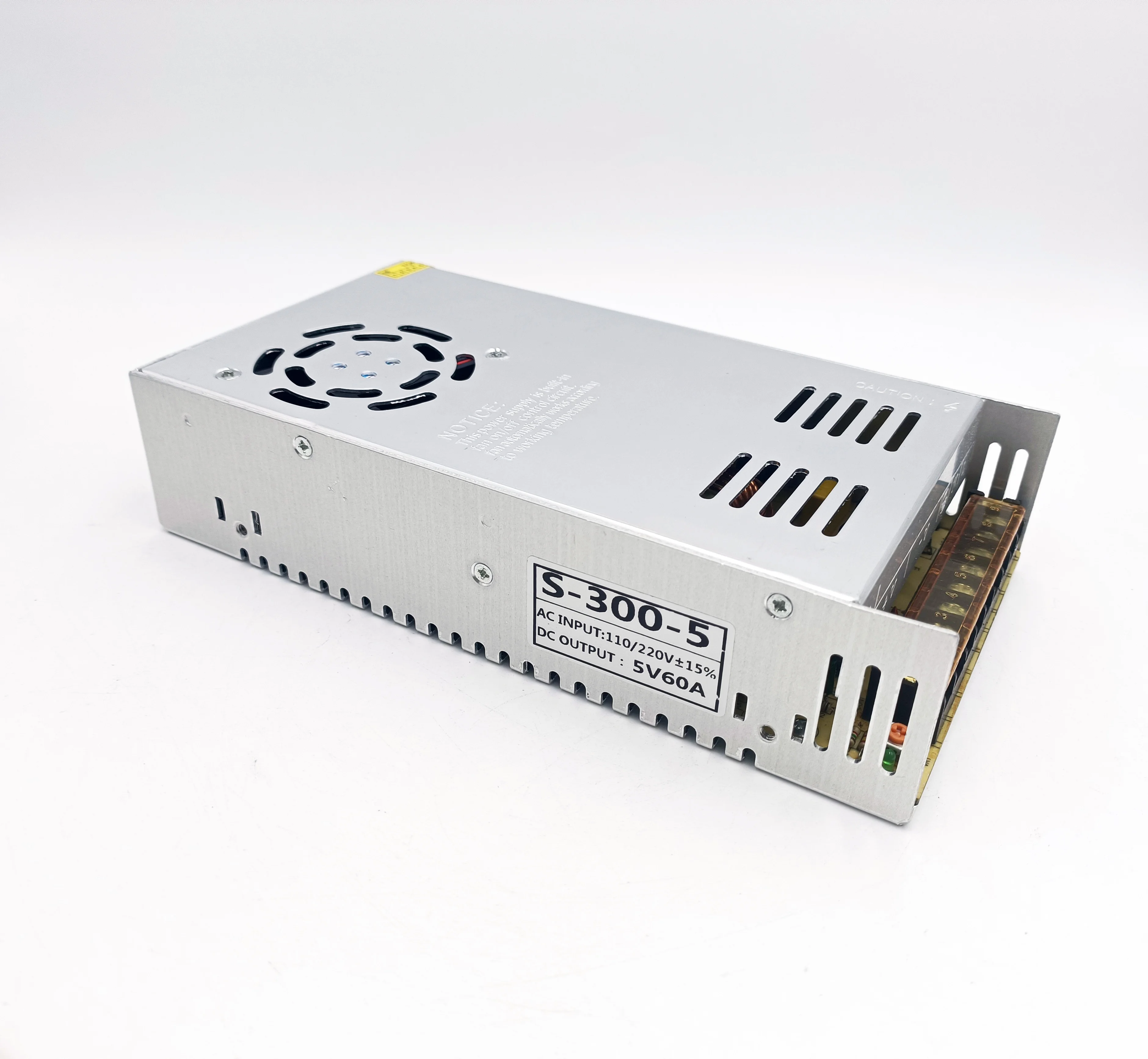

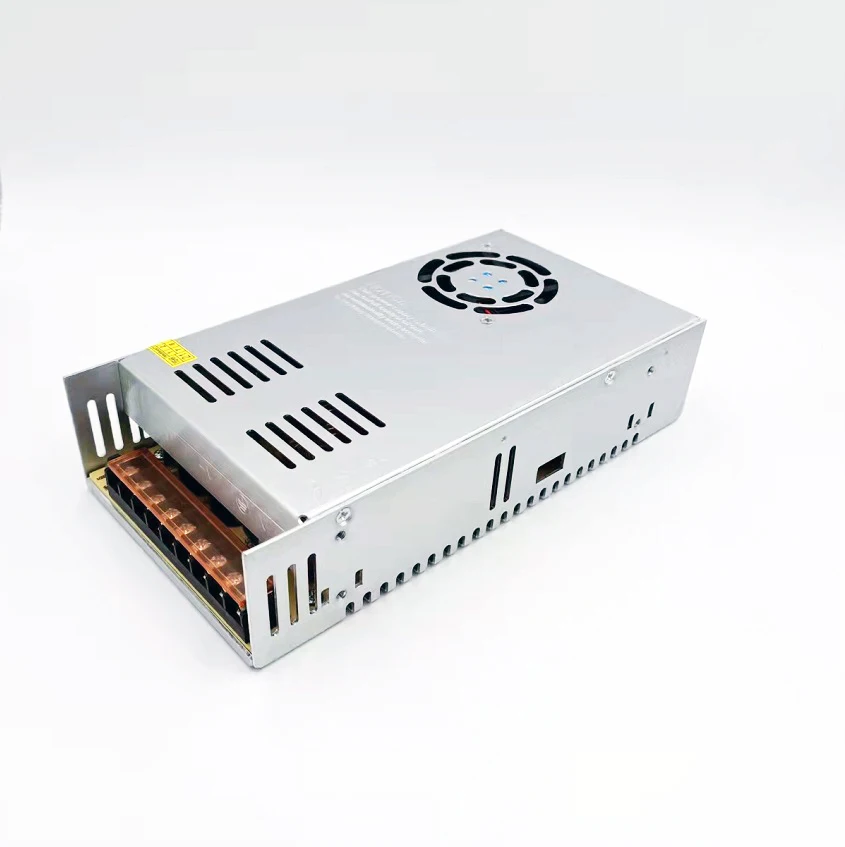

Factory directly sell 110/220VAC To DC 5v 60a 300w switching power supply
- Category: >>>
- Supplier: Guangzhou Yuxiang Electronic Technology Co. Ltd.
Share on (1600936639134):
Product Overview
Description
Product Description
110v/220vac IP20 5v 40a 60a 70a 200w 300w 350w led Switching power supply
DC Output | DC Voltage: 5V |
DC Current : 60A | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
AC Input | AC Voltage Range: 85-264VAC |
Frequency Range: 47-63Hz | |
Efficiency:87% | |
AC Current: 0.86/115V 0.4A/230V | |
AC Inrush Current: 20A/115V 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC |

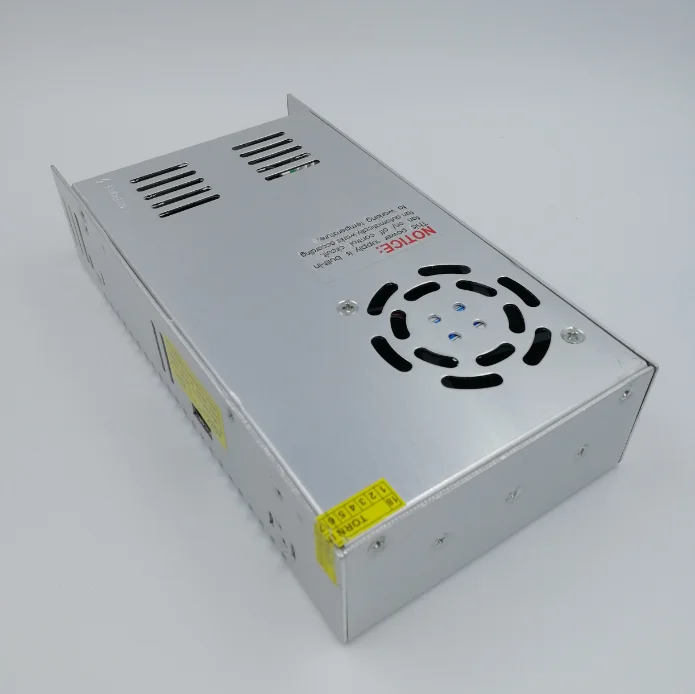

Detailed Images
Related Products

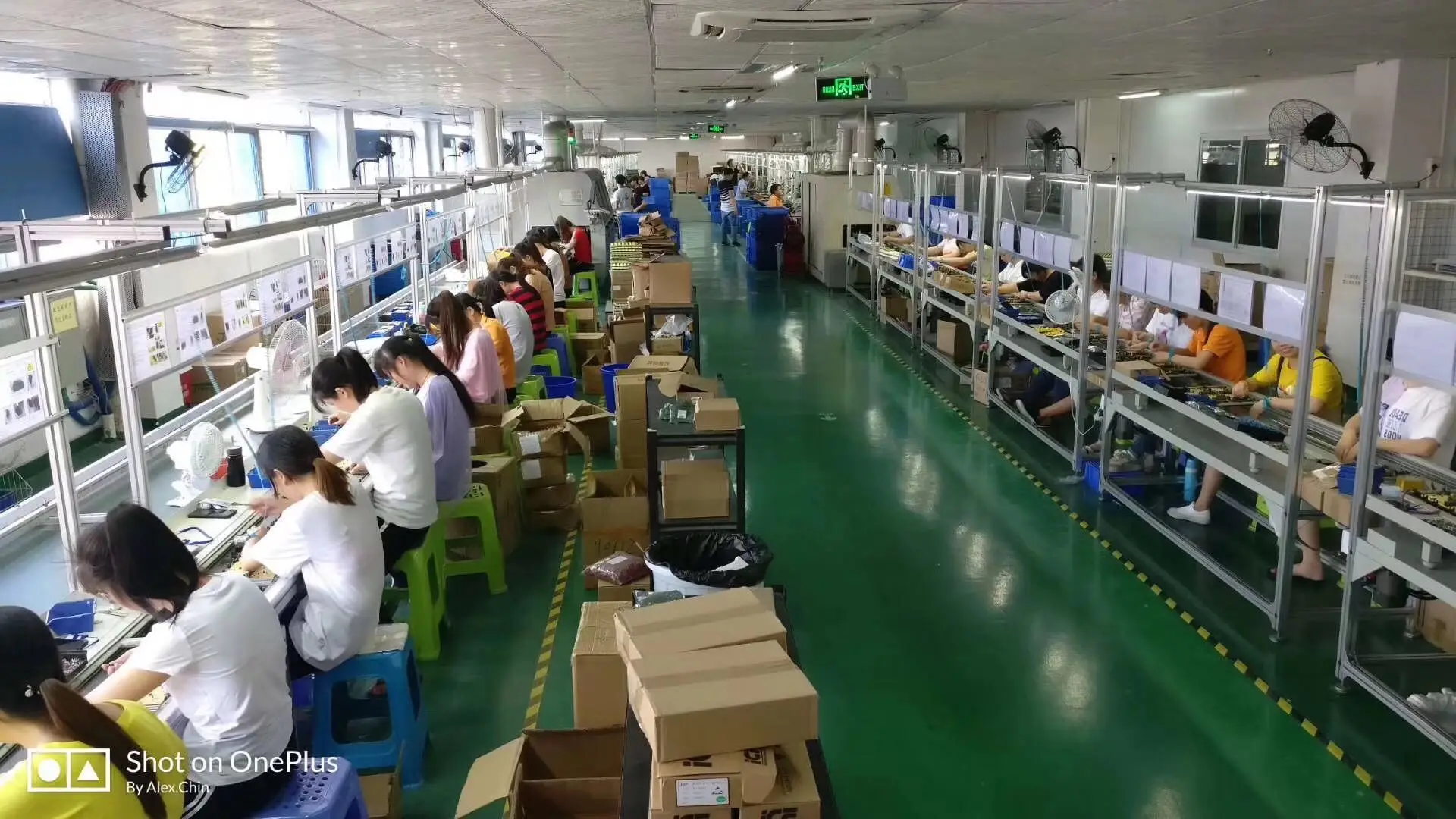

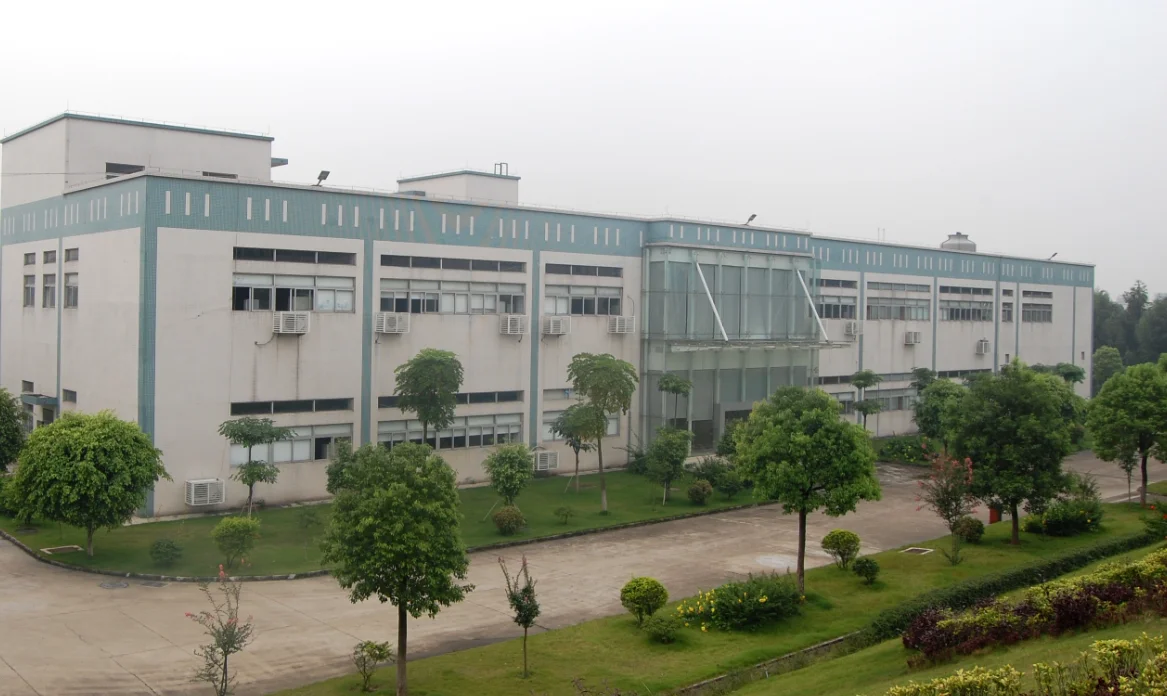

Company Information

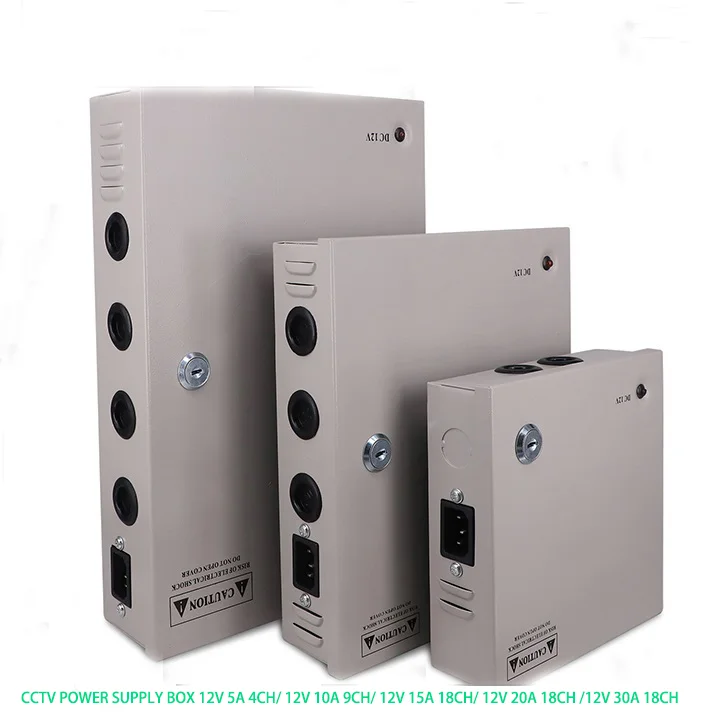

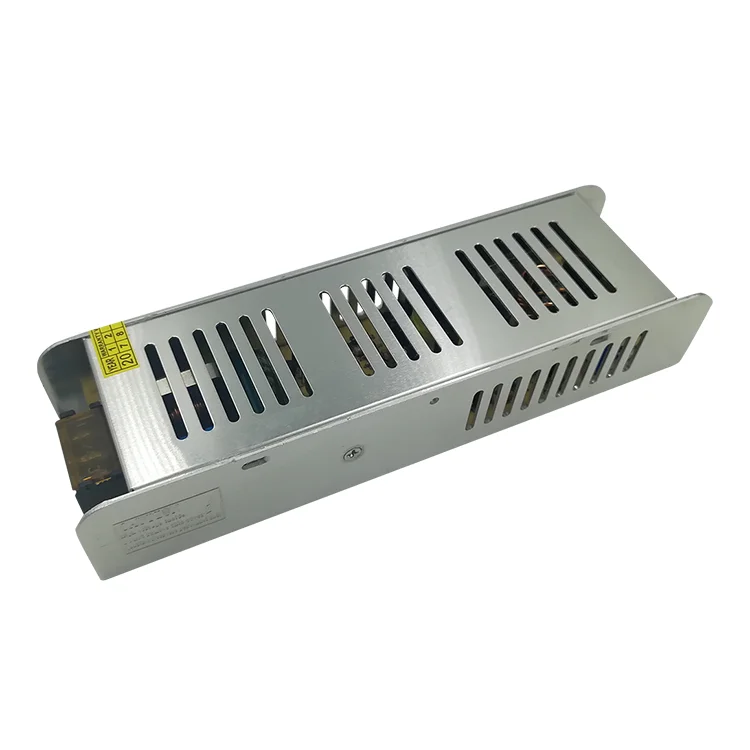

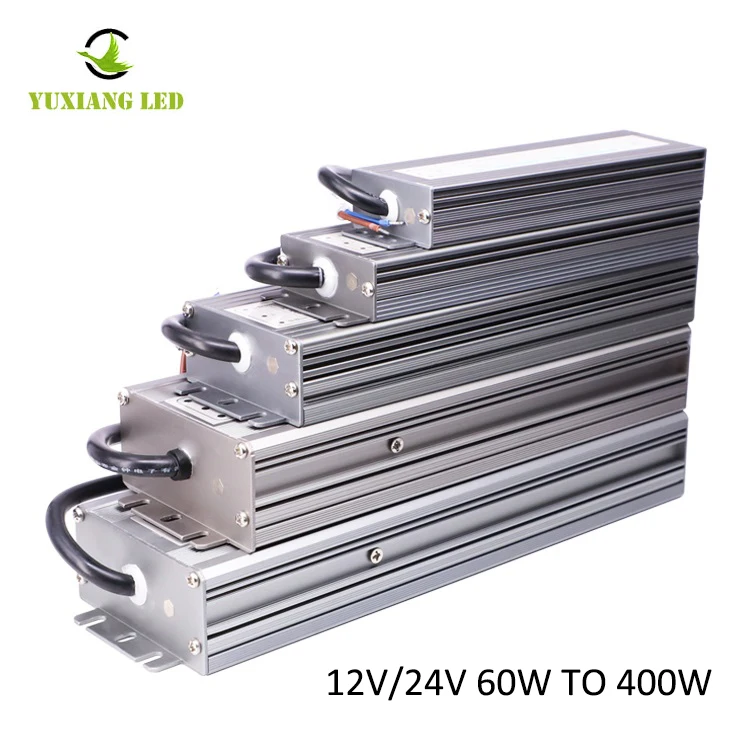

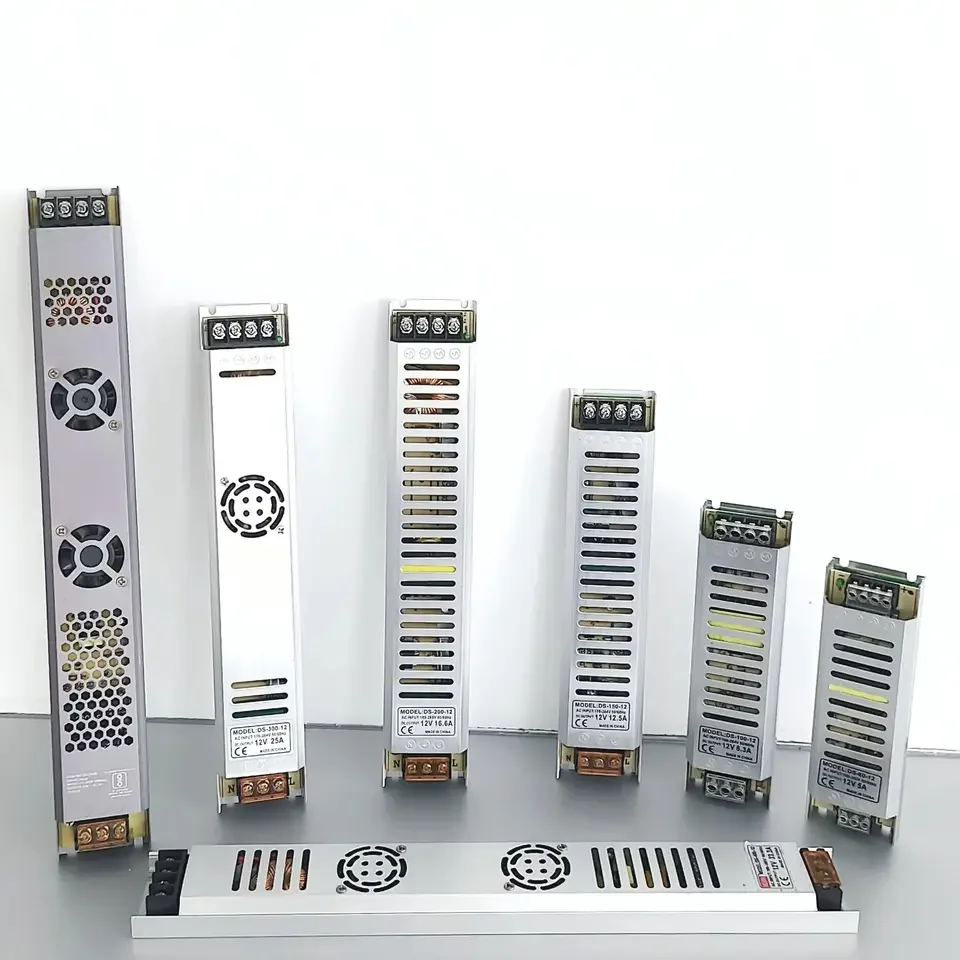

Guangzhou Yuxiang Electronic Technology Co.,Ltd. established in 2013, Yuxiang has accumulated years of professional experience in manufacturing Switching Power supplies. main products covering indoor IP20 Standard switching power supply, CCTV power supply box, slim switching power supply, IP67 waterproof power supply, rain-proof power supply etc.
Our power supply are widely used in led display screen, led illumination & Lighting, security system and other industrial field.
The products are sold to overseas markets such as Southeast Asia, Middle East, Africa, Europe, South America and many other countries and regions.

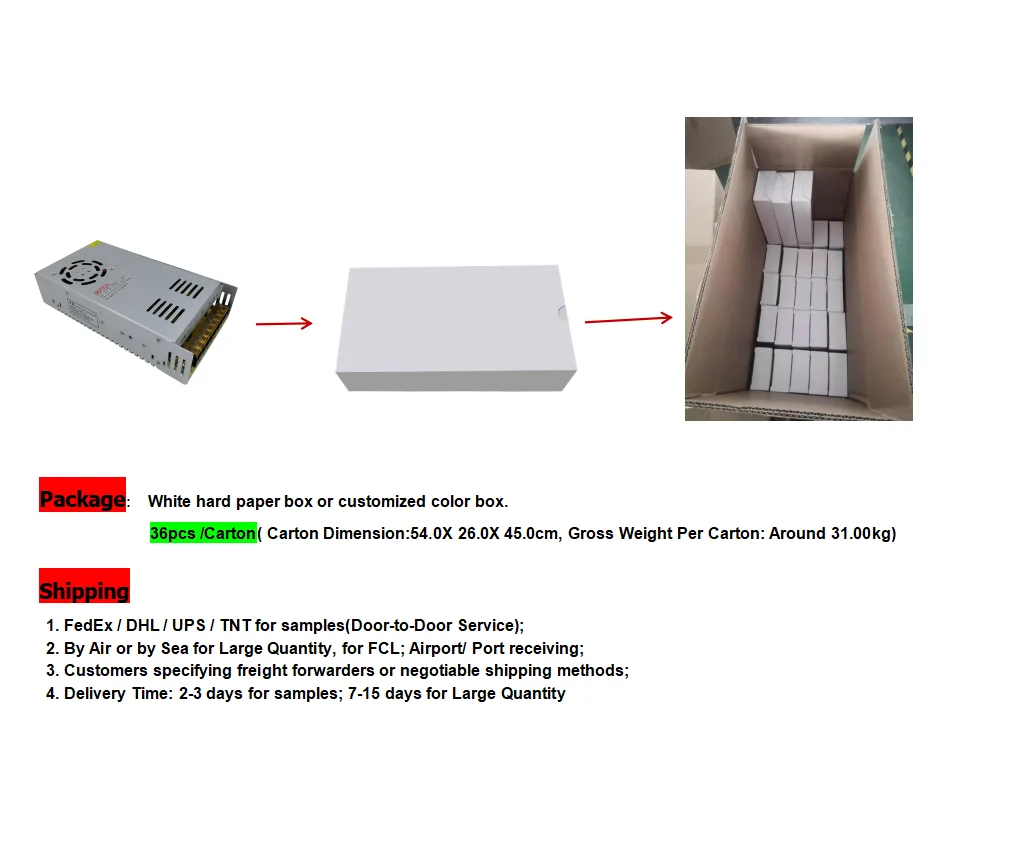

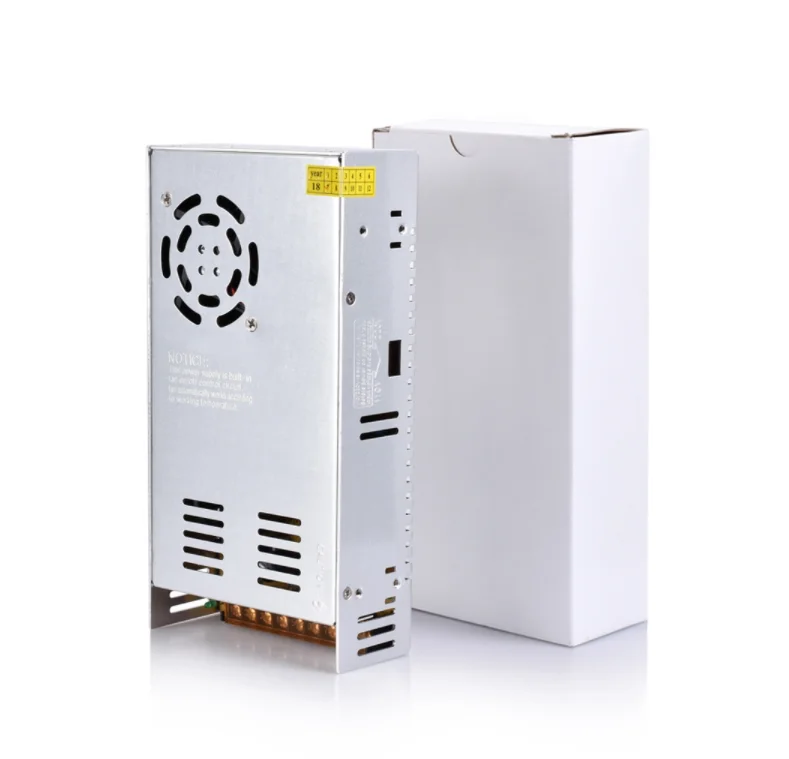

Packaging & Shipping
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality with competitive price.
Q3: What is your MOQ of switch power?
A3: Our MOQ is 1 piece
Q4:How many year warranty of your Led driver?
A4: Two years
Q5: Do you offer free sample?
A5: Yes, We can offer free sample, but you need pay the shipping cost.
Q6: Is your power with copper transform or something?
A6: We can do with complete copper transform and copper cladding aluminum.
Advantages
- Customized design is available,OEM&ODM are welcome
- Focuses on switching power supply industry for around 10 years
- Strict quality control, products with 2~3 years warranty
- Reply your enquiry within 24 working hours
