Eako sport IWF barbell bar 2.2m 20kg 190K PSI to 240K PSI 400lbs to 2000lbs IWF Weightlifting Bar for man
- Category: >>>
- Supplier: Nantong Eako Sports Industrial Co. Ltd.
Share on (1600937084726):
Product Overview
Description
Products Information
Standard configuration 4 ： | ||||||||
Product name: | IWF Barbell【Weightlifting bar】 | Bearings: | Needle bearings 10 pcs 【D2】 | |||||
Product model: | 1313 | Bushings: | Copper bushings 2 pcs 【E1】 | |||||
Tensile strength: | 190,000 PSI 【A4】 | Finish of bar: | Hard chrome plating 【F7】 | |||||
Load capacity: | 1500 lbs 【A4】 | Finish of sleeve: | Hard chrome plating 【F14】 | |||||
Material of sleeve: | 1020 【B1】 | NW/GW: | 20kg / 22kg 【H2】 | |||||
Material of bar: | 42CrMo Alloy steel 【A4 From Chinese directly under the central enterprises】 | |||||||
Standard (enterprise standard: Q/EK 13-2023)
The product applies all technical contents of Section 3.1 of Competition of International Weightlifting Federation (IWF).
Customization options
A : Information on materials of bar.

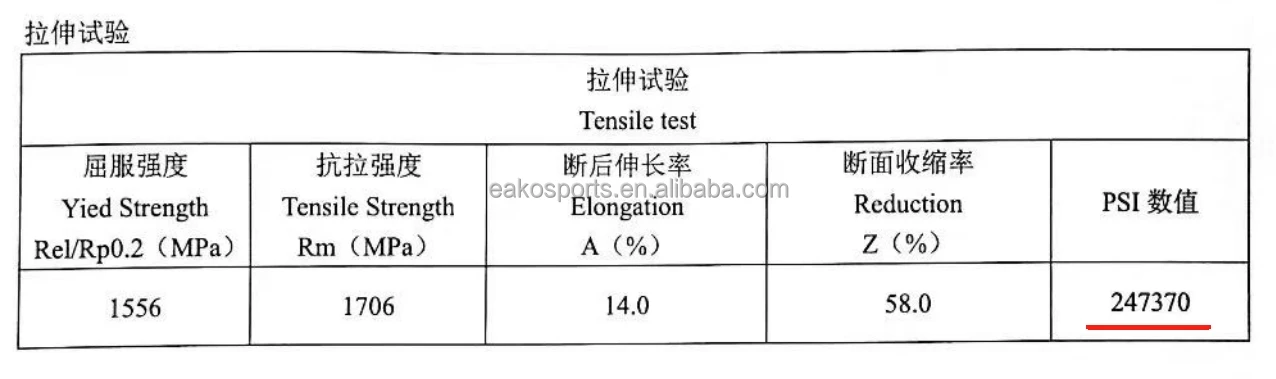

“No.A6” & “No.A7” : We have collaborated with the China lron and Steel Research Institute tocustomize specifically for barbell bar products. We have adjusted and optimized the elements and composition ratio of thismaterial, The mechanical properties are better than those of the other materials. | ||
No. | The customer can choose the corresponding material | Tensile strength | Load capacity |
□A1 | 1045 Carbon steel (Equal to S45C steel and C45 steel) | 135,000 PSI | 400 LBS |
□A2 | 1045 Carbon steel (Heat treatment) | 135,000 PSI | 700 LBS |
□A3 | 40Cr Alloy steel | 165,000 PSI | 1000 LBS |
□A4 | 42CrMo Alloy steel | 190,000 PSI | 1500 LBS |
□A5 | 2Cr13 Stainless steel | 190,000 PSI | 1500 LBS |
□A6 | Custom stainless steel | 205,000 PSI | 2000 LBS |
□A7 | Custom alloy steel | 240,000 PSI | 2000 LBS |
B : Information on materials of sleeve.
No. | Materials |
□B1 | 1020 (Equal to Q235 steel and A3 steel) |
□B2 | SUS 304 Stainless steel |

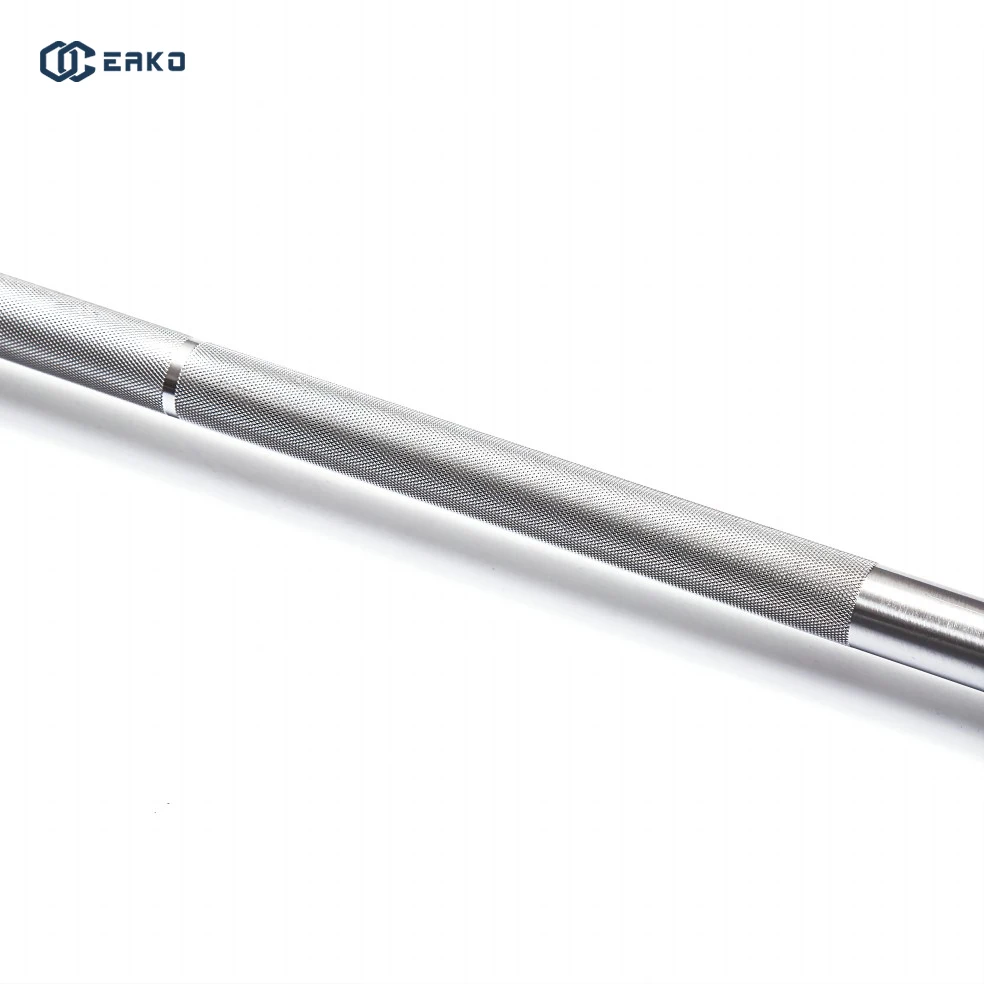

C : Information on size of knurling.
Mountain P1.5mm
Volcano P1.5mm.
Volcano P1.2mm.
D : Information of needle bearings.
No. | Information： |
□D1 | General quality, does not affect the use. |
□D2 | Medium quality, good rotation, conventional configuration. |
□D3 | High quality, excellent rotation, long service life. |
Qty | □4 □6 □8 □10 (Total quantity of 2 sides) |

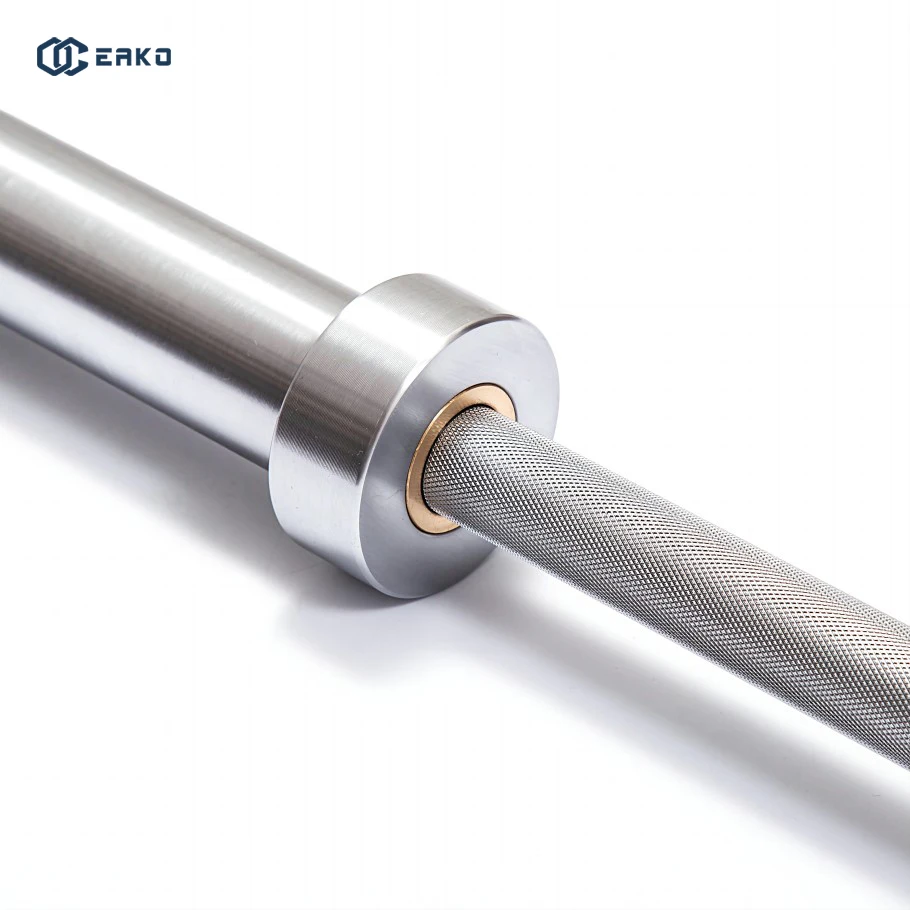

E : Information of Bushings.
□E1：Brass bushing.
□E2：Stainless steel bushing.

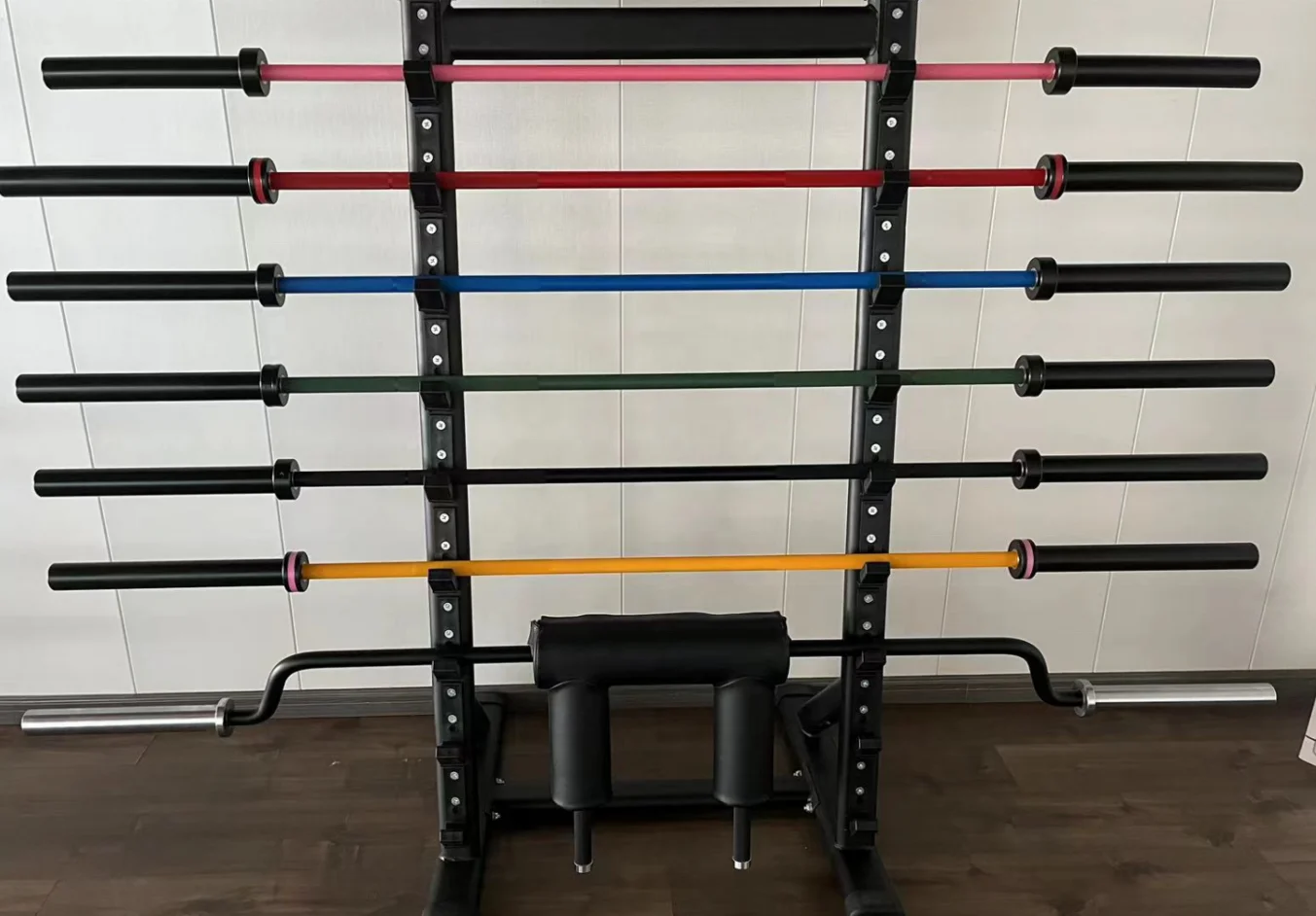

F : Information of surface treatment.
No. | Colors | Surface treatment of bar | No. | Colors | Surface treatment of sleeve | |
□F1 | Black bar | Black chrome plating | □F9 | Black sleeve | Black chrome plating | |
□F2 | Black bar | Plating black zine | □F10 | Black sleeve | Black oxide | |
□F3 | Black bar | Black oxide | □F11 | Black sleeve | Black phosphating | |
□F4 | Black bar | Black phosphating | □F12 | Black sleeve | QPQ (Quench Polish Quench) | |
□F5 | Black bar | Teflon resin | □F13 | Silver sleeve | Bright chrome plating | |
□F6 | Silver bar | Bright chrome plating | □F14 | Silver sleeve | Hard chrome plating | |
□F7 | Silver bar | Hard chrome plating | ||||
□F8 | Colour bar | Powder coated |
All surface treatments comply with the limited value of transferable elements to ensure that there will be no damage to human skin, We can provide SGS test reports.

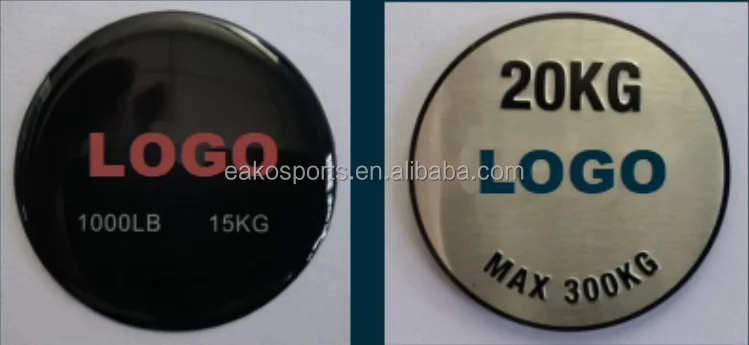

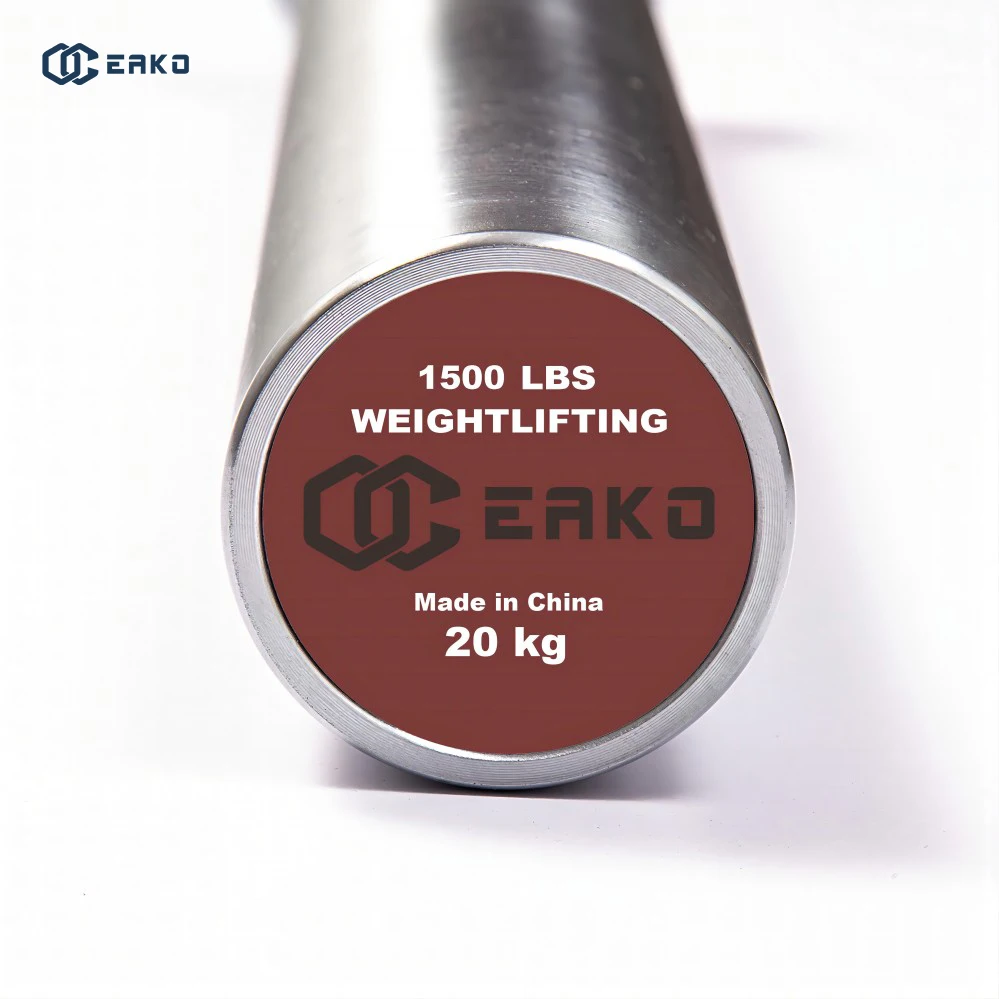

G : Information of logo.
Logo content can be customized according to customer requirements (and colours).
□G1 : Plastic logo□G2 : Aluminium logo
□G3 : No logo

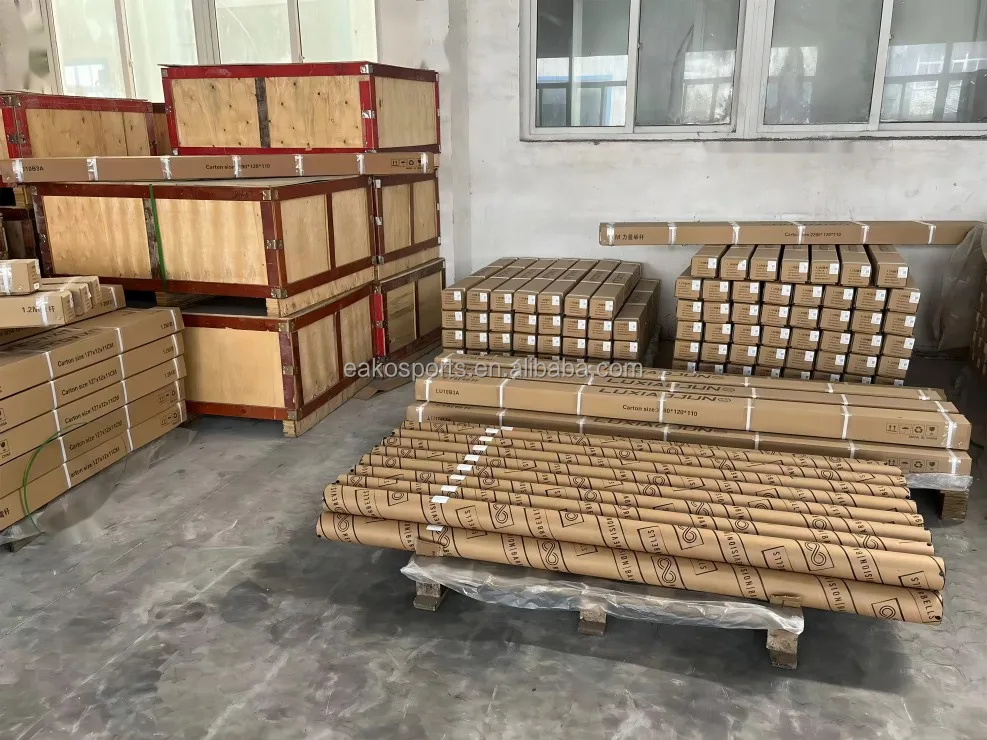

H : Information of packing.
□H1：Carton+EPE+Poly bag+Wooden pallet.
L2280mm×W120mm×H110mm.
□H2：Paper tube+Poly bag+Wooden case.
L2240mm×φ90×T5mm.

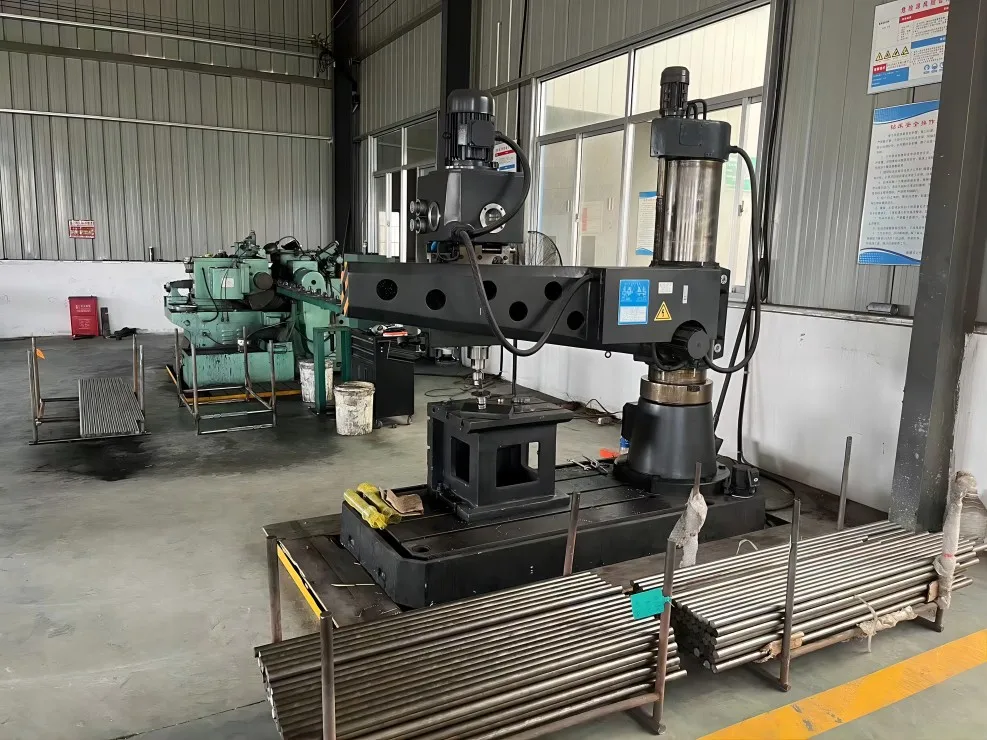

Manufacturing Technique
Point of maximum stress.
The use of high quality copper bushing or stainless steel bushing can effectively reduce the product use stress.
Concentricity.
The inner holes at both ends of the sleeve take turning operation by
double-head lathe to ensure the oncentricity of the product.
Transport protection.
After the rod surface treatment, a specific pallet is used to ensure that the products will not bump against each other during transportation.
Quality Control
Standard: ISO 9227 Salt spray test. The corrosion protection and aging properties of the product are tested by salt spray test. | Standard: ISO 9227 | |
Corrosion tests in artificial atmospheres--Salt spray tests. | ||
Internal control standard: ≥72h and meet evaluation of the corrosion test results of the metal deposits for the light industrial products level 9. | ||
Standard: Q/EK 10-2023 Hardness test. Rockwell hardness tester for the steel surface heat treatment hardness of products. | Standard: ISO 9227 | |
Execute according to the enterprise standard. | ||
Internal control standard: 42HRc - 47HRc. | ||
Standard: ISO 2409 Cross cut test. Test the adhesion ability of the product surface through Cross cut. | Standard: ISO 9227 | |
Internal control standard: meet level 2. | ||
Standard: ISO 2248 Drop test. Verify the protective ability of product packaging through drop testing. | Standard: ISO 9227 | |
Packing-Basic tests for transport packages—Part 17: General rules for the compilation of performance test. | ||
Internal control standard: Set the height for drop testing based on the total weight of the product packaging, with the testing positions being corners,edges,flat surface. | ||
Company Profile
Strictly follow the APQP process.
We can provide customers with OEM services！We have completed production organizational structure, For example: QA have
SQE、PQE、CQE、ISO、Lab, and strict quality control process for production.
SQE、PQE、CQE、ISO、Lab, and strict quality control process for production.
Provide the PPAP report for customer.
We can provide customers with ODM services！Eako R & D Department has perfect department organization structure and strict product development control process, such as product project team, product process team, product verification and confirmation team and technical data management.
