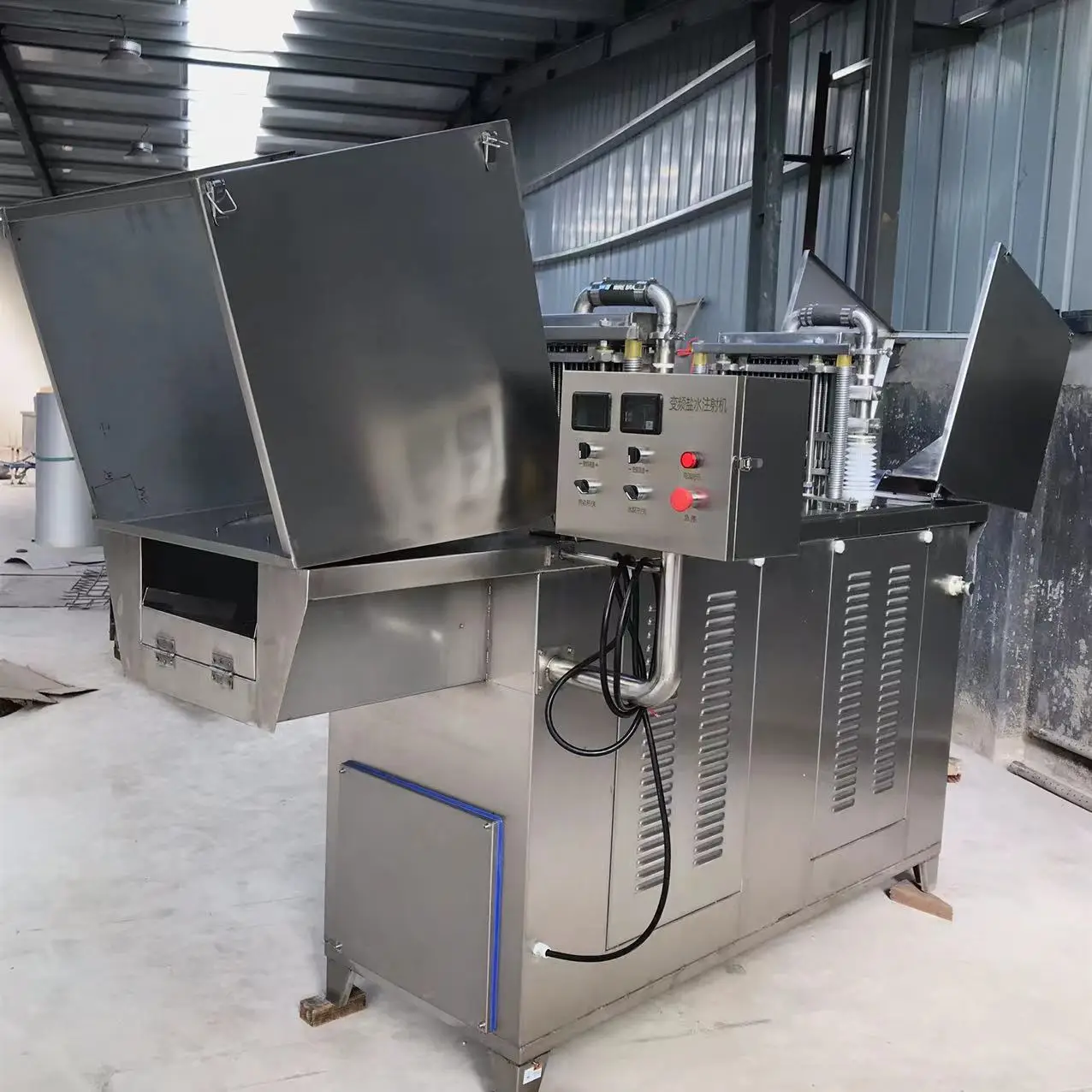

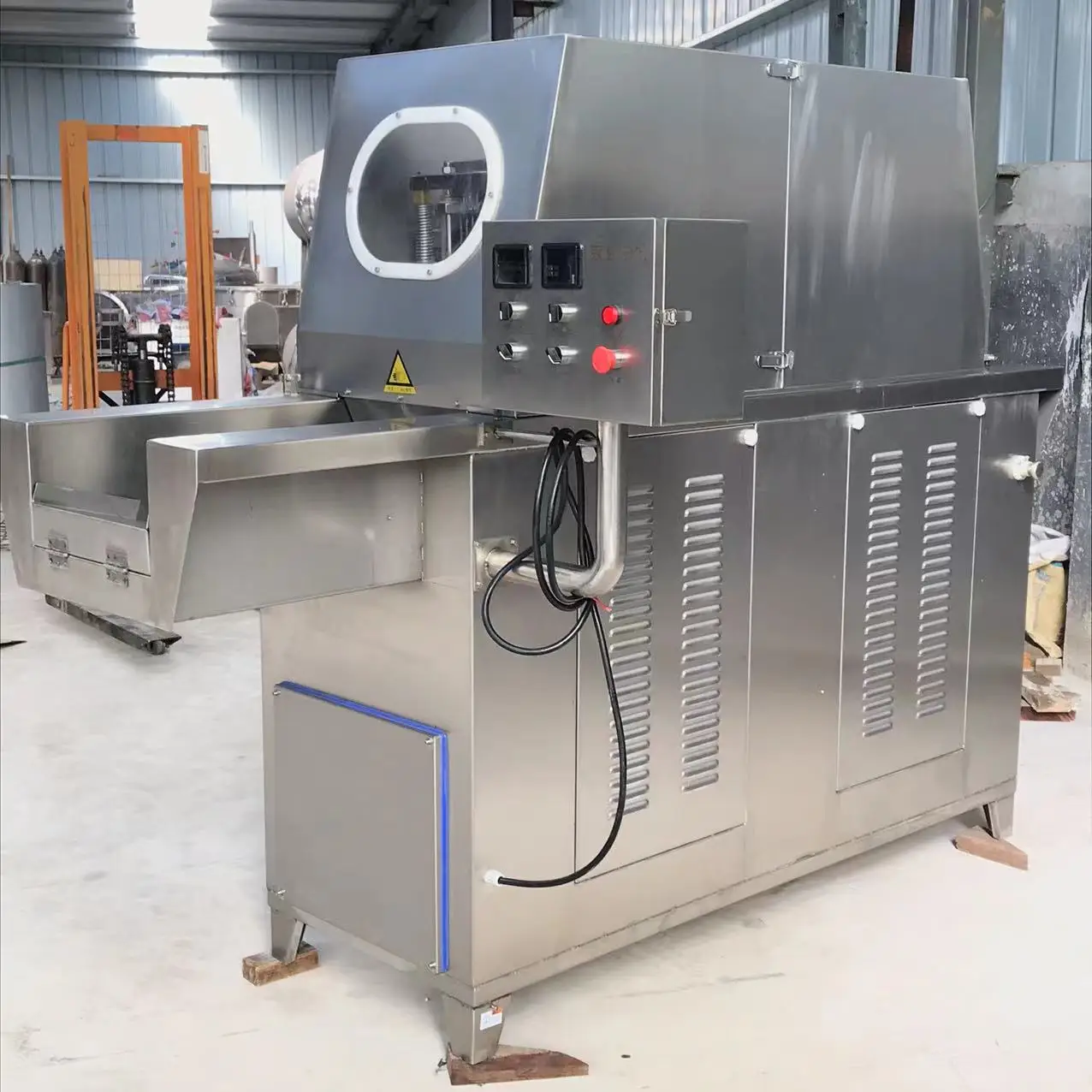

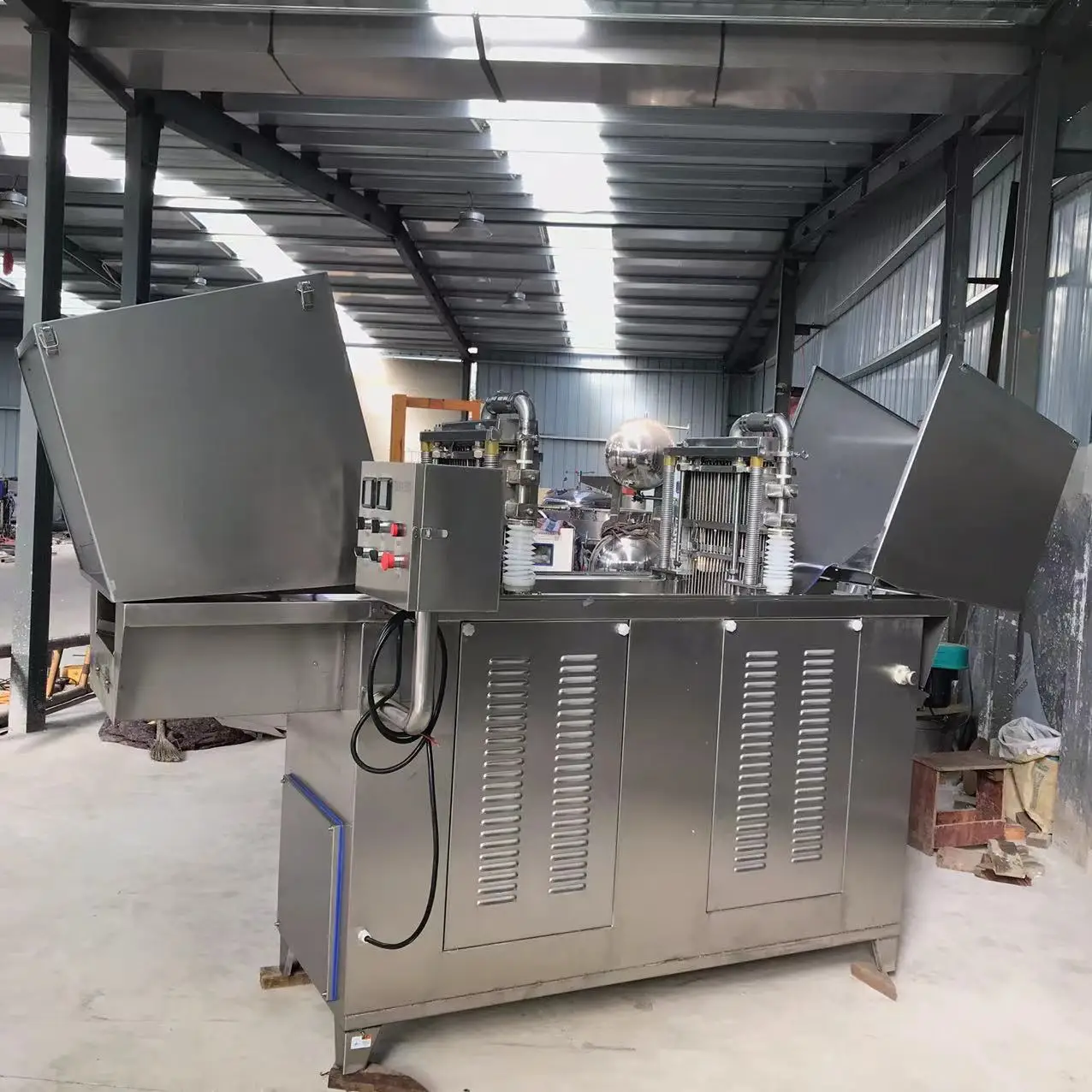

Morningstar meat chicken brine injector injectors saline injection machine chicken Meat Processing Machinery
- Category: >>>
- Supplier: Jinan Morningstar Machinery Equipment Co. Ltd.
Share on (1600937268734):
Product Overview
Description
Product Paramenters
Model | MS-ZS48 | MS-ZS80 | MS-ZS120 | MS-ZS160 |
Injection needle specifications | 2*3*4mm | 2*3*4mm | 2*3*4mm | 2*3*4mm |
Number of injection needles | 48 | 80 | 120 | 160 |
Injection pressure | 0.4~0.9Mpa | 0.4~0.9Mpa | 0.4~0.9Mpa | 0.4~0.9Mpa |
Injection speed（Needle/min） | 15~40 | 15~40 | 15~40 | 15~40 |
Conveyor speed（m/min） | 40~70 | 40~70 | 40~70 | 40~70 |
Power | 380V/2.6KW | 380V/3.4KW | 380V/4KW | 380V/5.5KW |
Dimension(mm) | 1300*980*1780 | 1650*1170*1780 | 1900*1350*1780 | 2100*1650*1780 |
Weight | 320KG | 360KG | 450KG | 520KG |
Production capacity(kg/h) | 300~500 | 500~700 | 700~900 | 900~1200 |
Product Description

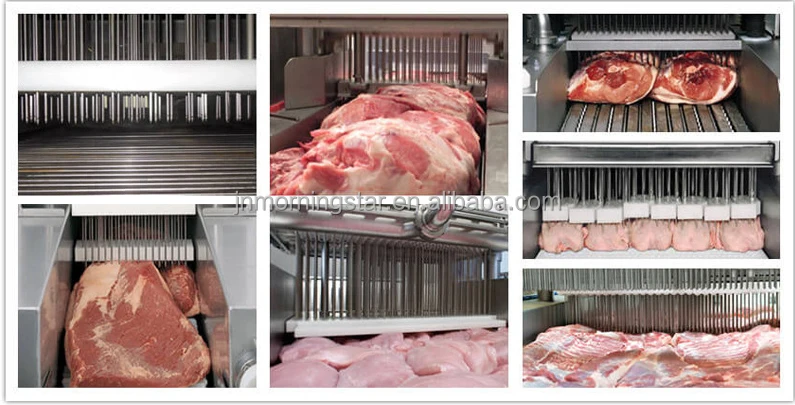

The salt water injection machine has a wide range of applications, mainly suitable for various meat food processing, conditioning product processing, seafood processing, fish protein injection, etc. The brine injection machine has a four-layer filtering function, which plays a good circulatory role in the processing process, reduces the clogging of the needle, increases the processing speed and the uniformity of the material and liquid injection, thereby increasing the output. The machine also has a bone injection induction function. When encountering a bone, only the needle that encounters the bone will stop the injection, and other needles will be processed normally, and will automatically be processed when the bone passes.
Product advantages:
1. This machine adopts high-quality stainless steel materials and uses stainless steel pumps, with reasonable design and easy maintenance.
2. In order to separate the injection machine and the small meat more thoroughly, the equipment is designed with four different filtering functions, which can remove the small meat from the injection in time, effectively ensuring that the injection needle hole is not blocked, and the transmission chain can be It is easy to disassemble and clean, easy to disassemble and assemble the needle, and easy to replace.
3. The injection pressure of this machine can be adjusted between 0.4-0.9MPa according to different products. The pressure gauge shows the injection pressure intuitively and conveniently.
4. This machine adopts variable frequency speed regulator, chain stepping distance and stepping speed and needle injection speed can be adjusted synchronously.
5. The machine is equipped with an automatic pillow protection device, and the injection needle can be lifted up when it hits a hard object to avoid damage.
6. In addition to meat processing, this equipment has been successfully applied to the injection processing of fish, sea cucumbers, poultry and other products by changing the needle.
Product advantages:
1. This machine adopts high-quality stainless steel materials and uses stainless steel pumps, with reasonable design and easy maintenance.
2. In order to separate the injection machine and the small meat more thoroughly, the equipment is designed with four different filtering functions, which can remove the small meat from the injection in time, effectively ensuring that the injection needle hole is not blocked, and the transmission chain can be It is easy to disassemble and clean, easy to disassemble and assemble the needle, and easy to replace.
3. The injection pressure of this machine can be adjusted between 0.4-0.9MPa according to different products. The pressure gauge shows the injection pressure intuitively and conveniently.
4. This machine adopts variable frequency speed regulator, chain stepping distance and stepping speed and needle injection speed can be adjusted synchronously.
5. The machine is equipped with an automatic pillow protection device, and the injection needle can be lifted up when it hits a hard object to avoid damage.
6. In addition to meat processing, this equipment has been successfully applied to the injection processing of fish, sea cucumbers, poultry and other products by changing the needle.
