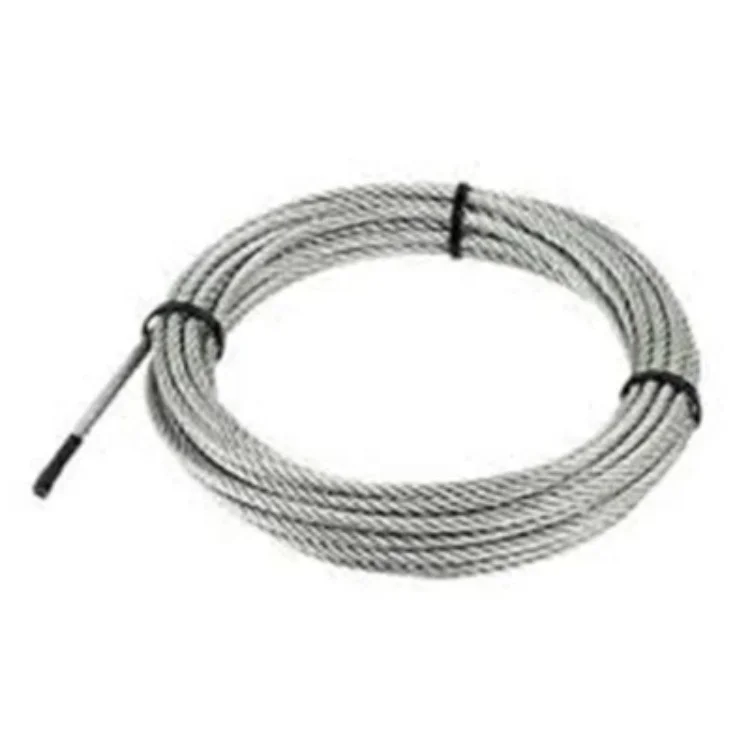

6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator
6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator

6x19 SS steel wire rope different sizes 1x7 7x7 1x19 7x19 Grade 304 316 50mm stainless steel wire rope for elevator

Share on (1600937345810):


Price:$1,680.00 - $2,280.00

Quantity:


Product Overview

Description





Product Parameter


Product Name
stainless steel 316 wire cable rope 7*7-1.5mm 201 304 grade stainless steel wire rope
wire gauge size
SWG(mm)
BWG(mm)
metric(mm)
8
4.06
4.19
4
9
3.66
3.76
-
10
3.25
3.4
3.5
11
2.95
3.05
3
12
2.64
2.77
2.8
13
2.34
2.41
2.5
14
2.03
2.11
-
15
1.83
1.83
1.8
16
1.63
1.65
1.65
17
1.42
1.47
1.4
18
1.22
1.25
1.2
19
1.02
1.07
1


Wire Diameter（mm)
Tolerance（mm）
Maximum deviation in diameter（mm）
0.020-0.049
0.001
0.001
0.050-0.074
±0.002
0.002
0.075-0.089
±0.002
0.002
0.090-0.109
0.001
0.002
0.110-0.169
±0.003
0.003
0.170-0.184
±0.004
0.004
0.185-0.199
±0.004
0.004
0.-0.299
±0.005
0.005
0.300-0.310
±0.006
0.006
0.320-0.499
±0.006
0.006
0.500-0.599
±0.006
0.006
0.600-0.799
±0.008
0.008
0.800-0.999
±0.008
0.008
1.00-1.20
±0.009
0.009
1.20-1.40
±0.009
0.009
1.40-1.60
±0.010
0.01
1.60-1.80
±0.010
0.01
1.80-2.00
±0.010
0.01
2.00-2.50
±0.012
0.012
2.50-3.00
±0.015
0.015
3.00-4.00
±0.020
0.02
4.00-5.00
±0.020
0.02


AISI Material
Chemical Composition (%)
Grade
C
Si
Mn
P
S
Ni
Cr
Mo
Ti
304
<0.08
<1.0
<2.0
<0.035
<0.03
8~10
17~19
-
-
304L
<0.03
<1.0
<2.0
<0.04
<0.03
9~13
18~20
-
-
304HC
<0.06
<1.0
1.2-1.8
<0.035
<0.03
8~11
17~19
-
-
316
<0.08
<1.0
<2.0
<0.04
<0.03
10~14
16~18
2.0~3.0
-
316L
<0.03
<1.0
<2.0
<0.04
<0.03
12~15
16~18
2.0~3.0
-
310S
<0.08
<1.5
<2.0
<0.04
<0.03
19~22
24~26
-
-
321
<0.08
<1.0
<2.0
<0.045
<0.03
9~13
17~19
-
>0.035
301
<0.15
<1.0
<2.0
<0.04
<0.03
>7
16~18
-
-
302
<0.15
<1.0
<2.0
<0.04
<0.03
>8
17~19
-
-


Product Show

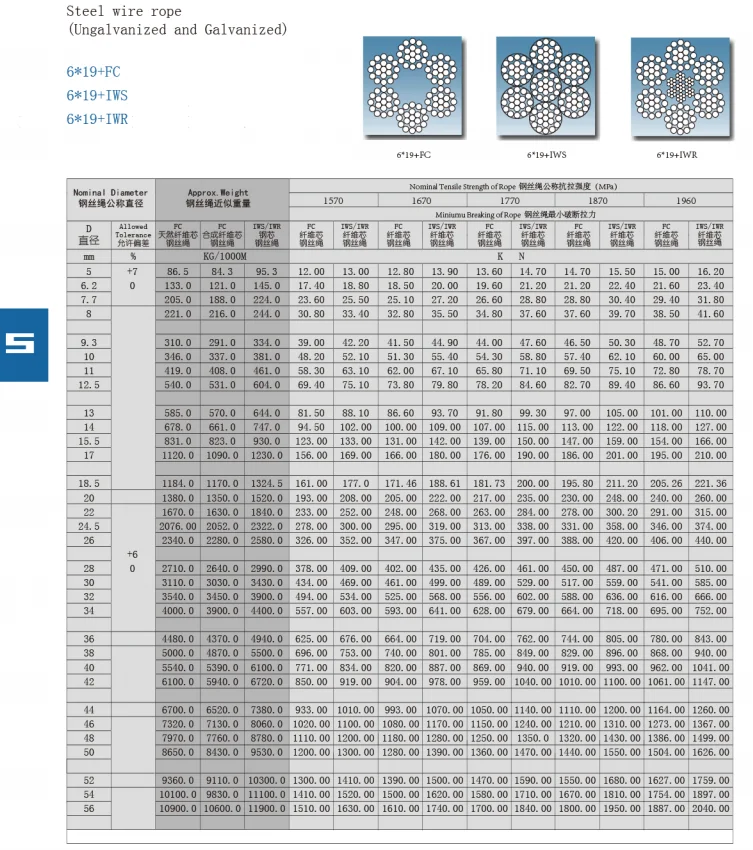

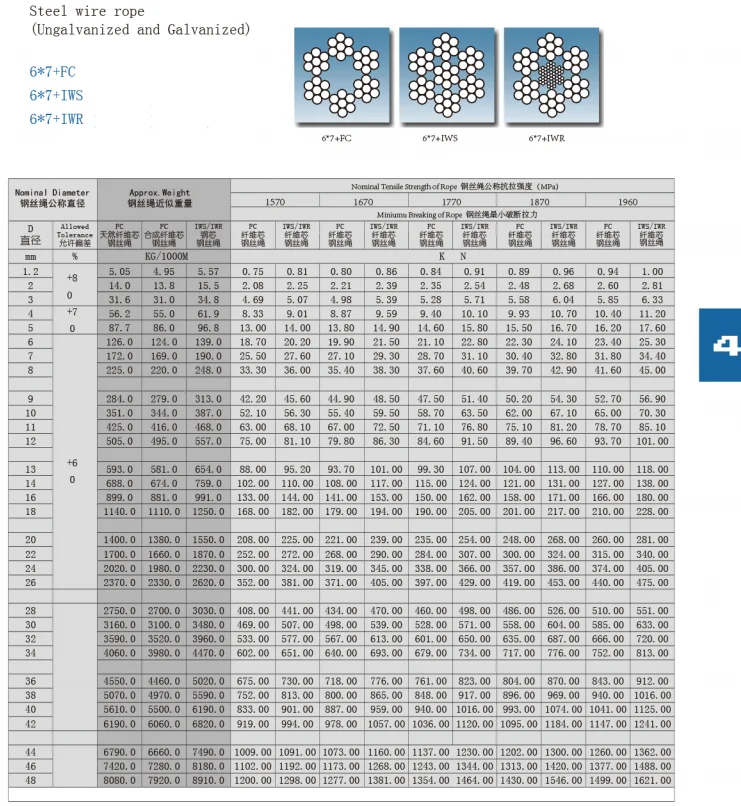

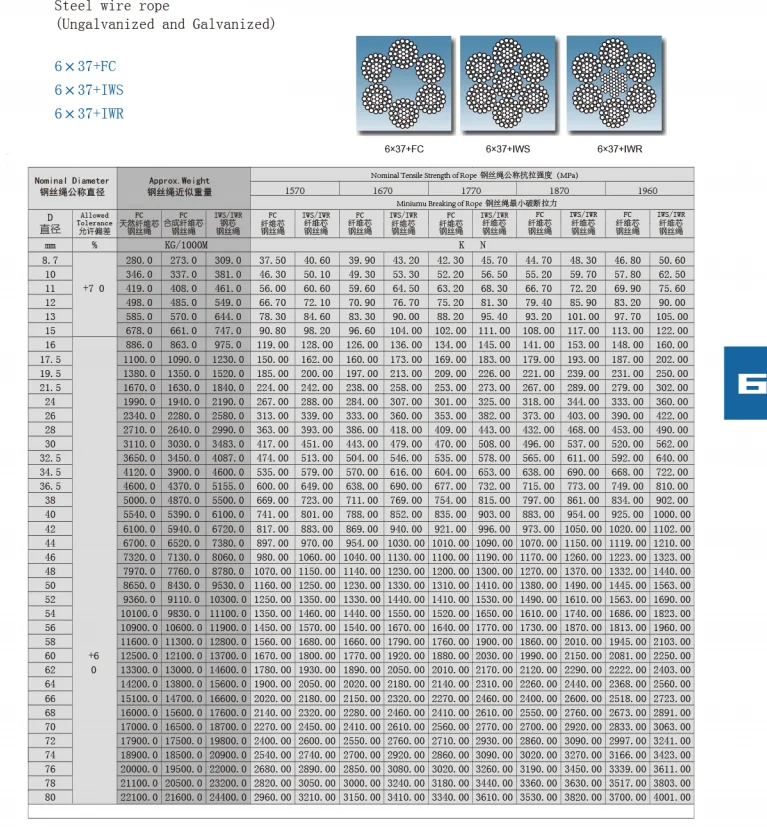

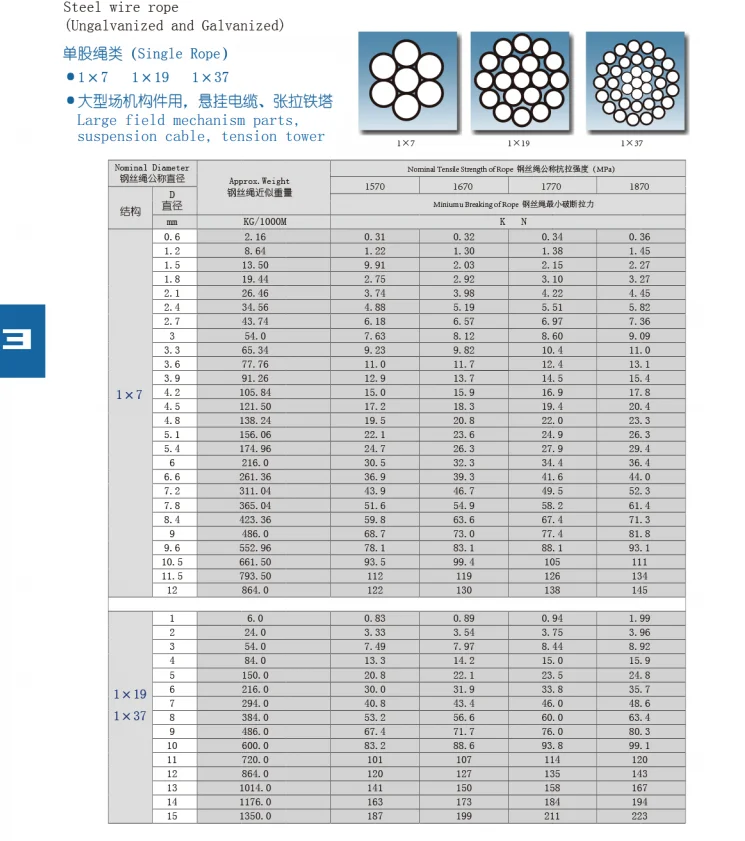

Stainless steel wire ropes are classified according to structure. The typical structures are: 1x3, 1x7, 1x19, 3x7, 6x7, 6x19(a), 6x19(b), 8x19.
Stainless steel wire rope has many characteristics such as high temperature resistance, good fatigue resistance, excellent breaking tension, long service life, and durability. It is widely used in coal, petroleum, metallurgy, chemical industry, ships, bridges, electric power, rubber, military industry, tourism, water conservancy , light industry and other industries, the products can be produced according to ISO, BS, DIN, JIS, ABS, LR and other international and foreign advanced standards.

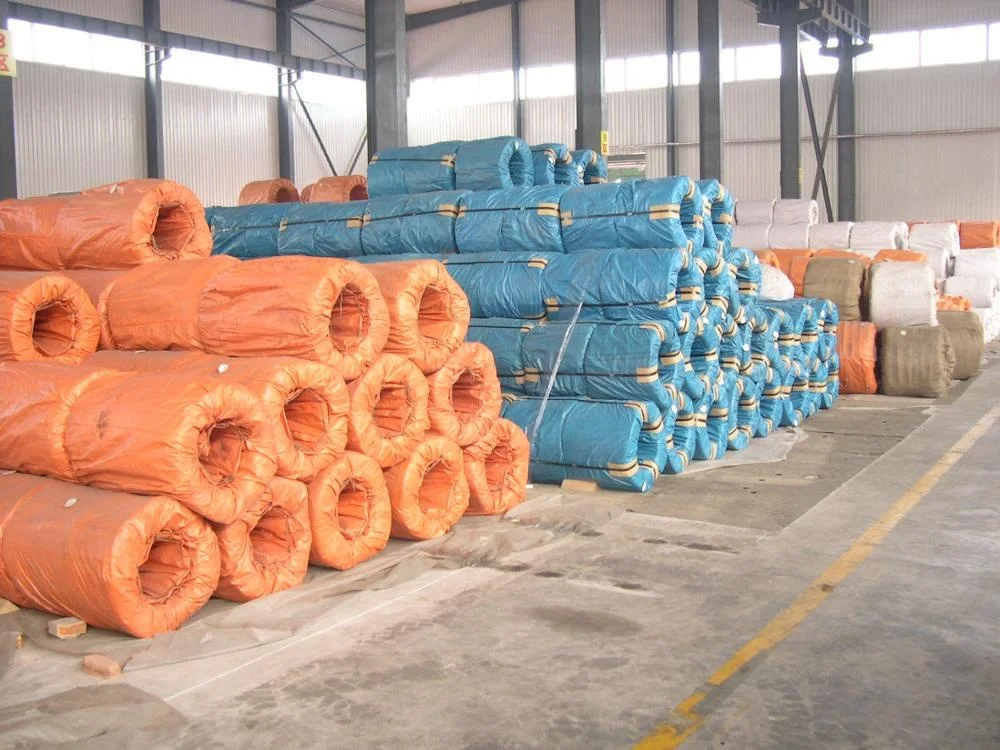

Packing & Delivery

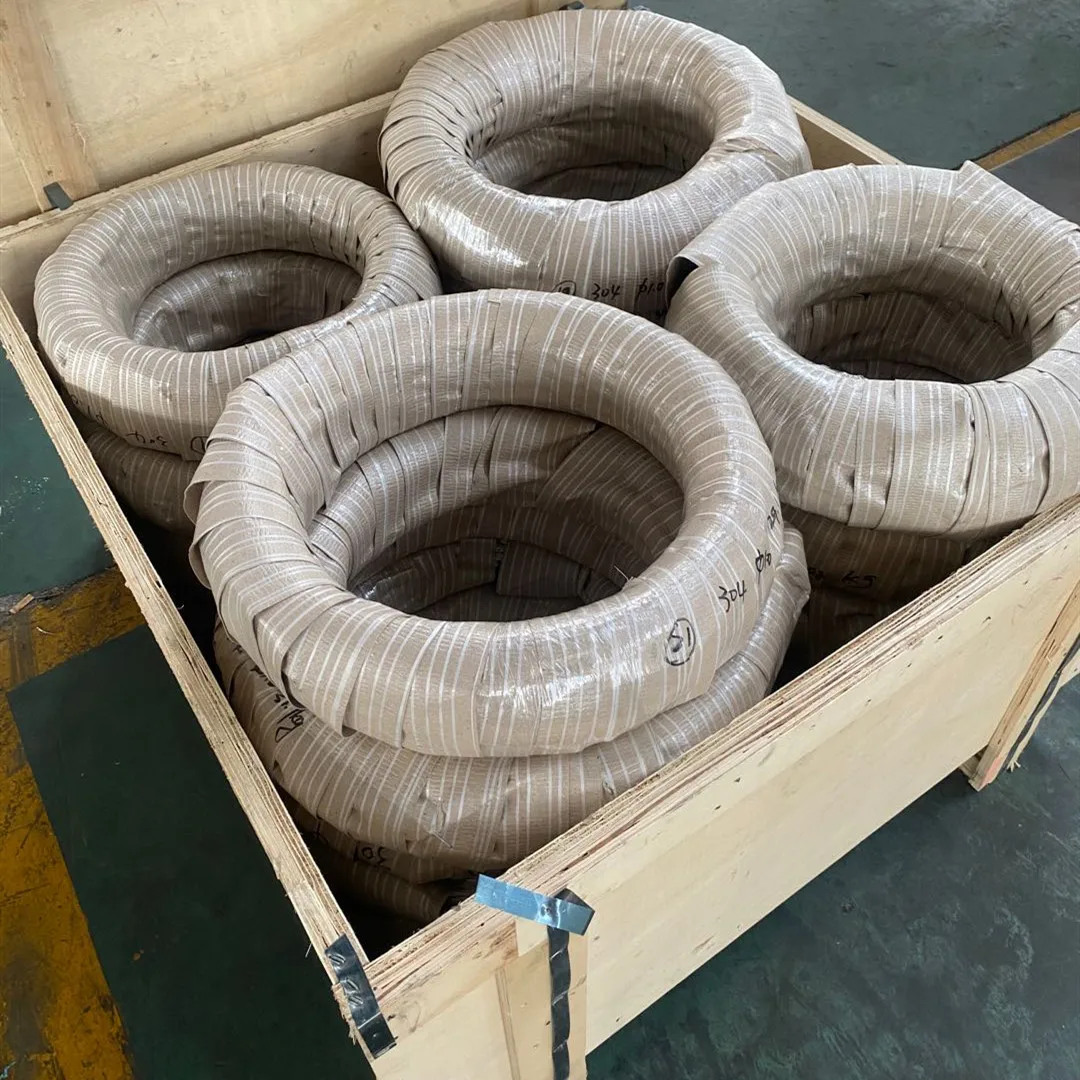

Packaging Details: The standard export wooden drum or as the requirements of clients
Delivery Details: Shipping will be 15days after advance payment
We have the professional lashing&packaging team to ensure the cargos tighted and secured when transporting




Company Profile




Shandong Chengshun Metal Material Co., LTD We are a professional manufacturer engaged in the research, development, production, sale and service.Our main products include PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc . Main market distributes in North America, South America, Africa, Southeast Asia as well as Oceania. Up to now, we have established long-term and win-win partnership with many large steel manufacturers, such as Baosteel, Laiwu Steel, Rizhao Steel, Handan Iron and Steel, Angang and Maanshan Iron and Steel. Sincerely wish to build a long and regular business with you forever.


Customer Visit




Over the years, Shandong Chengshun Metal Material Co., LTD has established long-term friendly relations of cooperation with many customers from all over the world. Every year, many famous purchasers come to our factory to do Investigation, and our products have been recognized by them.




Other Hot Selling Products




FAQ


1. Q: Are you a factory or trading company?
A: We are a Chinese manufacture of steel pipes with both factories and trading companies.

2. Q: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

3. Q:what is your delivery time?
A:The time of delivery is usually around 1 month. We can send out in 3 days if it has stock.

4. Q:What is your payment terms?
A:Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble EXW, FOB, CFR, CIF.

5.Q:What do your factory do regarding quality control?
A:We have gained ISO, CE,API authentication. From material to products, we inspect each process to keep good quality.

6. Q:How can you ensure what I got will be good?
A: Alibaba will act as our guarantor. If the product fails the inspection before leaving the factory, you can refuse to accept the goods.

7. Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; we respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.
Please leave your enquiry in the message box at the bottom of the product page and click SEND, online salesman will contact you at once.
