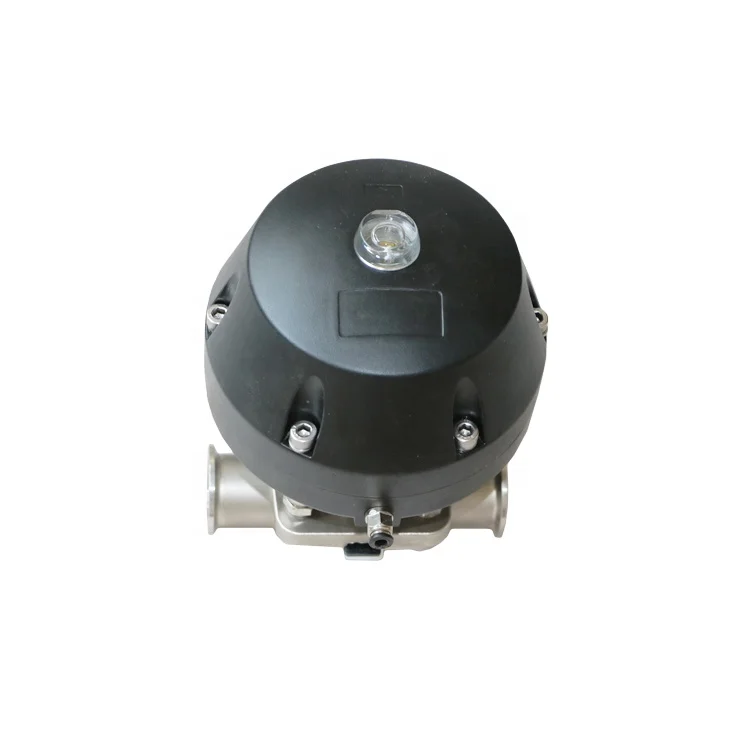

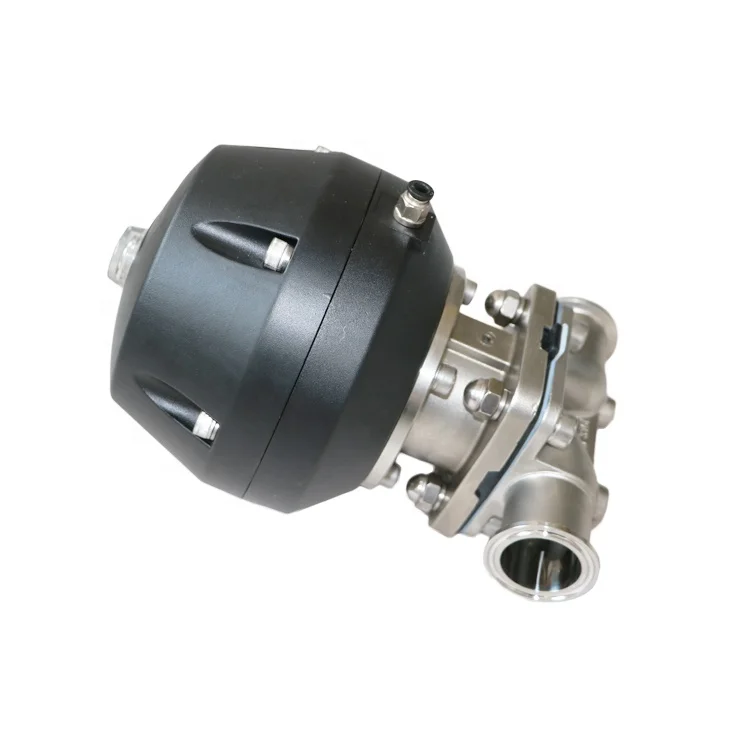

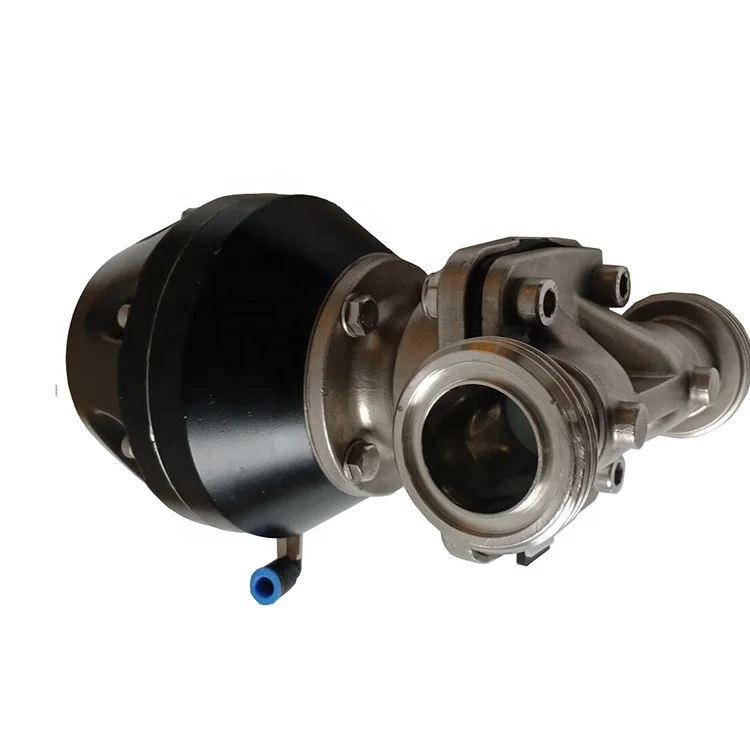

1.5INCH SS316 Pneumatic Direct 2 way Clamped Sanitary Diaphragm Valve
The diaphragm provides the body seal and the seat seal. There are no paths to the external environment. So the valve is suitable for aseptic processes.
As the valve is closed, a pressure pad which supports the diaphragm moves towards the sealing face on the body. As the pressure plate moves down, the diaphragm flexes and is forced down onto the seat area in the center of the body thus closing off the flow path through the pipeline.
The valve can be operated manually or pneumatically and controlled by control tops and solenoid valves.
When the diaphragm valve have the requirement to clean or open, the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally bend upwards, so that the valve is open and reach the requirement of clean and open.
As the valve is closed, a pressure pad which supports the diaphragm moves towards the sealing face on the body. As the pressure plate moves down, the diaphragm flexes and is forced down onto the seat area in the center of the body thus closing off the flow path through the pipeline.
The valve can be operated manually or pneumatically and controlled by control tops and solenoid valves.
When the diaphragm valve have the requirement to clean or open, the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally bend upwards, so that the valve is open and reach the requirement of clean and open.
Product Name | 1.5INCH SS316 Pneumatic Direct 2 way Clamped Sanitary Diaphragm Valve | ||||||
Body Material | SS316 | ||||||
Inside Surface treatment | Ra<0.5μm. | ||||||
Outside Surface treatment | Sandblast polish | ||||||
Seat Material | Silicone, EPDM, EPDM+ PTFE | ||||||
Connection method | Clamped, Threaded, Welded, Flanged | ||||||
Size | DN20 to DN65, other size can be customized | ||||||
Norms | DIN/SMS/3A/ISO/IDF/RJT/BPE/DANSK | ||||||
Working Pressure | 0-10 bar | ||||||
Application | Food, beverage, dairy, chemical fields, etc | ||||||
