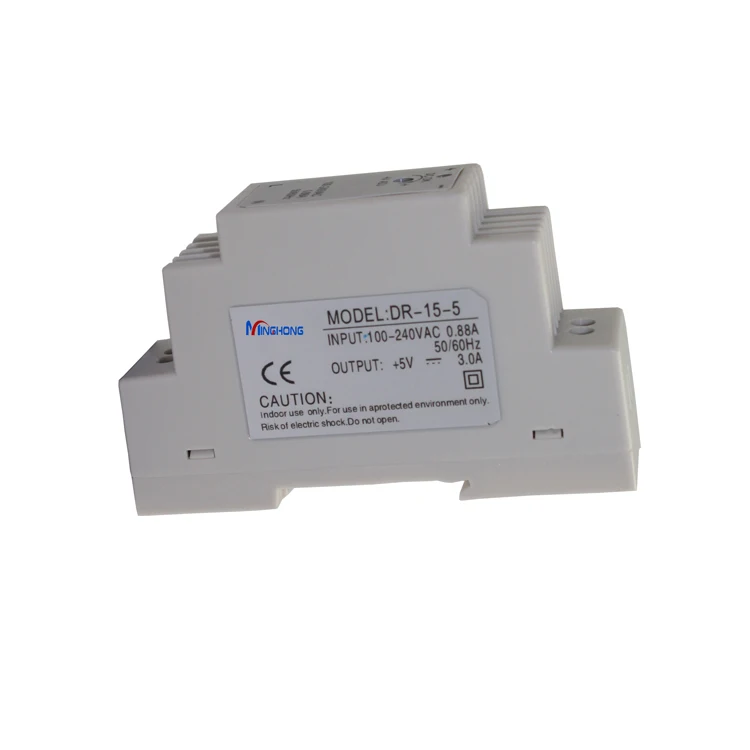

Nice price DR-15 switch power inverter 5V 3A 12V 1.25A 15V 1A 24V 0.63A 15W Industrial Din Rail Power Supply with CE
| 15W Single Output Industrial DIN Rail Power Supply DR-15 series | ||||
| Features: | ||||
| Universal AC input/ full range | ||||
| Protections: Short circuit/ Over load/ Over voltage | ||||
| Cooling by free air convection | ||||

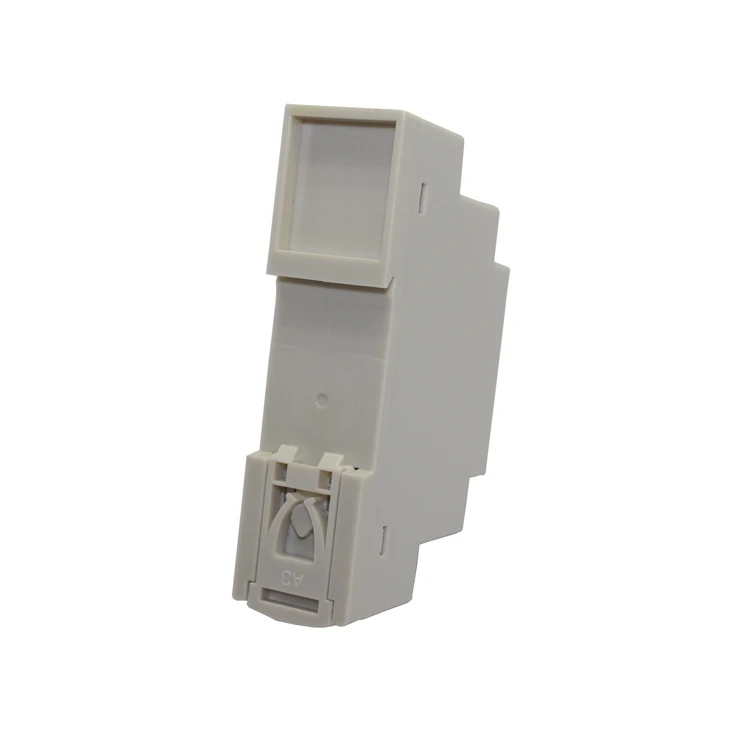

| Can be installed on DIN rail TS-35/7.5 or 15 | ||||
| Isolation classⅡ | ||||
| LED indicator for power on | ||||
| No load power consumption<0.5W | ||||
| 100% full load burn-in test | ||||
| 2 years warranty | ||||
| SPECIFICATIONS | ||||
| OUTPUT | ||||
| Model | DR-15-5 | DR15-12 | DR-15-15 | DR-15-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 2.4A | 1.25A | 1A | 0.63A |
| Current Range | 0-2.4A | 0-1.25A | 0-1A | 0-0.63A |
| Rated Power | 12W | 15W | 15W | 15.2W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Voltage Adj. Range | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Line regulation | ±1% | ±1% | ±1% | ±1% |
| Load regulation | ±1% | ±1% | ±1% | ±1% |
| Setup, Rise, Hold Up Time | 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC 16ms/115VAC at full load | |||
| INPUT | ||||
| Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | |||
| AC Current | 0.88A/115VAC 0.48A/230VAC | |||
| Efficiency | 0.77 | 0.84 | 0.835 | 0.85 |
| Inrush Current | COLD START 35A/115VAC 65A/230VAC | |||
| PROTECTION | ||||
| Over Load | 105%~160% rated output power | |||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| Over Voltage | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V |
| Protection type: Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | ||||
| Working Temp., Humidity | -20℃~+60℃; 20%~90% RH non-condensing | |||
| Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH | |||
| Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes, Mounting: Compliance to IE60068-2-6 | |||
| SAFETY | ||||
| Withstand Voltage | I/P-O/P: 3KVAC | |||
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC/ 25℃/ 70%RH | |||
| STANDARD | ||||
| Safety Standard | Design refer to UL60950-1,TUV EN60950-1,EN50178 | |||
| EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A | |||
| OTHERS | ||||
| Dimension | 25*93*56mm(W*H*D) | |||
| Weight | 0.1Kg | |||
| Packing | 140pcs/15KG/0.92CUFT | |||
| NOTE | ||||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | ||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | ||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
| 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||
