Factory price red led module 24w 620nm 625nm 630nm 660nm 680nm high power red led module for stage light
- Category: >>>
- Supplier: Dongguan Houke Electronic Co. Ltd.Dongguan Ltd.
Share on (1600937374879):
Product Overview
Description
Product Describtion
high power 24w 625nm red led module
| Item | High Power 24w red 625nm LED module |
| Power | 24w |
| chip quantity | 16pcs |
| Color | red |

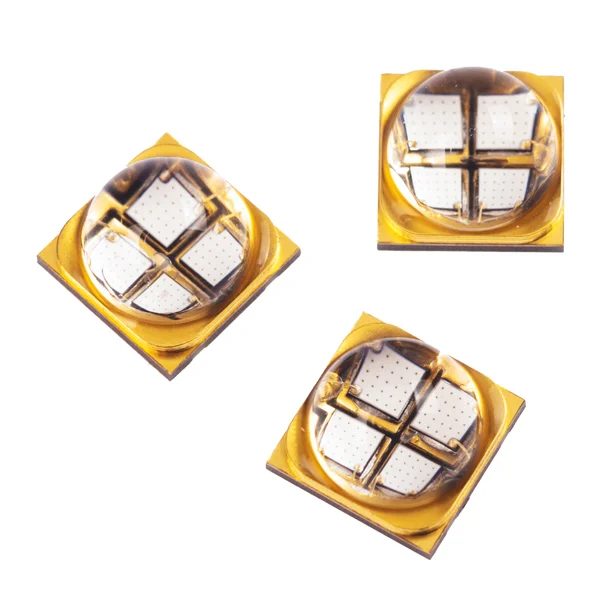

| Diode type | 4PCS 625nm 6565 smd LED in one module |
| chip brand | Epileds 42mil |
| lumen | 140000-160000mcd |
| material | red copper |

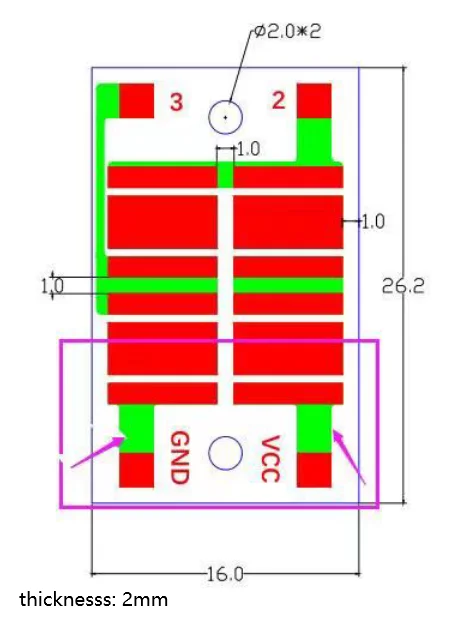

| dimension | 26.2*16*2mm |
| size | 51*31mm( customized size are avilable) (235*36mm,585*36mm, 985*36mm, 40*40mm aluminum pcb board) |
| View Angle of the Lens | 60 degreeor 120degree |
| Wavelength | UVA: 365-370nm, 370-375nm, 390-395nm, 380-385nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm UVB: 290-300nm, 300-315nm UVC: 255-260nm, 260-270nm, 270-280nm RED: 600-610nm,620-625nm,630-640nm, 650-660nm, 680-685nm |
| other wavelength | 255-1550nm |
| Forward current | 700-1000mA |
| Forward Voltage | 16-18v |
| Application | uv curing, coating, uv ink, 3D printing, Machine vision, Medical and Scientific Instrumentation,etc |
Related products

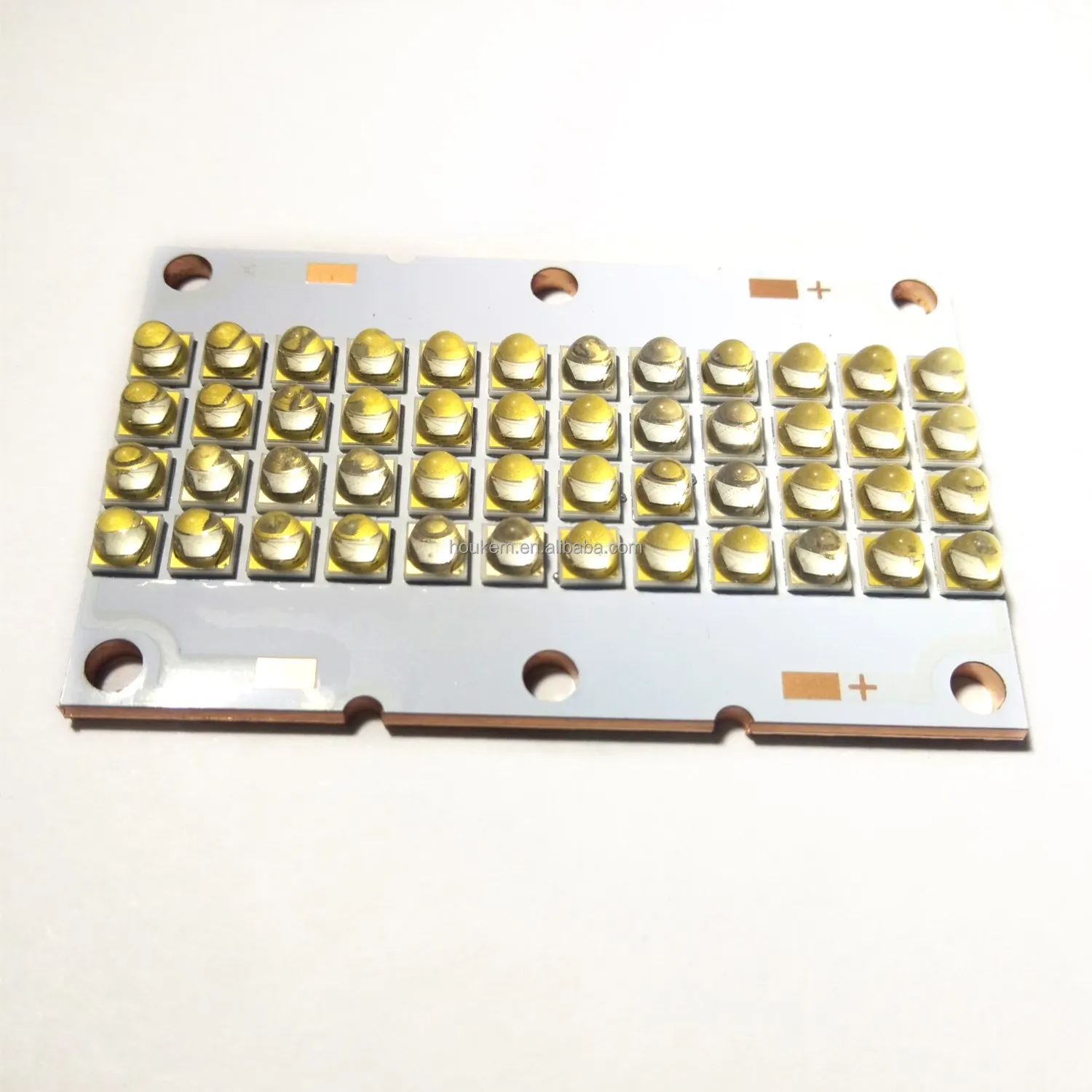

51*31*2mm
12series 4parallel, 48pcs led
40*40mm
5 series 5 parallel
25pcs led
585*36mm
5 series 8 parallel
40 pcs led
985*36mm
5 series 12 parallel
60pcs led
Related Products
Factory pictures
Established in 2003, Houkem has 20years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1600nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
