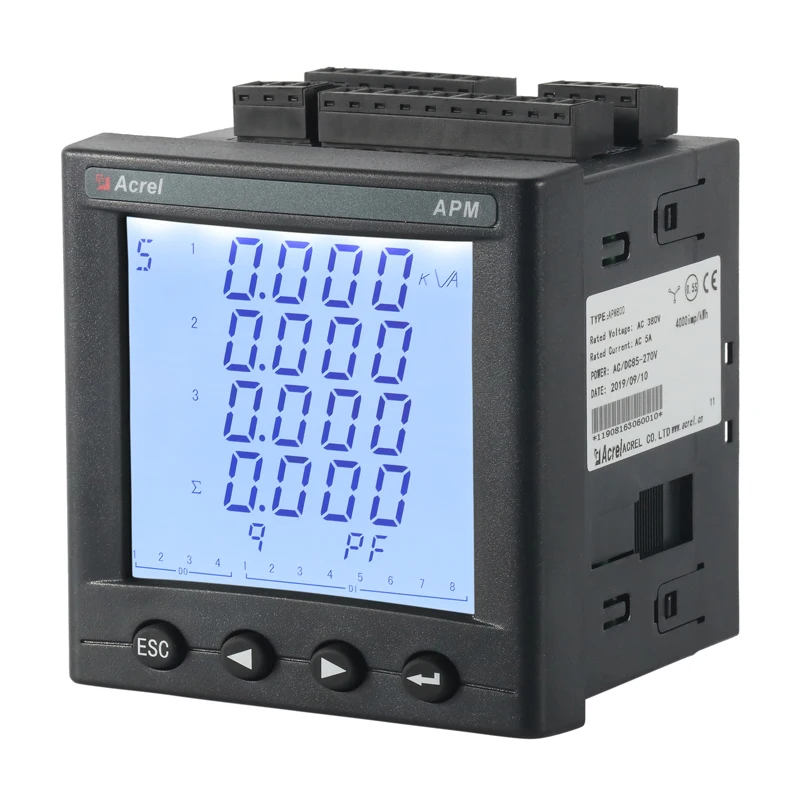

APM series power meters of ACREL are power meters that are designed according to IEC standards and synchronized with international advanced technology.
APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.

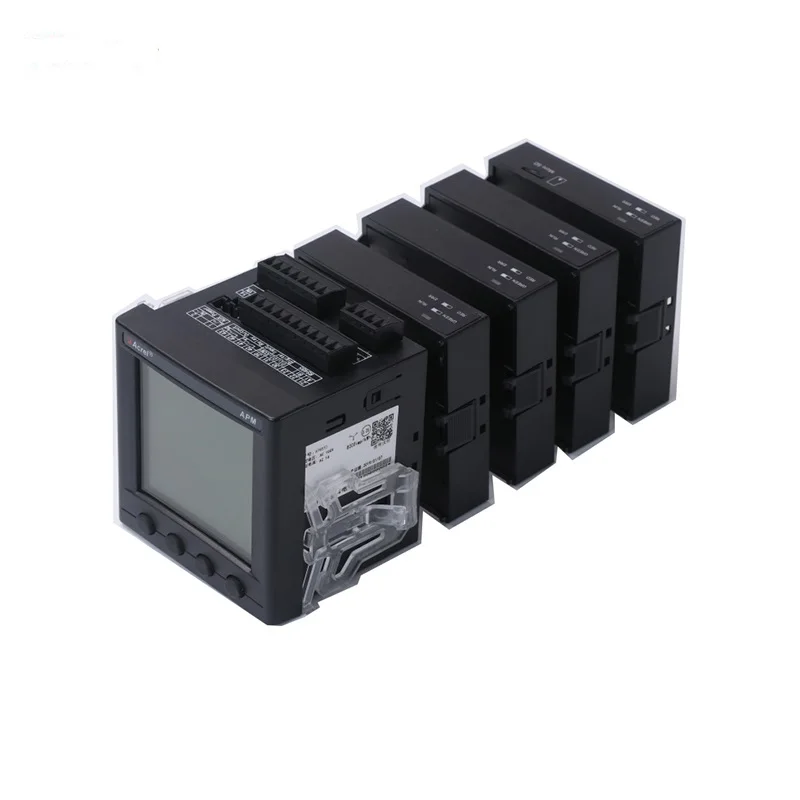

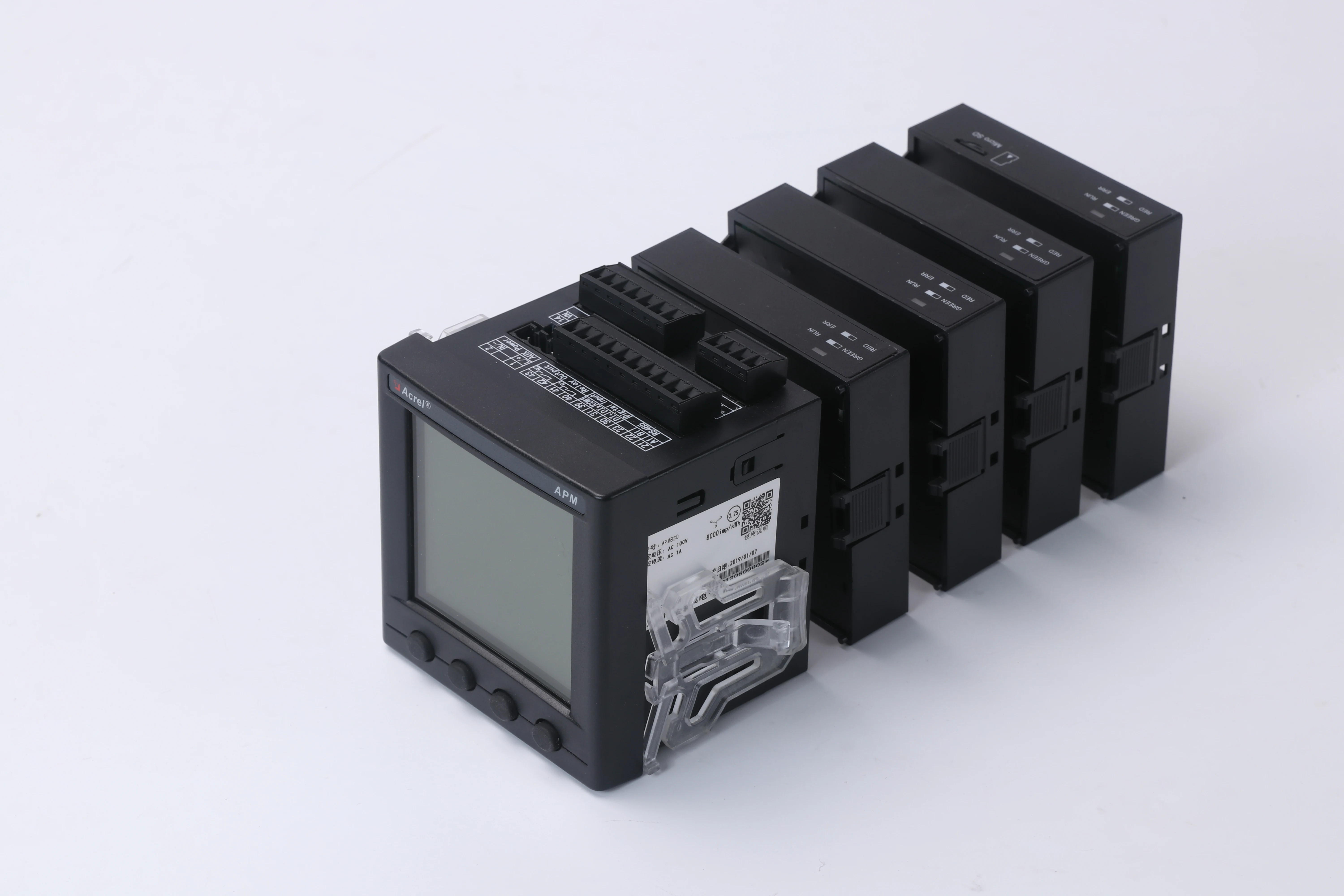

This series of meters use a modular design, with a rich function of the external DI / DO module, AI / AO module, event recording (SOE) module with T-Flash (TF) card, network communication module, Temperature and humidity measurement module, can achieve full power measurement of electrical circuit and monitoring of switch status, Dual RS485 with Ethernet interface can realize data copying of RS485 master station, eliminating the need for data switching exchange. PROFIBUS-DP interface can realize high-speed data transmission and networking function.

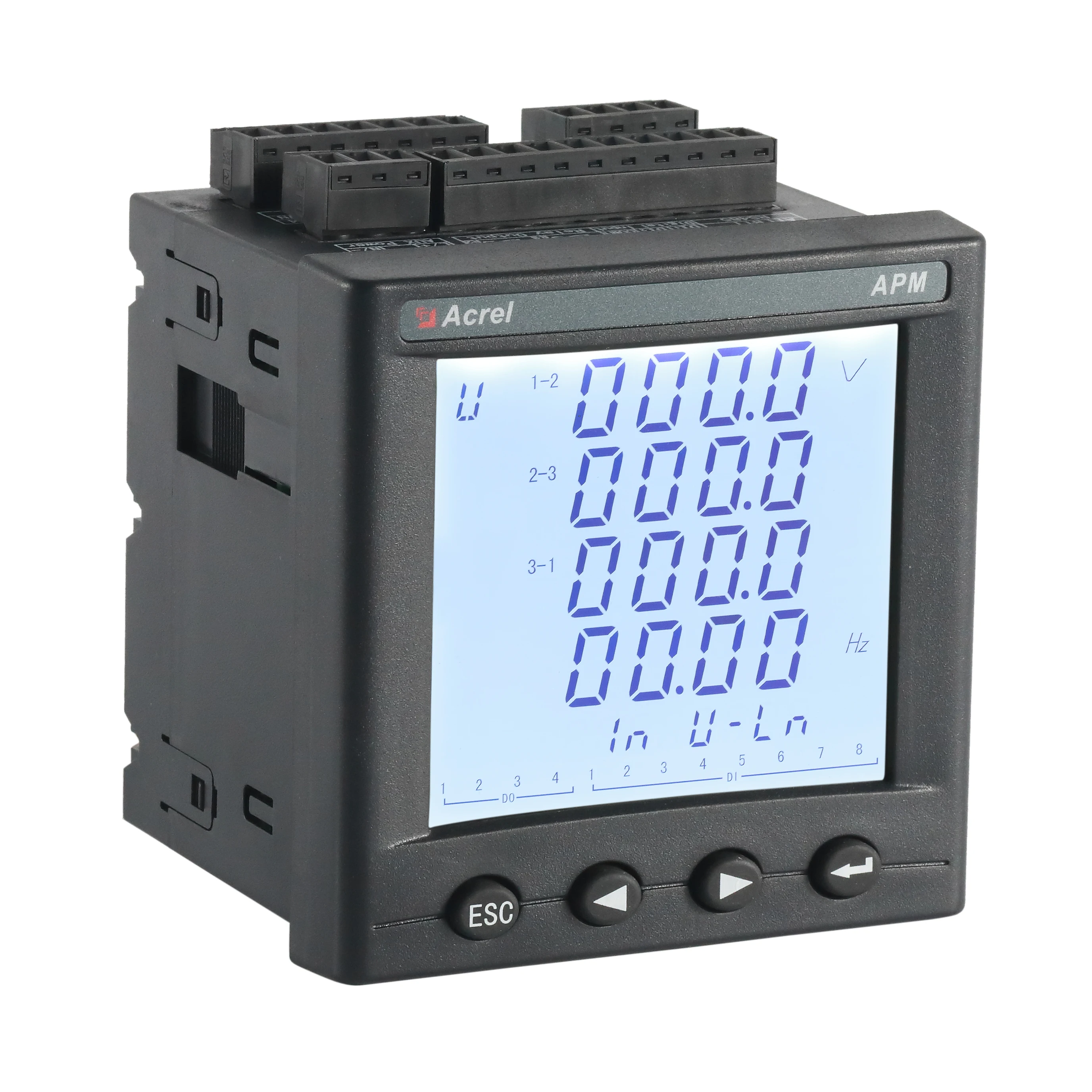

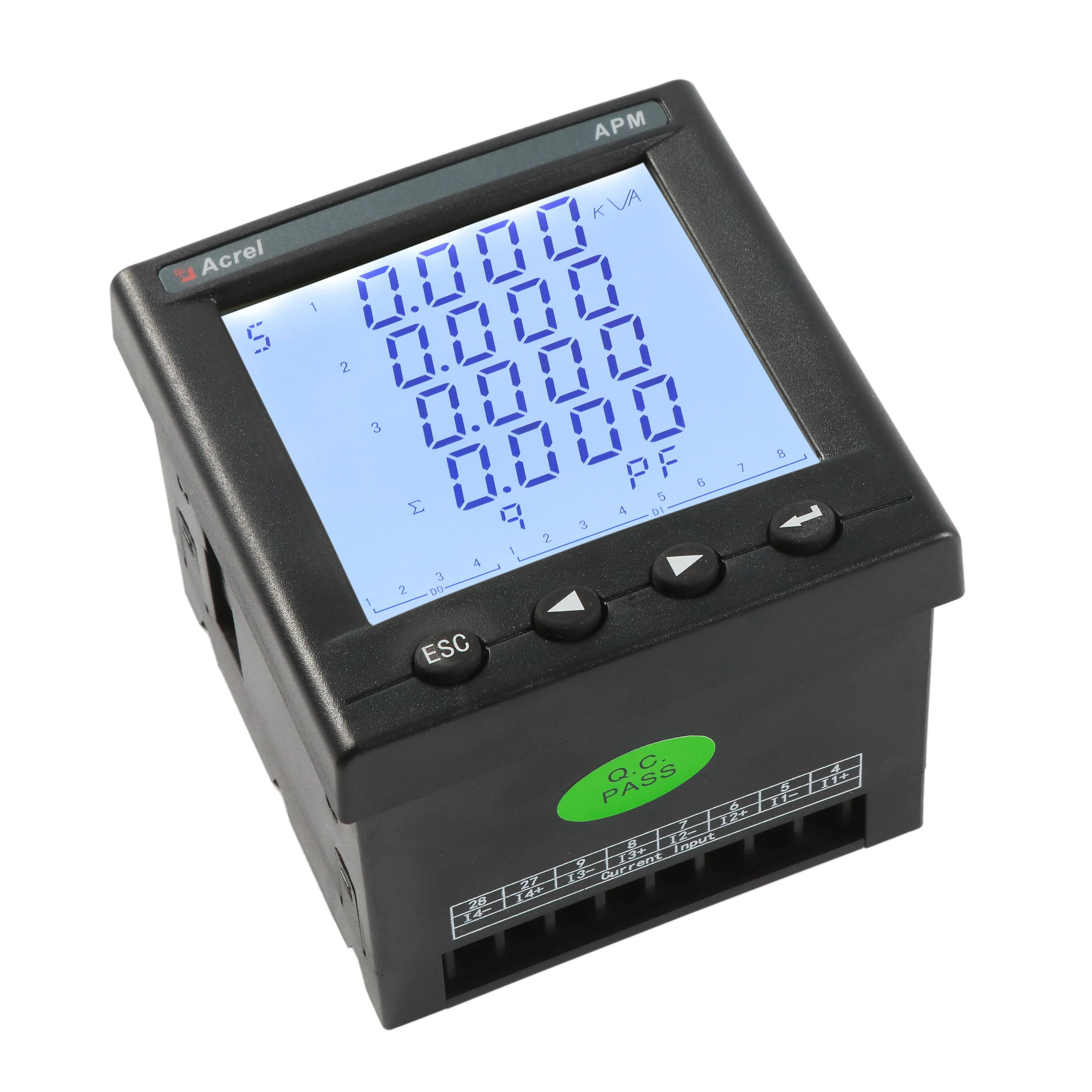

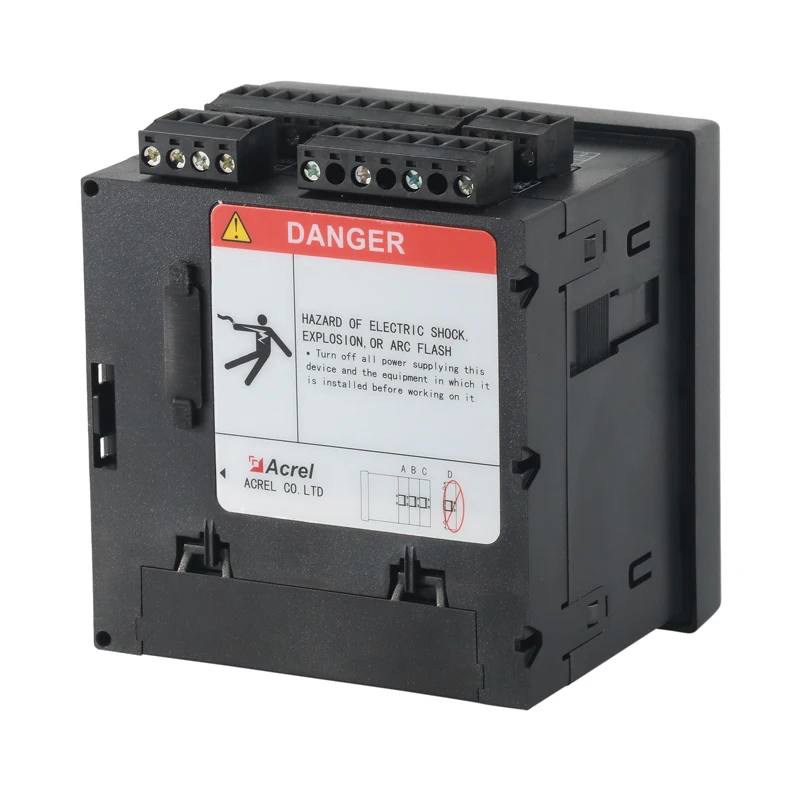

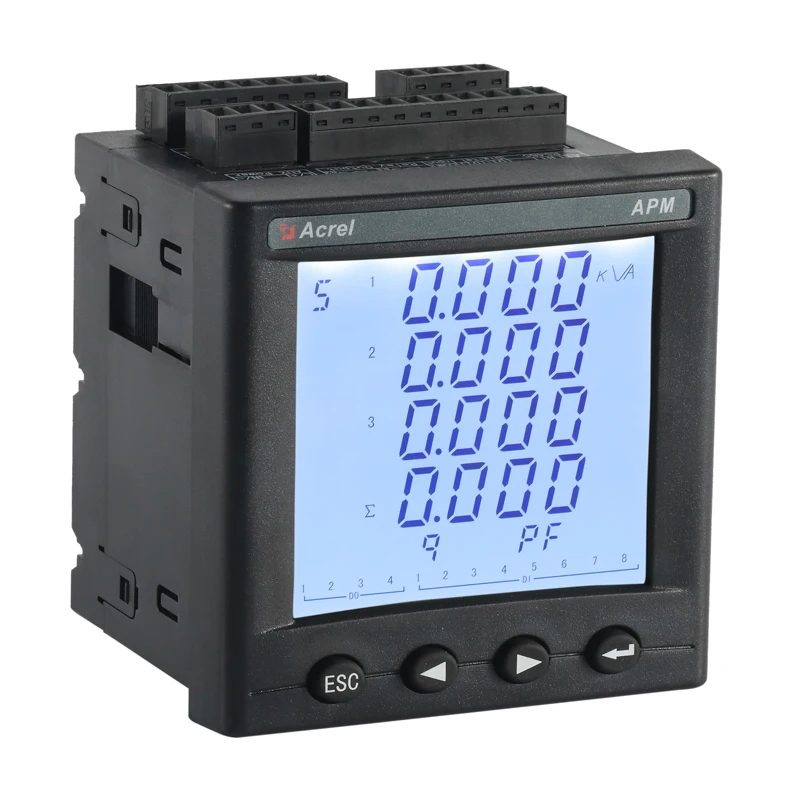

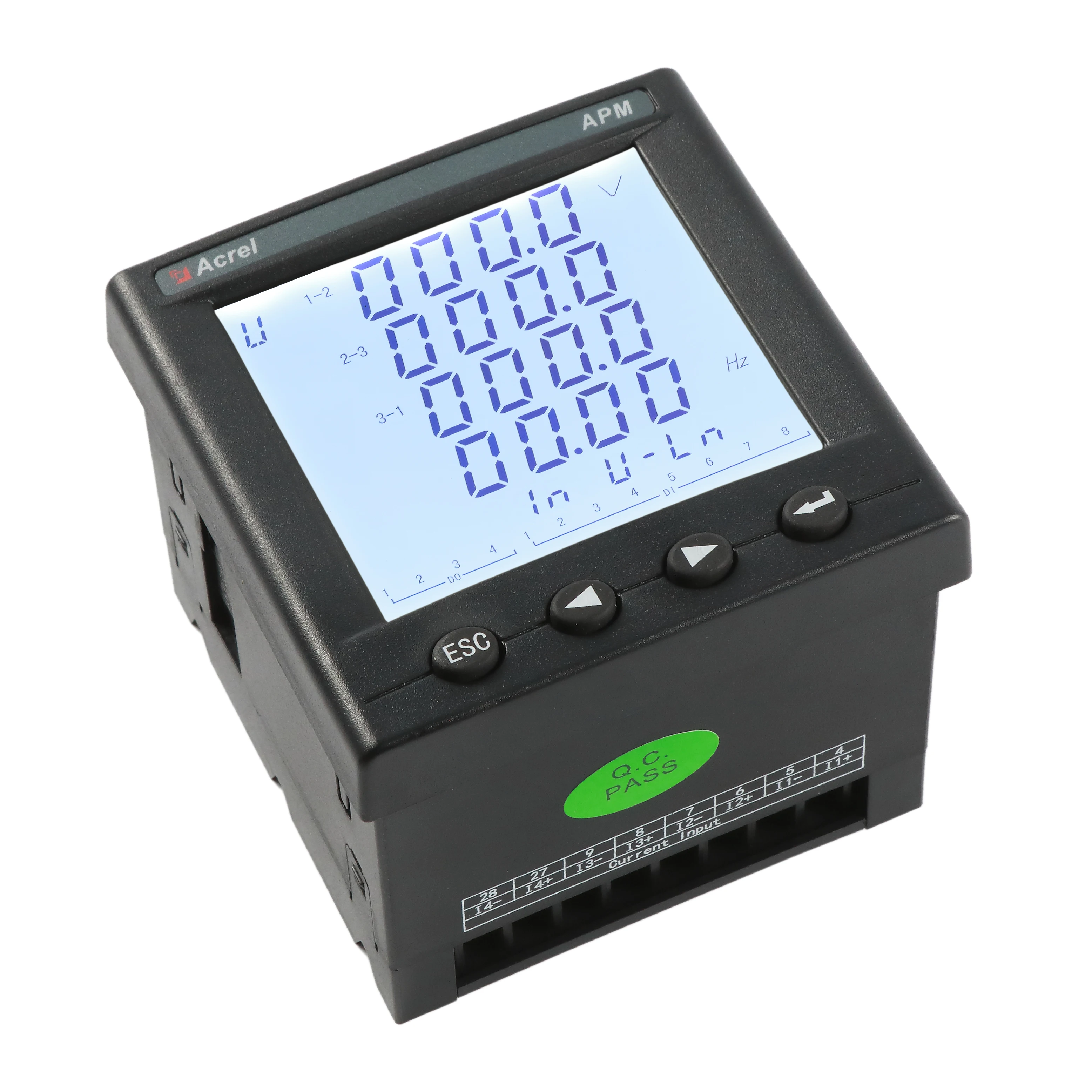

Appearance


















Characteristics







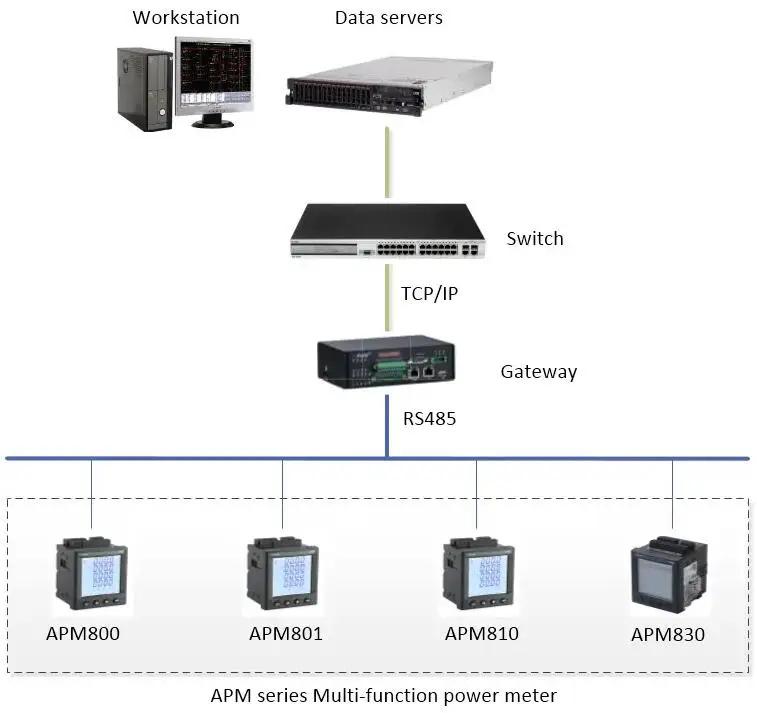

Communication

Standard: RS485(Modbus-RTU) Optional: Profibus(Profibus-DP), Ethernet(Modbus-TCP, HTTP, DHCP).








Display

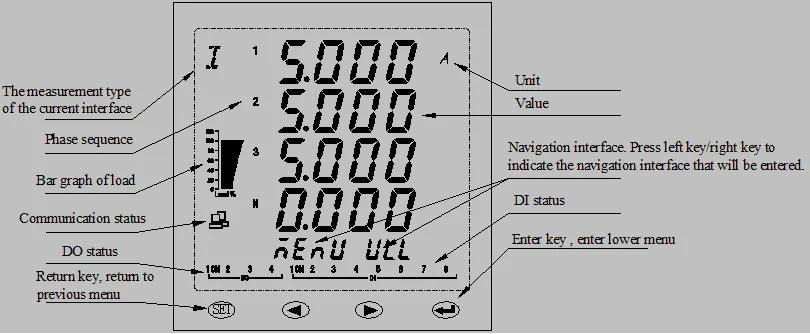

LCD display U, I, P, Q, PF, kWh and other energy consumption, power measurement, harmonic content.








Rated U and I

Voltage:AC 100V,110V,400V,690V;Current:AC 1A, 5A, support 2 mm2 line access.







Function








Accuracy
Voltage,current and power:class 0.5S
Active power:class 0.5S
Reactive power: class 2
Frequency
Range:45-65Hz
Auxiliary power supply
AC/DC 85V~265V or AC/DC 115~415V
Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant:4000(5A),8000(1A) imp/kWh;
Consumption
Voltage:Power consumption:<0.5VA;
Current:Power consumption:< 0.5VA;
Auxiliary power supply:power consumption≤15VA
























Installation
Panel mounted

Dimension(L*W*H)
Panel size(L×W): 96*96mm
Cutout(L×W): 92*92mm

Relay
3A/AC250V 3A/DC30V

Starting current
0.1%

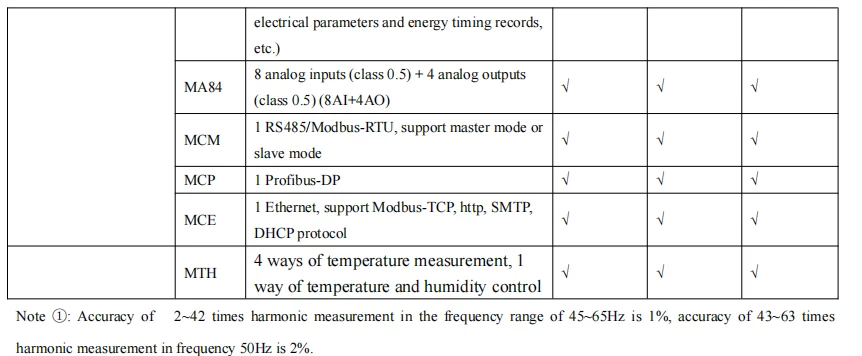

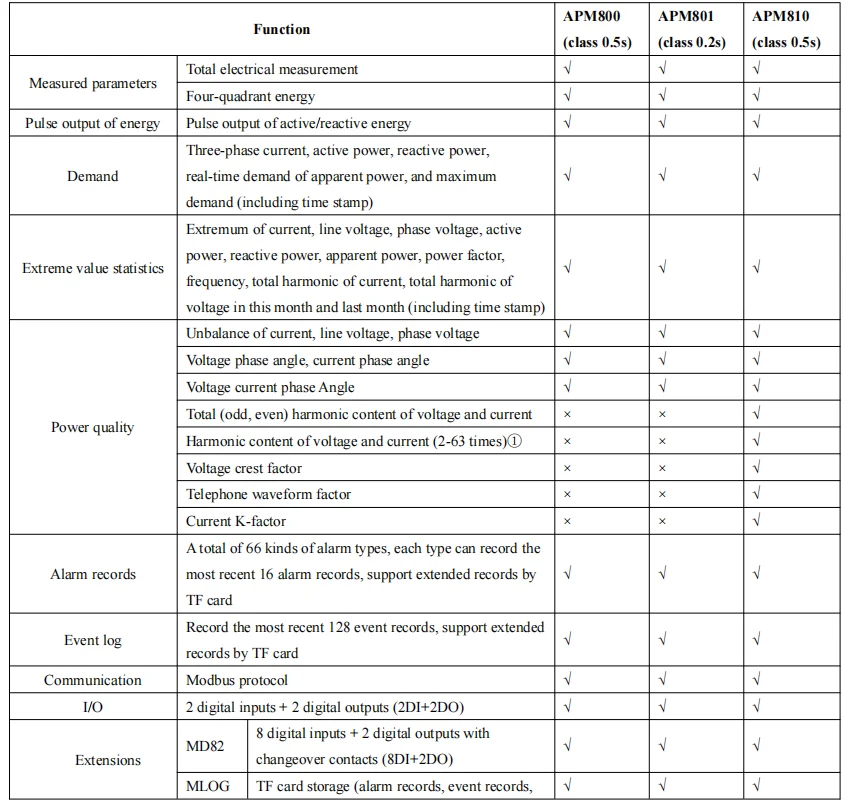

Type and Specification











Note : Accuracy of 2~42 times harmonic measurement in the frequency range of 45~65Hz is 1%, accuracy of 43~63 times harmonic measurement in frequency 50Hz is 2%.
















Note:When selecting the extended function, the meter can take up to 3 modules. The modules can be the same or different, but MCP\\MCE\\MLOG cannot select multiple identical modules combined, MCP and MCE only Can choose one. The installation sequence can be arbitrary. If Ethernet or Profibus function is recommended for installation, it is recommended to install it near the A of the main body. For the location of A, please refer to 3.3 Assembly.



Technical Parameters



1. Technical Parameters of APM800, APM801 and APM8100















2. Technical Parameters of APM830

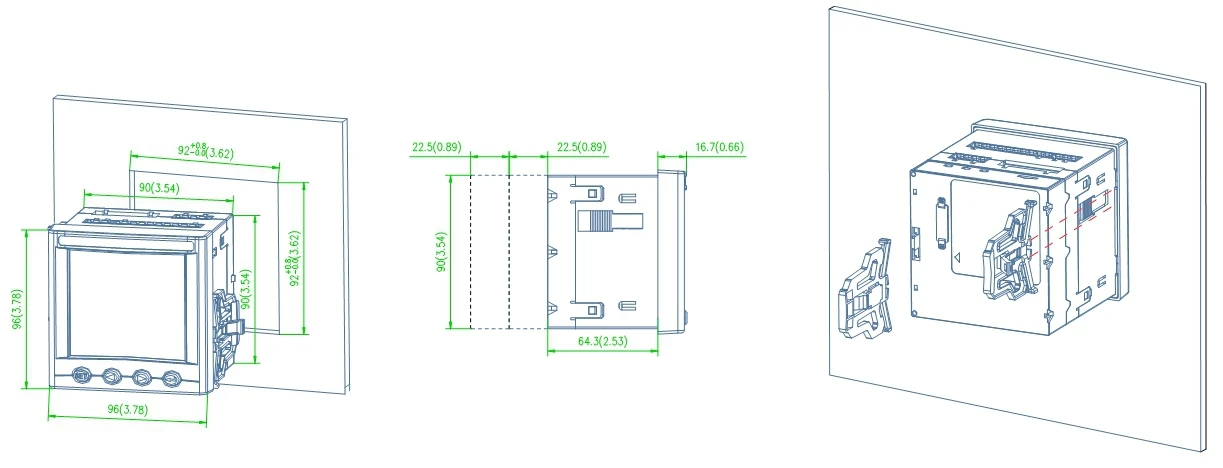

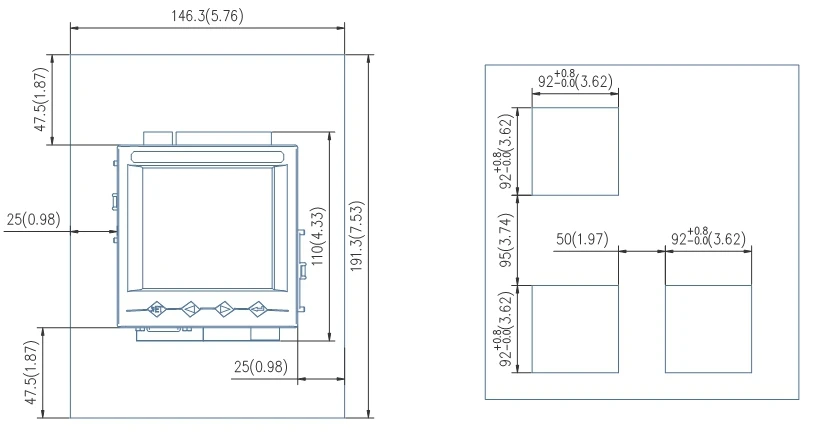

Dimension













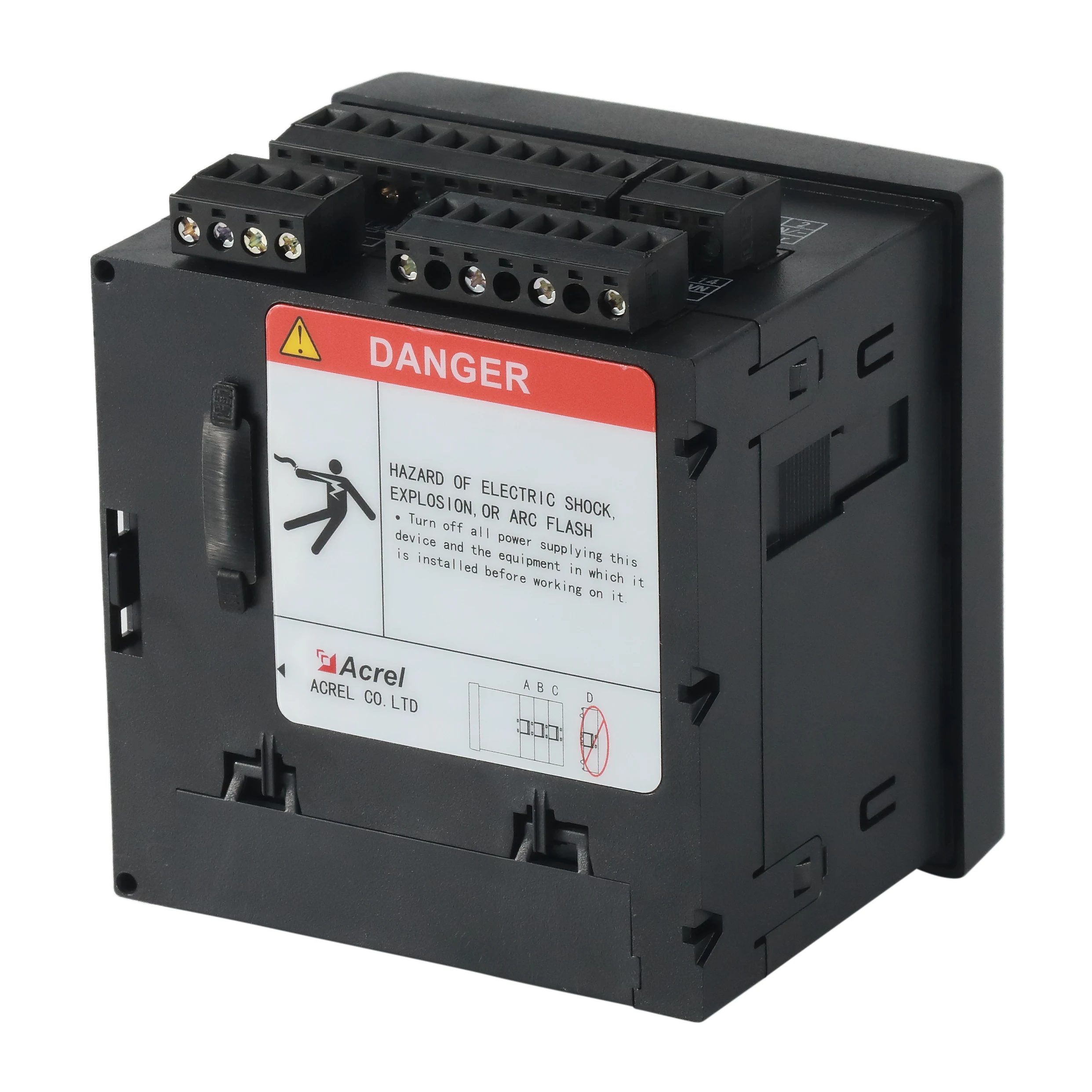

Wiring

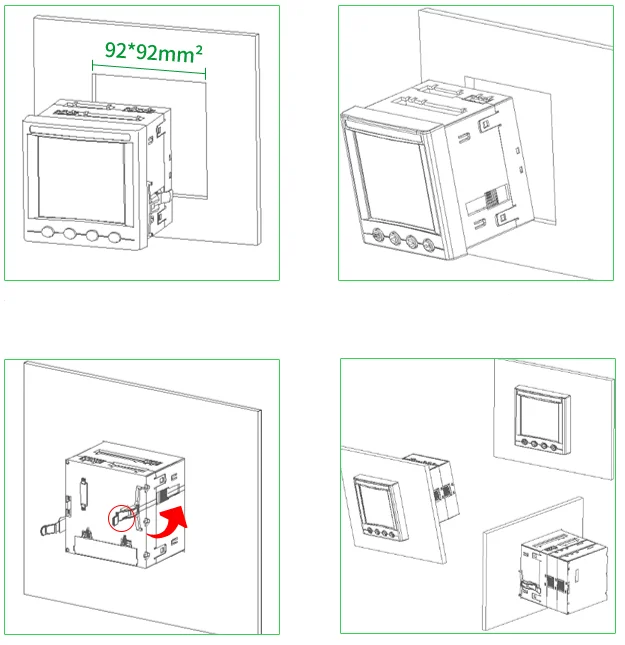

Installation

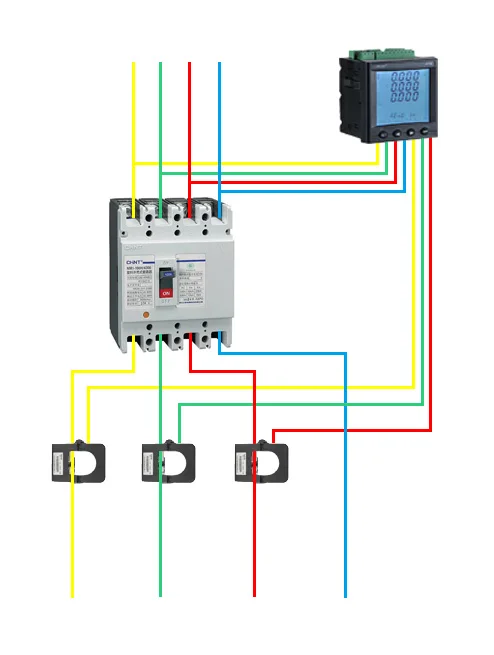

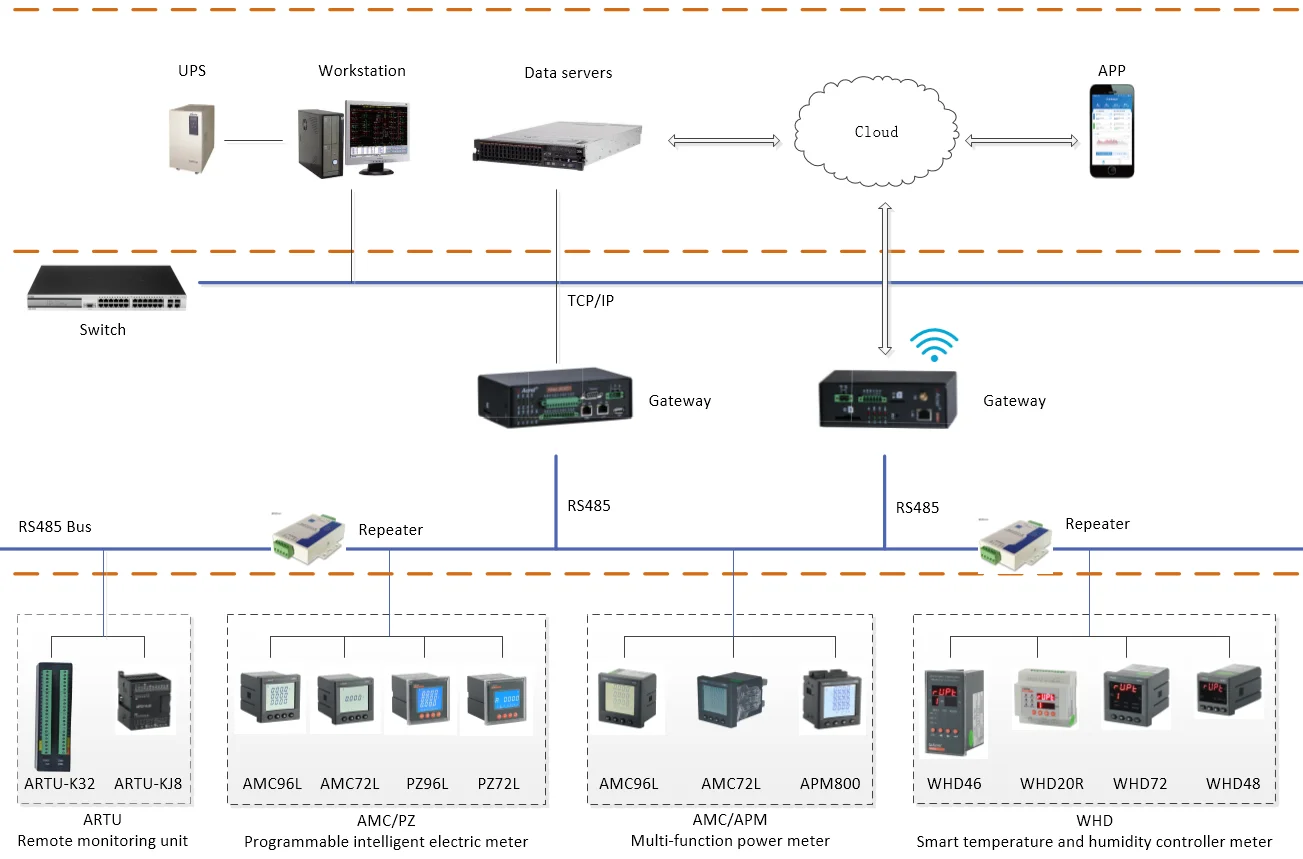

Typical Connection
