Product Overview
Description
Product Description
Prominent Dosing Pump/Metering Pump

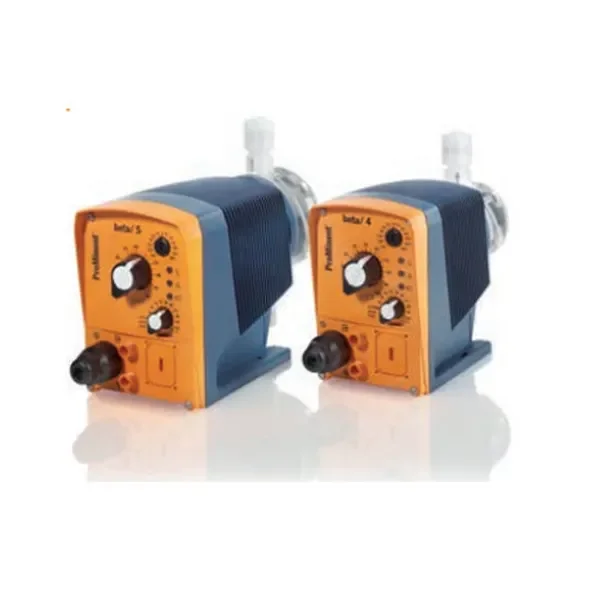

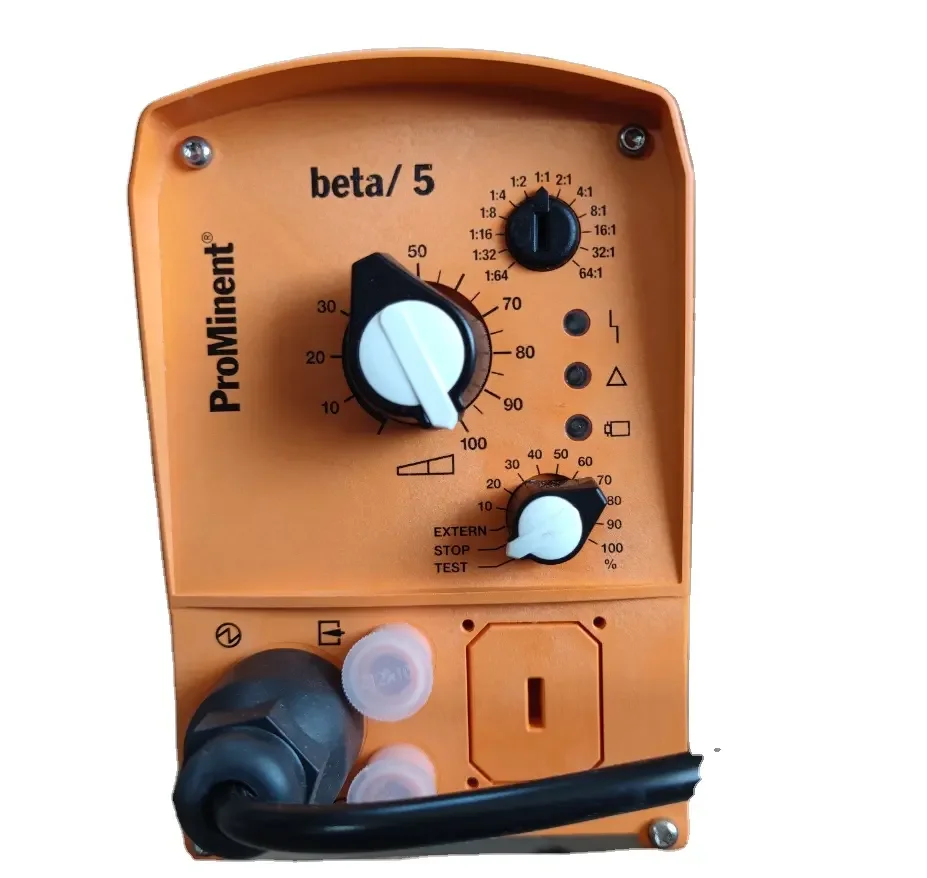

The Beta series of powerful and affordable metering pumps are diaphragm type metering pumps controlled by microprocessors and driven by electromagnets. They are divided into two series: Beta/4b and Beta/5b. Exquisite structure, safe and reliable, with a "traffic light" display signal that timely reports operating conditions, meeting the widest range of usage needs with the least number of components.
The Beta series metering pumps can be controlled by manual or external pulse signals, with a bipolar liquid level switch interface, and are widely used in various industrial occasions.
The Beta series metering pumps can be controlled by manual or external pulse signals, with a bipolar liquid level switch interface, and are widely used in various industrial occasions.
Advantages
※Widely applicable
※The drive has almost no wear
※Excellent stable operating performance
※High cost-effectiveness
※Efficient and energy-saving 50%

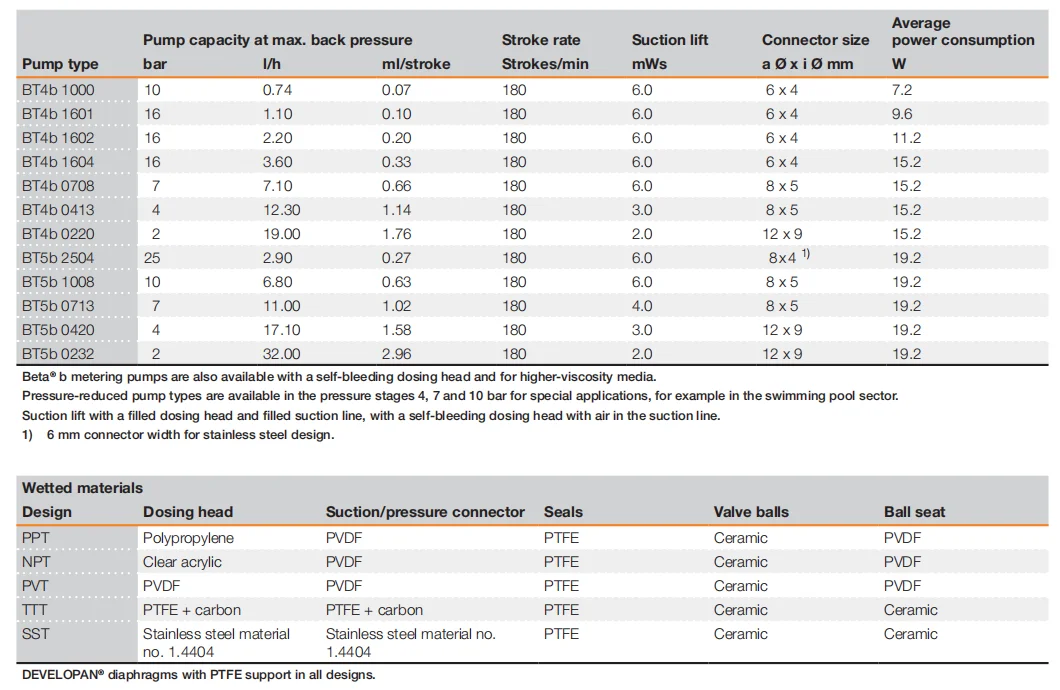

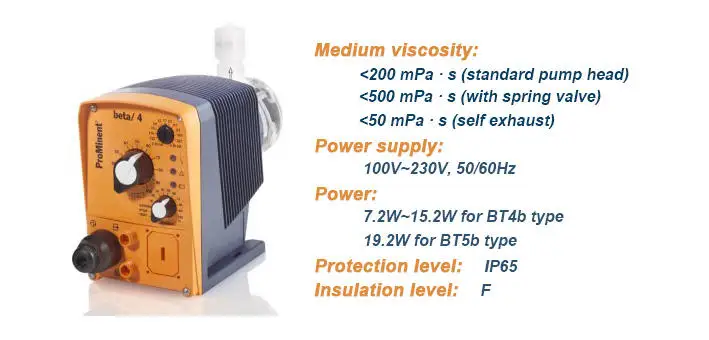

Specification
Flow range | 0.74~32 I/h |
Pressure range | 25-2 bar |
Drive method | electromagnetic drive |
Measurement accuracy | Repetitive measurement accuracy better than ± 2% |
Accessories
Foot Valve (Non-return Valve)
It is used to prevent the suction pipe from flowing empty and prevent solid particles from entering the metering pump.In addition,
the foot valve is also used as a suction auxiliary device.
the foot valve is also used as a suction auxiliary device.
Injection Valve
The injection valve accurately measures the flow inside the pipeline and reliably isolates it from the surrounding environment.
Back Pressure Valve (Relief Valve)
The back pressure valve is used to generate a constant back pressure and achieve precise dosing in an open system.In addition, it
is also used in conjunction with pulsation dampers for low pulsation dosing.
is also used in conjunction with pulsation dampers for low pulsation dosing.
