Quality General purpose large motor centrifugal balancing machine manufacturer of choice

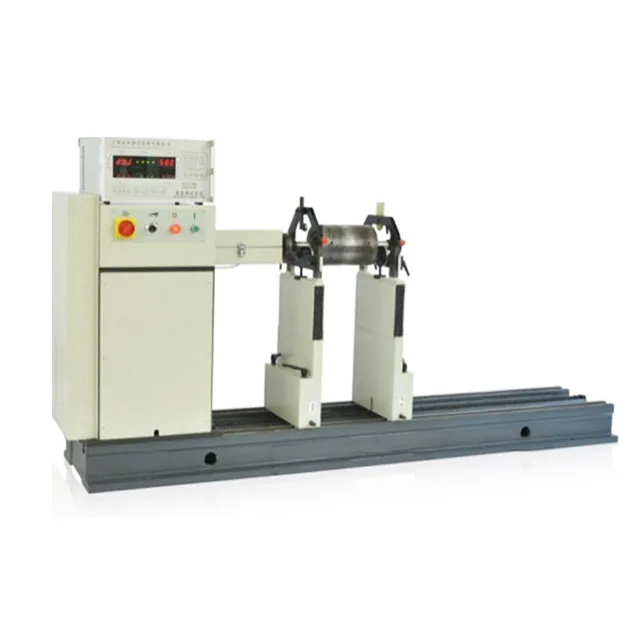

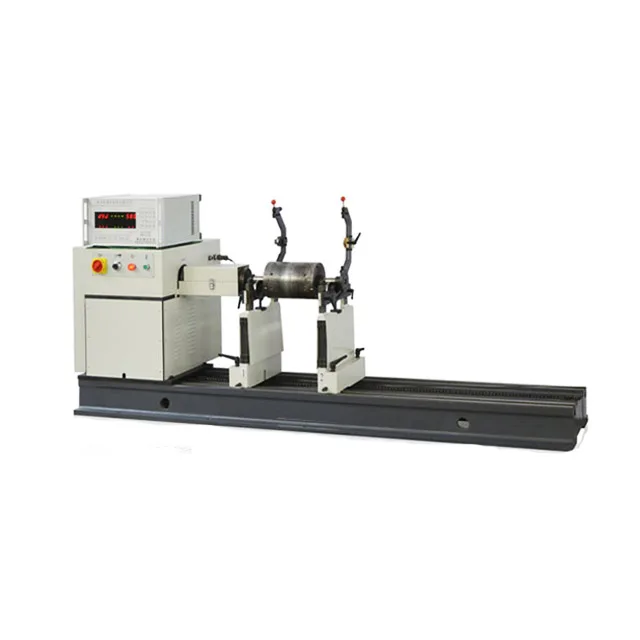

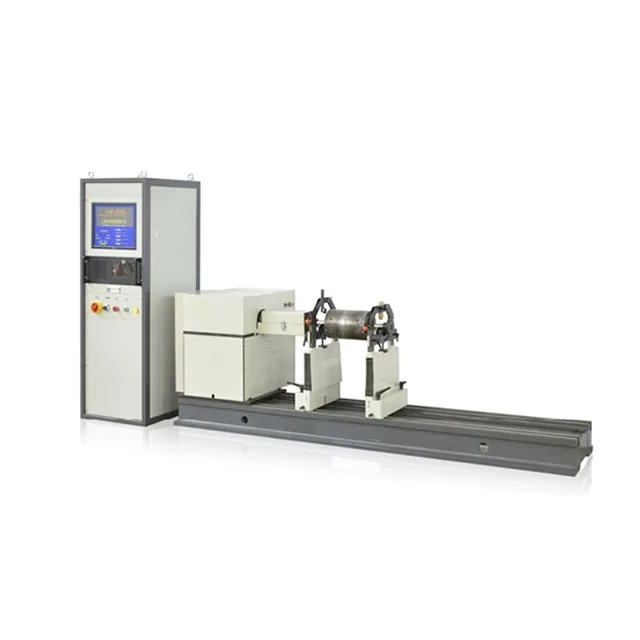

The Dynamic Universal Joint Drive Balancing Machine is an instrument used to determine the unbalance of the rotor. The balancing machine is a hard-supported balancing machine. The swing frame is very rigid. The measurement result of the dynamic balancing machine is used to correct the unbalance of the rotor.
Model | HZ-9702A-160 | HZ-9702A-300 | HZ-9702A-500 |
160 | 300 | 500 | |
Ø1000mm-1250mm-1500mm | |||
Distance Between Two Support Bearings (mm) | 60 | ||
Maximum distance from drive shaft flange to right support center (mm) | 1600 (machine length 2.5m) | ||
Roller bearing journal range(mm) | 10~ 140 (equip SKF bearing) | ||
Balance speed (r/min) | Frequency conversion step-less speed regulation | ||
Drive shaft torque(N.m) | 120 | ||
Motor Power (KW) | 1.5-3(Inverter motor) | ||
The smallest achievable residual unbalance (g.mm/min) | emar≤0.5 | ||
Unbalance reduction rate (%) | URR≥95% | ||
Measuring system | Lixian special software | ||
Note: The technical parameters of the above series of balancing machines are for reference only. The specific parameters and quotations need to be determined according to the actual situation of the rotor of the user's workpiece, and can also be customized. | |||
Unbalance amount calculation
The balanced quality grades of commonly used various rigid vermilion drills
G 40 | 40 | Automobile wheels, hubs, rims, wheel assemblies, drive shafts, elastically installed six-cylinder or more high-speed four-stroke (gasoline or diesel) engine crankshaft drive devices, and engine crankshaft drive devices for automobiles, trucks and locomotives.
|
G 100 | 100 | Crankshaft drive device of six-cylinder or more high-speed diesel engine, complete engine (gasoline or diesel) of automobile, truck and locomotive
|
G 250 | 250 | Rigidly mounted high-speed four-cylinder diesel engine crankshaft drive device
|
G 630 | 630 | Rigidly installed crankshaft drive device of large four-stroke engine, elastically installed crankshaft drive device of marine diesel engine
|
G 1600 | 1600 | Rigidly mounted crankshaft drive device of large two-stroke engine
|
G 4000 | 4000 | Crankshaft drive device of low-speed marine diesel engine with odd number of cylinders rigidly installed
|
Note: Before you choose a balancing machine, you should first determine the balance level of the rotor
| ||
Purpose
An unbalanced rotor generates a pressure on its supporting structure and the rotor itself during its rotation, and causes vibration. Therefore, the dynamic balance of the rotor is very necessary. The balancing machine is to check the dynamic balance of the rotor in the rotating state. The function of dynamic balance is:
Improve the quality of the rotor and its components
Reduce noise
Reduce vibration
Improve the trial life of supporting parts (bearings)
Reduce user discomfort
Reduce the power consumption of the product

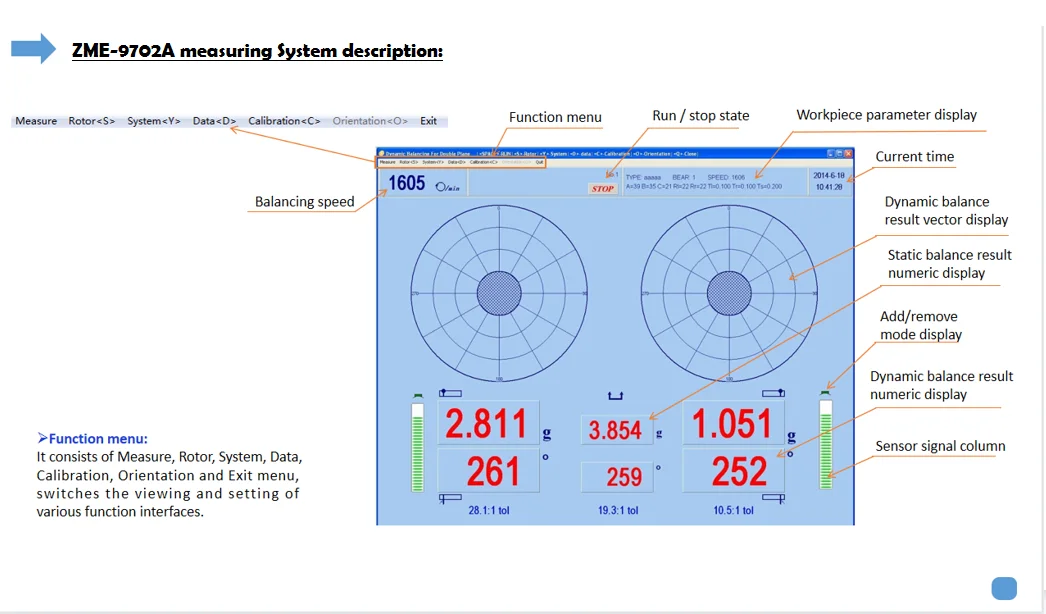

measuring
Production applicable:

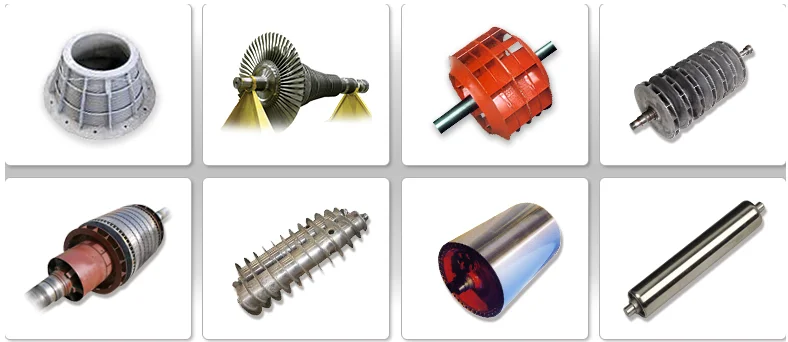

Universal joint balancing machine is widely used in the balance correction of various small and medium-sized impellers, motor rotors, crankshafts, drums and other shaft-type rotating workpieces. It is mainly suitable for some workpieces that cannot be driven by ring belts. (The working mode drives the product to be measured through the shaft to rotate)
Production advantages:
High sensitivity sensor
Universal joint drive
Stepless frequency conversion speed regulation

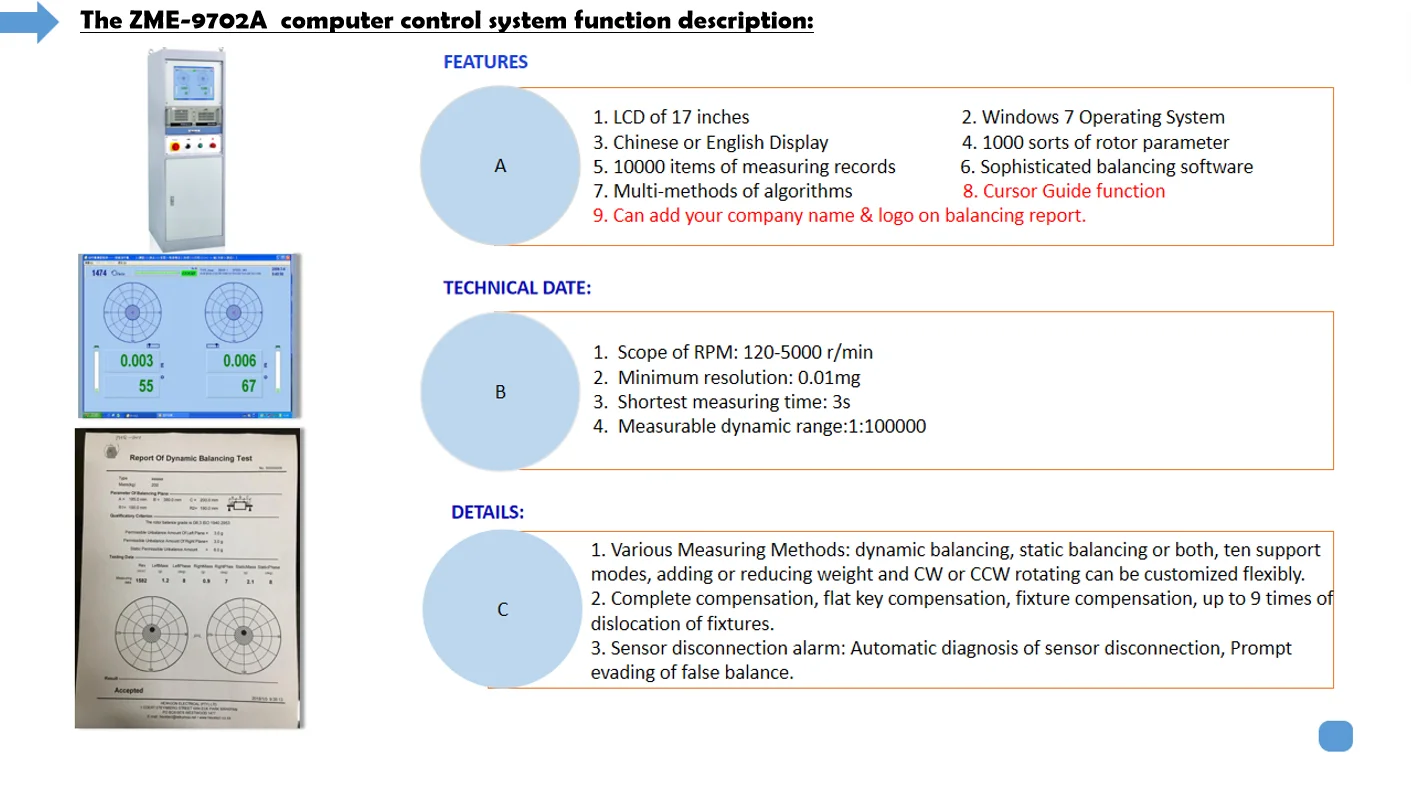

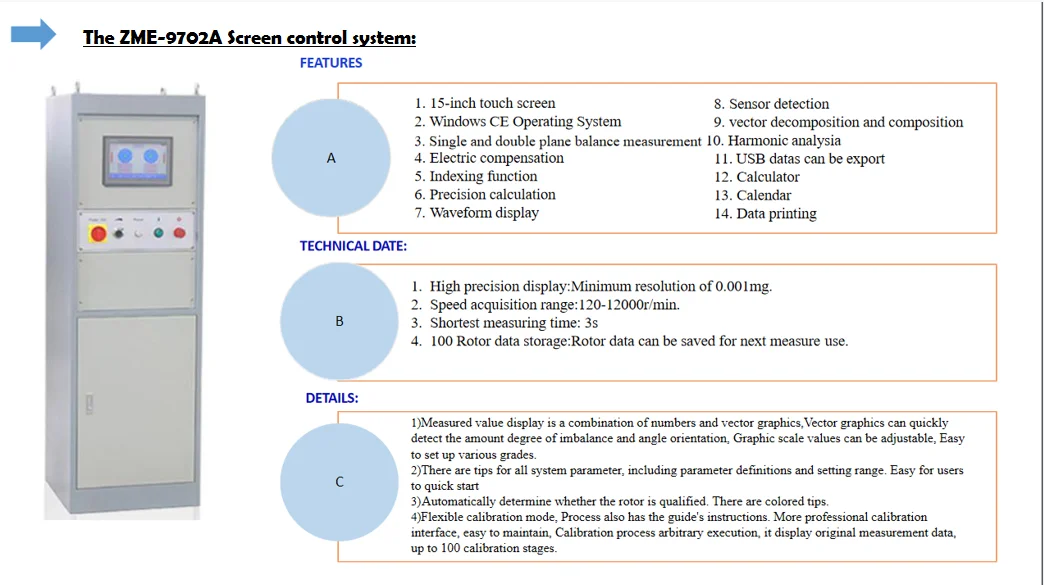

industrial computer
Windows operating system
17 inch LCD screen
100 rotor parameters
1 million sets of historical measurement records
Single / double / dynamic and static balance display
Chinese and English bilingual
Support data import
