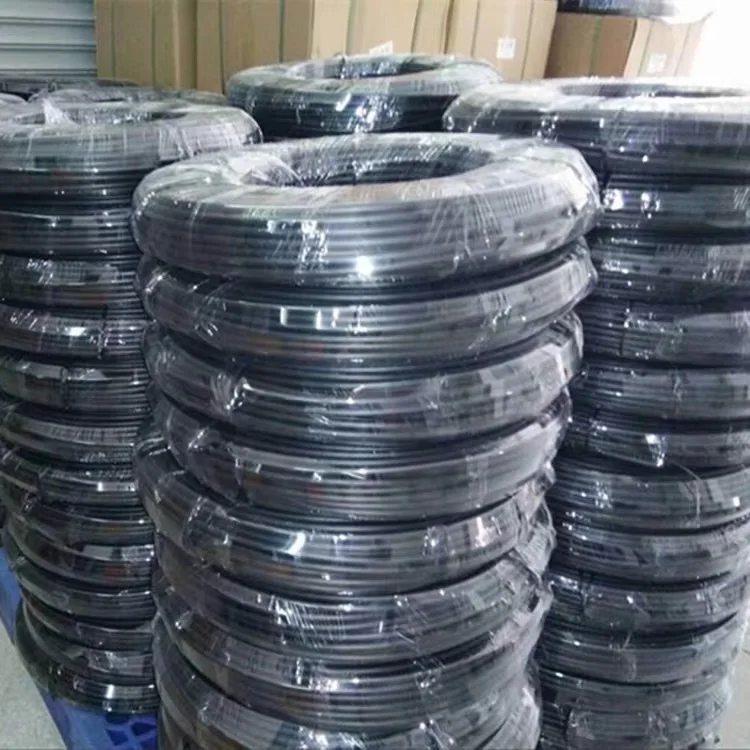

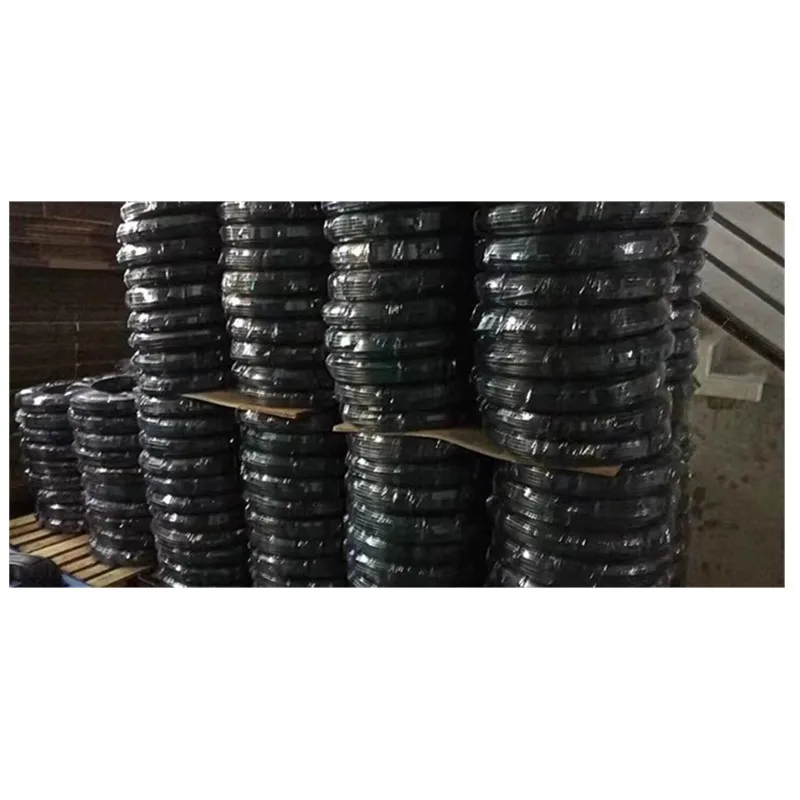

Factory 1/4 inch nylon hose PA plastic tube for diesel
- Category: >>>
- Supplier: Ningbo Fenghua Ningmao Pneumatic Component Factory
Share on (1600937486895):
Product Overview
Description
Product Description

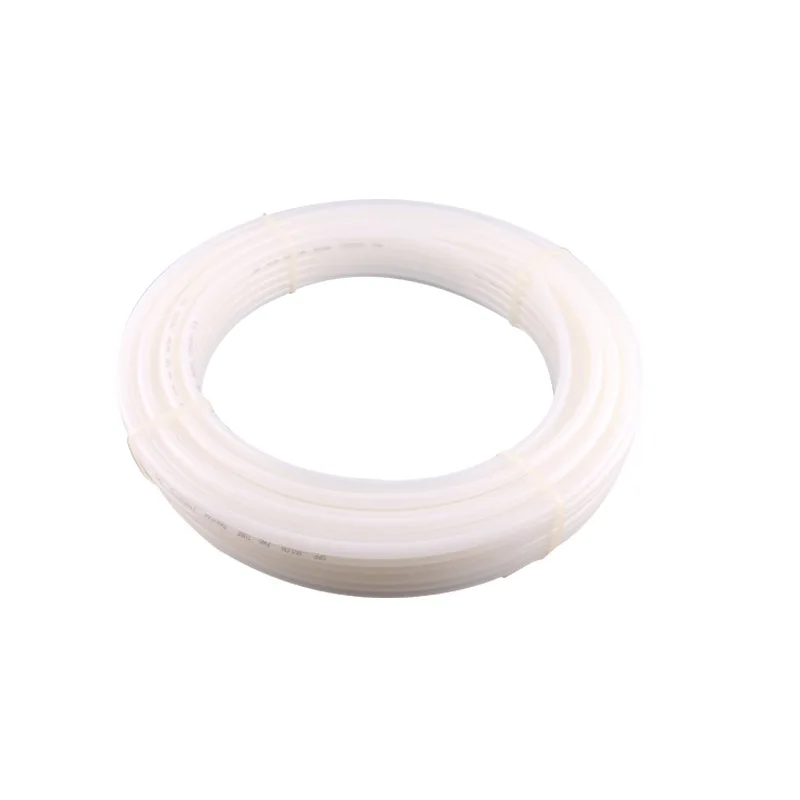

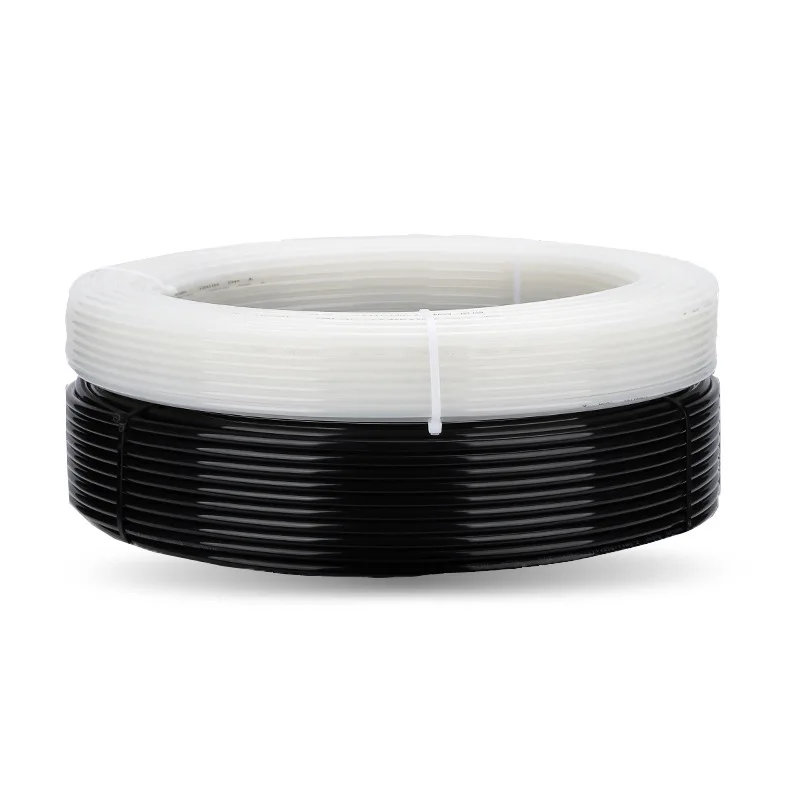

Factory 1/4 inch nylon hose PA plastic tube for diesel
Support custom color transparent, the MOQ is 2000 meters
support samples and pictures, can be customized any color
Item No. | OD | ID | L | Net Weight | Max Pressure at 20℃ | Burst Pressure at 20℃ | Bend Radius at 20℃ |
PA6-0425 | 4mm | 2.5mm | 200M | 1.7 KG/R | 30 Bar | 90 Bar | 20mm |
PA6-0604 | 6mm | 4mm | 200M | 3.6 KG/R | 30 Bar | 90 Bar | 30mm |
PA6-0806 | 8mm | 6mm | 100M | 2.5 KG/R | 30 Bar | 90 Bar | 40mm |
PA6-1080 | 10mm | 8mm | 100M | 3.3 KG/R | 20 Bar | 60 Bar | 60mm |
PA6-1075 | 10mm | 7.5mm | 100M | 4 KG/R | 30 Bar | 90 Bar | 50mm |
PA6-1210 | 12mm | 10mm | 100M | 4 KG/R | 20 Bar | 60 Bar | 120mm |
PA6-1209 | 12mm | 9mm | 100M | 5.7 KG/R | 30 Bar | 90 Bar | 60mm |
PA6-1/4 | 6.35mm | 4.2mm | 200M | 3.9 KG/R | 30 Bar | 90 Bar | 35mm |
PA6-3/8 | 9.5mm | 6.35mm | 100M | 4.4 KG/R | 30 Bar | 90 Bar | 55mm |
PA6-1/2 | 12.7mm | 9.6mm | 100M | 6.2 KG/R | 30 Bar | 90 Bar | 120mm |

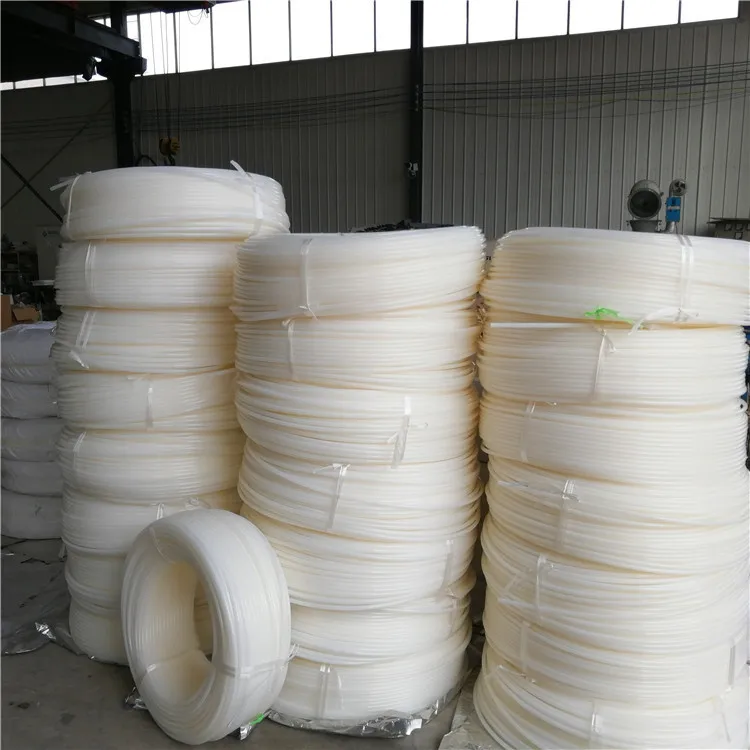

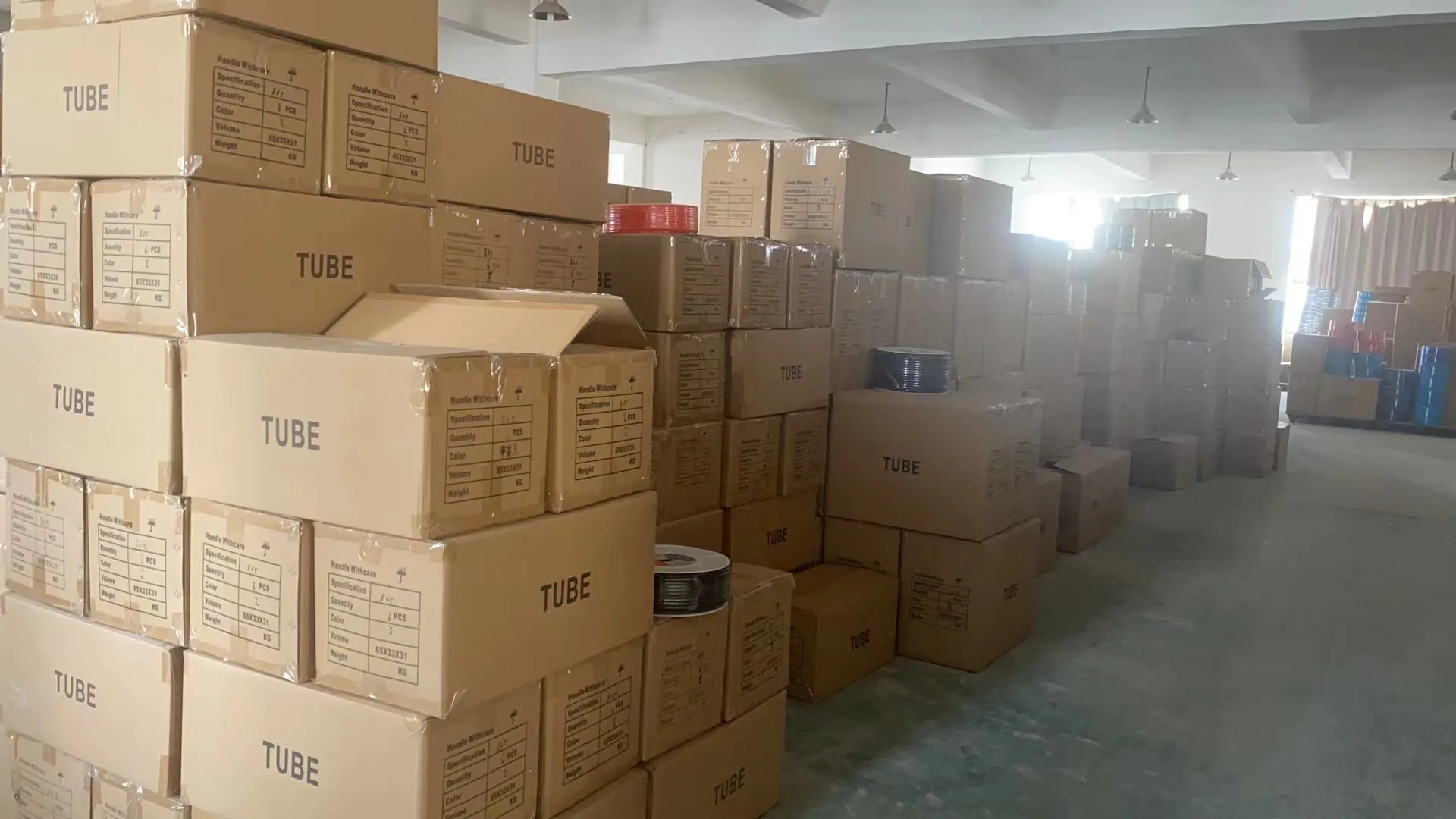

Product packaging

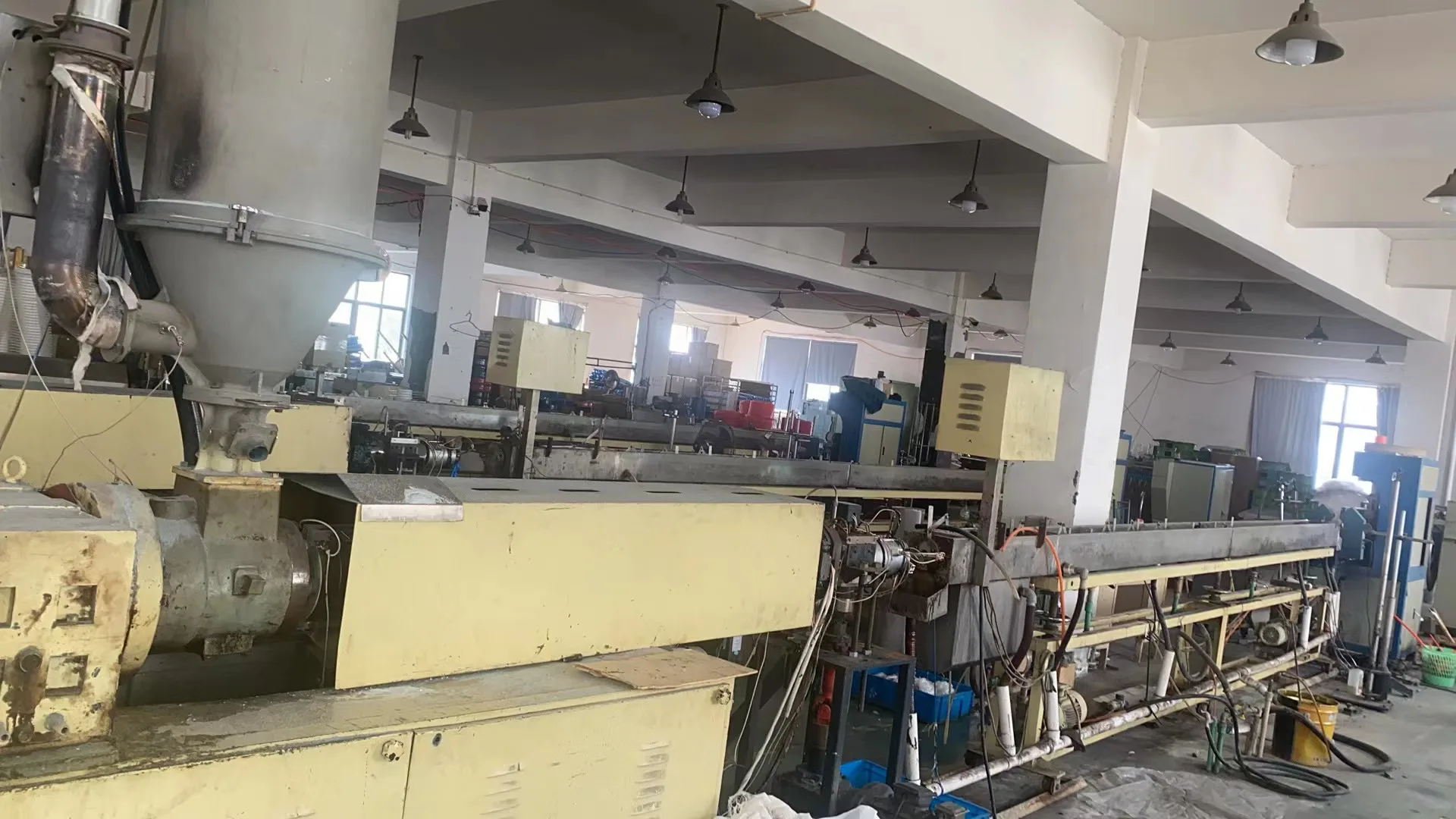

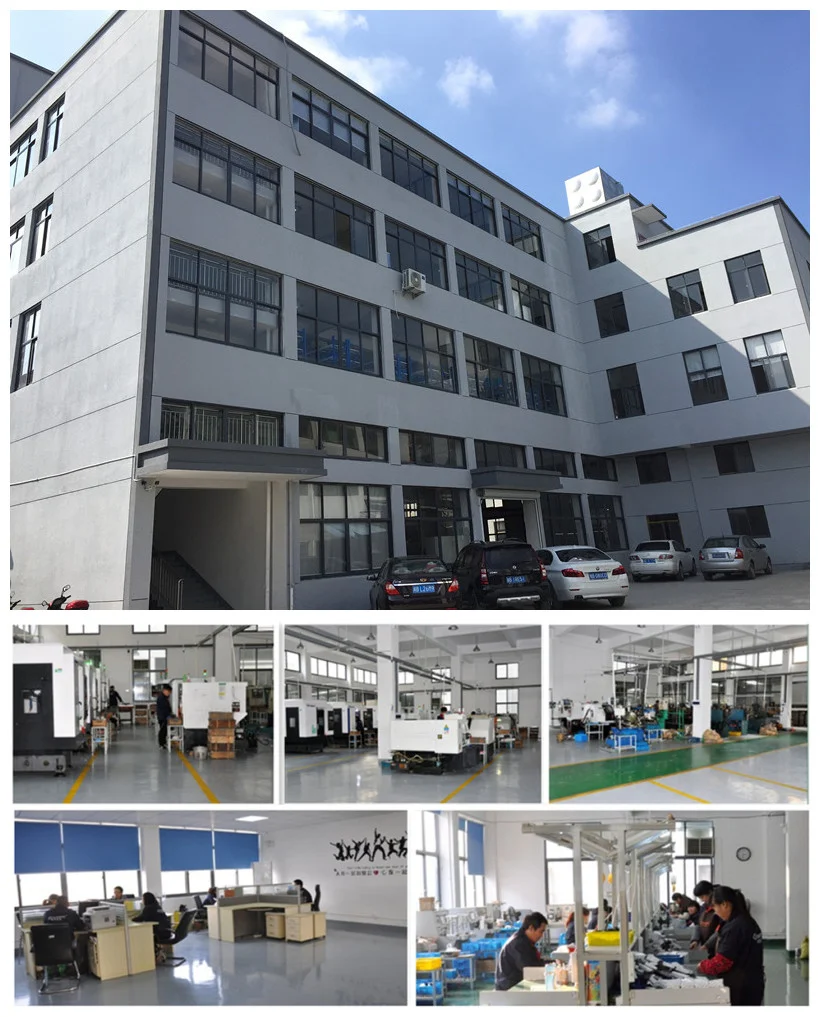

Company Profile
Exhibition
Certifications

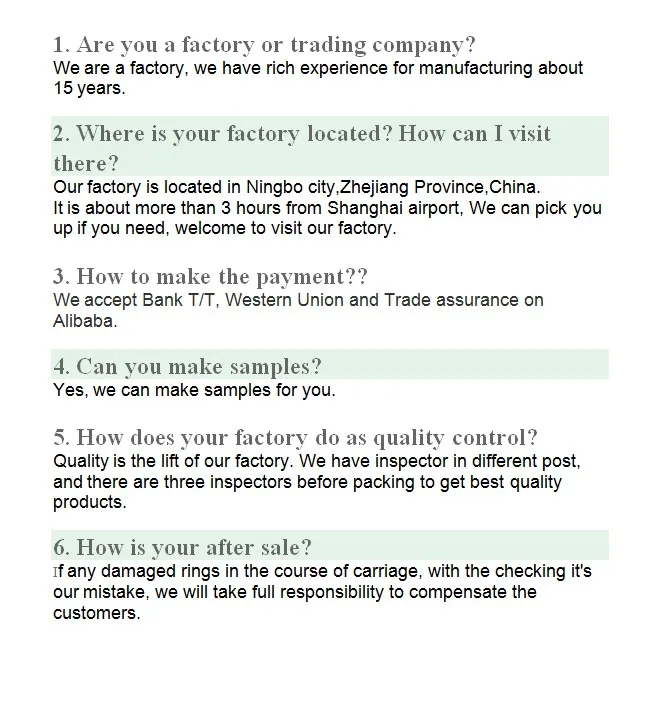

FAQ
