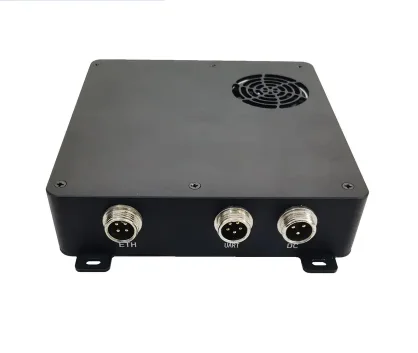

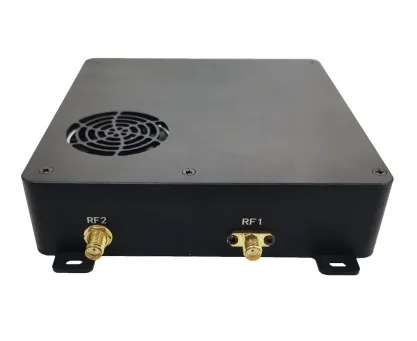

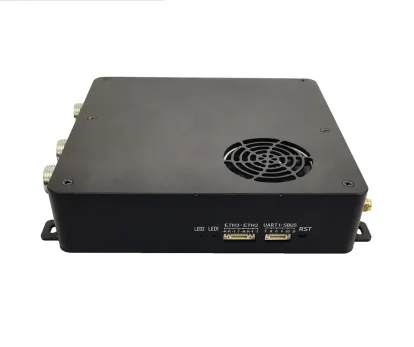

Long Range Fixed Wing Drone Wireless Transmitter and Receiver Mini RC Drone Radio Communication Module Drone Accessories
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1600937494685):
Product Overview
Description
Product Description
Product Name | XK- F304E-100 |
Function | Drone Transmitter and Receiver |
Package | Packed in a Professional Shipping Box |
1. Product Description
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2. Product Features
* Supporting multiple frequency ranges and bandwidths.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~25V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~25V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
3. Product Functions
* Working frequency ranges: 1.4GHz for free choice, and the frequency bands can be customized.
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
4. Product Specification
Item | Spec/Parameters | ||
Air Unit | Ground Unit | ||
Operation Voltage | DC12V~DC25V，Standard input DC22V | ||
Power Consumption | ≤20W @ 37dBm | ||
Modulation | OFDM | ||
Data interface | UART（TTL/RS232）/SBUS | ||
Frequency | 800MHz/1.4GHz/ the frequency bands can be customized. | ||
Channel rate | Uplink(Max): 30Mbps，Downlink(Max):26Mbps | ||
Bandwidth | 3/5/10/20MHz | ||
Latency | ≤15ms | ||
Tx Power | ≤37dBm（Adjustable） | ||
Working temperature | -30℃~60℃ | ||
Storage temperature | -40℃~75℃ | ||
Antenna | 3.5dBi | 7-16dBi | |
Communication Protocol | IEEE802.3，Transparent serial data | ||
Communication | Point to Point, Point to Multi-Points relay mode | ||
Dimensions | 125*120*30mm | ||
Weight | ≤470g | ||
Related Products
Packing&Shipping
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
Company Introduction
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
