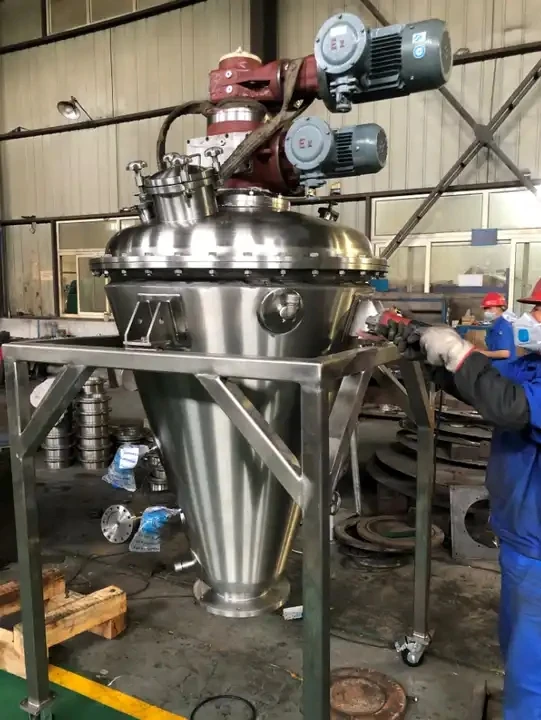

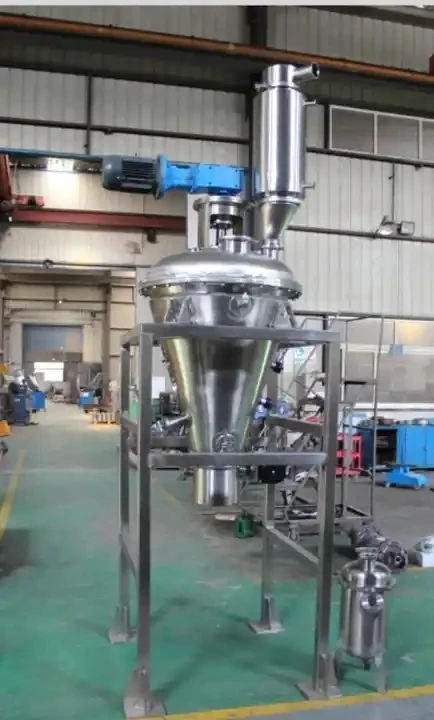

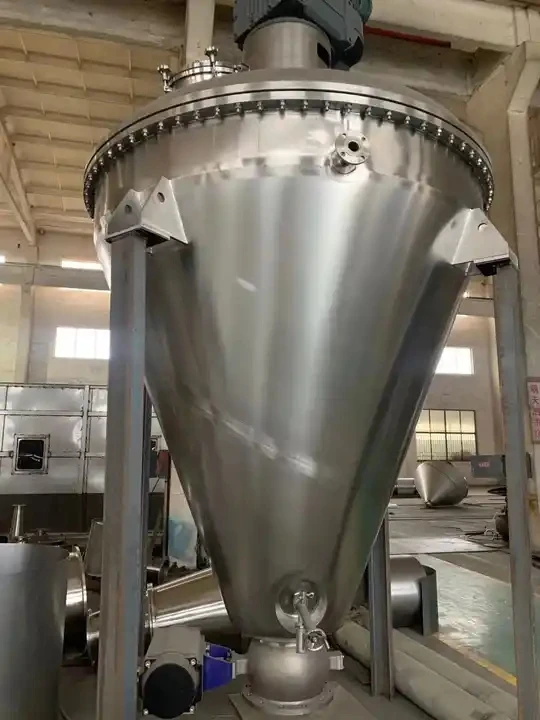

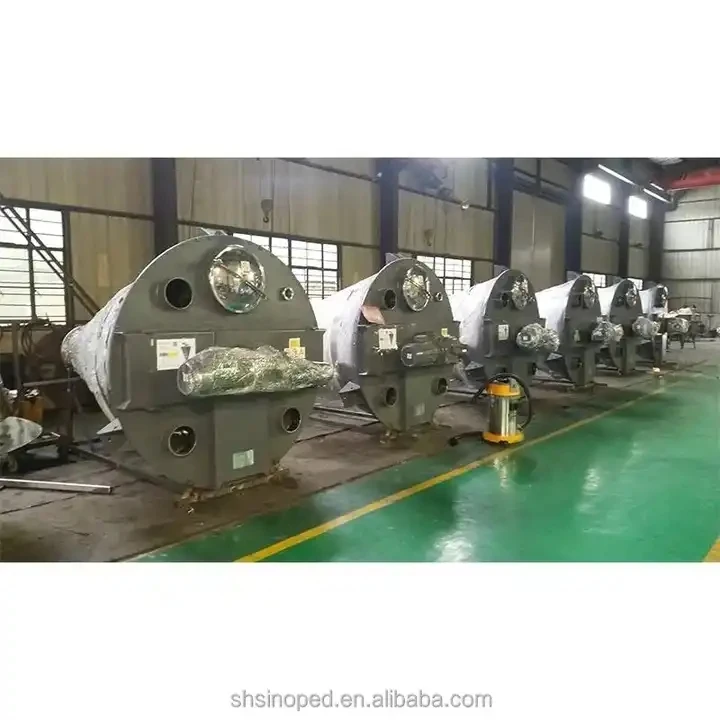

Double spiral Conical Mixer/Powder Mixers For Sale; Double Helix Twin Screw Cone Mixer
- Category: >>>
- Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Share on (1600937709148):
Product Overview
Description
Product Description
Double Screw Fertilizer Powder Cone Ribbon Mixer/conical Screw Ribbon Blender/Nauta Mixer

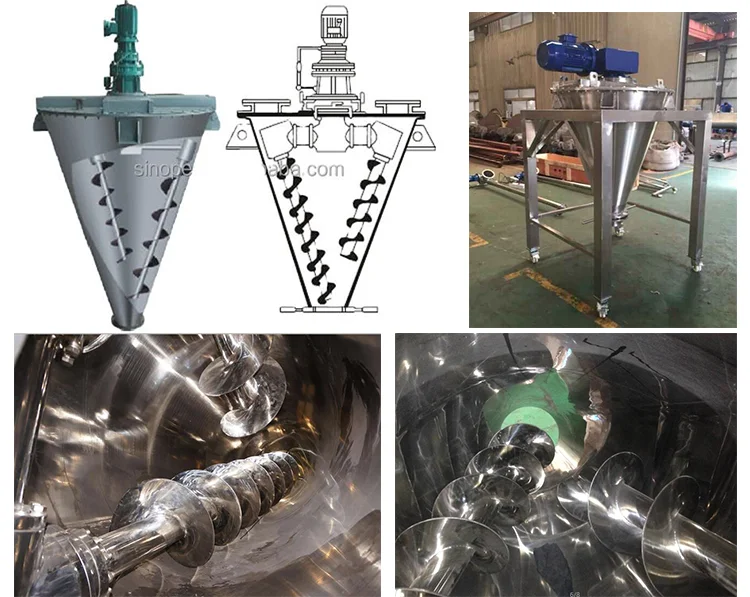

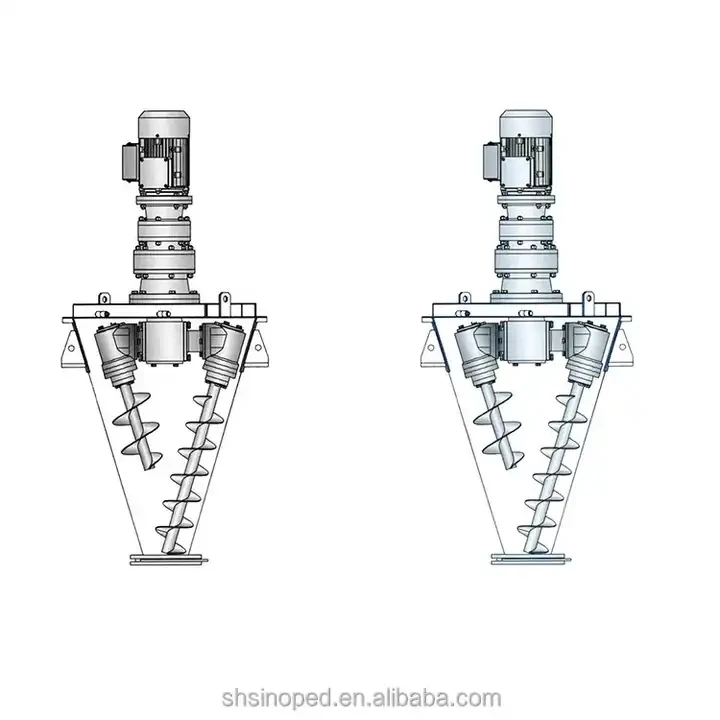

The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws.The effected motions include:
1.The revolution of the screw along the wall making the material conduct a circumferential motion;
2.The rotation of the screw making the material rise along the screw from the cone bottom;
3.The compound motion of the rotation and revolution of the screws making partial,material can be absorbed into the screw
cylindroid meanwhile,under the action of centrifugal force,the partial material in the screw cylindroid discharges radially.
4.The rised material drops under its sole weight.the four kinds of motions effect convection,shearing,diffusion in the cone ,this
quick and even mixing can be achieved.
1.The revolution of the screw along the wall making the material conduct a circumferential motion;
2.The rotation of the screw making the material rise along the screw from the cone bottom;
3.The compound motion of the rotation and revolution of the screws making partial,material can be absorbed into the screw
cylindroid meanwhile,under the action of centrifugal force,the partial material in the screw cylindroid discharges radially.
4.The rised material drops under its sole weight.the four kinds of motions effect convection,shearing,diffusion in the cone ,this
quick and even mixing can be achieved.
Application
It is suitable for chemical industry,pharmaceutical industry,pesticide,dyestuff,petroleum industry,metallurgical industry,construction material and etc.Such as in the mixing,reaction,drying,cooling of powder and powder(solid-solid),powder and liquid(solid-liquid),liquid-liquid(liquid-liquid).
Specification
Type | Total volume(m³) | Load factor | Equipped power(Kw) | Operating conditions | Dimensions(mm) | Weight(kg) |
VSH-0.1 | 0.1 | <=0.6 | 1.5 | Normal temperature pressure powder dust seal | 1569φ702 | 250 |
VSH-0.3 | 0.3 | <=0.6 | 2.2 | Normal temperature pressure powder dust seal | 1929φ920 | 550 |
VSH-0.5 | 0.5 | <=0.6 | 3.0 | Normal temperature pressure powder dust seal | 2322φ1124 | 660 |
VSH-1.0 | 1.0 | <=0.6 | 4.0 | Normal temperature pressure powder dust seal | 2869φ1480 | 1200 |
VSH-1.5 | 1.5 | <=0.6 | 5.5 | Normal temperature pressure powder dust seal | 3140φ1633 | 1350 |
VSH-2.0 | 2.0 | <=0.6 | 5.5 | Normal temperature pressure powder dust seal | 3489φ1816 | 1500 |
VSH-3.0 | 3.0 | <=0.6 | 7.5 | Normal temperature pressure powder dust seal | 3747φ2210 | 2300 |
VSH-4.0 | 4.0 | <=0.6 | 11 | Normal temperature pressure powder dust seal | 4362φ2280 | 2520 |
VSH-5.0 | 5.0 | <=0.6 | 15 | Normal temperature pressure powder dust seal | 4576φ2402 | 3000 |
VSH-6.0 | 6.0 | <=0.6 | 15 | Normal temperature pressure powder dust seal | 4900φ2582 | 3150 |
VSH-8.0 | 8.0 | <=0.6 | 18.5 | Normal temperature pressure powder dust seal | 5405φ2805 | 4500 |
VSH-10 | 10 | <=0.6 | 20.7 | Normal temperature pressure powder dust seal | 5795φ3018 | 5500 |
VSH-15 | 15 | <=0.6 | 24.2 | Normal temperature pressure powder dust seal | 6475φ3450 | 6600 |
VSH-20 | 20 | <=0.6 | 41 | Normal temperature pressure powder dust seal | 7535φ3805 | 7000 |
VSH-25 | 25 | <=0.6 | 41 | Normal temperature pressure powder dust seal | 7995φ4078 | 8500 |
VSH-30 | 30 | <=0.6 | 52.5 | Normal temperature pressure powder dust seal | 8385φ4330 | 9200 |
Related product
Packing & Delivery
Company Profile
FAQ
Q1:Are you a factory or trading company?
We are the manufacturer, and have been in industry for more than ten years.
Q2:What is your company service?
1.SINOPED provide one-stop service(pre-sale,production,packing&after-sales) and we have independent R&D and design team to help customer solve pre-sale questions what they concern about.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight. During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation. For Package,we will adopt to standard
woodencase,also will make waterproof treatment inside.
Q3:What is your company after-sales?
For after-sales,SINOPED provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts notincluded) under warranty period. And SINOPED will arrange engineer to answer customer question for install,debuging,etc all the time.
If necessarry,we will arrange video online to guide customer,also will arrange translator that customer can be better
understand.
Q4:Do you have quality warranty?
Yes,we provide quality warranty 1 year under normal conditions,and we will provide extra spare parts for new customer. At the time,batch purchase our company equipment,we will provide 2-3 years warranty.
Q5:Can you make products with our brand?
Sure,we are welcome to cooperate as OEM service.
Q2:What is your company service?
1.SINOPED provide one-stop service(pre-sale,production,packing&after-sales) and we have independent R&D and design team to help customer solve pre-sale questions what they concern about.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight. During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation. For Package,we will adopt to standard
woodencase,also will make waterproof treatment inside.
Q3:What is your company after-sales?
For after-sales,SINOPED provide free parts and parts delivery, when manufacture defects has been detected during normal operation(vulnerable parts notincluded) under warranty period. And SINOPED will arrange engineer to answer customer question for install,debuging,etc all the time.
If necessarry,we will arrange video online to guide customer,also will arrange translator that customer can be better
understand.
Q4:Do you have quality warranty?
Yes,we provide quality warranty 1 year under normal conditions,and we will provide extra spare parts for new customer. At the time,batch purchase our company equipment,we will provide 2-3 years warranty.
Q5:Can you make products with our brand?
Sure,we are welcome to cooperate as OEM service.
