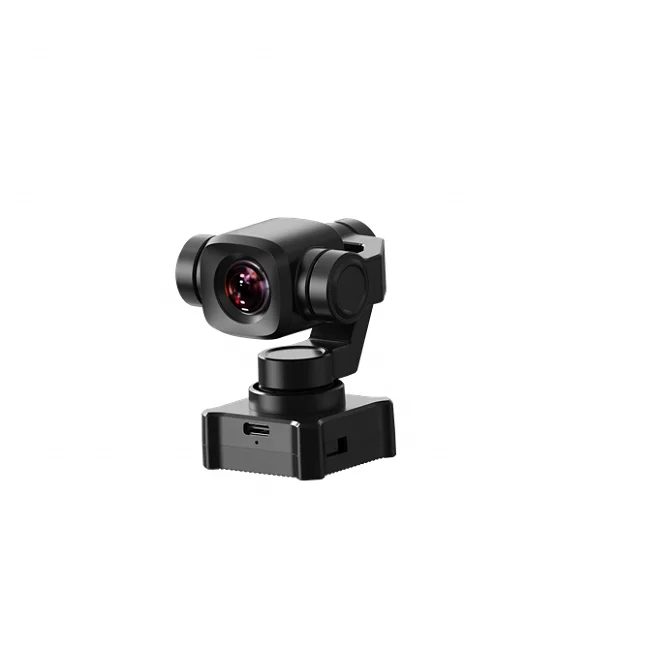

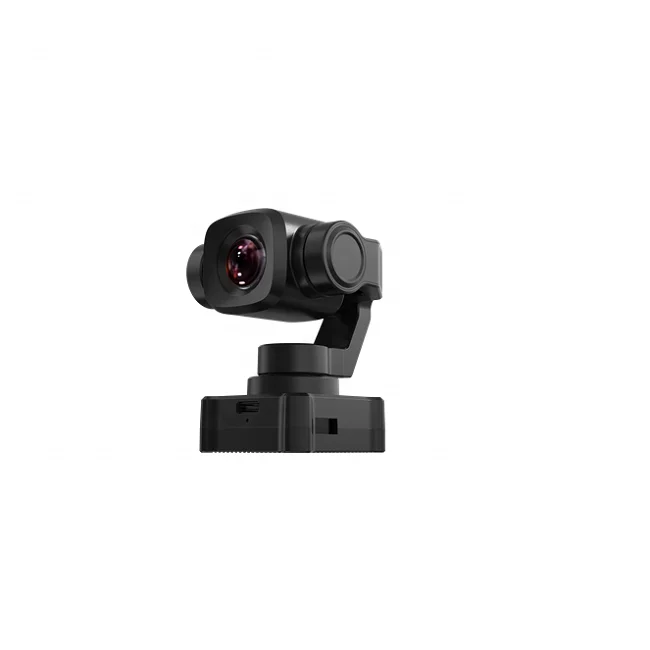

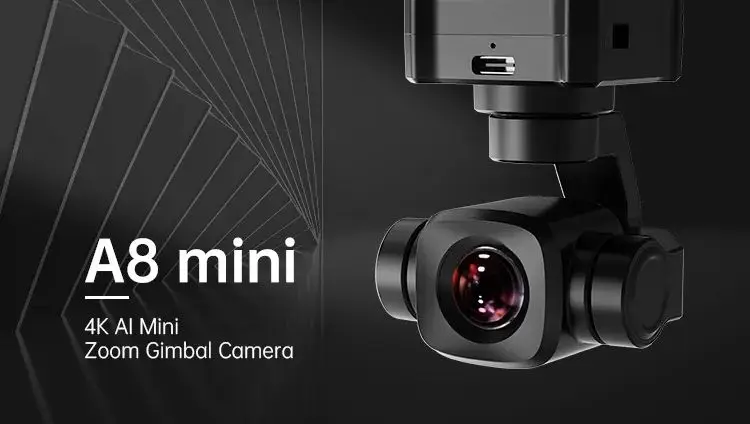

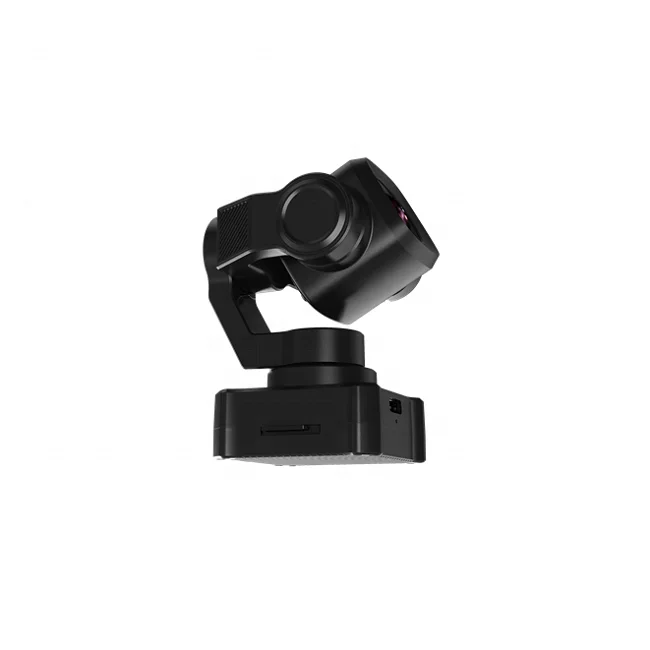

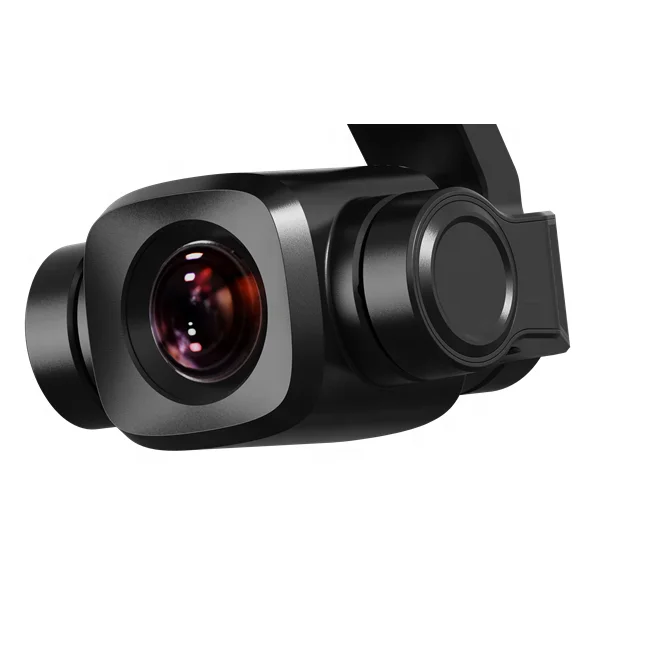

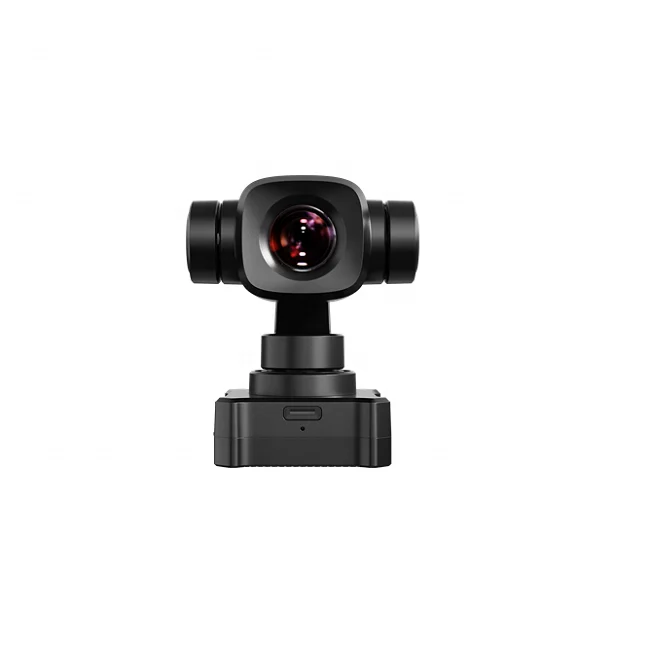

FPV Camera SIYI A8 Mini 4K 8MP Ultra HD 6X Digital Zoom Gimbal Camera with AI Identify and Tracking HDR Starlight Night Vision
- Category: >>>
- Supplier: Dongying Youjia Industry & Trade Co. Ltd.
Share on (1600937792585):
Product Overview
Description
Product Description
Specs
Overall

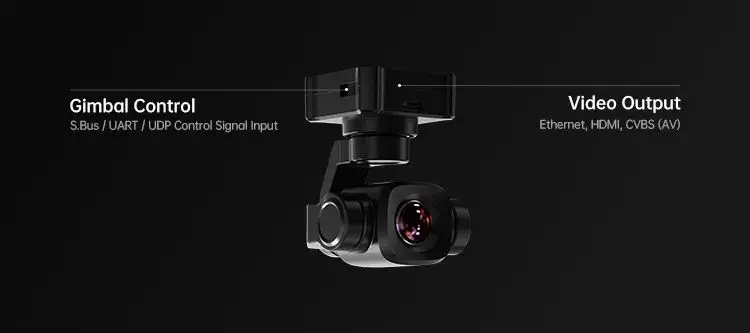

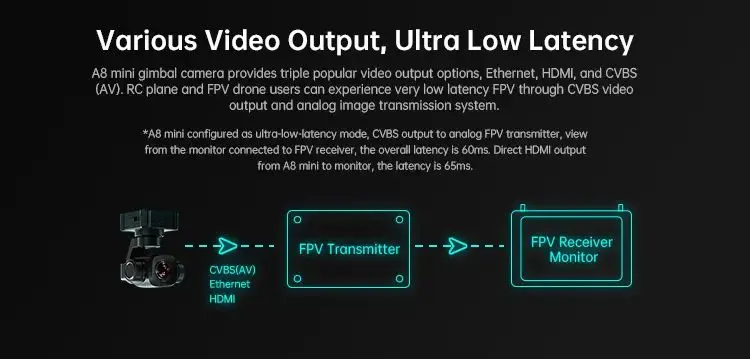

| Video Output Port | Ethernet Micro-HDMI CVBS (AV) |
| Control Signal Input Port | S.Bus, UART Ethernet UDP |
| Control Signal Output Port | S.Bus |

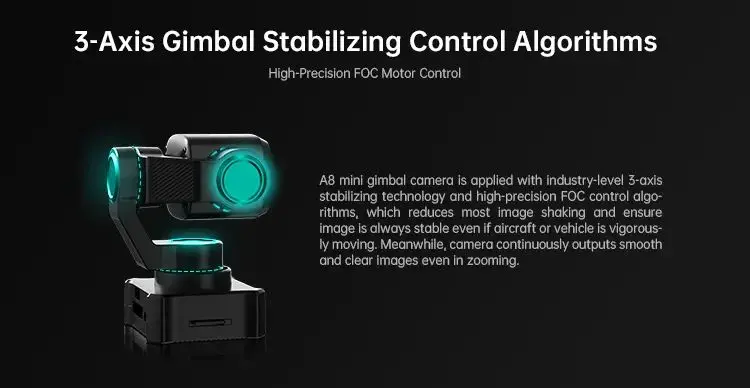

| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Working Voltage | 11 ~ 25.2 V (Early manufacturing lots before June, 2023 were 11 ~ 16.5 V, please carefully confirm if you need 25.2 V input) |
| Power Consumption | Average: 5W Summit: 12W |
| Working Temperature | -10° ~ 50°C |
| Dimension | 55*55*70 mm |
| Weight | 95 g |
Gimbal
| Angular Vibration Range | ± 0.01° |
| Controllable Pitch Angle | -135° ~ +45° |
| Controllable Yaw Angle | -160° ~ +160° |
| Roll Angle | -30° ~ +30° |
Camera
| Lens | Fixed Focal Length 6X Digital Zoom |
| Equivalent Focal Length | 21 mm |
| Image Sensor | Sony 1/1.7-inch, 8 MP effective resolution |
| Aperture | F2.8 |
| FOV | Diagonal: 93°, Horizontal: 81° |
| Video Recording Resolution | 4K (4096 × 2160) @ 25 fps 2K (2560 × 1440) @ 30 fps 1080p (1920 × 1080) @ 30 fps 720p (1280 × 720) @ 30 fps |
| Video Storage Bitrate (H265 Codec) | 4K / 2K: 20 Mbps 1080p / 720p: 15 Mbps |
| File Storage Format | FAT32 ExFAT |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, max 512 GB |
| Still Photography Mode | Single |
| White Balance | Auto |

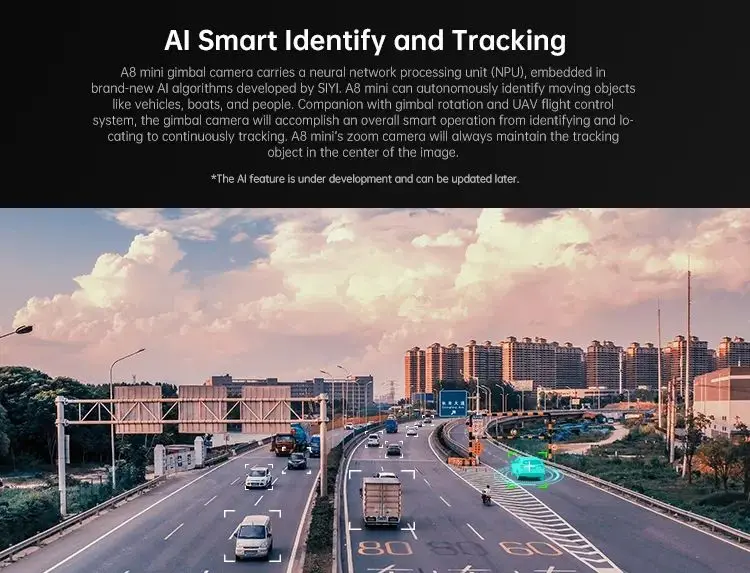

AI Smart Identify and Tracking
A8 mini gimbal camera carries a neural network processing unit (NPU), embedded in brand-new Alalgorithms developed by SIYL. A8 mini can autonomously identify moving objects like vehiclesboats, and people. Companion with gimbal rotation and UAV flight control system, the gimbalcamera will accomplish an overall smart operation from identifying and locating to continuouslytracking. A8 mini's zoom camera will always maintain the tracking object in the center of the
image.
*The Al feature is under development and will be supported by firmware update soon
A8 mini gimbal camera carries a neural network processing unit (NPU), embedded in brand-new Alalgorithms developed by SIYL. A8 mini can autonomously identify moving objects like vehiclesboats, and people. Companion with gimbal rotation and UAV flight control system, the gimbalcamera will accomplish an overall smart operation from identifying and locating to continuouslytracking. A8 mini's zoom camera will always maintain the tracking object in the center of the
image.
*The Al feature is under development and will be supported by firmware update soon
