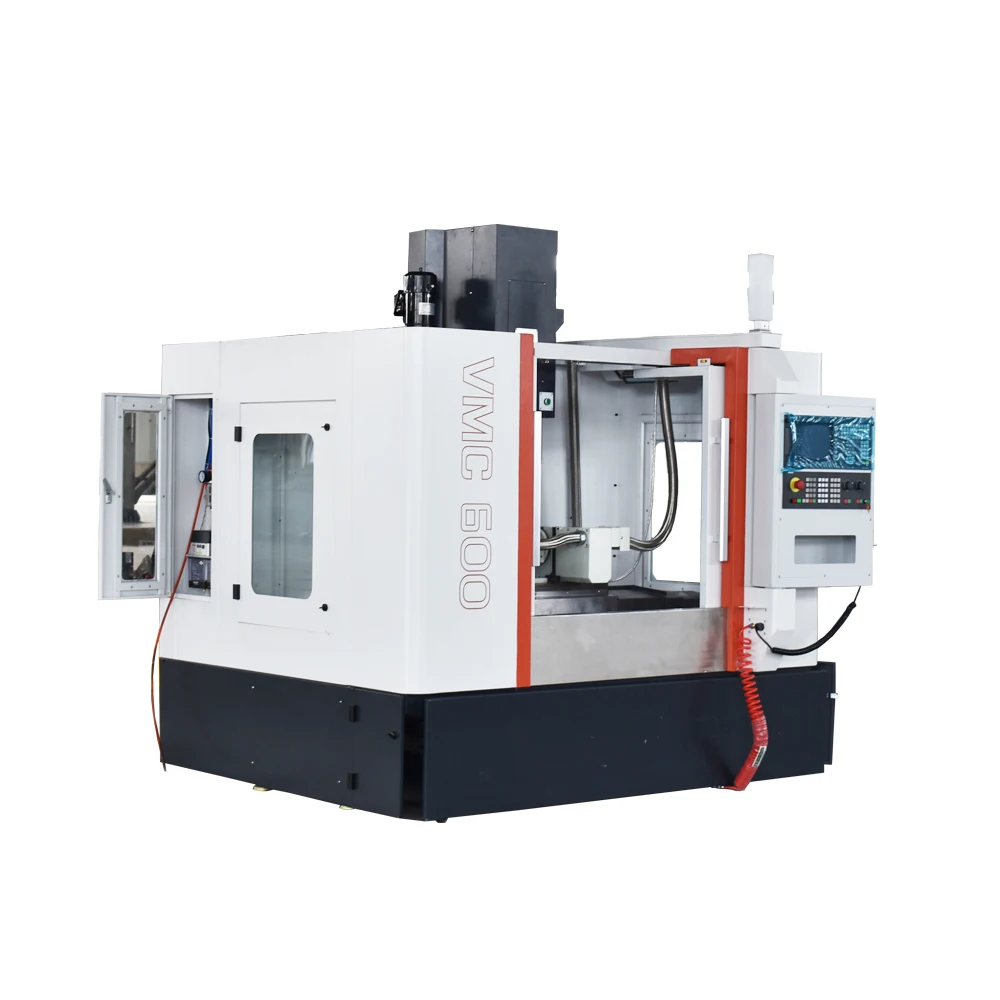

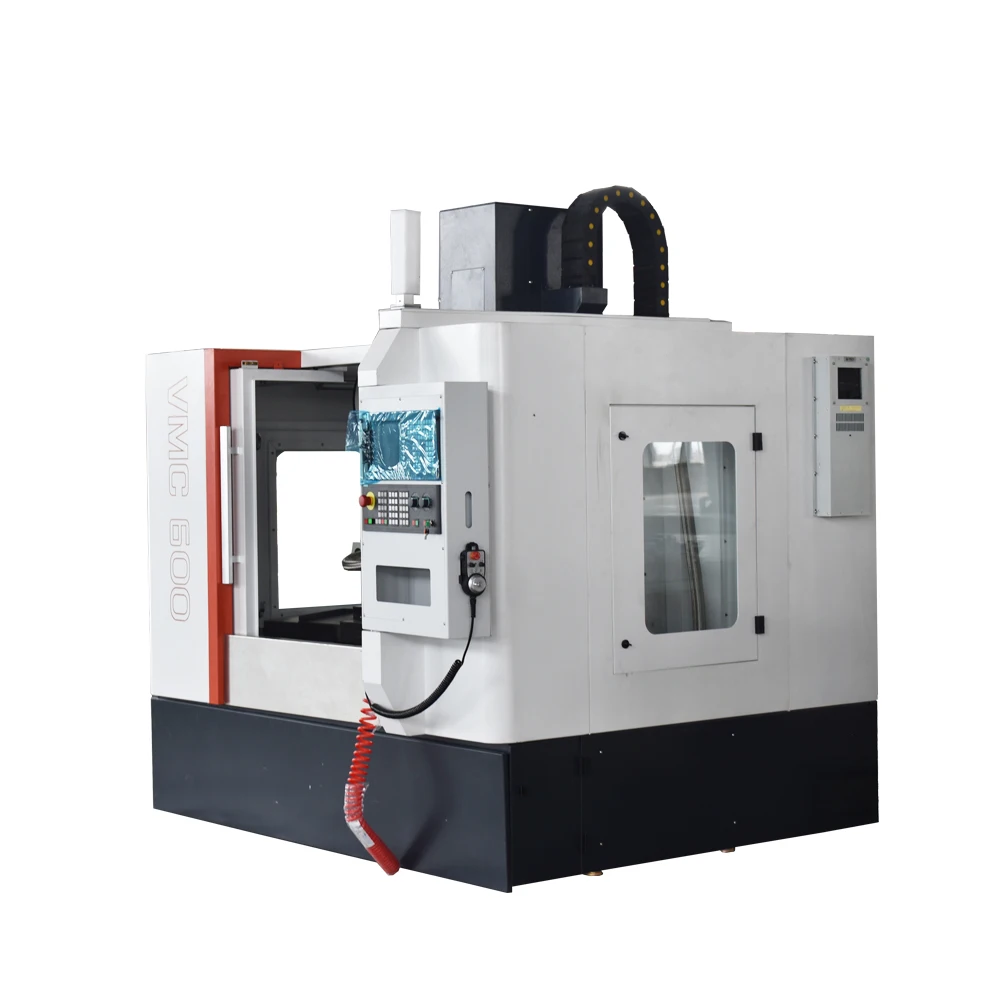

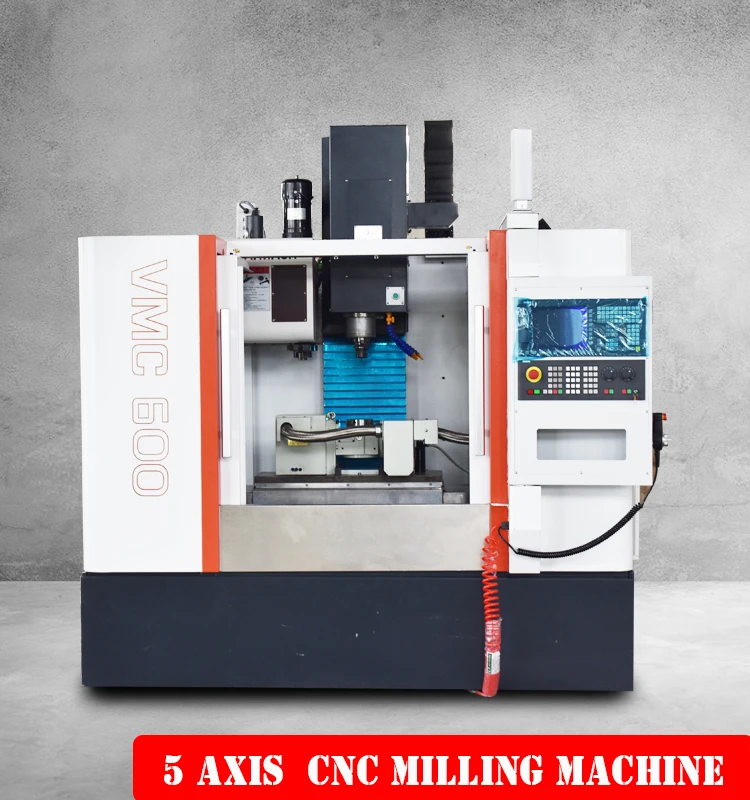

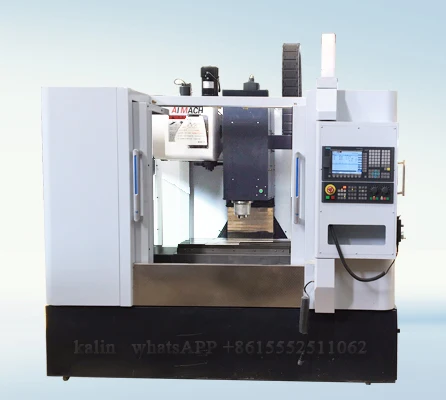

universal CNC milling machine
It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.
Product Description
Standard configuration:
1)5.5kw servo motor, spindle speed 8000rpm, BT40;

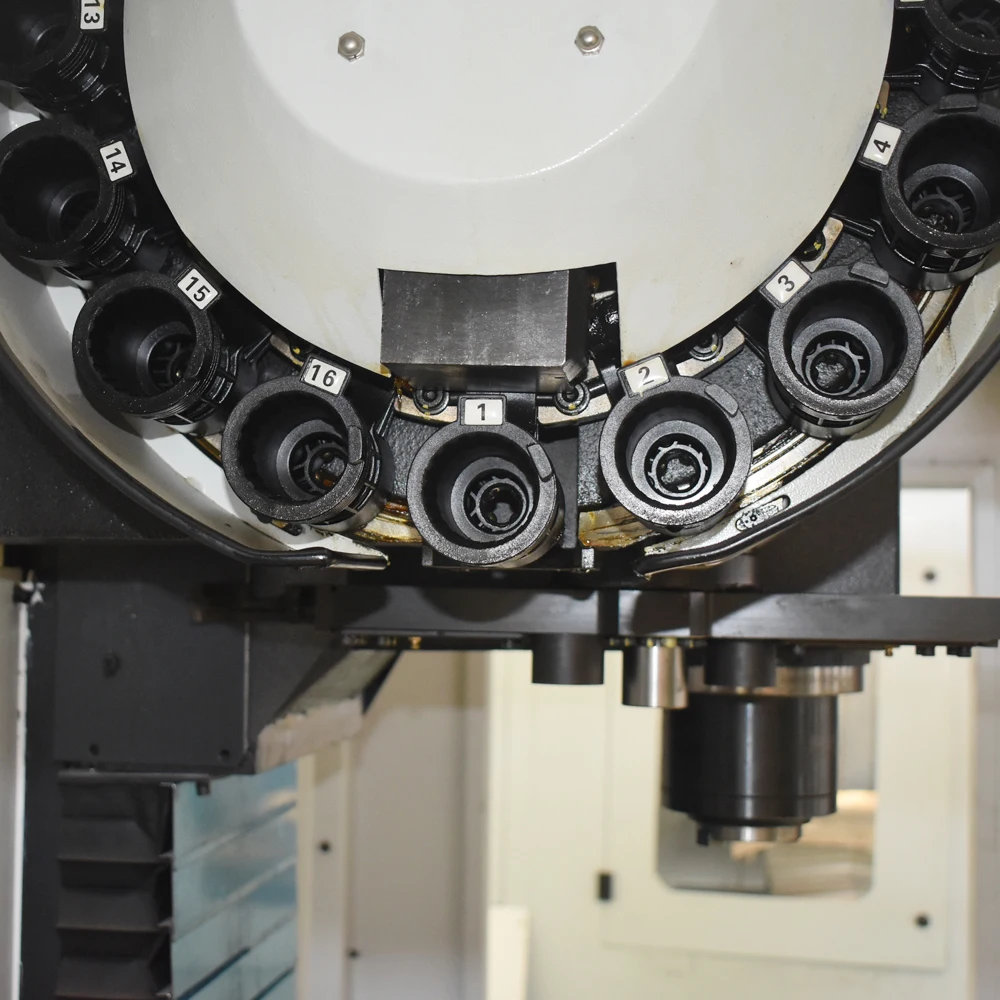

2) 16(standard) tools, Drum-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,
6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
Optional configuration:
1）No tool magazine；
2) 16 tools, Umbrella-type tool magazine, BT40 spindle;
3) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;

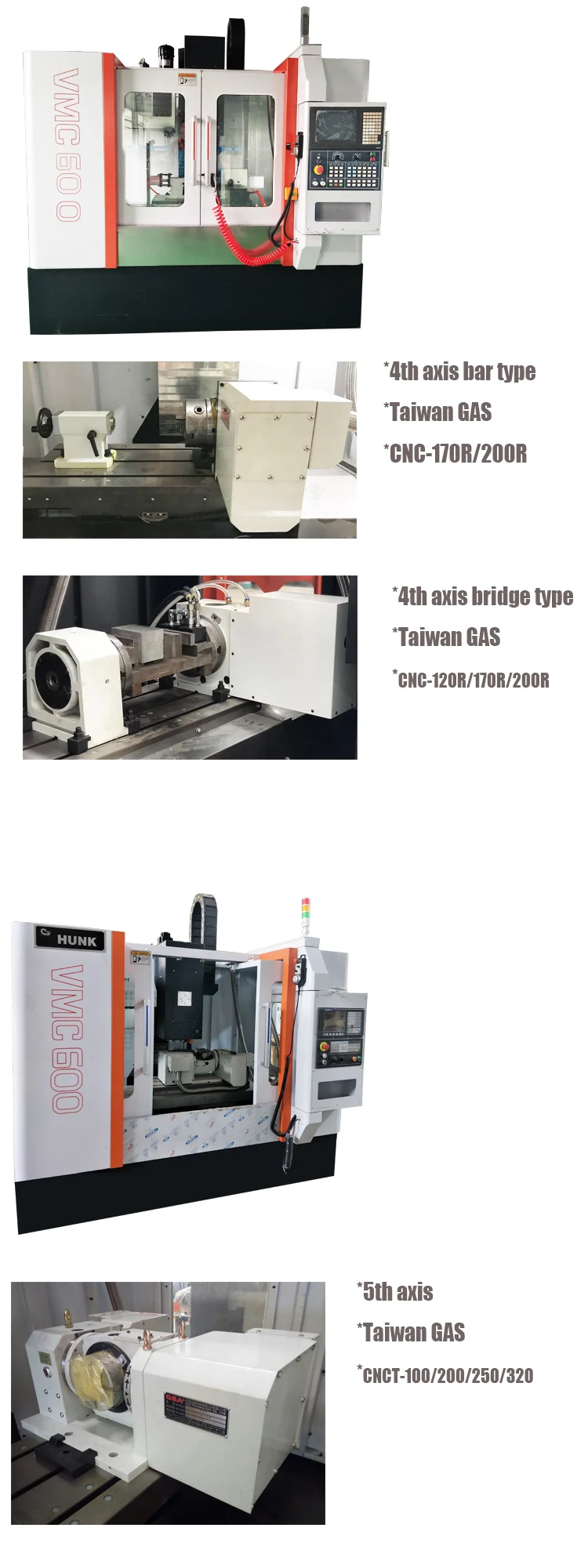

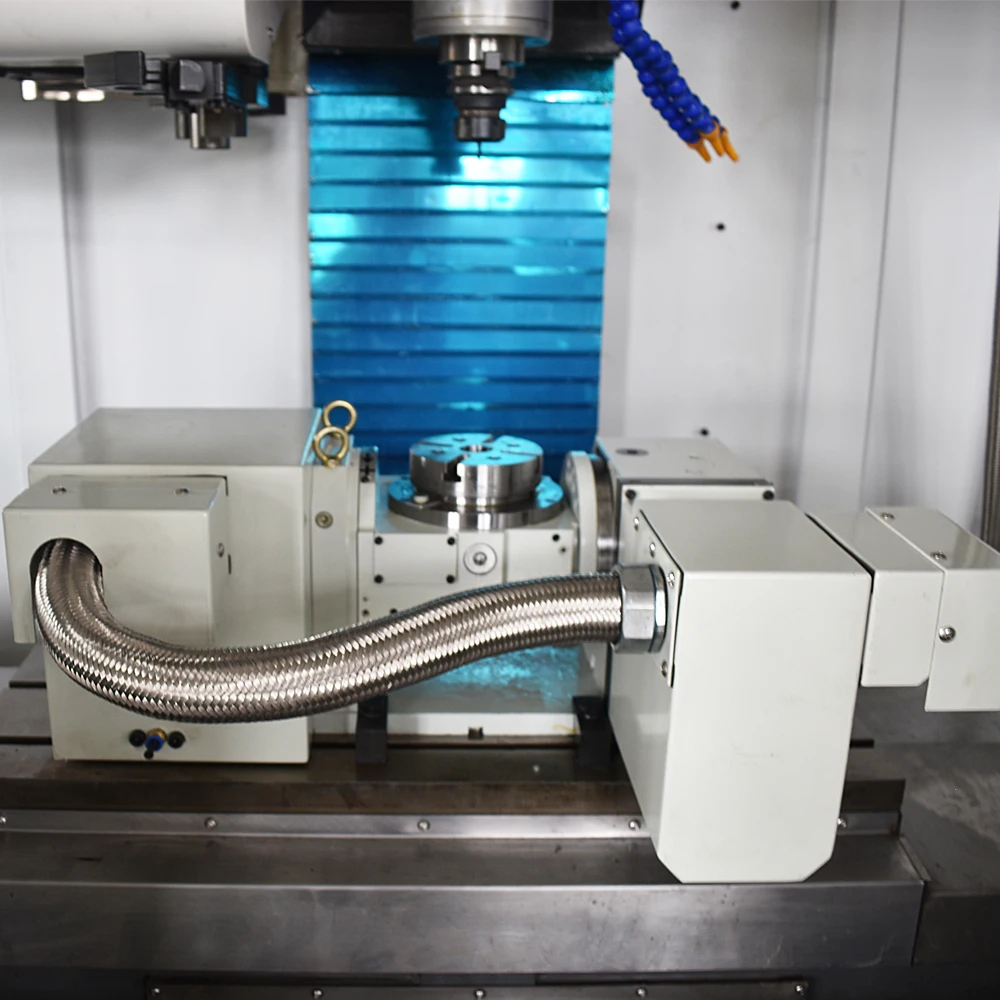

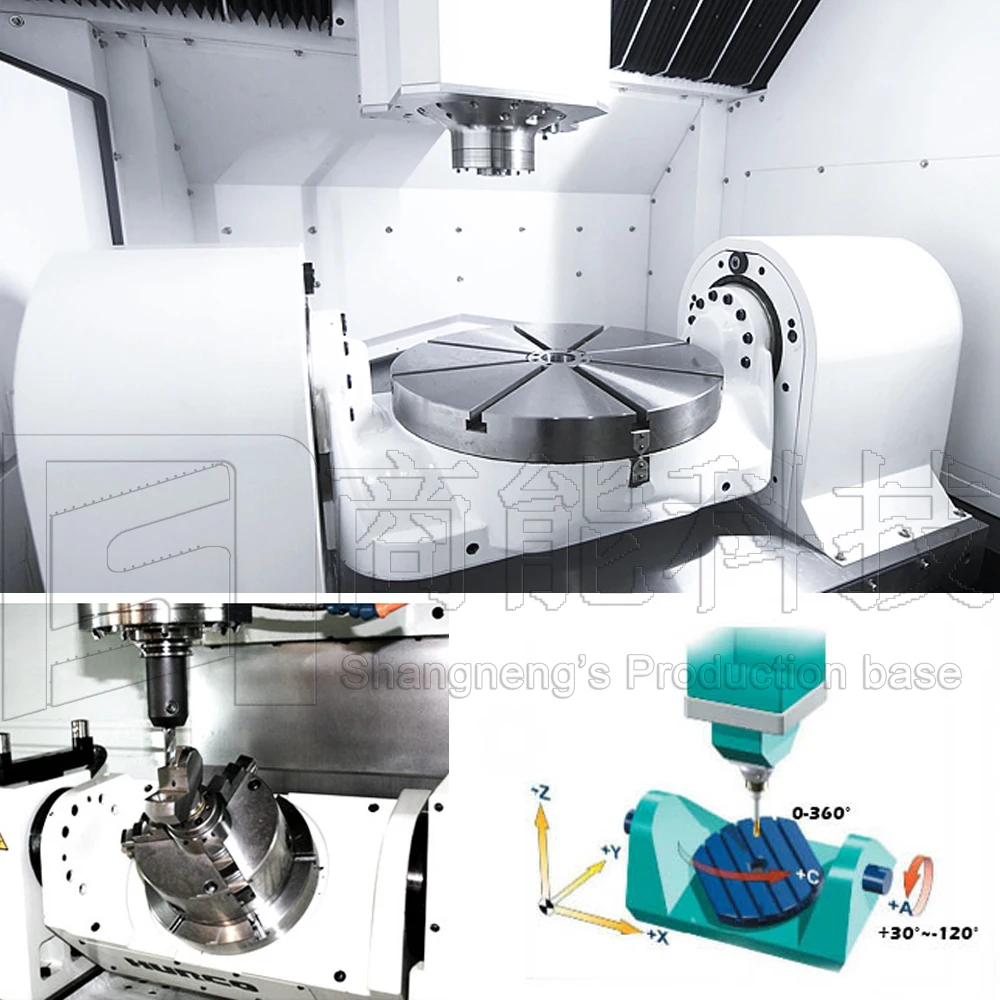

4) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock;
5) 4th axis (bar type, GSA Taiwan) CNC-170R/200R, with tailstock;
6)4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R；
7）5th axis (GSA Taiwan)CNCT-100/200/250/320；
2) 16 tools, Umbrella-type tool magazine, BT40 spindle;
3) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
4) 4th axis ( bar type, made in China), center height 110mm/125mm, with tailstock;
5) 4th axis (bar type, GSA Taiwan) CNC-170R/200R, with tailstock;
6)4th axis (bridge type, GSA Taiwan) CNC-120R/170R/200R；
7）5th axis (GSA Taiwan)CNCT-100/200/250/320；
Option Control system:
1) SIEMENS808D2
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
Specification
Model | VMC600L | |
Work Capacity | ||
Travel X,Y,Z | 600mm,400mm,500mm | |
Spindle Nose to Table | 100-600mm | |
Spindle Center to Column | 430mm | |
Work Table | ||
Table Area | 800*360mm | |
Spindle | ||
Spindle Max. Speed | 8000RPM | |
Driving Type | Belt Drive | |
Spindle motor power | 5.5KW | |
Spindle taper | BT40 | |
Automatic Tool Changer (ATC) | ||
Magazine type | Disc type | |
Magazine Capacity | 16 tools | |
Tool Selection Type | Set Tool Number | |
Max. Tool Diameter | 120/200mm | |
Max Tool Length | 350mm | |
Max Tool Weight | 8kgs | |
Air Blast at Tool Change | Standard | |
Motion | ||
Cutting Feed Rate | 1-10000 | |
Rapid Traverse X/Y/Z | 10000/10000/10000 mm | |
Accuracy | ||
Positioning Accuracy | 0.01mm | |
Repeatability Accuracy | 0.007mm | |
CNC Control Features | ||
Controller | SIEMENS | |
Control Model | SIEMENS808D2 (option) | |
Programming Assist | Manual Guide | |
4th Axis Support | SIEMENS808D2(option) | |
5th Axis Support | SIEMENS828D(option) | |
Coolant System | ||
Flood Coolant Nozzles | 2 | |
Coolant Tank Capacity | 140L | |
Chip conveyor | option | |
Power Requirement | ||
Electrical | Three phase AC 380V±10% 50Hz±10% | |
Using air pressure | 0.6MPa | |
Machine Measurements | ||
Out dimension | 2200*2100*2200mm | |
Machine weight | 3500kgs | |

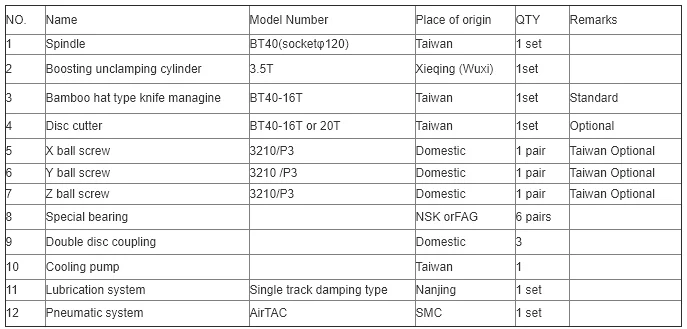

Main purchased components

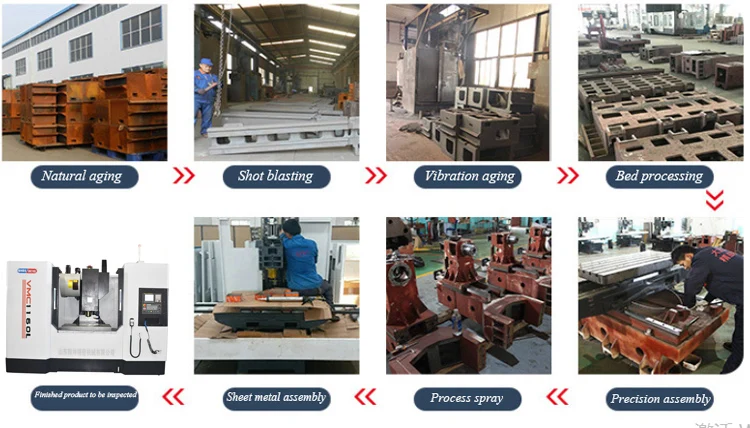

Produce process

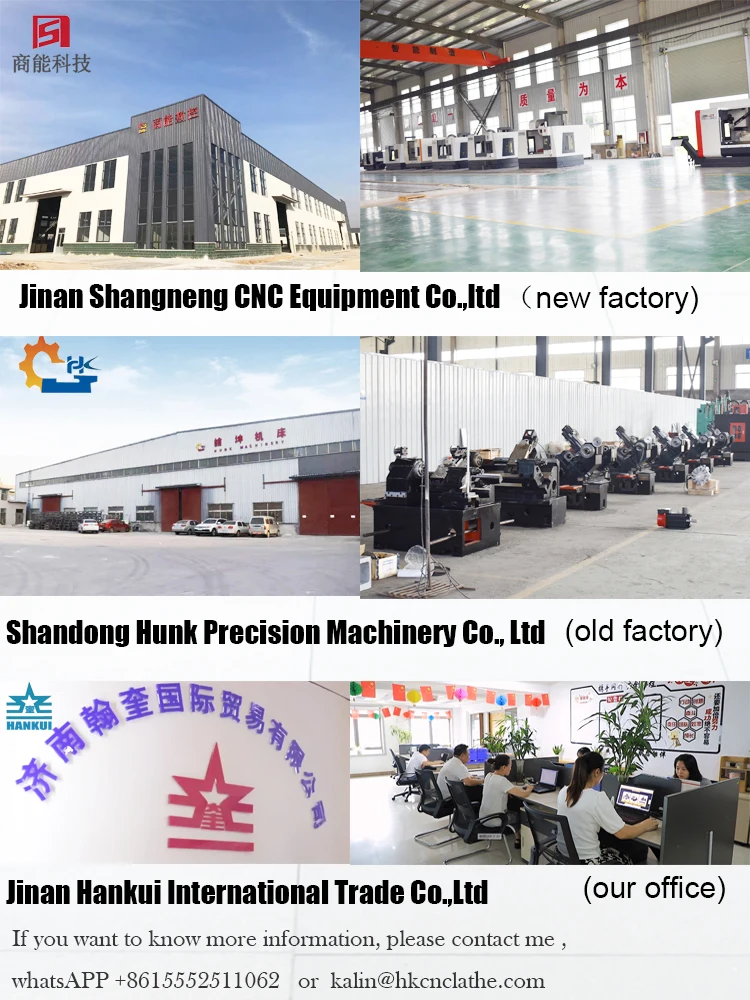

About us

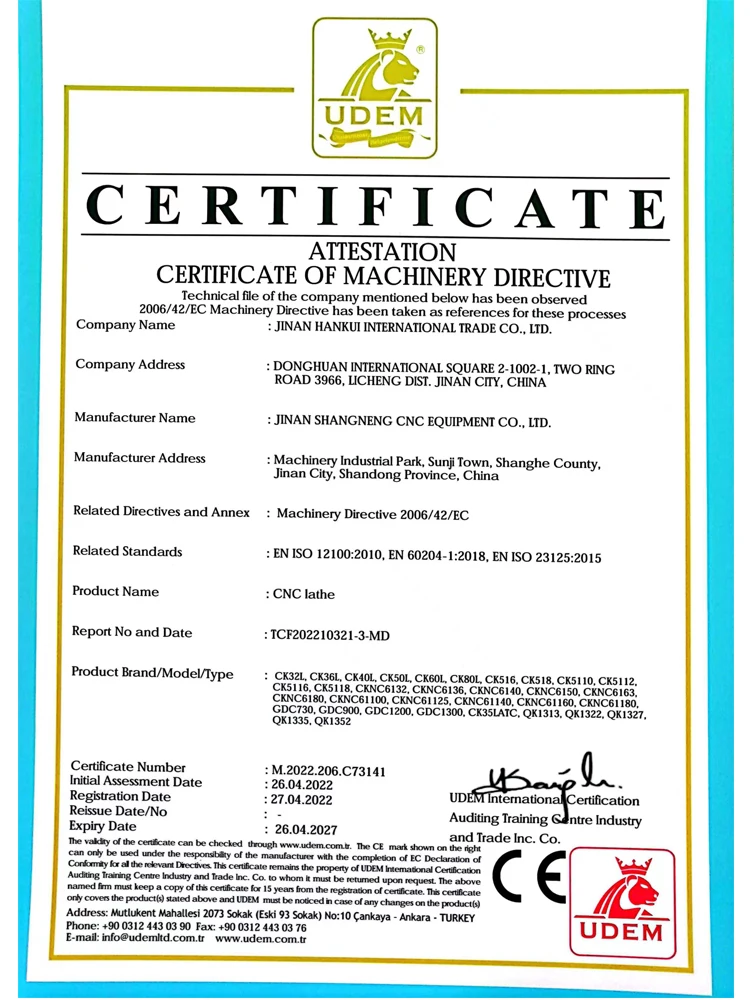

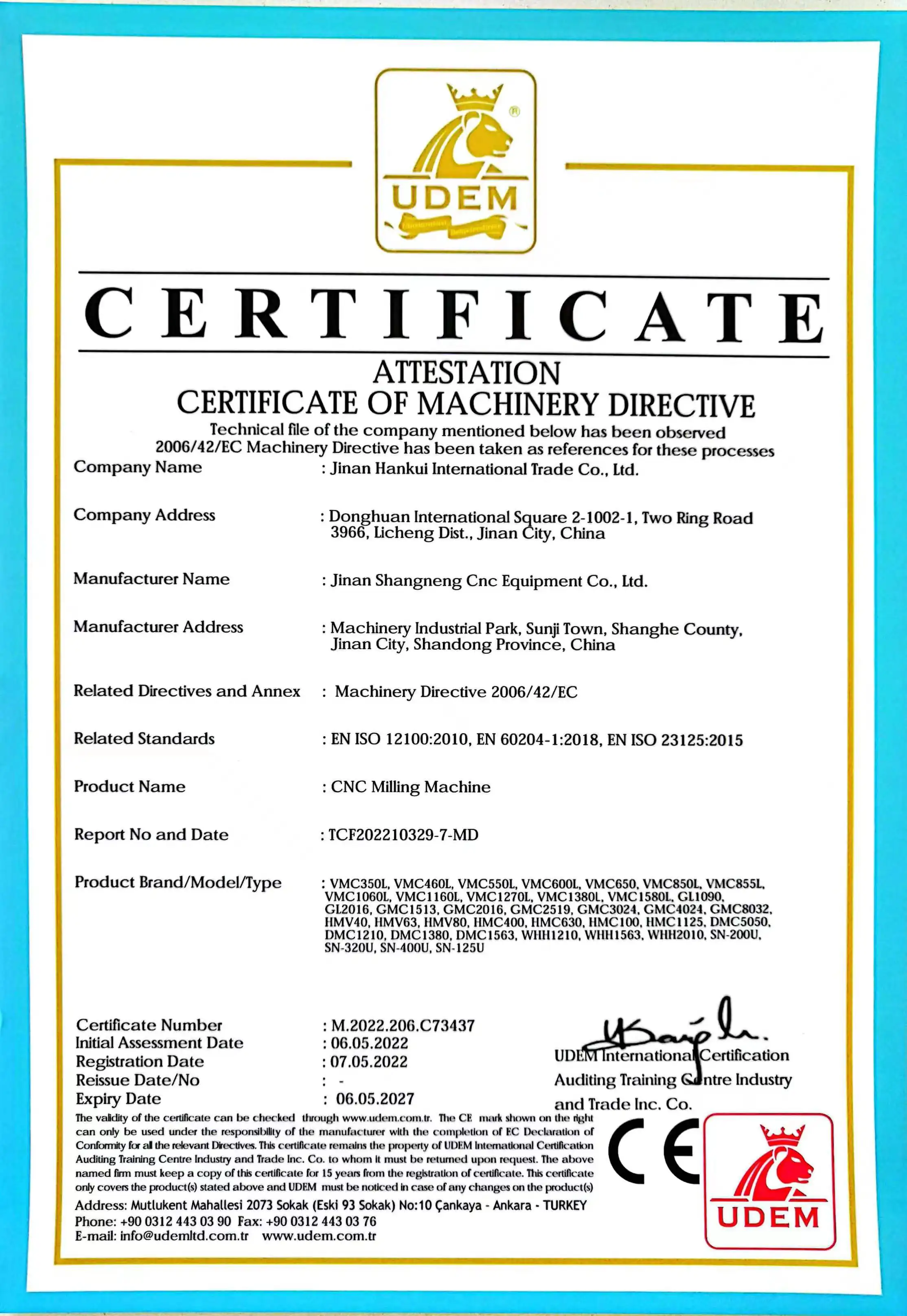

Certification
