Product Overview
Description

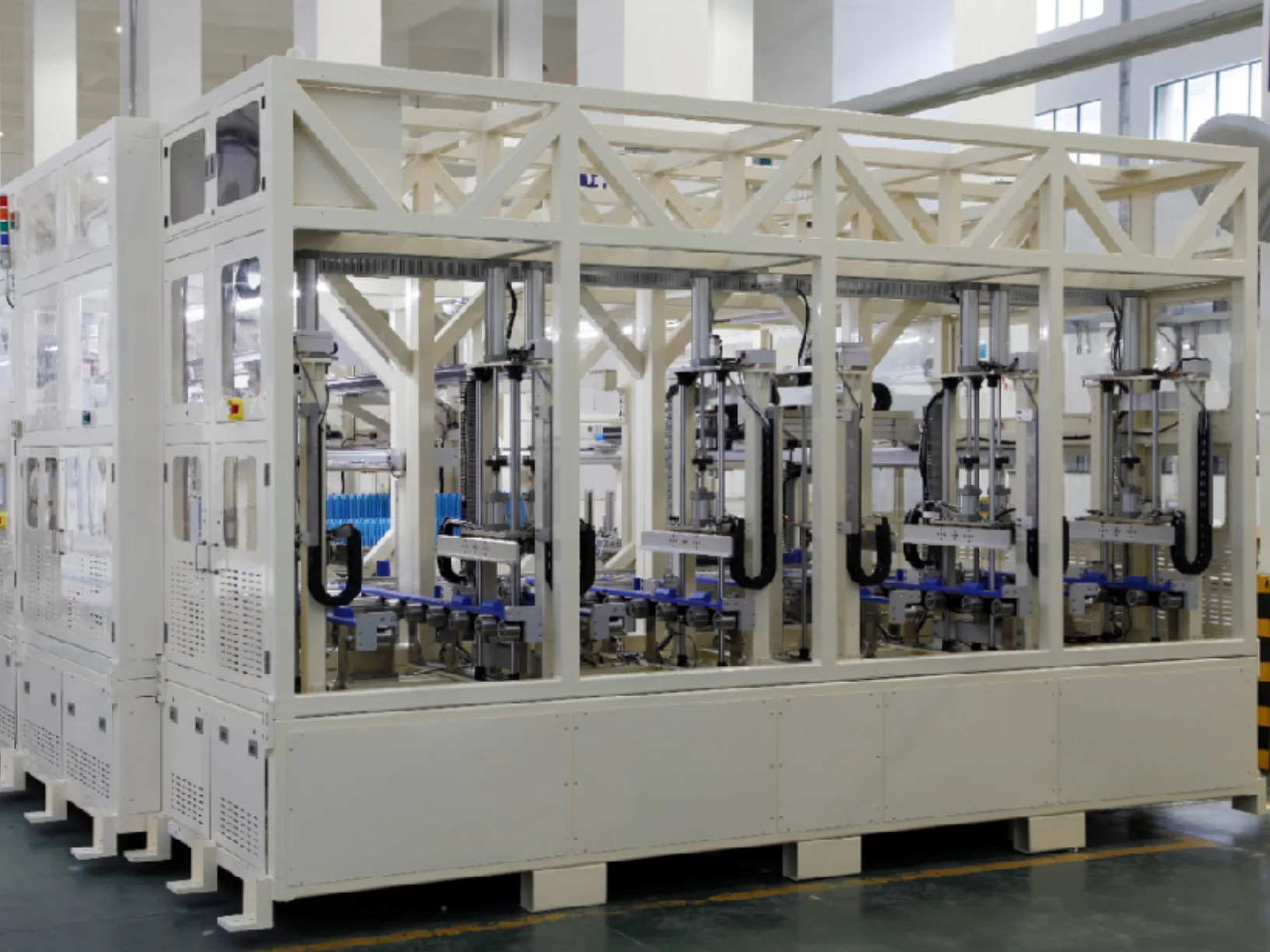

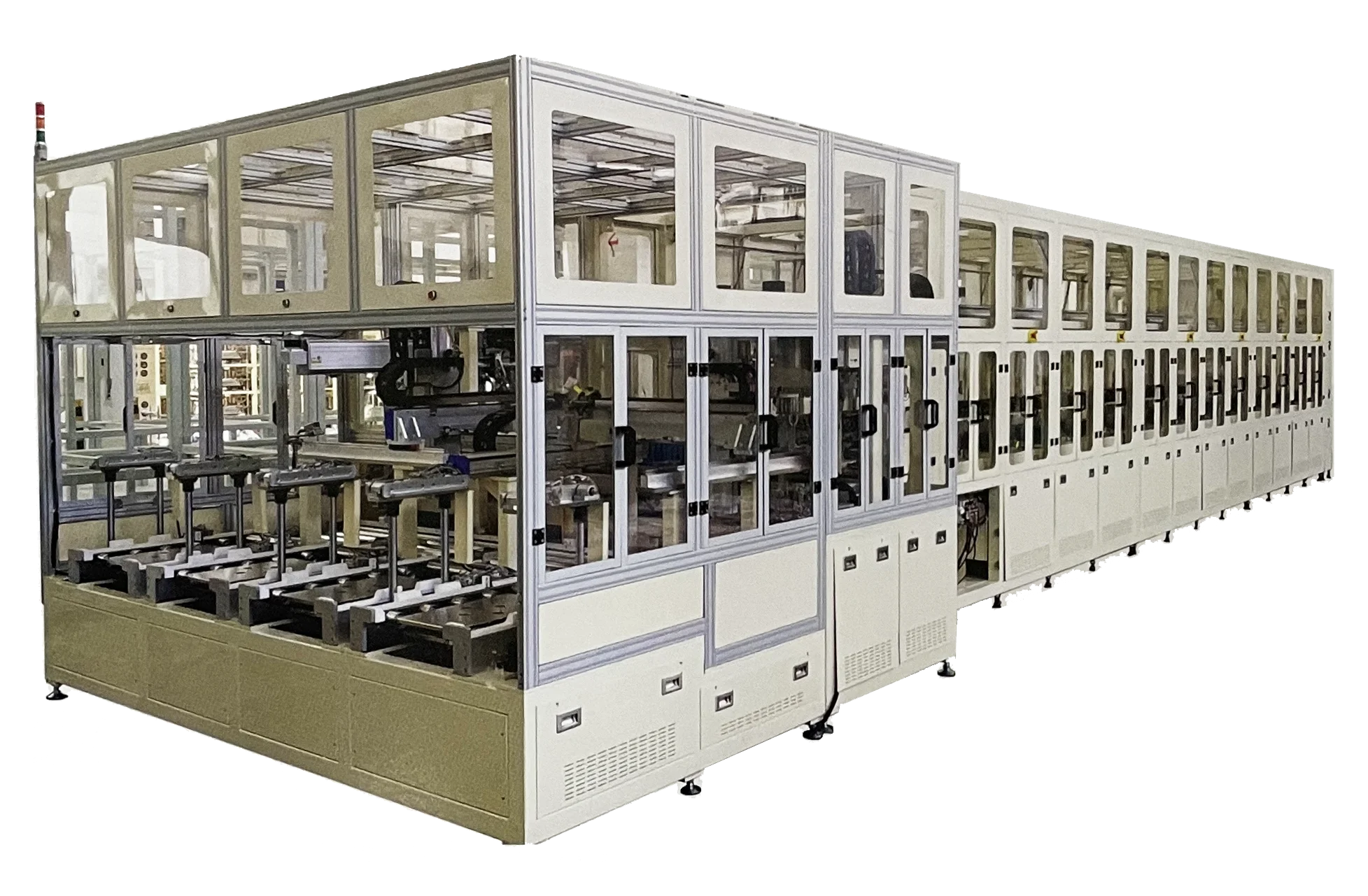

Automatic Lithium Battery Formation Machine Battery Formation and Grading Automation Lithium Battery Production Line

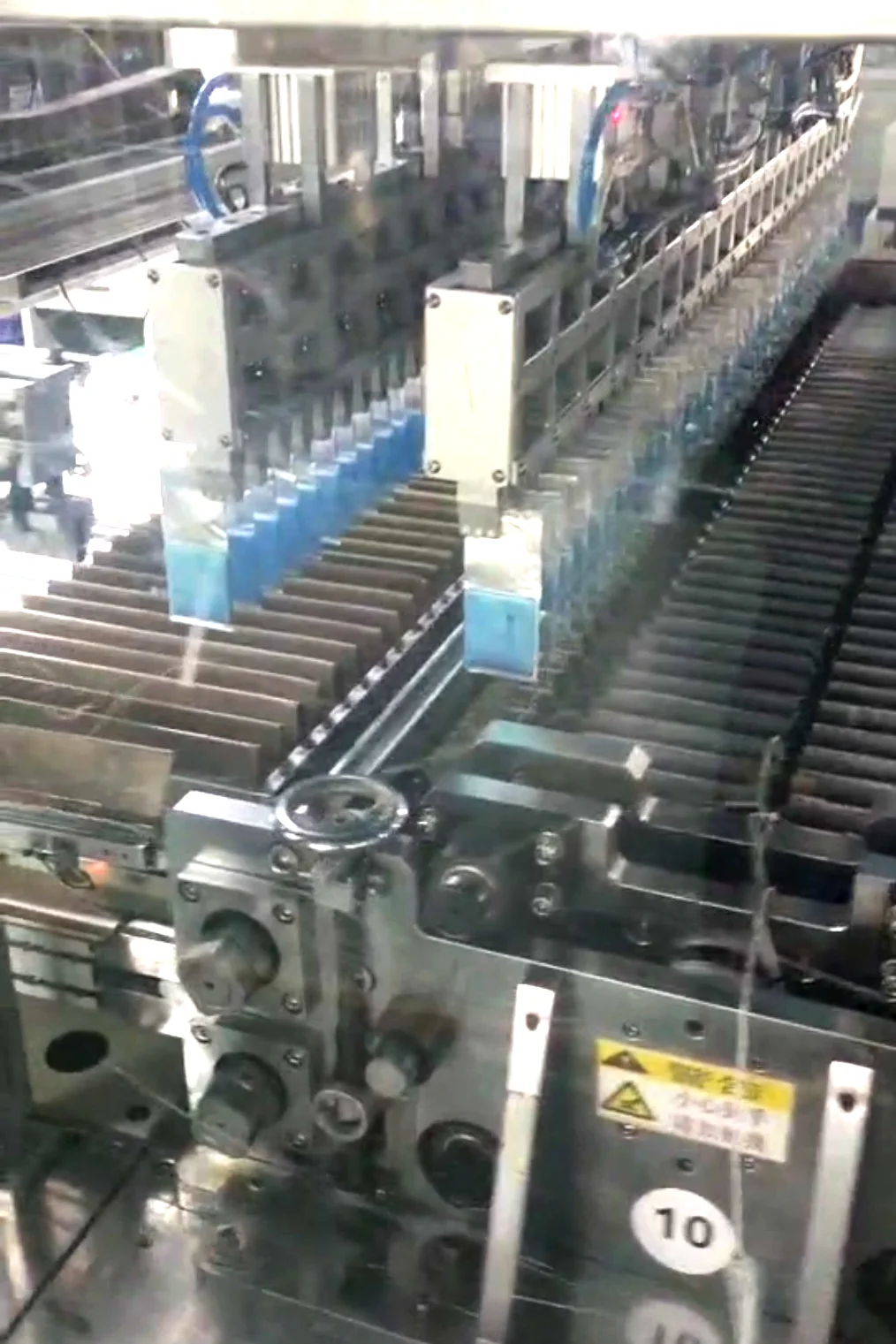

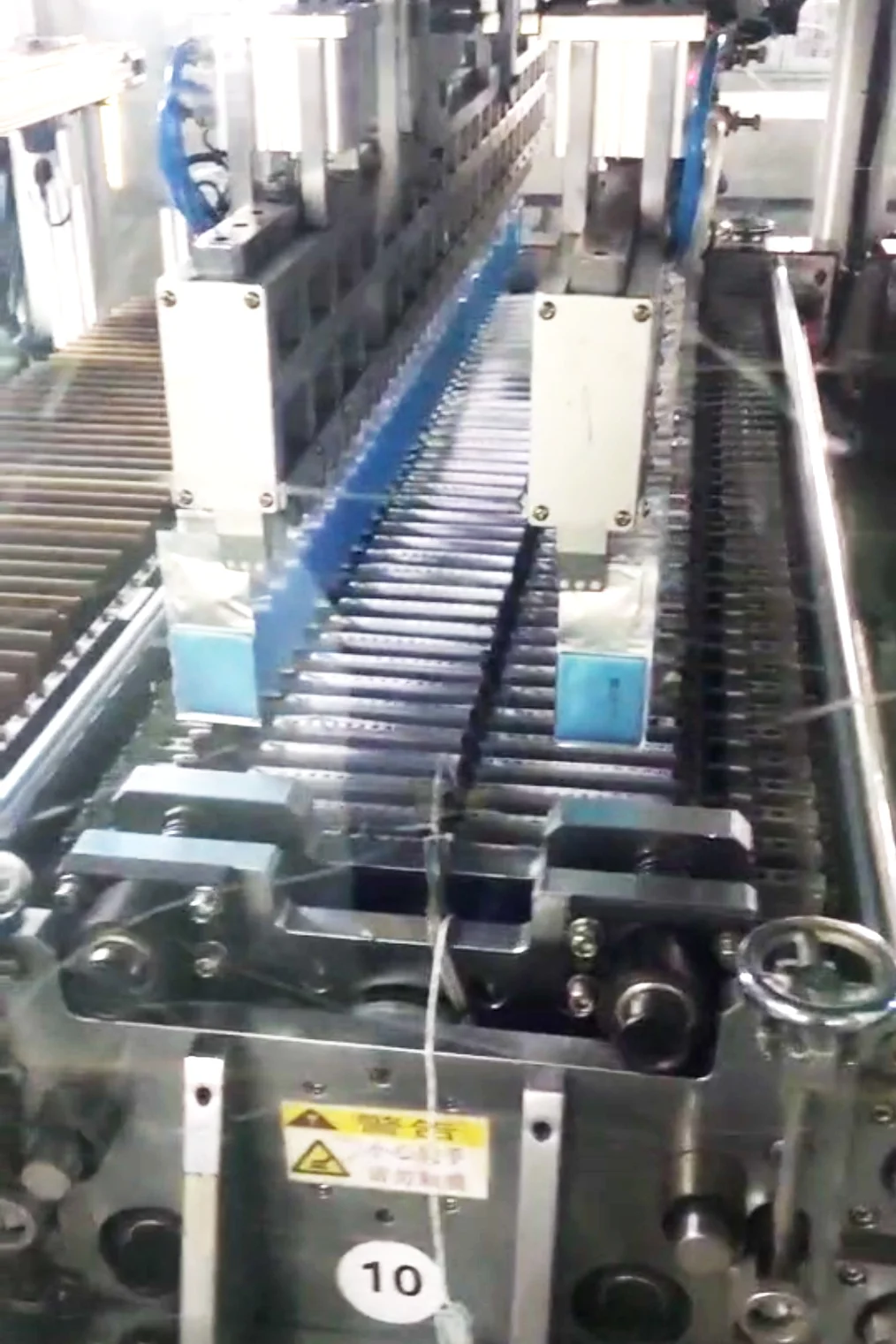

Integrated formation & grading machine is mainly used for the high-temperature pressing formation and grading process of li-ion cell. The formation process is in heating and pressing condition with adjustable pressure to improve the performance of cell and shorten the battery production cycle: after the formation process, the robotics will transfer the cells to grading JIG. The grading JIG adopts constant temperature control, and the temperature consistency is within 2 ℃. which solves the problem of uneven heat dissipation of the battery during the grading process. The grading adopts pressing and constant temperature charging and discharging modes to improve the efficiency. reduce the number of battery handling. increase the qualification rate. and improve battery quality.
Efficient stability
Adopting robot up and down batteries, with strong mobility and high stability;
Compatible with multiple battery types, with high efficiency and easy maintenance.
High performance
Full closed-loop control of pressurization and heating, with temperature uniformity of ± 2 ℃;
High energy recovery rate of 75%.
High security
Full temperature monitoring inside the fixture to prevent battery safety from getting out of control;
Explosion proof and fireproof, equipped with smoke, fire protection and other protective functions.
Efficient integration

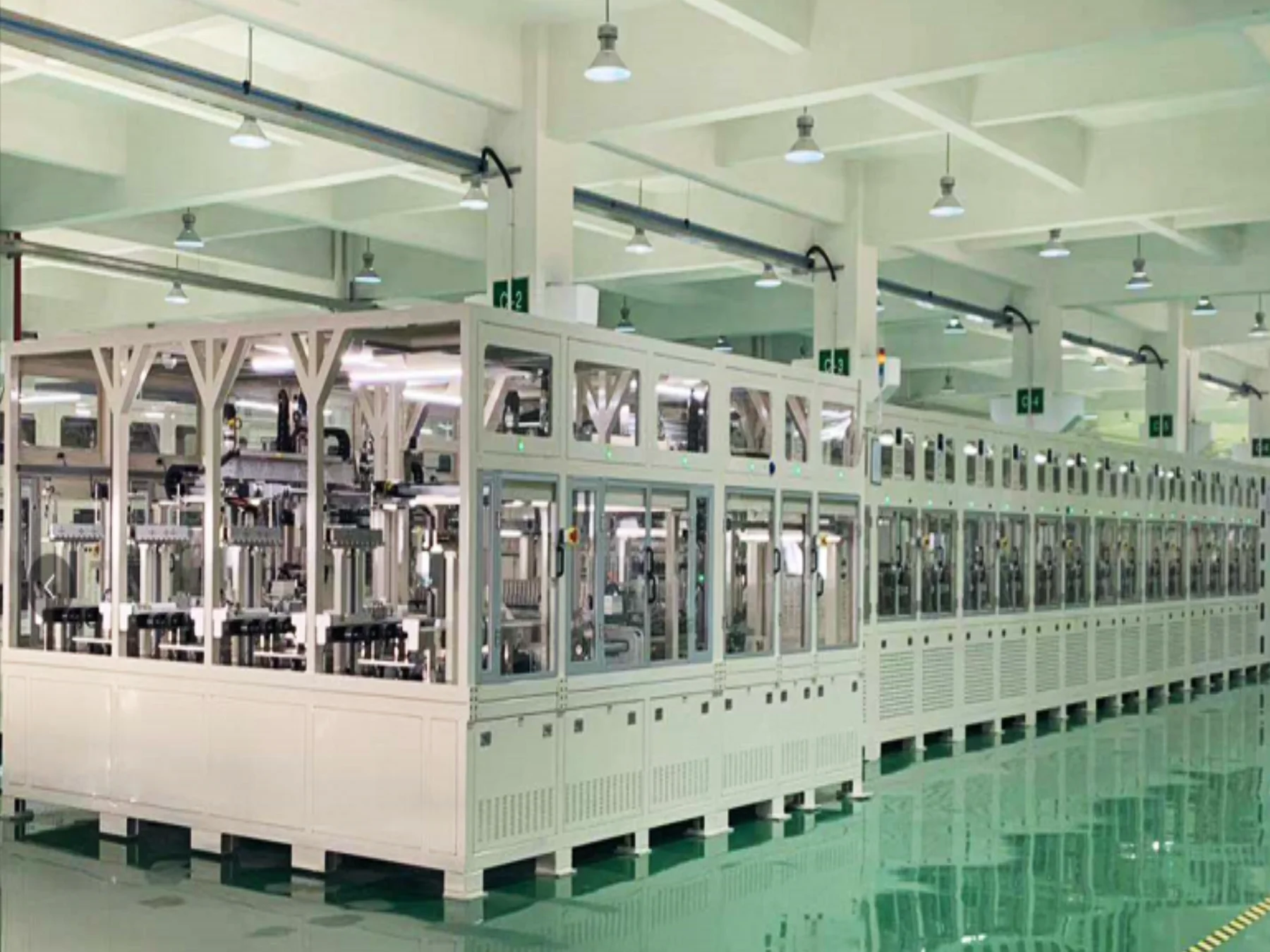

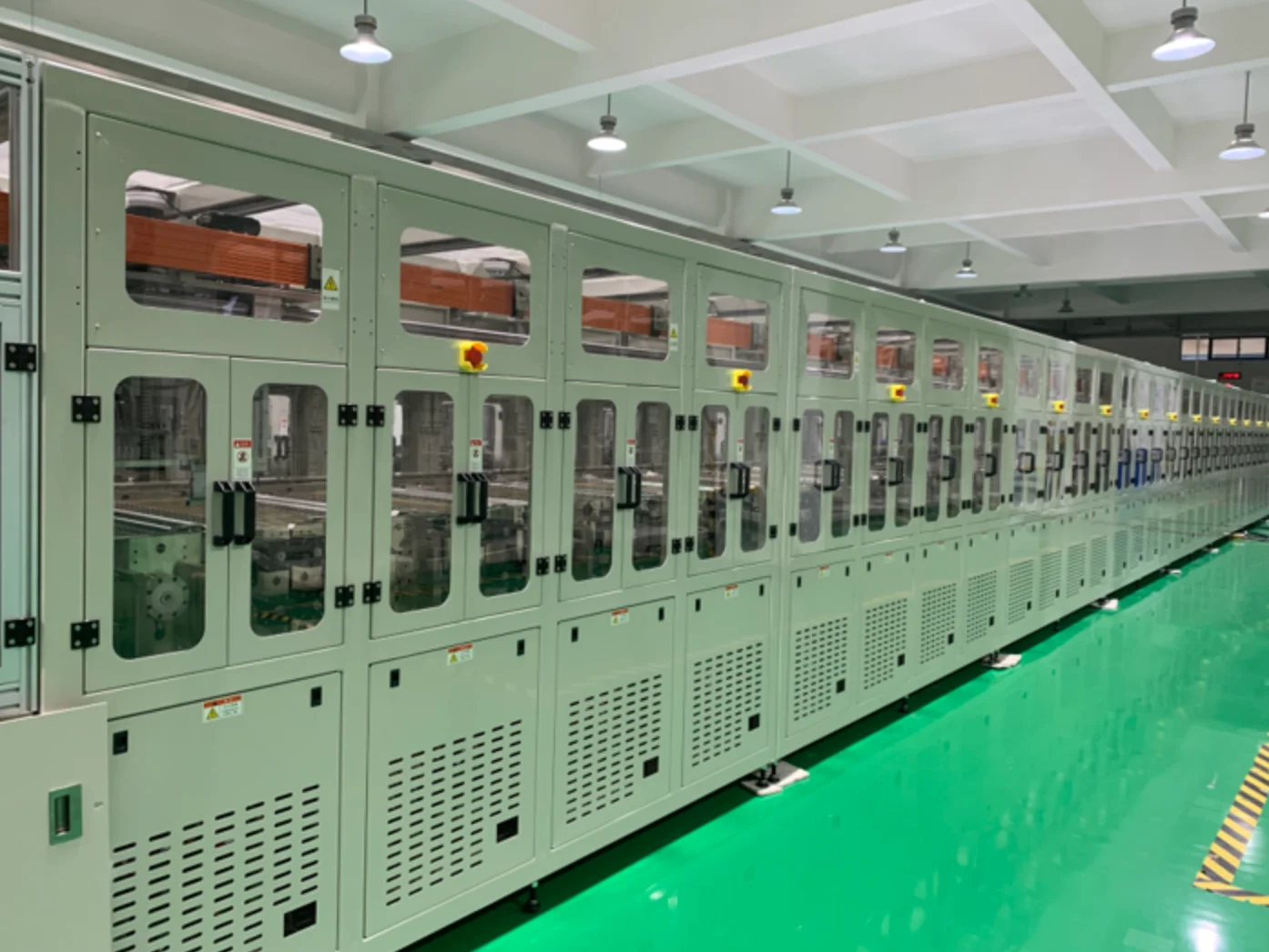

The equipment adopts a stacking method and occupies a small area;
Centralized equipment layout, convenient personnel management and maintenance.
Efficient stability
Adopting robot up and down batteries, with strong mobility and high stability;
Compatible with multiple battery types, with high efficiency and easy maintenance.
High performance
Full closed-loop control of pressurization and heating, with temperature uniformity of ± 2 ℃;
High energy recovery rate of 75%.
High security
Full temperature monitoring inside the fixture to prevent battery safety from getting out of control;
Explosion proof and fireproof, equipped with smoke, fire protection and other protective functions.
Efficient integration
The equipment adopts a stacking method and occupies a small area;
Centralized equipment layout, convenient personnel management and maintenance.
Item | Parameters |
Battery type | Soft pack/solid state |
Preheating / cooling JIG | 3 |
Formation JIG (high temperature) | 13 |
Grading JIG (constant temperature) | 39 |
Channel JIG | 36 (40) Channel/JIG |
Cell type | Bidirectional battery |
Tack time | 10ppm (1 unit) |
Process time | Preheating: 2min, formation: 45min, grading: 135min |
Pressure (kgf) | 200-5000Kgf (below 1000kgf accuracy± 30kgf / above 1000kgf accuracy± 2%) |
Temperature range and accuracy of preheating JIG (℃) | Room temperature~110 ℃/accuracy ± 1 ℃ |
Formation temperature range and accuracy (℃) | Room temperature~90 ℃/accuracy ± 2 ℃ |
Grading temperature range and accuracy (℃) | 20~30 ℃/accuracy ± 2 ℃ |
Temperature control method | Electric heating/water control/air cooling |
Voltage range and accuracy | 0-5V/± 1mV |
Current range and accuracy | 30 ~150A/±0.1％FS |
Charge & discharge Mode | CCC、CVC、CCD、CVD、Reset |
Fire prevention measures | Smoke sensor+PT100+Novec1230 |
External communication interface | Ethernet, RS485 |
Certification | UL. CE |
